Samsung SGH-D880 User manual

GSM TELEPHONE
SGH-D880
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts List
6. Main Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Flow Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
Instructions

Samsung Electronics Co.,Ltd.
2007. 11 Rev.1.0
ⓒ
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast & Africa mea.samsungportal.com
GSPN (Global Service Partner Network)

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test, because specificity of cellular phone is sensitive for
surrounding interference(RF noise).
●Be careful to use a kind of magnetic object or tool, because performance of parts is
damaged by the influence of magnetic force.
●Surely use a standard screwdriver when you disassemble this product, otherwise screw will
be worn away.
●Use a thicken twisted wire when you measure level.
A thicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because a repair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembling charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. , otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or a circuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
This Document can not be used without Samsung's authorization
2-1
GSM900
Phase 1 EGSM 900 Phase 2 DCS1800 Phase 1 PCS1900
Freq. Band[MHz]
Uplink/Downlink 890~915 935~960 880~915 925~960 1710~1785 1805~1880 1850~1910 1930~1990
ARFCN range 1~124 0~124 &
975~1023 512~885 512~810
Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz
Mod. Bit rate
/BitPeriod 270.833kbps 3.692us 270.833kbps 3.692us 270.833kbps 3.692us 270.833kbps 3.692us
Time Slot Period
/ Frame Period 576.9us 4.615ms 576.9us 4.615ms 576.9us 4.615ms 576.9us 4.615ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm
Power Class 5pcl ~ 19pcl 5pcl ~ 19pcl 0pcl ~ 15pcl 0pcl ~ 15pcl
Sensitivity -102dBm -102dBm -100dBm -100dBm
TDMA Mux 8 8 8 8
Cell Radius 35Km 35Km 2Km
2-1. GSM General Specification
*PCS1900 only in Master

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
2-2
TX Power
control level PCS1900
030±2dBm
128±3dBm
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level DCS1800
030±2dBm
128±3dBm
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level GSM900
GSM850
533±2dBm
631±3dBm
729±3dBm
827±3dBm
925±3dBm
10 23±3 dBm
11 21±3 dBm
12 19±3 dBm
13 17±3 dBm
14 15±3 dBm
15 13±3 dBm
16 11±5 dBm
17 9±5 dBm
18 7±5 dBm
19 5±5 dBm
2-2. GSM TX power class
*PCS1900 only in Master

SAMSUNG Proprietary-Contents may change without notice
Specification
This Document can not be used without Samsung's authorization
2-3
TX Power
control level GSM900
GSM850
827±3dBm
925±3dBm
10 23±3 dBm
11 21±3 dBm
12 19±3 dBm
13 17±3 dBm
14 15±3 dBm
15 13±3 dBm
16 11±5 dBm
17 9±5 dBm
18 7±5 dBm
19 5±5 dBm
TX Power
control level DCS1800
2 26 -4/+3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 12±3 dBm
9 10±3 dBm
10 14±3 dBm
11 12±4 dBm
12 10±4 dBm
13 8±4dBm
14 6±4 dBm
15 4±4 dBm
2-3. GSM EDGE TX power class
TX Power
control level PCS1900
2 26 -4/+3 dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
812±3dBm
910±3dBm
10 14±3 dBm
11 12±4 dBm
12 10±4 dBm
13 8±4dBm
14 6±4 dBm
15 4±4 dBm
Only in Master

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
2-4

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
-Slide Design Intenna
-Dual Standby
-3M AF CMOS Camera
-Bluetooth V.2.0
-Stereo Bluetooth Headset
-Mobile Tracker & SOS Messaging
-Large 2.3" QVGA 262K TFT Display
-EXT. Memory
-SMS/MMS/E-Mail
-WAP 2.0 / Java MIDP 2.0
-MP3,AAC,MP4,3GPPDecoding
-Video Recording and Messaging
-GSM/GPRS/EDGE Class 10
-Band(Master : GSM900, 1800, 1900/ Slave : GSM900, 1800)
-TV-oput, FM radio
-Speaker Phone

SAMSUNG Proprietary-Contents may change without notice
Operation Instruction and Installation
3-2
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization

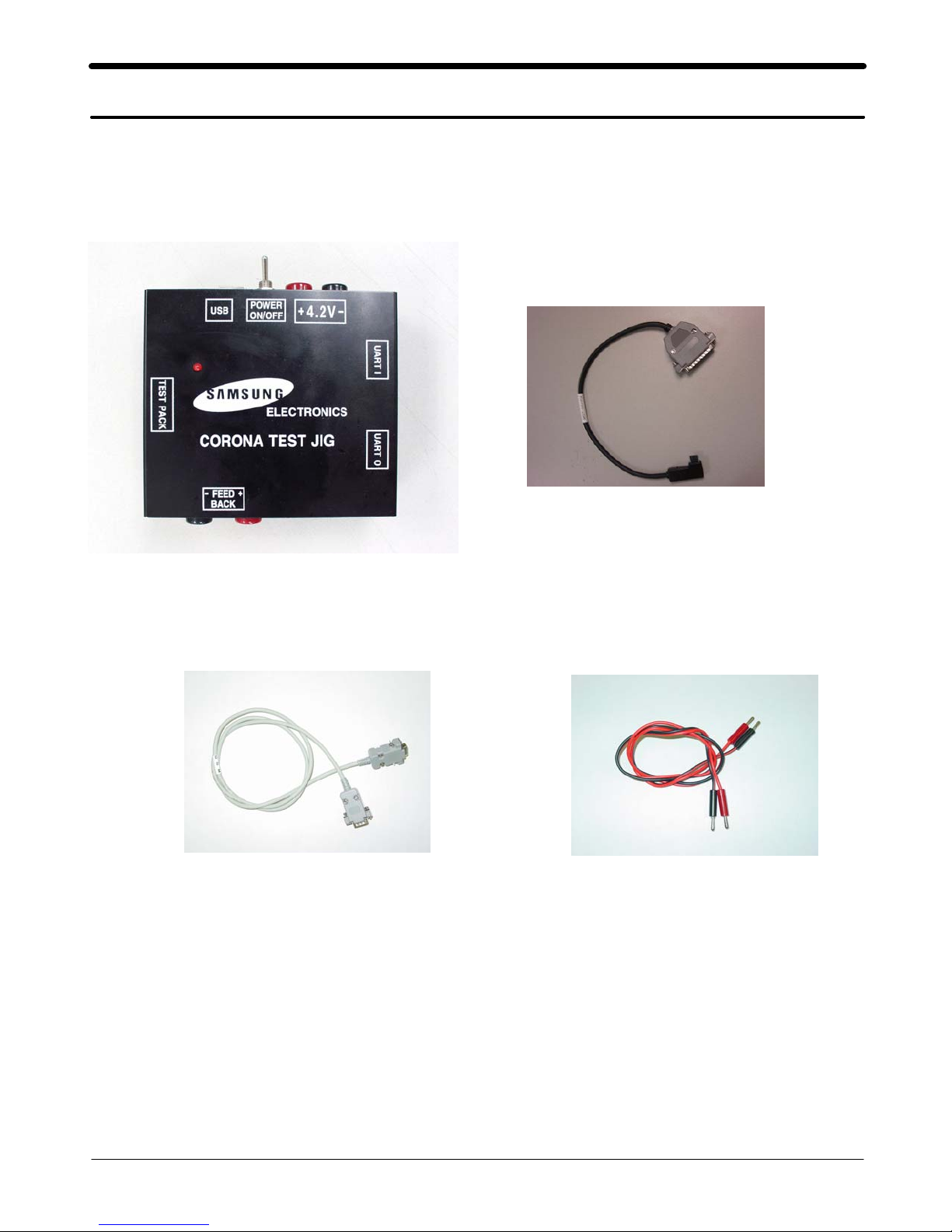

4-1. Software Adjustments
Power Supply Cable
Serial Cable(CSA LL64151-A)
Test Jig (GH80-03306A) GH39-00877A
GH39-00876A
GH39-00875A
GH39-00872A

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Downloading
4-2-1. Pre-requsite for Downloading
• Downloader Program(Gem_Downloader_1GNAND_ARM9+ARM7 v1.0.exe)
• D888 Mobile Phone
• Data Cable
• Binary file, TFS file
4-2-2. S/W Downloader Program
■Load the binary download program by executing the
“Gem_Downloader_1GNAND_ARM9+ARM7 v1.0.exe”
1. Select the download mode you want.
-if Master mode wanted, check ARM9
-if Slave mode wanted, check ARM7
2. Select the connected serial port and the rate of speed
3. Select the check box, the mode you want to download.
- if the binary file wanted, check only 'BIN'
- if the tfs file wanted, check only 'TFS'
- if all the files wanted, check 'BIN+TFS'

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization

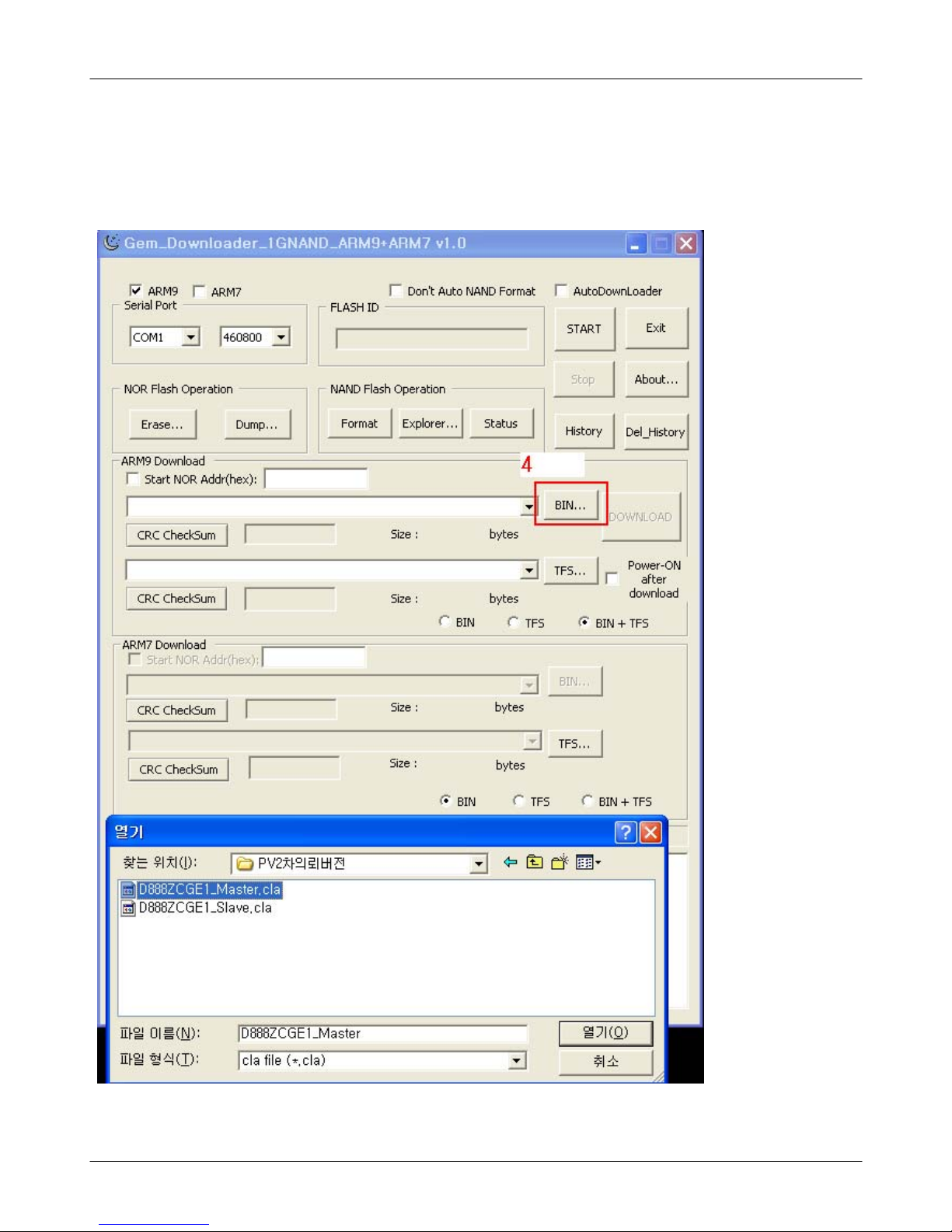

3. Select the file(s) what you want to download
-if you select ARM9, select the file "D888ooooo_Master.ooo"
-if you select ARM7, select the file "D888ooooo_Slave.ooo"

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization

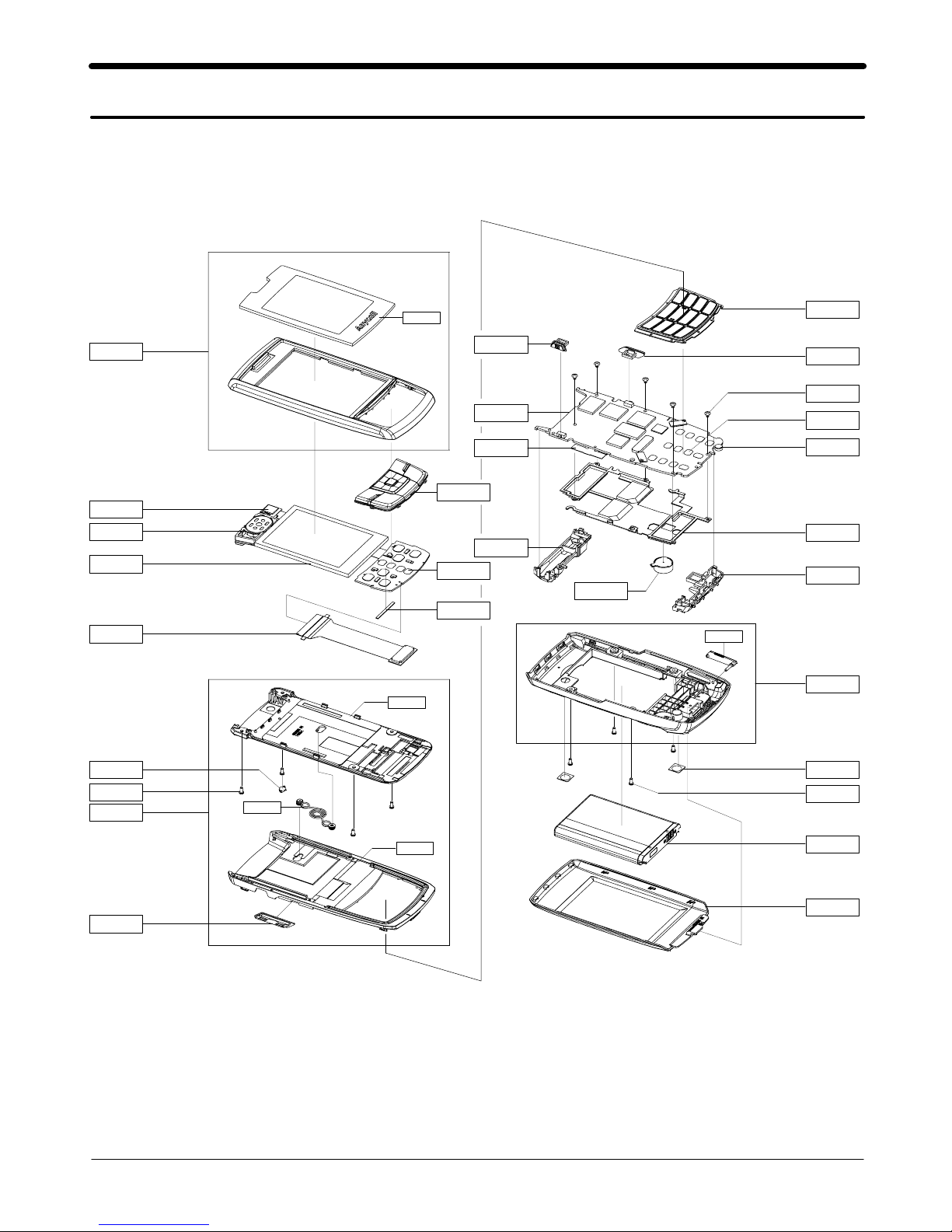

5-1. Cellular phone Exploded View
QFU01
QRE01
QSP01
QLC01
QCK02
QMP01
QVK01
QMO01
QAN03
QPC01
QFR01
QVO01
QCR58
QSC05
QCA01
QKP01
QMI01
QSH01
QRF01
QBA01
QBA00
QCR04
QAN02
QME01
QCR58
QCK01
QVK09
QKP02
QME02
QFL01
QFR02
QMW01
QRF03
QHI01

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QAN02 INTENNA-SGHD888 MASTER GH42-01277A
QAN03 INTENNA-SGHD888 SLAVE GH42-01278A
QBA00 PMO COVER-BATT GH72-43208A
QBA01 INNER BATTERY PACK-1200MAH,BLK GH43-02570A
QCA01 CAMERA MODULE GH59-04686A
QCK01 PMO KEY-CAMERA GH72-42702A
QCK02 PMO KEY-SWITCH GH72-42704B
QCR04 SCREW-MACHINE 6001-001479
QCR58 SCREW-MACHINE 6001-001870
QCR58 SCREW-MACHINE 6001-001870
QKP01 ASSY KEYPAD-MAIN(SER/BLK) GH98-06250A
QKP02 ASSY KEYPAD-SUB(EU/BLK) GH98-06251A
QLC01 ELA ETC-SGHD888 LCD MODULE GH96-02740A
QME01 DOME SHEET-DOME SHEET 12KEY(MA GH59-04694A
QME02 DOME SHEET-DOME SHEET 10KEY(SU GH59-04695A
QMI01 MICROPHONE-ASSY-SGHD888 GH30-00400A
QMO01 MOTOR DC GH31-00303A
QMP01 PBA MAIN-SGHD880 GH92-03970A
QPC01 MEA-SLIDER FPCB KIT(D880) GH97-08361A
QRF01 TAPE-RF COVER GH74-34624B
QSC05 RMO COVER-LOWER SCREW L GH73-10853A
QSH01 ASSY COVER-SHIELD CAN GH98-05452A
QSP01 ASSY ETC-MODULE SPEAKER GH59-04744A
QVK01 KEY FPCB-VOLUME 2KEY GH59-05174A
QVK09 FPC-SINGLE SIDE FPC(D888) GH41-01987A
QVO01 PMO KEY-VOL GH72-42703A
QRE01 ASSY CASE-REAR GH98-05698A
QRF03 PMO COVER-EAR IF GH72-42701B
QFU01 ASSY CASE-UPPER GH98-06403A
QMW01 ASSY COVER-MAIN WINODW(SER) GH98-07047A
5-2. Cellular phone Parts List

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-3
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QFR01 ASSY CASE-FRONT SLIDE LOWER GH98-06450B
QFL01 ASSY CASE-LOWER GH98-05430B
QFR02 ASSY CASE-FRONT GH98-05429B
QHI01 ASSY HINGE-MULTI TORSION SPRIN GH98-05822A

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-4
This Document can not be used without Samsung's authorization
Description SEC CODE
BAG PE 6902-000634
CBF INTERFACE-DLC APCBS10BBE(S GH39-00922A
ADAPTOR-ATADS10EBE,BLK,EU GH44-01702A
S/W CD-SGHD880 PC LINK CD GH46-00535A
EARPHONE-AAEP405QBE,S20P,EU GH59-05296A
LABEL(P)-UNIT SEAL GH68-00518B
MANUAL-SFC GH68-04336A
LABEL(R)-WATER SOAK GH68-09361A
LABEL(R)-MAIN(SER) GH68-16409A
MANUAL USERS-EU RUSSIAN GH68-16604A
BOX-UNIT(SER) GH69-06063A
CUSHION-CASE(EU) GH69-06065A
TAPE INSU GH74-30410A
TAPE INSU GH74-32729A
TAPE GASK GH74-33529A
TAPE GASK-SUB PCB1 GH74-34627A
TAPE INSU-SUB PCB GH74-34629A
TAPE INSU GH74-34677A
TAPE GASK GH74-34813A
TAPE-REMOVE GH74-35112A
TAPE GASK GH74-35775A
VINYL-BOHO UPPER GH74-36200A
TAPE INSU-PBA GH74-36228A
TAPE-UPPER DOWN GH74-36285A
TAPE GASK-LCD3 GH74-36536A
TAPE GASK-PBA MAIN2 GH74-36537A
TAPE-LCD GH74-36538A
TAPE-FPCB GH74-36539A
VINYL-BOHO SUB KEY GH74-36626A
SPONGE GH74-36646A
TAPE-SPK DECO GH74-36658A

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description STATUS
0403-001547 D400 DIODE-ZENER SA
0403-001547 D602 DIODE-ZENER SA
0406-001200 D300 DIODE-TVS SA
0406-001203 D621 DIODE-TVS SA
0406-001208 ZD600 DIODE-TVS SA
0406-001208 ZD601 DIODE-TVS SA
0406-001223 D500 DIODE-TVS SA
0406-001223 D501 DIODE-TVS SA
0406-001231 D603 DIODE-TVS SA
0406-001231 D607 DIODE-TVS SA
0406-001231 D608 DIODE-TVS SA
0406-001231 D609 DIODE-TVS SA
0406-001231 D611 DIODE-TVS SA
0406-001231 D612 DIODE-TVS SA
0406-001231 D613 DIODE-TVS SA
0406-001231 D617 DIODE-TVS SA
0406-001231 D618 DIODE-TVS SA
0406-001231 D619 DIODE-TVS SA
0406-001231 D620 DIODE-TVS SA
0406-001231 D622 DIODE-TVS SA
0406-001231 D623 DIODE-TVS SA
0406-001231 D624 DIODE-TVS SA
0406-001231 D625 DIODE-TVS SA
0505-002111 Q800 FET-SILICON SA
0505-002111 U307 FET-SILICON SA
0601-002268 LED1 LED SA
0601-002268 LED2 LED SA
0801-003022 U305 IC-CMOS LOGIC SA
0801-003055 U400 IC-CMOS LOGIC SA
1001-001394 U601 IC-ANALOG SWITCH SA
1001-001429 U200 IC-ANALOG MULTIPLEX SA
1001-001429 U201 IC-ANALOG MULTIPLEX SA
1001-001453 U501 IC-ANALOG SWITCH SA
1001-001453 U502 IC-ANALOG SWITCH SA
1001-001453 U505 IC-ANALOG SWITCH SA
1001-001453 U507 IC-ANALOG SWITCH SA
1001-001470 U103 IC-ANALOG SWITCH SA
1001-001470 U500 IC-ANALOG SWITCH SA
1001-001470 U600 IC-ANALOG SWITCH SA
1003-002047 U402 IC-MOTOR DRIVER SA
1009-001020 U403 IC-HALL EFFECT S/W SA
1106-001519 UME400 IC-SRAM SA
1108-000103 UME800 IC-MCP SA
1108-000112 UME300 IC-MCP SA
1201-002147 U303 IC-VIDEO AMP SA
1201-002490 PAM700 IC-POWER AMP SA
1201-002492 U506 IC-AUDIO AMP SA
1201-002576 PAM100 IC-POWER AMP SA
1203-004382 UPL400 IC-POWER SUPERVISOR SA
1203-004550 UPL800 IC-POWER SUPERVISOR SA
1203-004763 U603 IC-VOL. DETECTOR SA
1203-004792 U203 IC-POSI.FIXED REG. SA
1203-004792 U401 IC-POSI.FIXED REG. SA

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description STATUS
1203-004792 U503 IC-POSI.FIXED REG. SA
1203-004793 U302 IC-POSI.FIXED REG. SA
1203-004802 U300 IC-POSI.FIXED REG. SA
1203-004806 U301 IC-POSI.FIXED REG. SA
1203-004806 U306 IC-POSI.FIXED REG. SA
1203-004807 U102 IC-POSI.FIXED REG. SA
1205-003082 UCP200 IC-COMM. CONTROLLER SA
1205-003192 UCP800 IC-COMM. CONTROLLER SA
1205-003210 U304 IC-CODEC SA
1205-003214 U504 IC-CODEC SA
1205-003216 U101 IC-TRANSCEIVER SA
1205-003278 U700 IC-TRANSCEIVER SA
1205-003283 U104 IC-TRANSCEIVER SA
1404-001221 TH800 THERMISTOR-NTC SA
1404-001221 U204 THERMISTOR-NTC SA
1405-001138 V200 VARISTOR SA
1405-001138 V401 VARISTOR SA
1405-001138 V800 VARISTOR SA
2007-000070 R624 R-CHIP SA
2007-000138 C830 R-CHIP SA
2007-000138 C831 R-CHIP SA
2007-000140 R107 R-CHIP SA
2007-000140 R236 R-CHIP SA
2007-000140 R330 R-CHIP SA
2007-000140 R441 R-CHIP SA
2007-000140 R841 R-CHIP SA
2007-000141 R319 R-CHIP SA
2007-000141 R320 R-CHIP SA
2007-000141 R431 R-CHIP SA
2007-000141 R832 R-CHIP SA
2007-000141 R834 R-CHIP SA
2007-000143 R110 R-CHIP SA
2007-000143 R315 R-CHIP SA
2007-000143 R703 R-CHIP SA
2007-000143 R723 R-CHIP SA
2007-000143 R724 R-CHIP SA
2007-000143 R725 R-CHIP SA
2007-000143 R726 R-CHIP SA
2007-000143 R840 R-CHIP SA
2007-000148 R100 R-CHIP SA
2007-000148 R108 R-CHIP SA
2007-000148 R204 R-CHIP SA
2007-000148 R205 R-CHIP SA
2007-000148 R214 R-CHIP SA
2007-000148 R216 R-CHIP SA
2007-000148 R228 R-CHIP SA
2007-000148 R239 R-CHIP SA
2007-000148 R246 R-CHIP SA
2007-000148 R251 R-CHIP SA
2007-000148 R256 R-CHIP SA
2007-000148 R444 R-CHIP SA
2007-000148 R506 R-CHIP SA
2007-000148 R507 R-CHIP SA
