Samsung SGH-D980 User manual

1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts list
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Chart of Troubleshooting
10. Reference data

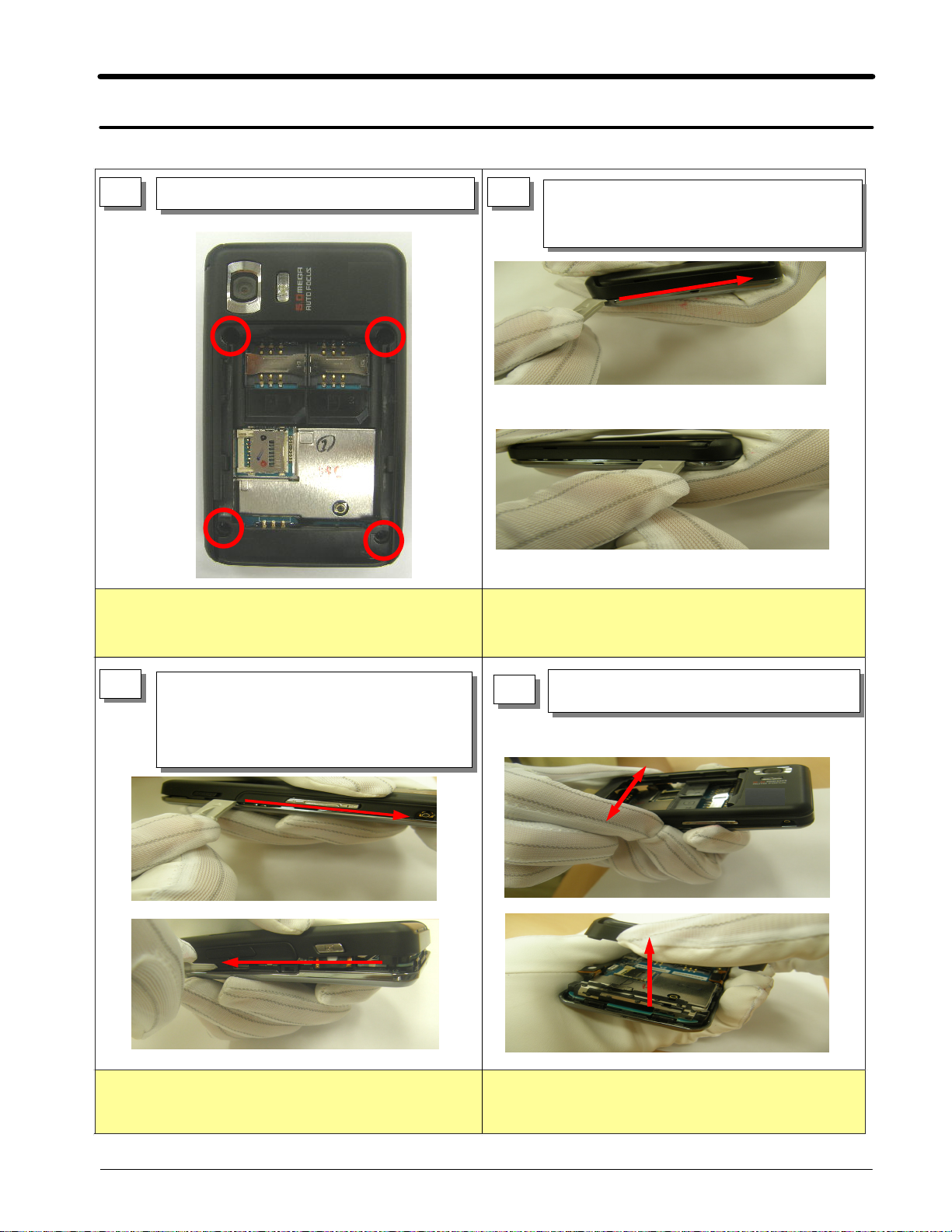

11. Disassembly and Assembly
Instructions
GSM TELEPHONE
SGH-D980
Notice :
All functionality, features, specifications and other
product information provided in this document inclu
ding, but not limited to, the benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice or obligation. Samsung reserves the right to
make changes to this document and the product
described herein, at anytime, without obligation on
Samsung to provide notification of such change.
GSM TELEPHONE CONTENTS

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test, because specificity of cellular phone is sensitive for
surrounding interference(RF noise).
●Be careful to use akind of magnetic object or tool, because performance of parts is
damaged by the influence of magnetic force.
●Surely use astandard screwdriver when you disassemble this product, otherwise screw will
be worn away.
●Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because arepair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembling charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
This Document can not be used without Samsung's authorization
2-1
GSM900
Phase 1
EGSM 900
Phase 2
DCS1800
Phase 1 PCS1900
Freq. Band[MHz]
Uplink/Downlink
890~915
935~960
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range 1~124 0~124 &
975~1023 512~885 512~810
Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz
Mod. Bit rate
/BitPeriod
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
Time Slot Period
/ Frame Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm
Power Class 5pcl ~ 19pcl 5pcl ~19
pcl 0pcl ~15 pcl 0pcl ~15 pcl
Sensitivity -102dBm -102dBm -100dBm -100dBm
TDMA Mux 8 8 8 8
Cell Radius 35Km 35Km 2Km
2-1. GSM General Specification

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
2-2
TX Power
control level PCS1900
030±2
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level DCS1800
030±2
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level
GSM900
GSM850
533±2
dBm
631±3
dBm
729±3
dBm
827±3
dBm
925±3
dBm
10 23±3 dBm
11 21±3 dBm
12 19±3 dBm
13 17±3 dBm
14 15±3 dBm
15 13±3 dBm
16 11±5 dBm
17 9±5 dBm
18 7±5 dBm
19 5±5 dBm
2-2. GSM TX power class

SAMSUNG Proprietary-Contents may change without notice
Specification
This Document can not be used without Samsung's authorization
2-3
TX Power
control level
GSM900
GSM850
827±3
dBm
925±3
dBm
10 23±3 dBm
11 21±3 dBm
12 19±3 dBm
13 17±3 dBm
14 15±3 dBm
15 13±3 dBm
16 11±5 dBm
17 9±5 dBm
18 7±5 dBm
19 5±5 dBm
TX Power
control level DCS1800
226-4/+3
dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 12±3 dBm
9 10±3 dBm
10 14±3 dBm
11 12±4 dBm
12 10±4 dBm
13 8±4dBm
14 6±4 dBm
15 4±4 dBm
2-3. GSM EDGE TX power class
TX Power
control level PCS1900
226-4/+3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
812±3
dBm
910±3
dBm
10 14±3 dBm
11 12±4 dBm
12 10±4 dBm
13 8±4dBm
14 6±4 dBm
15 4±4 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
-Dual Standby (Dual TX, Dual RX)
-5M AF CMOS Camera
-Bluetooth V.2.0
-Stereo Bluetooth Headset
-2.6" 262K QVGA TFT with WTSP
-EXT. Memory
-SMS/MMS/E-Mail
-WAP 2.0 / Java MIDP 2.0
-MP3, AAC, MP4, 3GPP Decoding
-Video Recording and Messaging
-GSM/GPRS/EDGE Class 10
-Triple Band(Master/Slave :GSM900, 1800, 1900)
-FM radio

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization

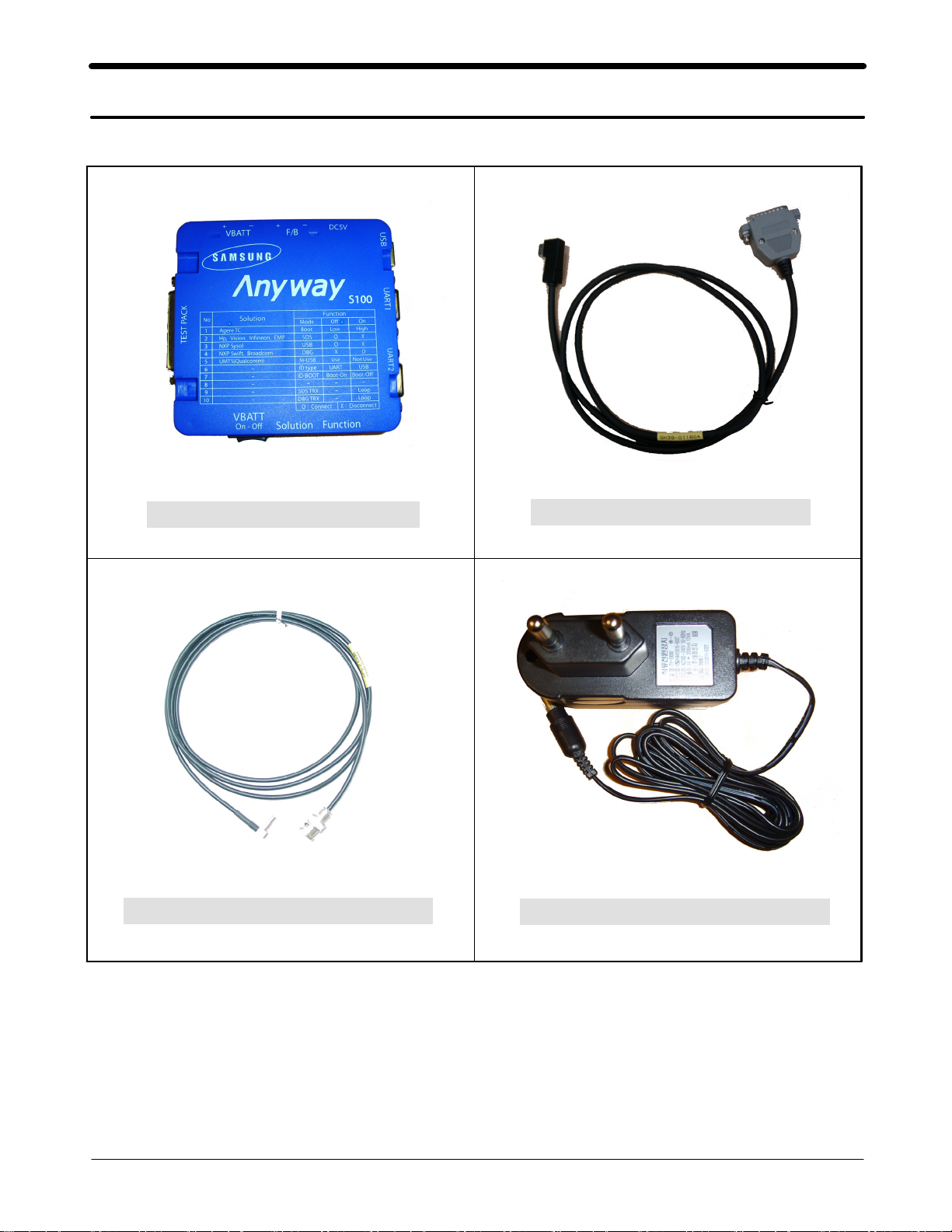

4-1. Software Adjustments
Test Cable (GH39-01160A)
Test Jig (GH99-36900A)
RF Test Cable (GH39-01171A) Adapter (GH99-38251A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Downloading
4-2-1. Pre-requsite for Downloading
•Downloader Program(ISIS_DLV0.94.exe)
•D980 Mobile Phone
•Data Cable
•Binary file, TFS file
4-2-2. S/W Downloader Program
■Load the binary download program by executing the
“ISIS_DLV0.94.exe”
1. Select the download mode you want.
-if Master mode wanted, check MASTER
-if Slave mode wanted, check SLAVE
2.Select the connected serial Port and the Rate of speed
3.Select the check box, the mode you want to download.
-if the binary file wanted, check only 'BIN'
-if the tfs file wanted, check only 'TFS'
-if all the files wanted, check 'BIN+TFS'
①②
③
③

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
4.Select the file(s) what you want to download
-if you select MASTER,select the file "D980ZM_Master.ooo"
-if you select SLAVE,select the file "D980ZM_Slave.ooo"

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization
5-1. Cellular phone Exploded View
QME03
QMP01
QVK01
QSH01
QCA01
QAN02
QRF01
QST01
QSP01
QCR58
QIF01
QCK02
QKP01
QME01
QLC01
QLB01
QSH03
QCR05
QCR60
QCA02
QSH04
QAN03
QRE01
QBA01
QBA00
QMO01
QFR01
QVO01
QCK01

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QAN02 INTENNA-SGH-P788 GH42-01559A
QAN03 INTENNA-SLAVE INTENNA GH42-01560A
QBA00 PMO COVER-BATT(TIY) GH72-47816A
QBA01 INNER BATTERY PACK-1200MAH,BLK GH43-02570A
QCA01 CAMERA MODULE-SGH D988 GH59-06606A
QCA02 KEY FPCB-CAMERA KEY GH59-05662A
QCR05 SCREW-MACHINE 6001-001478
QCR58 SCREW-MACHINE 6001-001870
QCR60 SCREW-MACHINE 6001-002005
QFR01 ASSY CASE-FRONT(CMCC/SILVER) GH98-08874A
QKP01 ASSY KEYPAD-(EU/SILVER) GH98-09906A
QLB01 ASSY BRACKET-(TIY/BLK) GH98-08378A
QLC01 LCD-SGH P788MODULE GH07-01301A
QME01 KEY FPCB-KEY PBA(P788) GH59-05809A
QME03 UNIT-TOUCHPANNEL(CIS) GH59-05808B
QMO01 MOTOR LINEAR VIBRATION-SCHW299 GH31-00441A
QMP01 A/S ASSY-PBA MAIN(SGH-D980 SVC GH82-03283A
QRF01 PMO COVER-RF CAP GH72-47817A
QSH01 ICT SHIELD-CAN SMD GH70-03583A
QSH03 ASSY BRACKET-SHIELD CAN FRONT GH98-08998A
QSH04 ASSY BRACKET-SHIELD CAN REAR GH98-08996A
QSP01 SPEAKER 3001-002362
QST01 ASSY ACCE-STYLUS PEN GH98-08409A
QVK01 KEY FPCB-SIDE VOLUME KEY GH59-05663A
QRE01 ASSY CASE-REAR(EU) GH98-09993A
QCK01 PMO KEY-CAMERA GH72-47831A
QCK02 PMO KEY-HOLD GH72-47829A
QIF01 PMO COVER-IF GH72-47818A
QVO01 PMO KEY-VOLUME GH72-47830A
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Discription
D602,D620,D900 0403-001547 DIODE-ZENER
D400 0404-001172 DIODE-SCHOTTKY
D600 0406-001203 DIODE-TVS
ZD602,ZD603 0406-001267 DIODE-TVS
D401,D500,D501,D603 0406-001279 DIODE-TVS
D605,D610,D611,D613 0406-001279 DIODE-TVS
D615,D618,D622,D623 0406-001279 DIODE-TVS
D901 0406-001279 DIODE-TVS
ZD600,ZD601 0406-001286 DIODE-TVS
D402,D403,D601,D604 0406-001288 DIODE-TVS
D606,D607,D609,D614 0406-001288 DIODE-TVS
D619,D621 0406-001288 DIODE-TVS
Q200 0505-001518 FET-SILICON
Q300,Q900 0505-002111 FET-SILICON
U301,U800 0801-003022 IC
U103 0801-003024 IC
U400 0801-003055 IC
U602 1001-001394 IC
U201,U202,U601 1001-001429 IC
U500 1001-001453 IC
U100,U501,U504 1001-001470 IC
U303 1001-001472 IC
U403 1003-002047 IC
UME800 1108-000099 MEMORY
UME300 1108-000112 MEMORY
PAM100,PAM700 1201-002423 IC
U600 1203-004763 IC
U404,U410,U411 1203-004792 IC
U409 1203-004793 IC
U406,U407,U408 1203-004806 IC
U405 1203-004807 IC
U402 1203-004857 IC
U306 1203-005069 IC
UPL400,UPL900 1203-005072 IC
U302,U305 1203-005074 IC
U401 1203-005227 IC

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Discription
U104 1204-002700 IC
UCP200,UCP800 1205-003082 IC
U102,U700 1205-003283 IC
U502 1205-003288 IC
U101 1205-003419 IC
V201 1404-001221 THERMISTOR
V200,V401,V800,V900 1405-001121 VARISTOR
V400 1405-001138 VARISTOR
R102,R210,R212,R300 2007-000138 R-CHIP
R316,R602,R608 2007-000138 R-CHIP
R103,R223,R701,R814 2007-000140 R-CHIP
R308,R309,R415,R904 2007-000141 R-CHIP
R105,R707 2007-000143 R-CHIP
R108,R201,R202,R208 2007-000148 R-CHIP
R217,R221,R224,R231 2007-000148 R-CHIP
R286,R333,R339,R502 2007-000148 R-CHIP
R503,R807,R815,R823 2007-000148 R-CHIP
R825,R826 2007-000148 R-CHIP
R256 2007-000152 R-CHIP
R317,R318,R319,R321 2007-000159 R-CHIP
R116,R203,R292,R303 2007-000162 R-CHIP
R305,R306,R307,R311 2007-000162 R-CHIP
R335,R403,R404,R405 2007-000162 R-CHIP
R406,R407,R408,R409 2007-000162 R-CHIP
R411,R413,R416,R465 2007-000162 R-CHIP
R504,R600,R610,R617 2007-000162 R-CHIP
R618,R818,R819,R820 2007-000162 R-CHIP
R905,R907 2007-000162 R-CHIP
R329 2007-000165 R-CHIP
R330 2007-000166 R-CHIP
R310,R325,R326,R327 2007-000170 R-CHIP
R328 2007-000170 R-CHIP
R106,R110,R125,R324 2007-000171 R-CHIP
R331,R334,R336,R337 2007-000171 R-CHIP
R338,R410,R412,R428 2007-000171 R-CHIP
R429,R431,R432,R433 2007-000171 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-3
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Discription
R434,R435,R436,R462 2007-000171 R-CHIP
R509,R603,R620,R621 2007-000171 R-CHIP
R622,R700,R906,R910 2007-000171 R-CHIP
R911,U801 2007-000171 R-CHIP
R304 2007-000173 R-CHIP
R322,R323 2007-000242 R-CHIP
R464 2007-000566 R-CHIP
R908 2007-000636 R-CHIP
R209,R222,R418,R808 2007-000758 R-CHIP
R813,R909 2007-000758 R-CHIP
R313 2007-001156 R-CHIP
R623,R624 2007-001291 R-CHIP
R104,R702 2007-001313 R-CHIP
R225,R227,R816,R817 2007-001319 R-CHIP
R213,R314,R315,R605 2007-001333 R-CHIP
R607 2007-001333 R-CHIP
R211 2007-001339 R-CHIP
R601,R604 2007-003010 R-CHIP
R312 2007-007009 R-CHIP
R204 2007-007107 R-CHIP
R500,R505,R510 2007-007137 R-CHIP
R501,R506 2007-007141 R-CHIP
R611,R619 2007-007142 R-CHIP
R414 2007-007311 R-CHIP
R609 2007-007312 R-CHIP
R332 2007-007316 R-CHIP
R511 2007-007317 R-CHIP
R417,R507,R508 2007-007318 R-CHIP
R612 2007-007334 R-CHIP
R430 2007-007480 R-CHIP
R124 2007-007489 R-CHIP
R400 2007-007573 R-CHIP
R606 2007-007981 R-CHIP
R401 2007-008354 R-CHIP
C108,C110,C129,C412 2203-000233 C-CERAMIC,CHIP
C702,C710 2203-000233 C-CERAMIC,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-4
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Discription
C222,C616,C801,C813 2203-000254 C-CERAMIC,CHIP
C127,C128,C164,C508 2203-000278 C-CERAMIC,CHIP
C509,C709,C711 2203-000278 C-CERAMIC,CHIP
C609 2203-000311 C-CERAMIC,CHIP
C216,C217,C330,C331 2203-000425 C-CERAMIC,CHIP
C414,C422,C603,C611 2203-000425 C-CERAMIC,CHIP
C818,C819 2203-000425 C-CERAMIC,CHIP
C147,C728 2203-000438 C-CERAMIC,CHIP
C438 2203-000714 C-CERAMIC,CHIP
C118,C119,C130,C139 2203-000812 C-CERAMIC,CHIP
C140,C141,C142,C143 2203-000812 C-CERAMIC,CHIP
C203,C205,C224,C228 2203-000812 C-CERAMIC,CHIP
C307,C343,C707,C708 2203-000812 C-CERAMIC,CHIP
C712,C716,C717,C718 2203-000812 C-CERAMIC,CHIP
C719,C720,C800,C805 2203-000812 C-CERAMIC,CHIP
C811,C900 2203-000812 C-CERAMIC,CHIP
C255,C326,C913 2203-000854 C-CERAMIC,CHIP
C333 2203-000940 C-CERAMIC,CHIP
C507,C553,C554,C606 2203-000995 C-CERAMIC,CHIP
C134,C714 2203-001221 C-CERAMIC,CHIP
C613,C615 2203-001239 C-CERAMIC,CHIP
C605 2203-001259 C-CERAMIC,CHIP
C104,C107,C700,C701 2203-001385 C-CERAMIC,CHIP
C604,C610 2203-001437 C-CERAMIC,CHIP
C725 2203-002677 C-CERAMIC,CHIP
C159,C926 2203-002709 C-CERAMIC,CHIP
C111,C113,C703,C704 2203-005050 C-CERAMIC,CHIP
C114,C116,C705,C706 2203-005288 C-CERAMIC,CHIP
C464 2203-005344 C-CERAMIC,CHIP
C132,C715 2203-005395 C-CERAMIC,CHIP
C109,C212,C226,C503 2203-005482 C-CERAMIC,CHIP
C504,C505,C510,C511 2203-005482 C-CERAMIC,CHIP
C518,C520,C802,C803 2203-005482 C-CERAMIC,CHIP
C804,C806,C807,C808 2203-005482 C-CERAMIC,CHIP
C809,C812,C814,C912 2203-005482 C-CERAMIC,CHIP
C121,C558,C559 2203-005496 C-CERAMIC,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-5
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Discription
C528,C529 2203-005993 C-CERAMIC,CHIP
C131,C136,C137,C146 2203-006048 C-CERAMIC,CHIP
C165,C200,C201,C202 2203-006048 C-CERAMIC,CHIP
C204,C206,C207,C208 2203-006048 C-CERAMIC,CHIP
C209,C210,C214,C223 2203-006048 C-CERAMIC,CHIP
C225,C300,C301,C302 2203-006048 C-CERAMIC,CHIP
C303,C304,C306,C313 2203-006048 C-CERAMIC,CHIP
C315,C316,C317,C318 2203-006048 C-CERAMIC,CHIP
C319,C320,C329,C341 2203-006048 C-CERAMIC,CHIP
C342,C345,C346,C400 2203-006048 C-CERAMIC,CHIP
C415,C416,C425,C515 2203-006048 C-CERAMIC,CHIP
C516,C533,C607,C608 2203-006048 C-CERAMIC,CHIP
C612,C617,C713,C723 2203-006048 C-CERAMIC,CHIP
C726,C729 2203-006048 C-CERAMIC,CHIP
C112,C115 2203-006137 C-CERAMIC,CHIP
C310,C322 2203-006208 C-CERAMIC,CHIP
C401,C402,C404,C408 2203-006257 C-CERAMIC,CHIP
C410,C413,C423,C427 2203-006257 C-CERAMIC,CHIP
C428,C429,C901,C903 2203-006257 C-CERAMIC,CHIP
C909,C916,C917,C924 2203-006257 C-CERAMIC,CHIP
C332 2203-006260 C-CERAMIC,CHIP
C424,C463,C925 2203-006324 C-CERAMIC,CHIP
C419,C421 2203-006348 C-CERAMIC,CHIP
C430,C935 2203-006361 C-CERAMIC,CHIP
C215,C435,C524,C525 2203-006399 C-CERAMIC,CHIP
C620,C625,C626,C627 2203-006399 C-CERAMIC,CHIP
C628,C633 2203-006399 C-CERAMIC,CHIP
C431 2203-006474 C-CERAMIC,CHIP
C145,C211,C213,C305 2203-006562 C-CERAMIC,CHIP
C308,C324,C325,C334 2203-006562 C-CERAMIC,CHIP
C417,C418,C465,C521 2203-006562 C-CERAMIC,CHIP
C538,C539,C721,C810 2203-006562 C-CERAMIC,CHIP
C817 2203-006562 C-CERAMIC,CHIP
C556,C815,C816 2203-006681 C-CERAMIC,CHIP
C312,C323,C403,C409 2203-006824 C-CERAMIC,CHIP
C411,C426,C902,C911 2203-006824 C-CERAMIC,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-6
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Discription
C915 2203-006824 C-CERAMIC,CHIP
C321,C406,C908 2203-006825 C-CERAMIC,CHIP
C536,C537,C557 2203-006838 C-CERAMIC,CHIP
C405,C407,C444,C445 2203-006841 C-CERAMIC,CHIP
C446,C447,C448,C449 2203-006841 C-CERAMIC,CHIP
C450,C451,C452,C453 2203-006841 C-CERAMIC,CHIP
C454,C455,C456,C457 2203-006841 C-CERAMIC,CHIP
C466,C467 2203-006841 C-CERAMIC,CHIP
C166 2203-006842 C-CERAMIC,CHIP
C158,C160,C161,C167 2203-006872 C-CERAMIC,CHIP
C314,C462 2203-006872 C-CERAMIC,CHIP
C934 2203-007147 C-CERAMIC,CHIP
TA502,TA507 2404-001225 C-TA,CHIP
TA300,TA400,TA900 2404-001381 C-TA,CHIP
TA500,TA501 2404-001414 C-TA,CHIP
TA506 2404-001430 C-TA,CHIP
TA100 2404-001496 C-TA,CHIP
TA600,TA700 2404-001506 C-TA,CHIP
L301 2703-001231 INDUCTOR-SMD
L113,L710 2703-002170 INDUCTOR-SMD
L103 2703-002201 INDUCTOR-SMD
R703 2703-002203 INDUCTOR-SMD
L104 2703-002267 INDUCTOR-SMD
R704 2703-002281 INDUCTOR-SMD
L515,L516,R107 2703-002313 INDUCTOR-SMD
L101,L700 2703-002314 INDUCTOR-SMD
C163 2703-002368 INDUCTOR-SMD
L107 2703-002543 INDUCTOR-SMD
L108,L709 2703-002558 INDUCTOR-SMD
L110,L711 2703-002586 INDUCTOR-SMD
L704,L707 2703-002608 INDUCTOR-SMD
L102 2703-002636 INDUCTOR-SMD
L402 2703-002714 INDUCTOR-SMD
L400,L903 2703-003290 INDUCTOR-SMD
L300,L305 2703-003292 INDUCTOR-SMD
L404 2703-003331 INDUCTOR-SMD

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-7
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Discription
OSC400 2801-004466 CRYSTAL-UNIT
OSC100,OSC700 2801-004587 CRYSTAL-UNIT
OSC300 2801-004682 CRYSTAL-UNIT
F601,F602 2901-001462 FILTER-EMI SMD
F600,F603 2901-001463 FILTER-EMI SMD
F102 2909-001279 FILTER-DUPLEXER
F101,F700 2911-000087 FILTER
L503,L504,L505,L506 3301-001438 CORE-FERRITE BEAD
L507,L508,L512,L514 3301-001438 CORE-FERRITE BEAD
L106,L200,L302,L303 3301-001534 CORE-FERRITE BEAD
L304,L500,L501,L502 3301-001534 CORE-FERRITE BEAD
L510,L511,L513,L604 3301-001534 CORE-FERRITE BEAD
L111 3301-001659 CORE-FERRITE BEAD
L517,L518 3301-001876 CORE-FERRITE BEAD
L601,L603 3301-001885 CORE-FERRITE BEAD
TAC600 3408-001132 SWITCH
RFS700 3705-001461 CONNECTOR-COAXIAL
RFS100 3705-001503 CONNECTOR-COAXIAL
ZIF600 3708-001872 CONNECTOR-FPC/FFC/PIC
CD300 3709-001394 CONNECTOR-CARD EDGE
SIM200,SIM900 3709-001447 CONNECTOR-CARD EDGE
IFC600 3710-002499 CONNECTOR-SOCKET
BTC600 3711-006228 CONNECTOR-HEADER
HEA602 3711-006327 CONNECTOR-HEADER
HEA600,HEA603 3711-006663 CONNECTOR-HEADER
BAT400 4302-001181 BATTERY
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's
part list.

SAMSUNG Proprietary-Contents may change without notice
7. Disassembly and Assembly Instructions
7-1
This Document can not be used without Samsung's authorization
1) CAUTION SCRATCH 1) CAUTION SCRATCH
1) CAUTION SCRATCH 1) CAUTION DAMAGE OF REAR/FRONT
1) UNSCREW REAR SCREW 4POINT
11) PUT DISJOINT KNIFE IN MIC SIDE, THEN
PUSH IT FROM LEFR TO RIGHT. DISJOINT
REAR.
2
31) VOLUME KEY SIDE
DISJOINT FROM DOWN TO UP
2) CAMERA KEYA SIDE
DISJOINT FROM DOWN TO UP
41) GRAB THE REAR AND SHAKE IT. SEPARATE
FROM SET
7-1. Disassembly
