Samsung SGH-E340 User manual

GSMTELEPHONE
SGH-E340
GSMTELEPHONECONTENTS
1.Specification
2.Circuit Description
3. ExplodedViews and PartsList
4. ElectricalPartsList
5.BlockDiagrams
6.PCB Diagrams
7. FlowChartofTroubleshooting

Samsung ElectronicsCo.,Ltd.MAY.2005
Printedin Korea.
CodeNo.:GH68-07223A
BASIC.
T
hisServiceManual isa propertyofSamsung ElectronicsCo.,Ltd.
A
nyunauthorized use ofManualcan bepunished underapplicable
I
nternationaland/ordomesticlaw.
ⓒ

SAMSUNG Proprietary-Contents may change without notice
1. Specification
ThisDocumentcan notbe used withoutSamsung'sauthorization
1-1
PCS1900
1850~1910
1930~1990
512~810
80MHz
270.833kbps
3.692us
576.9us
4.615ms
0.3GMSK
30dBm~0dBm
0pcl~15pcl
-100dBm
8
-
1-1.GSMGeneralSpecification
GSM900
Phase 1 EGSM900 Phase 2 DCS1800 Phase 1
Freq.Band[MHz]
Uplink/Downlink890~915 935~960 880~915 925~960 1710~1785 1805~1880
ARFCN range 1~124 0~124 &
975~1023 512~885
Tx/Rx spacing 45MHz45MHz95MHz
Mod.Bitrate
/BitPeriod 270.833kbps 3.692us270.833kbps 3.692us270.833kbps 3.692us
TimeSlotPeriod
/FramePeriod 576.9us 4.615ms576.9us 4.615ms576.9us 4.615ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK
MS Power33dBm~5dBm33dBm~5dBm30dBm~0dBm
PowerClass 5pcl~19pcl5pcl~19pcl0pcl~15pcl
Sensitivity-102dBm-102dBm-100dBm
TDMAMux8 8 8
Cell Radius35Km35Km2Km

SAMSUNG Proprietary-Contents may change without notice
ThisDocumentcan notbe used withoutSamsung'sauthorization
Specification
1-2
TX Power
control levelPCS1900
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
1-2.GSMTXpowerclass
TX Power
control levelDCS1800
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control levelGSM900
5 33±3 dBm
6 31±3 dBm
7 29±3 dBm
8 27±3 dBm
9 25±3 dBm
10 23±3 dBm
11 21±3 dBm
12 19±3 dBm
13 17±3 dBm
14 15±3 dBm
15 13±3 dBm
16 11±5 dBm
17 9±5 dBm
18 7±5 dBm
19 5±5 dBm

SAMSUNG Proprietary-Contents may change without notice
2. Circuit Description
ThisDocumentcan notbe used withoutSamsung'sauthorization
2-1

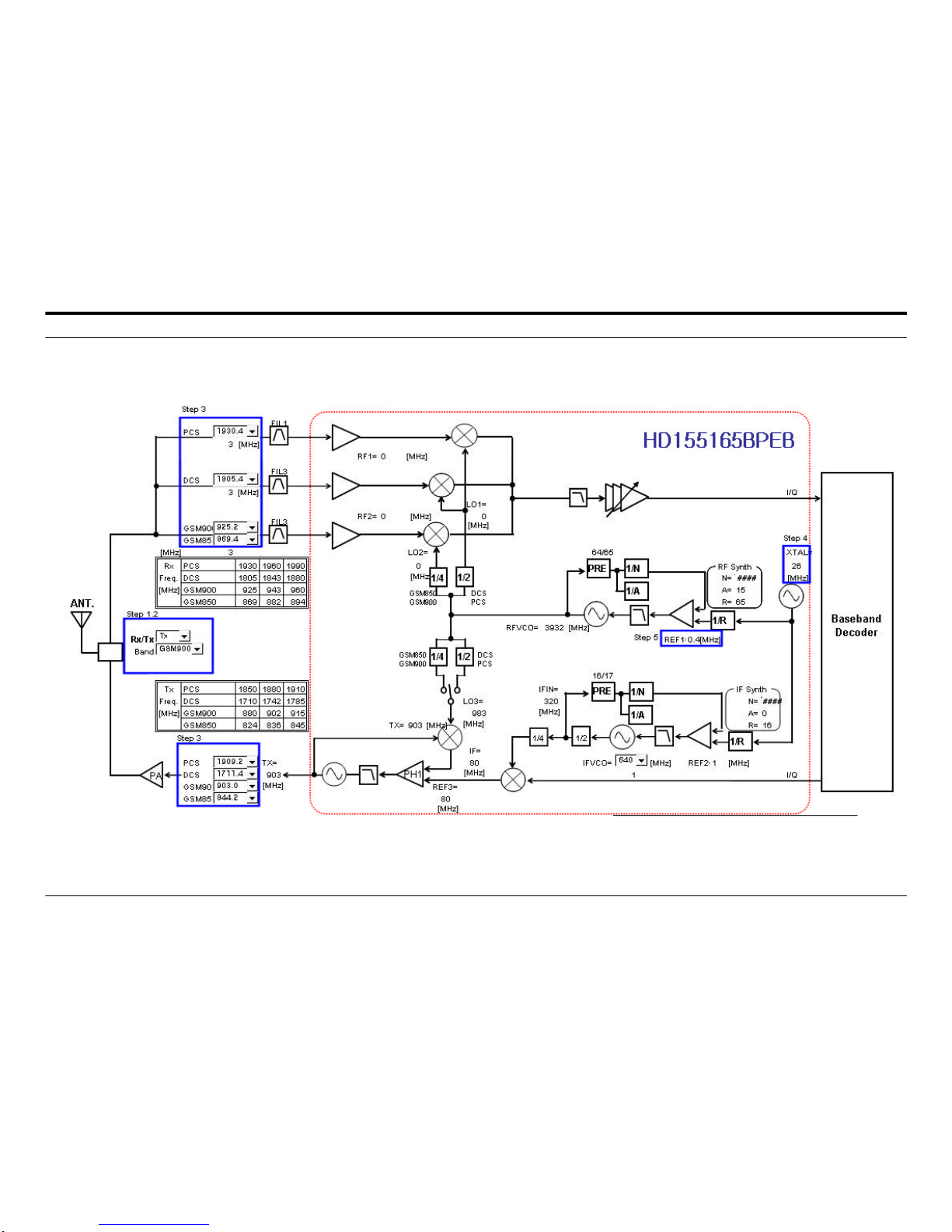

2-1.SGH-E340 RFCircuitDescription
2-1-1.RX PART
—FRONTEND MODULE(ANTENNA SWITCHMODULE +RXSAWFILTER) (MODULE1)
→Switching Tx,Rx pathforGSM900,DCS1800 and PCS1900 by logic controlling.
—FRONTEND MODULEControlLosic(MODULE1)→Truth Table
VC1VC2VC3
TxMode(GSM900)HL L
TxMode(DCS1800/1900)LH H(L)
RxMode(GSM900)L L L
RxMode(DCS1800)L L L
RxMode(PCS1900)L L H
—VC-TCXO(U102)
Thismodulegeneratesthe26MHzreference clockto drivethelogic and RF.
It isturnedonwhenthesupply voltage +VCC_SYN isapplied.
Afterbuffering areference clock of26MHzis suppliedtotheotherpartsofthesystem
through thetransceiverpinOUT.
—TRANSCEIVER(U100)
ThischipisfullyintegratedGSMGPRStri-band transceiverwithVCO,loop filtersand mostofthe
passive component init.
And alsofullyintegratedfractionalNRFsynthesizerwithAFCcontrolpossibility,RFVCO withintegratedsupply
regulator.Semi integratedreference oscillatorwithintegratedsupplyregulator.
RFReceiver front-end amplifiestheE-GSM900,DCS1800 and PCS1900 aerialsignal,convert the chosenchannel
downtoalowIFof100kHz.
InIFsection,furtheramplifiesthewantedchanneloutput level tothedesired value and rejectsDC.
2-1-2.TX PART
Thetransmitterisfully differentialusing adirectup conversion architecture.Itconsistsofasignalsideband
powerup mixer.Gainiscontrolled by 6 dBvia3-wireserialbusprograming.ThefullyintegratedVCOand power
mixerachieveLOsuppression,quadraturephase error,quadrature amplitudebalance and lownoisefloorspecification.
Outputmatching/balun componentsdrive a standard 50 ohms single endedload.

SAMSUNG Proprietary-Contents may change without notice
ThisDocumentcan notbe used withoutSamsung'sauthorization
CircuitDescription
2-2
2-2.Baseband Circuitdescription ofSGH-E340
2-2-1.PCF50603 (U403)
—Power Management
Eight low-dropoutregulatorsdesignedspecificallyforGSMapplicationspowertheterminaland helpensureoptimal
systemperformance and long batterylife.Aprogrammableboostconverterprovides supportfor1.8V,3.0VSIMs,
whileaself-resetting,electronicallyfusedswitchsuppliespowertoexternalaccessories.Ancillarysupportfunctions,
suchasRTCmodule and High VoltageChargepump,Clock generator,aidinreducing both boardarea and system
complexity.
I2C BUSserial interface providesaccess tocontroland configuration registers.Thisinterface givesamicroprocessor
full controlofthePCF50603 and enables systemdesignerstomaximize bothstandby and talktimes.
Supervisoryfunctions.including aresetgenerator,aninputvoltagemonitor,and atemperaturesensor,supportreliable
systemdesign.Thesefunctionsworktogethertoensurepropersystembehaviorduring start-up orinthe eventofa
fault condition(lowmicroprocessorvoltage,insufficientbatteryenergy,orexcessivedietemperature).
—BacklightBrightness Modulator
TheBacklightBrightness Modulator (BBM)containsaprogrammablePulse-widthmodulator (PWM)and FET to
modulatetheintensity ofaseriesofLED?sortocontrolaDC/DCconverterthatdrivesLCDbacklight.
Thisphone(SGH-E340)usePWMcontrol tocontrast thebacklightbrightness.
—ClockGenerator
TheClockGenerator (CG)generatesall clocksforinternaland externalusage.The32.768 kHz crystaloscillator
providesanaccuratelowclockfrequencyforthePCF50603 and othercircuitry.
2-2-2.LCD Connector
LCDisconsisted ofmainLCD(color6.5KTFT LCD).
ChipselectsignalsintheU304,LCD_CS,canenableLCD.BACKLIGHTsignalenableswhiteLEDofmainLCD.
Thesesignal isfromU403.
16-bit datalines(LD(0)~LD(15)) transfersdata and commandstoLCD.Data and commandsuse"RS"signal.If this
signal ishigh,InputstoLCDare commands.If it islow,InputstoLCDaredata.Thesignalwhichinformsthe
inputoroutputstatetoLCD,isrequired.But this systemisnotnecessarythis signal.So"L_WR"signal isusedto
writedataorcommandstoLCD.PowersignalsforLCDare"VDD_IO_HIGH".

SAMSUNG Proprietary-Contents may change without notice
CircuitDescription
ThisDocumentcan notbe used withoutSamsung'sauthorization
2-3
2-2-3.Key
Thisisconsisted ofkeyinterface pinsKEY_ROW(0:4)and KEY_COL(0:4)inPCF5212EL1.Thesesignalscompose
thematrix.Result ofmatrixinformsthekeystatusto keyinterface inthePCF5212EL1.Poweron/off keyis
seperatedfromthematrix.So poweron/off signal isconnectedwithPCF50603 toenablePCF50603.KeyLEDis
consisted ofsixteen blueLEDs.
keyLEDusethe3.3VLDO(U604) forasupply voltage.KEY_LED_ON signalenables sixteen blueLED.
"FLIP"informsthestatusofslide(open orclosed)tothePCF5212EL1.Thisusesthehall effectIC,
SH248CSP(U602).AmagnetunderLCDenablesSH248CSP.
2-2-4.EMIESDFilter(U501)
This systemusestheEMIESDfilter,U501 to protectnoisefromIFCONNECTORpart.
2-2-5. IFconnetor(CN302)
It is18-pinconnector.Theyaredesignedto useVBAT,V_EXT_CHARGE,USB_D+,+VBUS,USB_D-,TXD1,
RXD1,AUX_ON,EXT1,EXT2and GND.Theyconnectedto powersupplyIC,microprocessorand signalprocessor
IC.
2-2-6.BatteryCharge Management IC(U505)
Acomplete constant-current/constant-voltagelinearcharger forsingle cell lithium-ion batteriesisused.
If TAconnectedto phone,"V_EXT_CHARGE"enable charger ICand supplycurrent to battery.
Whenfault condition caused,"CHG_ON"signal levelchangelowto high and charger ICstop charging process.
2-2-7.Audio
HFR_Pand HFR_NfromPCF5212EL1are connectedtothemainspeakervia analog switches.MIC_Pand MIC_N
are connectedtothemainMICaswell.EAR1isthesource ofExternalSpeaker.YMU762 isasynthesizerLSI for
mobilephones.ThisLSIhasabuilt-inspeakeramplifier foroutputting soundsthatareused by mobilephonesin
addition to gamesoundsand ringing melodiesthatarereplayed by asynthesizer.
Thesynthesizersection adopts“stereophonichybridsynthesizersystem”thataregivenadvantagesofbothFM
synthesizersand WaveTablesynthesizerstoallowsimultaneousgeneration ofup to32FMvoicesand 32 Wave
Tablevoices.
Itprovides simultaneousgeneration ofup to40tonesby stereophonichybridsynthesizer.
YMU762 hasbuilt aspeakeramplifierofwhichmaximumout is580 mWatSPVDD=3.6Vinthisdevice.
ThereisStereophonic analog outputforHeadphone.
2-2-8.Memory(U301)
This systemusesSamsung'smemory,KAP17SG00A.TheKAP17SG00AisaMulti ChipPackageMemorywhich
combines256Mbit SynchronousBurstMulti Bank NORFlashMemoryand two 512Mbit OneNAND Flashand
128Mbit SynchronousBurstUtRAM.
Ithas16 bit dataline,HD[1~16]whichisconnectedtoPCF5212EL1and MV3018SAQ,also has24 bit address
lines,
HA[1~24].There are3chipselectsignals,CS0n_FLASH,CS4n_NAND,and CS1n_RAM.

SAMSUNG Proprietary-Contents may change without notice
ThisDocumentcan notbe used withoutSamsung'sauthorization
CircuitDescription
2-4
IntheWrting process,WEnisfallentolowand it enableswriting process to operate.During reading process,
OEnisfallentolowand it enablesreading process to operate.EachchipselectsignalsinthePCF5212EL1choose
differentmemories.
2-2-9.PCF5212EL1(U200)
ThePCF5212EL1ismainlycomposed ofembededDSP and ARMcore.TheDSP subsystemincludestheSaturn
DSP corewithembeddedRAMand ROM,and asetofperipherals.Ithas24kx16 bitsPRAM,104k*16 bits,
32k*16 XYRAMand 63k*16 XYROMintheDSP.
TheARM946E-SconsistsofanARM9E-Sprocessorcore,8 kbyteinstruction cache and 8 kbytedata cache,
tghtly-coupledITCM(Instruction TightlyCoupledMemory)and DTCM(DataTightlyCoupledMemory)memories,a
memory protection unit,and anAMBA(AdvancedMicrocontrollerBusArchitecture)AHB(Advanced
High-performance Bus)businterface withawritebuffer.
HD(0:15),datalinesand HA(0:23),address linesare connectedtoKAP17SG00A(memory),MV3018B(imagedsp)
and YMU762 (melody IC).Ithas64 kbyteSC RAM(0.5Mbit)and 32 kbyteSCprogramROMforbootstrap
loaderintheARMcore.
HD(0:15),datalinesand HA(0:23),address linesare connectedtomemoryand YMU762 tocommunicate.
MV3018B(CameraDSP Chip)controlsthe communication betweenARMcore and DSP core.
OEn,WEncontrol the access ofmemory.KROW,and KCOLrecognize thekeystring inputstatus.
Ithas J-TAG controlpins(TDI/TDO/TCK) forARMand DSP core.J-SEL signalcontrolsdifferentaccess toARM
and DSP core.
ADC(Analog toDigitalConvertor) receivesthe condition oftemperature,batterytype and battery voltage.
2-2-10.TCO-5871U(26MHz)(U102)
This systemusesthe26MHzTCXO,TCO-5871U,Toyocom.AFCcontrolsignalformPCF5212EL1controls
frequencyfrom26MHzx-tal.Itgeneratesthe clockfrequency.ThisclockisconnectedtoPCF5212EL1,YMU762
and HD155166.
2-2-11.CameraDSP(MV3018SAQ)(U304)
MV3018SAQ providesrich videofunctionsup to 30-framedisplaywithminimizedtasksinthehandsetmain
processor
aswell ashardwarebasedreal-timeJPEGcompression and decompression.MV3018SAQ directlytransmitsand
previewstheRGBdatatotheLCDgraphicmemory by processing thesensoroutputdata according tothe
handset'scommand.ItcansavetherawRGBdataup toVGA resoultion intoitsimagebufferand allowsthe
hostprocessorto downloadwithscalablesizedcompressed data.
Itutilizes16 bit databusforcommunication withthemain processor,including businterface types.

SAMSUNG Proprietary-Contents may change without notice
3. ExplodedViewand Parts List
3-1
ThisDocumentcan notbe used withoutSamsung'sauthorization
3-1.Exploded View
QFR01
QMO01
QSP01
QKP01
QRE01
QMP01
QVK01
QAN02
QME01
QIF01
QMI01
QCR06
QMW02
QFU01
QLC01
QCA01
QCR05
QFR02
QFL01
QSC01
QCR04
QMW01
QRF01
QVO01
QSC14
QRF03
QBA01
QMI03

SAMSUNG Proprietary-Contents may change without notice
Explodedviewand PartList
3-2
ThisDocumentcan notbe used withoutSamsung'sauthorization
3-2.PartsList
LocationNO.DescriptionSEC CODE
QRF03 COVEREARJACKGH72-19702A
QFR01 FRONTGH75-06795A
QMI03 MICHOLDERGH73-04563A
QVO01 VOLUMEKEYGH72-19705A
QSC14 TAPEFRONTHOLEGH74-14197A
QKP01 MEC-KEYPADGH75-06860A
QME01 UNITMETALDOMEGH59-02045A
QMI01 MICROPHONEASSYGH30-00199A
QMP01 PBAMAINGH92-02049A
QVK01 UNITVOLUMEKEYGH59-02067A
QAN02 INTENNAGH42-00557A
QRE01 MEC-REARCOVERGH75-06861A
QIF01 COVERIFCONNECTORGH72-19704A
QCR06 SCREW-MACHINE6001-001155
QRF01 RFCOVERGH74-14863A
QBA01 BATTERYGH43-01677A
QMW02 WINDOWSUBGH72-19678A
QFU01 UPPERFOLDERGH75-06800A
QLC01 LCDGH07-00680A
QMO01 MOTORDCGH31-00154D
QSP01 SPEAKER3001-001759
QCA01 UNITCAMERAGH59-02098A
QCR05 SCREW-MACHINE6001-001478
QFR02 OILDAMPERGH75-06799A
QFL01 FOLDERLOWERGH75-06794A
QCR04 SCREW-MACHINE6001-001479
QSC01 SCREWCAPGH73-04750A
QMW01 MEC-WINDOWMAINGH75-06801A

SAMSUNG Proprietary-Contents may change without notice
Explodedviewand PartList
3-3
ThisDocumentcan notbe used withoutSamsung'sauthorization
DescriptionSEC CODE
BAGPE;LDPE,T0.05,W80,L180,TRP,-,-6902-000634
ADAPTOR-TAD;TAD137ESE,SGH-P100,-,110 GH44-00482A
UNIT-EARPHONE;SGH-X910,AEP277SSE,-,EGH59-01392A
LABEL(P)-WATERSOAK;SCH-X110,NORGE,1GH68-02026A
LABEL(R)-MAIN(EU);SGH-E340,XET,POLYEGH68-06970A
MANUAL-USE;SGH-E340,XET,ITALIAN,ITAYGH68-07076A
CUSHION-CASE(1-2);SGH-X640,PULP,T0.8GH69-02723A
BOX(P)-UNIT(EU);SGH-E340,SC300+S120+GH69-02779A
MPR-BOHOVINYLIF;SGH-E720,#950,85X1GH74-13606A
MPR-PORONMOTOR;SGH-E340,SRS,P4.9XT0 GH74-14191A
MPR-TAPELCDMODULE;SGH-E340,PSR,5X3GH74-14198A
MPR-BOHOVINYLREAR;SGH-E340,SP-600,GH74-14717A
MEC-HANDSTRAP;SGH-E620,SEC,-,-,ANTIGH75-03207U

SAMSUNG Proprietary-Contents may change without notice
Explodedviewand PartList
3-4
ThisDocumentcan notbe used withoutSamsung'sauthorization
3-3.TestJig(GH80-03306A)
3-3-2.RF TestCable
(GH39-00283A)3-3-3.TestCable (GH39-00337A)
3-3-5.PowerSupplyCable3-3-6.DATACABLE
(GH39-00331A]3-3-7.TA
(GH44-00482A)
3-3-1.USB JIG Cable
3-3-4.Serial Cable
(CSA LL64151-A)

SAMSUNG Proprietary-Contents may change without notice
4. ElectricalParts List
4-1
ThisDocumentcan notbe used withoutSamsung'sauthorization
SEC CODE Description Design LOC
0403-001387 DIODE-ZENERZD500
0403-001427 DIODE-ZENERZD501
0406-001104 DIODE-TVSZD601 ZD701
0406-001188 DIODE-TVSU501
0406-001201 DIODE-TVSV705 V706 V707
ㅤDIODE-TVSZD602 ZD603 ZD604
ㅤDIODE-TVSZD605
0504-001151 TR-DIGITALU201 U202 U203
ㅤTR-DIGITALU504
0505-001423 FET-SILICONU305
0601-001785 LEDㅤLED601 LED602
ㅤLEDㅤLED603 LED604
ㅤLEDㅤLED605 LED606
ㅤLEDㅤLED607 LED608
ㅤLEDㅤLED609 LED610
ㅤLEDㅤLED611 LED612
ㅤLEDㅤLED613 LED614
ㅤLEDㅤLED615 LED616
ㅤLEDㅤLED617
0801-002237 ICU302 U709
0801-002294 ICU404
1001-001231 ICU601 U603 U607
1001-001306 ICU608
1001-001331 ICU609 U610
1009-001018 ICU602
1108-000018 ICU710
1201-002223 ICU702
1202-001068 ICU605
1203-003208 ICU701
1203-003545 ICU402
1203-003568 ICU403
1203-003737 ICU401 U604
1203-003742 ICU505
1204-002161 ICU303
1205-002647 ICU200
1205-002709 ICU100
1404-001221 THERMISTORV500
1405-001082 VARISTORV701 V702 V708
ㅤVARISTORV709 V710 V711
1405-001082 VARISTORV400 V712
2007-000137 R-CHIPR512
2007-000138 R-CHIPR113
2007-000140 R-CHIPR404
2007-000141 R-CHIPR601 R604
2007-000143 R-CHIPR102 R103 R107
ㅤR-CHIPR108 R211 R305
ㅤR-CHIPR313 R314
2007-000148 R-CHIPR141 R202 R311
ㅤR-CHIPR406 R409 R503
ㅤR-CHIPR603

SAMSUNG Proprietary-Contents may change without notice
ElectricalPartsList
4-2
ThisDocumentcan notbe used withoutSamsung'sauthorization
SEC CODE Description Design LOC
2007-000152 R-CHIPR519
2007-000153 R-CHIPR306
2007-000155 R-CHIPR632
2007-000162 R-CHIPR207 R208 R209
ㅤR-CHIPR210 R216 R220
ㅤR-CHIPR221 R310 R317
ㅤR-CHIPR318 R403 R408
ㅤR-CHIPR501 R511 R602
ㅤR-CHIPR607 R626
2007-000162 R-CHIPR518
2007-000170 R-CHIPR116 R117 R119
ㅤR-CHIPR139 R506 R507
2007-000171 R-CHIPR218
2007-000171 R-CHIPR110 R111 R123
ㅤR-CHIPR135 R143 R144
ㅤR-CHIPR146 R200 R201
ㅤR-CHIPR203 R222 R309
ㅤR-CHIPR315 R322 R323
ㅤR-CHIPR324 R328 R333
ㅤR-CHIPR402 R407 R630
ㅤR-CHIPR631
2007-000172 R-CHIPR101 R106
2007-000242 R-CHIPR205 R206
2007-000758 R-CHIPR500 R502
2007-000831 R-CHIPR606
2007-001303 R-CHIPR302
2007-001325 R-CHIPR304
2007-001339 R-CHIPR627
2007-002970 R-CHIPR609 R610 R611
ㅤR-CHIPR612 R613 R614
ㅤR-CHIPR615 R616 R617
ㅤR-CHIPR618 R619 R620
ㅤR-CHIPR622 R623 R624
ㅤR-CHIPR633
2007-002970 R-CHIPR621
2007-007013 R-CHIPR307
2007-007014 R-CHIPR301 R303
2007-007100 R-CHIPR401
2007-007107 R-CHIPR504
2007-007334 R-CHIPR510
2007-007480 R-CHIPR625
2007-007489 R-CHIPR515
2007-007573 R-CHIPR509 R608
2007-008275 R-CHIPR516
2203-000233 C-CERAMIC C146 C169 C425
2203-000254 C-CERAMIC C125 C128 C133
ㅤC-CERAMIC C138 C158 C168
ㅤC-CERAMIC C201 C300 C616
ㅤC-CERAMIC C617
C-CERAMIC

SAMSUNG Proprietary-Contents may change without notice
ElectricalPartsList
4-3
ThisDocumentcan notbe used withoutSamsung'sauthorization
SEC CODE Description Design LOC
2203-000278 C-CERAMIC C163 C164 C602
ㅤC-CERAMIC C611 C615 C715
2203-000311 C-CERAMIC C504
2203-000386 C-CERAMIC C406 C407
2203-000438 C-CERAMICESD2ESD3
2203-000438 C-CERAMIC C135 C137 C159
ㅤC-CERAMIC C167 C303 C307
ㅤC-CERAMIC C624 C625 ESD1
2203-000466 C-CERAMIC C165
2203-000550 C-CERAMIC C330
2203-000585 C-CERAMIC C155
2203-000643 C-CERAMIC C124 C127 C129
ㅤC-CERAMIC C132
2203-000654 C-CERAMIC C153
2203-000679 C-CERAMIC C304 C317
2203-000812 C-CERAMIC C101 C121 C204
ㅤC-CERAMIC C213 C220 C221
ㅤC-CERAMIC C222 C223 C334
ㅤC-CERAMIC C335 C410 C632
ㅤC-CERAMIC C633 C634
2203-000995 C-CERAMIC C166 C605 C614
ㅤC-CERAMIC C705 C706 C708
ㅤC-CERAMIC C709
2203-001153 C-CERAMIC C426
2203-001178 C-CERAMIC C716
2203-001221 C-CERAMIC C313
2203-001259 C-CERAMIC C115 C144
2203-002443 C-CERAMIC C608
2203-002668 C-CERAMIC C111 C141 C142
2203-005050 C-CERAMIC C606
2203-005052 C-CERAMIC C626 C627
2203-005054 C-CERAMIC C601 C610
2203-005065 C-CERAMIC C331
2203-005288 C-CERAMIC C112 C143 C154
2203-005481 C-CERAMIC C314
2203-005482 C-CERAMIC C134 C202 C203
ㅤC-CERAMIC C205 C206 C207
ㅤC-CERAMIC C208 C209 C210
ㅤC-CERAMIC C211 C212 C214
ㅤC-CERAMIC C216 C301 C302
ㅤC-CERAMIC C305 C306 C308
ㅤC-CERAMIC C310 C311 C312
ㅤC-CERAMIC C316 C318 C404
ㅤC-CERAMIC C418 C500 C501
ㅤC-CERAMIC C502 C609 C630
ㅤC-CERAMIC C701 C703
2203-005496 C-CERAMIC C151
2203-006090 C-CERAMIC C403
2203-006093 C-CERAMIC C319 C322 C323
ㅤC-CERAMIC C420 C505 C702

SAMSUNG Proprietary-Contents may change without notice
ElectricalPartsList
4-4
ThisDocumentcan notbe used withoutSamsung'sauthorization
SEC CODE Description Design LOC
2203-006208 C-CERAMIC C200 C402 C411
ㅤC-CERAMIC C413 C417 C421
2203-006257 C-CERAMIC C405 C412 C414
ㅤC-CERAMIC C415 C423 C424
2203-006562 C-CERAMIC C400 C401 C603
ㅤC-CERAMIC C607 C613
2404-001225 C-TAC700
2404-001268 C-TAC503
2404-001281 C-TAC422 C600 U704
2404-001348 C-TAC122
2404-001374 C-TAC123 C157 C409
2404-001394 C-TAC150 C309
2703-001938 INDUCTOR-SMDL121
2703-002201 INDUCTOR-SMDL125
2703-002267 INDUCTOR-SMDL124
2703-002346 INDUCTOR-SMDL401
2703-002365 INDUCTOR-SMDL101 L102 L103
ㅤINDUCTOR-SMDL104
2703-002596 INDUCTOR-SMDL112
2801-004373 CRYSTAL-UNITOSC400
2809-001294 OSCILLATOR-VCTCXOU102
2901-001286 FILTER-EMISMDF701 F702 F703
ㅤFILTER-EMISMDF704 F705 F706
ㅤFILTER-EMISMDF707 F708 F709
2901-001315 FILTER-EMISMDU502
2911-000007 DUPLEXER-SAWMODULE1
3301-001120 BEAD-SMDL400
3301-001534 BEAD-SMDL600
3705-001358 CONNECTOR-COAXIALCN101
3709-001355 CONNECTOR-CARDEDGESIM400
3710-002115 CONNECTOR-SOCKETCN302
3711-005212 CONNECTOR-HEADER CN703
3722-002181 JACK-EARPHONECN600
4302-001180 BATTERYBAT401
4709-001371 ICU306
GH13-00029AICU304
4202-001049 ANTENNA ANT3
GH30-00199AMICMIC600

SAMSUNG Proprietary-Contents may change without notice
ThisDocumentcan notbe used withoutSamsung'sauthorization
5. BlockDiagrams
5-1
5-1.RFSolution Block Diagram

SAMSUNG Proprietary-Contents may change without notice
BlockDiagrams
ThisDocumentcan notbe used withoutSamsung'sauthorization
5-2
5-2.BaseBand Solution Block Diagram
PCF5212EL1
VIBRATOR
MELODY IC
(40POLY)
SYSTEM CLOCK
(26MHz)
MV3018SQ
512M OneNAND
MEMORY
KEY_BOARD
LCD
BB INTERFACE
Serial Data
Interface
I/O
Interface
A/D
Interface
AFC
PAMP
RF INTERFACE
PMU
Li-Ion Battery
(Standard)
Charging Circuit RTC_CLOCK
(32.768KHz) SIM CARD
Battery
Type
Battery
Voltage
Battery
Temperature
+VDD_RX_TX
+VCC_SYN
+VDD_IMGE
+AVDD
+AVDD_HFA
+VDD_IO_HIGH
+VDD_IO_LOW
VDD_SLEEP
+VDD_IO_LOW
MIC_BIAS
RSTON
IT_PMU
SIMIO
MIC
RECEIVER
SPEAKER
Ext.
SPEAKER

SAMSUNG Proprietary-Contents may change without notice
6. PCB Diagrams
6-1
ThisDocumentcan notbe used withoutSamsung'sauthorization

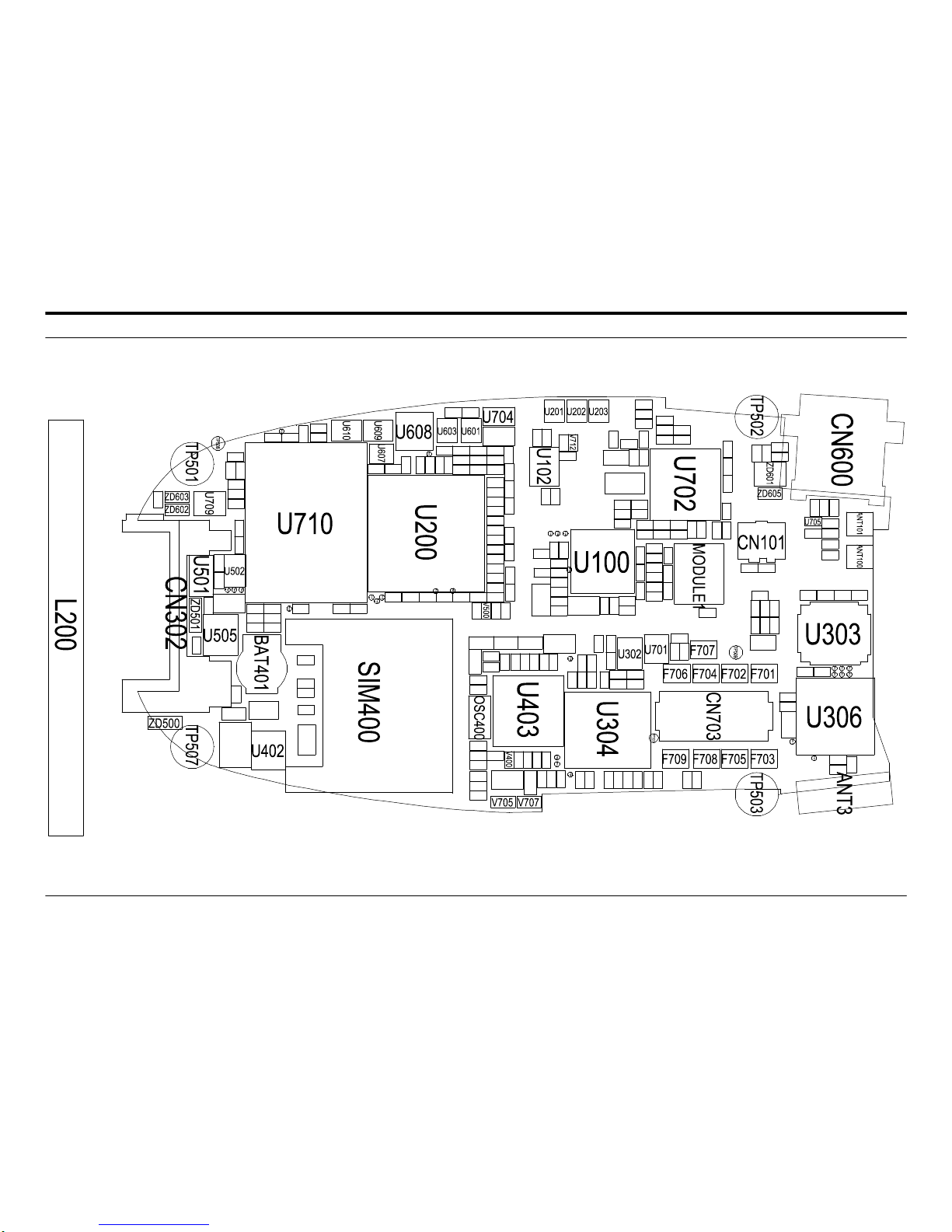

6-1.PCBTop Diagram

SAMSUNG Proprietary-Contents may change without notice
PCB Diagrams
6-2
ThisDocumentcan notbe used withoutSamsung'sauthorization

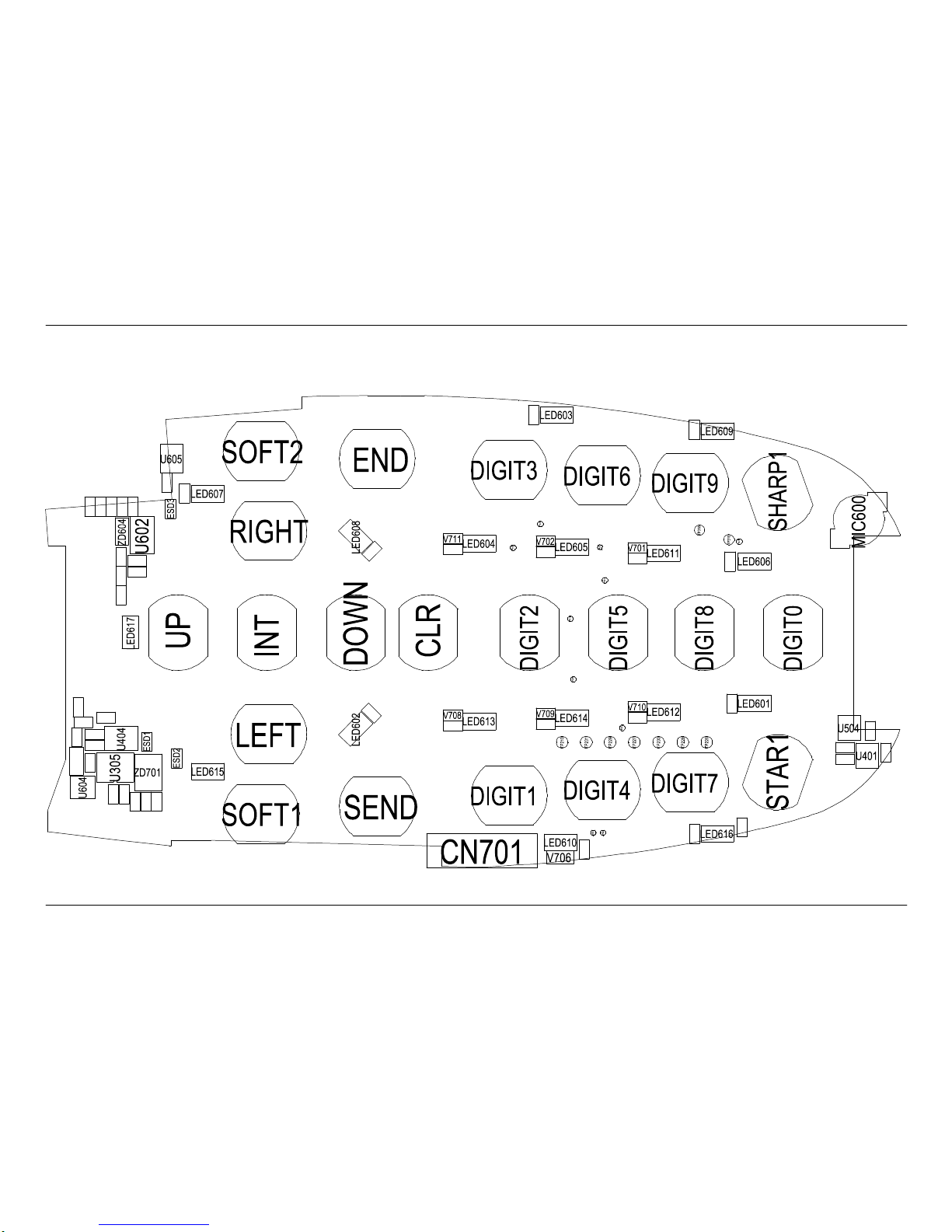

6-2.PCB BottomDiagram
