1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test, because the specification of cellular phone is sensitive for
surrounding interference(RF noise).
●Be careful to use a kind of magnetic object or tool, because performance of parts is damaged by the
influence of magnetic force.
●Surely use a standard screwdriver when you disassemble this product, otherwise screw will be worn
away.
●Use a thicken twisted wire when you measure level.
A thicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because a repair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembling charger.
●Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. , otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum
plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is connected
completely to the proper place or a circuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
This Document can not be used without Samsung's authorization
2-1
EGSM 900 DCS 1800 PCS 1900 WCDMA 2100
Freq. Band[MHz]
Uplink/Downlink 880~915 925~960 1710~1785 1805~1880 1850~1910 1930~1990 1920~1980 2110~2170
ARFCN range 0~124 &
975~1023 512~885 512~810 UL:9612~9888 DL:10562~10838
Tx/Rx spacing 10MHz 20MHz 20MHz 130MHz
Mod. Bit rate/
Bit Period 270.833kbps 3.692us 270.833kbps 3.692us 270.833kbps 3.692us 3.84Mcps (chip rate)
Time Slot Period/
Frame Period 576.9us 4.615ms 576.9us 4.615ms 576.9us 4.615ms Frame length : 10ms Slot length : 0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK QPSK
HPSK
MS Power 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm 24dBm~-50dBm
Power Class 4
(max +33dBm) 1 (max +30dBm) 1 (max +30dBm) 3 (max +24dBm)
Sensitivity -102dBm -100dBm -100dBm -106.7dBm
TDMAMux888
Cell Radius 35Km 2Km 2Km 2Km
2-1. GSM General Specification

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
2-2
TX Power
control level PCS1900
030±3dBm
128±3dBm
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level GSM850
GSM900
533±2dBm
631±2dBm
729±2dBm
827±2dBm
925±2dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3 dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
030±3dBm
128±3dBm
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
2-2. GSM TX power class

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
 HSDPA/UMTS, EDGE, GPRS
 Trackball interface for UI
 Bluetooth v2.0 + EDR
 USB v2.0 HS compatible
 Camera 3Mega x 9 Digital Zooming and camcorder
FMRadio
 Instant Messaging capability
E-mail
 Featured applications provide alarms, calendar, calculator, record audio, converter, timer, stopwatch,
and world time.
 File viewer (MS office, PDF)
 Multimedia Message Service (MMS)
 Multimedia capability (with included Media player)
PhotocallerID
 Speakerphone capability
 WEB/WAP browser (HTMS, xHTML, WML)

SAMSUNG Proprietary-Contents may change without notice
Product Function
3-2
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
4-1. Software Adjustments
- There is 2 set to download the binary image into your device.

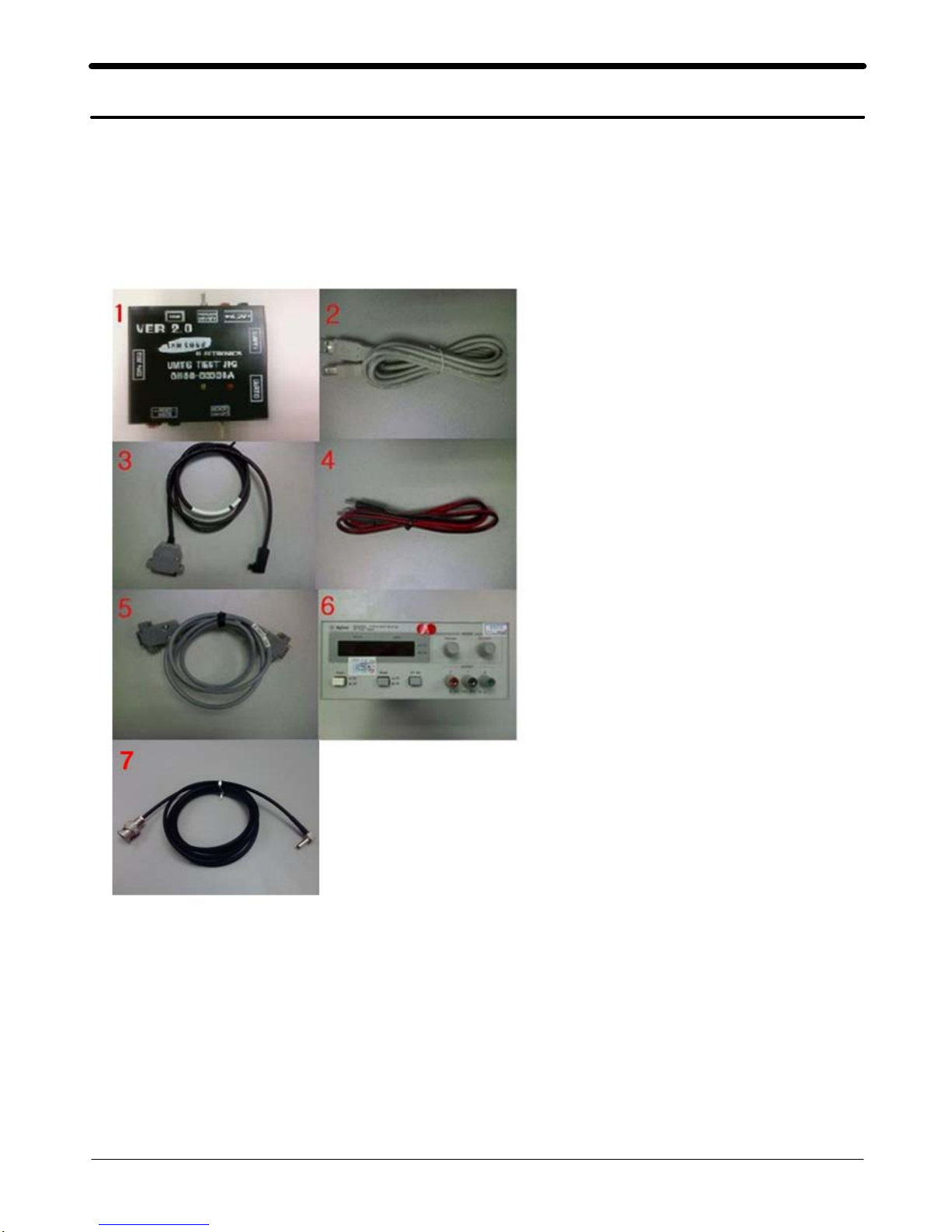

[First set]
1. JIG BOX (UMTS TEST JIG; GH80-03308A)
2. USB Cable : JIG to PC
3. Test Cable : JIG to Scotch (GH39-00890A)
4. Power Cable : JIG to power supply
5. Serial Cable : JIG to PC
6. Power Supply
7. Rf Cable : Scotch to Agilent 8960 or CMU200 (GH39-00397A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
[Second Set]
USB Data Link Cable : Scotch to PC (GH39-00922A)
Standard Battery for Scotch (GH43-02986A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
4-2. Software Download
4-2-1. Pre-requisite for Download
SGH - i550 Mobile Device
Apollo v4.01.exe : Downloader Application for SGH-i550
USB Download Driver : SS60_Downloader_Driver.zip
Rom Image : PDA(*.IMG), MODEM(*.BIN) images
Equipment set for Download.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization
4-2-2. Concupts & cautions.
You can download PDA or MODEM separately. But We are always recommended to
download both at the same time using same version of rom image.
To download an image, the phone need to be set to a proper download mode.
There are 3 download modes.
PDA download : Hold 1, 4 keys and power on -> Blue screen with some information.
MODEM download : Hold 7, * keys and power on -> Blinking "MODEM DOWNLOAD"
on blue screen
All download : Hold 4, 7 keys and power on -> Blinking "ALL DOWNLOAD" on blue screen
For PDA image download, the phone shows download progress on the screen
For MODEM image download, the phone shows RGBW/B Screen.
For All download mode, MODEM image is downloaded first and then PDA
downloading starts.
After downloading PDA, the phone will be reboot.
Do NOT interrupt downloading process or the phone will be damaged. You would be
unable to boot up the phone or to re-flash the phone. Let it finish downloading
process even though you are flashing wrong images.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization
4-2-3. USB Driver installation for PDA
Execution Apollo.exe.
SGH-i550 connect to the Host computer using download equipment set.
Hold “1+4” key and insert power supplied test cable when use equipment set 1
or Hold “1+4” key and press power on key when use equipment set 2.
Install PDA side driver.
Follow New H/W Installation Manager.
Select ‘IBootHostUSB.inf’file under ‘i550_Apollo_Drivers\PDA_driver’ folder when
Windows asks for new h/w driver. It is safe to choose “Yes” for the waring window.
Confirm “SAMSUNG BlueFin USB Downloader” Installed.
Refer to Next Page.
** If Windows doesn’t ask for USB driver, it means USB driver installation was
failed before. Open Hardware Manager then delete devices with?or!mark then try
again. If it doesn’t work, you need to right click on the device then try Driver
Update.
After installing PDA driver, Apollo shows the connection status if it is installed
properly.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-7
This Document can not be used without Samsung's authorization
4-2-4. USB Driver installation for MODEM
Hold “7 + *” key and insert power supplied test cable when use equipment set 1 or
Hold “7+ *” key and press power on key when use equipment set 2.
Install Modem side driver.
Execute ‘Setup.exe’file under ‘i450_Apollo_Drivers\PHONE_driver’ folder when
Windows asks for new h/w driver.
Confirm “SAMSUNG USB Composite Device” Installed.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-8
This Document can not be used without Samsung's authorization
4-2-5. USB Driver installation

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-9
This Document can not be used without Samsung's authorization
4-2-6. Download the image using APOLLO
Execution Apollo.exe.
Select a Rom Image to download
Check this field : 1. SGH-i550 (above GG2^)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-10
This Document can not be used without Samsung's authorization
Select the proper check option .
PDA stasus
- Bootloader : Update PDA Bootloader section.
- NV Clear : IMEI section erase.
You can see following message when you click this option
MODEM Status
- Boot Update : Update Modem Bootloader section.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-11
This Document can not be used without Samsung's authorization
Make sure that phone and host computer connection, click proper download
button.
PDA download : Hold 1, 4 keys and power on -> Blue screen with some information.
MODEM download : Hold 7, * keys and power on -> Blinking "MODEM DOWNLOAD"
on blue screen
All download : Hold 4, 7 keys and power on -> Blinking "ALL DOWNLOAD" on blue screen

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-12
This Document can not be used without Samsung's authorization
Do NOT interrupt downloading process.
- Pda download time: About 1 min.
- Modem download time : About 2 min.
- All download time: About 3 min.
Confirm Download Complete.
-SGH-i550 will be reboot when PDA download complete.
