Samsung SGH-I617 User manual

UMTS TELEPHONE
SGH-i617
UMTS TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts List
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Flow Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
Instructions

Samsung Electronics Co.,Ltd.
2007. 11. Rev.1.0
ⓒ
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast & Africa mea.samsungportal.com
GSPN (Global Service Partner Network)

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test, because cellular phone is sensitive for surrounding
interference(RF noise).
●Be careful to use a kind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
●Surely use a standard screwdriver when you disassemble this product, otherwise screw will be
worn away.
●Use a thicken twisted wire when you measure level.
A thicken twisted wire has low resistance, therefore errors of measurement are few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of connecting Test
Packandtuningon.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because a repair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
●Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC, BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity, otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power, they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or a circuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
This Document can not be used without Samsung's authorization
2-1
GSM 850 EGSM 900 DCS1800 PCS1900 W-CDMA
850
W-CDMA
1900
W-CDMA
2100
Freq.
Band[MHz]
Uplink/Downlin
k
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
824~849
869~894
1850~1910
1930~1990
1920~1980
2110~2170
ARFCN range 128~25 0~124 &
975~1023 512~885 512~810 UL:4132~4233
DL:4357~4458
UL:9262~9538
DL:9662~9938
UL:9612~9888
DL:10562~
10838
Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz 45MHz 80MHz 130MHz
Mod. Bit rate/
Bit Period
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
3.84Mcps 3.84Mcps 3.84Mcps
Time Slot
Period/Frame
Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
Frame length
:10ms
Slot length :
0.667ms
Frame length
:10ms
Slot length :
0.667ms
Frame length
:10ms
Slot length :
0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSK
HQPSK
QPSK
HQPSK
QPSK
HQPSK
MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm 24dBm~-
50dBm
24dBm ~ -
50dBm
24dBm ~ -
50dBm
Power Class
4
(max
+33dBm)
4
(max
+33dBm)
1
(max
+30dBm)
1
(max
+30dBm)
3
(max +24dBm)
3
(max +24dBm)
3
(max +24dBm)
Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -106.7dBm -106.7dBm
TDMA Mux 8 8 8 8
Cell Radius 35Km 35Km 2Km 2Km 2Km 2Km 2Km
2-1. GSM General Specification

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
2-2
TX Power
control level PCS1900
030±3dBm
128±3dBm
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level
GSM850
GSM900
533±2dBm
631±2dBm
729±2dBm
827±2dBm
925±2dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3 dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
030±3dBm
128±3dBm
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
2-2. GSM TX power class

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
－MP3 / 48 Poly Melody
－BT 2.0
－Video Sharing / Streaming
－USB 1.1
－WAP2.0, JAVA, MPEG4
－MIDP 2.0 / CLDC 1.1
－Auto Time Setting,
－MMS / SMS
－Weight: 115.3g
－Camera: - 2.0M (LSI)
－LCD : 2.4" QVGA TFT (AMLCD)
－Size: 114x60x12.8mm
－GPRS/EDGE : class 10
－Battery: 1700mAH
－Memory: 2Gb MuxOneNAND Flash +512Mb (x8)*2 Mobile DDR
－Band: GSM850/900/1800/1900, W850/1900/2100
－BB: Qualcomm MSM6260, PM6650
－RF: Qualcomm RTR6275, RFR6275

SAMSUNG Proprietary-Contents may change without notice
Operation Instruction and Installation
3-2
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
4-1. Equipment for Software Download
- There is 3 set to download the binary image into your device.
[First set]
1
78

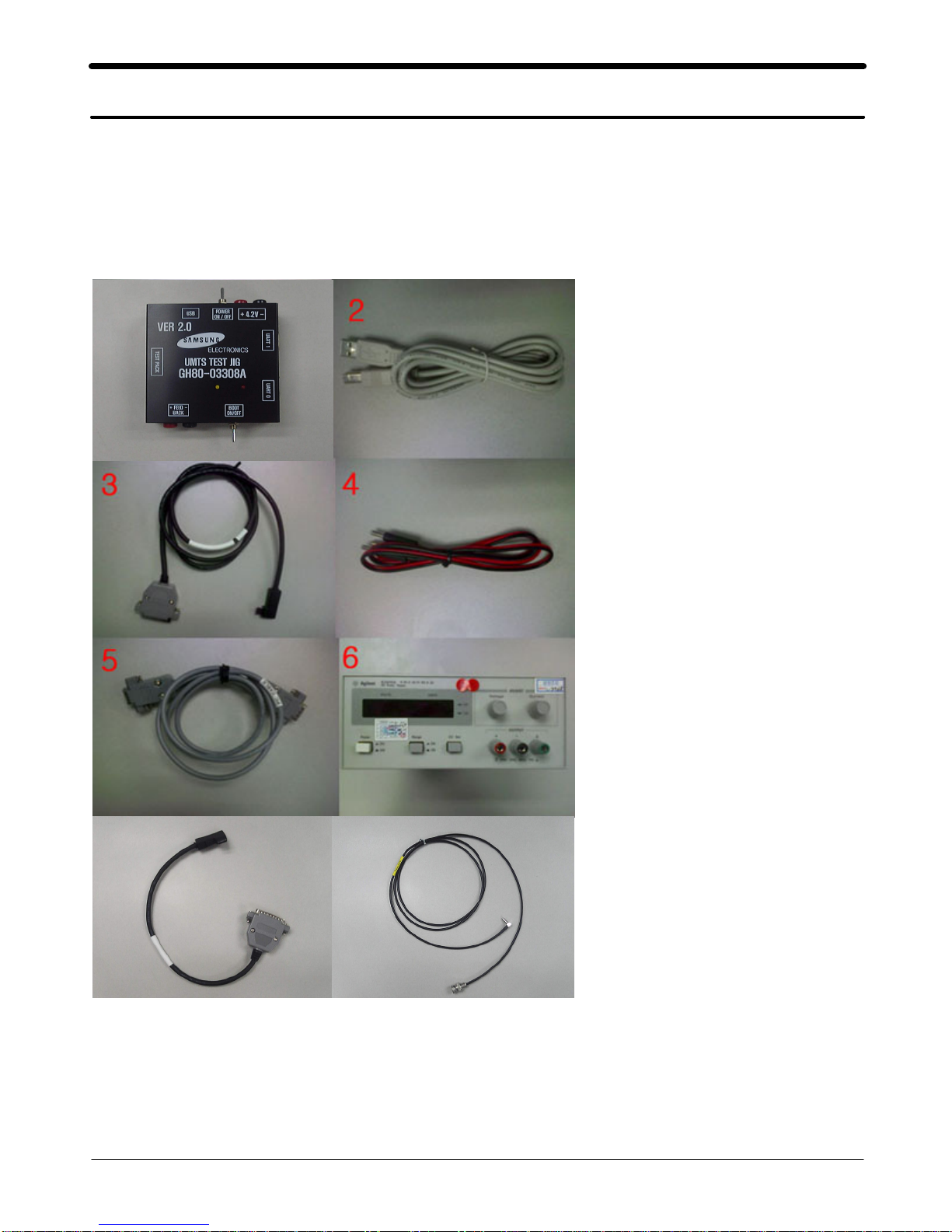

1. JIG (UMTS TEST JIG) : (GH80-03308A)
2. USB Cable
3. Test Cable(SGH-I617 cable): JIG to phone(GH39-00890A)
4. Power Cable: JIG to power supply
5. Serial Cable: PC to JIG

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
6. Power Supply : (E3610A)
7. Test Cable(SGH-I617 cable) : JIG to phone(GH39-00886A)
8. RF Cable : (GH39-00397A)
[Second Set]

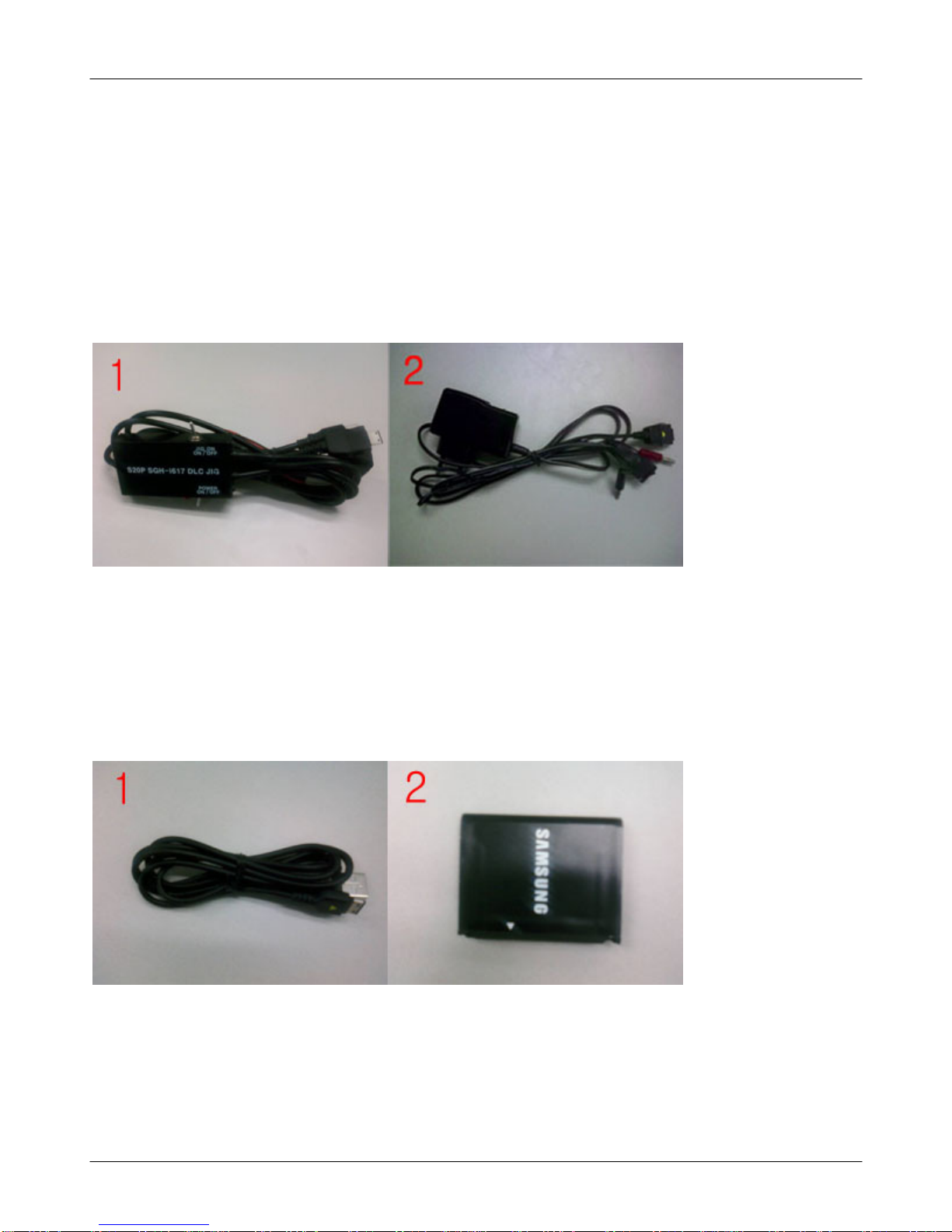

1. JIG (S20P SGH-i617 DLC JIG)
2. Portable Power Supply
[Third Set]
1. USB DATA Link Cable
2. Battery

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
4-2. Software Download
4-2-1. Pre-requisite for Download
• Download Program (there is 3 ways to download.)
-[ImageVersion].exe
-[BADA] Download V0.9.3_Single.exe
- [BADA] Download V0.9.3_Multi(LINE).exe (Mult-idownloader)
•USBDriver
-[PDA]: Samsung MITs USB Sync <Samsung MITs USB Sync.zip> (If you
installed the latest ActiveSync program, you don’t need to install the PDA driver.)
- [Phone]: Samsung CDMA Modem [Samsung CDMA Modem.zip]
• SGH_I617 Mobile Device
• Binary files
• ActiveSync Setting
• Driver Installation.
4-2-2. Driver Installation
•[PDA]
- Make Sure that you install the latest ActiveSync program.
•[Phone]
-Make sure that you install the driver for a phone.
-You have to install the driver of Samsung CDMA Modem of downloading a phone image
-Restart your host PC after you install the phone driver.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization
4-2-3. S/W Download Process
4-2-3-1. Exe Download ([Image Version].exe)

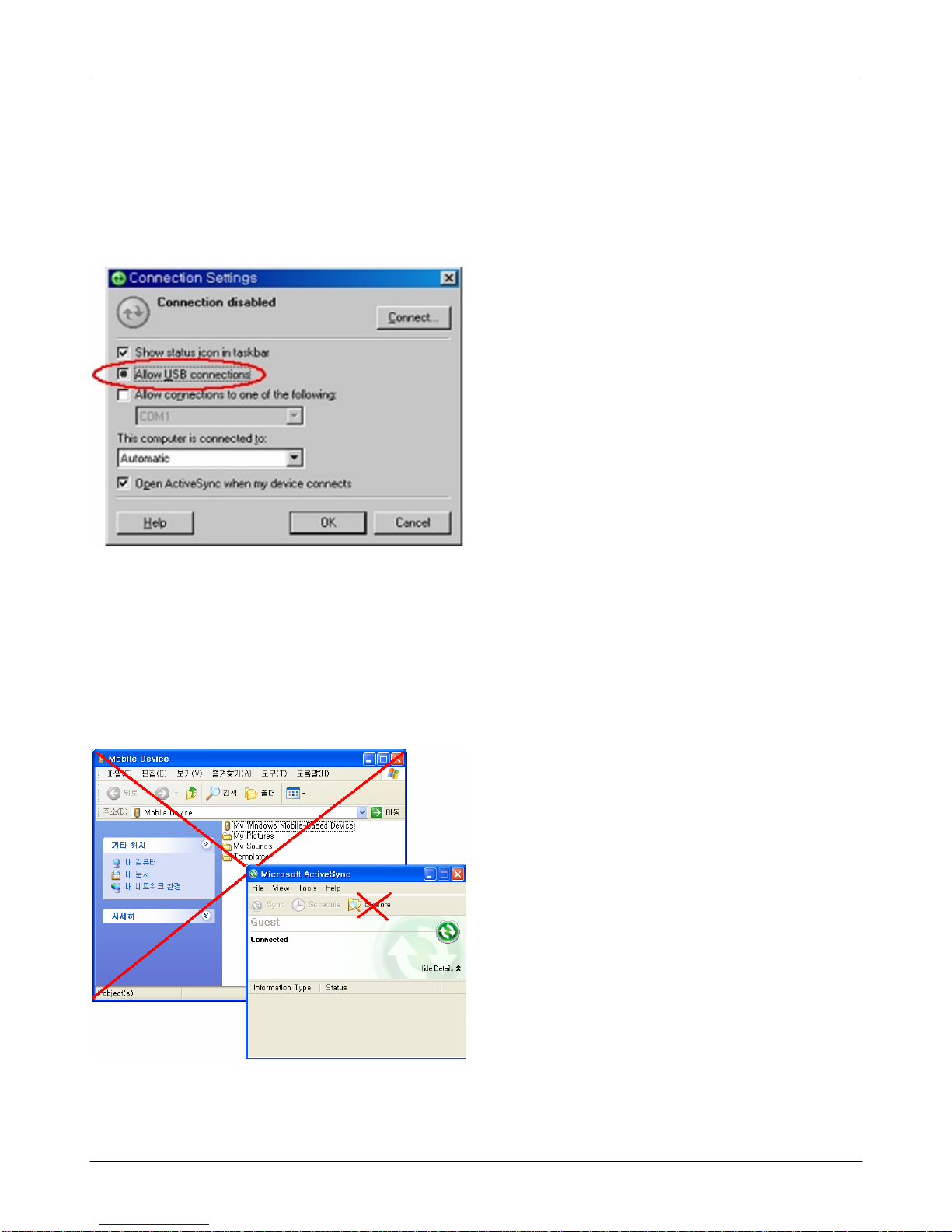

■ActiveSync Setting.
•Make sure that ActiveSync program is checked before connecting your device to the host
computer.
•If the ActiveSync is not working on your computer, Make sure that check box, Allow USB
connection at the connection settings, is checked.
•Press ‘OK’ button to save a configuration.
•If the device is connected with the host pc through the ActiveSync, Do NOT open the explorer of
the ActiveSync.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization
■How to connect the device to your host computer.
•Execute the download program ([Image Version].exe)
•MakesurethatyouhavetoconnectthedevicewiththePCthroughtheActiveSync.
■Download Procedure

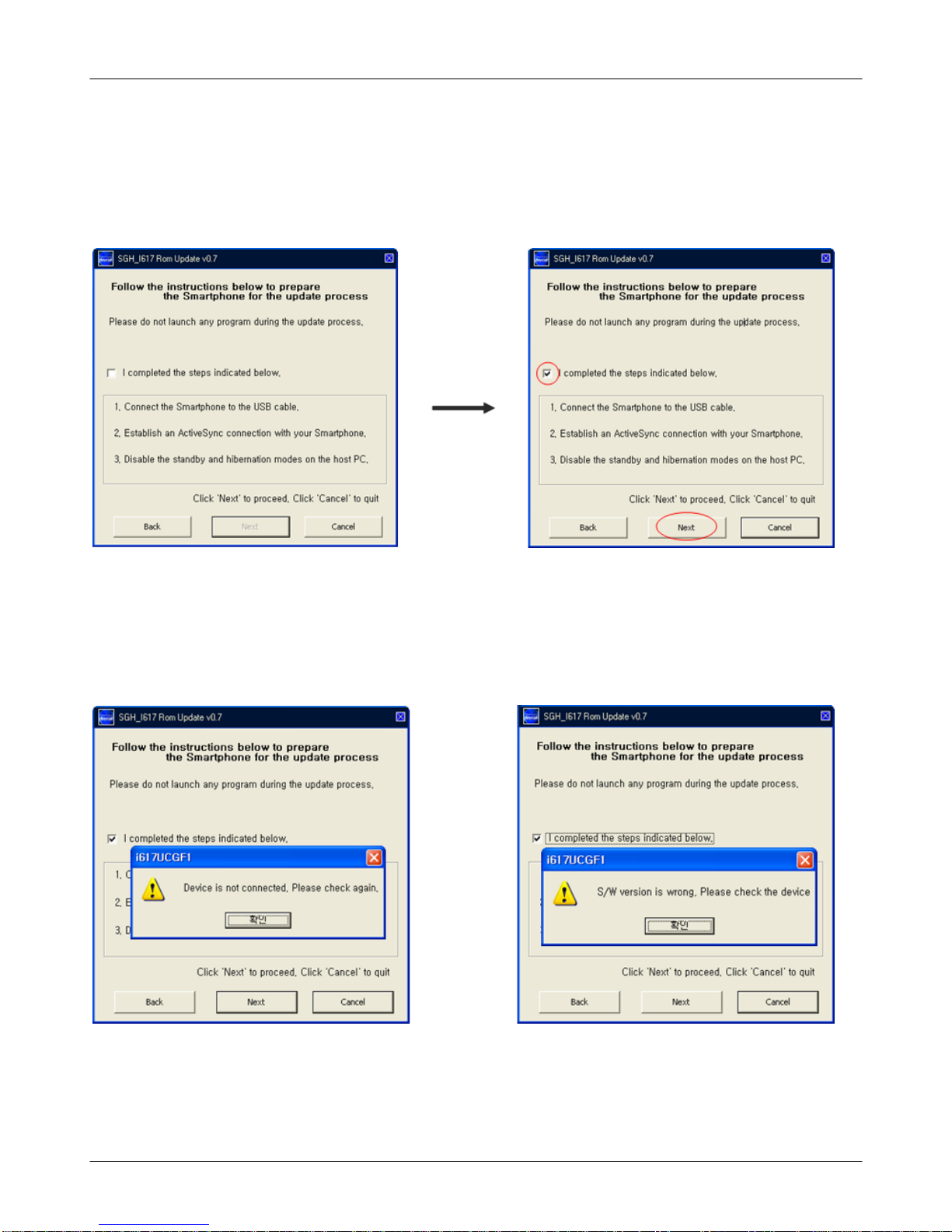

1. If you check the check box, "Next" button will be activated. Then you can
go on next step.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization
2. Disable the standby and hibernation modes on the host PC. And the
capacity of a battery should be enough. Do NOT launch any program
during the update process.
3. If you try to go on next step without connection between the device and
the PC, it will be occurred that error message is indicated below. And the
device version is not correct, you can NOT go on next step.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-7
This Document can not be used without Samsung's authorization
4. ActiveSync will be terminated on your computer at this step. (The icon for
the ActiveSync may be on your tray of the PC. It is not updated merely.)
And wait for the reboot of the device. The device will be connected the
download program.
If you succeed in connecting, you can see the 'Start' button which is
activated.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-8
This Document can not be used without Samsung's authorization
5. You can push the start button to download the binary image. (Phase 0 is
for the partition process. So, it may be omitted. In normal case, download
is started from phase 1.)
6. Phase 2 is for the PDA binary. And the PC try to open the COM port after
finishing Phase 2.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-9
This Document can not be used without Samsung's authorization
7. You can see the message for the completion after finishing Phase 3.
■Trouble Shooting.

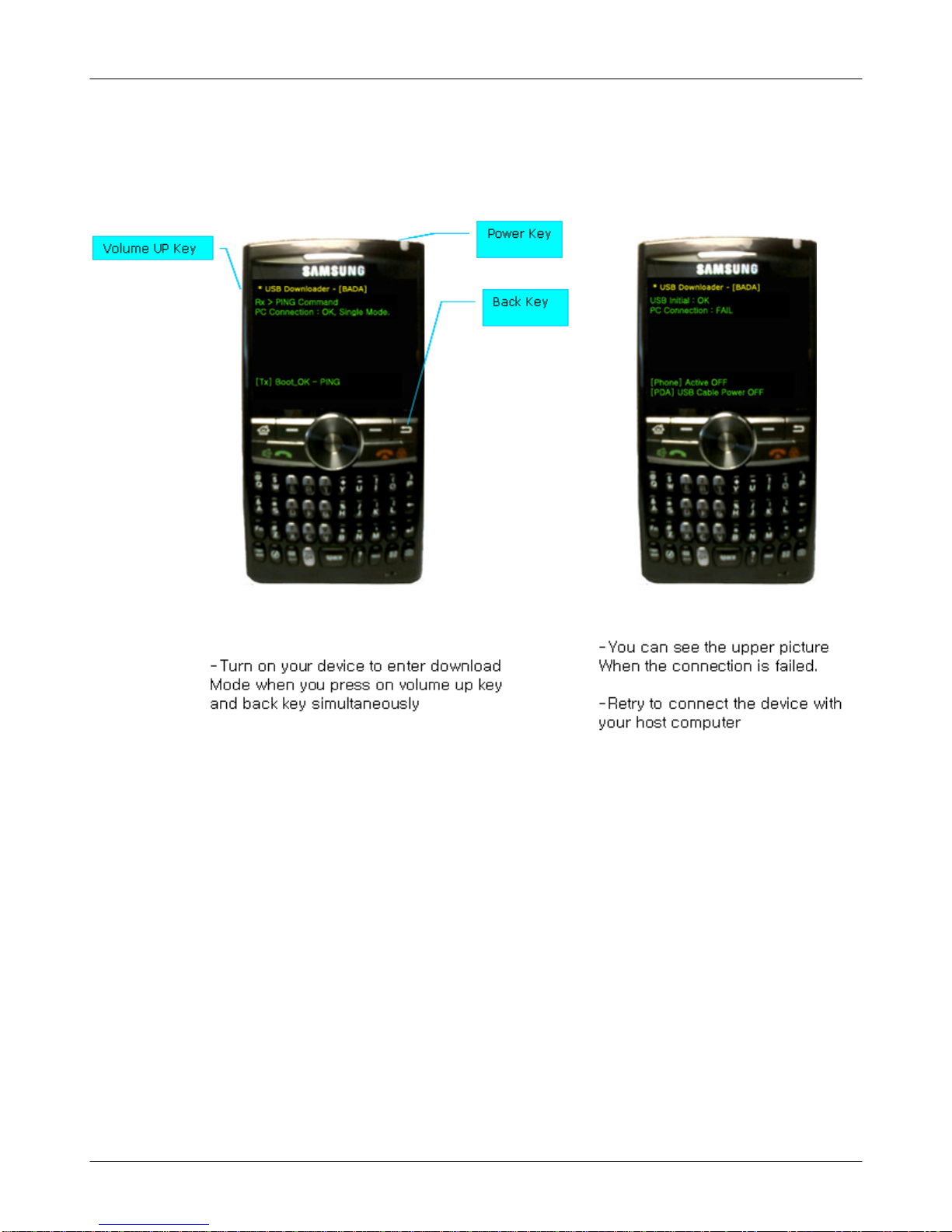

•If you face with the problem during Download, disconnect your device from the PC. Then turn off
the device and turn on it by pressing power key, back key, and volume up key simultaneously. The
device will be reconnected with the PC. So you can go on next step.
(If the download is failed in Phase 2, Do NOT terminate the download program. Just reconnect your
device in download mode.)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-10
This Document can not be used without Samsung's authorization
4-2-3-2. Single Download ([BADA] Download V0.9.3_Single.exe)

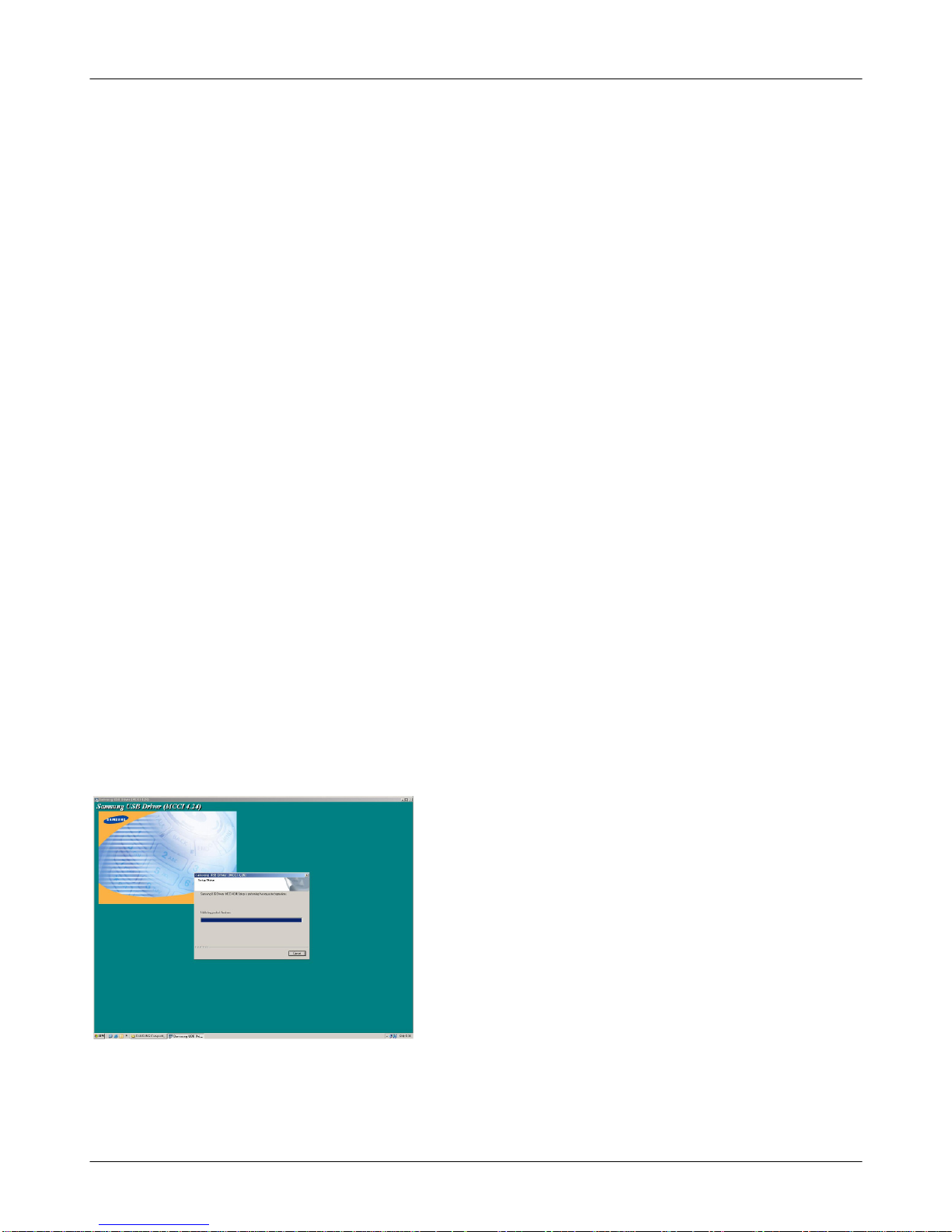

■ActiveSync Setting.
•Make sure that the active sync program is checked before connecting your device to the
host computer.
•If the ActiveSync is not working on your computer, Make sure that check box, Allow USB
connection at the connection settings, is released.
•Press ‘OK’ button to save a configuration.
■How to connect the device to your host computer.
•Select the binary files by using Eboot, PDA and PHONE buttons.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-11
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-12
This Document can not be used without Samsung's authorization
■Load the binary download program by executing the
“[BADA] Download V0.9.3_Single.exe”
1. First select the bootloader image by clicking the EBOOT button. The Eboot
Checkbox will be activated.
2. Click the PDA Button to select the PDA image, then the PDA checkbox will
be activated.
