Samsung SGH-M600S User manual

GSM TELEPHONE
SGH-M600S
GSM TELEPHONE CONTENTS
1. Specification
2. Exploded View and Parts List
3. Flow Chart of Troubleshooting
4. Array course control
5. Block Diagrams
6. PCB Diagrams
7. MAIN Electrical Parts List
8. Reference data
9. Safety Precautions
10. Product Function

Samsung Electronics Co.,Ltd.
2007. 07. Rev.1.0
ⓒ
This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast &Africa mea.samsungportal.com
GSPN (Global Service Partner Network)

Contents
1. Specification
1-1. GSM General Specification .......................................................................................1-1
1-2. GSM Tx Power Class ...............................................................................................1-2
2. Exploded View and Parts List
2-1. Cellular phone Exploded View ..................................................................................2-1
2-2. Cellular phone Part list .............................................................................................2-2
2-3. Disassembly ...............................................................................................................2-4
2-4. Assembly ....................................................................................................................2-6
2-5. LCD KIT .....................................................................................................................2-8
3. Flow Chart of Troubleshooting
3-1. Baseband
3-1-1. Power ON .............................................................................................................9-1
3-1-2. Initial ......................................................................................................................9-4
3-1-3. Sim Part ................................................................................................................9-6
3-1-4. Charging Part ........................................................................................................9-8
3-1-5. Microphone Part ....................................................................................................9-9
3-1-6. Speaker Part .......................................................................................................9-11
3-1-7. LCD ......................................................................................................................9-13
3-1-8. Camera ................................................................................................................9-16
3-2. RF
3-2-1. GSM Receiver.......................................................................................................3-18
3-2-2. DCS Receiver.......................................................................................................3-19
3-2-3. PCS Receiver.......................................................................................................3-20
3-2-4. GSM Transmitter...................................................................................................3-23
3-2-5. DCS Transmitter...................................................................................................3-24
3-2-6. PCS Transmitter...................................................................................................3-25
3-2-7. Bluetooth Part .....................................................................................................3-27
4. Array course control
Software Downloading
4-1. Downloading Binary Files ..........................................................................................4-2
4-2. Pre-requsite for Downloading ....................................................................................4-2
4-3. S/W Downloader Program .........................................................................................4-3

Contents
5. MAIN Electrical Parts List
6. Block Diagrams
7. PCB Diagrams
8. Reference data
9. Safety Precautions
9-1. Repair Precaution ......................................................................................................9-1
9-2. ESD(Electrostatically Sensitive Devices) Precaution ...............................................9-2
10. Product Function
10-1. Main Function .........................................................................................................10-1

1. Specification
1-1
1-1. GSM General Specification
GSM 900
Phase 1 EGSM 900 Phase 2 DCS1800 Phase 1
Freq. Band[MHz]
Uplink/Downlink 890~915 935~960 880~915 925~960 1710~1785 1805~1880
ARFCN range 1~124 0~124 &
975~1023 512~885
Tx/Rx spacing 45 MHz 45 MHz 95 MHz
Mod. Bit rate/
Bit Period 270.833 Kbps 3.692 us 270.833 Kbps 3.692 us 270.833 Kbps 3.692 us
Time Slot Period/Frame
Period 576.9 us 4.615 ms 576.9 us 4.615 ms 576.9 us 4.615 ms
Modulation 0.3 GMSK 0.3 GMSK 0.3 GMSK
MS Power 33 dBm~13 dBm 33 dBm~5 dBm 30 dBm~0 dBm
Power Class 5 pcl ~15pcl 5pcl ~19pcl 0pcl ~15pcl
Sensitivity -102 dBm -102 dBm -100 dBm
TDMA Mux 8 8 8
Cell Radius 35 Km 35 Km 2 Km

Specification
1-2
1-2. GSM TX power class
TX Power
control level GSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3 dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
2. Exploded View and Parts List
2-3
This Document can not be used without Samsung's authorization

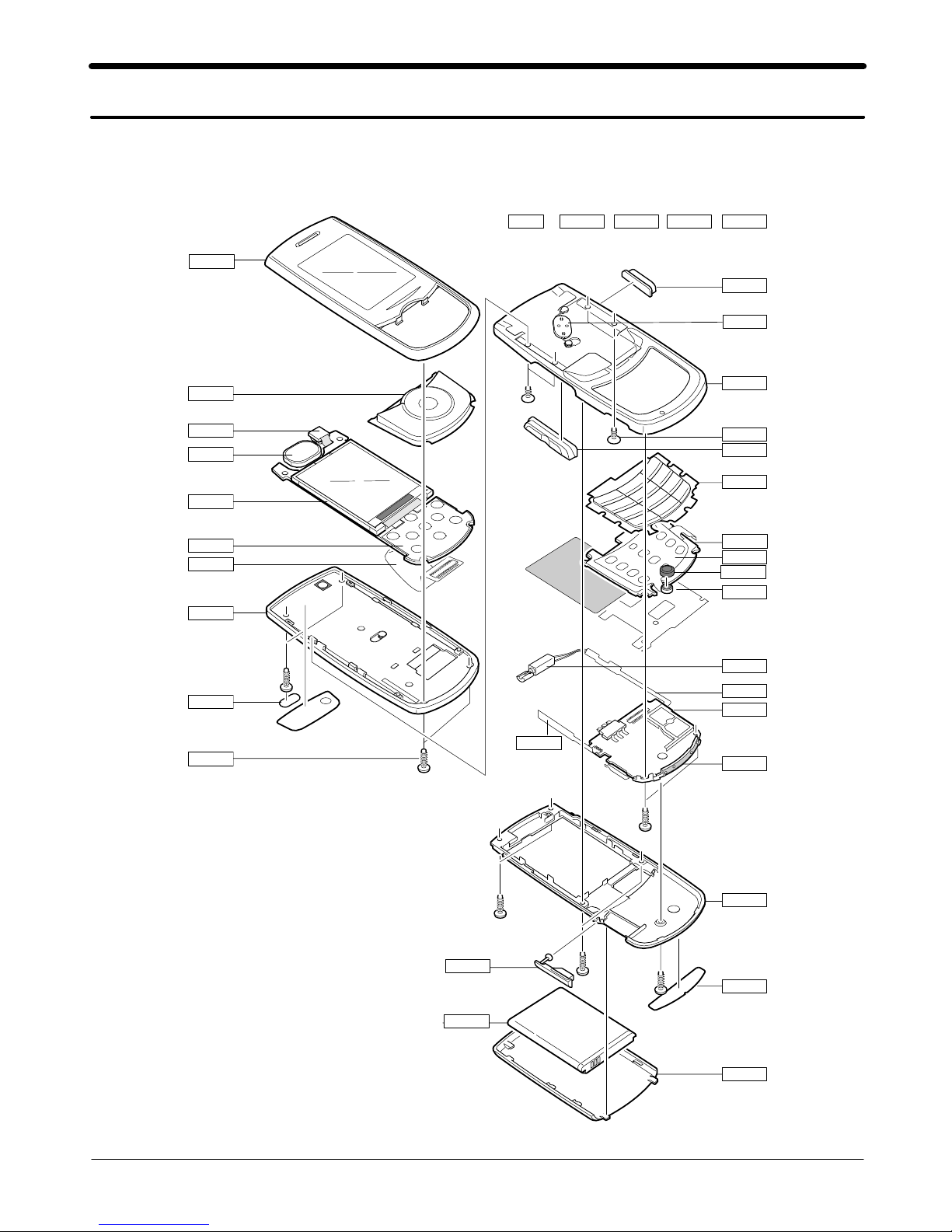

2-1. Cellular phone Exploded View
QFU01
QCK01
QIF01
QBA01
QKP02
QCA01
QSP01
QLC01
QME02
QFL01
QSC01
QCR05
QMO01
QVK01
QMP01
QAN02
QMI03
QME01
QBR04
QKP01
QVO01
QFR01
QHI02
QRE01
QRF01
QBA00
QMI01
QVK02
QCR57
QPC01
QHI01 QCR57 QFL01 QFR01 QHI01
+
=++

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
2-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QAN02 INTENNA-SGH_M600 GH42-01206A
QBA00 PMO-BATT COVER GH72-39166A
QBA01 INNER BATTERY PACK-800MAH,BLK, GH43-02719A
QBR04 ASSY KEYPAD-BRACKET GH98-04516A
QCA01 CAMERA MODULE GH59-04415A
QCK01 PMO-POWER KEY GH72-39161A
QCR05 SCREW-MACHINE 6001-001478
QCR05 SCREW-MACHINE 6001-001478
QCR05 SCREW-MACHINE 6001-001478
QCR57 SCREW-MACHINE 6001-002001
QFL01 ASSY COVER-SLIDE LOWER GH98-04440A
QFR01 ASSY COVER-FRONT GH98-04441A
QFU01 ASSY COVER-SLIDE UPPER GH98-04439A
QHI01 ASSY HINGE GH98-04515A
QHI02 ASSY HINGE-SLIDE GH98-05660A
QIF01 PMO-IF COVER GH72-39164A
QKP01 ASSY KEYPAD-MAIN(INU/DSS) GH98-05892A
QKP02 ASSY KEYPAD-SUB(XEF/DSA) GH98-04443A
QLC01 ELA UNIT-SGH_M600 LCD MODULE ( GH96-02764A
QME01 KEY FPCB-KEY PBA(34KEY) GH59-04437A
QME02 DOME SHEET-DOME SHEET 9 KEY GH59-04438A
QMI01 AS-MIC GH81-06707A
QMI03 AS-MIC RUBBER GH81-06708A
QMO01 MOTOR DC-SGH-M600 GH31-00340A
QMP01 PBA MAIN-SGH_M600S GH92-03911A
QPC01 MEA-FPCB KIT GH97-07862A
QRE01 ASSY COVER-REAR GH98-04442A
QRF01 ASSY COVER-RF GH98-05002A
QSC01 PMO-SCREW CAP GH72-39157A
QSP01 SPEAKER 3001-002165
QVK01 KEY FPCB-SIDE VOLUME GH59-04439A
QVK02 KEY FPCB-SIDE POWER 1 KEY FPCB GH59-04440A
QVO01 PMO-VOLUME KEY GH72-39162A
2-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
2-3
This Document can not be used without Samsung's authorization
Description SEC CODE
EARPHONE-B-TYPE GH59-04557A
MANUAL-SFC CARD(INDA) GH68-08768A
MANUAL USERS-INDA LEAFLET CARD GH68-13751A
MANUAL USERS-INDA ENGLISH GH68-15350A
BAG PE 6902-000297
LABEL(P)-UNIT SEAL GH68-00518B
LABEL(R)-MAIN EU GH68-15468A
BOX(P)-UNIT MAIN(INU) GH69-05650G
VINYL-BOHO MAIN GH74-33869A
LABEL(R)-WATER SOAK GH68-09361A
TAPE INSU GH74-28075A
MPR-TAPE LCD A GH74-24670A
MPR-REMOVE TAPE LCD GH74-13804A
MPR-INSU TAPE GH74-28241A
TAPE-FPCB BACK GH74-33643A
TAPE INSU GH74-32033A
VINYL-BOHO REAR GH74-34880A
ADAPTOR-ATADS10IBE,BLK,INDA GH44-01765A

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
2-4
This Document can not be used without Samsung's authorization
2-3. Assembly
1
3
2
4
1) Disjoint volume-key & pwr-key.
2) Remove the green tape on the connector
of key-pad FPCB.
※caution
1) Be careful for crumpling & crack of key-pad
FPCB.
1) Disjoint the intenna screw of 2 points.
2) Disjoint the key-pad FPCB from connector.
3) Take off the motor from the FRONT plastic
using tweezers and disjoint pwr-key FPCB &
volume key FPCB from the FRONT plastic.
※caution
1) Be careful for scratch.
2) Be careful for the damage on the WIRE of
Motor

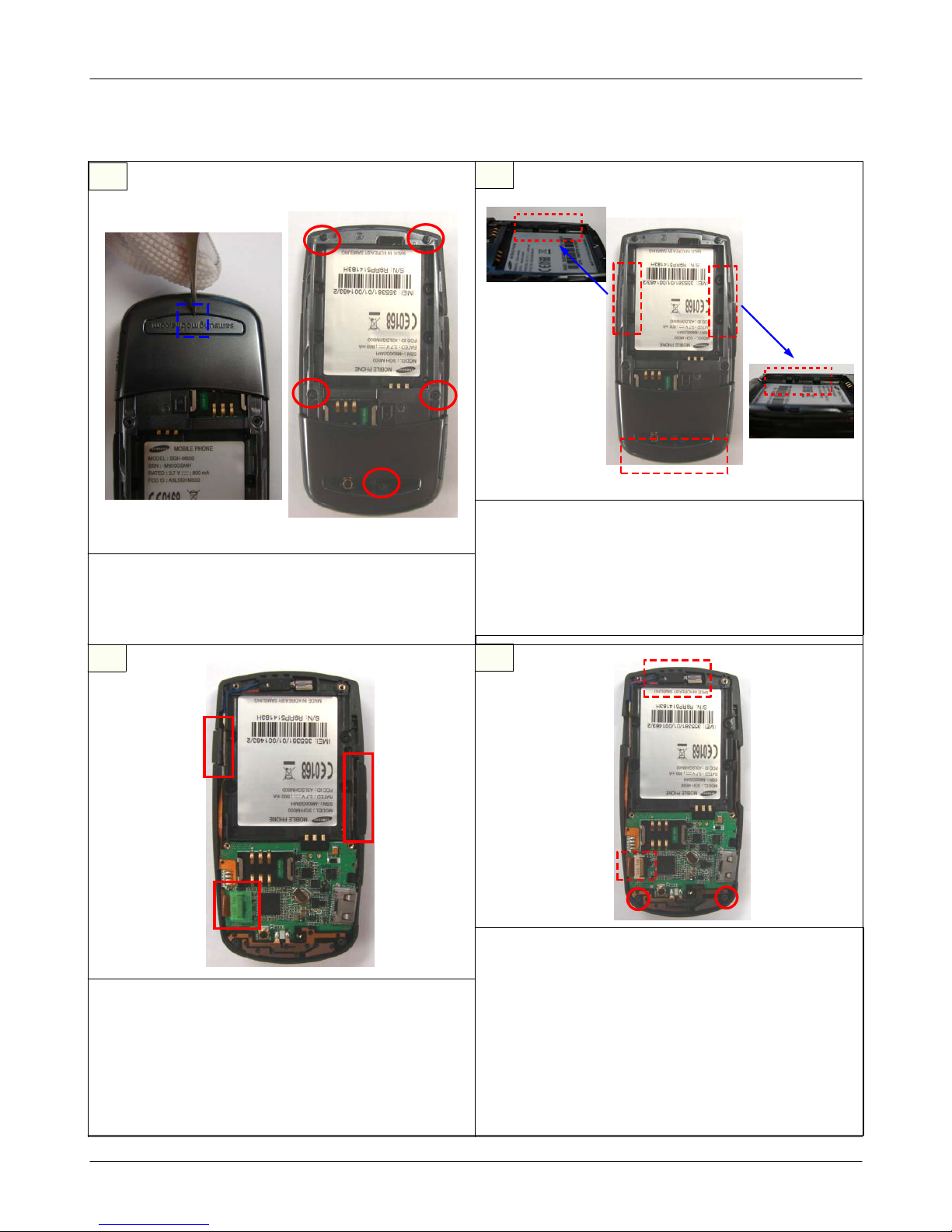

1) Remove RF cover using the pointed tool.
2) Disjoint the REAR Screw of 5 Points.
※caution
1) Be careful for scratch
1) Disjoint REAR's lockers just like pictures
below.(pic1 & pic 2)
2) Disjoint other lockers too.
※caution
1) Be careful for scratch
2) Be careful for demage of lockers.
<pic 1>
<pic2>

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
2-5
This Document can not be used without Samsung's authorization
56

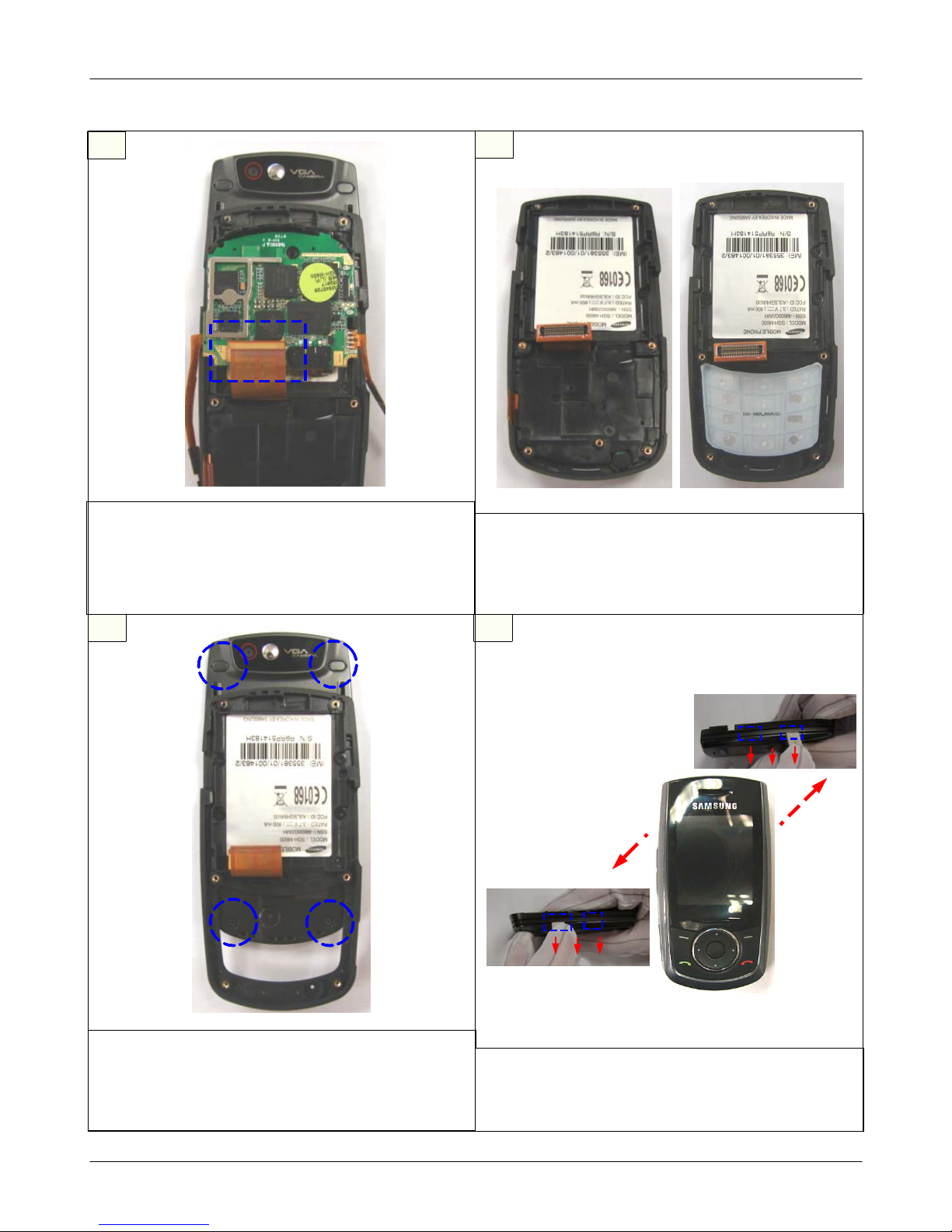

1) Disjoint the LCD FPCB & PBA like the
pictrue below.
2) Disjiont the PBA from the FRONT plastic.
※caution
1) Be careful for the FPCB's crack
1) Disjoint the key-pad bracket from the
FRONT plastic.
2) Remove the Key-pad rubber.
※caution
1) Be careful for scratch
78
1)Slideuplikethepicturebelow.
2) Disjoint screw caps using tweezers.
3) Disjoint LOWER plastic Screw of 4 points.
※caution
1) Be careful for scratch.
1) Using the Disassemble tool, Disjoint the UPPER
plastic & LOWER plastic like the pictures below.
※caution
1) Be careful for scratch.

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
2-6
This Document can not be used without Samsung's authorization
910

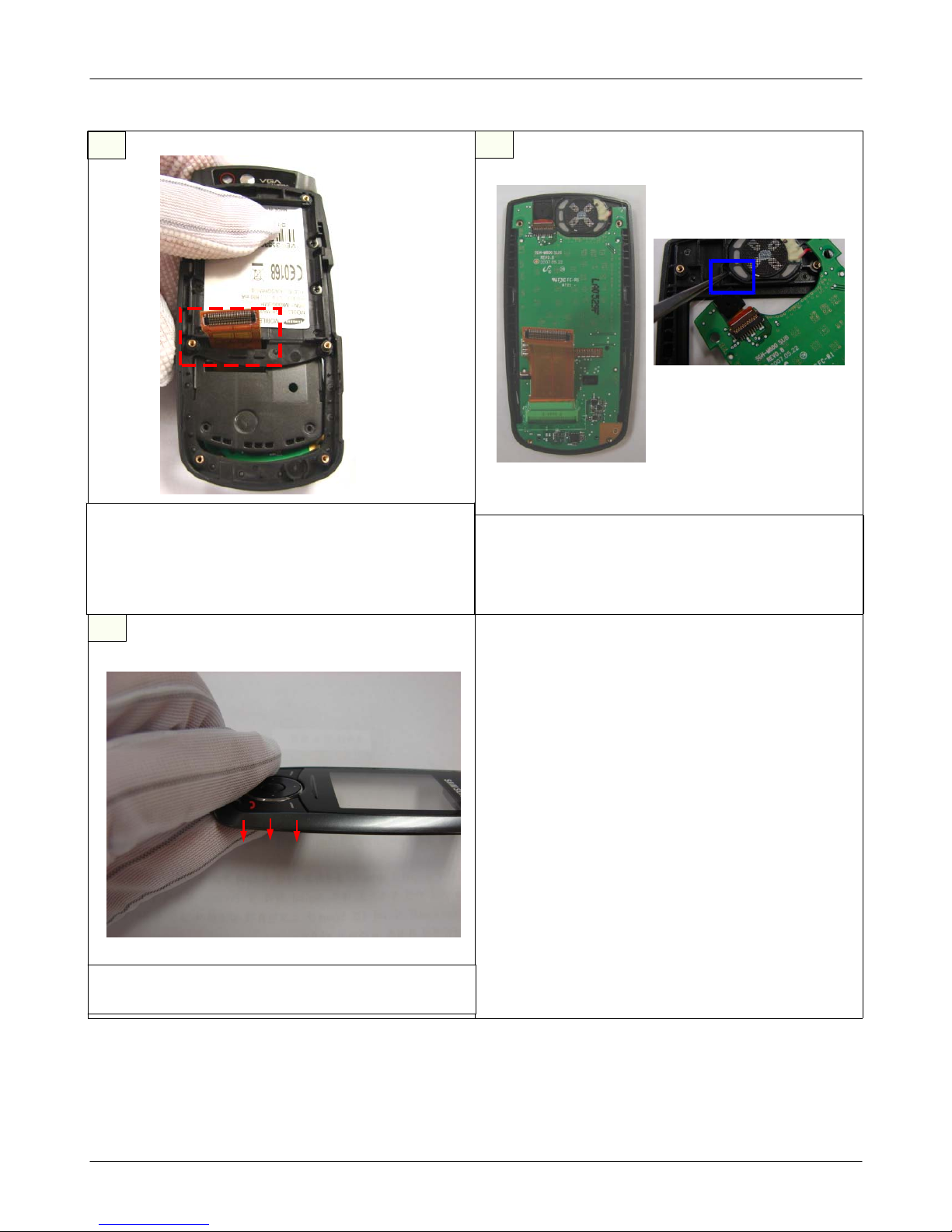

1) Lift up the LCD PBA slightly & Remove the
camera module,
2) Disjoint the speaker.
※caution
1) Be careful for the demage of camera & speaker
11
<Pic 1>
1) Slide up like the picture below.
2) Disjoint the Hinge ASSY from the UPPER
plastic.
※caution
1) Be careful for the LCD FPCB's crack.
1) Disjoint the Navi-key from the UPPER
plastic.

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
2-7
This Document can not be used without Samsung's authorization
1
3
2
4

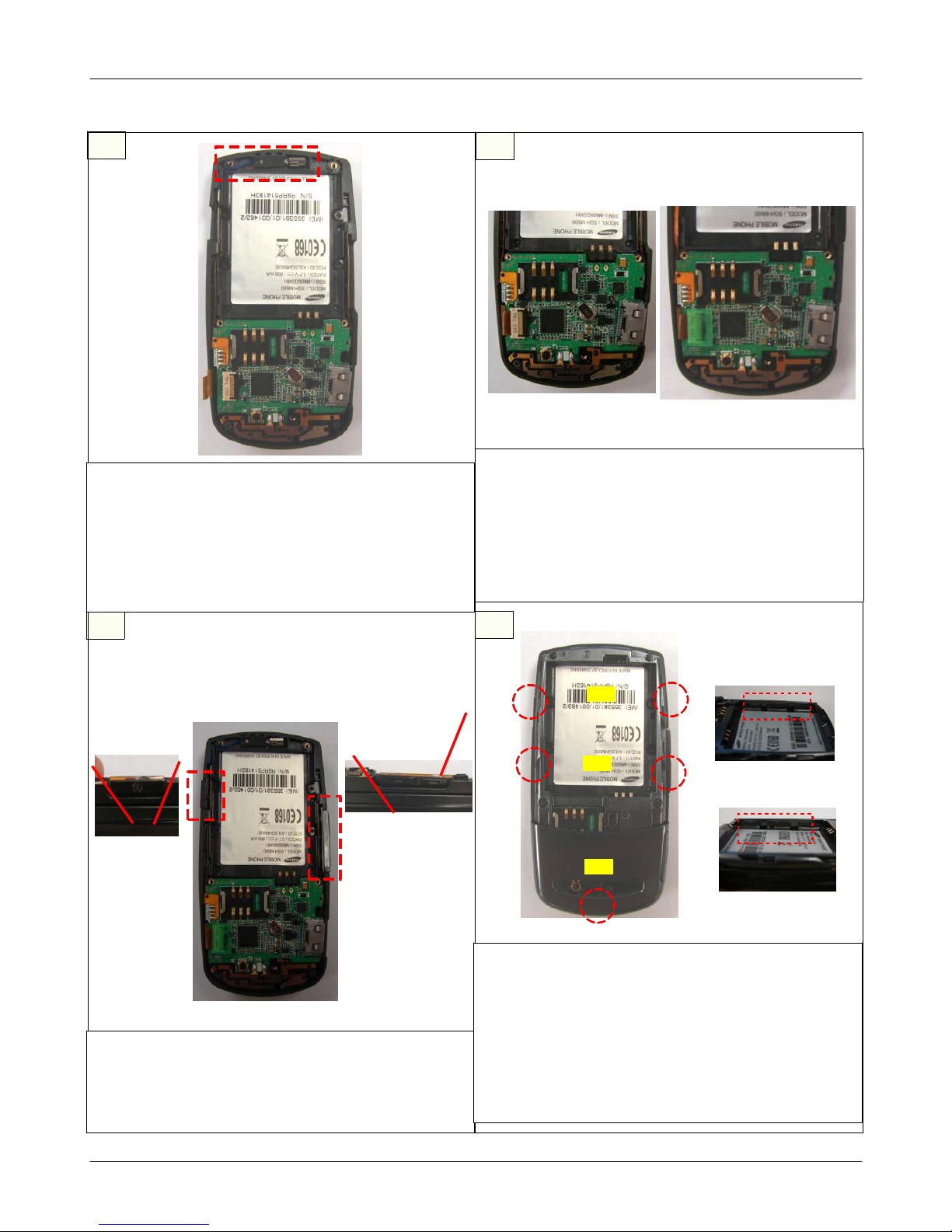

1) Slide up like the picture below.
2) Insert the FPCB through the hole at Hinge.
and Push up the LOWER plastic.
3) Push #1 & #2 in numerical order.
※caution
1) Be careful for the scratch and crack of FPCB.
2) Be careful for the demage of LCD.
1) Joint the 4 screws in numerical order.
※caution
1) Be careful for scratch.
2-4. Disassembly
1) Put the NAVI key like the picture below.
※caution
1) Put the hole of NAVY key to UPPER
1) Put the speaker & camera.
2) Put the LCD-PBA on the UPPER plastic.
※caution
1) Check the fabrication status of SPK & CAM
2) Be careful for the CAM FPCB's crack.
1
2
1
3 4
2

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
2-8
This Document can not be used without Samsung's authorization
56

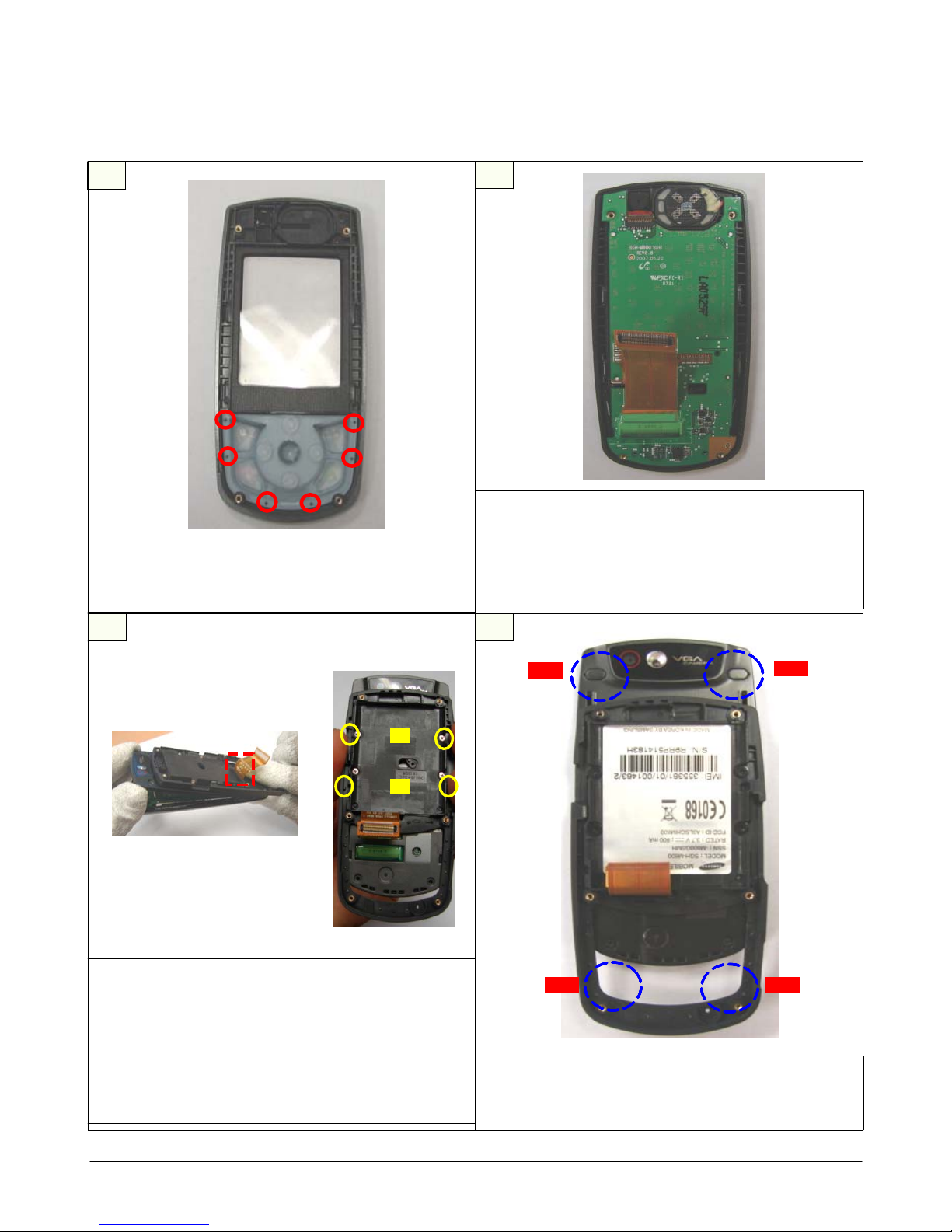

1) Put the key-pad on the FRONT.
2) Put the MIC and bracket like the picture
below..
※caution
1) Check the flatness of MIC.
1) Fold the FPCB like the picture below.
2) Joint the FPCB & connector.
※caution
1)Check the connection of FPCB.
7
1) Fold the volume key FPCB & Insert the
volume key into the slot.
※caution
1) Volume key must be inserted fully.
8
1) Joint the 2 intenna screws.
※caution
1) Be careful for the scratch.
<pic 1>
<pic 2>

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
2-9
This Document can not be used without Samsung's authorization
910
11 12
1
2
3
<pic 1>
<pic 2>
1) Insert the pwr-key.
2) Insert the volume-key.
※caution
1) Be careful for the direction of vol-key, pwr-key
1) Insert the 3*4key FPCB to the CONNECTOR
along the SILK LINE.
2) Put the green TAPE on the connector.
※caution
1) vol-key, pwr-key FPCB must be covered with
REAR COVER plastic.
2) Be careful not to give demage to locker.
1) Put the pwr-key like the picture below.
2) Put the motor like the picture below.
Wiresmustbeinorderlikethepicture
below.(blue wire: top, red wire: bottom)
※caution
1) Wires must be in order.
1) Insert the 3*4key FPCB to the CONNECTOR
along the SILK LINE.
2) Put the green TAPE on the connector.
※caution
1) Check the connection of FPCB.
2) Be careful for the scratch and crack of FPCB.

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
2-10
This Document can not be used without Samsung's authorization
1) Joint the 5 screws of REAR COVER plastic.
2) Joint the RF cover.
※caution
1) Be careful for the scratch.
13

SAMSUNG Proprietary-Contents may change without notice
3. Flow Chart of Troubleshooting
3-1
This Document can not be used without Samsung's authorization
3-1.Baseband
3-1-1. Power ON
'Power On' does not work
Voltage >=3.3V
Download again
Charge the Battery
Pin#J12 >= 2.8V Check UCP300 and C317
Pin#A13 and pin#A14
=2.8V Check UCP300 and C318
Freq =26 MHz
Vrms >=300mV
Vpp≒900mV
Check the clock generation circuit
(relatedtoOSC 100)
Check the initial operation
END
No
Yes
Yes
Yes
Yes
Yes
Yes
No
No
No
No
pin#G11 =1.8V
No
Yes
Check the current consumption
Check the Vbat Voltage
Check the pin of UCP300
Check the clock signal at pin#30 #31 of U100
Current consumption
>= 100mA
Freq =13 Mz
Check the clock signal at pin#8of U100
Yes
Check U100
No

SAMSUNG Proprietary-Contents may change without notice

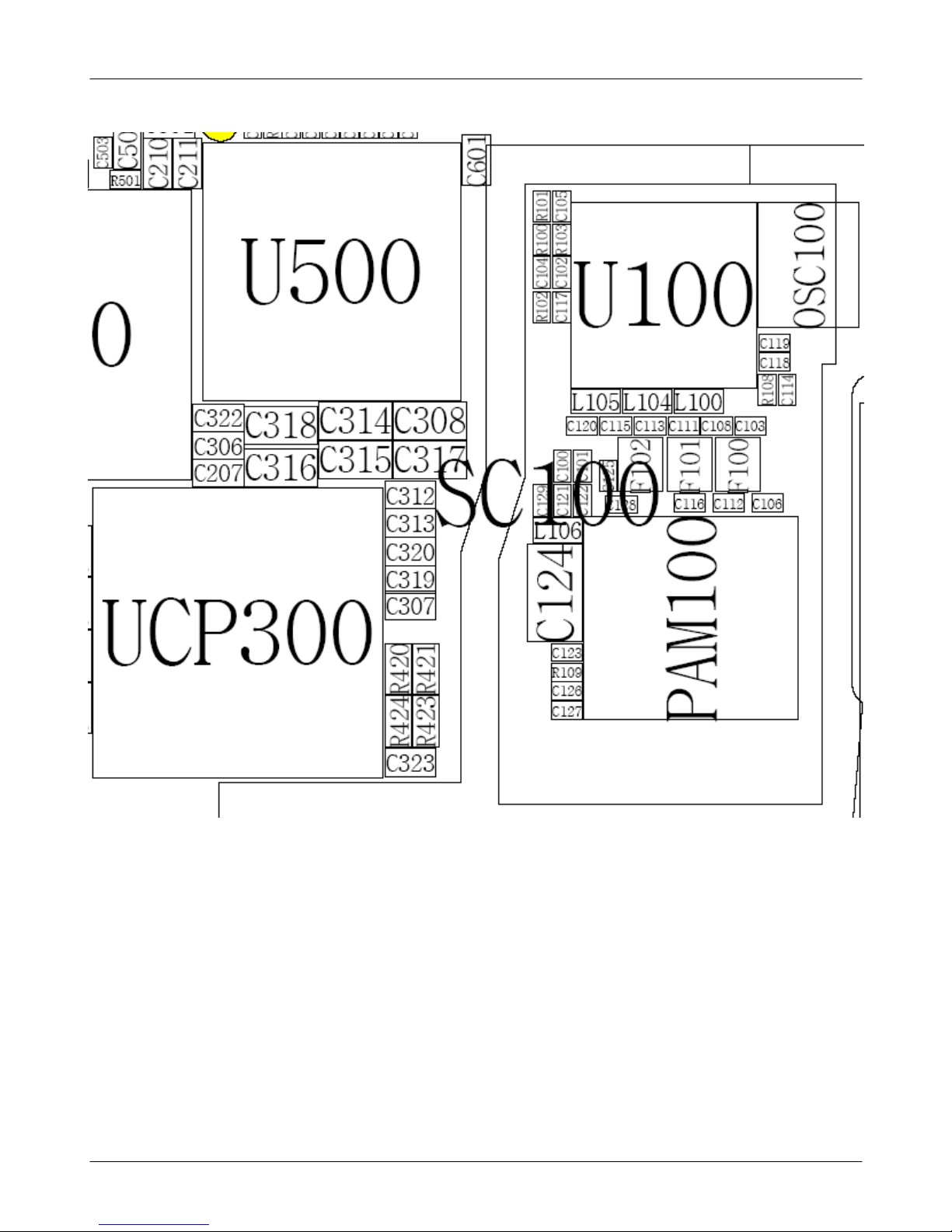

Flow Chart of Troubleshooting
3-2
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
3-3
This Document can not be used without Samsung's authorization

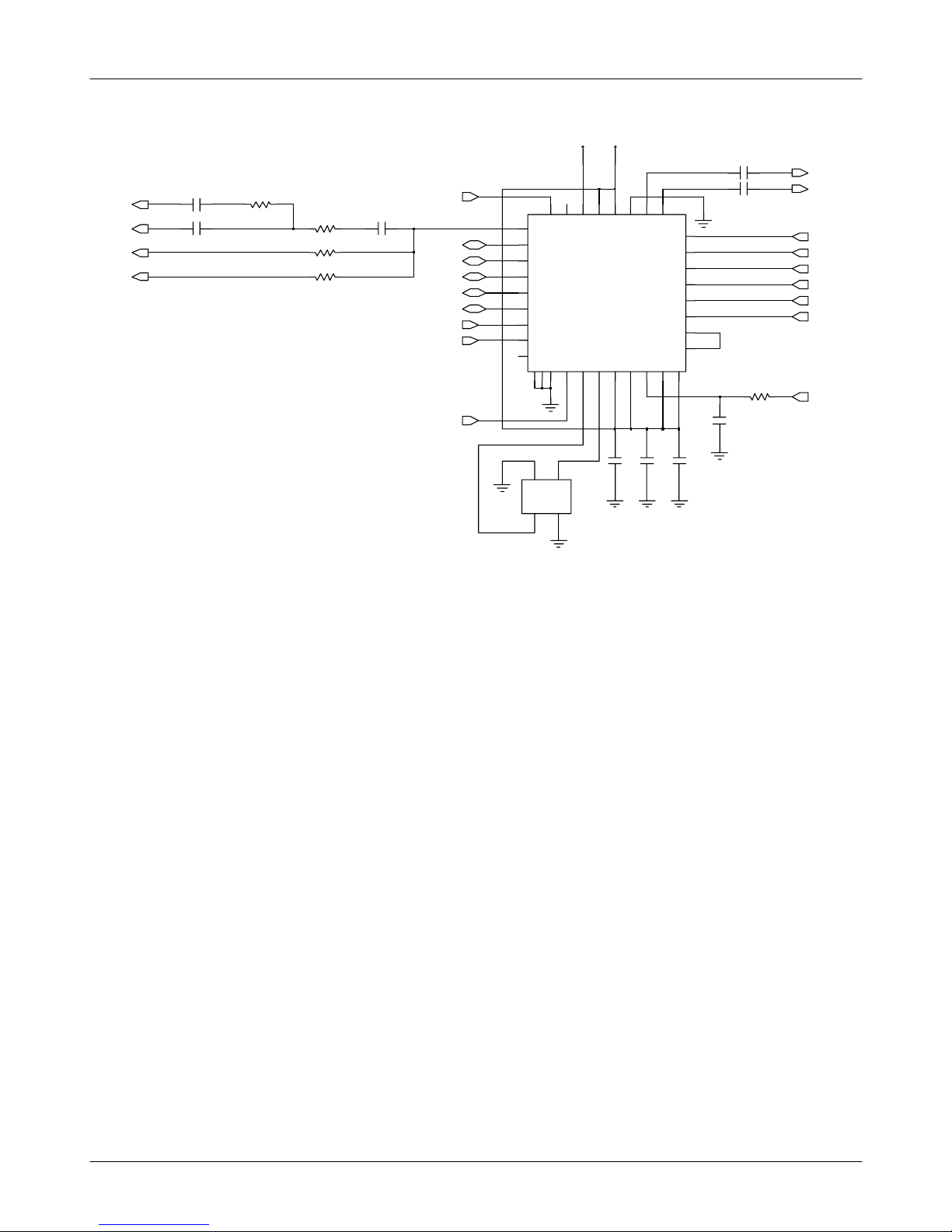

OSC100
GND1
2
4
GND2
1
HOT
HOT
3
VRF_2.9V
C117
C104
R102
C114
C119
C100
C105
30
2
L
A
T
X
N
D
P
_
910
T
E
S
E
R
_
_SEN
2
D
D
V
28
D
D
V
29
11
O
I
V
26
V
I
D
X
N
E
X
32
E
D
O
M
X
25
8XOUT
31
1
L
A
T
X
RFIPN 18
RFIPP
17
H
O
F
R
1615
L
O
F
R
SCLK
1
SDIO
3
D
D
V
12
D
D
V
13
C
N
35
36 NC
RFIAN
24
RFIAP 23
RFIDN 20
RFIDP 19
RFIEN 22
RFIEP 21
27
C
F
A
6BIN
BIP
7
BQN
4
BQP
5
14
D
N
G
D
N
G
3334
C
N
U100
C101
R108
R101
R100C102
C118
R103
VCCD_2.9V
SBDT
RTX_Q_N
RTX_Q_P
RTX_I_N
RTX_I_P
XOENA
GSM_LNA_IN_N
GSM_LNA_IN_P
CLK13M_MC
CLK13M_BK
DPCS_PAM_IN
GSM_PAM_IN
CLK13M_TR
CLK13M_YMU
AFC
SBCK
SBI
PCS_LNA_IN_P
PCS_LNA_IN_N
DCS_LNA_IN_P
DCS_LNA_IN_N
RF_EN

SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
3-4
This Document can not be used without Samsung's authorization
3-1-2. Initial
Initial Failure
The pin #G11 of UCP300 =
1.8V and
the pin #J12 of UCP300 =
2.8V ?
Check the UCP300
(if it has some problem, it is to be replaced.)
Yes
No
Is the pin #K9 of UCP300
"Low →High" ?
Yes
No Check the UCP300
(if it has some problem, it is to be replaced.)
There is 32.768kHz wave
forms at the C237 and C238
Yes
No
Check the UCP201
Is the pin #G4 of UCP201
is "High"
The voltage is "High" at the
C316,C317,C318 Check the UCP300
Check the UCP201
LCD display is O.K
No
No
Yes
Yes
Yes
Check the LCD part
No
Sound is O.K
Yes
No
Check the Audio part
END
Yes
