Samsung SGH-P900 User manual

GSM TELEPHONE
SGH-P900
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts List
6. Disassembly and Assembly
instructions
7. MAIN Electrical Parts List
8. Block Diagrams
9. PCB Diagrams
10. Flow Chart of Troubleshooting
11. Reference data

contents
1. Safety Precautions
1-1. Repair Precaution ...........................................................................1-1
1-2. ESD(Electrostatically Sensitive Devices) Precaution ...........................1-2
2. Specification
2-1. GSM General Specification ..............................................................2-1
2-2. GMSK TX power Level ....................................................................2-2
2-3. EDGE TX power Level ....................................................................2-3
3. Product Function
3-1. Main Function ................................................................................3-1
4. Array course control
Software Downloading
4-1. Downloading Binary Files ................................................................4-2
4-2. Pre-requsite for Downloading ..........................................................4-2
4-3. S/W Downloader Program ...............................................................4-3
5. Exploded View and Parts List
5-1. Cellular phone Exploded View .........................................................5-1
5-2. Cellular phone Part list ...................................................................5-2
6. Disassembly and Assembly instructions
6-1. Disassembly
6-2. Assembly
7. MAIN Electrical Parts List
8. Block Diagrams
9. PCB Diagrams
9-1. Main .............................................................................................9-1

contents
10. Flow Chart of Troubleshooting
10-1. Baseband
10-1-1. Power ON ..............................................................................10-1
10-1-2. Initial ....................................................................................10-6
10-1-3. Sim Part ..............................................................................10-10
10-1-4. Microphone Part ...................................................................10-12
10-1-5. Speaker Part ........................................................................10-14
10-1-6. Camera Part ........................................................................10-17
10-1-7. Mp3 play Part ......................................................................10-19
10-1-8. TV OUT ...............................................................................10-21
10-2. RF
10-2-1. EGSM RX .............................................................................10-22
10-2-2. DCS RX ...............................................................................10-23
10-2-3. PCS RX ...............................................................................10-25
10-2-4. EGSM TX .............................................................................10-26
10-2-5. DCS & PCS TX .....................................................................10-27
11. Reference data

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specipicty of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use a kind of magnetic object or tool,
because performance of parts is damaged by the influence of manetic force.
●Surely use a standard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use a thicken twisted wire when you measure level.
A thicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because a repair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembing charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easilly by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. , otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or a circuit board.

2. Specification
2-1
2-1. GSM General Specification
GSM 900 DCS1800 PCS1900
Freq. Band[MHz]
Uplink/Downlink
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range 0~124
&975~1023 512~885 512~810
Tx/Rx spacing 45 MHz 95 MHz 80 MHz
Mod. Bit
rate/
Bit Period
GPRS 270.833 Kbps
3.692 us
270.833 Kbps
3.692 us
270.833 Kbps
3.692 us
EDGE 812.5 Kbps
3.692 us
812.5 Kbps
3.692 us
812.5 Kbps
3.692 us
Time Slot
Period/Frame Period
576.9 us
4.615 ms
576.9 us
4.615 ms
576.9 us
4.615 ms
Modulation
GPRS 0.3 GMSK 0.3 GMSK 0.3 GMSK
EDGE 8PSK 8PSK 8PSK
MS Power
GPRS 33 dBm~5 dBm 30 dBm~0 dBm 30 dBm~0 dBm
EDGE 27~5 dBm 26~0 dBm 26~0 dBm
Power
Level
GPRS 5pcl~19pcl 0pcl~15pcl 0pcl~15pcl
EDGE
8~19(class E2)
2~15(class E2) 2~15(class E2)
Sensitivity -102 dBm -100 dBm -102 dBm
TDMA Mux
8
88
Cell Radius 35 Km 2 Km 2 Km

Specification
2-2
2-2. GMSK TX power Level
TX Power
control
level
GSM900
5 33±2 dBm
6 31±3 dBm
7 29±3 dBm
8 27±3 dBm
9 25±3 dBm
10 23±3 dBm
11 21±3 dBm
12 19±3 dBm
13 17±3 dBm
14 15±3 dBm
15 13±3 dBm
16 11±5 dBm
17 9±5 dBm
18 7±5 dBm
19 5±5 dBm
TX Power
control
level
DCS1800
0 30±2 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
0 30±2 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

Specification
2-3
2-3. EDGE TX Power Level
TX Power
control
level
GSM850
827±3dBm
925±3dBm
10 23±3 dBm
11 21±3 dBm
12 19±3 dBm
13 17±3 dBm
14 15±3 dBm
15 13±3 dBm
16 11±5 dBm
17 9±5 dBm
18 7±5 dBm
19 5±5 dBm
TX Power
control
level
DCS1800
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
-Digital Multimedia Broadcasting(DMB)
-Camera and camcorder
-Music player
-Bluetooth
-Phone to TV
-Web browser
-File viewer
-Java
-Multimedia Message Service(MMS)
-E-mail

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization

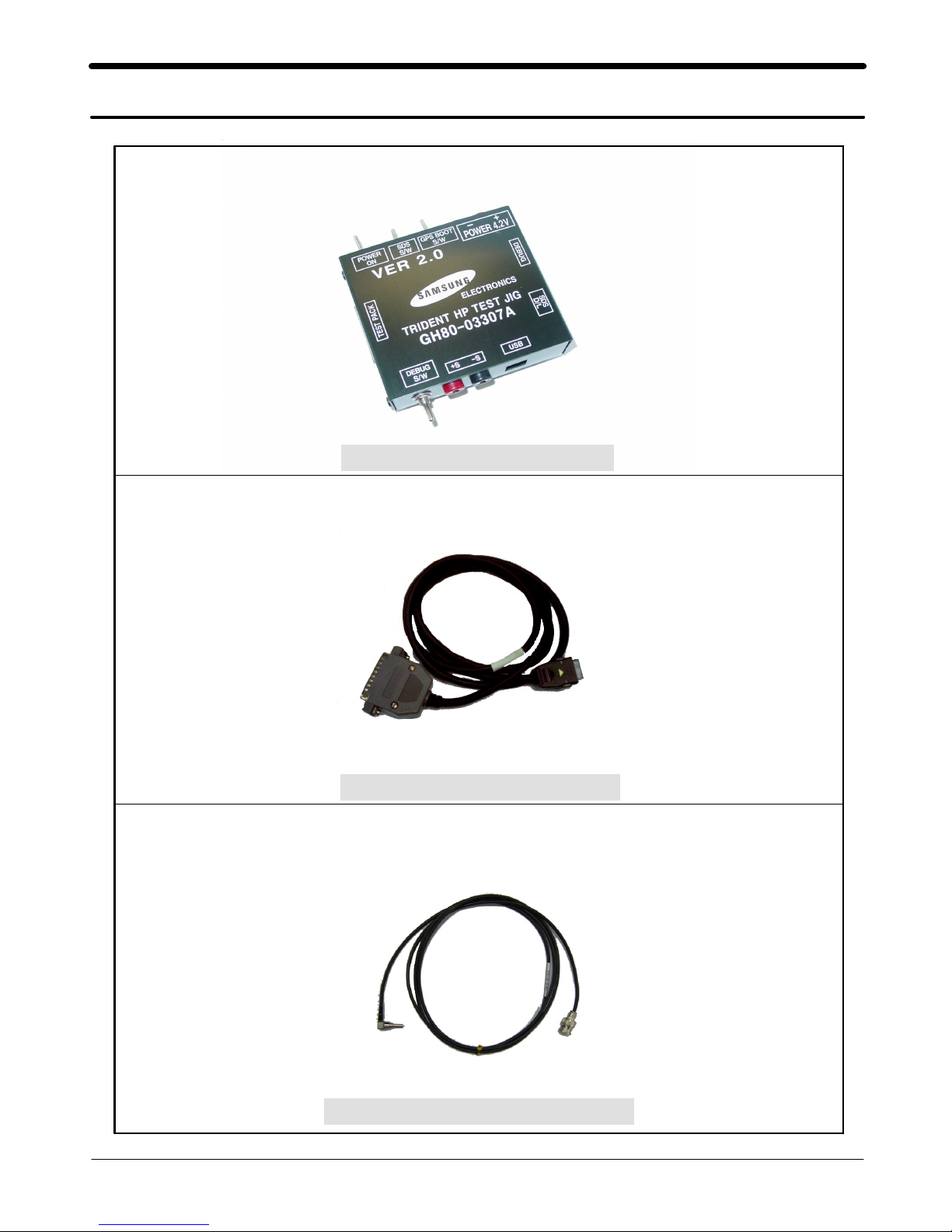

Test Jig (GH80-03307A)
Test Cable (GH39-00127A)
RF Test Cable (GH39-00397A )

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-1. Downloading Binary Files (1)
•Swift Model firmware is composed of 2 files
–*.s3 : Main source binary.
–*.cts : Default Contents Files
•Downloading program There are two kinds of Downloader – single downloader,
multi downloader
–S/W for downloading firmware (binary images) to the Swift Model
–No need to install the S/W. Just unzip the compressed file or copy it.
–Totally 8 mobiles can be downloaded at the same time ( in case of multi
downloader)
•Prerequisite
Downloader ( Single or Multi downloader)
The firmware
Data Cable
4-2. Single Downloader
•HowToDo
1. Prepare 2 files which are explained before this procedure.
2. Execute the downloading SW, Optiflash for SGH-P900
3. Press '*' and Press Power Button.
4. Press Options - Settings Menu.
5. Set 'Specify hardware platform'.
6. Set COM Port & Max. transfer speed.
7. Set default contents file settings & Select default contents file.
8. Select binary file.
9. Press 'OK'
10. Press 'Flash' button.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
4-3. HOW TO USE Download
Upload the downloader by double-clicking the“Optiflash.exe”
Select the“Options” -> “Settings” -> “Generic” -> “Specify hardware platform”.
Choose hardware platform for the downloader file setting.
Set the everything else as the default values which are shown below
'CustomerT:SGH-P900IMAGE 40MB (USB_CRC)'

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization

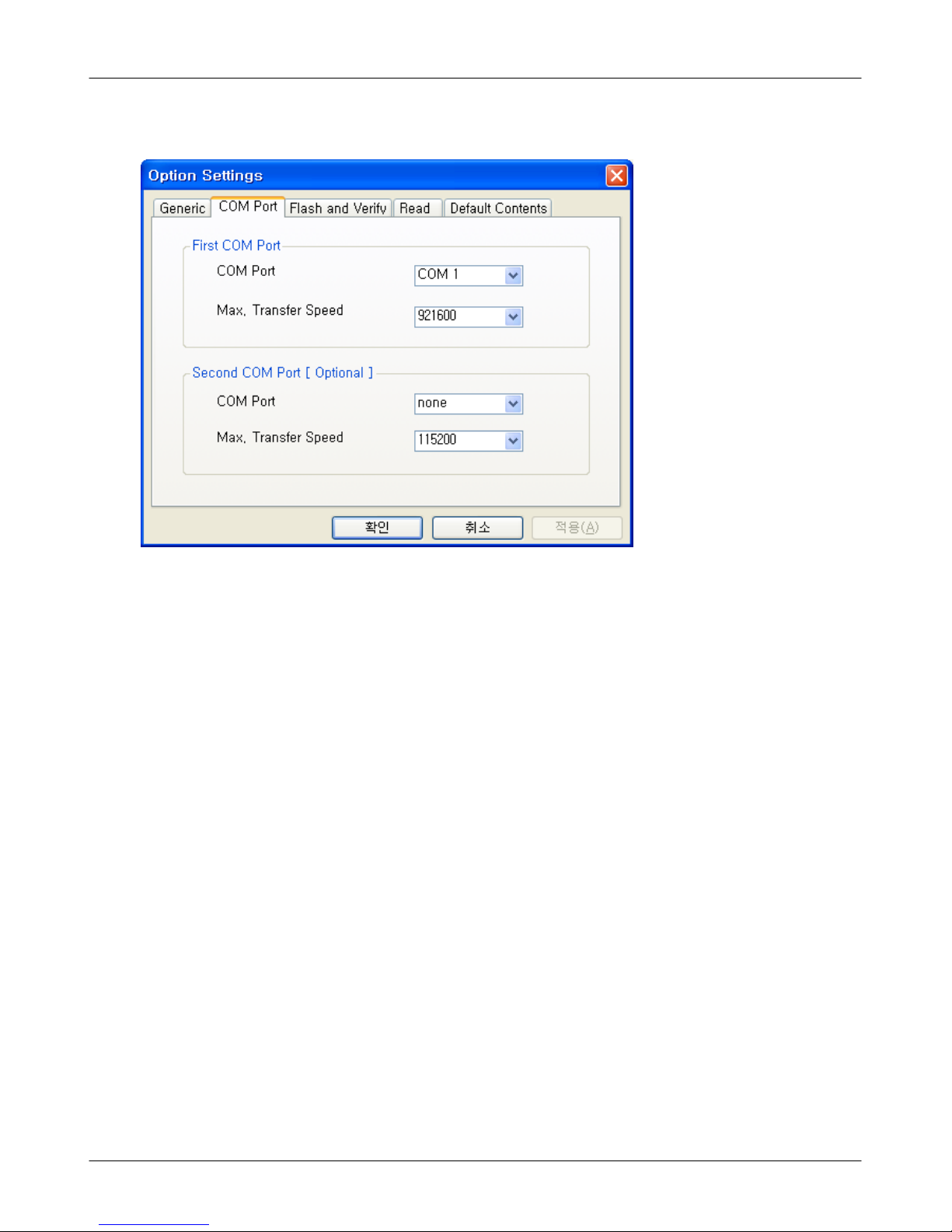

Select the COM port where the download cable is connected
Up to eleven ports are supported. Additionally you can select the maximum
transfer speed Optiflash will use to communicate with the phone. However,
Optiflash will use a slower speed if either the PC’s or the phone’s serial
hardware is incapable of handling the selected speed.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization
Select the “Default Contents” -> “Browse”
Set the directory path and choose
the default contents file, for example “P900_DC.cts”,
for the downloader default contents file save.
And Select “Flash Option” -> “S-Record with Contents”.
Select the“Flash&Verify” -> “Browse”
Set the directory path and choose
the latest s/w binary, for example “P900XXFDD.s3”,
for the downloader binary setting.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization
Click “OK” button then press “Flash”.
Power on mobile phone with battery or charger.

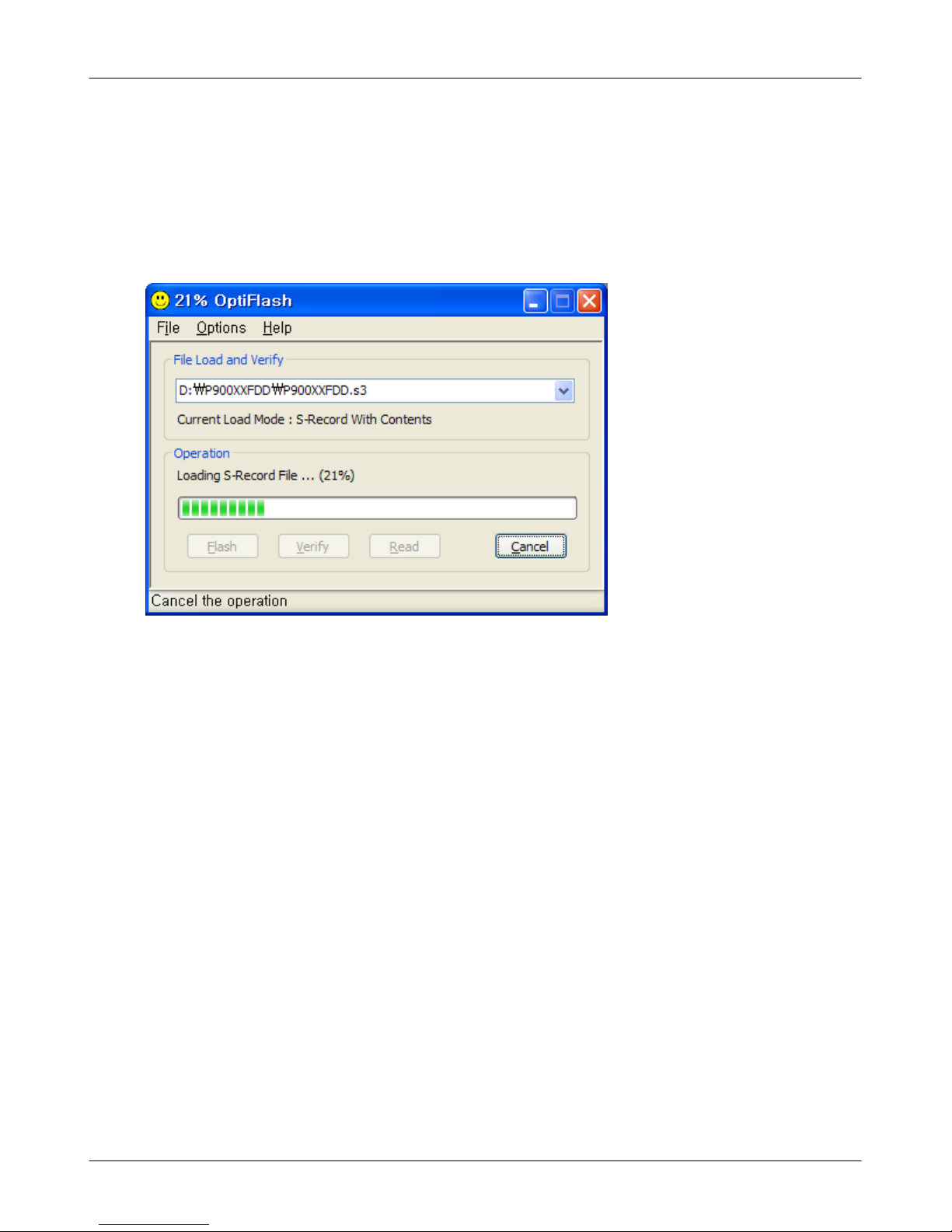

Downloader will upload the binary file as below for
the downloading.
When downloading is finished successfully,
there is a “All is well” message.
After finishing downloading, Certain memory resets
should be done to guarantee the normal performance.
Confirm the downloaded version name by key-string(*#5002#8376263#)
Memory reset will be done by pressing the following key-strings.
Full Reset :“*2767*3855#” will reboot the phone automatically.

SAMSUNG Proprietary-Contents may change without notice

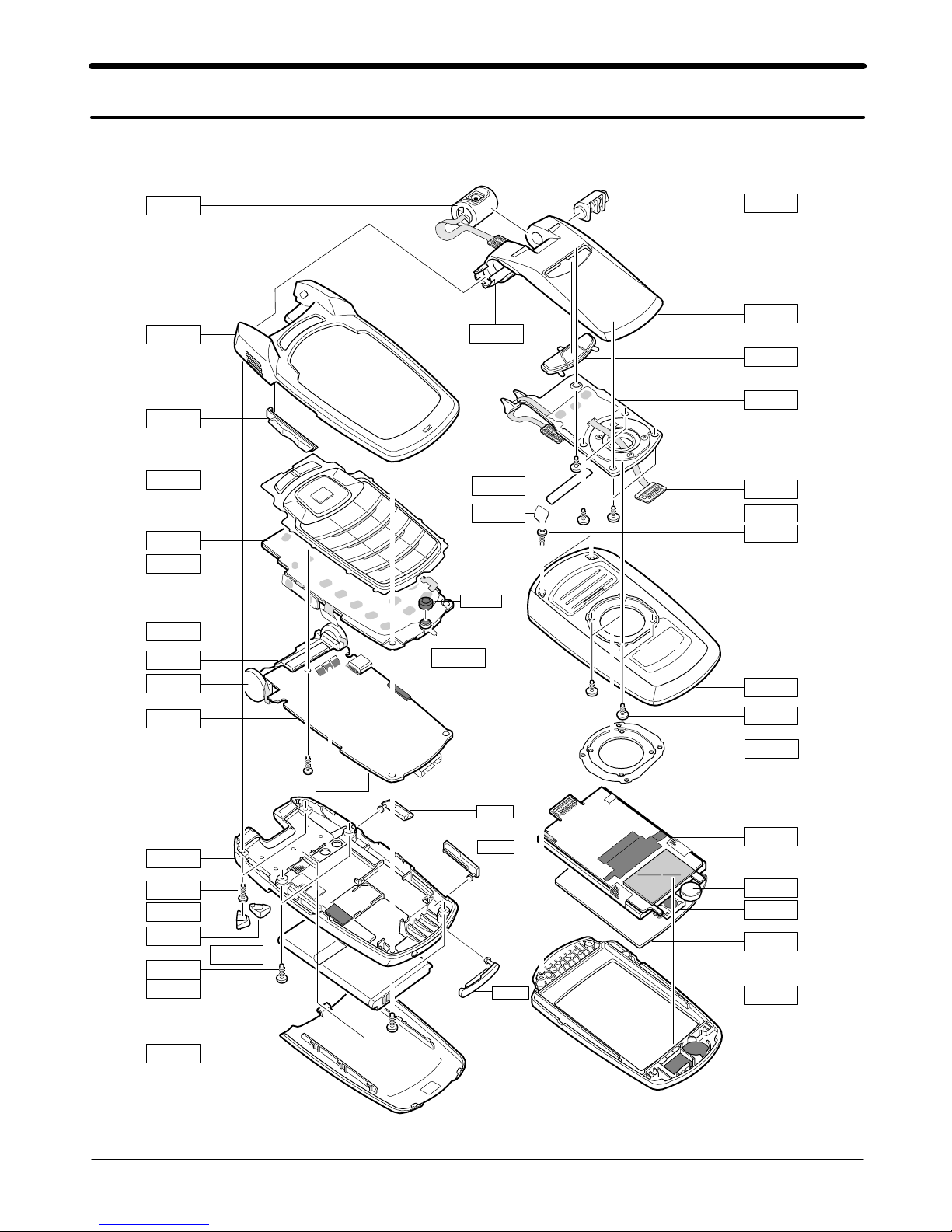

5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization
5-1. Cellular phone Exploded View
QFU02
QKP02
QFL02
QFU01
QLC01
QMW01
QFL01
QSH01
QKP01
QRE01
QBA00
QFR01 QHI03
QHI01
QME03
QCR58
QCR17
QMO01
QAR01
QCR05
QMP01
QME01
QVO01
QAN02
QSP01
QSP02
QCR05
QSC13
QSC14
QCR31
QBA01
QCA01
QCH05
QIF01
QRF03
QWD05
QSC12
QHI08
QRF01
QMI03
QAN11
QAN05

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Discription SEC CODE
QAN02 INTENNA-SGHP900 GH42-00793A
QAN05 MEC-INTENNA CONTACT GH75-08168A
QAN11 ASSY-CUSHION-CUSHION RUBBER IN GH98-01077A
QAR01 AUDIO-RECEIVER 3009-001197
QBA00 ASSY-CASE-BATTERY GH98-00727B
QBA01 INNER BATTERY PACK-1000MAH,BLA GH43-02018A
QCA01 UNIT-CAMERA GH59-02734A
QCH05 PMO-T FLASH COVER GH72-26714B
QCR05 SCREW-MACHINE 6001-001478
QCR17 SCREW-MACHINE 6001-001460
QCR31 SCREW-MACHINE 6001-001795
QCR58 SCREW-MACHINE 6001-001870
QFL01 MEC-FOLDER LOWER SUB GH75-08525A
QFU01 MEC-FOLDER UPPER SUB GH75-08526B
QHI03 MEC-DUMMY HINGE GH75-08536A
QIF01 PMO-INTERFACE COVER GH72-26712B
QKP01 MEC-KEYPAD(XEG/ZKA) GH75-08530A
QKP02 MEC-KEY FOLD(MP3) GH75-09538A
QLC01 MEA-LCD MODULE KIT GH97-05932A
QME01 UNIT-KEY FPCB GH59-02723A
QME03 UNIT-CON TO CON ASSY GH59-02722A
QMI03 RMO-MIC HOLDER GH73-05839A
QMO01 MOTOR DC-SGHP900 GH31-00246A
QMP01 PBA MAIN-SGHP900 GH92-02508A
QMW01 AS-LCD WINDOW GH81-02759A
QRE01 MEC-REAR COVER SUB GH75-08537B
QRF01 MPR-TAPE RF PC SHEET GH74-22378B
QRF03 PMO-EARJACK COVER GH72-26713B
QSC12 RMO-CUSHION FOLDER SCREW GH73-05837A
QSC13 PMO-CUSHION REAR SCREW R GH72-30139B
QSC14 PMO-CUSHION REAR SCREW L GH72-30140B
QSH01 MEC-SHILD COVER GH75-08538A
QSP01 SPEAKER 3001-001865
QSP02 SPEAKER 3001-001866
QWD05 MEC-DECORATION ARM GH75-09315A
QFR01 MEC-FRONT COVER SUB GH75-08524B
QVO01 MEC-SIDE KEY GH75-08539A
QFU02 MEC-ARM UPPER GH75-08527A
QHI01 MEC-HINGE GH75-08535A
QFL02 MEC-ARM LOWER GH75-08529A
QCR58 SCREW-MACHINE 6001-001870
QHI08 MEC-HINGE SWING GH75-08634A
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-3
This Document can not be used without Samsung's authorization
Discription SEC CODE
BAG PE 6902-000297
CBF INTERFACE-DATA LINK CABLE GH39-00423A
ADAPTOR-SGHD500 BLK GH44-00954A
S/W CD-SAMSUNG PC STUDIO 3.0 GH46-00243A
UNIT-EARPHONE GH59-02320A
LABEL(P)-WATER SOAK GH68-02026A
MANUAL USERS-EU GERMAN GH68-09869A
MANUAL USERS-EU ENGLISH GH68-09870A
LABEL(R)-MAIN(EU) GH68-09871A
CUSHION-CASE TA2 MA2 GH69-03868A
BOX(P)-UNIT MAIN(EU) GH69-03869A
RMO-CUSHION SHIELD RUBBER GH73-06767A
MPR-BOHO VINYL LCD CONN GH74-15350A
MPR-VINYL BOHO SUB WIN A GH74-20286A
MPR-VINYL BOHO ARM B GH74-20287A
MPR-VINYL BOHO M/WIN B GH74-20290A
MPR-CUSHION SUB MIC GH74-20528A
MPR-CUSHION IF GASKET GH74-21355A

SAMSUNG Proprietary-Contents may change without notice
6. Disassembly and Assembly instructions
6-1
This Document can not be used without Samsung's authorization
6-1. Disassembly
1) Extract two screw covers in the top portion.
2) Open Earphone cover, Memory card cover
and IF connector cover.
※caution
1) Be careful not to scratch.
1) Unscrew six points like a picture below.
2) Disassemble a rear cover from lower part.
※caution
1) Be careful not to scratch the outside.
2) Be careful not to deform the rear cover.
1
43
2
1) Unscrew the INTENNA part.
※caution
1) Be careful not to scratch or deform the
INTENNA.
1) Lift up the INTENNA a little and unsnap
the LCD connector and CAMERA connector.
2) Pull out those connectors from underside
of INTENNA.
※caution
1) Be careful not to damage the speaker, LCD,
and CAMERA FPCB.
2) Be careful not to damage BGA parts.

SAMSUNG Proprietary-Contents may change without notice
Disassembly and Assembly instructions
6-2
This Document can not be used without Samsung's authorization
5
7
6
caution!
not flexure
8
1) Move FPCB to the open side of Hinge-
dummy.
2) Pull out the Hinge-dummy.
※caution
1) Be careful not to tear or crack the FPCB of
LCD and CAMERA.
1) Rotate the LCD to anticlockwise and
extract two screw covers.
2) Unscrew them.
※caution
1) Be careful not to damage or scratch the
molding.
1) Unsnap KEY FPCB CONNECTOR.
2) Disassemble a PBA from shield-can. And
do that from left side.
※caution
1) Be careful not to crack the FPCB and
damage the connector.
2) Be careful not to damage BGA parts
1) Separate FOLDER assembly from FRONT
with pressing the FOLDER hinge.
※caution
1) When separating, be careful not to bend
the FRONT.
2) Be careful not to tear or crack the FPCB of
LCD and CAMERA.
3) Be careful not to damage or scratch the
molding.
