Samsung SGH-X210 User manual

GSM TELEPHONE
SGH-X210
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts List
6. Disassembly and Assembly
instructions
7. MAIN Electrical Parts List
8. Block Diagrams
9. PCB Diagrams
10. Flow Chart of Troubleshooting
11. Reference data

Samsung Electronics Co.,Ltd.
Code No.: GH68-10806A
2006. 06. Rev.1.0
ⓒ
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.

contents
1. Safety Precautions
1-1. Repair Precaution ...........................................................................1-1
1-2. ESD(Electrostatically Sensitive Devices) Precaution ...........................1-2
2. Specification
2-1. GSM General Specification ..............................................................2-1
2-2. GSM Tx Power Class ......................................................................2-2
3. Product Function
3-1. Main Function ................................................................................3-1
4. Array course control
Software Downloading
4-1. Downloading Binary Files ................................................................4-2
4-2. Pre-requsite for Downloading ..........................................................4-2
4-3. S/W Downloader Program ...............................................................4-3
5. Exploded View and Parts List
5-1. Cellular phone Exploded View .........................................................5-1
5-2. Cellular phone Part list ...................................................................5-2
6. Disassembly and Assembly instructions
6-1. Disassembly ..................................................................................6-1
6-2. Assembly ......................................................................................6-3
7. MAIN Electrical Parts List
8. Block Diagrams
9. PCB Diagrams
9-1. Main .............................................................................................9-1
9-2. LCD ..............................................................................................9-3

contents
10. Flow Chart of Troubleshooting
10-1. Baseband
10-1-1. Power ON ..............................................................................10-1
10-1-2. Initial ....................................................................................10-3
10-1-3. Sim Part ...............................................................................10-5
10-1-4. Microphone Part .....................................................................10-6
10-1-5. Speaker Part .........................................................................10-8
10-1-6. LCD backlight ......................................................................10-10
10-1-8. Camera ...............................................................................10-17
10-2. RF
10-2-1. GSM Rx ...............................................................................10-11
10-2-2. DCS Rx ...............................................................................10-13
10-2-3. PCS Rx ...............................................................................10-15
10-2-4. GSM Tx ...............................................................................10-18
10-2-5. DCS/PCS .............................................................................10-19
11. Reference data

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specipicty of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use a kind of magnetic object or tool,
because performance of parts is damaged by the influence of manetic force.
●Surely use a standard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use a thicken twisted wire when you measure level.
A thicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because a repair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembing charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easilly by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. , otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or a circuit board.

2. Specification
2-1
2-1. GSM General Specification
GSM900
Phase 1
EGSM 900
Phase 2
DCS1800
Phase 1 PCS1900
Freq. Band[MHz]
Uplink/Downlink
890~915
935~960
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range 1~124 0~124 &
975~1023 512~885 512~810
Tx/Rx spacing 45 MHz 45 MHz 95 MHz 80 MHz
Mod. Bit rate/
Bit Period
270.833 kbps
3.692 us
270.833 kbps
3.692 us
270.833 kbps
3.692 us
270.833 kbps
3.692 us
Time Slot
Period/Frame
Period
576.9 us
4.615 ms
576.9 us
4.615 ms
576.9 us
4.615 ms
576.9 us
4.615 ms
Modulation 0.3 GMSK 0.3 GMSK 0.3 GMSK 0.3 GMSK
MS Power 33 dBm~13 dBm 33 dBm~5 dBm 30 dBm~0 dBm 30 dBm~0 dBm
Power Class 5 pcl ~ 15 pcl 5 pcl ~ 19 pcl 0 pcl ~ 15 pcl 0 pcl ~ 15 pcl
Sensitivity -102 dBm -102 dBm -100 dBm -100 dBm
TDMA Mux 8 8 8 8
Cell Radius 35 Km 35 Km 2 Km -

Speclflcation
2-2
2-2. GSM Tx Power Class
TX Power
control level GSM900
5 33±2 dBm
6 31±2 dBm
7 29±2 dBm
8 27±2 dBm
9 25±2 dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3 dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level PCS1900
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization

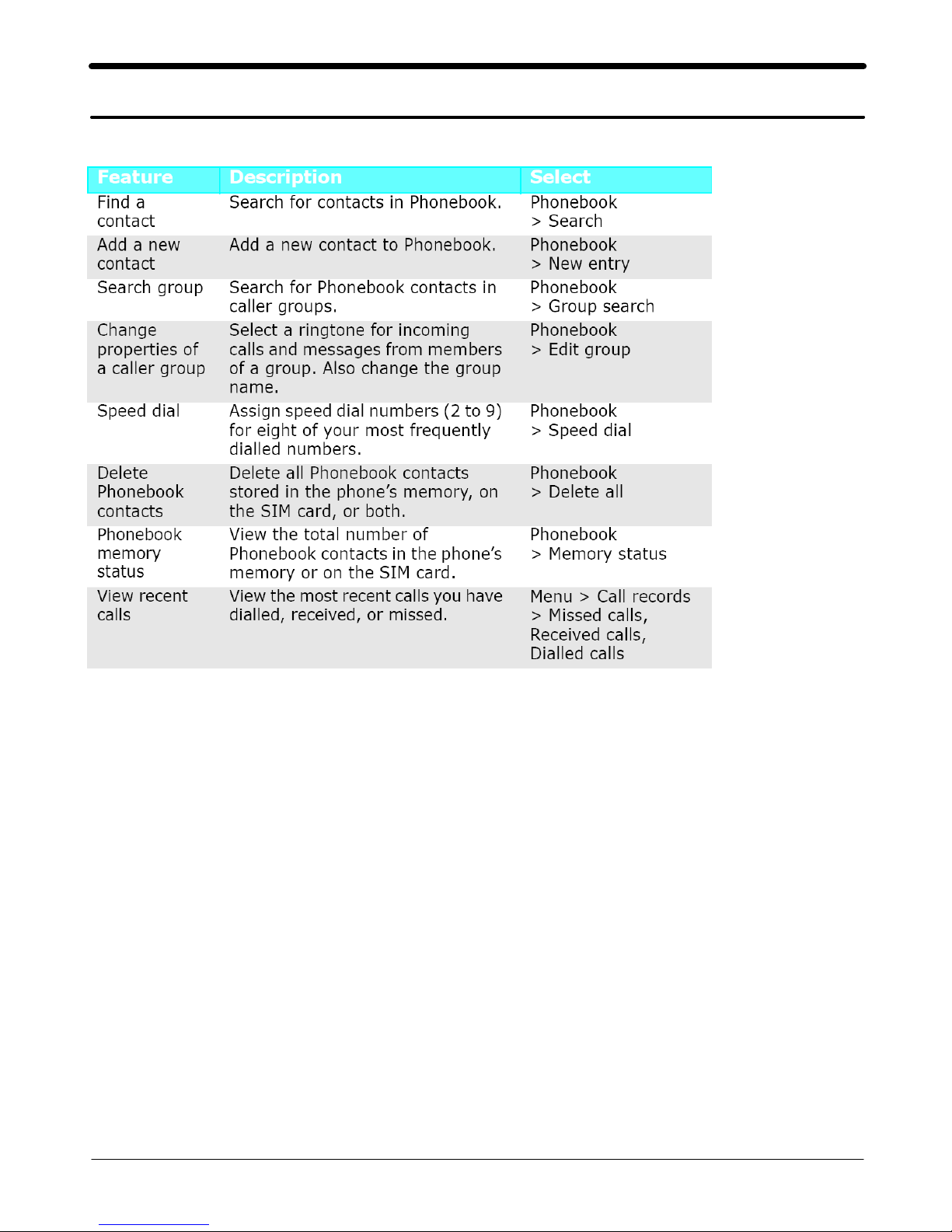

Main Function

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
Test Jig (GH80-00865A)
Test Cable (GH39-00127A)
RF Test Cable (GH39-00397A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
Software Downloading
4-1. Downloading Binary Files
• Three binary files for downloading X210.
–X210XXYY.s3:Mainsourcecodebinary.
4-2. Pre-requsite for Downloading
• Downloader Program(OptiFlash.exe)
• X210 Mobile Phone
• Data Cable
• Binary files

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
4-3. S/W Downloader Program
1. Load the binary download programby executing the “OptiFlash.exe”
2. Select the “Options” -> “Settings” -> “Generic” -> “Specify hardware
platform”.
Choose hardware platform for the downloader file setting.
Set the everything else as the default values which are shown below

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization
3. Select the COM port when the download cable is connected
Up to twelve ports are supported. Additionally you can select the
maximum transfer speed OptiFlash will use to communicate with
the phone. However, OptiFlash will use a slower speed if either the
PC’s or the phone’s serial hardware is incapable of handling the
selected speed

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization
4. Select the“Flash&Verify” -> “Browse”
Set the directory path and choose the latest s/w binary, for example
“X210XXYY.s3”,for the downloader binary setting.
Make sure that not to change the reserved memory
regions.
In case of X210 the reserved memory regions are :
-0x00fc0000 – 0x00fdffff
-0x00ff0000– 0x00ffffff

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization
5. Click “OK” button then press “Flash”.
(Before pressing ‘Flash’ button, push the button ‘*’and ‘END’ at the same
time. Then press ‘Flash’.)
Downloader will upload the binary file as below for the downloading. 
6. When downloading is finished successfully, there is a “All is well”
message. 
7. After finishing downloading, Certain memory resets should be done to
guarantee the normal performance.
8. Confirm the downloaded version name and etc. :
*#5002*8376263#
Full Reset : 
*2767*3855#

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization

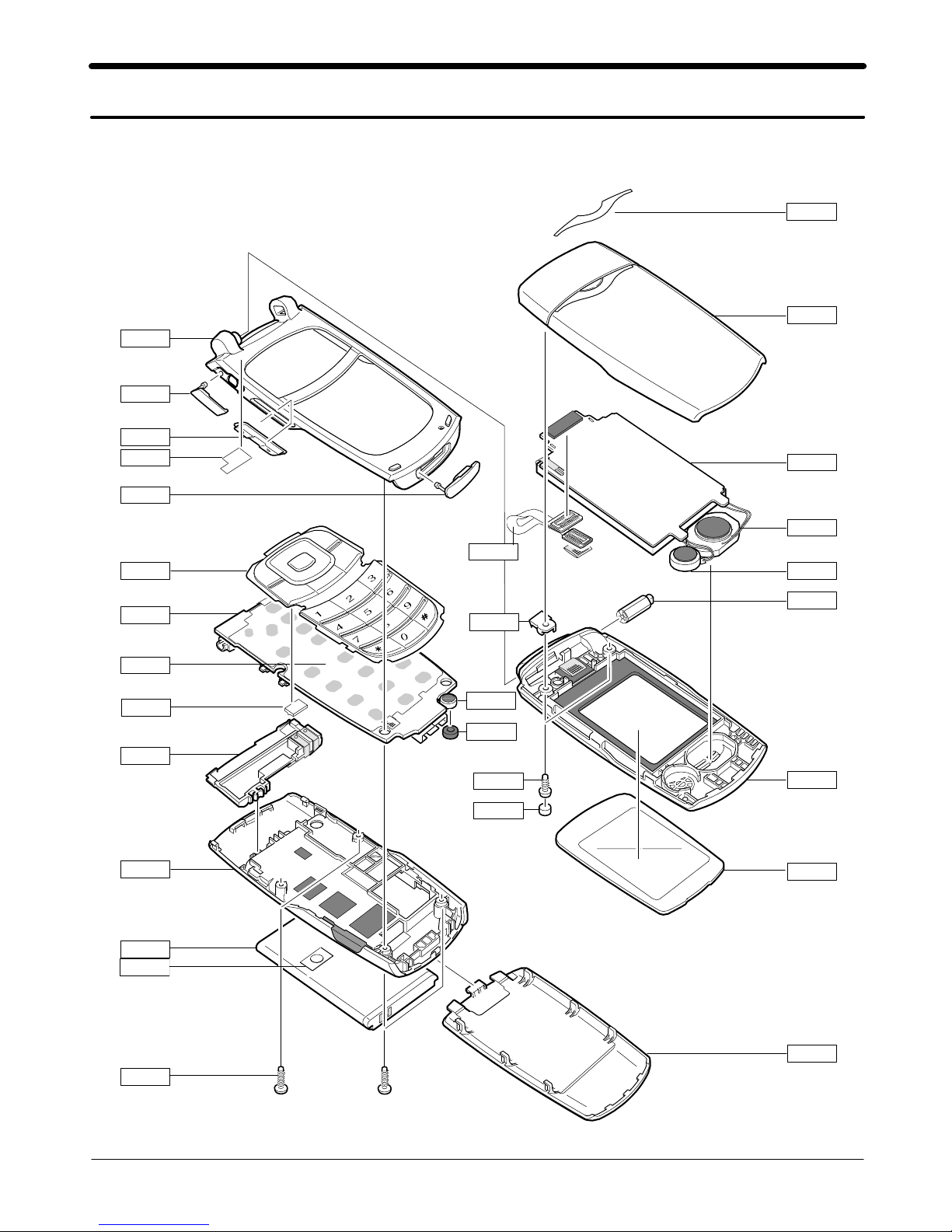

5-1. Cellular phone Exploded View
QFR01
QRF03
QVO01
QIF01
QMP01
QKP01
QAN02
QRE01
QME01
QBA01
QCR05
QBA00
QLC01
QFU01
QFL01
QMW02
QSP01
QMO01
QHI01
QCR06
QSC02
QSC26
QME03
QMI01
QFU03
QAN05
QMI03
QRF01
QSC14

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Discription SEC CODE
QAN02 INTENNA-SGHX160 GH42-00819A
QAN05 MEC-INTENNA CONN RUBBER GH75-08200A
QBA00 MEC-COVER BATT GH75-09621B
QBA01 INNER BATTERY PACK-750MAH,BLK, GH43-02483A
QCR05 SCREW-MACHINE 6001-001478
QCR06 SCREW-MACHINE 6001-001155
QKP01 ASSY KEYPAD-MAIN((SER/ZK) GH98-01108A
QME01 UNIT-METAL DOME GH59-03135A
QMI01 MICROPHONE-ASSY-6.25MM GH30-00177F
QMI03 RMO-MIC HOLDER GH73-05342A
QMO01 MOTOR DC-SGHZ130 GH31-00154A
QMP01 PBA MAIN-SGHX210 GH92-02683A
QMW02 PMO-COVER MAIN WINDOW GH72-30084A
QRE01 MEC-CASE REAR GH75-09620B
QRF01 MPR-RF SHEET GH74-17894B
QSC02 RMO-FOLDER SCREW COVER GH73-05511A
QSC14 MPR-TAPE FRONT HOLE GH74-23661A
QSC26 PMO-COVER FPCB HOLE GH72-30082A
QSP01 SPEAKER 3001-001954
QVO01 MEC-VOLUME KEY GH75-09622A
QFU01 MEC-CASE FOLDER UPPER GH75-09617B
QFU03 ASSY-DECO-UPPER GH98-00972A
QFL01 MEC-CASE FODLER LOWER GH75-09618A
QHI01 MEC-HINGE (CAN TYPE) GH75-09075A
QFR01 MEC-CASE FRONT GH75-09619A
QIF01 PMO-COVER IF GH72-30078A
QRF03 PMO-COVER EAR GH72-30077A
QLC01 ELA UNIT-SGHX210 LCD MODULE GH96-02173A
QME03 UNIT-CON TO CON GH59-03136A
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-3
This Document can not be used without Samsung's authorization
Discription SEC CODE
BAG PE 6902-000297
ADAPTOR-SGHN288 TAD GH44-00184A
UNIT-EARPHONE(BLK) GH59-02472A
LABEL(P)-WATER SOAK GH68-02026A
MANUAL-WARRANTY CARD GH68-02623A
MANUAL-SFC GH68-04336A
LABEL(P)-BARCODE RUSSIA GH68-08494A
MANUAL USERS-EU RUSSIAN GH68-10955A
LABEL(R)-MAIN(SER) GH68-11190A
CUSHION-CASE (EU) GH69-03548A
BOX(P)-UNIT MAIN(SER) GH69-03970A
IPR-MAGNETIC GH70-01448A
RMO-BGA RUBBER T GH73-05471A
RMO-BGA RUBBER M GH73-05472A
RMO-BGA RUBBER B GH73-05473A
RMO-YAMAHA RUUBBER GH73-05641A
RMO-CUSHION B2B CON GH73-06773A
MPR-MAIN LCD BOHO VINYL(S) GH74-05008A
MPR-REMOVE TAPE LCD GH74-13804A
MPR-BOHO VINYL LCD CONN GH74-15350A
MPR-MAIN CON GASKET GH74-17892A
MPR-BOHO VINYL UPPER GH74-18028A
MPR-BOHO VINYL UPPER GH74-18028A
MPR-TAPE REMOVE LCD GH74-18286A
MPR-FPCB PORON GH74-18593A
MPR-BOHO VINYL LCD GH74-19127A
MPR-TAPE DOME SHEET GH74-22759A
MPR-TAPE J TAG MASKING GH74-22760A
MPR-TAPE MAIN LDI GH74-23620A
MPR-TAPE MAIN FPCB FIXATION GH74-23621A
MPR-TAPE DOME SHEET TOP GH74-23945A
MPR-TAPE MAIN FPCB INSULATION GH74-24736A
MPR-TAPE IF COVER GH74-24740A

SAMSUNG Proprietary-Contents may change without notice

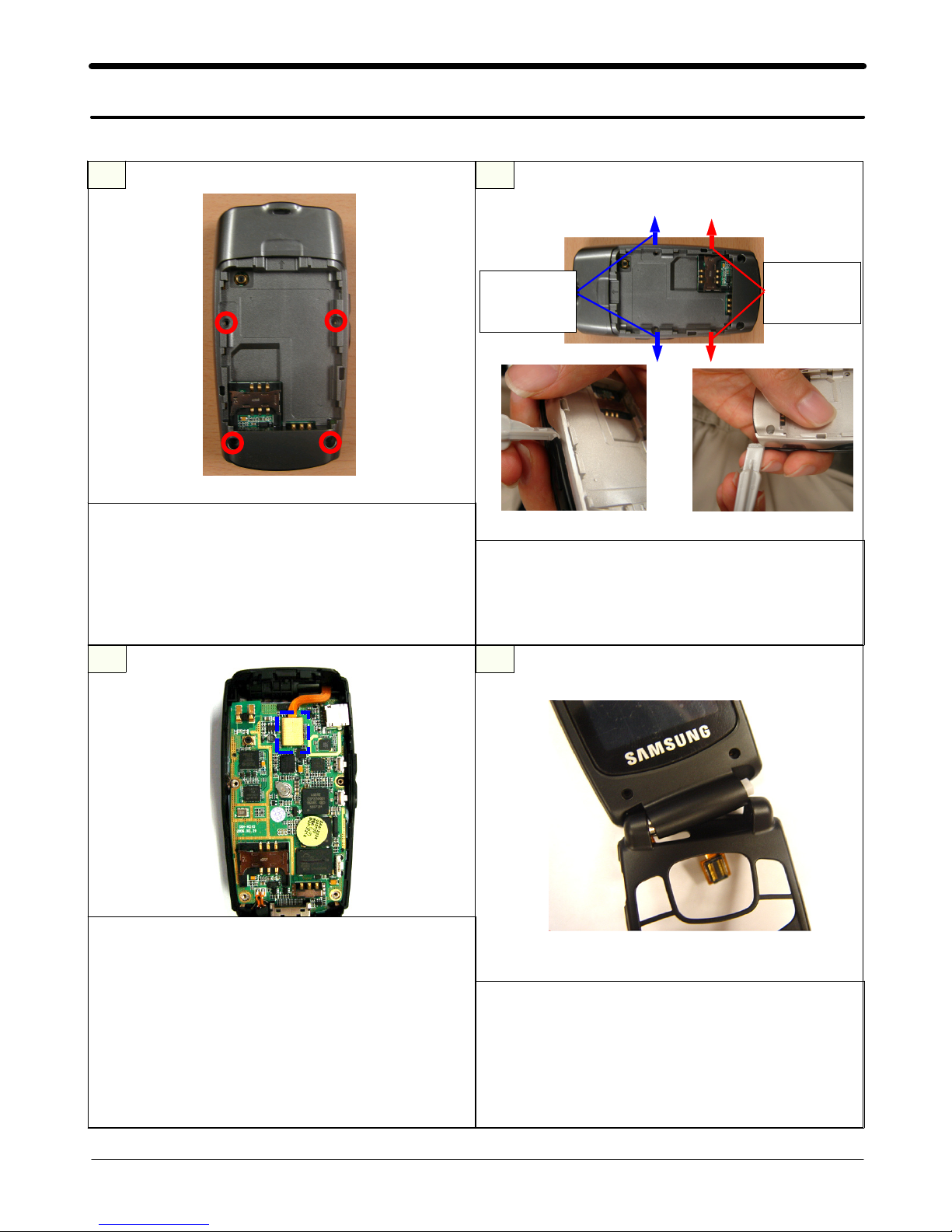

6. Disassembly and Assembly instructions
6-1
This Document can not be used without Samsung's authorization
6-1. Disassembly
1) Unscrew the REAR at the four points.
2) Disassemble the IF COVER
3) Disassemble the EAR COVER
※caution
1) Be careful not to make scratch and
molding damage!
1) Disassemble the Rear from the bottom side
to the upper side.
※caution
1) Be careful not to make scratch and
molding damage!
1
43
2
1) Disassemble the LCD CONNECTOR
2) Disassemble the PBA from the FRONT
ASS'Y
3) Remove the DUST TAPE
4) Disassemble the Keypad.
※caution
1) When PBA is separated from LCD
Connector, Be careful not to damage!
2) Be careful not to damage LCD FPCB!
1) Push the hinge between Folder Upper and
lower, And Disassemble Front from Folder.
※caution
1) Be careful not to make scratch and
molding damage!
2) Be careful not to damage LCD FPCB!
PULL OUT
"REAR
CASE"
PULL OUT
"FRONT
CASE"

SAMSUNG Proprietary-Contents may change without notice

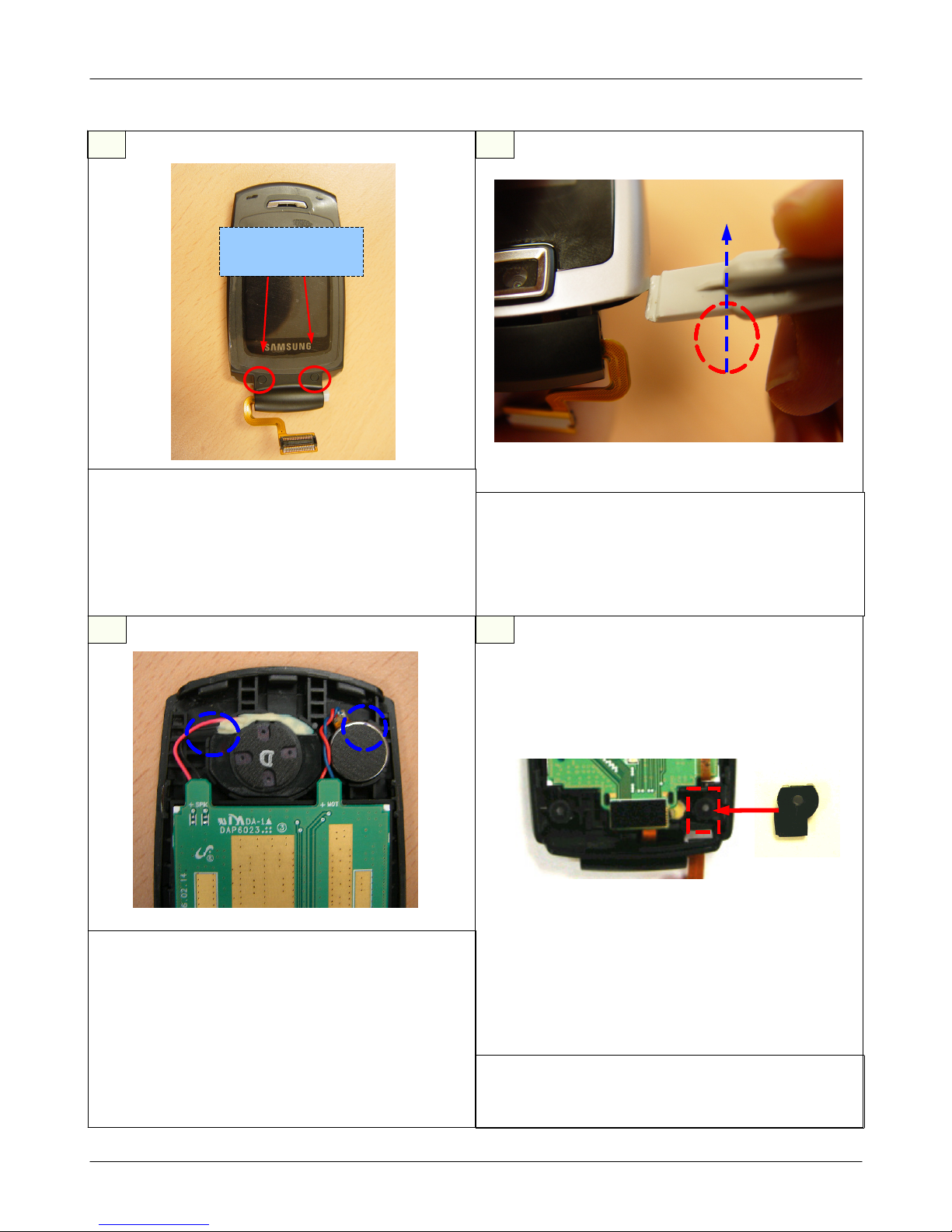

Disassembly and Assembly instructions
6-2
This Document can not be used without Samsung's authorization
56
7 8
1) Disassemble the MOTOR and the SPEAKER
from FOLDER LOWER by using a pincette.
※caution
1) Be careful not to make scratch and
molding damage!
2) Do not use the speaker bonding part
at disassembling speaker (Only use
marking point)
1) Disassemble FPCB HOLE COVER
※caution
1) Be careful not to damage the LCD FPCB.
SCREW CAP
POINTS
1) Remove screw caps.
2) Unscrew the FOLDER Upper.
※caution
1) Be careful not to make scratch and
molding damage!
2) Be careful not to damage LCD FPCB!
1) By using an assembly stick, Disassemble
FolderUpperfromFolderlower
(Right and Left are the same process)
※caution
1) Be careful not to make scratch and
molding damage!
