GSM TELEPHONE
SGH-X820
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts List
6. Disassembly and Assembly
instructions
7. MAIN Electrical Parts List
8. Block Diagrams
9. PCB Diagrams
10. Flow Chart of Troubleshooting
11. Reference data

Contents
1. Safety Precautions
1-1. Repair Precaution ...........................................................................1-1
1-2. ESD(Electrostatically Sensitive Devices) Precaution ...........................1-2
2. Specification
2-1. GSM General Specification ..............................................................2-1
2-2. GSM Tx Power Class ......................................................................2-2
3. Product Function
3-1. Main Function ................................................................................3-1
4. Array course control
Software Downloading
4-1. Downloading Binary Files ................................................................4-2
4-2. Pre-requsite for Downloading ..........................................................4-2
4-3. S/W Downloader Program ...............................................................4-3
5. Exploded View and Parts List
5-1. Cellular phone Exploded View .........................................................5-1
5-2. Cellular phone Part list ...................................................................5-2
6. Disassembly and Assembly instructions
6-1. Disassembly ..................................................................................6-1
6-2. Assembly ......................................................................................6-3
6-3. LCD KIT Disassembly .....................................................................6-6
6-4. LCD KIT Assembly .........................................................................6-7
7. MAIN Electrical Parts List
8. Block Diagrams
9. PCB Diagrams

Contents
10. Flow Chart of Troubleshooting
10-1. Baseband
10-1-1. Power ON ..............................................................................10-1
10-1-2. Initial ....................................................................................10-4
10-1-3. Sim Part ...............................................................................10-6
10-1-4. Charging Part ........................................................................10-8
10-1-5. Microphone Part .....................................................................10-9
10-1-6. Speaker Part ........................................................................10-11
10-1-7. LCD ....................................................................................10-13
10-1-8. Camera ...............................................................................10-16
10-2. RF
10-2-1. GSM Receiver........................................................................10-18
10-2-2. DCS Receiver........................................................................10-19
10-2-3. PCS Receiver.........................................................................10-20
10-2-4. GSM Transmitter...................................................................10-23
10-2-5. DCS Transmitter....................................................................10-24
10-2-6. PCS Transmitter....................................................................10-25
10-2-7. Bluetooth Part ......................................................................10-27
11. Reference data

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specipicty of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use a kind of magnetic object or tool,
because performance of parts is damaged by the influence of manetic force.
●Surely use a standard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use a thicken twisted wire when you measure level.
A thicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because a repair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembing charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System. Otherwise engineer in charge isn't charged with problem that you don't keep this
rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easilly by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. , otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or a circuit board.

2. Specification
2-1
2-1. GSM General Specification
GSM900
Phase 1
EGSM 900
Phase 2
DCS1800
Phase 1 PCS1900
Freq. Band[MHz]
Uplink/Downlink
890~915
935~960
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range 1~124 0~124 &
975~1023 512~885 512~810
Tx/Rx spacing 45 MHz 45 MHz 95 MHz 80 MHz
Mod. Bit rate/
Bit Period
270.833 kbps
3.692 us
270.833 kbps
3.692 us
270.833 kbps
3.692 us
270.833 kbps
3.692 us
Time Slot
Period/Frame
Period
576.9 us
4.615 ms
576.9 us
4.615 ms
576.9 us
4.615 ms
576.9 us
4.615 ms
Modulation 0.3 GMSK 0.3 GMSK 0.3 GMSK 0.3 GMSK
MS Power 33 dBm~13 dBm 33 dBm~5 dBm 30 dBm~0 dBm 30 dBm~0 dBm
Power Class 5 pcl ~ 15 pcl 5 pcl ~ 19 pcl 0 pcl ~ 15 pcl 0 pcl ~ 15 pcl
Sensitivity -102 dBm -102 dBm -100 dBm -100 dBm
TDMA Mux 8 8 8 8
Cell Radius 35 Km 35 Km 2 Km -

Speclflcation
2-2
2-2. GSM Tx Power Class
TX Power
control level GSM900
5 33±2 dBm
6 31±2 dBm
7 29±2 dBm
8 27±2 dBm
9 25±2 dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3 dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level PCS1900
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
-Camera and camcorder
-Image editor
-Music player
-Bluetooth
-Photo printing
-Phone to TV
-Image editor
-File viewer
-Web browser
-Java
-Offline mode
-Multimedia Message Service (MMS)
-E-mail

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
Test Jig (GH80-03307A)
Test Cable (GH39-00478A)
RF Test Cable (GH39-00182A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
Software Downloading
4-1. Downloading Binary Files
• Three binary files for downloading X820.
–X820XXYY.s3:Mainsourcecodebinary.
4-2. Pre-requsite for Downloading
• Downloader Program(OptiFlash.exe)
• X820 Mobile Phone
• Data Cable
• Binary files

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
4-3. S/W Downloader Program
1. Load the binary download programby executing the “OptiFlash.exe”
2. Select the “Options” -> “Settings” -> “Generic” -> “Specify hardware
platform”.
Choose hardware platform for the downloader file setting.
Set the everything else as the default values which are shown below

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization

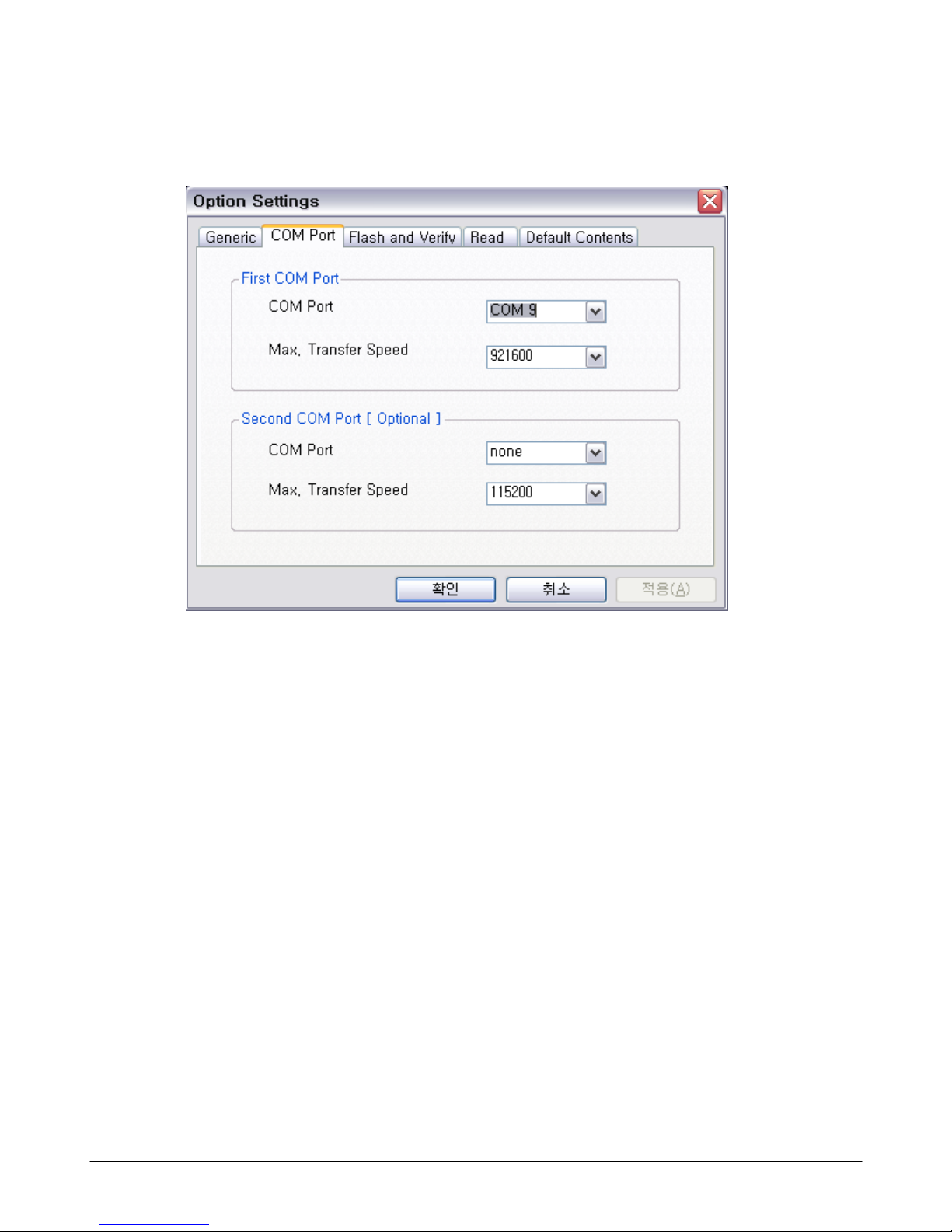

3. Select the COM port when the download cable is connected
Up to twelve ports are supported. Additionally you can select the
maximum transfer speed OptiFlash will use to communicate with
the phone. However, OptiFlash will use a slower speed if either the
PC’s or the phone’s serial hardware is incapable of handling the
selected speed

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization

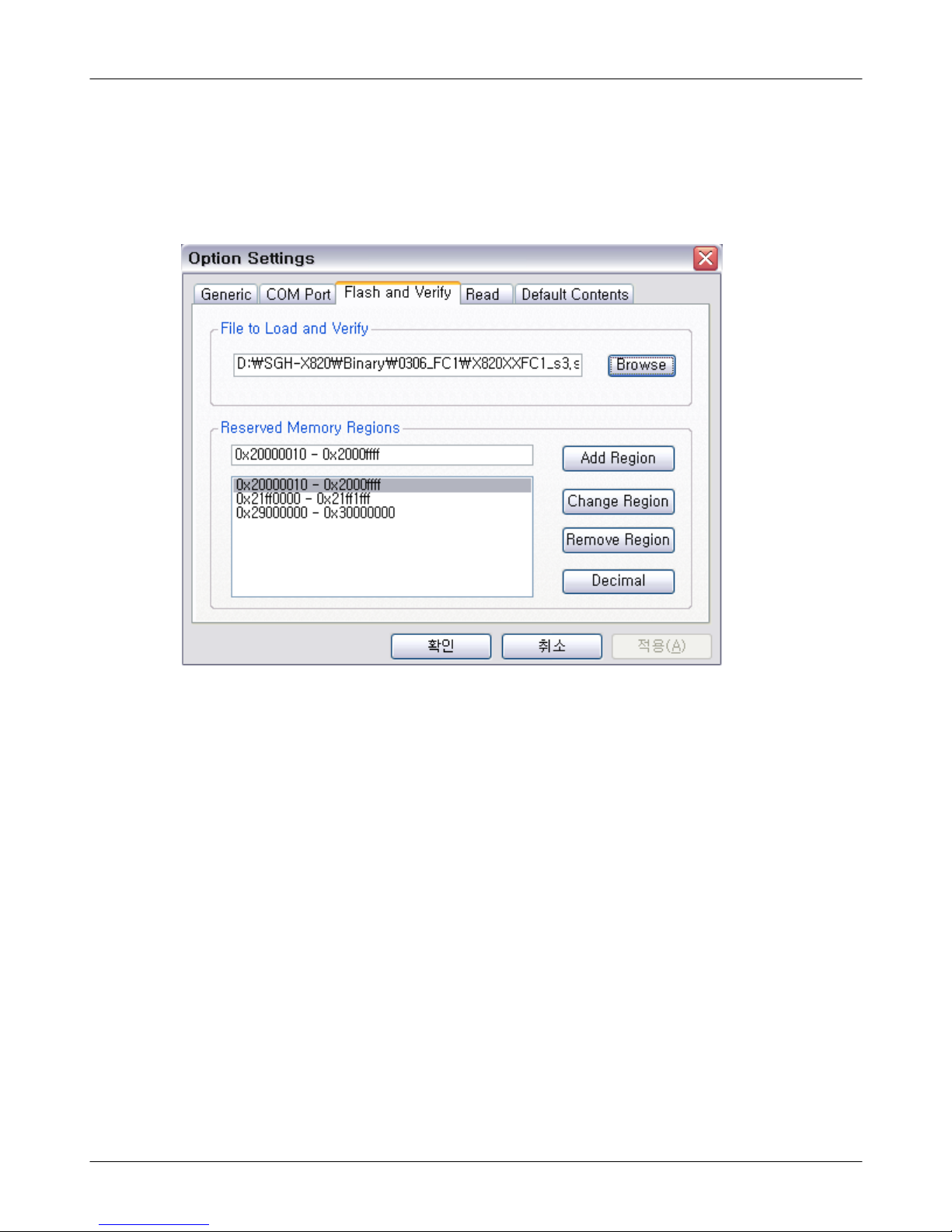

4. Select the“Flash&Verify” -> “Browse”
Set the directory path and choose the latest s/w binary, for example
“X820XXYY.s3”,for the downloader binary setting.
Make sure that not to change the reserved memory
regions.
In case of X820 the reserved regions are :
-0x20000010 – 0x2000ffff
-0x21ff0000– 0x21ff1fff
-0x29000000 – 0x30000000

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization
5. Click “OK” button then press “Flash”.
(Before pressing ‘Flash’ button, push the button ‘*’and ‘END’ at the same
time. Then press ‘Flash’.)
Downloader will upload the binary file as below for the downloading. 
6. When downloading is finished successfully, there is a “All is well”
message. 
7. After finishing downloading, Certain memory resets should be done to
guarantee the normal performance.
8. Confirm the downloaded version name and etc. :
*#1234#
Full Reset : 
*2767*3855#

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization
5-1. Cellular phone Exploded View
QFR01
QVO01
QKP01
QLC01
QMP01
QRE01
QVK01
QCA01
QME01
QMI07
QBA00
QCR05
QRF03
QBA01
QCA02
QMI03
QCR06
QSC01
QSC02
QCW01
QRF01
QCK01
QAN02
QSP02

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Discription SEC CODE
QAN02 INTENNA-SGHX820 GH42-00791A
QBA00 PMO-CASE BATTERY GH72-29063A
QBA01 INNER BATTERY PACK-630MAH,BLK, GH43-02386A
QCA01 UNIT-CAMERA GH59-02950A
QCA02 UNIT-CAMERA KEY GH59-03026A
QCK01 MEC-CAM KEY GH75-09582A
QCR05 SCREW-MACHINE 6001-001478
QCR06 SCREW-MACHINE 6001-001155
QCW01 PMO-COVER WINDOW CAMERA GH72-29074A
QKP01 MEC-KEYPAD(ZKA/XEF) GH75-09583A
QLC01 LCD-SGHX820 MODULE GH07-00882A
QME01 UNIT-EL KEY PBA GH59-02966A
QMI07 ASSY-CASE-MIC SUB GH98-01045A
QMP01 PBA MAIN-SGH-X820 GH92-02621A
QRF01 PMO-COVER RF GH72-29064A
QSC01 PMO-COVER SCREW L GH72-29065A
QSC02 PMO-COVER SCREW R GH72-29066A
QSP02 UNIT-SPK MODULE GH59-02958A
QVK01 UNIT-VOLUMEKEY GH59-03027A
QVO01 MEC-VOLUME KEY GH75-09581A
QFR01 MEC-CASE FRONT GH75-09579A
QMI03 RMO-COVER MIC HOLDER GH73-06452A
QRE01 MEC-CASE REAR GH75-09580A
QRF03 PMO-COVER EAR JACK GH72-29073A
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-3
This Document can not be used without Samsung's authorization
Discription SEC CODE
BAG PE 6902-000297
ADAPTOR-SGHD800 TA(EU) GH44-01060A
UNIT-EARPHONE(BLK) GH59-02499A
LABEL(P)-IMEI GH68-01335D
LABEL(P)-WATER SOAK GH68-02026A
LABEL(P)-WATER SOAK GH68-02026A
MANUAL USERS-EU FRENCH GH68-10846A
LABEL(R)-MAIN(FRANCE) GH68-10850A
BOX(P)-UNIT MAIN(EU) GH69-03932A
CUSHION-CASE TA2 MA4 GH69-03934A
RMO-CHSHION INDUCTOR-2 GH73-07097A
MPR-TAPE LCD FPCB GH74-20633A
MPR-CUSHION INDUCTOR-1 GH74-21005A
MPR-VINYL BOHO REAR GH74-21012A
MPR-VINYL BOHO MAIN WINDOW GH74-21905A
MPR-TAPE SPK CONN GH74-22095A
MPR-TAPE SPK CONN GH74-22095A
MPR-TAPE KEYPAD CONN GH74-22098A
MPR-VINYL BOHO KEYPAD GH74-22928A
MPR-CUSHION INDUCTOR-3 GH74-23850A
MPR-VINYL BOHO LCD GH74-24623A
MPR-VINYL BOHO REAR-2 GH74-25033A
MPR-VINYL BOHO EAR DECO GH74-25298A
AS-LCD WINDOW GH81-03179A
AS-TAPEKEYPAD GH81-04637A
AS-LCD TAPE GH81-04638A

SAMSUNG Proprietary-Contents may change without notice
6. Disassembly and Assembly instructions
6-1
This Document can not be used without Samsung's authorization
6-1. Disassembly
1) Remove SCREW CAP
2) release the screws(4 point)
※caution
1) Handle with care. No scratch
1) Press the Rear Camera Hook side with the
dismantle tool to release the locker
※caution
1) Handle the HOOK with care, and check No
bending the board and front/rear cover
1
43
2
1) Press the rear sim connector Hook side
with the dismantle tool to release the
locker
※caution
1) Handle with care. No scratch
2) Handle the HOOK with care, and check No
bending the board and front/rear cover
1) Press the Rear volume key side (upper and
lower) with the dismantle tool to release
the locker
2) Open the rear cover
※caution
1) Handle with care. No scratch
2) Handle the HOOK with care, and check No
bending the board and front/rear cover
-Please use dismantle
tool to open
-REAR case is too
soft to be broken

SAMSUNG Proprietary-Contents may change without notice
Disassembly and Assembly instructions
6-2
This Document can not be used without Samsung's authorization
5
7
6
8
1) take off the CAMERA CONNECTOR
2) Separate CAMERA MODULE
※caution
1) Camera FPCB is easy to break
1) Take off LCD CONNECTOR
2) Separate LCD MODULE
※caution
1) LCD glass and LDI are easy to break.
Separate LCD module slowly with care
1) Separate CAMERA KEY and VOLUME KEY
from the cover
※caution
1) FPCB is easy to break and crack
1) remove EL SHEET F-PCB
CONNECTOR TAPE
2) unlock the connector LOCKER and
separate key F-PC
※caution
1) FPCB is easy to break and crack
2) Connector is easy to break

SAMSUNG Proprietary-Contents may change without notice
Disassembly and Assembly instructions
6-3
This Document can not be used without Samsung's authorization
1
3
2
4
1) Place the MIC as the picture below
※caution
1) Check the MIC FPCB is OK
1) Put the MIC COVER and CREW
2) Attach KEYPAD
3) Press the KEYPAD not to be detached
※caution
1) Check the KEY PAD is OK

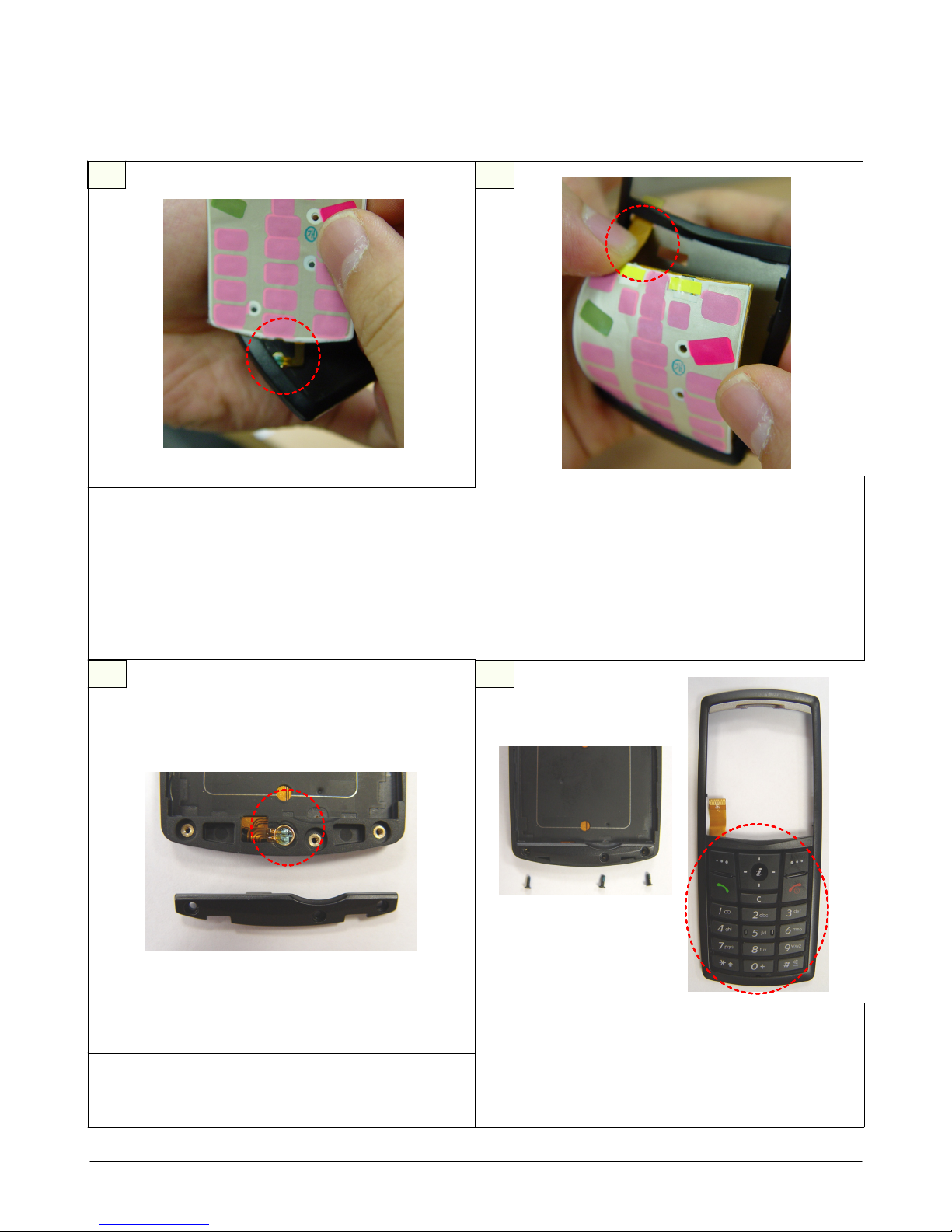

6-2. Assembly
1) Prepare the EL KEY SHEET
2) Remove the release paper
3) Insert the MIC into the hole of FRONT
lower hole
※caution
1) Handle the MIC F-PCB with care. This FPCB
tears easily.
1) Insert KEY FPCB into the FRONT upper
hole
2) attach a EL KEY PAD to the Front cover
※caution
1) KEY FPCB has to be inserted before the
sheet attached.
2)HandletheKEYF-PCBwithcare.ThisFPCB
tears easily.
