Samsung SGH-Z650i User manual

GSM TELEPHONE
SGH-Z650i
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts list
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Flow Chart of Troubleshooting
10. Reference data

This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2006. 10. Rev.1.0
ⓒ

Contents
1. Safety Precautions
1-1. Repair Precaution ...........................................................................1-1
1-2. ESD(Electrostatically Sensitive Devices) Precaution ...........................1-2
2. Specification
2-1. GSM General Specification ..............................................................2-1
2-2. GSM TX power Level ......................................................................2-2
3. Product Function
4. Array course control
4-1. Downloading Binary Files .............................................................4-2
4-2. Pre-requsite for Downloading .......................................................4-2
4-3. S/W Downloader Program ............................................................4-3
5. Exploded View and Parts list
5-1. Cellular phone Exploded View ......................................................5-1
5-2. Cellular phone Parts list ..............................................................5-2
5-3. Disassembly ...............................................................................5-4
5-4. Assembly ...................................................................................5-6
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams

Contents
9. Flow Chart of Troubleshooting
9-1. Baseband ................................................................................9-1
9-1-1. Power ON ..........................................................................9-1
9-1-2. Initial ................................................................................9-4
9-1-3. SIM Part .............................................................................9-6
9-1-4. Microphone Part .................................................................9-7
9-1-5. Speaker Part_1(MP3, SPEAKER PHONE) ................................9-8
9-1-6. Speaker Part_2(RECEIVER) ................................................9-10
9-1-7. Charging Part ...................................................................9-11
9-2. RF .........................................................................................9-13
9-2-1. EGSM RX .........................................................................9-13
9-2-2. DCS RX ...........................................................................9-15
9-2-3. PCS RX ............................................................................9-16
9-2-4. EGSM TX .........................................................................9-17
9-2-5. DCS TX ...........................................................................9-18
9-2-6. PCS TX ............................................................................9-19
10. Reference data

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specipicty of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use a kind of magnetic object or tool,
because performance of parts is damaged by the influence of manetic force.
●Surely use a standard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use a thicken twisted wire when you measure level.
A thicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because a repair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembing charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easilly by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. , otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or a circuit board.

2. Specification
2-1
2-1. GSM/WCDMA General Specification
EGSM 900
Phase 2
DCS1800
Phase 1 PCS1900 WCDMA
Freq. Band[MHz]
Uplink/Downlink
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
1920~1980
2110~2170
ARFCN range 0~124 &
975~1023 512~885 512~810 10562~10838
Tx/Rx spacing 45 MHz 95 MHz 80 MHz 190 MHz
Mod. Bit
rate/
Bit Period
GPRS 270.833 kbps
3.692 us
270.833 kbps
3.692 us
270.833 kbps
3.692 us
3.84 Mcps/s
EDGE 812.5 Kbps
3.692 us
812.5 Kbps
3.692 us
812.5 Kbps
3.692 us
Time Slot
Period/Frame Period
576.9 us
4.615 ms
576.9 us
4.615 ms
576.9 us
4.615 ms 10 ms
Modulation
GPRS 0.3 GMSK 0.3 GMSK 0.3 GMSK UL:2BPSk
DL:QPSK
EDGE 8PSK 8PSK 8PSK
MS Power
GPRS 33 dBm~5 dBm 30 dBm~0 dBm 30 dBm~0 dBm MAX:24(+1,-3) dBm
MIN:<-50 dBm
EDGE 27~5 dBm 26~0 dBm 26~0 dBm
Power Class
GPRS 5pcl~19pcl 0pcl~15pcl 0pcl~15pcl
CLASS3
EDGE 8~19(class E2) 2~15(class E2) 2~15(class E2)
Sensitivity -102 dBm -100 dBm -102 dBm -106.7 dBm
TDMA Mux 8 8 8 -
Cell Radius 35 Km 2 Km 2 Km -

Specification
2-2
2-2. GMSK TX power Level
TX Power
control
level
GSM900
5 33±2 dBm
6 31±3 dBm
7 29±3 dBm
8 27±3 dBm
9 25±3 dBm
10 23±3 dBm
11 21±3 dBm
12 19±3 dBm
13 17±3 dBm
14 15±3 dBm
15 13±3 dBm
16 11±5 dBm
17 9±5 dBm
18 7±5 dBm
19 5±5 dBm
TX Power
control
level
DCS1800
0 30±2 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
0 30±2 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

Specification
2-3
2-3. EDGE TX Power Level
TX Power
control
level
GSM850
827±3dBm
925±3dBm
10 23±3 dBm
11 21±3 dBm
12 19±3 dBm
13 17±3 dBm
14 15±3 dBm
15 13±3 dBm
16 11±5 dBm
17 9±5 dBm
18 7±5 dBm
19 5±5 dBm
TX Power
control
level
DCS1800
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4d Bm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
-3G
- Camera and camcorder
- Media player
- Bluetooth
- File viewer
- Web browser
- Name card
- Multimedia Message Service(MMS)
-Email
-Java
- Calendar
- Voice recorder

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization

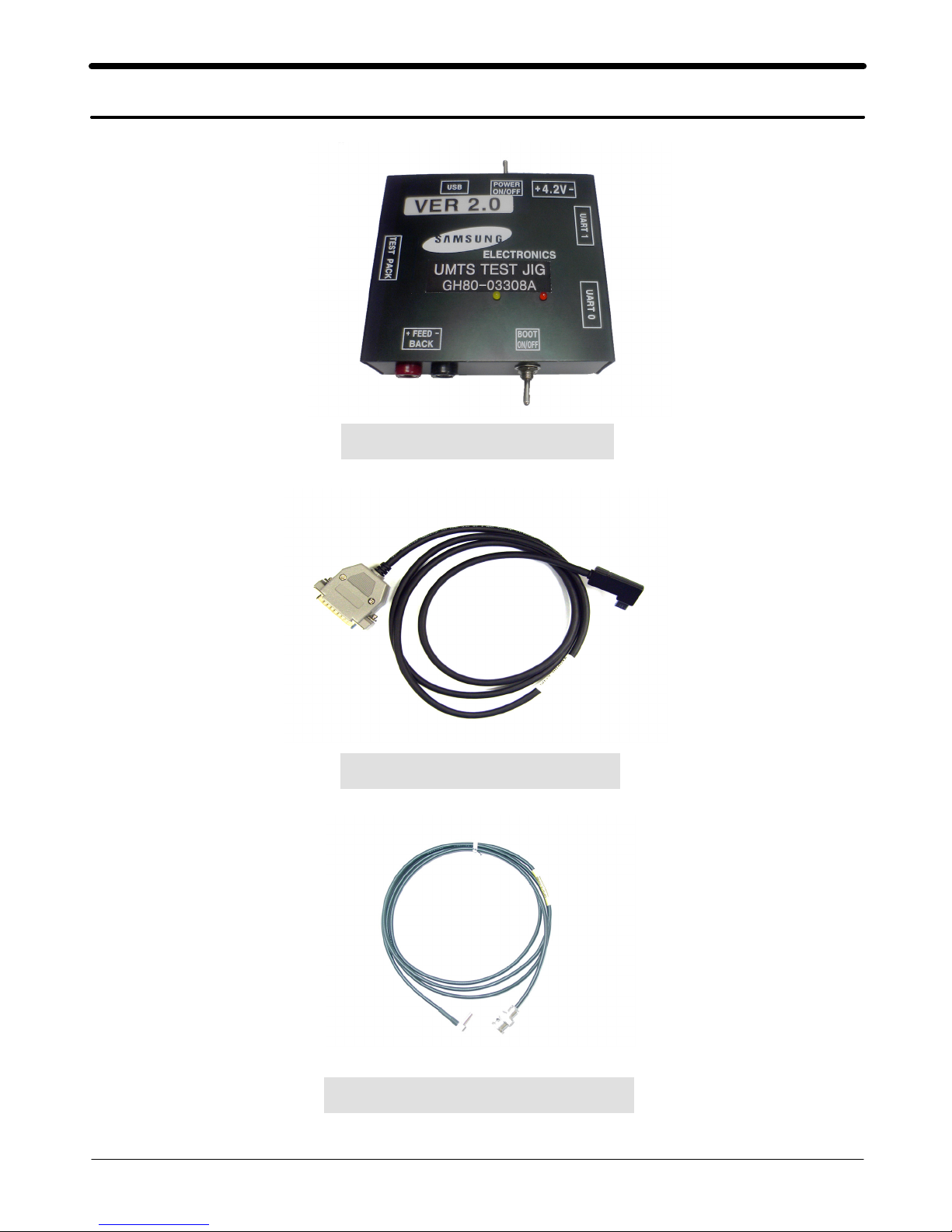

Test Jig (GH80-03308A)
Test Cable (GH39-00478A)
RF Test Cable (GH39-00397A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-1. Pre-requsite for Downloading
1) One binary directory and one resource files for SGH-Z650i
TITAN_BOUSEC - main binary directory for BOUYGTEL
SECUMTS_rsc.bin - resource file
2) Download program for SGH-Z650ii
SGH-Z650i download program([M6275]U-Medic_V1[1].3.exe )
3) Mobile phone (SGH-Z650i )
4) USB Data cable for SGH-Z650i
4-2. Download binary files
1) Run download program

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
2) Select the check boxes which you want to download.[check the green
box below.] Select all the check boxes to download boot-loader, code binary
and resources all at once.
All the check boxes
are selected.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization

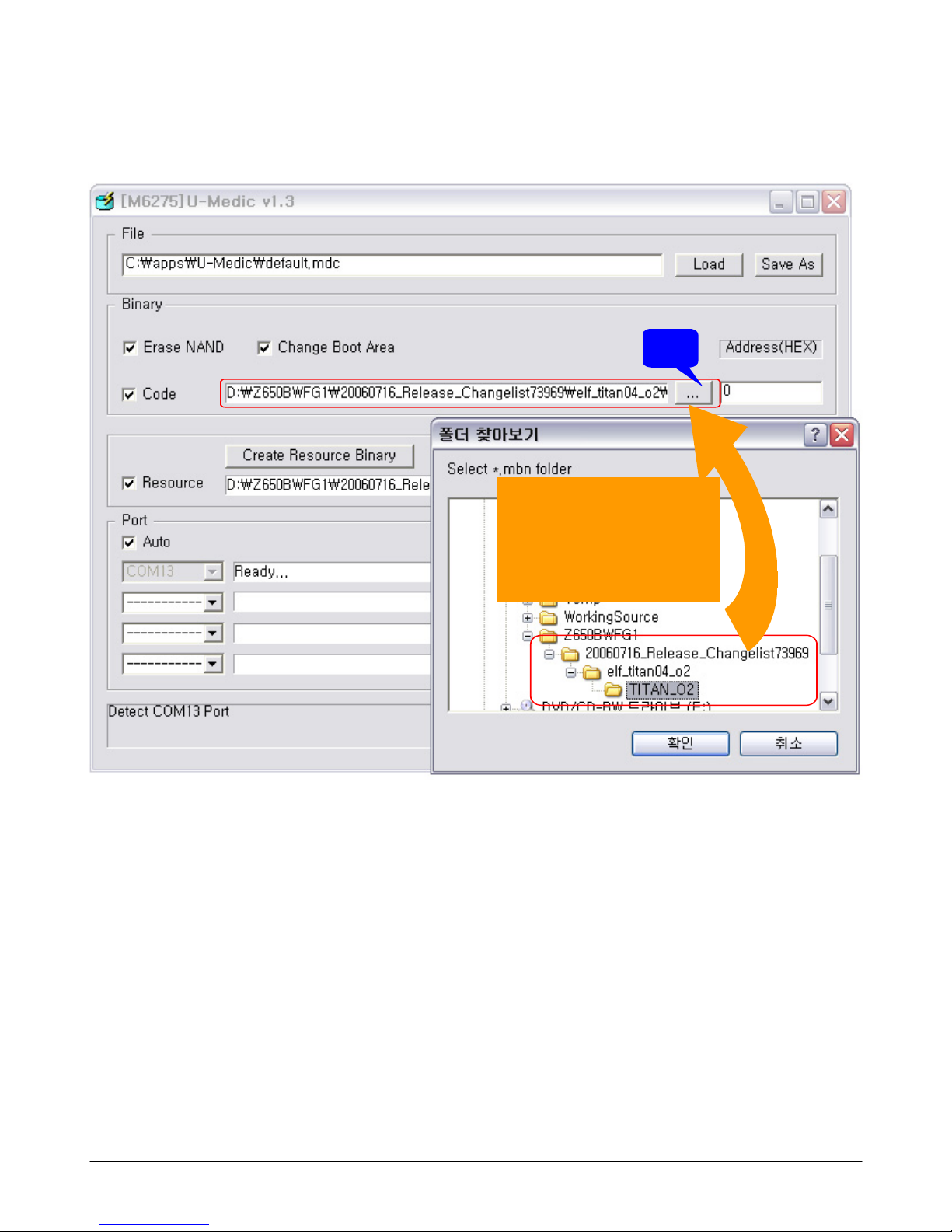

3) Click […] button to locate binary. Click [1st]buttontolocatethefolder
which contains code binary files.(Also contains boot-loader)
1st
Click browse button([…])
to locate and input the
folder which contains
Code binary files.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization
4) Please click […] button to locate resource binary. Click [2nd] button to
locate the resource binary file.
5) Connect USB cable to the handset which is in USB download mode. (To
enter the USB download mode, keep “keypad 4 Key” pressed when you press
“power key” to turn on SGH-Z650i.)
2nd
Click browse button([…])
to locate and input the
folder which contains
Code binary files.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization
5) Click “Download” button to start downloading all the binary
6) If download finished successfully, phone is rebuild automatically.
7) After boot up, you should perform ‘Full Service Reset”
-FullSVCReset
. Press the buttons ‘*2767*3855#’ in the idle state, then press 1.
. The phone will be reset automatically and rebooted
- Factory Pre-configuration
. For O2 : Press the buttons ‘*#01010522#’ in the idle state,
then press 1 for UK, 2 for IR
. For BOUYGTEL : Press the buttons ‘*#01010522#’ in the idle state,
then press 1
- The phone will be reset automatically, and you’ve done all steps.
Make sure the port is
detected and ready to
download, connect the
handset to usb cable
after you run U-Medic
application.
This is the start point of
download, When you select
the check box of “Change
Boot Area”, the value will
be changed from 70000 to
0 automatically.

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization
5-1. Cellular phone Exploded View
QAN02
QMP01
QRE01
QVO01
QCR12
QCR62
QMO01
QVK01
QCR04
QBA01
QBA00
QKP02
QLC01
QMP02
QME01
QCR05
QFU01
QFR01
QCB01
QSD01
QIF01
QFL01
QSC05
QSC07
QPC01
QCK01
QCA02
QSP01
QCA00
QCA01
QRF01

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Degign LOC Discription SEC CODE
QAN02 INTENNA-SGHZ650I GH42-00971A
QBA00 PMO-CASE BATT GH72-33724A
QBA01 INNER BATTERY PACK-900MAH GH43-02398A
QCA00 UNIT-SGHZ650I VGA CAMERA(SELF) GH59-03582A
QCA01 UNIT-SGHZ650I 2M CAMERA(REC) GH59-03594A
QCA02 UNIT-SGHZ650I CAMERA KEY GH59-03583A
QCB01 CBF COAXIAL CABLE-SGHZ650I GH39-00668A
QCK01 PMO-POWER KEY GH72-33722A
QCR04 SCREW-MACHINE 6001-001479
QCR05 SCREW-MACHINE 6001-001478
QCR12 SCREW-MACHINE 6001-001530
QCR62 SCREW-MACHINE 6001-002023
QFU01 MEA-SLIDE UPPER ASSY GH97-06683A
QKP02 ASSY KEYPAD-SUB(XEF/TGI) GH98-02062A
QLC01 ELA UNIT-SGHZ650I LCD MODULE GH96-02255A
QME01 UNIT-SGHZ650I METAL DOME GH59-03609A
QMO01 MOTOR DC-SPHM500 GH31-00242A
QMP01 PBA MAIN-SGHZ650I GH92-03058A
QMP02 PBA SUB-SGHZ650I GH92-03119A
QPC01 MEA-SLIDE FPCB KIT GH97-06678A
QRF01 MPR-TAPE RF GH74-27671A
QSC05 RMO-RUBBER SCREW SLIDE L GH73-07872A
QSC07 RMO-RUBBER SCREW SLIDE R GH73-07871A
QSP01 SPEAKER 3001-001965
QVK01 UNIT-SGHZ650I VOLUMEKEY GH59-03600A
QVO01 PMO-VOLUME KEY GH72-33723A
QFL01 ASSY CASE-SLIDE LOWER GH98-02059A
QCR62 SCREW-MACHINE 6001-002023
QFR01 MEA-FRONT ASSY GH97-06682A
QIF01 PMO-COVER EAR IF GH72-33737A
QRE01 ASSY CASE-REAR GH98-02069A
QSD01 PMO-COVER MS CARD GH72-33725A
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-3
This Document can not be used without Samsung's authorization
Discription SEC CODE
BAG PE 6902-000297
CBF INTERFACE-DATA LINK CABLE GH39-00444A
ADAPTOR-SGHD800 TA(EU) GH44-01060A
S/W CD-SGHZ650I PC STUDIO 3.0 GH46-00334A
UNIT-EARPHONE(BLK) GH59-02499A
LABEL(P)-WATER SOAK GH68-02026A
LABEL(P)-WATER SOAK GH68-02026A
LABEL(P)-WATER SOAK GH68-02026A
LABEL(P)-BOG MP3 GH68-11247A
MANUAL USERS-BOG FRENCH GH68-12627A
LABEL(R)-MAIN(FRAN) GH68-12711B
BOX(P)-UNIT MAIN TA3(EU) GH69-04537A
CUSHION-CASE TA2 MA4 GH69-04542A
MPR-REMOVE TAPE LCD GH74-13804A
MPR-TAPE LED GH74-17926A
MPR-TAPE REMOVE LCD GH74-18286A
MPR-TAPE IF COVER GH74-24740A
MPR-TAPE GASKET SLIDE CONN GH74-26241A
MPR-TAPE GASKET LCD FPCB GH74-26244A
MPR-TAPE SLIDE CONN GH74-26245A
MPR-TAPE SLIDE CONN GH74-26245A
MPR-TAPE LCD SUB GH74-26246A
MPR-TAPE INSULATION CONN GH74-26247A
MPR-TAPE FRONT BLACK GH74-26248A
MPR-INSU TAPE TOUCH CONN GH74-27252A
MPR-INSU TAPE SUB A GH74-27253A
MPR-INSU TAPE PCB CONN GH74-27258A
MPR-TAPE CAM CONN GH74-27259A
MPR-TAPE LCD CONN GH74-27260A
MPR-INSU TAPE PCB A GH74-27263A
MPR-VINYL BOHO SLIDE UPPER GH74-27336A
MPR-VINYL BOHO LCD WIN GH74-27337A
MPR-INSU TAPE LCD A GH74-27438A
MPR-GASK TAPE LCD A GH74-27439A
MPR-INSU TAPE PCB B GH74-27440A
MPR-GASK TAPE INTENNA GH74-28221A
MPR-VINYL BOHO UPPER B GH74-28222A
MPR-GASK TAPE FRONT A GH74-28330A
MPR-INSU TAPE PBA C GH74-28826A
MPR-INSU TAPE PBA D GH74-28827A
MPR-GASK TAPE PBA B GH74-28828A
MPR-GASK TAPE PBA C GH74-28829A
MPR-SPONGE SLIDE GH74-28830A
MPR-INSU TAPE REAR A GH74-28890A
MPR-INSU TAPE PBA E GH74-28900A
MPR-VINYL BOHO MAIN GH74-28952A
MPR-GASK TAPE REAR GH74-28977A

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-4
This Document can not be used without Samsung's authorization
Disassembly
1
32
1. Take apart volume + and - key from the
headset.
1. Take apart a plastic housing of MIC as the
method of lifting up from the MIC side to the
left side.
1. Take apart a front case and a rear case from the top of the headset.
