Samsung SM-G780F User manual

SM-G780F Common
Mobile Device
CONTENTS
1. Safety Precautions
2. Specification
3. Product Function

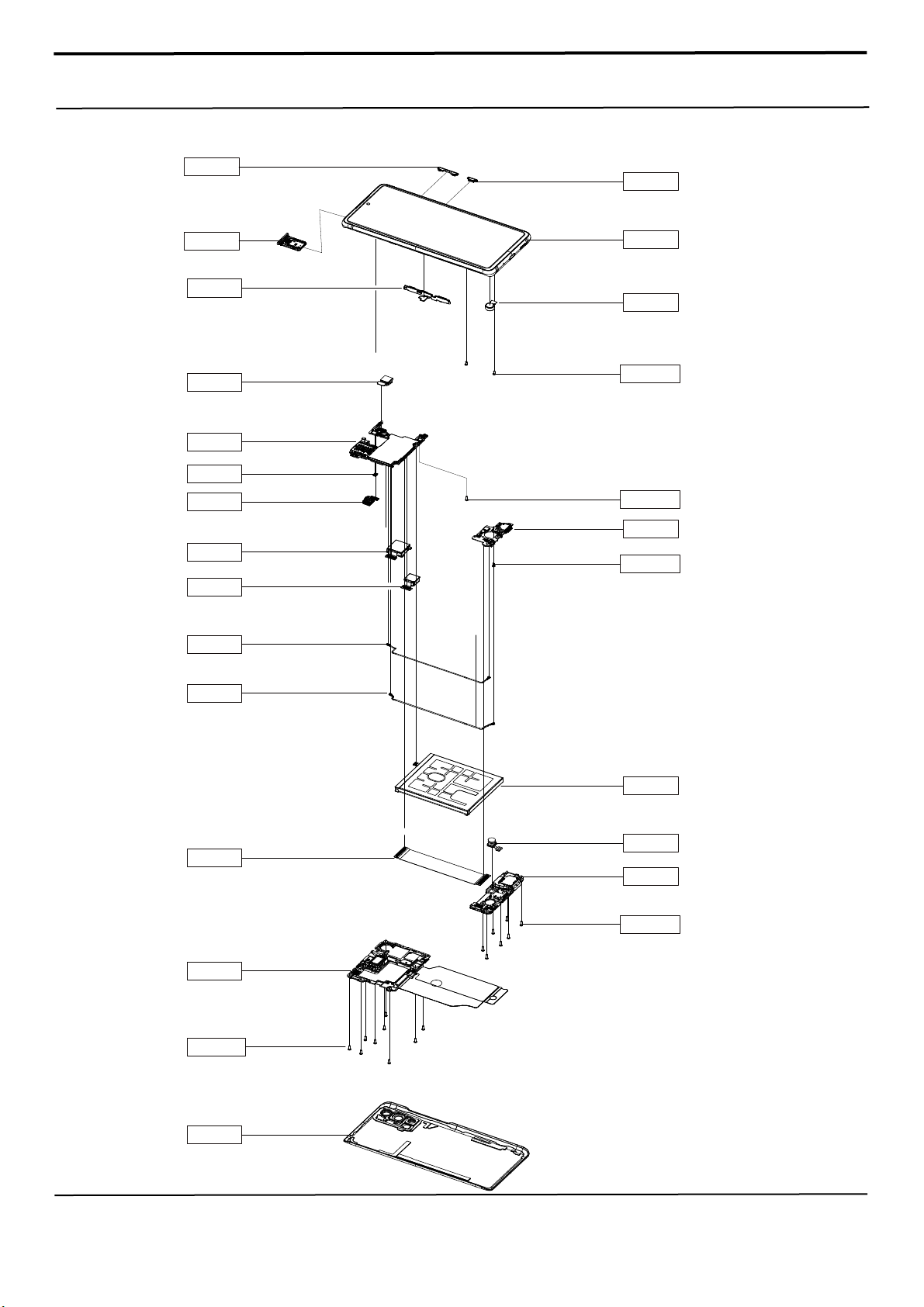

4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1 Repair
7. Level 2 Repair
8. Level 3 Repair
9. Reference Abbreviation
4.
2
Notice: All functionality, features, specifications,
and other product information provided in this
document, including but not limited to, benefits,
design, pricing, components, performance,
availability, and capabiliti-es of the product are
subject to change without notice. Samsung
reserves the right to alter this doc-ument or the
product described herein at anytime, without
obligation to provide notification of such
changes.

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
1. Safety Precautions
1-1. Repair Precaution
●Before attempting any repair or detailed tuning, shield the device from RF noise or static
electricity discharges.
(Use only antistatic glove and strape.)
●Do not touch metallic parts or circuits with your bare hands as device(parts, circuits, etc) may be
corroded.
●Use only demagnetized tools that are specifically designed for small electronic repairs,
as most electronic parts are sensitive to electromagnetic forces.
●Use only high quality screwdrivers when servicing products. Low quality screwdrivers can
easily damage the heads of screws.
●Use only conductor wire of the properly gauge and insulation for low resistance, because of the low
margin of error of most testing equipment.
We recommend 22-gauge twisted copper wire.
●Hand-soldering is not recommended, because printed circuit boards (PCBs) can be easily
damaged, even with relatively low heat. Never use a soldering iron with a power rating of
more than 100 watts and use only lead-free solder with a melting point below 250°C (482°F).
●Prior to disassembling the battery charger for repair, ensure that the AC power is disconnected.
Always use the replacement parts that are registered in the SEC system. Third-party replacement parts
may not function properly.

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
1. Safety Precautions
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Many semiconductors and ESDs in electronic devices are particularly sensitive to static discharge and can
be easily damaged by it. We recommend protecting these components with conductive anti-static bags
when you store or transport them.
●Always use an anti-static strap or wristband and remove electrostatic buildup or dissipate
static electricity from your body before repairing ESDs.
●Ensure that soldering irons have AC adapter with ground wires and that the ground wires are properly
connected.
●Use only desoldering tools with plastic tips to prevent static discharge.
●Properly shield the work environment from accidental electrostatic discharge before opening
packages containing ESDs.
●The potential for static electricity discharge may be increased in low humidity environments,
such as air-conditioned rooms. Increase the airflow to the working area to decrease the
chance of accidental static electricity discharges.

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
2. Specification
2-1. GSM General Specification
Item
GSM 850
EGSM 900
DCS1800
PCS1900
Freq. Band[MHz]
Uplink/Downlink
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range
128~251
0~124 & 975~1023
512~885
512~810
Tx/Rx spacing
45MHz
45MHz
95MHz
80MHz
Mod. Bit rate/
Bit Period
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
Time Slot Period/
Frame Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
Modulation
GSM/
EGPRS
GMSK/
8PSK
GMSK/
8PSK
GMSK/
8PSK
GMSK/
8PSK
MS Power
(dBm)
33dBm~5dBm
33dBm~5dBm
30dBm~0dBm
30dBm~0dBm
Power Class
4(GMSK)
E2(8PSK)
4(GMSK)
E2(8PSK)
1(GMSK)
E2(8PSK)
1(GMSK)
E2(8PSK)
Sensitivity (QPSK, BW
10MHz) (dBm)
-102dBm
-102dBm
-100dBm
-100dBm
TDMA Mux
8
8
8
8

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
2. Specification
2-2. WCDMA General Specification
Item
WCDMA
2100(B1)
WCDMA
1900(B2)
WCDMA
AWS(B4)
WCDMA
850(B5)
WCDMA
900(B8)
Freq. Band[MHz]
Uplink/Downlink
1920~1980
2110~2170
1850~1910
1930~1990
1710~1755
2110~2155
824~849
869~894
880~915
925~960
ARFCN range
UL：9612~9888
DL：10562~10838
UL：9262~9538
DL：9662~9938
UL：1312~1513
DL：1537~1738
UL：4132~4233
DL：4357~4458
UL：2712~2868
DL：2937~3088
Tx/Rx spacing
190MHz
80MHz
400MHz
45MHz
45MHz
Mod. Bit rate/
Bit Period
42.2Mbps(DL)
5.42Mbps(UL)
42.2Mbps(DL)
5.42Mbps(UL)
42.2Mbps(DL)
5.42Mbps(UL)
42.2Mbps(DL)
5.42Mbps(UL)
42.2Mbps(DL)
5.42Mbps(UL)
Time Slot Period/
Frame Period
WCDMA
10ms/0.667ms
HSPA
2ms/0.667ms
WCDMA
10ms/0.667ms
HSPA
2ms/0.667ms
WCDMA
10ms/0.667ms
HSPA
2ms/0.667ms
WCDMA
10ms/0.667ms
HSPA
2ms/0.667ms
WCDMA
10ms/0.667ms
HSPA
2ms/0.667ms
Modulation
QPSK
16QAM
64QAM
QPSK
16QAM
64QAM
QPSK
16QAM
64QAM
QPSK
16QAM
64QAM
QPSK
16QAM
64QAM
MS Power
(dBm)
25.7 ~ -49(↓)
25.7 ~ -49(↓)
25.7 ~ -49(↓)
25.7 ~ -49(↓)
25.7 ~ -49(↓)
Power Class
3(max+24dBm)
3(max+24dBm)
3(max+24dBm)
3(max+24dBm)
3(max+24dBm)
Sensitivity (QPSK,
BW 10MHz) (dBm)
-106dBm
-104dBm
-106dBm
-104dBm
-103dBm

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
2. Specification
2-3. LTE General Specification
Item
LTE Band1
LTE Band2
LTE Band3
LTE Band4
Freq. Band[MHz]
Uplink/Downlink
1920~1980
2110~2170
1850~1910
1930~1990
1710~1785
1805~1880
1710~1755
2110~2155
ARFCN range
UL:18000~18599
DL:0~599
UL:18600~19199
DL:600~1199
UL:19200~19949
DL:1200~1949
UL:19950~20399
DL:1950~2399
Tx/Rx spacing (MHz)
190
80
95
400
Channel Bandwidth
(MHz)
5/10/15/20
1.4/3/5/10/15/20
1.4/3/5/10/15/20
1.4/3/5/10/15/20
Modulation
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
MS Power (dBm)
25.7~-39(↓)
25.7~-39(↓)
25.7~-39(↓)
25.7~-39(↓)
Sensitivity (QPSK, BW
10MHz) (dBm)
-96.3
-94.3
-93.3
-96.3
Item
LTE Band5
LTE Band7
LTE Band8
LTE Band12
Freq. Band[MHz]
Uplink/Downlink
824~849
869~894
2500~2570
2620~2690
880~915
925~960
699~716
729~746
ARFCN range
UL:20400~20649
DL:2400~2649
UL:20750~21449
DL:2750~3449
UL:21450-21799
DL:3450-3799
UL:23010~23179
DL:5010~5179
Tx/Rx spacing (MHz)
45
120
45
30
Channel Bandwidth
(MHz)
1.4/3/5/10
5/10/15/20
1.4/3/5/10
1.4/3/5/10
Modulation
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
MS Power (dBm)
25.7~-39(↓)
25.7~-39(↓)
25.7~-39(↓)
25.7~-39(↓)
Sensitivity (QPSK, BW
10MHz) (dBm)
-94.3
-94.3
-93.3
-93.3

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
2. Specification
Item
LTE Band13
LTE Band17
LTE Band20
LTE Band26
LTE Band28
Freq. Band[MHz]
Uplink/Downlink
777~787
746~756
704~716
734~746
832~862
791~821
814~849
859~894
703~748
758~803
ARFCN range
UL:23180~23279
DL:5180~5279
UL:23730~23849
DL:5730~5849
UL:24150~24449
DL:6150~6449
UL:26690~27039
DL:8690~9039
UL:27210~27659
DL:9210~9659
Tx/Rx spacing
(MHz)
-31
30
-41
45
55
Channel
Bandwidth(MHz)
5/10
5/10
5/10/15/20
1.4/3/5/10/15
3/5/10/15/20
Modulation
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
MS Power(dBm)
25.7~-39(↓)
25.7~-39(↓)
25.7~-39(↓)
25.7~-39(↓)
25.7~-39(↓)
Sensitivity (QPSK,
BW 10MHz)(dBm)
-93.3
-93.3
-93.3
-93.8
-94.8
Item
LTE Band32
LTE Band38
LTE Band40
LTE Band41
LTE Band66
Freq. Band[MHz]
Uplink/Downlink
N/A
1452~1496
2570~2620
2300~2400
2496~2690
1710~1780
2110~2200
ARFCN range
DL:9920~10359
UL/DL:37750 ~
38249
UL/DL:38650 ~
39649
UL/DL:39650 ~
41589
UL:131972 ~ 132671
DL:66436 ~ 67335
Tx/Rx spacing
(MHz)
N/A
0
0
0
400
Channel
Bandwidth(MHz)
5/10/15/20
5/10/15/20
5/10/15/20
5/10/15/20
1.4/3/5/10/15/20
Modulation
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
MS Power (dBm)
25.7~-39(↓)
25.7~-39(↓)
25.7~-39(↓)
25.7~-39(↓)
25.7~-39(↓)
Sensitivity (QPSK,
BW 10MHz)(dBm))
-96.3
-96.3
-96.3
-94.3
-95.8

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
2. Specification
2-4. GSM Tx Power Class
TX Power
Control level
GSM850
TX Power
Control level
EGSM900
TX Power
Control level
DCS1800
TX Power
Control level
PCS1900
5
33±2 dBm
5
33±2 dBm
0
30±3 dBm
0
30±3 dBm
6
31±2 dBm
6
31±2 dBm
1
28±3 dBm
1
28±3 dBm
7
29±2 dBm
7
29±2 dBm
2
26±3 dBm
2
26±3 dBm
8
27±2 dBm
8
27±2 dBm
3
24±3 dBm
3
24±3 dBm
9
25±2 dBm
9
25±2 dBm
4
22±3 dBm
4
22±3 dBm
10
23±2 dBm
10
23±2 dBm
5
20±3 dBm
5
20±3 dBm
11
21±2 dBm
11
21±2 dBm
6
18±3 dBm
6
18±3 dBm
12
19±2 dBm
12
19±2 dBm
7
16±3 dBm
7
16±3 dBm
13
17±2 dBm
13
17±2 dBm
8
14±3 dBm
8
14±3 dBm
14
15±2 dBm
14
15±2 dBm
9
12±4 dBm
9
12±4 dBm
15
13±2 dBm
15
13±2 dBm
10
10±4 dBm
10
10±4 dBm
16
11±3 dBm
16
11±3 dBm
11
8±4 dBm
11
8±4 dBm
17
9±3dBm
17
9±3dBm
12
6±4 dBm
12
6±4 dBm
18
7±3 dBm
18
7±3 dBm
13
4±4 dBm
13
4±4 dBm
19
5±3 dBm
19
5±3 dBm
14
2±5 dBm
14
2±5 dBm
-
-
-
-
15
0±5 dBm
15
0±5 dBm

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
3. Product Function
Specification
Item
Description
OS
Android V10.0
Network
2G
GSM : GSM850 / GSM900 / DCS1800 / PCS1900
3G
WCDMA : B1 / B2 / B4 / B5 / B8
4G LTE
- FDD : B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B17 / B20 / B26 / B28 / B32 / B66
- TDD : B38 / B40 / B41
Battery
Typ : 4,500 mAh
Processor
EXYNOS990 Quad 2.73GHz(2x), 2.5GHz(2x), 2.0GHz(4x)
Connectivity
GPS, GLONASS, BEIDOU, Galileo, BT5.0, USB 3.1 Type-C, Wi-Fi 802.11 a/b/g/n/ac/ax
MIMO, NFC, MST
Camera
Rear :
- Wide : 12M,A/F, OIS, F1.8
- Tele : 8MP, A/F, OIS, F2.4
- Ultra Wide : 12M, F2.2
Front : 32M, F2.2
Display
6.5" FHD+, Super AMOLED
RAM
6 GB
ROM
128 GB
Sensor
Accelerometer, Fingerprint Sensor, Gyro Sensor, Geomagnetic Sensor, Hall Sensor, Light
Sensor, Virtual Proximity Sensing

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any contentor datafrom this document without Samsung’s written authorization is strictly prohibited.
4. Exploded View and Parts List
4-1. Cellular phone Exploded View
QBC01
QCR205
QMP01
QME06
QCA03
QMI01
QCA04
QCA02
QCA01
QCB03
QCB02
QME05
QAN01
QSM01
QVO01
QCR248
QCR205
QCR249
QCR248
QMO01
QFR01
QCK01
QIF01
QBA01
QME02
QSP01

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
5. MAIN Electrical Parts List
Parts Code
Design LOC
Description
0401-001110
ZD4500
DIODE
0404-001250
D10000,D10001,D10002
DIODE
0404-001250
D10003
DIODE
0404-001863
ZD7003
DIODE
0406-001805
ZD4001
DIODE
0406-001809
ZD10000,ZD10001
DIODE
0406-001829
ZD1000
DIODE
0406-001866
ZD4501,ZD4502
DIODE
0601-003888
U7006
LED
1001-001755
U10003
IC
1001-002045
U4510
IC
1001-002046
SW2000
IC
1001-002065
U2004,U3002
IC
1003-002817
U12027
IC
1009-001078
U4006
IC
1107-002671
UME4000
IC
1109-001604
PAM5000
IC
1201-003869
U4004
IC
1201-004109
PAM1001
IC
1201-004178
U8000,U8001
IC
1201-004224
U1001
IC
1201-004241
PAM1000
IC
1203-007941
U9013
IC
1203-008250
U4005
IC
1203-008693
U2000
IC
1203-008747
U3003
IC
1203-008864
U9004
IC
1203-008865
U9007,U9011
IC
1203-008867
U10001,U8002
IC
1203-008872
U10002,U10004
IC
1203-009080
U10006
IC
1203-009154
U9002
IC
1203-009156
U7025
IC
1203-009168
U4507
IC
1203-009169
U9010
IC
1203-009221
U10005
IC
1203-009234
U7005
IC
1203-009271
U4003
IC

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
5. MAIN Electrical Parts List
1203-009360
U10000
IC
1203-009361
U7009
IC
1203-009362
U7000
IC
1203-009364
U12016
IC
1203-009419
U9000
IC
1203-009461
U9008
IC
1205-006142
U4002
IC
1205-006206
U2001
IC
1205-006213
UCP5000
IC
1205-006251
U12022
IC
1205-006279
U4009
IC
1205-006338
U3005
IC
1209-002513
U4013
IC
1209-002733
U4000
IC
1209-002737
U4007
IC
1404-001724
TH1000,TH12000
THERMISTOR
1404-001724
TH3000,TH5006,TH7001
THERMISTOR
1404-001724
TH7024
THERMISTOR
2007-000171
L9000
R-CHIP
2007-007193
R10023,R10024
R-CHIP
2007-007310
R5027
R-CHIP
2007-007529
R3012
R-CHIP
2007-007573
R12007,R5056
R-CHIP
2007-007698
R4501
R-CHIP
2007-007741
R12002,R4502,R9020
R-CHIP
2007-007766
R9000
R-CHIP
2007-007942
R1010
R-CHIP
2007-007946
R1007
R-CHIP
2007-008045
R3026
R-CHIP
2007-008052
R10002,R9006
R-CHIP
2007-008055
R10017,R3005,R7034
R-CHIP
2007-008055
R7035
R-CHIP
2007-008167
R12012,R5061
R-CHIP
2007-008403
R7029
R-CHIP
2007-008419
R4009,R4010,R4020
R-CHIP
2007-008419
R4021,R5060,R5062
R-CHIP
2007-008420
R12026,R12027
R-CHIP
2007-008478
R5025,R5026
R-CHIP
2007-008486
R7000,R7024,R7036
R-CHIP

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
5. MAIN Electrical Parts List
2007-008486
R9007
R-CHIP
2007-008516
R12043,R12066,R4014
R-CHIP
2007-008516
R4017,R4506,R4508
R-CHIP
2007-008516
R7003,R8001,R9009
R-CHIP
2007-008516
R9010
R-CHIP
2007-008531
R10022,R3019,R7012
R-CHIP
2007-008531
R7015,R7016
R-CHIP
2007-008542
L9001,R10004,R10005
R-CHIP
2007-008647
R1002,R1005
R-CHIP
2007-008774
R10000,R10001,R10008
R-CHIP
2007-008774
R10009,R10013,R10014
R-CHIP
2007-008774
R10015,R10016
R-CHIP
2007-008806
R1009,R12070,R3016
R-CHIP
2007-009111
R4006
R-CHIP
2007-009157
R1006,R12017,R3000
R-CHIP
2007-009157
R5050,R5058,R5059
R-CHIP
2007-009157
R7042
R-CHIP
2007-009182
R3011,R4504
R-CHIP
2007-009201
R5044,R5045,R8011
R-CHIP
2007-009212
R4015
R-CHIP
2007-009314
R3018
R-CHIP
2007-009354
R9001
R-CHIP
2007-009361
R1000,R1004
R-CHIP
2007-009408
R10025
R-CHIP
2007-009920
R12005,R12006
R-CHIP
2007-009954
R4033
R-CHIP
2007-009969
R4001,R4012
R-CHIP
2007-010202
R7009
R-CHIP
2007-010685
R10020,R10021
R-CHIP
2007-011040
R10026,R10027,R12013
R-CHIP
2007-011040
R12014,R12015,R12016
R-CHIP
2007-011040
R12071,R3001
R-CHIP
2007-011043
R5000
R-CHIP
2007-011262
R4011,R4019,R5052
R-CHIP
2007-011262
R5064,R5065,R5066
R-CHIP
2007-011262
R5067
R-CHIP
2007-011378
R3002,R3003,R3004
R-CHIP
2007-011378
R3007,R3008,R3010
R-CHIP
2007-011378
R3013,R3014,R3015
R-CHIP

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
5. MAIN Electrical Parts List
2007-011378
R3021,R3022,R3027
R-CHIP
2007-011378
R3028,R3029,R3030
R-CHIP
2007-011378
R3031,R3032,R3033
R-CHIP
2007-011542
R10010
R-CHIP
2007-011546
R5047,R5048,R5051
R-CHIP
2007-011546
R5212
R-CHIP
2007-011591
R10003,R4002,R4003
R-CHIP
2007-011591
R4004,R4005,R5004
R-CHIP
2007-011591
R5005,R5006,R5007
R-CHIP
2007-011591
R5008,R5009,R5010
R-CHIP
2007-011591
R5011,R5034,R5035
R-CHIP
2007-011591
R5036,R5037,R5042
R-CHIP
2007-011591
R5043,R7023,R7025
R-CHIP
2007-011594
R5013,R5014,R5015
R-CHIP
2007-011594
R5016,R5021,R5022
R-CHIP
2007-011594
R5028,R5029,R5038
R-CHIP
2007-011594
R5039,R5040,R5041
R-CHIP
2007-011594
R5205
R-CHIP
2007-011648
R1001,R12035,R12038
R-CHIP
2007-011648
R12039,R12040,R12041
R-CHIP
2007-011648
R12042,R12058
R-CHIP
2007-012197
R7022
R-CHIP
2007-012202
R10018,R10019
R-CHIP
2203-000138
C4508,C4544
C-CERAMIC,CHIP
2203-000233
C4048,C4050,C4054
C-CERAMIC,CHIP
2203-000438
C4503
C-CERAMIC,CHIP
2203-000489
C4058
C-CERAMIC,CHIP
2203-000679
C7104,C7105
C-CERAMIC,CHIP
2203-000725
C4502,C7003
C-CERAMIC,CHIP
2203-001033
C7100,C9006
C-CERAMIC,CHIP
2203-001153
C4507,C4525
C-CERAMIC,CHIP
2203-002285
C7075
C-CERAMIC,CHIP
2203-005288
C3103
C-CERAMIC,CHIP
2203-005682
C1085,C1099,C3029
C-CERAMIC,CHIP
2203-005682
C4041,C5005,C5012
C-CERAMIC,CHIP
2203-005682
L1013
C-CERAMIC,CHIP
2203-005683
C3114
C-CERAMIC,CHIP
2203-005725
C1015
C-CERAMIC,CHIP
2203-005726
C5013,C5014,C8034
C-CERAMIC,CHIP

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
5. MAIN Electrical Parts List
2203-005727
C3113
C-CERAMIC,CHIP
2203-005731
C1161,C3042,C3043
C-CERAMIC,CHIP
2203-005731
C3044,C3063,C3073
C-CERAMIC,CHIP
2203-005731
C3074,C3112,L1021
C-CERAMIC,CHIP
2203-005734
C1031
C-CERAMIC,CHIP
2203-005736
C1014,C1022,C1038
C-CERAMIC,CHIP
2203-005736
C1046,C1057,C1091
C-CERAMIC,CHIP
2203-005736
C1098,C1160,C2000
C-CERAMIC,CHIP
2203-005736
C2003,C2019,C2024
C-CERAMIC,CHIP
2203-005736
C2117,C2119,C3069
C-CERAMIC,CHIP
2203-005736
C7092,C8028,C8033
C-CERAMIC,CHIP
2203-005736
L1007,L1031,L1043
C-CERAMIC,CHIP
2203-005736
L2024,L4023,R1003
C-CERAMIC,CHIP
2203-005777
C1009,C1162,C2004
C-CERAMIC,CHIP
2203-005777
L1000
C-CERAMIC,CHIP
2203-005779
C9033,C9040,C9044
C-CERAMIC,CHIP
2203-005779
C9049
C-CERAMIC,CHIP
2203-005789
C1002,C1005,C1020
C-CERAMIC,CHIP
2203-005789
C1026,C1037,C1039
C-CERAMIC,CHIP
2203-005789
C1045,C1093,C1125
C-CERAMIC,CHIP
2203-005789
C2030,C2034,L1022
C-CERAMIC,CHIP
2203-005789
L2010,L2012,L3034
C-CERAMIC,CHIP
2203-005792
C1036,C2017,L1041
C-CERAMIC,CHIP
2203-006123
C3068
C-CERAMIC,CHIP
2203-006194
C1059,C1067,C12079
C-CERAMIC,CHIP
2203-006194
C12080,C3031,C5006
C-CERAMIC,CHIP
2203-006194
C5008
C-CERAMIC,CHIP
2203-006305
C3091,L1058,L3022
C-CERAMIC,CHIP
2203-006318
C1106,C1119,C1124
C-CERAMIC,CHIP
2203-006318
C2037,L2009
C-CERAMIC,CHIP
2203-006379
C3023
C-CERAMIC,CHIP
2203-006400
C1016,C1103,C12105
C-CERAMIC,CHIP
2203-006400
C12106,C12107,C12108
C-CERAMIC,CHIP
2203-006400
C12111,C12112,C12115
C-CERAMIC,CHIP
2203-006400
C2002,C2032,C4033
C-CERAMIC,CHIP
2203-006400
C4044,C4055,C5007
C-CERAMIC,CHIP
2203-006400
C7126,C7134
C-CERAMIC,CHIP
2203-006410
L1030,L1067
C-CERAMIC,CHIP
2203-006423
C1006,C1007,C1024
C-CERAMIC,CHIP

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
5. MAIN Electrical Parts List
2203-006423
C1082,C2001,C2021
C-CERAMIC,CHIP
2203-006423
C2033,C3033,C3035
C-CERAMIC,CHIP
2203-006423
C4009,C4013,C4014
C-CERAMIC,CHIP
2203-006423
C4042,C4532,C5010
C-CERAMIC,CHIP
2203-006423
C7091,C7118,C8031
C-CERAMIC,CHIP
2203-006556
C1086,C7082
C-CERAMIC,CHIP
2203-006562
C10000,C10001,C10013
C-CERAMIC,CHIP
2203-006604
C2038
C-CERAMIC,CHIP
2203-006642
C4057
C-CERAMIC,CHIP
2203-006665
C3094,L1033
C-CERAMIC,CHIP
2203-006668
C1011,C5009
C-CERAMIC,CHIP
2203-006674
C2090
C-CERAMIC,CHIP
2203-006707
C2023
C-CERAMIC,CHIP
2203-006839
C10002,C10003,C10004
C-CERAMIC,CHIP
2203-006839
C10005,C1023,C4533
C-CERAMIC,CHIP
2203-006839
C7095,C7127,C7154
C-CERAMIC,CHIP
2203-006839
C8010,C8012
C-CERAMIC,CHIP
2203-006841
C4021
C-CERAMIC,CHIP
2203-006872
C12012,C4006
C-CERAMIC,CHIP
2203-006968
C2006
C-CERAMIC,CHIP
2203-006979
C3086,C3105,C3107
C-CERAMIC,CHIP
2203-006979
C3111
C-CERAMIC,CHIP
2203-007194
C4007
C-CERAMIC,CHIP
2203-007210
C12117,C12118,C12119
C-CERAMIC,CHIP
2203-007210
C12120,C2005,C2007
C-CERAMIC,CHIP
2203-007210
C2013,C2014,C2015
C-CERAMIC,CHIP
2203-007210
C2022,C2026,C5002
C-CERAMIC,CHIP
2203-007210
C5003,C5004,C5011
C-CERAMIC,CHIP
2203-007210
C6106,C6107,C6109
C-CERAMIC,CHIP
2203-007210
C6110,C6111
C-CERAMIC,CHIP
2203-007270
C10039
C-CERAMIC,CHIP
2203-007279
C7027
C-CERAMIC,CHIP
2203-007317
C12046,C12064,C12071
C-CERAMIC,CHIP
2203-007317
C12073,C12074,C12075
C-CERAMIC,CHIP
2203-007317
C12081,C3030,C4015
C-CERAMIC,CHIP
2203-007317
C4024,C6072,C6088
C-CERAMIC,CHIP
2203-007317
C7021,C7033,C7052
C-CERAMIC,CHIP
2203-007317
C7068,C7072,C7076
C-CERAMIC,CHIP
2203-007317
C7081,C7145
C-CERAMIC,CHIP

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
5. MAIN Electrical Parts List
2203-007391
C2011,C2016,C8007
C-CERAMIC,CHIP
2203-007391
C8008
C-CERAMIC,CHIP
2203-007392
C4526
C-CERAMIC,CHIP
2203-007393
C10038,C1012,C1021
C-CERAMIC,CHIP
2203-007393
C12019,C2029,C3002
C-CERAMIC,CHIP
2203-007393
C3106,C4016,C4018
C-CERAMIC,CHIP
2203-007393
C4038,C7113,C9000
C-CERAMIC,CHIP
2203-007393
C9007,C9018,C9028
C-CERAMIC,CHIP
2203-007393
C9031,C9034,C9041
C-CERAMIC,CHIP
2203-007393
C9045,C9047,C9050
C-CERAMIC,CHIP
2203-007425
C7088
C-CERAMIC,CHIP
2203-007544
C4511,C4516,C4517
C-CERAMIC,CHIP
2203-007544
C4519,C4523,C4524
C-CERAMIC,CHIP
2203-007544
C4545
C-CERAMIC,CHIP
2203-007621
C10048,C10049,C3051
C-CERAMIC,CHIP
2203-007621
C3053,C3055,C3065
C-CERAMIC,CHIP
2203-007621
C3089,C3090,C4012
C-CERAMIC,CHIP
2203-007621
C4036,C4538,C5000
C-CERAMIC,CHIP
2203-007621
C5001,C7009,C7018
C-CERAMIC,CHIP
2203-007621
C7039,C7040
C-CERAMIC,CHIP
2203-007781
C7065,C7085,C7141
C-CERAMIC,CHIP
2203-007796
C10008,C10009,C10011
C-CERAMIC,CHIP
2203-007796
C10025,C10040,C10041
C-CERAMIC,CHIP
2203-007796
C1025,C1053,C1056
C-CERAMIC,CHIP
2203-007796
C12000,C12001,C12007
C-CERAMIC,CHIP
2203-007796
C12008,C12009,C12021
C-CERAMIC,CHIP
2203-007796
C12022,C12025,C12027
C-CERAMIC,CHIP
2203-007796
C12028,C12029,C12030
C-CERAMIC,CHIP
2203-007796
C12031,C12034,C12035
C-CERAMIC,CHIP
2203-007796
C12036,C12041,C12042
C-CERAMIC,CHIP
2203-007796
C12043,C12044,C12047
C-CERAMIC,CHIP
2203-007796
C12048,C12049,C12050
C-CERAMIC,CHIP
2203-007796
C12057,C12061,C12082
C-CERAMIC,CHIP
2203-007796
C12121,C2012,C2027
C-CERAMIC,CHIP
2203-007796
C2031,C2071,C4000
C-CERAMIC,CHIP
2203-007796
C4001,C4002,C4003
C-CERAMIC,CHIP
2203-007796
C4004,C4010,C4023
C-CERAMIC,CHIP
2203-007796
C4037,C4039,C4043
C-CERAMIC,CHIP
2203-007796
C4045,C4046,C4518
C-CERAMIC,CHIP

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
5. MAIN Electrical Parts List
2203-007796
C6013,C6021,C6022
C-CERAMIC,CHIP
2203-007796
C6023,C6025,C6026
C-CERAMIC,CHIP
2203-007796
C6027,C6036,C6038
C-CERAMIC,CHIP
2203-007796
C6039,C6042,C6047
C-CERAMIC,CHIP
2203-007796
C6050,C6051,C6054
C-CERAMIC,CHIP
2203-007796
C6055,C6056,C6057
C-CERAMIC,CHIP
2203-007796
C6058,C6059,C6061
C-CERAMIC,CHIP
2203-007796
C6062,C6063,C6064
C-CERAMIC,CHIP
2203-007796
C6065,C6066,C6067
C-CERAMIC,CHIP
2203-007796
C6068,C6069,C6075
C-CERAMIC,CHIP
2203-007796
C6076,C6077,C6079
C-CERAMIC,CHIP
2203-007796
C6080,C6081,C6082
C-CERAMIC,CHIP
2203-007796
C6083,C6084,C6085
C-CERAMIC,CHIP
2203-007796
C6086,C6095,C6096
C-CERAMIC,CHIP
2203-007796
C6097,C6098,C6104
C-CERAMIC,CHIP
2203-007796
C6108,C7001,C7048
C-CERAMIC,CHIP
2203-007796
C7060,C7070,C7077
C-CERAMIC,CHIP
2203-007796
C7083,C7089,C7120
C-CERAMIC,CHIP
2203-007796
C7123,C7130,C7133
C-CERAMIC,CHIP
2203-007796
C8003,C8006,C8009
C-CERAMIC,CHIP
2203-007796
C8011,C9005,C9009
C-CERAMIC,CHIP
2203-007796
C9015,C9020,C9021
C-CERAMIC,CHIP
2203-007796
C9023,C9032,C9039
C-CERAMIC,CHIP
2203-007796
C9042,C9046,C9056
C-CERAMIC,CHIP
2203-007809
C4500
C-CERAMIC,CHIP
2203-008095
C7078
C-CERAMIC,CHIP
2203-008097
C12020,C4506,C4529
C-CERAMIC,CHIP
2203-008097
C7007,C7013,C8000
C-CERAMIC,CHIP
2203-008097
C8004
C-CERAMIC,CHIP
2203-008158
C4509,C4510,C4520
C-CERAMIC,CHIP
2203-008158
C4521
C-CERAMIC,CHIP
2203-008242
C10007,C12010,C12011
C-CERAMIC,CHIP
2203-008242
C12013,C12014,C12015
C-CERAMIC,CHIP
2203-008242
C12038,C12060,C12103
C-CERAMIC,CHIP
2203-008242
C2010,C2025,C2502
C-CERAMIC,CHIP
2203-008242
C2506,C3017,C3021
C-CERAMIC,CHIP
2203-008242
C3025,C3047,C3048
C-CERAMIC,CHIP
2203-008242
C3049,C3050,C3052
C-CERAMIC,CHIP
2203-008242
C3054,C3056,C3058
C-CERAMIC,CHIP

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
5. MAIN Electrical Parts List
2203-008242
C3060,C3064,C3066
C-CERAMIC,CHIP
2203-008242
C3067,C3070,C3075
C-CERAMIC,CHIP
2203-008242
C3077,C3081,C3082
C-CERAMIC,CHIP
2203-008242
C3095,C3097,C4005
C-CERAMIC,CHIP
2203-008242
C4008,C4022,C4530
C-CERAMIC,CHIP
2203-008242
C6024,C6073,C6074
C-CERAMIC,CHIP
2203-008242
C6087,C6114,C7006
C-CERAMIC,CHIP
2203-008242
C7011,C7012,C7023
C-CERAMIC,CHIP
2203-008242
C7024,C7025,C7028
C-CERAMIC,CHIP
2203-008242
C7059,C7067,C7086
C-CERAMIC,CHIP
2203-008242
C7097,C7098,C9011
C-CERAMIC,CHIP
2203-008242
C9019,C9024,C9026
C-CERAMIC,CHIP
2203-008242
C9027,C9030,C9036
C-CERAMIC,CHIP
2203-008242
C9037
C-CERAMIC,CHIP
2203-008243
C3001
C-CERAMIC,CHIP
2203-008394
L1012
C-CERAMIC,CHIP
2203-008400
C3057,C3059
C-CERAMIC,CHIP
2203-008466
C3108,C3110,C4031
C-CERAMIC,CHIP
2203-008466
C4032,C4034,C4035
C-CERAMIC,CHIP
2203-008466
C4092,C8002
C-CERAMIC,CHIP
2203-008529
C10037,C9051
C-CERAMIC,CHIP
2203-008572
C10036,C7050,C7064
C-CERAMIC,CHIP
2203-008572
C7093,C7094,C7108
C-CERAMIC,CHIP
2203-008749
C7125
C-CERAMIC,CHIP
2203-008860
C10010,C10024,C10047
C-CERAMIC,CHIP
2203-008860
C10051,C1018,C1097
C-CERAMIC,CHIP
2203-008860
C1100,C12104,C3061
C-CERAMIC,CHIP
2203-008860
C4019,C7084,C7112
C-CERAMIC,CHIP
2203-008860
C7150,C9001,C9004
C-CERAMIC,CHIP
2203-008860
C9008,C9014,C9016
C-CERAMIC,CHIP
2203-008860
C9022
C-CERAMIC,CHIP
2203-008876
C1061,C12016,C12017
C-CERAMIC,CHIP
2203-008876
C12018,C12024,C12033
C-CERAMIC,CHIP
2203-008876
C12037,C12040,C12051
C-CERAMIC,CHIP
2203-008876
C12052,C12053,C12055
C-CERAMIC,CHIP
2203-008876
C12059,C12062,C12065
C-CERAMIC,CHIP
2203-008876
C12067,C12069,C12083
C-CERAMIC,CHIP
2203-008876
C2521,C3000,C3062
C-CERAMIC,CHIP
2203-008876
C3071,C3087,C3100
C-CERAMIC,CHIP

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
5. MAIN Electrical Parts List
2203-008876
C4030,C6014,C6015
C-CERAMIC,CHIP
2203-008876
C6046,C7002,C7005
C-CERAMIC,CHIP
2203-008876
C7008,C7010,C7014
C-CERAMIC,CHIP
2203-008876
C7015,C7017,C7020
C-CERAMIC,CHIP
2203-008876
C7022,C7032,C7035
C-CERAMIC,CHIP
2203-008876
C7036,C7037,C7038
C-CERAMIC,CHIP
2203-008876
C7041,C7042,C7043
C-CERAMIC,CHIP
2203-008876
C7044,C7045,C7046
C-CERAMIC,CHIP
2203-008876
C7047,C7049,C7058
C-CERAMIC,CHIP
2203-008876
C7069,C7079,C7090
C-CERAMIC,CHIP
2203-008876
C7110,C9012,C9013
C-CERAMIC,CHIP
2203-008876
C9017,C9029,C9038
C-CERAMIC,CHIP
2203-009025
C3016,C3018,C3019
C-CERAMIC,CHIP
2203-009025
C3020,C3022,C3024
C-CERAMIC,CHIP
2203-009025
C3026,C3027,C3028
C-CERAMIC,CHIP
2203-009025
C3032,C3034,C3037
C-CERAMIC,CHIP
2203-009025
C3072,C3078,C3079
C-CERAMIC,CHIP
2203-009025
C3083,C3092,C3093
C-CERAMIC,CHIP
2203-009025
C3098,C3109
C-CERAMIC,CHIP
2203-009064
C12005,C6001,C6002
C-CERAMIC,CHIP
2203-009064
C6003,C6010,C6016
C-CERAMIC,CHIP
2203-009064
C6018,C6019,C6115
C-CERAMIC,CHIP
2203-009167
C4049,C4053
C-CERAMIC,CHIP
2203-009444
C7087
C-CERAMIC,CHIP
2203-009537
C12072,C12078,C12090
C-CERAMIC,CHIP
2203-009537
C6040
C-CERAMIC,CHIP
2203-009618
C10016,C10053,C12063
C-CERAMIC,CHIP
2203-009618
C12066,C12068,C7096
C-CERAMIC,CHIP
2203-009618
C7142,C7143,C7160
C-CERAMIC,CHIP
2203-009733
C4029,C6052,C7026
C-CERAMIC,CHIP
2203-009733
C7051,C7071
C-CERAMIC,CHIP
2203-009735
C12002,C12003,C12004
C-CERAMIC,CHIP
2203-009735
C12032,C12056,C6005
C-CERAMIC,CHIP
2203-009735
C6008,C6009,C6020
C-CERAMIC,CHIP
2203-009735
C6028,C6044,C6045
C-CERAMIC,CHIP
2203-009735
C6089,C6113
C-CERAMIC,CHIP
2203-009736
C6012,C6017,C6099
C-CERAMIC,CHIP
2203-009736
C7030,C7034,C7053
C-CERAMIC,CHIP
2203-009736
C7073,C7074,C7099
C-CERAMIC,CHIP
