Samsung VISIO 22+ User manual

Users manual
VISIO 22+
Version 2.4 - August 2012
English

About this manual
This manual addresses to end users of VISIO 22+. The device was assembled
by your dealer or shipped to you as a completely assembled and tested
device. In this manual you will find all information required to use your VISIO
22+.
The manual is a part of your device. Please read this manual with care and
attention as it contains important instructions and tips with regard to
operating the device and its safety. Please keep the manual always within
reach of your device and do pass it on to a next owner.
Copyright ©2012 BAUM Retec AG, In der Au 22, Wiesenbach, Germany. All
rights reserved. No part of this publication may be reproduced or distributed
in any form or by any means, or stored in a database or retrieval system,
without prior written permission from BAUM Retec AG.
All efforts have been made to ensure that information contained in this
document is correct at the time of issue. Neither BAUM Retec AG nor its
representatives assume any responsability for errors or omissions. Nor is any
liability assumed for damages resulting from the use of information contained
herein.
Licenses and trade marks
All licenses and trade marks are the property of their respective owners.
2

About VISIO
Handy design, simple to use, excellent picture quality – that is what VISIO 22+
stands for.
All VISIO 22 models have a High-Resolution camera and a 22” widescreen
display in 16 by 9 format with high contrast and power saving LED backlight.
Thanks to the High-Resolution camera VISIO 22+ provides a bright and crisp
image even in the smallest magnification.
Though being one of the smallest, lightweight and best designed devices,
VISIO 22+ provides all the functionality you expect from an excellent CCTV
reader.
Visio 22+ features full colour auto focus and a variety of false colours. Reverse
foreground and background colour is provided as well as desired fix focus for
hand writing and filling in forms. Thanks to its image optimizer feature VISIO
22+ will always provide an optimum image quality.
VISIO 22+ can even display documents of very poor quality magnified and in
higher contrast, like faint print or crumpled or dirty paper. However despite
all technical efforts made, there may exist a few documents which cannot be
displayed properly. In those rare cases, the full colour setting may be the best
setting but in seldom cases it may happen that a document cannot be made
better readable.
3

Table of contents
ABOUT THIS MANUAL ...................................................................................................................................... 2
TABLE OF CONTENTS........................................................................................................................................ 4
BEFORE YOU START.......................................................................................................................................... 5
HOW TO POSITION VISIO 22+ ON YOUR DESK............................................................................................... 5
VERY FIRST TIME POWER ON AFTER INSTALLATION..................................................................................... 6
VISIO 22+ CONTROL PANEL ............................................................................................................................. 7
VISIO 22+ CONTROL PANEL BUTTONS - QUICK REFERENCE......................................................................... 7
GETTING FAMILIAR WITH YOUR NEW VISIO 22+ ........................................................................................... 8
FOR YOUR SAFETY .......................................................................................................................................... 12
COMMON PROBLEMS AND SOLUTIONS ....................................................................................................... 15
DISPLAY AND LIGHTS REMAIN DARK.............................................................................................................................................. 15
ONLY DISPLAY REMAINS DARK,LIGHTS ARE ON ........................................................................................................................... 15
IMAGE IS BLURRED............................................................................................................................................................................ 15
DOCUMENT CANNOT BE READ ........................................................................................................................................................ 15
XY-TABLE IS NOT MOVING.............................................................................................................................................................. 15
LETTERS ARE FLUTTERING ............................................................................................................................................................... 16
ENVIRONMENTALLY FRIENDLY DISPOSAL ACCORDING TO EC-DIRECTIVE 2002/96/EG ......................... 16
WARRANTY...................................................................................................................................................... 17
DEFECTS AND REPAIR..................................................................................................................................... 18
SERVICE BOX ................................................................................................................................................... 19
TECHNICAL DATA............................................................................................................................................ 20
INFORMATIONS FOR THE RE-USE OF VISIO 22+ .......................................................................................... 21
PRODUCT DESCRIPTION:.................................................................................................................................................................. 21
SPECIFIC PURPOSE:.......................................................................................................................................................................... 21
PRODUCT LIFE TIME:........................................................................................................................................................................ 21
RE-USE /INSTALLATION AND MAINTENANCE:............................................................................................................................. 21
SAFETY CHECKS (§6 MP-BETREIBV): ........................................................................................................................................... 21
SPECIAL ADVICE FOR TRANSPORT AND STORAGE:........................................................................................................................ 22
POWER CABLE:.................................................................................................................................................................................. 22
PRODUCT IDENTITY SHEET VISIO.................................................................................................................. 24
4

Before you start
Please read the safety instructions at the end and check the contents of the
packaging
What’s in the box:
1 VISIO 22+ CCTV Reader device
1 Power supply with cable to mains
1 Users manual

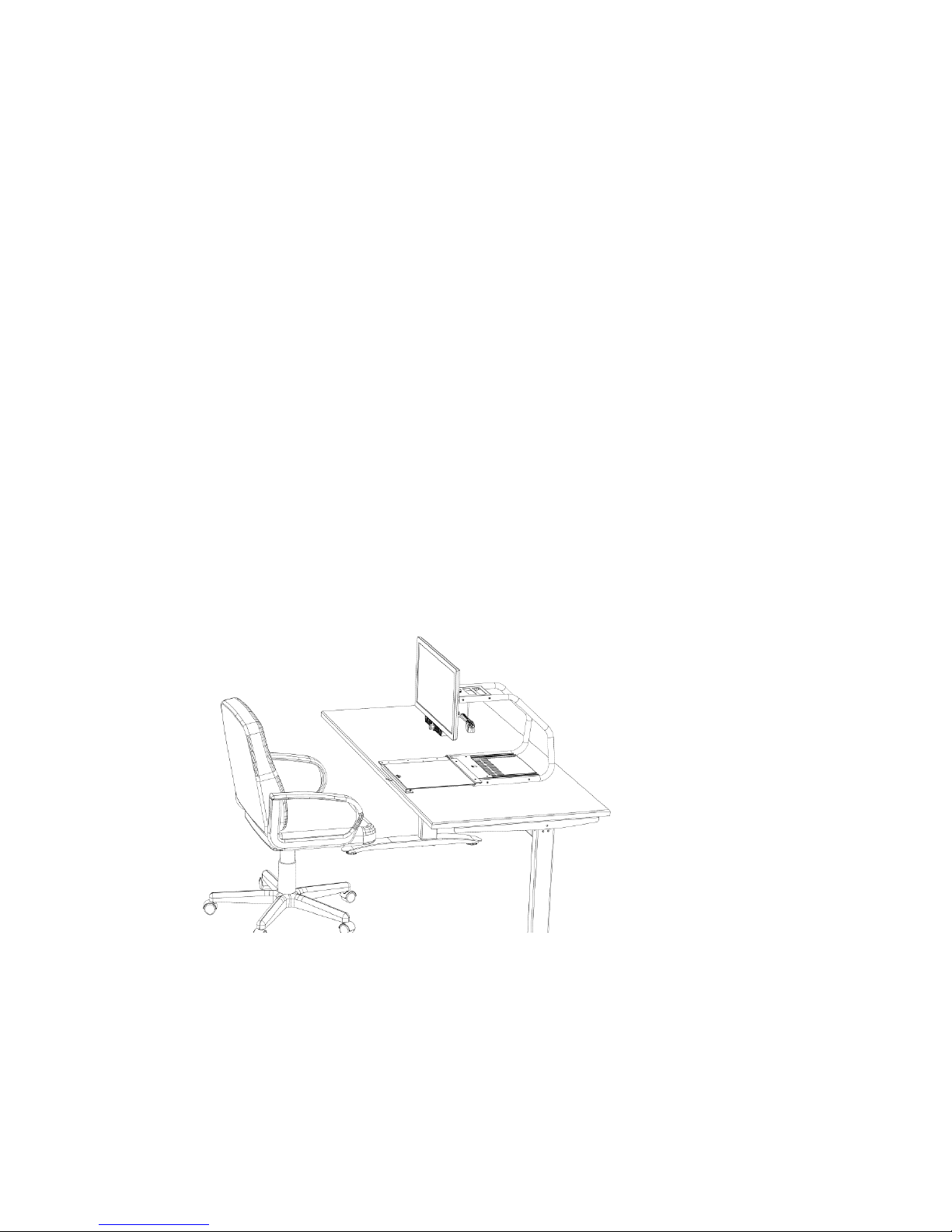

How to position VISIO 22+ on your desk
Place VISIO 22+ on your desk and set it so far back that when pulled out to the
maximum position (nearest to your belly) the front edge of the XY-table is
aligned to the front edge of your desk or even a little further back. Also, when
pushed to the leftmost or rightmost position, the edges of the XY-table shall
not exceed the boundaries of your table! Thus a safe stand of VISIO 22+ is
provided in all conditions of operation.
5

Very first time power on after installation
The following chapter usually can be skipped, as this has usually already been
done when you received your VISIO 22+. It should not be necessary that you
do this again.
Connect VISIO 22+ power supply to mains.
Press Power button on left of control unit for about one second or until
lights turn on, monitor should be turned on automatically. (Check for blue
light on bottom of TFT display, a bit right of middle.
Display power button is directly left to light. You can move your finger from
the right bottom edge of Display frame slowly to the left, until you feel the
raised power button. After pressing this button, the blue light will be lit. From
now, VISIO will switch on the Monitor automatically.
The above steps only have to be performed once directly after assembly. In
your daily use from then on, you only have to press the Power button on the
VISIO 22+ control panel.
6

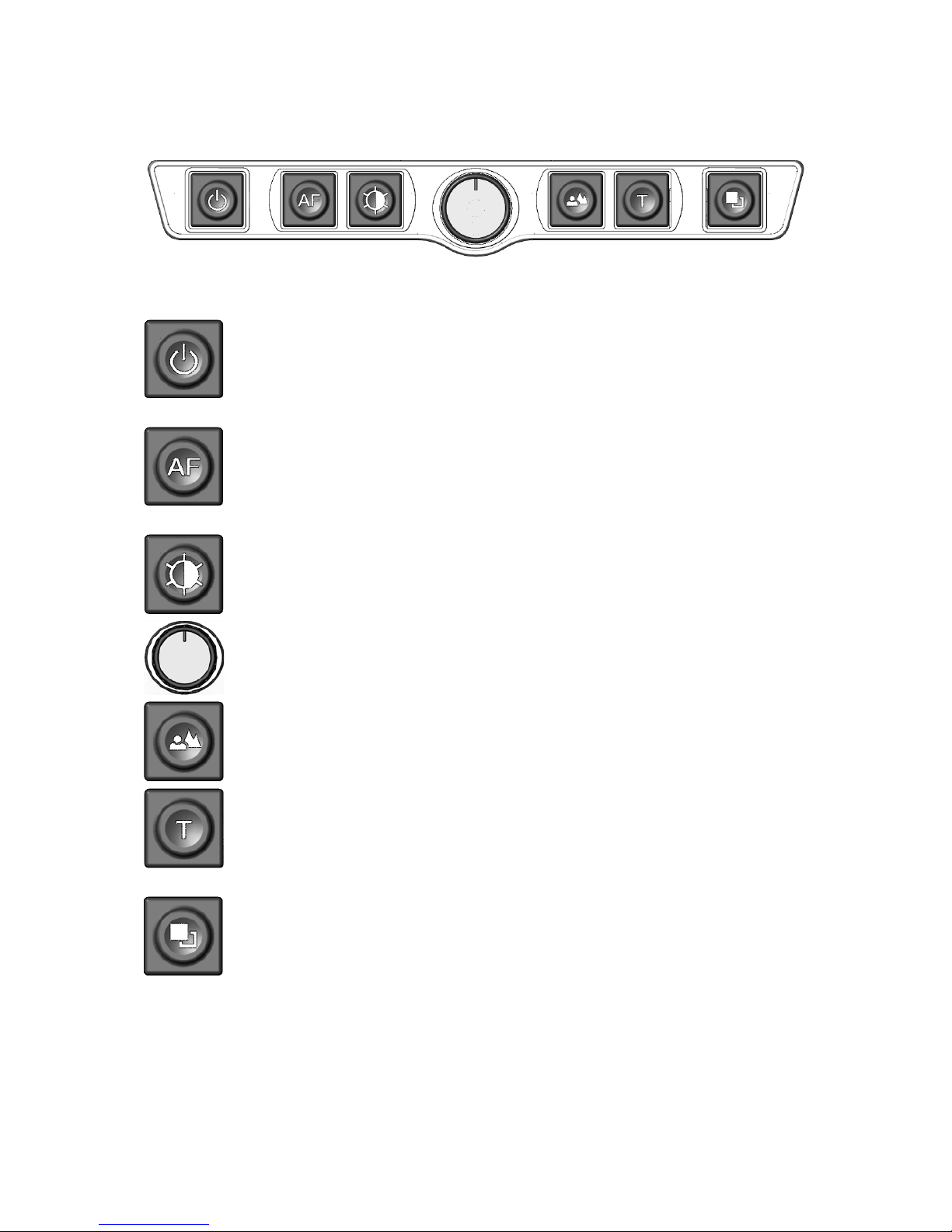

VISIO 22+ Control Panel
VISIO 22+ Control Panel Buttons - Quick Reference
Power
Short press of about 1 second will power up the device (lights
on).
Long press will switch off.
Auto Focus
Toggles Auto Focus on and off.
Auto Focus on has always a sharp image.
Auto Focus off is for taking handwritten notes.
Image optimizer
Selects one of five image quality optimizer settings for
viewing critical documents with low contrast or bad print.
Zoom
Turn knob left to decrease magnification, turn knob right to
increase magnification.
Use this option to view pictures or documents in true colours.
Also good for viewing bad print and for writing.
Text – Reverse
Use text mode for reading. Contrast is enhanced so reading is
more easy. Press again to toggle foreground and background
colors.
False colors
In Text mode: Press to change between 7 false colours. (Use
Text button to reverse foreground and background)
In Picture mode: toggle white balance between warm reddish
white, neutral white and cold blueish white.
.
7

Getting familiar with your new VISIO 22+
You have already learned how to position VISIO on your desk and you have
connected VISIO to the power supply.
You can slightly tilt the display so that you can comfortably view the screen.
Do not tilt too much; do not try to exceed the stopper position.
Now, switch on VISIO 22+ and use it for the first time.
The control panel is mounted right below the screen. The power button is
the leftmost one. A short press for about a second on the power button will
switch on VISIO 22+. As soon as the lights turn on, you may release the power
button. The Display may show a message “Invalid video mode”, after a few
seconds VISIO shows a magnified image.
You can switch VISIO 22+ off by pressing the power button for more than a
second. Thus, touching this button accidentally will have no effect. Practice
switching on and off VISIO for a few times then leave it switched on to
proceed.
Place a document on the XY-table. Please use something coloured, like a
brochure or magazine with text and images.
You can align a document horizontally by moving it against the silver rim at
the back end of the XY-table. Thus you will track a line when moving the XY-
table left and right.
The XY-table provides a brake that can fix the table. At the front edge, you
find the brake lever. Put it in the leftmost position and you can move the XY-
table freely in all directions. In the middle position, you can move the XY-table
left and right only and the up down position is fixed. In the rightmost position
the table is fixed in all directions.
Now, align your document against the back rim and position the brake lever
in the leftmost position.
WARNING: Avoid having fingers or (pieces of) clothes jammed into the
mechanism of the XY-table underneath the reading platform. Please put your
hands on top of or on the front side of the reading platform. Do not reach
underneath the sides or underneath the rear side of the reading table.
