Quick Network Setup Guide
Use Router to Connect to Network
By using a router, you can connect your computer and 1-3 DVRs to the Internet through sharing by using a XDSL or cable TV modem. This
guide is intended for the average users other than professional network engineers.
To use the router properly, please closely follow Steps 1-6.
Configure router, PC and DVR device in accordance with the following steps.
Step 1. Connect the cable
Step 2. Connect your local computer to the router
Step 3. Connect the DVR to the router
Step 4. Connect the router to Internet service line
Step 5. Configure Port Forwarding for Router

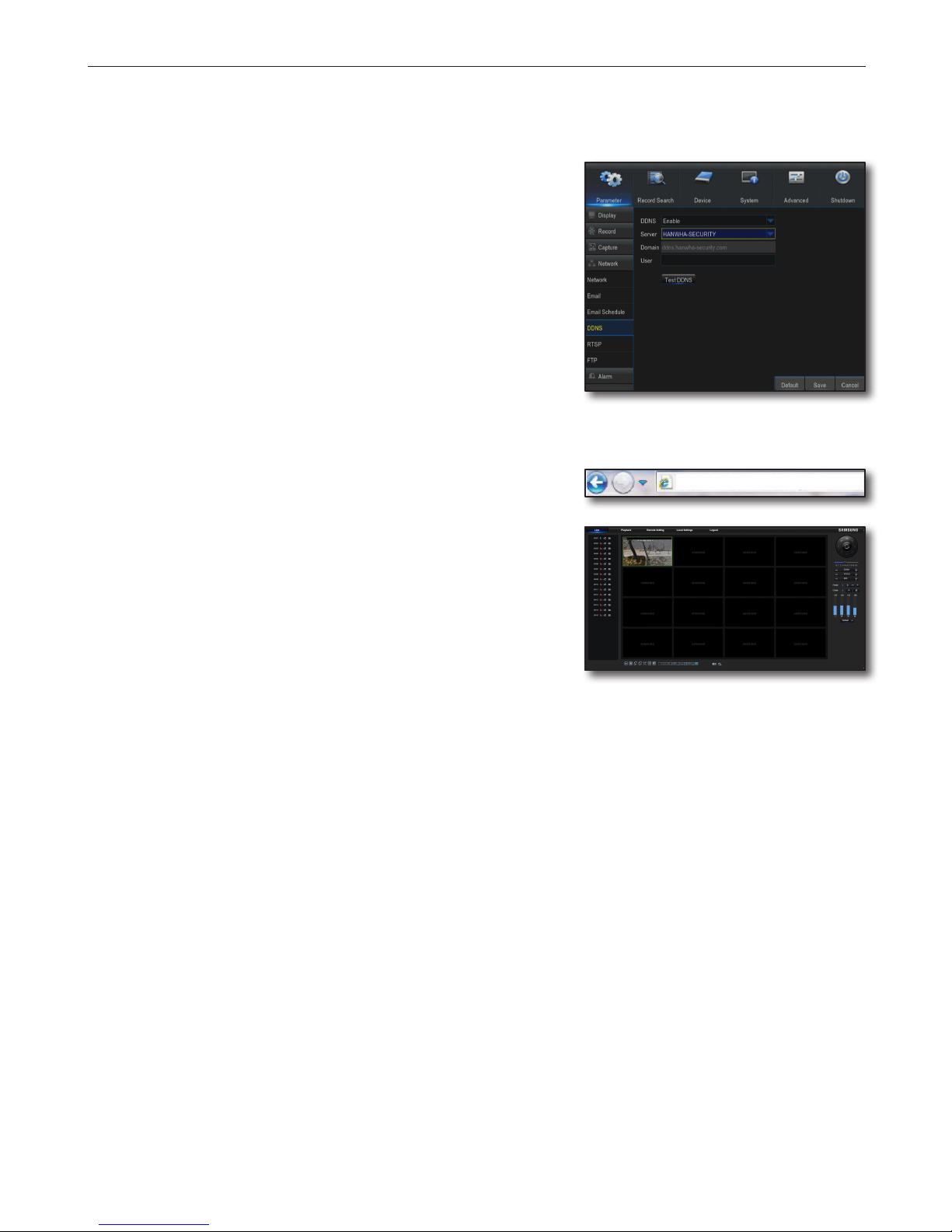

Step 6. Use the DDNS to access the DVR in dynamic IP environment
PWR HDD
USB
PWR HDD
USB
DVR
DVR
Local PC
Router
xDSL or Cable TV
network modem
xDSL or Cable TV
network modem
External remote PC
DDNS Server
INTERNET

English-2

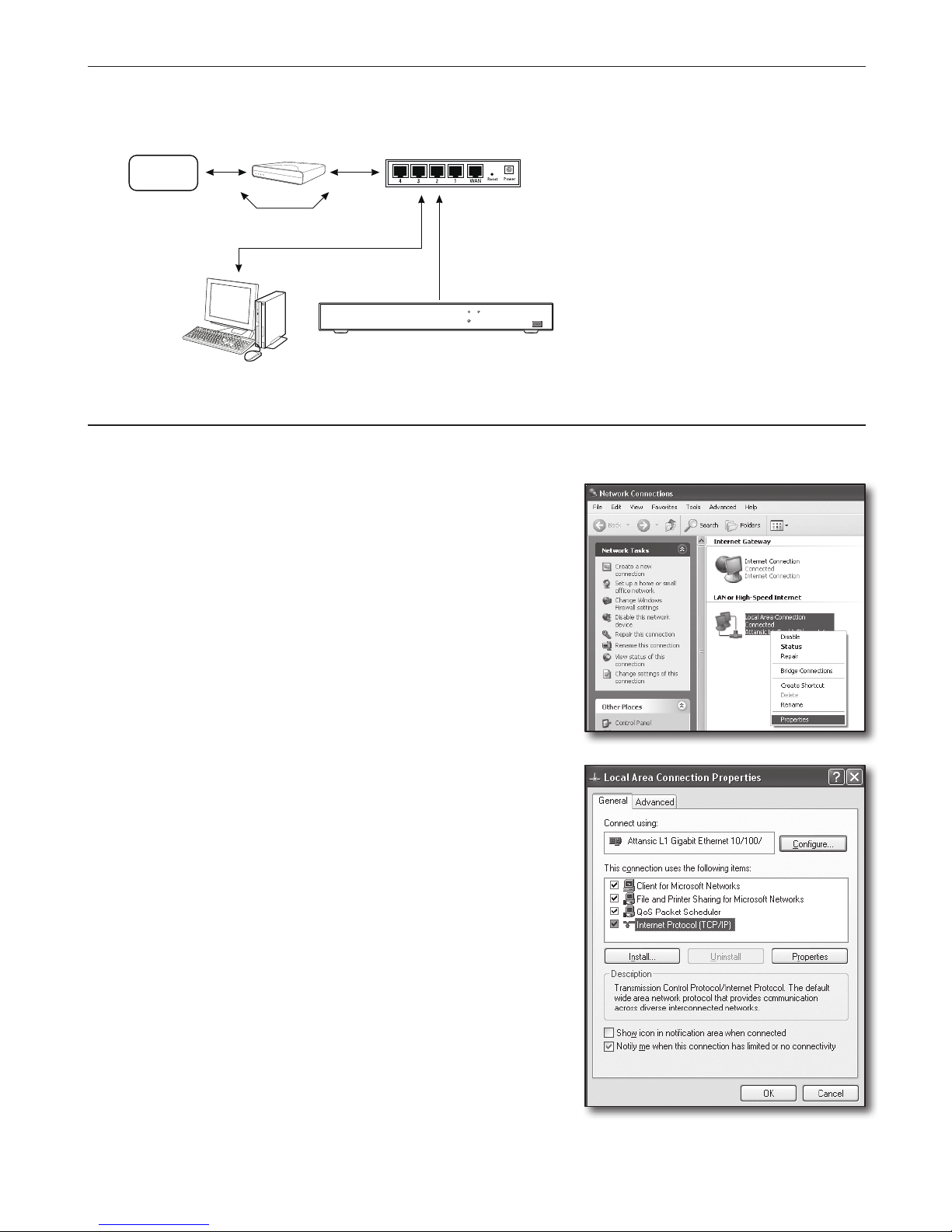

Step 1. Connect the cable
1. Connect the Internet service line (XDSL/cable TV Modem) to the Internet (WAN) port on the router.
2. Connect the computer and DVR to the LAN port (1-4) on the router by using an Ethernet cable.
Step 2. Connect local computer to the router
Step 2.1 Connection Settings
1. Click [Start] on your computer.
2. Access <Control Panel> - <Network Connection>.
The Network Connection Window is as shown in the figure.
3. Select <Local Connection>.
4. Right click on the mouse and select <Properties>.
5. The <Local Connection Properties> Window is as shown in the figure.
6. Select <Internet Protocol (TCP/IP)>, and then click on [Properties].
PWR HDD
USB
Broadband Router
Cable TV/ADSL/VDSL
Directly Connected
(Dynamic/Static IP)
INTERNET
or
DDNS Server
Local PC
DVR

English-3
7. Select <Obtain an IP address automatically> and <Obtain DNS server address
automatically>, and then click on <OK>.
8. Click on <OK> to finish setting.
Step 2.2 Verify connection
1. Click [Start] on your computer.
2. Click on [Run].
3. Enter "cmd" in <Open> text box found within the <Run> dialog box, and then
click on [OK].
4. Enter "ipconfig" in DOS command line window [cmd.exe] and press [ENTER].
5. Run Internet Explorer and enter the IP address of <Default Gateway> in the
address bar found in "cmd.exe" window, and then press [ENTER].
6. If all connections have been set up properly, a router login page will be
displayed.

English-4
7. If the connection fails, check all cables and return to Step 2.1, and then select
<Repair>.
In "Local Connection Status" window, click on <Support> tab and select
Default Gateway> (if it matches the gateway as found in [cmd.exe] window,
and then check connection again.)
Step 3. Connect DVR to the router
Step 3.1 Configure DVR router settings
1. Select [Main Menu ; Parameter].
2. Select <Network> window.
3. Select <Static>. The connection setting window will be displayed.
4. Move the cursor to the desired item.
5. Manually input <IP address> when static connection is selected.
The IP address consists of 4 fields, and the first 3 fields should be same to
those of <Default Gateway> address of your computer which can be found in
Step 2, and the last field should be an unoccupied figure between 2 and 254.
For example, IP: 192.168.1.200.
6. Enter <Gateway> and < Subnet Mast> (the same parameters as found in your
computer in Step 2).
7. Set <Client Port> and <HTTP Port>.
Refer to the next page for setting up the Client port and HTTP port.
What's a Port?
Port 80 is generally used for <HTTP Port> in the HTTP protocol.
If no port is set, it will be automatically set to 80 in the HTTP protocol.
For example, http://www.yahoo.com and http://www.yahoo.com:80 will be deemed as equal.
Therefore, if < HTTP Port> has been set to any port other than 80, then you have to specify the address in the following form:
http://<IP address>:<HTTP Port>,
For example, http://192.168.1.200:80 to connect to the DVR using internet browser. It is recommended to set <HTTP Port> to a
port number between 1024 and 65535.
If the port is not set to 80, access may be limited (depending on the security strategy or firewall configuration of your ISP).
DVR uses <HTTP Port> and <Client Port> for Web connection.
<HTTP Port> is used for access to DVR through the Web Browser.
<Client Port> is used to receive video sent from DVR through the Web browser.
When several DVRs are configured, the <HTTP Port> and <Client Port> settings should be configured respectively for each DVR.
For example, DVR #1: 4520, HTTP port: 80
DVR #2: 4529, HTTP port: 2000

English-5

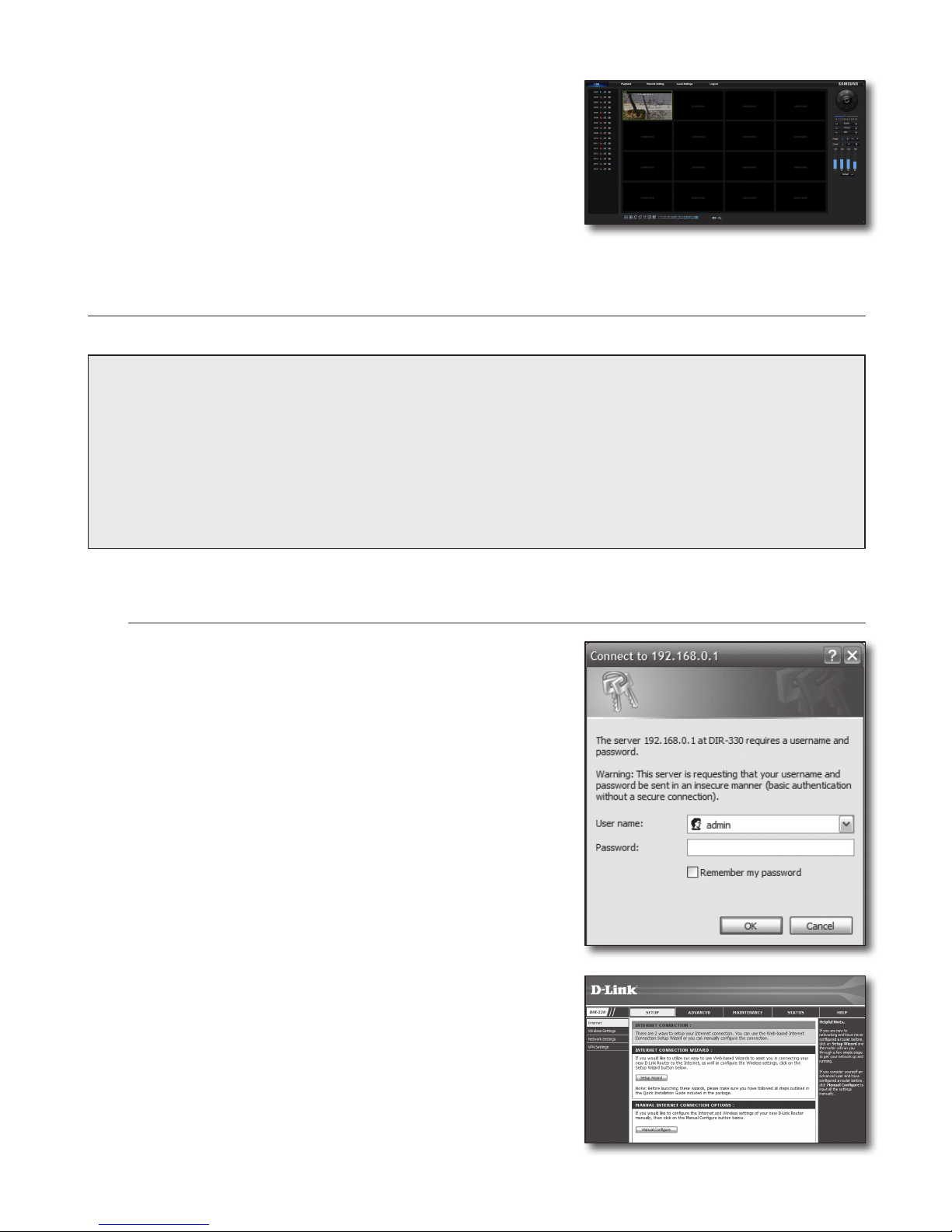

Step 3.2 Check DVR Connections on Computer
1. Run Internet Explorer, and enter the <IP Address> and <HTTP Port> of DVR
into the address bar, and then press [ENTER].
For example, http://192.168.1.200: 80.
2. If the connection has been set up correctly, the Web Viewer screen will be
displayed.
3. If the connection fails, check Step 1, 2 and 3 to verify connection settings.
Step 4. Connect the router to Internet service line
Internet connection setup and procedure may vary depending on the specific router. Please check your router setup method.
Connection type depends on your Internet service
Set Internet connection based on the type of Internet service. Check your environment and choose the proper connection type before you
proceed.
• DHCP: Dynamic IP environment (allocate IP address automatically).
• Static (fixed) IP: IP environment where public IP address is used.
• PPPoE: commonly used in DSL environment, requiring ADSL access ID and password.
For your user ID and password, consult your ISP.
Name of each type stated above may vary depending on router manufacturer.
Step 4.1 Connection guide (by router)
Step 4.1-Case 1. D-Link DIR-330
1. Run Internet Explorer and enter the IP address of <Default Gateway> found in
Step 2 in the address bar, and then press [ENTER].
2. When the router login screen is displayed, enter your User name and
Password. For your User name and Password, refer to the user manual for the
router.
3. Select Internet connection method from connection setup wizard and manual
setup. Selecting the Internet Connection Setup Wizard automatically moves to
the next step.
4. Click on <Manual Setting>.

English-6
5. Select <Internet Connection Type>.
Dynamic IP Address Environment
6. Select <Dynamic IP (DHCP)>.
7. Click on [Save Settings].
Static IP Address Environment
8. Select <Static IP>.
9. Enter the <IP Address>, <Subnet Mask> and <ISP Gateway Address>
allocated by your ISP.
10. Click on [Save Settings].
ADSL Environment
11. Select <PPPoE (Username/Password)>.
12. Enter your User name and Password. For your User name and Password,
consult your ISP.

English-7
Step 4.1-Case 2. NETGEAR WGR614SS
1. Run Internet Explorer and enter the IP address of <Default Gateway> found in
Step 2 into the address bar, and then press [ENTER].
2. When the router login window is displayed, enter your User name and
Password.
For your User name and Password, refer to the user manual for the router.
3. Click on <Setup> - <Basic Settings> from the menu on the left side.
Click <Setup Wizard> for automatic setup.
Dynamic IP Address Environment
4. Select <Get Dynamically From ISP>.
5. Click on [Apply].
Static IP Address Environment
6. Select <Use Static IP Address>.
7. Enter <IP Address>, <IP Subnet Mask> and <Gateway IP Address>.
8. Click on [Apply].
9. All changes will now be saved.

English-8
Check Connection
Upon connection, the status indicator <DHCP Client> will be displayed at the top
of the screen.
Step 4.1-Case 3. LINKSYS WRT54G
1. Run Internet Explorer and enter the <Default Gateway> found in Step 2 into
the address bar, and then press [ENTER].
2. When the router login screen is displayed, enter your User name and
Password.
For your ID and password, refer to the user manual for the router.
3. Click on <Internet Setup>.
4. The setup screen to be displayed varies depending on your Internet
Connection type.

English-9
Dynamic IP Address Environment
5. Select <Automatic Configuration-DHCP>.
6. Click on [Save Settings] at the bottom.
Static IP Address Environment
7. Select <Static IP>.
8. Enter the <Internet IP Address>, <Subnet Mask> and <Gateway> allocated by
your ISP.
9. Click on [Save Settings] at the bottom.
ADSL Environment
10. Select <PPPoE>.
11. Enter your User name and Password.
For your User name and Password, consult your ISP.
12. Click on [Save Settings] at the bottom.

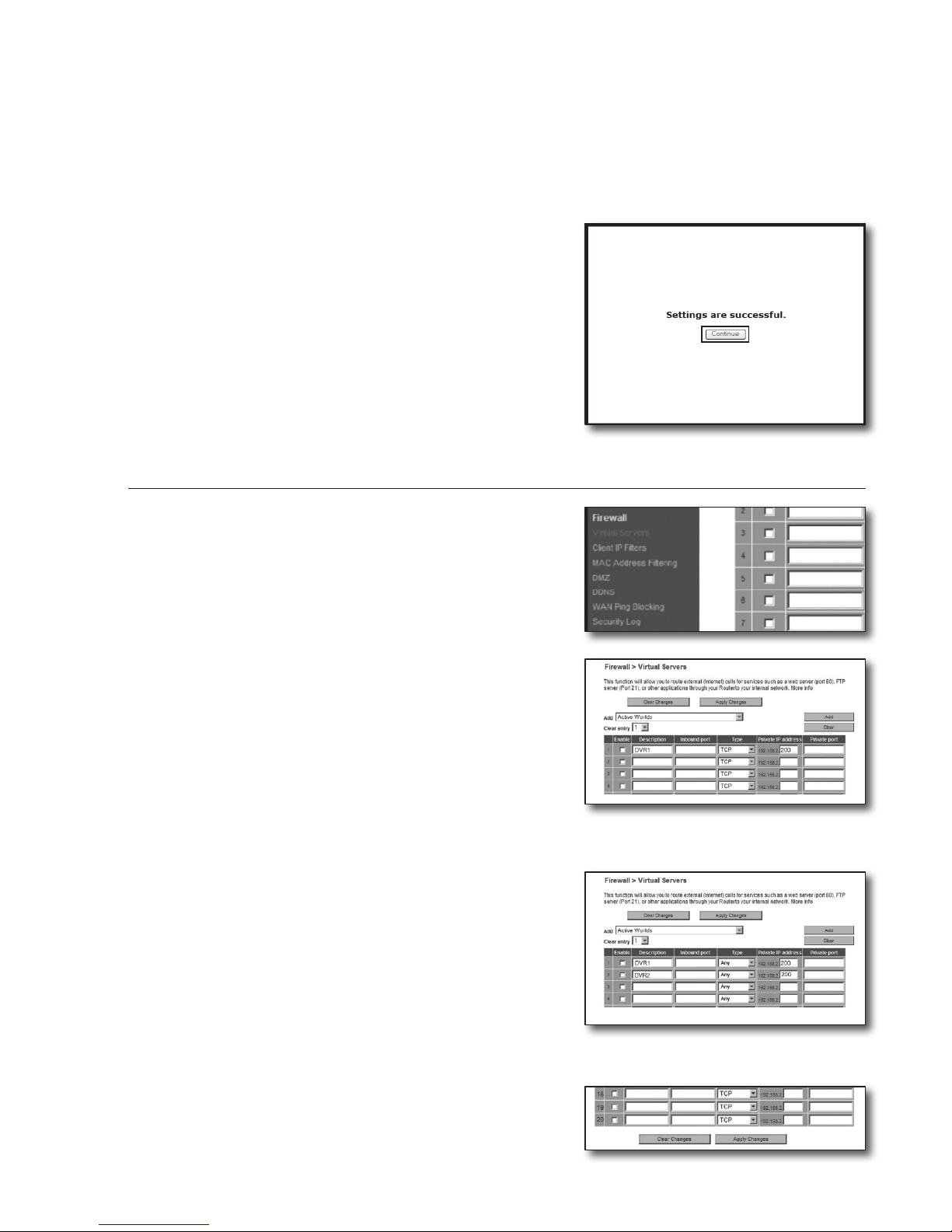

13. Upon completion, a completion page will be displayed.

English-10
Step 4.1-Case 4. BELKIN F5D8236-4
1. Run Internet Explorer and enter the IP address of <Default Gateway> found in
Step 2 into the address bar, and then press [ENTER].
2. Click on <WAN> - <Connection Type>. Select your Internet Service type.
Dynamic IP Address Environment
3. Select <Dynamic> as the connection type and click on [Next].
4. Enter <Host Name>and click on [Apply Changes].
If your ISP provided you with a specific DNS address, please click on <WAN>
- <DNS> and enter the DNS address.
Static IP Address Environment
5. Select <Static> as the connection type and click on [Next].
6. Enter the <IP Address> allocated by your ISP.
7. Enter <Subnet Mask> and <ISP Gateway Address>.
8. Click on [Apply Changes].

English-11
ADSL Environment
9. Select <PPPoE> as the connection type and click on [Next] button.
10. Enter your User name and Password.
For your User name and Password, consult your ISP.
11. Click on [Apply Changes].
Check Connection
Once connected, the status indicator <Connection> will be displayed at the top of
the interface.
Step 4.1-Case 5. TRENDNET TEW-652BRP
1. Run Internet Explorer and enter the IP address of <Default Gateway> found in
Step 2 into the address bar, and then press [ENTER].
2. When the router login window is displayed, enter your User name and
Password.
For your ID and password, refer to the user manual for the router.
3. Click on <WAN> from the menu at the left side of the setup page.
4. Select <Connection Type>.

English-12
Dynamic IP Address Environment
5. Select <DHCP Client or Fixed IP>.
6. Click on <Obtain IP Automatically>.
If your ISP provided you with a specific DNS address, please click on <WAN>
- <DNS> and enter the DNS address.
7. Click on [Apply] button at the bottom.
Static IP Address Environment
8. Select <DHCP Client or Fixed IP>.
9. Select <Specify IP>.
10. Enter <IP Address>, <Subnet Mask> and <Default Gateway>.
11. Enter <DNS1> and <DNS2>.
If your ISP provided you with a specific DNS address, please click on <WAN>
- <DNS> and enter the DNS address.
12. Upon completion, click on [Apply] button at the bottom.
ADSL Environment
13. Select <PPPoE>.
14. Select appropriate method of obtaining <WAN IP> address.
15. Enter <Service Name>, <User Name> and <Password>.
For your User name and Password, consult your ISP.

English-13
Check Connection
16. Click on <Status> - <Device Information> from the menu on the left side, and
check the current status of server at <DHCP Server> under LAN type.
When the connection is set up successfully, the <Enabled DHCP Table> will be
displayed.
Step 4.2 Check connection to Internet
1. Run Internet Explorer on your computer.
2. Enter the IP address of <Default Gateway> found in Step 2 into the address
bar, and then press [ENTER].
3. Click on Status tab on router menu.
4. Check the WAN (Internet) connection status and WAN (Internet) IP address.
5. When the connection is set up successfully, a message <DHCP Client
Connected> will be displayed, and an address will be displayed for the WAN
(Internet) IP.
6. Use Internet Explorer to access Yahoo, Google and other Web servers.
7. If the connection has been set up correctly, Internet Explorer will properly
display the page on the Web server accessed.
8. If connection fails, please return to Step 4 and check it again.

English-14

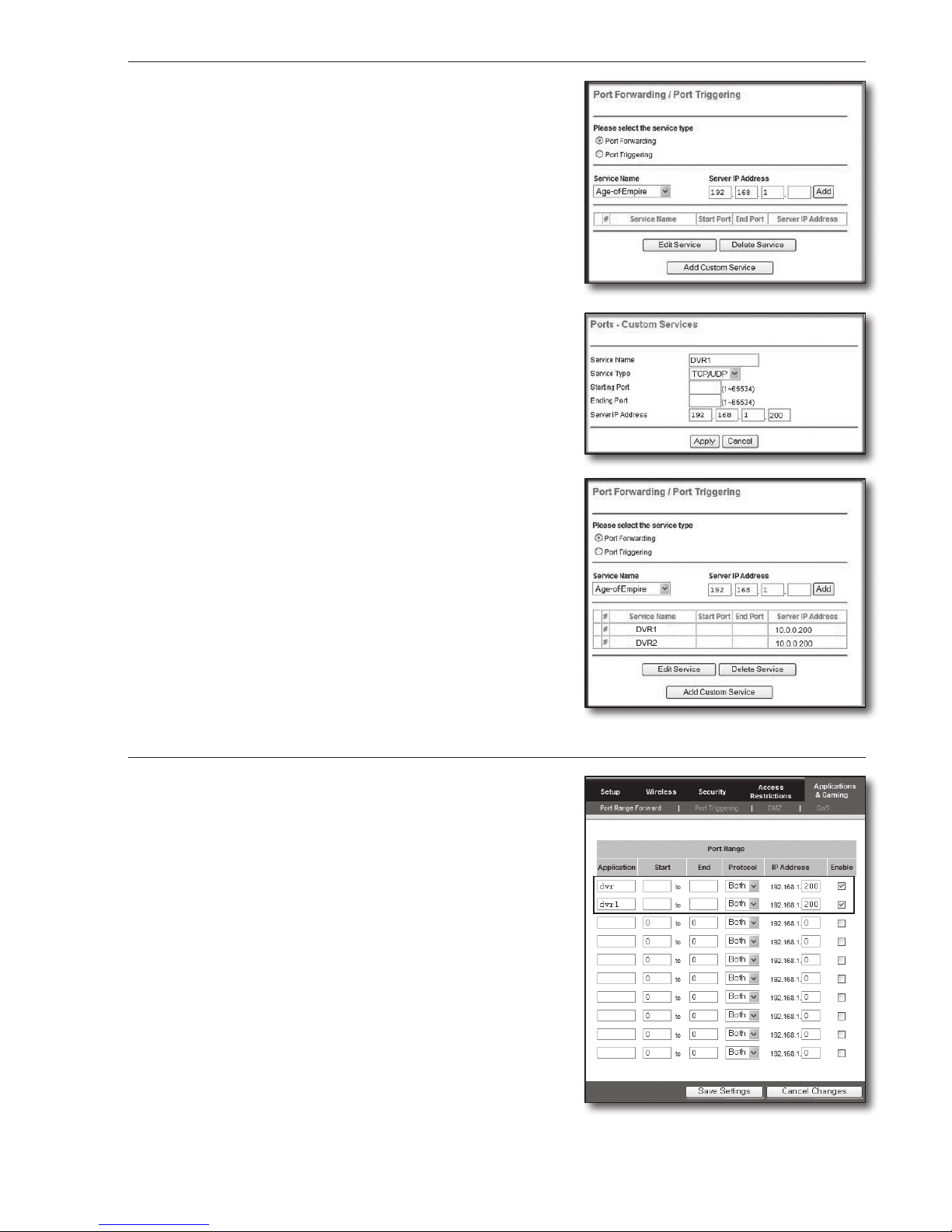

Step 5. Port Forwarding
Port forwarding should be configured for accessing from the outside of the router network to a computer or DVR which is connected to the
router.
Configure router port forwarding in accordance with the following instructions.
What's port forwarding?
It is a port mapping from <WAN (Internet) IP: port of Router> to <IP: port of DVR>. It helps start the communication channel between the
interior and exterior of private LAN.
As a DVR uses two ports for communication, port forwarding should be set up for two ports.
J
`If port forwarding is configured only for the <HTTP Port>: the Web Viewer can be accessed through the Web browser, but the video cannot be
received, because port forwarding is not configured for <Client Port> which is used for video data communication.
If port forwarding is configured only for <Client Port>: the Web Viewer cannot be accessed through the Web browser, because port forwarding is
not configured for <HTTP Port>, which is used for communication.
The Port forwarding method for each type of router is described below. For other routers not guided herein, refer to the user manual for the router.
Step 5.1 Port Forwarding Guide (by router)
Run Internet Explorer and enter the IP address of <Default Gateway> found in Step 2 into the address bar, and then press [ENTER].
Step 5.1-Case 1. D-LINK DIR-330
1. Select <Advanced>.
2. Set port forwarding for <HTTP Port>.
2-1. Find the <Check box> and check it.
2-2. Enter a name for the DVR port in the <Name>field.
For example, "DVR 1"
2-3. In <Public Port>, enter the <HTTP Port> defined in Step 3.
For example, 80-80
2-4. In <Private Port>, enter the <HTTP Port> defined in Step 3.
For example, 80-80
2-5. In <IP Address>, enter the IP address defined for DVR in Step 3.
For example, 192.168.1.200
2-6. Select <Any> for <Traffic Type>.
3. Set port forwarding for <Client Port>.
3-1. Find the <Check box> and check it.
3-2. Enter a name for the DVR port in the <Name> field.
For example, "DVR 2"
3-3. In <Public Port>, enter the <Client Port> defined in Step 3.
For example, 4520~4524
3-4. In <Private Port>, enter the <Client Port> defined in Step 3.
For example, 4520~4524
3-5. In <IP Address>, enter the IP address defined for DVR in Step 3.
For example, 192.168.1.200
4. Upon completion, click on [Save Settings].
8080
8080
80 80
80 80
4520 4524
4520 4524

English-15
Step 5.1-Case 2. NETGEAR 614SS
1. Click on [Port Forwarding / Port Triggering] from the menu on the left side.
2. Select <Port Forwarding>.
3. Set port forwarding for <HTTP Port>.
3-1. Set port forwarding for <Add Custom Service>.
3-2. In <Service Name> field enter a name for DVR.
For example, "DVR 1"
3-3.
Enter <Starting Port> and <Ending Port> matching the <HTTP Port>
defined in Step 3.
For example, 80
3-4. In <Server IP Address>, enter the IP address defined for DVR in Step 3.
For example, 192.168.1.200
3-5. Click [Apply] to finish setting.
4. Set port forwarding for <Client Port>.
4-1. Click on <Add Custom Service> button.
4-2. In <Service Name> field, enter a name for <Client Port> of DVR.
For example, "DVR 2"
4-3. Enter <Start Port> and <End Port> matching the <Client Port> defined in
Step 3.
For example, 4520, 4524.
4-4. In <Server IP Address>, enter the IP address defined for DVR in Step 3.
For example, 192.168.1.200
4-5. Click [Apply] to finish setting.
Step 5.1-Case 3. LINKSYS WRT54G
1. Click on <Application & Gaming>.
2. Set port forwarding for <HTTP Port>.
2-1. In <Application> field, enter a name for DVR port.
For example, "DVR 1"
2-2. In <Start> and <End> fields, enter <HTTP Port> defined in Step 3.
For example, 80
2-3. Select [Both] for <Protocol>.
2-4. In <IP Address>, enter the IP address defined for DVR in Step 3.
For example, 192.168.1.200
2-5. Select the check box in the <Enable> column for the specified port.
80
80
80
4520
80
4524
80
4524
80
4520

English-16
3. Set port forwarding for <Client Port>.
3-1. In <Application> field, enter a name for DVR port.
For example, "DVR 2"
3-2. In <Start> and <End> fields, enter <Client Port> defined in Step 3.
For example, 192.168.1.200
3-3. Select [Both] for <Protocol>
3-4. In <IP Address>, enter the IP address defined for DVR in Step 3.
For example, 192.168.1.200
3-5. Select the check box in <Enable> column for the specified port.
4. Click on [Save Settings] at the bottom.
5. Upon completion, the completion screen will be displayed.
Step 5.1-Case 4. BELKIN F5D8236-4
1. Click on <Firewall> - <Virtual Servers> from the menu at the left side.
2. Set port forwarding for <HTTP Port>.
2-1. Select <Enable> check box to mark the selected port.
2-2. In <Description> field, enter a name for DVR port.
For example, "DVR 1"
2-3. In <Inbound Port>, enter the <HTTP Port> defined in Step 3.
For example, 80
2-4. Select <Any> for <Type>.
2-5. In <Private IP Address>, enter the IP address defined for DVR in Step 3.
For example, 192.168.1.200
2-6. In <Private Port>, enter the <HTTP Port> defined in Step 3.
For example, 80
3. Set port forwarding for <Client Port>.
3-1. Select <Enable> check box to mark the selected port.
3-2. In <Description> field, enter a name for DVR port.
For example, "DVR 2"
3-3. In <Inbound Port>, enter the <Client Port> defined in Step 3.
For example, 4520, 4521, 4522, 4523, 4524.
3-4. Select <Any> for <Type>.
3-5. In <Private IP Address>, enter the IP address defined for DVR in Step 3.
For example, 192.168.1.200
3-6. In <Private Port>, enter the <Client Port> defined in Step 3.
For example, 4520, 4521, 4522, 4523, 4524.
4. Upon completion, click on [Apply Changes].
80 80
80
4524
80
4524

English-17
Step 5.1-Case 5. TRENDNET TEW-652BRP
1. Click on <Access> and then <Virtual Servers> from the menu on the left side.
2. Set port forwarding for <HTTP Port>.
2-1. Select [Enable] for item <Enable>.
2-2. In <Name> field, enter a name for DVR port.
For example, "DVR 1"
2-3. Select [TCP] for item <Protocol>.
2-4. In <Private Port> and <Public Port> fields, enter <HTTP Port> defined in
Step 3.
For example, 80
2-5. In <IP Address>, enter the IP address defined for DVR in Step 3.
For example, 192.168.1.200
2-6. Click on [ADD].
3. Set port forwarding for <Client Port>.
3-1. Select [Enable] for item <Enable>.
3-2. In <Name> field, enter a name for DVR port.
For example, "DVR 2"
3-3. Select [TCP] for item <Protocol>.
3-4. In <Private Port> and <Public Port> fields, enter the <Client Port> defined
in Step 3.
For example, 4520, 4521, 4522, 4523, 4524.
3-5. In <LAN Server>, enter the IP address defined for DVR in Step 3.
For example, 192.168.1.200
3-6. Click on [ADD] button.
4. Finish setting.
Step 5.2 Check Port Forwarding on Computer
1. Re-verify the <WAN (Internet) IP> selected in Step 4.2.
2. Re-verify the <HTTP Port> selected for DVR in Step 3.1.
3. Run Internet Explorer and enter "http://<WAN (Internet) IP>:<HTTP Port> into the address bar and then press [ENTER].
4. If the port forwarding configuration has been set up correctly, the Web Viewer screen for the DVR will be displayed.
5. If you fail to access Web Viewer or, you can access it but the video fails to be displayed, return to Step 5.1 and check it again.
J
`If port forwarding is configured only for <HTTP Port>: the Web Viewer can be accessed through Web browser, but the video cannot be received,
because Port Forwarding is not configured for <Client Port> which is used for video data communication.
If port forwarding is configured only for <Client Port>: the Web Viewer cannot be accessed through Web browser, because port forwarding is
not configured for <HTTP Port> which is used for communication.
4520
4520
80
80

English-18
Step 6. Access DVR by Using DDNS Service in Dynamic IP Environment
As WAN IP address of router may be different in XDSL/cable TV network connection where dynamic IP allocation is applied, DDNS (Dynamic
Domain Name Service) is provided for access to DVR with fixed DDNS address in dynamic IP network environment.
Step 6.1 DVR DDNS Configuration
1. Access <Network> window, select <DDNS>, and the DDSN setting page will
appear.
2. DDNS: select Enable.
Server: HANWHA-SECURITY, DDNS_3322, DYNDNS, NO_IP, CHANGE IP or
DNSEX IT may be chosen.
Enter domain name, user name and password provided by DDNS service
provider.
For example, Domain name: http://ddns.hanwha-security.com/snb5000
User name: dvr2016. Password: 123456
3. Upon completion of DDNS setting, press <OK>.
Step 6.2 Access DVR by Using DDNS Address
1. Run Internet Explorer and enter the DDNS address found in Step 6.1 into the
address bar, and then press [ENTER].
2. The Live screen for DVR will be displayed.
3. If failed with accessing, return to Step 6.1 and check the setting again.
M
`It may take 10 minutes to update IP address of the router recorded in DDNS server.
When failed with accessing, retry after 10 minutes.
DVR will report its IP address to DDNS server once every 10 minutes.
Configuration is finished.
By remembering the DDNS address, ID and password, you can connect to your
DVR from any computer that is connected to the internet.
For more information on operation, refer to the user manual for the router.
http://ddns.hanwha-security.com/snb5000
