Samsung SHR-4081N/P User manual

8 Channel DVR
SHR-4081N/P User’s Manual

ii
Please be sure to keep the following in mind for the right use of the product to
pre-vent proprietary risk or damage.
■Do not use multiple plugs at once.
●This may cause abnormal heat generation or fire
■Do not put a vase, flowerpot, cup, cosmetics, medicine, or vessel
with water around you.
●This may cause fire.
■Do not bend the power cord forcibly nor put a heavy material on it.
●This may cause fire.
■Do not touch the power plug with wet hands.
●This may cause electric shock.
■Insert the power plug firmly enough not to shake.
●This imperfect connection may cause fire.
■Keep the product off humidity, dust, or soot.
●This may cause fire or electric shock.
■Do not put metals(coin, hair pin, metal piece, etc.) or inflammable
materials(match, paper, etc.) in the ventilation hole.
●This may cause fire.
■Keep the surrounding temperature between 0˚C to 40˚C and keep the
product off humidity.
●This may cause breakdown.
■Secure sufficient ventilation.
●This may cause abnormal operation due to high temperature.
■Keep the product off direct ray of light or heat from the heating
device
●This may cause fire.
■Do not disassemble, repair, or remodel the product.
●This may cause fire, electric shock, or injury due to abnormal operation.
■Do not pull out the power cord.
●This may destroy the power cord, eventually, cause fire or
electric shock.
■Plug out in the event of thunder or lightning.
●This may cause fire.
■Keep your children off the battery after you take it out of the product.
They tend to swallow it unconsciously.
●If your children swallow it, please see the doctor immediately.
■Install the product at a safe place or attach the product to the wall or
ceiling with a stand firmly enough not to fall to the ground.
●This may injure people.
Safety Regulations
SHR-4081N/P USER’S MANUAL

iii
WARNING
[Battery]
As wrong exchange of the battery in SHR-4081N/P may cause explosion, you shall
use the certified battery for SHR-4081N/P.
The battery specification is as follows.
-Normal Voltage: 3V
-Normal Capacity: 220mAh
-Continuous Standard Load: 0.2mA
-Operating Temperature: -30 ~ +60˚C
[System Shutdown]
- Power-off without terminating the system in the System Shutdown menu may incur
improper motion like data loss and disk failure. Power-off shall be done in the
System Shutdown menu.
This User’s Manual describes the basic usage of SHR-4081N/P. This Manual con-
tains all the matters necessary for using SHR-4081N/P such as brief instruction, part
name, function, connecting other equipment, and menu setup of SHR-4081N/P.
- SEC retains the copyright on this User’s Manual.
- This User’s Manual cannot be copied without SEC’s prior written approval.
- We are not liable for any or all losses to the product incurred by your use of non-
standard product or violation of User’s Manual.
- If you want to open the system case to touch the inside, please consult with an
expert who works for the shop where you bought the product.
- You may download open source codes from the following website.
(See CCTV Part of http://www.sec.co.kr)
Before we start
Stan ar s Approvals
Note : This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equip-
ment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance whit the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.

iv
Safety Regulations
Before we start
Standards Approvals
Chapter 1 Overview
1. Introduction
2. Features
3. Part Names and Functions
Chapter 2 Installation
1. Installation Environment Setup

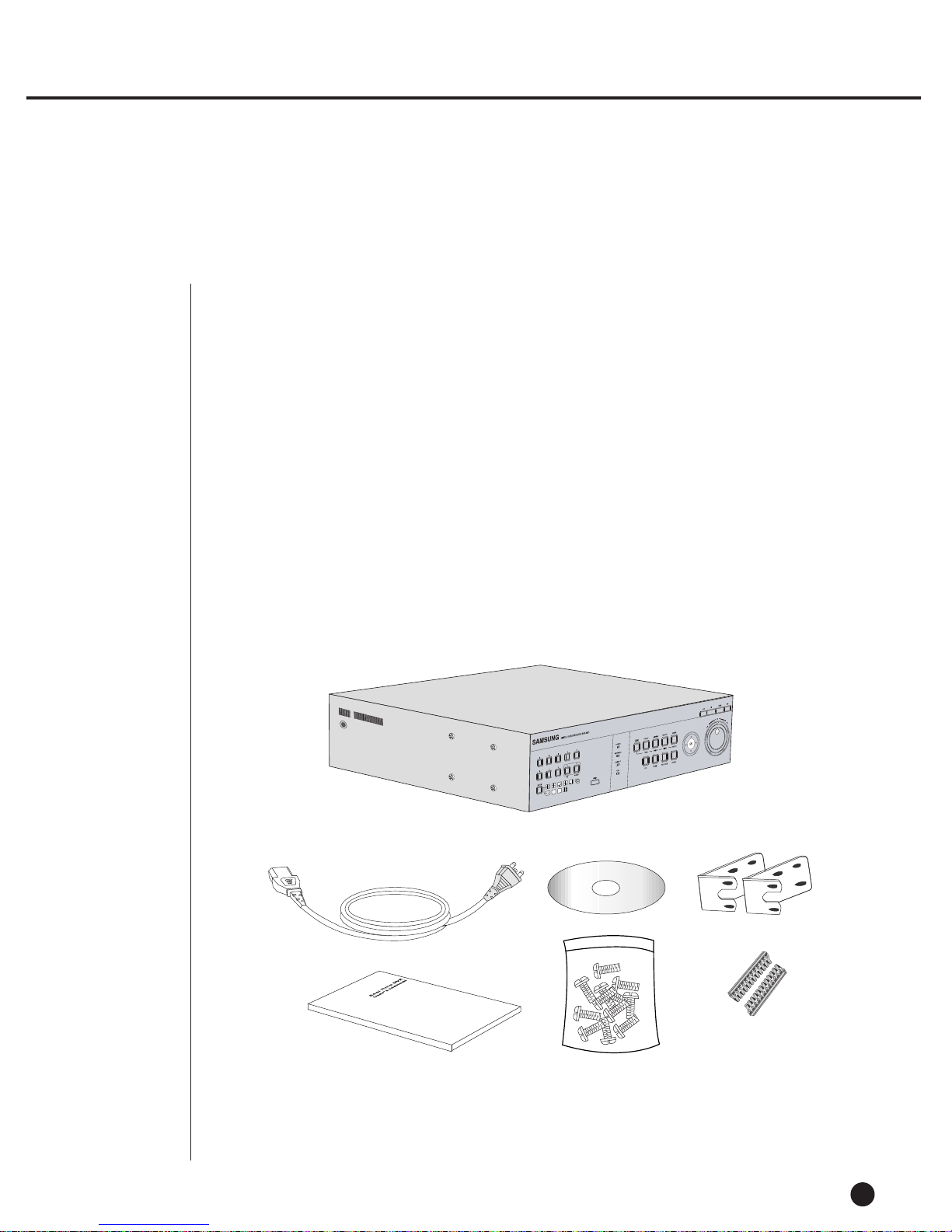

2. Checking Product & Accessories

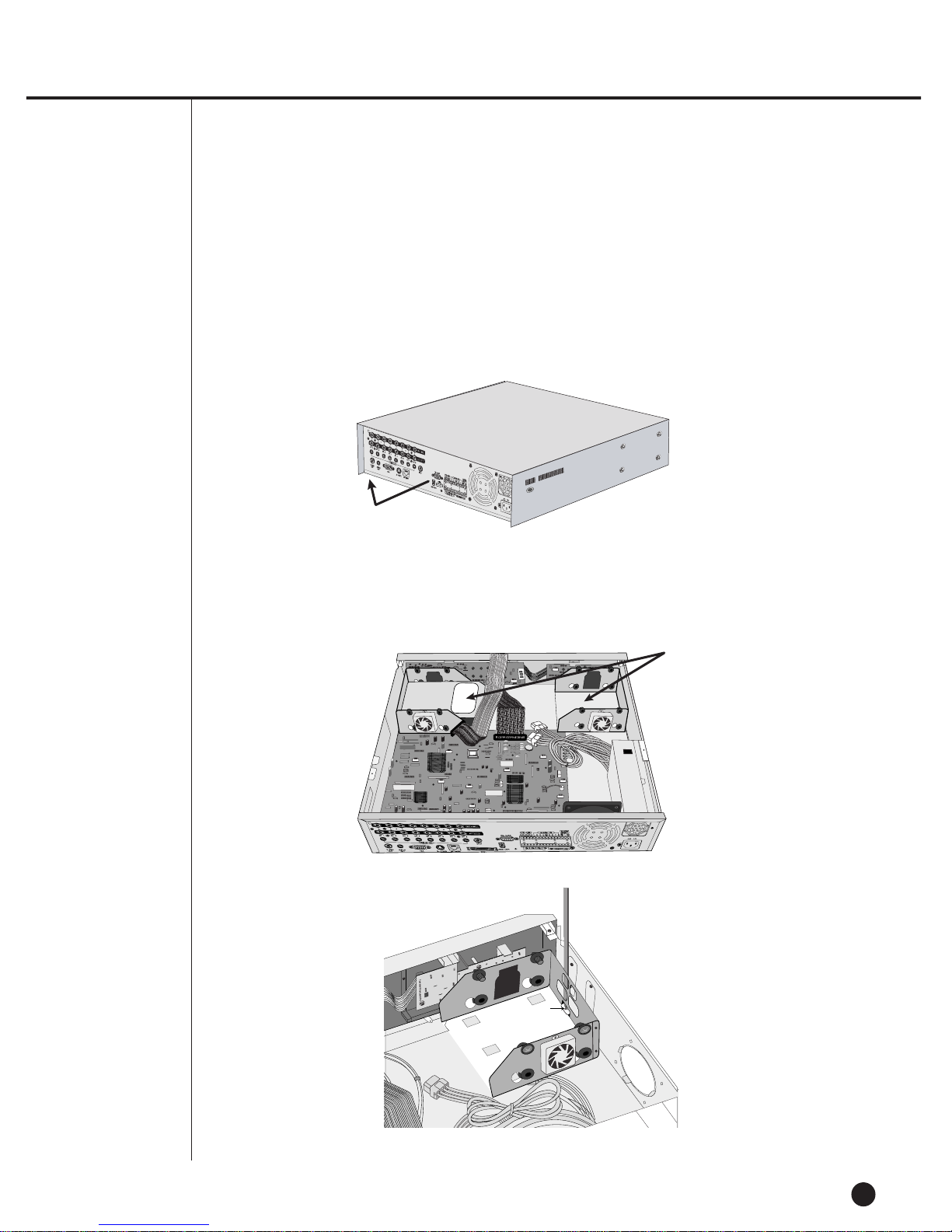

3. Additional HDD Installation
Chapter 3 Connecting with Other
Equipment
1. Connecting Video, Audio, & Monitor
2. Connecting Network
3. Connecting IEEE1394 Device
4. Connecting USB Device
5. Connecting Alarm Input/Output
6. Connecting RS-485 Device
Chapter 4 Live
1. System Motion
2. Live Screen Mode
3. Live Channel Selection and Audio On/Off
Setup
4. Freeze and Zoom
5. Event Monitoring
6. Spot-out Monitoring
Contents
1
iii
ii
1-1
1-2
1-3
2
2-1
2-2
2-3
3
3-1
3-2
3-3
3-5
3-6
3-8
4
4-1
4-2
4-5
4-6
4-7
4-8

v
Chapter 5 Menu Setup
Before Use
1. System
2. Camera
3. Monitoring
4. Record Mode
5. Event Record Mode
6. Record Schedule
7. Backup
8. Network
9. Network Setup
Chapter 6 PTZ Device Control
1. PTZ device Control Mode
2. Basic Operation of PAN, TILT, & ZOOM
3. PRESET Setup
4. Camera Menu Setup
5. Preset View
6. Other Views
Chapter 7 Recording
1. PANIC (Emergency Recording)
2. REC (Normal Recording)
3. Record Schedule
4. Event Recording
Chapter 8 Search & Play
Before Use
1. Calendar Search
2. Event Search
3. Date/Time Search
4. Go to First Search
5. Go to Last Search
6. Play
5
6
7
8
5-1
5-2
5-12
5-16
5-18
5-19
5-24
5-26
5-28
5-32
6-1
6-3
6-4
6-6
6-7
6-8
7-1
7-2
7-3
7-4
8-1
8-2
8-3
8-4
8-5
8-6
8-7

vi
Chapter 9 Backup and Backup Search
1. Backup
2. Backup Search
Chapter 10 Smart Viewer
1. Introduction
2. Feature
3. PC Specification(Recommendation)
4. Smart Viewer Installation
5. Smart Viewer Program Execution
6. Smart Viewer Initial Screen
7. Monitoring Mode
8. Search Mode
9. SETUP MODE
Backup Viewer
1. Introduction
2. Features
3. PC Specification(Recommendation)
4. Backup Viewer Installation
5. Executing Backup Viewer Program
6. Initial Screen of Backup Viewer
7. Using Backup Viewer
Appendix
1. Product Specification
2. HDD Specifications
3. Outline Drawing
4. Factory Default
5. SHR-4081N/P Smart Viewer Play Frame Specification
6. Troubleshooting(FAQ)
9
10
11
12
9-1
9-4
10-1
10-2
10-3
10-4
10-7
10-8
10-9
10-23
10-30
11-1
11-2
11-3
11-4
11-8
11-9
11-10
12-1
12-4
12-5
12-6
12-8
12-9

Chapter 1
Overview
1

1
Introduction
1-1
The Digital Video Recorder(DVR) compresses the camera input data from 8
channels into a MPEG4 video file and the voice input data into a G.726 audio file
respectively to record them in the Hard Disk or retrieve them from the Hard Disk
simultaneously.
In addition, it transmits the video or audio file out through a network on real time basis
so that you can monitor either file remotely by your PC.
SHR-4081N/P USER’S MANUAL

2
Features
1-2
■8 CH Composite Input Connectors
■NTSC/PAL Video Source Compatible
■Able to record the CIF size (NTSC : 352 x 240 / PAL : 352 x 288) video image at
the speed of 240ips(NTSC) / 300ips(PAL)
■8 CH Loop Through Video Connectors
■Hard Disk Overwrite Mode
■Large quantity HDD backup function by using IEEE1394 and USB2.0, USB2.0
Memory, Backup function by using an external CD/DVD writer.
■Able to record, play, and transmit both audio and video files to Windows Network
Viewer(Smart Viewer) simultaneously
■Able to reacord and replay 8 channels of Audio
■Variable Search Mode (Time/Date, Event, Camera)
■Variable Recording Mode (Time Lapse, Event, Schedule, Emergency)
■Extended Hard Disk Connection (IEEE1394, USB2.0)
■Alarm Interface (Input:8, Output:4, Reset:1)
■Remote Monitoring by Windows Network Viewer(Smart Viewer)

SHR-4081N/P USER’S MANUAL
3

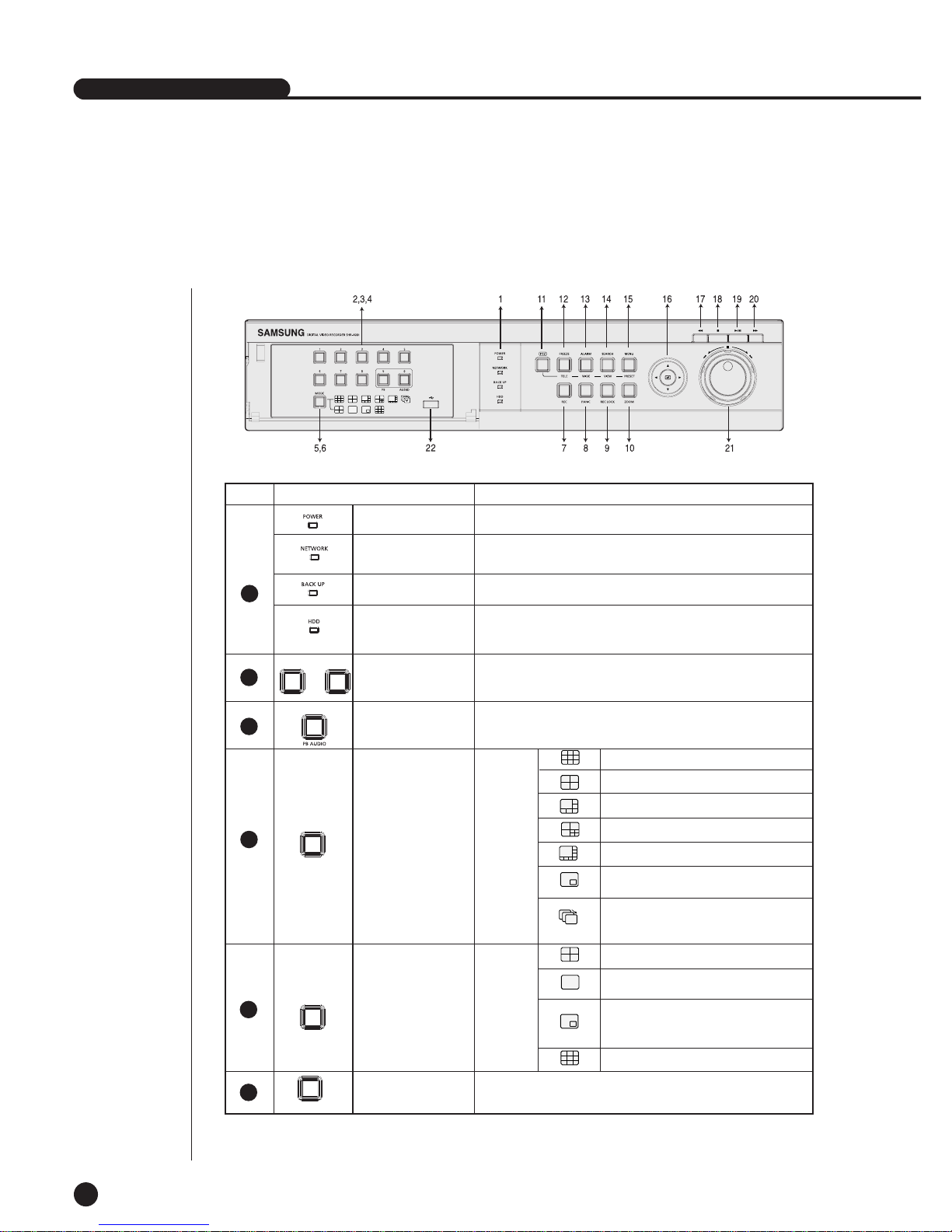

Part Names and Functions
1-3
Function
Channel Button
Power LED
Network LED
Backup LED
HDD Access
LED
Split Screen
Selection
Button
Mode Selection
Button
REC Button
Display
Mode
Search
Audio Setup
Button
Displays power on/off condition.
Displays both network connection and data transmis-
sion conditions.
Displays Backup Mode.
Indicates Normal Access to HDD.
Upon Access to HDD, LED repeats on and off.
Selects Single Channel in the Display Mode.
Used for Number Input Button in the Number Input Mode.
Recording starts as set in the Normal Record Mode
while LED is on.
4
1
2
3
...
1 8
9
MODE
5
6
MODE
REC
Audio On/Off setup during play mode.
9 Displays Split Screen.
8 Displays Split Screen.
4 Displays Split Screen.
6 Displays Split Screen.
7 Displays Split Screen.
Displays PIP(Picture In Picture)
Screen.
Screen change Mode :
Enters Single Channel Screen
by the time set in MENU.
4 Displays Split Screen.
Displays the selected channel
in Full Screen.
Displays both LIVE Channel and
Play Channel in PIP Screen
simultaneously.
9 Displays Split Screen.
No Name

1-4
PANIC Button
REC LOCK
Button
PANIC
REC LOCK KEY
No Name Function
ALARM(WIDE)
Button
MENU(PRESET)
Button
ZOOM Button
PTZ Button
SEARCH (
VIEW )
Button
FREEZE(TELE)
Button
Direction
Control Button
Search
Function Key
Video/Audio, set to the system, is recorded to 15
ips(NTSC)/ 12.5 ips(PAL).
The image quality of video recording is very high and
its size is CIF.
Locks the REC key motion.
Sets up Digital Zoom(x2).
Performs the TELE, WIDE, PRESET, and VIEW func-
tion by pressing the PTZ button.
Performs the FREEZE function in the DISPLAY Mode.
Performs the TELE function by pressing the PTZ.
Cancels the presetALARM function to set up a newALARM
function
. Performs the WIDE function by pressing the PTZ
Indicates the Search method.
Performs the VIEW setup function by pressing the PTZ.
Displays the system setup menu or enters an upper menu.
Performs the PRESET setup function by pressing the PTZ.
Changes or edits the left setup value for the
detailed menu item setup.
Moves the cursor up in a menu or increases the
setup value for the detailed menu item setup.
Changes or edits the right setup value for the
detailed menu item setup.
Moves the cursor down in a menu or decreases
the setup value for the detailed menu item
setup.
Acts as the Enter key for the menu setup.
Views the fast rewinding search screen.
Stops file searching.
Toggles during playback to activate
PLAY/PAUSE or PLAY.
Views the fast forwarding search screen.
Jog : Used for the Forward/Reverse
Frame search.
Shuttle : Performs the Play/Reverse Play
/FF/REW function.
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
PTZ
FREEZE
TELE
ALARM
WIDE
SEARCH
VIEW
MENU
PRESET
ZOOM
➛

❿
❷
➛
Fast
Reverse
STOP
PLAY/PAUSE
Fast
Forward
Jog/
Shuttle
JOG SHUTTLE
USB Port
A port to connect the USB type device.

SHR-4081N/P USER’S MANUAL
1-5
Caution
Caution
Do not play DVR on the carpet or other soft material to prevent clogging of the air
ventilator.
To play DVR on the cabinet or rack, be sure to check the ventilation condition.
No Name Function
Composite Video Signal Input Port (BNC Style
Connector)
You may use THROUGH port to transmit a video
signal to the other video equipment.
Audio Signal Input Port (RCA Jack)
SPOT Out Output Port (BNC Style Connector)
Composite Video Signal Output Port (BNC Style
Connector)
Audio Signal Output Port (RCA Jack)
VGA Video Signal Output Port
S-VIDEO Video Signal Output Port
Network Connection Port
IEEE1394 Type Device Connection Port
- ALARM IN 1~8 : Alarm Input Port
- ALARM RESET IN : Alarm Reset Port
- ALARM OUT1~4 : Alarm Output Port
- TX+, TX-, RX+, RX- : RS-485 Communication
Port
Supports the AC110-220V(NTSC) power socket.
A port to connect the USB type device.
VIDEO IN
THROUGH
AUDIO IN
SPOT
VIDEO OUT
AUDIO OUT
VGA
S-VIDEO
NETWORK
IEEE1394
ALARM
AC-IN
USB
5
6
7
8
9
10
11
12
13
1
2
3
4

Chapter 2
Installation
2

1
Installation Environment Setup
2-1
Do not play DVR on the carpet or other soft material to prevent clogging of the air
ventilator. To play DVR on the cabinet or rack, be sure to check the ventilation condi-
tion.
You shall pay attention to the following before you use the product.
1. Do not use it outdoor.
2. Do not let water or liquid in the connection part or the product itself.
3. Do not impose excessive shock or force.
4. Do not pull out the power plug unreasonably.
5. Do not disassemble the product on your own.
6. Do not exceed the rated input or output range.
7. Use certified power cord only.
8. Match a product with an input ground with a power cord with a ground.
SHR-4081N/P USER’S MANUAL

2
Checking Product & Accessories
2-2
Upon delivery of a product, you shall unwrap the product and put it on the even floor
or where you want to use it. Then you shall check if the following items are in it.
■ Main Body
■ User’s Manual
■ One Power Cord
■ Two Brackets
- Brackets are used to attach the product to the rack.
■ Smart Viewer Software CD (Incl. PDF Manual)
■ 12 Screw Specials
- Please keep screw specials well to be used for HDD addition.
■ 2 EA of RS-485/Alarm Terminal Block
Main Body
RS-485/Alarm
Terminal Block
Screw
User’s Manual
Bracket
CD
Power Cord

SHR-4081N/P USER’S MANUAL
3
Additional HDD Installation
2-3
You may add up to 3 more HDDs to the product.
However, since the product contains has many parts which may incur electric shock,
accident, or product breakdown and improper installation or setup may disturb HDD
recognition or normal product operation, you shall consult with an expert of the
agency where you bought the product.
[Caution for HDD Addition]
■ Do not let the cable stuck improperly nor uncoated. (This may cause breakdown or fire.)
■ Be careful not to cut yourself by sharp edges of the product.
■ Be careful not to miss the disassembled screws or parts. Imperfect assembly due
to short of screws or parts may cause breakdown or malfunctioning.
[HDD Addition Procedure]
1.Loosen screws on both sides(5 points) and back(1 point) to detach the product cover.

2-4
2.Detach the cover from the product. (Pull out the cover slightly and lift from the back
side to detach.)
3. A bracket is fixed to each side of HDD. Please loosen the screw of the bracket to
which you want to fix HDD.
BRACKET-HDD

SHR-4081N/P USER’S MANUAL
2-5
4.Pull BRACKET-HDD to the product center to detach the fixed part at the bottom to
detach BRACKET-HDD from the product.
5.Tighten 4 SCREW-SPECIALs(BWH,6-32UNC,L10.5), supplied as an accessory to
fix HDD to BRACKET-HDD. (Screw tighten force shall be strong enough to resist
vibration.)
