Samsung Q1 Ultra Series User manual

If there are the contents not included in this book, please refer to K-zone service manual
Q1 Ultra FEATURE
SERVICEManual
Q1 Ultra
MACAO
NT-Q1 Ultra xxxx/xxx
NP-Q1 Ultra xxxx/xxx
1. High performance Ultra Mobile PC
- Intel ULV Processor
- 7" WSVGA LED LCD
-About 699g weight
2. Convenient Management
- Convenient Touch screen
- Windows Vista Tablet Editioin
-All function of PC is available

Table of Contents
0. Cover ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 0
1. Precaution ‥‥‥‥‥‥‥‥‥‥‥‥‥ 1
2. Introduction and Specification ‥‥‥ 4
3. Disassemble and Assemble‥‥‥‥‥ 24
4. Troubleshooting ‥‥‥‥‥‥‥‥‥‥ 30
5. Exploded view(1) ‥‥‥‥‥‥‥‥‥‥ 49
6. Schematic ‥‥‥‥‥‥‥‥‥‥‥‥‥ 57
7. Block diagram ‥‥‥‥‥‥‥‥‥‥‥ 103
8. Exploded view(2) ‥‥‥‥‥‥‥‥‥‥ 105
9. Part List ‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 120

3-1
3. Disassemble and Assemble
1) Q1 Ultra Disassemble and Assemble * Attention to red sentence.
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -
Part Picture Description
Main
System
1. Before disassemble the system separate the
AC Adapter and Battery
*Caution
Before separate the battery, raise the system
latch and then unlock battery latch.
1. Separate 7 screws.
*Caution
When assemble the screw, be careful
2 middle screws are small one.
1. Pull out the DMB Antenna
2. Separate the bottom with lifting up left below
side first
*Caution
When assemble, pull out the DMB Antenna and
then assemble left upper side first.
1. Picture of separating the bottom.
2. Separate the HDD with lifting up HDD latch.

3-2
3. Disassemble and Assemble
- This Document can not be used without Samsung's authorization -
Part Picture Description
Main
System

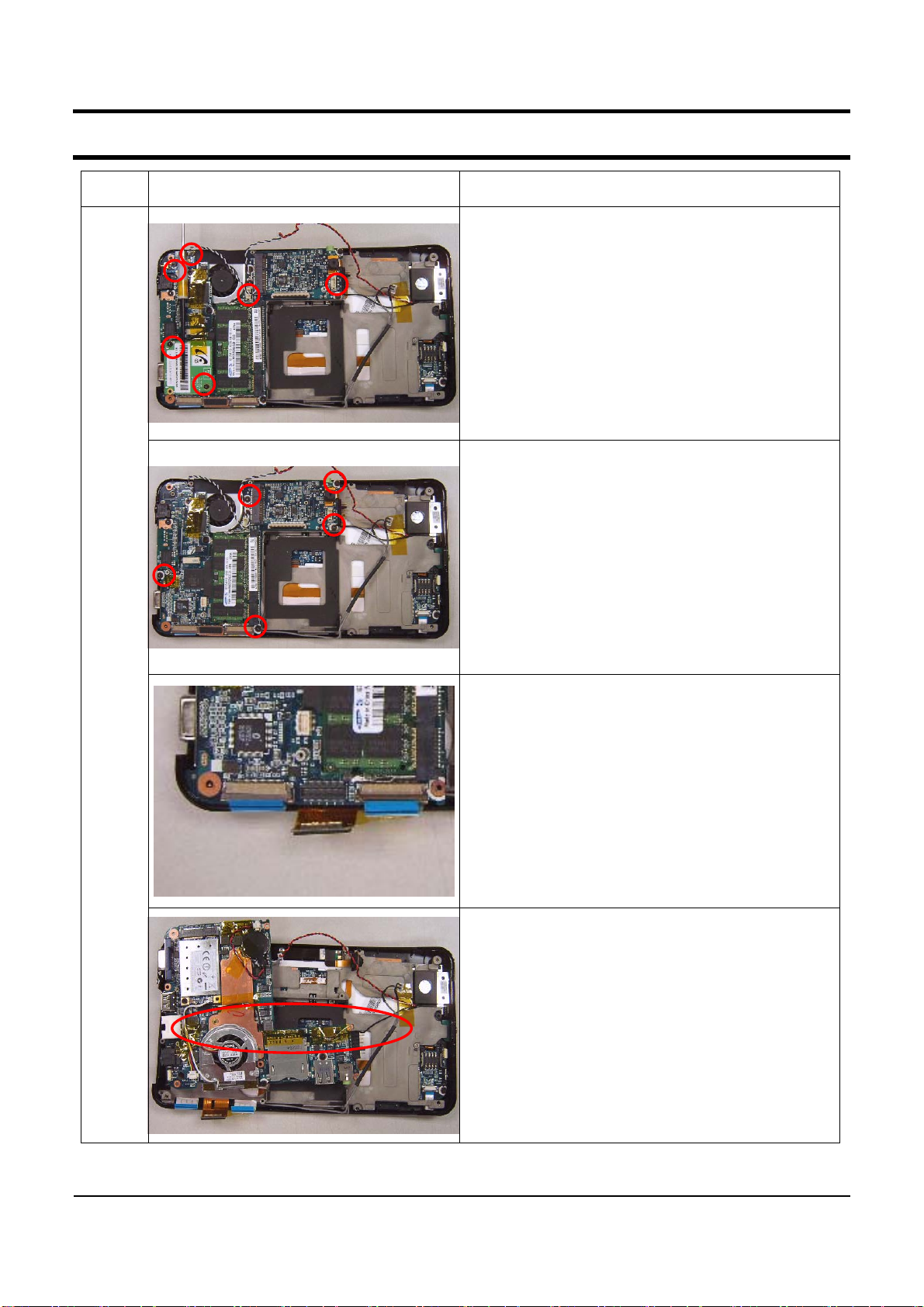

1. Separate Audio cable and Mic cable from
connector
2. Separate 4 screws of DMB Module and DMB
Antenna.
1. Picture of separating DMB antenna and DMB
module.
2. Separate the 5 screws of Main Board.
1. Separate Sub_R, Sub_L, T-Con FPC.
*Caution
When separating FFC, be careful not to brake
of connector pin.
When assemble, assemble the T-Con FPC
exactly.
1. up side down the Maini Board and then
separate AUX Antenna cable.(Black cable)
*Caution
When assemble the AUX Cable, using tape for
exacting assemble.

3-3
3. Disassemble and Assemble
- This Document can not be used without Samsung's authorization -
Part Picture Description
Main
System

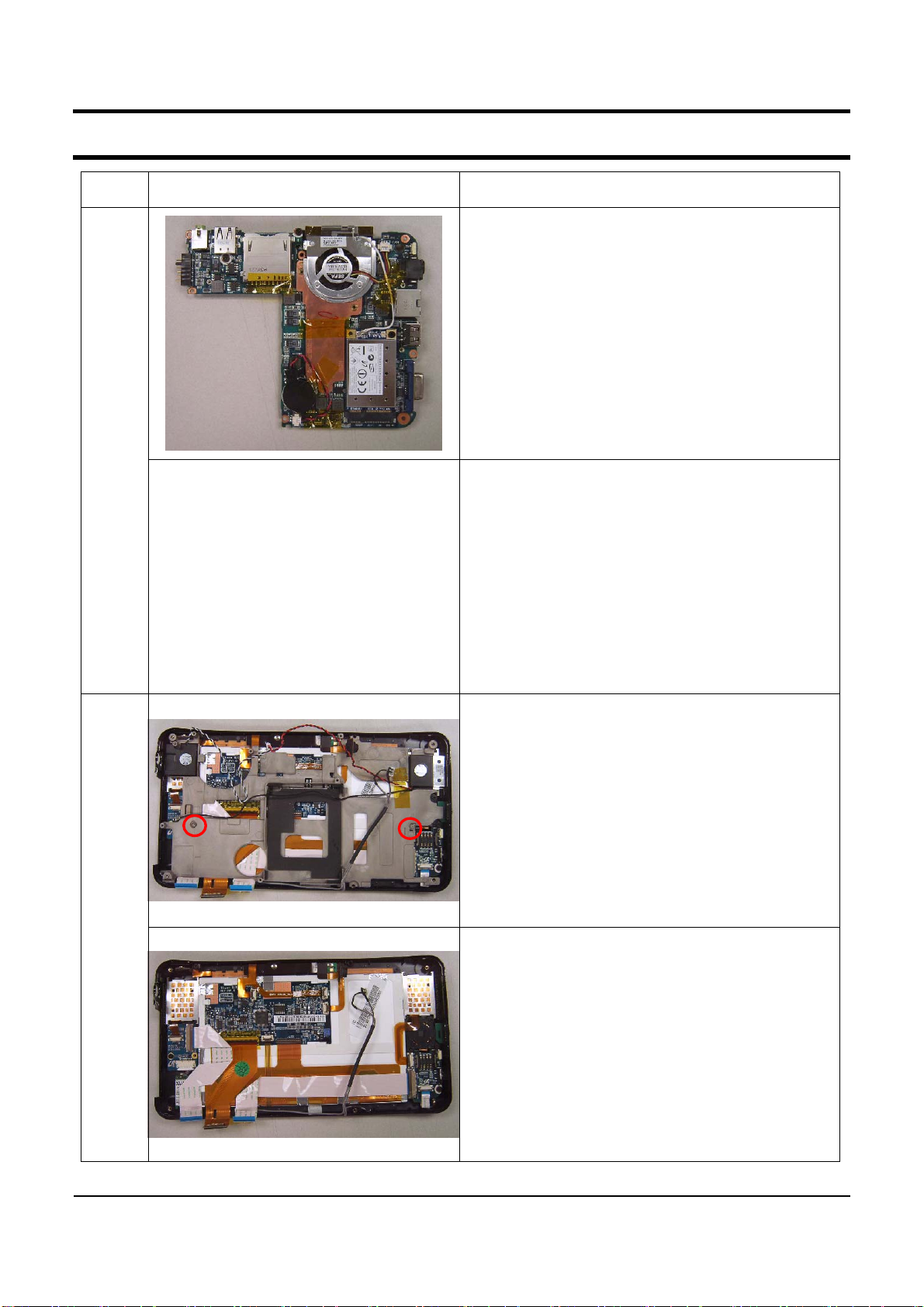

1. Picture of being separated Main Board.
LCD
1. Remained LCD Part after separate Main Board.
2. Separate 2 screws which is fixing LCD Top
and LCD bracket.
1. LCD part after separate LCD bracket.

3-4
3. Disassemble and Assemble
- This Document can not be used without Samsung's authorization -
Part Picture Description
LCD
1. Separate silver tape which connect LCD
module and T-Con board.
2. Separate 7 FPCs which is connected to T-
Con B'd.
1. Separate T-Conboardwithliftingupthelcd
latch and sliding right side.
1. Separated T-Con board.
1. Picture of LCD part (separated LCD module)
2. Separate Right/Left FFC.

3-5
3. Disassemble and Assemble
- This Document can not be used without Samsung's authorization -
Part Picture Description
LCD

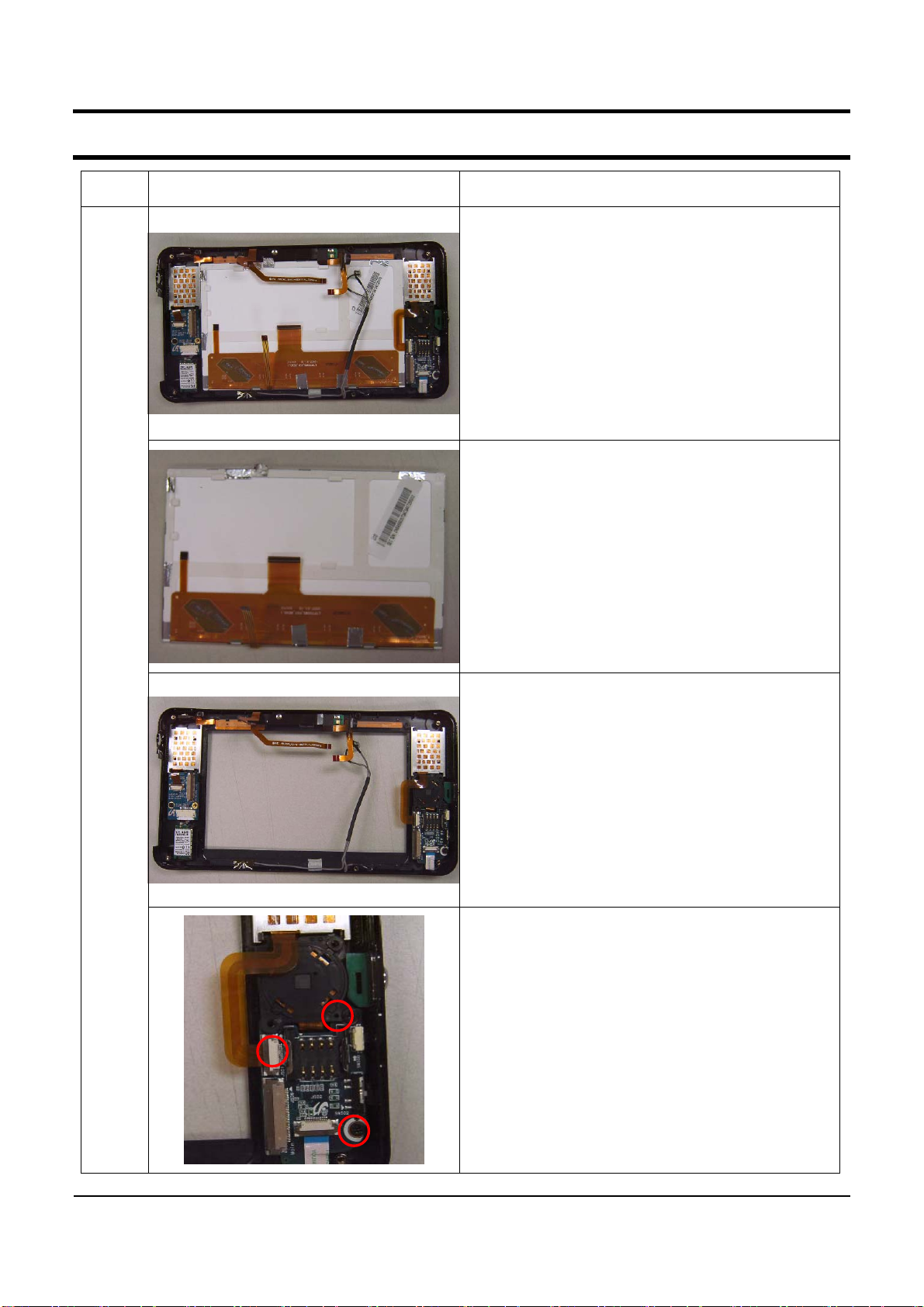

1. Picture after separate FFC.
2. Lifting up LCD module.
1. Separated LCD module.
1. Picture which is separated LCD module.
1. Separate Left Touch Button FFC from
connector.
2. Separate 2 screws which is connecting TOP
and Left board.

3-6
3. Disassemble and Assemble
- This Document can not be used without Samsung's authorization -
Part Picture Description
LCD

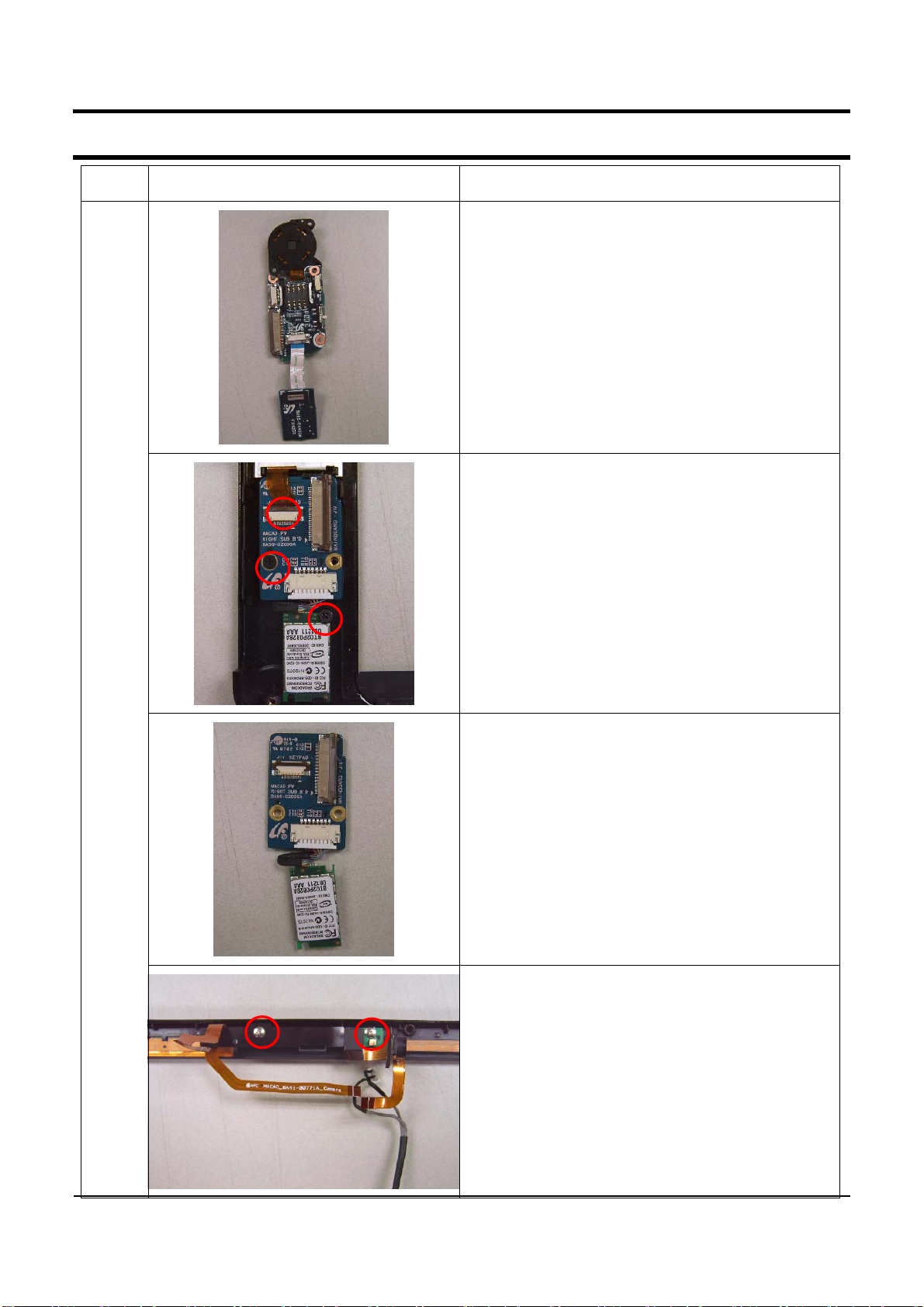

1. Separated picture.
From upper side, Hall MOUSE, LEFT B'd, Finger
print B'd
1. Separate Right Key pad FCT from Right B'd.
2. Separate 2 screws which is connected with
LCD Top.
1. Separated picture.
From upper side, Right Board and Bluetooth.
1. Picture of Camera B'd is connected with LCD
Top.
2. Separate the camera module with
disassembling 2 screws.

3-7
3. Disassemble and Assemble
- This Document can not be used without Samsung's authorization -
Part Picture Description
LCD
1. Separated camera module.
1. Picture which Left Key pad and bracket is
fixedtoTOP.
2. By pushing inside of the 4 latchs which
fixing bracket, separate the Key pad FPC.
1. Picture which Right Key pad and bracket is
fixedtoTOP.
2. By pushing inside of the 4 latchs which
fixing bracket, separate the Key pad FPC.
1. Picture of separated Right/Left Key pad FPC.

9-1
1. Part list
Parts Code Reference Name Spec. unit
0203-001869 MAIN BD TAPE-KAPTONE K-CJ01,T0.06,W10,L33000mm,YELLOW,ROLL TYPE M
1105-001611 1GB_D5(SEC) IC-DRAM MODULE M470T2953,DDR2,1GByte,128Mx64,SODIMM,200P,67.6x30mm,3.
7nS,1.7/1.9,-,0to+95,1120mA,TR PC
3903-000025 POWERCORD CBF-POWER CORD DT,KR,CP2(LP-57),IEC320 C7,250/250V,2.5/2.5A,BLK,1830mm,
-,H03VVH2-F 2x0.75mm^2, PC
6001-000730 FRONT+BACK SCREW-MACHINE CH,+,-,M2,L7,ZPC(BLK),SWRCH18A,FP,NYLOK,HD4,HT1 PC
6001-001413 SHIELD+FRONT SCREW-MACHINE CH,+,-,M2,L5,NI PLT,SWRCH18A,FP,NYLOCK PC
6001-001570 MAIN SCREW-MACHINE CH,+,-,M2,L4,ZPC(BLK),SWRCH18A,FP,NYLOCK,T1.0 PC
6001-001650 FRONT+CAMERA SCREW-MACHINE BH,+,-,M2,L3,NI PLT,SWRCH18A,FP,NYLOCK,HEAD HT0.7 PC
BA32-00017A SENSOR-
HALL_MOUSE
SENSOR-
HALL_MOUSE
HALL_MOUSE2.1,MACAO,-20to50,-0.3to4V,10.49mA,45to85%,-
20to50,2.9to3.6,HALL EFFECT sensing 4SW PC
BA39-00634A BT HARNESS WIRE HARNESS-
BLUETOOTH
MACAO,STRAIGHT,-,8Pins,L30+-3mm,-,AWG32,08SUR-
32S,12513HS-03,BK,1A,1.25mm,30+-3mm,AWG32,A9300904,- PC
BA41-00735A FFC-SUB_L FFC-SUB_L MACAO,REV01,POLYAMIDE,32P,T0.3mm,166*16.5*0.3,0.5X32X
166(TL)XC PC
BA41-00736A FFC-
FINGERPRINT FFC-FINGERPRINT MACAO,REV01,POLYAMIDE,12P,T0.3mm,30*6.5*0.3,0.5X12X30 (TL)XG PC
BA41-00737A FFC-SUB_R FFC-SUB_R MACAO,REV01,POLYAMIDE,32P,T0.3mm,128*16.5*0.3,0.5X32X
128(TL)XC PC
BA41-00746A FPC-KEYPAD FPC-KEYPAD MACAO,0.1,FPC(2 Layer),12PIN,T0.2mm,Key pad FPC PC
BA41-00747A FPC-KEYPAD FPC-KEYPAD MACAO,0.1,FPC(2 Layer),12PIN,T0.2mm,Key pad FPC PC
BA41-00752A FPC-
HDD(TSB)_CMI FPC-HDD_CMI MACAO,DV1.0,Cu/PI / Cold plating,50,T0.3mm,IDE, 1.8 inch TOSHIBA PC
BA41-00769A FPC-TCON FPC-TCON_AFC MACAO,DV1.0,Cu/PI/Cold
plating,50PIN,T0.3mm,LVDS,USB,2layers PC
BA41-00773A FPC_CAM FPC-CAMERA_CMI MACAO,DV1.0,Cu/PI/Cold plating,8PIN,T0.3mm,- PC
BA42-00185A ANTENNA-MAIN ANTENNA-MAIN
WDAN-M1MA1001-DF,Macao,2.3to6GHz,-
5dBi,50Ohm,L65,L38*W17.3*T3.3mm,-,Omni,under
2.0,UFL,White
PC
BA42-00186A ANTENNA-AUX ANTENNA-AUX
WDAN-M1MA1002-DF,Macao,2.3to6GHz,-
5dBi,50Ohm,L215,L32.8*W9.5*T4.5mm,-,Omni,under
2.0,UFL,Black
PC
BA43-00166A BATTERY BATTERY MACAO4CELL,MACAO,Li-ION,2P2S,4000mA,Prismatic,8.65V,-,7.
4V,0to60C,2500mAh,-,BLACK,6.0V,6A,6.0V,-,BK PC
- This Document can not be used without Samsung's authorization -

9-2
BA44-00162A ADAPTER(ACBEL) ADAPTOR AD-6019(API1AD02),CORONA,-
,90TO264V,50TO60Hz,19V,3.16A,60W,-,AC/DC,-,-,ACBEL PC
BA44-00238A ADAPTER ADAPTOR 0335C1960,AD-6019,AC/DC,90to264Vac,47to63Hz,19VDC,3.16A,
-,60W,AC/DC,-,W107*L47*H30mm,- PC
BA44-00243A ADAPTER(DELTA)ADAPTOR
ADP-60ZH A,AD-
6019,AC/DC,90to264Vac,47to63Hz,19VDC,3.16A,-
,60W,AC/DC,0to40C,W107*L47*H30mm,-
PC
BA46-05483A BIOS BIOS MACAO,-,SYSTEM,ALL,00ME,-,- PC
BA46-05866A HDM-
WINVISTAHP
S/W HDM-
WINVISTAHP MACAO,WINVISTAHP,-,KOR,1.0,-,- PC
BA46-05869A MICOM S/W MICOM MACAO,-,SYSTEM,ALL,00ME,-,- PC
BA59-01691A
BT
MODULE(FOXCON
N)
MODULE-
BLUETOOTH
Bluetooth V2.0,T60H928.01,Bluetooth Module,USB
I/F,V2.0,Class 2 RF,-,-,W26*L14* PC
BA59-01843A MODULE-WLAN MODULE-WLAN
SANTAFE,WLL3140-
D99(ROHS),WMAC+RF,2.4GHz,IEEE802.11b/g,CCK/OFDM,Mini
Card,13CH,W
PC
BA59-01906A 60GB_TSB HDD 60G,MK6008GAH,S63,H16,D16385,H8.0mm,1.8
INCH,EIDE,30G/P,4200RPM,FDB PC
BA59-01916A BT
MODULE(SEMCO)
MODULE-
BLUETOOTH
Bluetooth Version 2.0,BTO2P0B2SA,Bluetooth Module,USB
I/F,BTW 5.0,Max Throughput 3Mbps,-,-
,W26*L14*H5.1mm,TR,RIO, Sorren
PC
BA59-02073A LCD LCD PANEL-7WSVGALTP700WS-F01,7
WSVGA,DE,1024*600,262K,162.4*102.0*4.94,3.3V,LVDS,6BIT PC
BA59-02089A MODULE_CAMERAMODULE-CAMERA Macao,SCB-1100S,1.3M/0.3M DUAL,1/4,1.74 sensor,USB 2.0,-,
-,-,W70*L8*H6.6mm,TR,- PC
BA61-01107A BRKT-KEYPAD BRACKET-KEYPAD MACAO,AL,T0.4,W25.4,L38.7mm,NATURAL,- PC
BA61-01121A FRONT HOLDER-PEN MACAO,PC/ABS,T1.0,49.0,10.0mm,BLACK,- PC
BA64-00719A KRYPAD_L BUTTON-KEYPAD_L MACAO,SEC,PC/ABS+RUBBER,W25.0*L5.5*H32.7mm,BLACK,-,
-PC
BA64-00720A KEYPAD_R BUTTON-KEYPAD_R MACAO,SEC,PC/ABS+RUBBER,W25.0*L5.5*H32.7mm,BLACK,-,
-PC
BA68-02744D BOX-LABEL LABEL BAR CODE-
BOX SANTAFE,EXPORT,ART-PAPER,-,W77,L90mm,-,-,-,ENG,-,-,- PC
BA68-03910A SYSTEM LABEL LABEL RATING-
SYSTEM
MACAO,KOR,POLY,T0.1,W89.0,L39.4mm,WHITE,BLACK,-,MADE
IN CHN,-,-,- PC
BA68-10150B SEAL LABEL LABEL-
LOGO_SAMSUNG
NP,SEC,ARTPAPER+OPP COATING,-,-,-,-,WHITE,BOX
FRONT,-,-,-,- PC
BA69-00638F BOX CARTON BOX-CARTON RIO,DW-3,BE,A-1,-,-,-,L405*W315*H370mm,SEUK,200g,200g,-PC
- This Document can not be used without Samsung's authorization -

9-3
BA69-00643A BOX BUNDLE BOX-BUNDLE SANTAFE,SW-2,E,A-1,H50,W180,L278mm,-,-,80,-,- PC
BA69-00670A CUSHION CUSHION-
SYSTEM MACAO,CB,T0.6,W180.0,L270.0,H33.0mm,280g,Black,-,-,- PC
BA69-10017M BOX-SYSTEM BOX-SYSTEM RIO,-,A-1,H125,W197,L297mm,-,-,200g,200g,- PC
BA73-00400A FINGER_PRINT B'D RUBBER-
FINGER_PRINT
MACAO,NBR,W13.5*L5.0,HS60+-5,T3.0mm,Nartual,-,SEC,-,
-PC
BA75-01907B HOUSING-
BACK_W/O DMB
UNIT-
HOUSING_LCD-
BACK
MACAO,SEC,PC
T1.2,W226.3*L123.9*H21.2mm,TEXTURE(SE-1012),-
,Black,W/O_CAMERA,-
PC
BA61-00403A HOUSING-BACK SPRING ETC-
DOOR FREESIA,PWH,-,-,-,-,-,T0.2,-,-,DOOR PC
BA67-00303A HOUSING-BACK CAP-DMB_ANT MACAO,NBR H60,-,W7.8,L7.8mm,BLACK,- PC
BA81-00166A HOUSING-BACK GASKET-
1394_TOP AQUILA-W,Conductive Form,T5.0,W6,L4,-,- PC
BA81-02419A HOUSING-BACK GASKET-
MIO_BOTTOM
SORRENTO,P/U SPONGE,W14*L4*T8.0mm,ELECTRIC
CONDUCTION,NTR,-,- PC
BA81-02627A HOUSING-BACK LOCKER-STAND SANTAFE,SEC,STS304 1/2H T0.2,W9.8*L6.0*H3.3,Natural,-,
-PC
BA81-03542A HOUSING-BACK BUTTON-
BATTERY
MACAO,SEC, PC/ABS
,T1.0,W68.3*L5.0*H.01mm,TEXTURE(SE-1012),Black,-,- PC
BA81-03546A HOUSING-BACK CAP-PORT MACAO,SEC,PC/ABS+RUBBER,T1.5,W69.4*L10.4*H1.5mm,B
LACK,-,- PC
BA81-03550A HOUSING-BACK DOOR-KT MACAO,SEC,PC/ABS,T1.2,W54.0*L28.7*H3.1mm,BLACK,-,-,
-PC
BA81-03551A HOUSING-BACK DOOR-SD MACAO,SEC,PC/ABS,T1.2,W33.0*L3.7*H1.37mm,BLACK,-,-,
-PC
BA81-03553A HOUSING-BACK
HOLDER-
HAND_STRAP-
STOPPER
MACAO,SEC,PC/ABS,D16.4*H2.2mm,Black,-,-,- PC
BA81-03557B HOUSING-BACK HOUSING-BACK MACAO,SEC,PC,T1.2,W226.3*L123.9*H21.9,TEXTURE(SE-
1012),Black,W/O_CMERA,- PC
BA81-03561A HOUSING-BACK STAND-L MACAO,SEC,PC/GF,T1.7,W55.6*L76.0*H5.7mm,Black,-,-,- PC
BA81-03562A HOUSING-BACK STAND-LINK MACAO,SEC,PC/GF,T0.9,W26.0*L31.3*H3.5mm,Black,-,-,- PC
BA81-03658A HOUSING-BACK DECO-
HAND_STRAP MACAO,SEC,AL T0.3,D17.4mm,Silver,-,- PC
BA81-03659A HOUSING-BACK RUBBER-CAMERA MACAO,SEC,RUBBER SPONGE T0.6,W9.0*L9.0mm,Black,-,- PC
BA81-03660A HOUSING-BACK RUBBER-FOOT_R MACAO,SEC,URETHANE,W3.0*H5.4mm,TEXRURE(SE-1004),
Black,- PC
BA81-03661A HOUSING-BACK RUBBER-GRIP_R MACAO,SEC,URETHANE,W5.2*L71.1mm,TEXRURE(SE-
1004),Black,- PC
BA81-03662A HOUSING-BACK SHAFT-STAND MACAO,SEC,SWPA,D2.0*W71.1mm,Black,-,- PC
BA81-03663A HOUSING-BACK SHAFT-
STAND_LINK MACAO,SEC,SWPA,D1.0*W35.7mm,Black,-,- PC
BA81-03664A HOUSING-BACK SPONGE-
HDD_BACK MACAO,SEC,PORON,W55.4*L70.3*H7.0mm,Black,-,- PC
- This Document can not be used without Samsung's authorization -

9-4
BA81-03665A HOUSING-BACK SPONGE-HDD_BACK-
SMALL MACAO,SEC,PORON T3.5,W8.0*L5.6mm,Black,-,- PC
BA81-03670A HOUSING-BACK CAP-DMB MACAO,SEC,URETHANE,W3.9*H18.5mm,Black,-,- PC
BA81-03758A HOUSING-BACK INSULATOR-
COPPER_BACK
MACAO,SEC,COPPER SHEET
T0.2,W103.0*L54.0mm,BLACK,- PC
BA81-03759A HOUSING-BACK INSULATOR-
GRILL_KT
MACAO,SEC,GIRLL SHEET T0.2,W54.0*L12.5mm,BLACK,
-PC
BA81-03760A HOUSING-BACK INSULATOR-
UNLOCK_STAND MACAO,SEC,PC T0.15,W5.2*L2.5mm,RED,- PC
BA81-03842A HOUSING-BACK SPONGE-DUCT_BACK MACAO,SEC,CR(RUBBER
SPONGE),T6.0*W3.0*L43.0mm,BLACK,-,- PC
BA75-01908A SHIELD-LCD UNIT-SHIELD_LCD MACAO,SEC,Mg T0.7,W219.6*L118.8*H12.3mm,Natural,-,-,
-PC
BA63-00126A SHIELD-LCD GASKET-1394 GEMINI,-,T2.0,W4.0,L9.0,-,-,1394PC
BA73-00238A SHIELD-LCD RUBBER-HDD_SHOCK AQUILA,PORON,-,-,-,NTR,-,-,-,HDD_SHOCK PC
BA73-00262A SHIELD-LCD RUBBER-
HDD_SUPPORT
AQUILA,PORON,W6*L10*T2.3mm,HS70,-,BLK,-,-,-
,HDD_SUPPORT PC
BA81-02352A SHIELD-LCD GASKET-HDD SORRENTO,PU,W10.0*L4.0mm,T2.5(WITH
TAPE),NTR,ELECTRIC CONDUCTION,- PC
BA81-02644A SHIELD-LCD SPONGE-HDD_SHIELD SANTAFE,SEC,PORON,W74.2*L57.0*T1.5mm,Natural,-,- PC
BA81-03559A SHIELD-LCD SHIELD-LCD MACAO,SEC,Mg T0.7,W219.6*L118.8*H12.3,Nartual,-,-,- PC
BA81-03642A SHIELD-LCD GASKET-SHIELD_LCD MACAO,SEC,P/U SPONGE T1.0,W20.0*L6.0mm,Natural,-,
-PC
BA81-03643A SHIELD-LCD INSULATOR-
SHIELD_MIC MACAO,SEC,FR83 T0.2,W8.0*L3.9mm,Black,- PC
BA81-03757A SHIELD-LCD GASKET-SD MACAO,SEC,P/U SPONGE T0.3,W4.5*L4.5mm,Natural,-,- PC
BA81-03816A SHIELD-LCD GASKET-KEYPAD MACAO,SEC,PU SPONGE T0.2,W20.0*L20.0mm,Nartual,-,
-PC
BA81-03845A SHIELD-LCD GASKET-
SHIELD_LEFT MACAO,SEC,P/U SPONGE T1.0,W6.0*L6.0mm,Natural,-,- PC
BA96-03230A SHIELD-LCD ASSY SPEAKER MACAO,PB2014VS08-1-A-
7GH,L170/205MM,RED/BLK,WHT/BLK PC
BA75-01912A HOUSING-FRONT UNIT-HOUSING_LCD-
FRT
MACAO,SEC,PC T1.2,W227.0*L123.9*H16.6,UV
Coating,Black,-,-,- PC
0203-001869 HOUSING-FRONT TAPE-KAPTONE K-CJ01,T0.06,W10,L33000mm,YELLOW,ROLL TYPE M
6001-001570 HOUSING-FRONT SCREW-MACHINE CH,+,-,M2,L4,ZPC(BLK),SWRCH18A,FP,NYLOCK,T1.0 PC
BA39-00641A HOUSING-FRONT CBF HARNESS-MIC
Macao,-,-,4,L200mm,BLACK/WHITE,AWG32,MO-
510210400,MO-500588200,-,-,2.0,L200mm,-
,TC2006M001,RUBBER
PC
BA41-00749A HOUSING-FRONT FPC-
TOUCHSENSOR_CMI MACAO,DV1.0,Cu/PI/Cold plating,8,T0.3mm,Cap sense PC
BA41-00750A HOUSING-FRONT FPC-LED_CMI MACAO,DV1.0,Cu/PI / Cold
plating,8,T0.3mm,GREEN,BLUE,AMBER PC
- This Document can not be used without Samsung's authorization -

9-5
BA41-00770A HOUSING-FRONT FPC-LED_AFC MACAO,DV1.0,Cu/PI/Cold
plating,8PIN,T0.3mm,GREEN,BLUE,AMBER PC
BA41-00772A HOUSING-FRONT FPC-TOUCHSENSOR_AFCMACAO,DV1.0,Cu/PI/Cold plating,8PIN,T0.3mm,Cap
sense PC
BA59-02066A HOUSING-FRONT BOARD-SUB_R MACAO,A9300903,SINBON,2Layer,FPC/FFC/Switch,W24.
45*L37.41*T1.1mm,RIGHT PC
BA81-03815A UNIT_FRONT_SVC UNIT-HOUSING_FRONT
MACAO,SEC,PC
T1.2,W227.0*L123.9*H16.6,W_CAMERA,MECHA_SVC_U
NIT,-
PC
BA64-00718A HOUSING-FRONT BUTTON-KEYPAD_UDF MACAO,SEC,PC/ABS+RUBBER,W23.5*L37.5*H4.7mm,B
LACK,-,- PC
BA81-03541A HOUSING-FRONT BUTTON-AVS MACAO,SEC,PC/ABS,T1.0,W14.5*L6.9*H1.0mm,Black,-,
-,- PC
BA81-03543A HOUSING-FRONT BUTTON-CAD MACAO,SEC,PC/ABS,T0.8,W6.9*L6.9*H0.8mm,Black,-,
-,- PC
BA81-03544A HOUSING-FRONT BUTTON-CAMERA MACAO,SEC,PC/ABS,T1.2,W19.86*L9.8*H7.8mm,Black,
-,-,- PC
BA81-03545A HOUSING-FRONT BUTTON-POWER MACAO,SEC,PC/ABS,T1.0,W19.0*L5.0*H1.0mm,Black,-,
-,- PC
BA81-03547A HOUSING-FRONT COVER-SIDE_L MACAO,SEC,PC/ABS,T0.7,W123.9*L28.7*H10.4mm,Bla
ck,-,-,- PC
BA81-03548A HOUSING-FRONT COVER-SIDE_R-LOWER MACAO,SEC,PC/ABS,T0.7,W17.5*L28.7*H10.4mm,Blac
k,-,-,- PC
BA81-03549A HOUSING-FRONT COVER-SIDE_R-UPPER MACAO,SEC,PC/ABS,T0.7,W36.6*L28.7*H10.4mm,Blac
k,-,-,- PC
BA81-03552A HOUSING-FRONT HOLDER-
BUTTON_CAMERA
MACAO,SEC,PC/ABS,T1.0,W15.4*L10.6*H6.7mm,Black,
-,-,- PC
BA81-03555A HOUSING-FRONT HOLDER-HAND_STRAP-
LOWER
MACAO,SEC,ABS,T0.8,W14.6*L6.5*H0.8mm,CR Plating,
Silver,-,-,- PC
BA81-03556A HOUSING-FRONT HOLDER-HAND_STRAP-
UPPER
MACAO,SEC,ABS,T0.8,W16*9.L2*H0.8mm,CR
Plating,Silver,-,-,- PC
BA81-03558A HOUSING-FRONT HOUSING-FRONT MACAO,SEC,PC,T1.2,W227.0*L123.9*H9.2,UV Coating,
Black,-,- PC
BA81-03563A HOUSING-FRONT WINDOW-DECO_LOWER MACAO,SEC,PC
Clear,T1.2,W158.6*L12.8*H2.5mm,Translucency,-,-,- PC
BA81-03564A HOUSING-FRONT WINDOW-DECO_UPPER MACAO,SEC,PC
Clear,T1.2,W161.0*L12.8*H2.5mm,Translucency,-,-,- PC
BA81-03655A HOUSING-FRONT LENS-CAMERA_FRONT MACAO,SEC,ACRYL SHEET
T0.6,D5.7mm,Black,W_Camera,- PC
BA81-03657A HOUSING-FRONT MESH-SPEAKER_COVER MACAO,SEC,PS SHEET T0.6,W71.4*L2.7mm,Black,-,- PC
- This Document can not be used without Samsung's authorization -

9-6
BA81-03715A HOUSING-FRONT INSULATOR-LED_FILM MACAO,SEC,PC
T0.2,W46.2*L5.9mm,semi_Clear,- PC
BA81-03814A HOUSING-FRONT PROTECTOR-FRONT MACAO,SEC,PC
T0.05,W213.0*L116.6mm,CLEAR,-,- PC
BA81-03841A HOUSING-FRONT SPONGE-DUCT_FRONT MACAO,SEC,CR(RUBBER SPONGE),T5.0*W25.
5*L3.0*H9.0,BLACK,-,- PC
BA81-03560A TOUCH-PEN TOUCH-PEN-M MACAO,SEC,PC/ABS+AL,D4.3*L107.5,Black&
Silver,-,-,- PC
BA81-03656A BACK(WITH CAMERA) LENS-CAMERA_REAR MACAO,SEC,ACRYL SHEET
T0.6,W51.9*L7.0mm,Black,W_Camera,- PC
BA81-03668A LCD INSULATOR-LCD_EMI MACAO,SEC,AL SHEET
T0.1,W8.0*L15.0mm,Nartual,- PC
BA81-03843A PBA SPONGE-DUCT_PBA MACAO,SEC,CR(RUBBER SPONGE),T4.0*W16.
0*H5.0mm,BLACK,-,- PC
BA92-04412A TOP(800MHZ NAN) ASSY MOTHER BD-TOP MACAO,Little River+ICH7-U,512MB,512MB
L2 CACHE,-,-,Sub-Note PC,915GMS PC
6001-001570 HEAT SINK SCREW-MACHINE
CH,+,-
,M2,L4,ZPC(BLK),SWRCH18A,FP,NYLOCK,T1.
0
PC
6001-001570 LAN BD SCREW-MACHINE
CH,+,-
,M2,L4,ZPC(BLK),SWRCH18A,FP,NYLOCK,T1.
0
PC
6001-001570 SD/MMC BD SCREW-MACHINE
CH,+,-
,M2,L4,ZPC(BLK),SWRCH18A,FP,NYLOCK,T1.
0
PC
BA31-00047A RHE FAN-CPU HY40F-05A-001,MACAO,Aluminum,-,- PC
BA39-00598A RTC WIRE HARNESS
CR2025,AWG28,UL
1061,2PIN,70MM,black/Red,AWG28,HUG-MO-
51021-0200,-,Plastic bag,3V,-,70MM,-
,CR2025,-
PC
BA68-40005L PBA CODE LABEL-BARCODE NOTE PC,-,WHITE PET,-,W40.0,L6.0MM,-,-,
-,- PC
BA81-03669A INSULATOR_MEMORY INSULATOR-MEMORY MACAO,SEC,PC T0.15,W68.0*L27.0mm,Black,
-PC
BA81-03818A INSULATOR_WIBRO INSULATOR-WIBRO MACAO,SEC,PC
T0.15,W50.0*L20.0mm,BLACK,- PC
BA92-04412B SMT ASSY MOTHER BD-SMT MACAO,Little River+ICH7-U,512MB,512MB
L2 CACHE,-,-,Sub-Note PC,915GMS PC
BA92-04412C SMT_U ASSY MOTHER BD-SMT_U MACAO,Little River+ICH7-U,512MB,512MB
L2 CACHE,-,-,Sub-Note PC,915GMS PC
0401-000191 D501 DIODE-SWITCHING MMBD4148,75V,200mA,SOT-23,TP PC
0402-001097 D508 DIODE-SCHOTTKY B140,40V,1000mA,DO-214AC,TP PC
- This Document can not be used without Samsung's authorization -

9-7
0402-001405 D505 DIODE-SCHOTTKY B340A,40V,3mA,SMA,TP PC
0404-001017 D502 DIODE-SCHOTTKY BAT54,30V,200MA,SOT-23,TP PC
0404-001017 D511 DIODE-SCHOTTKY BAT54,30V,200MA,SOT-23,TP PC
0404-001017 D512 DIODE-SCHOTTKY BAT54,30V,200MA,SOT-23,TP PC
0404-001020 D513 DIODE-SCHOTTKY BAT54C,30V,200mA,SOT-23,TP PC
0404-001084 D500 DIODE-SCHOTTKY BAT54A,30V,200MA,SOT-23,TP PC
0404-001084 D507 DIODE-SCHOTTKY BAT54A,30V,200MA,SOT-23,TP PC
0404-001084 D514 DIODE-SCHOTTKY BAT54A,30V,200MA,SOT-23,TP PC
0406-001005 ZD500 DIODE-TVS SM05,6V/1mA,300,SOT-23 PC
0406-001141 D503 DIODE-TVS PGB1010603NR,-/-/1000V,0W,EIA-RS481 PC
0406-001141 D504 DIODE-TVS PGB1010603NR,-/-/1000V,0W,EIA-RS481 PC
0406-001141 D506 DIODE-TVS PGB1010603NR,-/-/1000V,0W,EIA-RS481 PC
0406-001141 U506 DIODE-TVS PGB1010603NR,-/-/1000V,0W,EIA-RS481 PC
0406-001141 U507 DIODE-TVS PGB1010603NR,-/-/1000V,0W,EIA-RS481 PC
0407-000101 D509 DIODE-ARRAY DA204K,20V,100mA,C2-3,SOT-23,T PC
0407-000101 D510 DIODE-ARRAY DA204K,20V,100mA,C2-3,SOT-23,T PC
0501-000465 Q503 TR-SMALL SIGNAL MMBT3904,NPN,350mW,SOT-23,TP,30-300PC
0501-000465 Q504 TR-SMALL SIGNAL MMBT3904,NPN,350mW,SOT-23,TP,30-300PC
0505-001049 Q520 FET-GAAS BSS84,-50V,20V,-130mA,360mW,SOT-23,TP PC
0505-001049 Q521 FET-GAAS BSS84,-50V,20V,-130mA,360mW,SOT-23,TP PC
0505-001562 Q510 FET-SILICON SI4816DY,N,30V,5.3/7.7A,30/18.5mohm,1W,SO-8 PC
0505-001562 Q517 FET-SILICON SI4816DY,N,30V,5.3/7.7A,30/18.5mohm,1W,SO-8 PC
0505-001562 Q518 FET-SILICON SI4816DY,N,30V,5.3/7.7A,30/18.5mohm,1W,SO-8 PC
0505-001562 Q519 FET-SILICON SI4816DY,N,30V,5.3/7.7A,30/18.5mohm,1W,SO-8 PC
0505-001825 Q502 FET-SILICON FDS4935A_NL,P,-30V,-7A,0.023ohm,2W,SO-8 PC
0505-001861 Q512 FET-SILICON SI2315BDS,P,-12V,-3A,0.100OHM,0.75W,SOT-23 PC
0505-001861 Q523 FET-SILICON SI2315BDS,P,-12V,-3A,0.100OHM,0.75W,SOT-23 PC
0505-001883 Q500 FET-SILICON RHU002N06,N,60V,200MA,3.3OHM,0.15W,SOT-323 PC
0505-001883 Q501 FET-SILICON RHU002N06,N,60V,200MA,3.3OHM,0.15W,SOT-323 PC
0505-001883 Q506 FET-SILICON RHU002N06,N,60V,200MA,3.3OHM,0.15W,SOT-323 PC
0505-001883 Q511 FET-SILICON RHU002N06,N,60V,200MA,3.3OHM,0.15W,SOT-323 PC
0505-001883 Q513 FET-SILICON RHU002N06,N,60V,200MA,3.3OHM,0.15W,SOT-323 PC
0505-001883 Q515 FET-SILICON RHU002N06,N,60V,200MA,3.3OHM,0.15W,SOT-323 PC
0505-001883 Q522 FET-SILICON RHU002N06,N,60V,200MA,3.3OHM,0.15W,SOT-323 PC
0505-001920 Q509 FET-SILICON HAT2195R,N,30V,18A,0.0084ohm,2.5W,SOP-8 PC
0505-001921 Q508 FET-SILICON HAT2198R,N,30V,14A,0.014ohm,2.5W,SOP-8PC
0505-002068 Q507 FET-SILICON SM6K2,N,60V,200mA,4ohm,0.2W,SOT-23-6 PC
0505-002068 Q514 FET-SILICON SM6K2,N,60V,200mA,4ohm,0.2W,SOT-23-6 PC
0505-002068 Q516 FET-SILICON SM6K2,N,60V,200mA,4ohm,0.2W,SOT-23-6 PC
0505-002068 Q524 FET-SILICON SM6K2,N,60V,200mA,4ohm,0.2W,SOT-23-6 PC
- This Document can not be used without Samsung's authorization -

9-8
0505-002068 Q529 FET-SILICON SM6K2,N,60V,200mA,4ohm,0.2W,SOT-23-6 PC
0505-002183 U508 FET-SILICON AP4435GM,P,-30V,-8A,0.015ohm,2.5W,SO-8PC
0505-002196 Q505 FET-SILICON FDS8984,N,30V,7A,0.032ohm,1.6W,SO-8 PC
0801-002195 U519 IC-CMOS LOGIC 7S08,AND GATE,SOT-25,5P,63MIL,SINGLE,TP,-
,7V,0.26V,-40to+85C,200mW,4.2V,25mA,0. PC
0801-002478 U513 IC-CMOS LOGIC
7SZ14,SCHMITT
TRIGGER,SOT23,5P,63MIL,SINGLE,TR,PLASTIC,-,-
,6V,-40to+85C,200mW,-0
PC
0801-002478 U518 IC-CMOS LOGIC 7SZ14,SCHMITT TRIGGER,SOT23,5P,63MIL,SINGLE,
TR,PLASTIC,-,-,6V,-40to+85C,200mW,-0 PC
0801-002478 U522 IC-CMOS LOGIC 7SZ14,SCHMITT TRIGGER,SOT23,5P,63MIL,SINGLE,
TR,PLASTIC,-,-,6V,-40to+85C,200mW,-0 PC
0801-002998 U523 IC-CMOS LOGIC
74AHCT1G125,Single buffer,SC-
70,5P,2x1.25mm,SINGLE,TP,3-
STATE,4.5/5.5V,0.44V,-40
PC
0801-002998 U524 IC-CMOS LOGIC
74AHCT1G125,Single buffer,SC-
70,5P,2x1.25mm,SINGLE,TP,3-
STATE,4.5/5.5V,0.44V,-40
PC
0902-002165 U511 IC-MICROPROCESSOR
Stealy800MHz,800MHz,u-
FCPGA,663P,TR,Plastic,1.05V,3W,0to+70,512KB_L2,
FSB 400MHz, ball_pi=0.356
PC
0904-002247 U516 IC-MEMORY CONT. Little_River,FCBGA,1249P,22x22mm,400MHz,TR,PLA
STIC,1.05V,5W,0to+105C,- PC
1201-001877 U500 IC-OP AMP LMV358M,SO,TP,8P,390MIL,DUAL,-,PALSTIC,5.5V,-,
-40to+85C,63dB,-,-,11nA,1.7mV PC
1203-003344 U501 IC-POSI.FIXED REG.
MIC5252,SOT-
23,5P,2.9x1.6mm,PLASTIC,4.702/4.797V,-,–
40to+125C,425mA,-,TP,-
PC
1203-003540 U509 IC-PWM CONTROLLER SC451ITSTRT,TSSOP,28P,9.7x4.4mm,PLASTIC,4.3/6
V,-,-40to+125C,-,0.7/1.708V,TP PC
1203-003765 U521 IC-PWM CONTROLLER SC486IMLTRT,MLP,24P,4x4mm,PLASTIC,1.5/3V,-,-
40to+150C,2A,-,TP PC
1203-003930 U504 IC-BATTERY MAX8724ETI,QFN,28P,5x5mm,PLASTIC,9.12/17.65V,1
666.7mW,-40to+85C,-,4.072/4.12V,TP PC
1205-002596 U512 IC-SWITCH TPS2062,SOIC,8P,5x6x1.65mm,PLASTIC,5V,585.82m
W,-40to+85C,TP,- PC
1205-002791 U517 IC-SWITCH
MAX4790EUS-T,SOT-
143,4P,2.9x1.3mm,PLASTIC,5.5V,320mW,-
40to+85C,TP,200mA Current
PC
1205-002853 U502 IC-CODEC ALC262-GR,LQFP,48P,7x7mm,PLASTIC,5.5V,-
,0to+70C,TR,Intel Azalia Interface PC
1205-003156 U514 IC-CLOCK GENERATOR SLG8SP513,QFN,64P,9x9mm,PLASTIC,3.465V,0.825W,
0to+70C,-,clock generator PC
- This Document can not be used without Samsung's authorization -

9-9
1209-001718 U505 IC-SENSOR EMC2102,QFN,28P,5x5mm,PLASTIC,5.5V,0.9W,0to+125
C,TP PC
2007-000052 R528 R-CHIP 10Kohm,1%,1/10W,TP,1608 PC
2007-000052 R532 R-CHIP 10Kohm,1%,1/10W,TP,1608 PC
2007-000052 R595 R-CHIP 10Kohm,1%,1/10W,TP,1608 PC
2007-000052 R607 R-CHIP 10Kohm,1%,1/10W,TP,1608 PC
2007-000060 R596 R-CHIP 100Kohm,1%,1/10W,TP,1608 PC
2007-000066 R533 R-CHIP 20Kohm,1%,1/10W,TP,1608 PC
2007-000067 R643 R-CHIP 15Kohm,1%,1/10W,TP,1608 PC
2007-000067 R666 R-CHIP 15Kohm,1%,1/10W,TP,1608 PC
2007-000070 R507 R-CHIP 0ohm,5%,1/10W,TP,1608 PC
2007-000070 R664 R-CHIP 0ohm,5%,1/10W,TP,1608 PC
2007-000143 R502 R-CHIP 4.7Kohm,5%,1/16W,TP,1005 PC
2007-000143 R510 R-CHIP 4.7Kohm,5%,1/16W,TP,1005 PC
2007-000143 R534 R-CHIP 4.7Kohm,5%,1/16W,TP,1005 PC
2007-000157 R551 R-CHIP 47Kohm,5%,1/16W,TP,1005 PC
2007-000157 R599 R-CHIP 47Kohm,5%,1/16W,TP,1005 PC
2007-000157 R610 R-CHIP 47Kohm,5%,1/16W,TP,1005 PC
2007-000171 R505 R-CHIP 0ohm,5%,1/16W,TP,1005 PC
2007-000171 R513 R-CHIP 0ohm,5%,1/16W,TP,1005 PC
2007-000171 R539 R-CHIP 0ohm,5%,1/16W,TP,1005 PC
2007-000171 R564 R-CHIP 0ohm,5%,1/16W,TP,1005 PC
2007-000171 R565 R-CHIP 0ohm,5%,1/16W,TP,1005 PC
2007-000171 R568 R-CHIP 0ohm,5%,1/16W,TP,1005 PC
2007-000171 R577 R-CHIP 0ohm,5%,1/16W,TP,1005 PC
2007-000171 R581 R-CHIP 0ohm,5%,1/16W,TP,1005 PC
2007-000171 R597 R-CHIP 0ohm,5%,1/16W,TP,1005 PC
2007-000171 R598 R-CHIP 0ohm,5%,1/16W,TP,1005 PC
2007-000171 R677 R-CHIP 0ohm,5%,1/16W,TP,1005 PC
2007-000171 R680 R-CHIP 0ohm,5%,1/16W,TP,1005 PC
2007-000171 R691 R-CHIP 0ohm,5%,1/16W,TP,1005 PC
2007-000171 R694 R-CHIP 0ohm,5%,1/16W,TP,1005 PC
2007-000171 R698 R-CHIP 0ohm,5%,1/16W,TP,1005 PC
2007-000172 R656 R-CHIP 10ohm,5%,1/16W,TP,1005 PC
2007-000172 R657 R-CHIP 10ohm,5%,1/16W,TP,1005 PC
2007-000172 R663 R-CHIP 10ohm,5%,1/16W,TP,1005 PC
2007-000231 R518 R-CHIP 1.3Kohm,1%,1/10W,TP,1608 PC
2007-000503 R612 R-CHIP 2.2ohm,5%,1/10W,TP,1608 PC
2007-000536 R223 R-CHIP 200ohm,1%,1/10W,TP,1608 PC
2007-000695 R545 R-CHIP 3.3ohm,5%,1/10W,TP,1608 PC
2007-000695 R570 R-CHIP 3.3ohm,5%,1/10W,TP,1608 PC
- This Document can not be used without Samsung's authorization -

9-10
2007-000736 R665 R-CHIP 30Kohm,1%,1/10W,TP,1608 PC
2007-001313 R515 R-CHIP 330ohm,5%,1/16W,TP,1005 PC
2007-001313 R517 R-CHIP 330ohm,5%,1/16W,TP,1005 PC
2007-001325 R621 R-CHIP 3.3Kohm,5%,1/16W,TP,1005 PC
2007-001342 R648 R-CHIP 2Mohm,5%,1/10W,TP,1608 PC
2007-002425 R606 R-CHIP 1ohm,5%,1/10W,TP,1608 PC
2007-002899 R560 R-CHIP 10ohm,1%,1/10W,TP,1608 PC
2007-002899 R644 R-CHIP 10ohm,1%,1/10W,TP,1608 PC
2007-002899 R696 R-CHIP 10ohm,1%,1/10W,TP,1608 PC
2007-002901 R530 R-CHIP 12.1Kohm,1%,1/10W,TP,1608 PC
2007-002910 R509 R-CHIP 30.1Kohm,1%,1/10W,TP,1608 PC
2007-002910 R633 R-CHIP 30.1Kohm,1%,1/10W,TP,1608 PC
2007-002916 R669 R-CHIP 475Kohm,1%,1/10W,TP,1608 PC
2007-002918 R529 R-CHIP 51.1Kohm,1%,1/10W,TP,1608 PC
2007-007098 R526 R-CHIP 475Kohm,1%,1/16W,TP,1005 PC
2007-007098 R540 R-CHIP 475Kohm,1%,1/16W,TP,1005 PC
2007-007098 R553 R-CHIP 475Kohm,1%,1/16W,TP,1005 PC
2007-007098 R576 R-CHIP 475Kohm,1%,1/16W,TP,1005 PC
2007-007100 R603 R-CHIP 10Mohm,5%,1/16W,TP,1005 PC
2007-007107 R552 R-CHIP 100Kohm,1%,1/16W,TP,1005 PC
2007-007107 R608 R-CHIP 100Kohm,1%,1/16W,TP,1005 PC
2007-007107 R636 R-CHIP 100Kohm,1%,1/16W,TP,1005 PC
2007-007107 R646 R-CHIP 100Kohm,1%,1/16W,TP,1005 PC
2007-007107 R647 R-CHIP 100Kohm,1%,1/16W,TP,1005 PC
2007-007107 R687 R-CHIP 100Kohm,1%,1/16W,TP,1005 PC
2007-007108 R554 R-CHIP 43.2Kohm,1%,1/16W,TP,1005 PC
2007-007132 R538 R-CHIP 15Kohm,1%,1/16W,TP,1005 PC
2007-007132 R542 R-CHIP 15Kohm,1%,1/16W,TP,1005 PC
2007-007142 R521 R-CHIP 10Kohm,1%,1/16W,TP,1005 PC
2007-007142 R525 R-CHIP 10Kohm,1%,1/16W,TP,1005 PC
2007-007142 R535 R-CHIP 10Kohm,1%,1/16W,TP,1005 PC
2007-007142 R536 R-CHIP 10Kohm,1%,1/16W,TP,1005 PC
2007-007142 R537 R-CHIP 10Kohm,1%,1/16W,TP,1005 PC
2007-007142 R548 R-CHIP 10Kohm,1%,1/16W,TP,1005 PC
2007-007142 R555 R-CHIP 10Kohm,1%,1/16W,TP,1005 PC
2007-007142 R583 R-CHIP 10Kohm,1%,1/16W,TP,1005 PC
2007-007142 R589 R-CHIP 10Kohm,1%,1/16W,TP,1005 PC
2007-007142 R593 R-CHIP 10Kohm,1%,1/16W,TP,1005 PC
2007-007142 R594 R-CHIP 10Kohm,1%,1/16W,TP,1005 PC
2007-007142 R616 R-CHIP 10Kohm,1%,1/16W,TP,1005 PC
- This Document can not be used without Samsung's authorization -

9-11
2007-007142 R649 R-CHIP 10Kohm,1%,1/16W,TP,1005 PC
2007-007142 R653 R-CHIP 10Kohm,1%,1/16W,TP,1005 PC
2007-007142 R658 R-CHIP 10Kohm,1%,1/16W,TP,1005 PC
2007-007142 R659 R-CHIP 10Kohm,1%,1/16W,TP,1005 PC
2007-007142 R670 R-CHIP 10Kohm,1%,1/16W,TP,1005 PC
2007-007142 R689 R-CHIP 10Kohm,1%,1/16W,TP,1005 PC
2007-007237 R660 R-CHIP 24.3Kohm,1%,1/10W,TP,1608 PC
2007-007302 R605 R-CHIP 24.9ohm,1%,1/10W,TP,1608 PC
2007-007302 R613 R-CHIP 24.9ohm,1%,1/10W,TP,1608 PC
2007-007302 R614 R-CHIP 24.9ohm,1%,1/10W,TP,1608 PC
2007-007302 R645 R-CHIP 24.9ohm,1%,1/10W,TP,1608 PC
2007-007306 R522 R-CHIP 100ohm,1%,1/16W,TP,1005 PC
2007-007306 R523 R-CHIP 100ohm,1%,1/16W,TP,1005 PC
2007-007306 R547 R-CHIP 100ohm,1%,1/16W,TP,1005 PC
2007-007306 R630 R-CHIP 100ohm,1%,1/16W,TP,1005 PC
2007-007306 R631 R-CHIP 100ohm,1%,1/16W,TP,1005 PC
2007-007307 R650 R-CHIP 150ohm,1%,1/16W,TP,1005 PC
2007-007312 R500 R-CHIP 20Kohm,1%,1/16W,TP,1005 PC
2007-007312 R501 R-CHIP 20Kohm,1%,1/16W,TP,1005 PC
2007-007312 R514 R-CHIP 20Kohm,1%,1/16W,TP,1005 PC
2007-007312 R519 R-CHIP 20Kohm,1%,1/16W,TP,1005 PC
2007-007312 R541 R-CHIP 20Kohm,1%,1/16W,TP,1005 PC
2007-007312 R686 R-CHIP 20Kohm,1%,1/16W,TP,1005 PC
2007-007318 R503 R-CHIP 1Kohm,1%,1/16W,TP,1005 PC
2007-007318 R511 R-CHIP 1Kohm,1%,1/16W,TP,1005 PC
2007-007318 R520 R-CHIP 1Kohm,1%,1/16W,TP,1005 PC
2007-007318 R582 R-CHIP 1Kohm,1%,1/16W,TP,1005 PC
2007-007318 R617 R-CHIP 1Kohm,1%,1/16W,TP,1005 PC
2007-007318 R637 R-CHIP 1Kohm,1%,1/16W,TP,1005 PC
2007-007318 R642 R-CHIP 1Kohm,1%,1/16W,TP,1005 PC
2007-007318 R684 R-CHIP 1Kohm,1%,1/16W,TP,1005 PC
2007-007318 R688 R-CHIP 1Kohm,1%,1/16W,TP,1005 PC
2007-007334 R690 R-CHIP 200Kohm,1%,1/16W,TP,1005 PC
2007-007440 R558 R-CHIP 511ohm,1%,1/10W,TP,1608 PC
2007-007441 R561 R-CHIP 562ohm,1%,1/10W,TP,1608 PC
2007-007441 R562 R-CHIP 562ohm,1%,1/10W,TP,1608 PC
2007-007484 R661 R-CHIP 4.64Kohm,1%,1/16W,TP,1005 PC
2007-007489 R668 R-CHIP 150Kohm,1%,1/16W,TP,1005 PC
2007-007528 R615 R-CHIP 1.5Kohm,1%,1/16W,TP,1005 PC
2007-007697 R559 R-CHIP 2.4Kohm,1%,1/16W,TP,1005 PC
- This Document can not be used without Samsung's authorization -
