Samsung Galaxy Tab GT-P5100 User manual

GSM TELEPHONE
GT-P5100
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Level 2Repair
8. Level 3Repair
9. Reference data
Notice: All functionality, features, specifications, and
other product information provided in this document,
including but not limited to, benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice. Samsung reserves the right to alter this doc
-ument or the product described herein at anytime,
without obligation to provide notification of such
changes.
GSM TELEPHONE CONTENTS

2. Specification
2-1
2-1. GSM General Specification
GSM850 EGSM 900 DCS1800 PCS1900 WCDMA
2100 WCDMA 1900 WCDMA 900 WCMDA 850
Freq.
Band[MHz]
Uplink/
Downlink
824~849
869~894 880~915 925~960 1710~1785 1805~1880 1850~1910 1930~1990 1922~1977 2112~2167 1852~1907 1932~1987 880~915 925~960 824~849 869~894
ARFCN
range 128~251 0~124 &
975~1023 512~885 512~810
UL:
9612~9888
DL:
10562~1083
8
UL:
9262~9538
DL:
9662~9938
UL:
2712~2863
DL:
2937~3088
UL:
4132~4233
DL:
4357~4458
Tx/Rx
spacing 45MHz 45MHz 95MHz 80MHz 190MHz 80MHz 45MHz 45MHz
Mod. Bit
rate/
Bit Period
270.833kbp
s
3.692us
270.833kbp
s
3.692us
270.833kbp
s
3.692us
270.833kbp
s
3.692us 3.84Mcps 3.84Mcps 3.84Mcps 3.84Mcps
Time Slot
Period/
Frame
Period
576.9us
4.615ms 576.9us 4.615ms 576.9us 4.615ms 576.9us 4.615ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSKHQPS
KQPSKHQPS KQPSKHQPS KQPSKHQPS
K
MS Power 33dBm~5dB
m33dBm~5dB m30dBm~0dB m30dBm~0dB m24dBm~ -50dBm 24dBm~ -50dBm 24dBm~ -50dBm 24dBm~ -50dBm
Power
Class 5pcl ~ 19pcl 5pcl ~19
pcl 0pcl ~15 pcl 0pcl ~15 pcl 3(max+24dB
m) 3(max+24dB m) 3(max+24dB m) 3(max+24dB m)
Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -106.7dBm -106.7dBm -106.7dBm
TDMA Mux 8 8 8 8 8888
Cell Radius 35Km 35Km 2Km 2Km 2Km 2Km 2Km 2Km

Specification
2-2
2-2. GSM Tx Power Class
TX Power
control
level
GSM850
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

4. Exploded View and Parts List
4-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

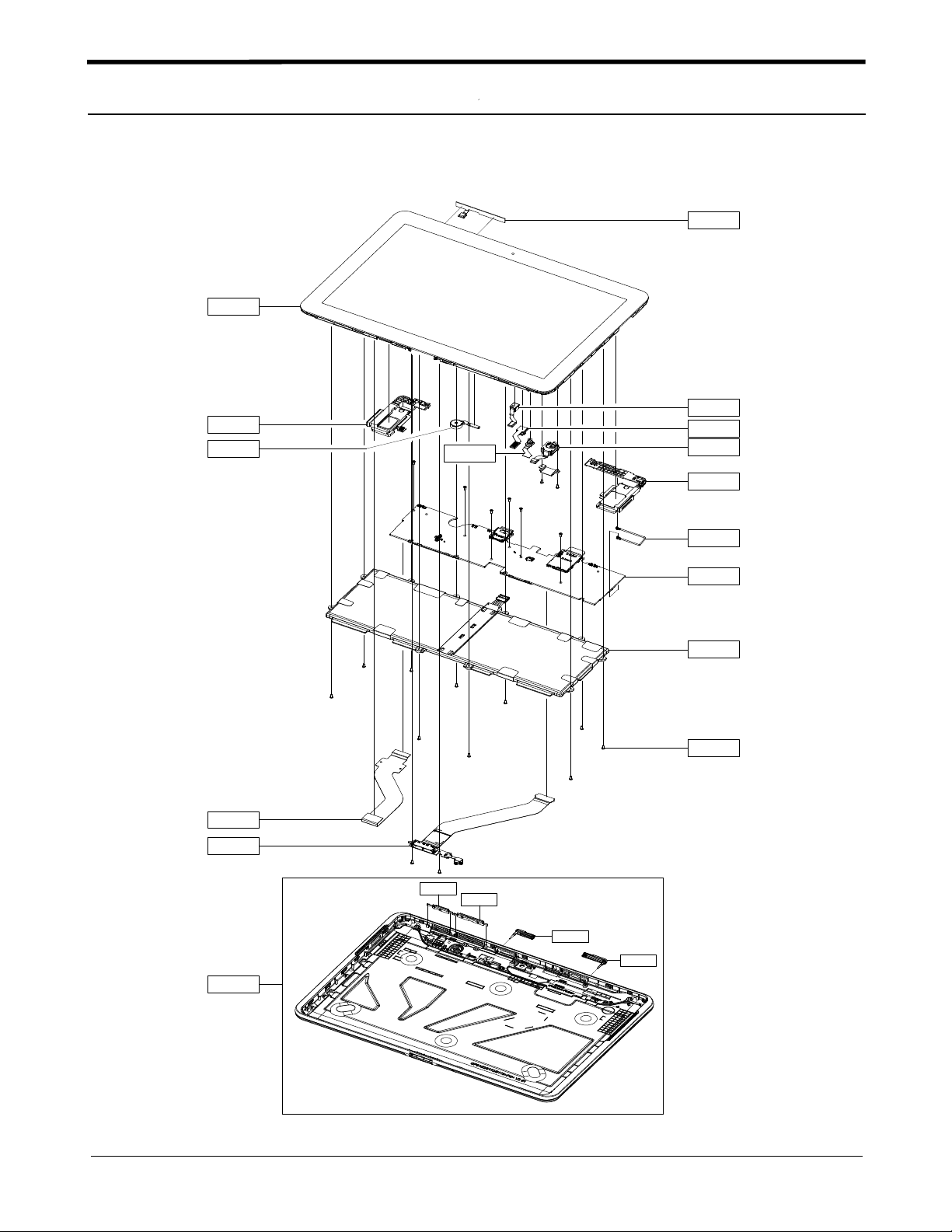

4-1. Cellular phone Exploded View
QRE01
QSP01
QMO01
QME16
QME01
QCA02
QFR01
QSD01
QSP02
QMP01
QCB01
QBA01
QCR72
QAR01
QVK01
QCA01
QJK01
QRF06
QVO01
QCK01

5. MAIN Electrical Parts List
5-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Design LOC SEC CODE Description
D600 0401-001110 DIODE-SWITCHING
D702,ZD506 0403-001870 DIODE-ZENER
D703 0404-001172 DIODE-SCHOTTKY
D800 0404-001669 DIODE-SCHOTTKY
D300,D301,D500,D501 0406-001239 DIODE-TVS
D302,ZD100,ZD700 0406-001267 DIODE-TVS
ZD300,ZD302,ZD403 0406-001413 DIODE-TVS
ZD404,ZD405,ZD406 0406-001413 DIODE-TVS
ZD503,ZD504,ZD903 0406-001413 DIODE-TVS
ZD904,ZD905 0406-001413 DIODE-TVS
ZD301 0406-001459 DIODE-TVS
ZD500,ZD501,ZD502 0406-001505 DIODE-TVS
ZD505,ZD507,ZD701 0406-001505 DIODE-TVS
D502 0406-001526 DIODE-TVS
D700 0407-001002 DIODE-ARRAY
TR700,TR702 0504-001113 TR-DIGITAL
Q500 0504-001307 TR-DIGITAL
TR701,TR703 0505-002720 FET-SILICON
Q700 0505-002748 FET-SILICON
TR704 0505-003052 FET-SILICON
U608 0801-003079 IC-CMOS LOGIC
U304 0801-003437 IC-CMOS LOGIC
U108 0801-003444 IC-CMOS LOGIC
UCP600 0902-002849 IC-MICROPROCESSOR
U102 1001-001733 IC-ANALOG SWITCH
U501,U502 1001-001755 IC-ANALOG SWITCH
U503 1003-002132 IC-LEVEL DRIVER
U601,U602 1003-002216 IC-LEVEL DRIVER
UME300 1105-002212 IC-RDRAM
U610 1107-002134 IC-FLASH MEMORY
U206 1201-003378 IC-GPS AMP
U103 1201-003406 IC-POWER AMP
U403,U500 1202-001121 IC-VOLTAGE COMP.
U605,U908 1203-004818 IC-POSI.FIXED REG.
U305,U401,U402,U715 1203-004819 IC-POSI.FIXED REG.

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-2
Design LOC SEC CODE Description
U900 1203-004819 IC-POSI.FIXED REG.
U707 1203-005069 IC-POSI.FIXED REG.
U609 1203-005512 IC-POSI.FIXED REG.
U805 1203-005599 IC-DC/DC CONVERTER
U109 1203-005831 IC-MULTI REG.
U905 1203-006115 IC-POWER SUPERVISOR
U717 1203-006392 IC-POWER SUPERVISOR
U506 1203-006766 IC-VOL. DETECTOR
U803 1203-006768 IC-DC/DC CONVERTER
U504 1203-006794 IC-DC/DC CONVERTER
U104 1203-006801 IC-DC/DC CONVERTER
U804 1203-006920 IC-BACKLIGHT DRIVER
U106 1203-006985 IC-DC/DC CONVERTER
U603 1203-007142 IC-DC/DC CONVERTER
U716 1203-007169 IC-BATTERY
U701 1203-007210 IC-POWER SUPERVISOR
U400 1205-003692 IC-EXPANDER
U800 1205-004313 IC-INTERFACE
U207 1205-004396 IC-GPS RECEIVER
U213 1205-004402 IC-WIFI
U404 1205-004509 IC-CODEC
UCP300 1205-004511 IC-MODEM
U100 1205-004515 IC-TRANSCEIVER
U902 1205-004521 IC-CONTROLLER
U105 1209-002006 IC-SENSOR
U904 1209-002106 IC-SENSOR
U906 1209-002151 IC-SENSOR
TH300,TH700 1404-001728 THERMISTOR-NTC
VAR400,VAR401 1405-001091 VARISTOR
R120,R404,R624,R625 2007-000138 R-CHIP
R902 2007-000138 R-CHIP
R519,R520,R529,R530 2007-000140 R-CHIP
R414,R634,R635,R668 2007-000141 R-CHIP
R669 2007-000141 R-CHIP
R756,R924 2007-000143 R-CHIP
R111,R420,R608,R611 2007-000148 R-CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-3
Design LOC SEC CODE Description
R613,R614,R681,R683 2007-000148 R-CHIP
R690,R718,R722,R760 2007-000148 R-CHIP
R210,R211,R212,R213 2007-000157 R-CHIP
R214,R302,R304,R305 2007-000157 R-CHIP
R306,R324,R325 2007-000157 R-CHIP
R402,R516,R522,R680 2007-000162 R-CHIP
R704,R707,R754,R757 2007-000162 R-CHIP
R513,R515,R806 2007-000163 R-CHIP
R517,R518 2007-000164 R-CHIP
R101 2007-000165 R-CHIP
R503 2007-000167 R-CHIP
R702 2007-000169 R-CHIP
R512,R535 2007-000170 R-CHIP
R100,R122,R753,R770 2007-000758 R-CHIP
R501 2007-001217 R-CHIP
R679 2007-001292 R-CHIP
R508,R509 2007-001298 R-CHIP
R114 2007-002796 R-CHIP
R674 2007-003015 R-CHIP
R532 2007-007092 R-CHIP
R538 2007-007099 R-CHIP
R303 2007-007107 R-CHIP
R209 2007-007132 R-CHIP
R413 2007-007137 R-CHIP
R416,R417 2007-007156 R-CHIP
R900,R901 2007-007193 R-CHIP
R412 2007-007318 R-CHIP
R677,R678 2007-007517 R-CHIP
R502 2007-007529 R-CHIP
R691 2007-007538 R-CHIP
R510 2007-007592 R-CHIP
R808 2007-007627 R-CHIP
R403,R405,R408,R410 2007-007942 R-CHIP
R411 2007-007942 R-CHIP
R406,R407 2007-007943 R-CHIP
R108 2007-008044 R-CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-4
Design LOC SEC CODE Description
R308,R622,R623 2007-008045 R-CHIP
R310,R685,R686 2007-008052 R-CHIP
R536,R6001,R619,R675 2007-008055 R-CHIP
R709,R730,R732,R746 2007-008055 R-CHIP
R807,R927,R928 2007-008055 R-CHIP
R504,R505 2007-008211 R-CHIP
R511 2007-008275 R-CHIP
R409 2007-008312 R-CHIP
R670 2007-008354 R-CHIP
R500 2007-008403 R-CHIP
R506,R507,R758 2007-008483 R-CHIP
R311 2007-008486 R-CHIP
R323,R526,R527,R528 2007-008516 R-CHIP
R642,R643,R654,R801 2007-008516 R-CHIP
R802,R905 2007-008516 R-CHIP
R208 2007-008579 R-CHIP
R318,R319,R320,R400 2007-008588 R-CHIP
R627,R636,R667,R676 2007-008588 R-CHIP
R692 2007-008588 R-CHIP
R109,R110 2007-008686 R-CHIP
R811 2007-008721 R-CHIP
R115,R533,R534 2007-008774 R-CHIP
R812 2007-008812 R-CHIP
R415 2007-009084 R-CHIP
R666 2007-009108 R-CHIP
R664 2007-009111 R-CHIP
R312,R665 2007-009155 R-CHIP
R809 2007-009168 R-CHIP
R655,R656,R657,R658 2007-009171 R-CHIP
R659,R660,R661,R662 2007-009171 R-CHIP
R663 2007-009171 R-CHIP
R300 2007-009315 R-CHIP
R600,R617 2007-009354 R-CHIP
R103,R104 2007-009801 R-CHIP
R309 2007-010233 R-CHIP
R116,R123 2007-010783 R-CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-5
Design LOC SEC CODE Description
R755 2007-010856 R-CHIP
C120,C213,C231,C248 2203-000233 C-CER,CHIP
C256,C439,C440,C441 2203-000233 C-CER,CHIP
C442,L105 2203-000233 C-CER,CHIP
C104,C205,C7002,C768 2203-000254 C-CER,CHIP
C769,C929 2203-000254 C-CER,CHIP
C228,C229,C235,C236 2203-000278 C-CER,CHIP
C238,C239,C240,C241 2203-000278 C-CER,CHIP
C250 2203-000278 C-CER,CHIP
C425,C428,C429 2203-000386 C-CER,CHIP
C233,C691 2203-000585 C-CER,CHIP
C208 2203-000627 C-CER,CHIP
C164,C341,C342,C343 2203-000812 C-CER,CHIP
C826 2203-000854 C-CER,CHIP
C765,C766,C789 2203-000995 C-CER,CHIP
C426,C430,C434,C435 2203-001153 C-CER,CHIP
C764,C784,C785,C788 2203-002687 C-CER,CHIP
C717 2203-005249 C-CER,CHIP
C178 2203-005393 C-CER,CHIP
C121,C144,C190,C206 2203-005682 C-CER,CHIP
C255 2203-005682 C-CER,CHIP
C125 2203-005683 C-CER,CHIP
C338,C349 2203-005725 C-CER,CHIP
C119 2203-005726 C-CER,CHIP
C718,C719 2203-005727 C-CER,CHIP
C227 2203-005729 C-CER,CHIP
C433,C436,C437 2203-005731 C-CER,CHIP
C427,C515,C516,C517 2203-005732 C-CER,CHIP
C518 2203-005732 C-CER,CHIP
C143 2203-005736 C-CER,CHIP
C186 2203-005740 C-CER,CHIP
C184 2203-005777 C-CER,CHIP
C129,C180 2203-005789 C-CER,CHIP
C244 2203-005792 C-CER,CHIP
C137 2203-005806 C-CER,CHIP
C761 2203-006047 C-CER,CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-6
Design LOC SEC CODE Description
C105,C222,C223,C237 2203-006048 C-CER,CHIP
C242,C340,C407,C504 2203-006048 C-CER,CHIP
C505,C607,C612,C649 2203-006048 C-CER,CHIP
C653,C667,C678,C679 2203-006048 C-CER,CHIP
C680,C694,C778,C920 2203-006048 C-CER,CHIP
C126 2203-006187 C-CER,CHIP
C654,C685 2203-006190 C-CER,CHIP
C133,C148,C246,C302 2203-006194 C-CER,CHIP
C303,C800 2203-006194 C-CER,CHIP
C902 2203-006257 C-CER,CHIP
C230,C243 2203-006305 C-CER,CHIP
C692,C693,C7001 2203-006324 C-CER,CHIP
C138 2203-006379 C-CER,CHIP
C162,C347,C348,C617 2203-006399 C-CER,CHIP
C618,C665,C674,C690 2203-006399 C-CER,CHIP
C696,C697,C756 2203-006399 C-CER,CHIP
C106,C107,C108,C109 2203-006423 C-CER,CHIP
C110,C115,C116,C117 2203-006423 C-CER,CHIP
C149,C151,C209,C210 2203-006423 C-CER,CHIP
C301,C304,C305,C310 2203-006423 C-CER,CHIP
C316,C318,C319,C320 2203-006423 C-CER,CHIP
C321,C324,C325,C327 2203-006423 C-CER,CHIP
C328,C329,C332,C333 2203-006423 C-CER,CHIP
C334,C344,C402,C601 2203-006423 C-CER,CHIP
C602,C603,C604,C606 2203-006423 C-CER,CHIP
C608,C609,C611,C613 2203-006423 C-CER,CHIP
C614,C619,C620,C623 2203-006423 C-CER,CHIP
C624,C625,C628,C629 2203-006423 C-CER,CHIP
C630,C634,C635,C636 2203-006423 C-CER,CHIP
C637,C639,C640,C641 2203-006423 C-CER,CHIP
C647,C650,C651,C660 2203-006423 C-CER,CHIP
C661,C662,C663,C666 2203-006423 C-CER,CHIP
C668,C669,C670,C677 2203-006423 C-CER,CHIP
C681,C684,C699,C922 2203-006423 C-CER,CHIP
C923,C941 2203-006423 C-CER,CHIP
C152,C159,C175,C176 2203-006562 C-CER,CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-7
Design LOC SEC CODE Description
C177,C187,C400,C401 2203-006562 C-CER,CHIP
C408,C409,C410,C411 2203-006562 C-CER,CHIP
C413,C414,C415,C416 2203-006562 C-CER,CHIP
C418,C419,C420,C421 2203-006562 C-CER,CHIP
C502,C503,C510,C600 2203-006562 C-CER,CHIP
C689,C779,C791,C799 2203-006562 C-CER,CHIP
C801,C802,C803,C805 2203-006562 C-CER,CHIP
C816,C819,C825,C905 2203-006562 C-CER,CHIP
C907,C937,C940 2203-006562 C-CER,CHIP
C111,C112,C113,C118 2203-006647 C-CER,CHIP
C140 2203-006648 C-CER,CHIP
C824 2203-006681 C-CER,CHIP
R106,R107 2203-006815 C-CER,CHIP
C170,C707,C708,C720 2203-006824 C-CER,CHIP
C721,C722,C723,C724 2203-006824 C-CER,CHIP
C900 2203-006824 C-CER,CHIP
C131,C135,C136,C150 2203-006839 C-CER,CHIP
C153,C218,C818 2203-006839 C-CER,CHIP
C777,C829 2203-006841 C-CER,CHIP
C621,C813,C815 2203-006844 C-CER,CHIP
C114,C166,C200,C201 2203-006872 C-CER,CHIP
C202,C203,C403,C422 2203-006872 C-CER,CHIP
C423,C424,C682,C683 2203-006872 C-CER,CHIP
C716 2203-006872 C-CER,CHIP
C100,C103,C903,C904 2203-006979 C-CER,CHIP
C514 2203-007133 C-CER,CHIP
C167,C306,C307,C311 2203-007210 C-CER,CHIP
C315,C317,C322,C326 2203-007210 C-CER,CHIP
C330,C331,C335,C345 2203-007210 C-CER,CHIP
C626,C627,C633,C655 2203-007210 C-CER,CHIP
C656,C657,C658,C659 2203-007210 C-CER,CHIP
C664,C672,C673 2203-007210 C-CER,CHIP
C336,C337,C687 2203-007240 C-CER,CHIP
C156,C160,C631,C632 2203-007270 C-CER,CHIP
C644,C652,C695,C755 2203-007270 C-CER,CHIP
C757,C758,C804,C822 2203-007270 C-CER,CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-8
Design LOC SEC CODE Description
C823 2203-007270 C-CER,CHIP
C132,C204,C207,C234 2203-007271 C-CER,CHIP
C701,C703,C704,C705 2203-007271 C-CER,CHIP
C706,C709,C710,C711 2203-007271 C-CER,CHIP
C712,C713,C714,C715 2203-007271 C-CER,CHIP
C906,C908,C909,C910 2203-007271 C-CER,CHIP
C911,C914,C915,C916 2203-007271 C-CER,CHIP
C921,C936,C938,C939 2203-007271 C-CER,CHIP
C698,C702,C732,C733 2203-007279 C-CER,CHIP
C734,C735,C760,C762 2203-007279 C-CER,CHIP
C161,C169,C220,C221 2203-007317 C-CER,CHIP
C257,C339 2203-007317 C-CER,CHIP
C790 2203-007342 C-CER,CHIP
C605,C610,C622,C648 2203-007391 C-CER,CHIP
C134,C145,C154,C219 2203-007393 C-CER,CHIP
C225,C226,C615,C616 2203-007393 C-CER,CHIP
C638,C645,C646,C688 2203-007393 C-CER,CHIP
C700,C786 2203-007393 C-CER,CHIP
C754,C783 2203-007425 C-CER,CHIP
C165,C312,C313,C314 2203-007449 C-CER,CHIP
C323,C642,C643,C671 2203-007449 C-CER,CHIP
C675,C739,C912,C917 2203-007449 C-CER,CHIP
C918,C919,C925,C926 2203-007449 C-CER,CHIP
C927,C935 2203-007449 C-CER,CHIP
C512 2203-007456 C-CER,CHIP
C245 2203-007474 C-CER,CHIP
C508,C513 2203-007634 C-CER,CHIP
C300,C308,C309 2203-007701 C-CER,CHIP
C189 2203-007754 C-CER,CHIP
C404,C405,C406,C412 2203-007775 C-CER,CHIP
C417,C770 2203-007775 C-CER,CHIP
C500,C501,C506,C507 2203-007781 C-CER,CHIP
C736,C759,C763 2203-007781 C-CER,CHIP
C814,C827,C828 2203-007790 C-CER,CHIP
C168,C171,C188 2203-007795 C-CER,CHIP
C817 2203-007796 C-CER,CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-9
Design LOC SEC CODE Description
C901 2203-008126 C-CER,CHIP
TA400 2404-001561 C-TA,CHIP
TA700 2409-001232 C-POLYMER ,CHIP
L125 2703-001747 INDUCTOR-SMD
L104 2703-002208 INDUCTOR-SMD
L215,L408,L409,L410 2703-002268 INDUCTOR-SMD
L411 2703-002268 INDUCTOR-SMD
L102,L124,L213 2703-002313 INDUCTOR-SMD
L119,L123 2703-002596 INDUCTOR-SMD
L126 2703-002901 INDUCTOR-SMD
L113 2703-002903 INDUCTOR-SMD
L109 2703-002953 INDUCTOR-SMD
L101,L112 2703-002999 INDUCTOR-SMD
L210 2703-003545 INDUCTOR-SMD
L600 2703-003546 INDUCTOR-SMD
L901 2703-003754 INDUCTOR-SMD
L118,L120,L122 2703-003755 INDUCTOR-SMD
L302,L303 2703-003869 INDUCTOR-SMD
L500,L700,L701,L702 2703-003911 INDUCTOR-SMD
L703,L704 2703-003911 INDUCTOR-SMD
L802 2703-003913 INDUCTOR-SMD
L211,L214 2703-003916 INDUCTOR-SMD
L801 2703-003939 INDUCTOR-SMD
L108 2703-004000 INDUCTOR-SMD
C101,L114,L115 2703-004013 INDUCTOR-SMD
L116 2703-004014 INDUCTOR-SMD
C102 2703-004034 INDUCTOR-SMD
L106 2703-004035 INDUCTOR-SMD
L111 2703-004037 INDUCTOR-SMD
L121 2703-004185 INDUCTOR-SMD
L707 2703-004244 INDUCTOR-SMD
OSC300,OSC700 2801-004551 CRYSTAL-SMD
OSC201 2801-005107 CRYSTAL-SMD
OSC600 2804-001884 OSCILLATOR-CLOCK
OSC400 2804-001935 OSCILLATOR-CLOCK
OSC100 2809-001369 OSCILLATOR-VCTCXO

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-10
Design LOC SEC CODE Description
OSC200 2809-001374 OSCILLATOR-VCTCXO
F800 2901-001625 FILTER-EMI/ESD
F801,F802 2901-001647 FILTER-EMI SMD
F900,F901 2901-001674 FILTER-EMI SMD
F200 2904-001988 FILTER-GPS SAW
F201 2909-001324 FILTER-LC
F100 2910-000126 DUPLEXER-SAW
U212 2911-000168 DUPLEXER-FEM
U101 2911-000191 DUPLEXER-FEM
L203,L204 3301-001534 BEAD-SMD
L201 3301-001659 BEAD-SMD
L804,L805,L806,L807 3301-001756 BEAD-SMD
L402,L403,L404,L405 3301-001885 BEAD-SMD
L406,L407 3301-001885 BEAD-SMD
L205,L208 3301-001895 BEAD-SMD
L900,L902 3301-001901 BEAD-SMD
L200,L400,L401 3301-001929 BEAD-SMD
L300,L301 3301-001956 BEAD-SMD
L501,L803 3301-002037 BEAD-SMD
L117 3301-002062 BEAD-SMD
RFS200 3705-001448 CONNECTOR-COAXIAL
RFS100 3705-001731 CONNECTOR-COAXIAL
SLC800 3708-002183 CONNECTOR-FPC/FFC/PIC
CN900 3708-002222 CONNECTOR-FPC/FFC/PIC
SLC500 3708-002278 CONNECTOR-FPC/FFC/PIC
SLC900 3708-002781 CONNECTOR-FPC/FFC/PIC
CD300 3709-001575 CONNECTOR-CARD EDGE
CN300 3709-001625 CONNECTOR-CARD EDGE
HDC400,HDC401,HDC402 3711-006615 HEADER-BOARD TO BOARD
HDC500 3711-006615 HEADER-BOARD TO BOARD
HDC501 3711-006923 HEADER-BOARD TO BOARD
HDC900 3711-006925 HEADER-BOARD TO BOARD
HDC300,HDC600 3711-007173 HEADER-BOARD TO BOARD
BTC700 3711-007494 CONNECTOR-HEADER
ANT100,ANT101,ANT200 3712-001373 CONNECTOR-TERMINAL
ANT201 3712-001373 CONNECTOR-TERMINAL

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-11
Design LOC SEC CODE Description
CON600,CON601 3712-001412 CONNECTOR-TERMINAL
SC101 GH70-07980A ICT SHIELD-RF FRAME
R203,R431,R435 GH80-03320A SOLDER-CREAM/SMT KOREA(FREE)
R906,R908,R922,R923 GH80-03321A SOLDER-CREAM/DHDMR(FREE)
SC100 GH98-20254A ASSY COVER-SHIELD GPS

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-1
This Document can not be used without Samsung's authorization
Be careful not to scratch cover.
Follow the numbered sequence when you disjoint Be careful not to damage to EARJACK.
Be careful not to scratch cover
and damage to FPC. Be careful not to damage the FPCBs
Be careful not to damage the wires

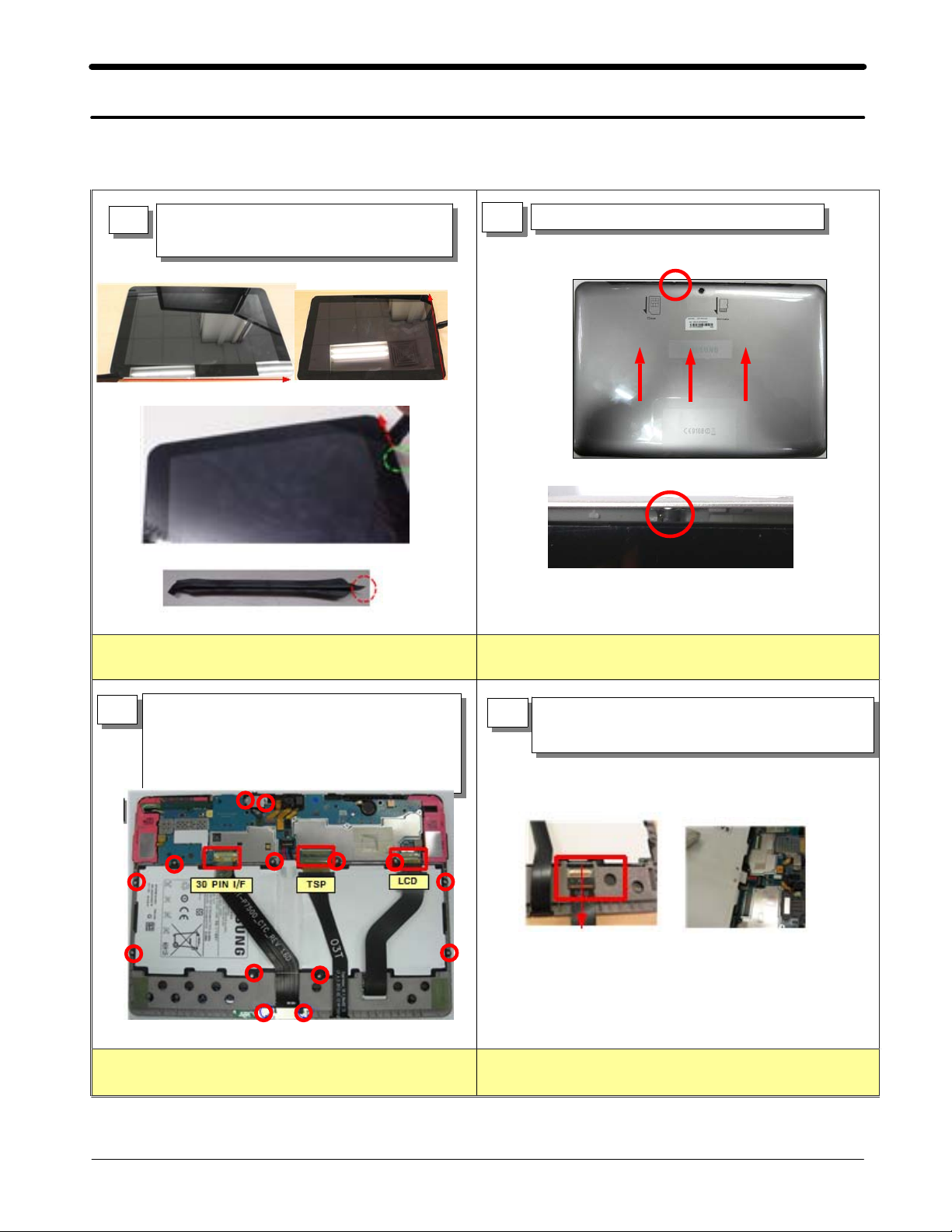

7-1. Disassembly and assembly Instructions
7-1-1. Disassembly
Disassemble the rear cover with the front
cover by using the hook
1(Caution) Be careful Earjack damage
2
3Detach 3insulation tapes.
Carefully release the screws at 14 different
locations from the Front.
(L1.4*2.5, Torque 1.1 ± 0.1 kgf.cm)
4Separate LCD FPCB,IF FPCB, Battery from the
PBA.

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-2
This Document can not be used without Samsung's authorization

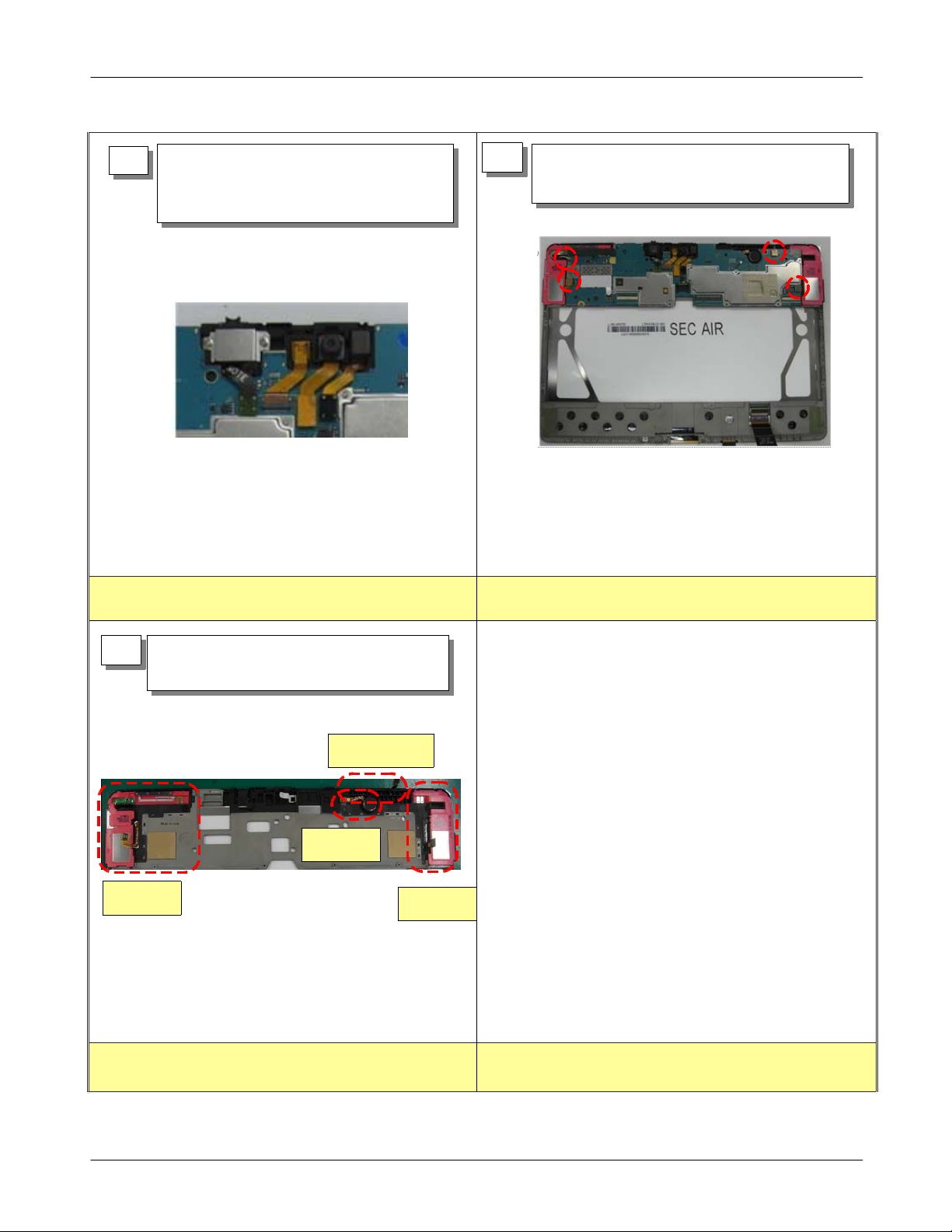

Be careful not to damage the FPCBs Be careful not to scratch cover
Be careful not to damage the FPCBs
Separate Earjack SUS, Earjack, 3M
camera, VGA camera, Light sensor from
the PBA
5Seperate SPK L/R connectors, Key connector
and GPS coaxial cable connector.
Separate PBA from the Front.
6
Separate the SPK L/R, KEY FPCB, MOTOR
from the Front.
7
SPK RSPK L
MOTOR
KEY FPCB

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-3
This Document can not be used without Samsung's authorization
Be careful not to damage the FPCBs Be careful not to damage the FPCBs
Be careful not to damage the FPCBs Be careful not to damage the FPCBs

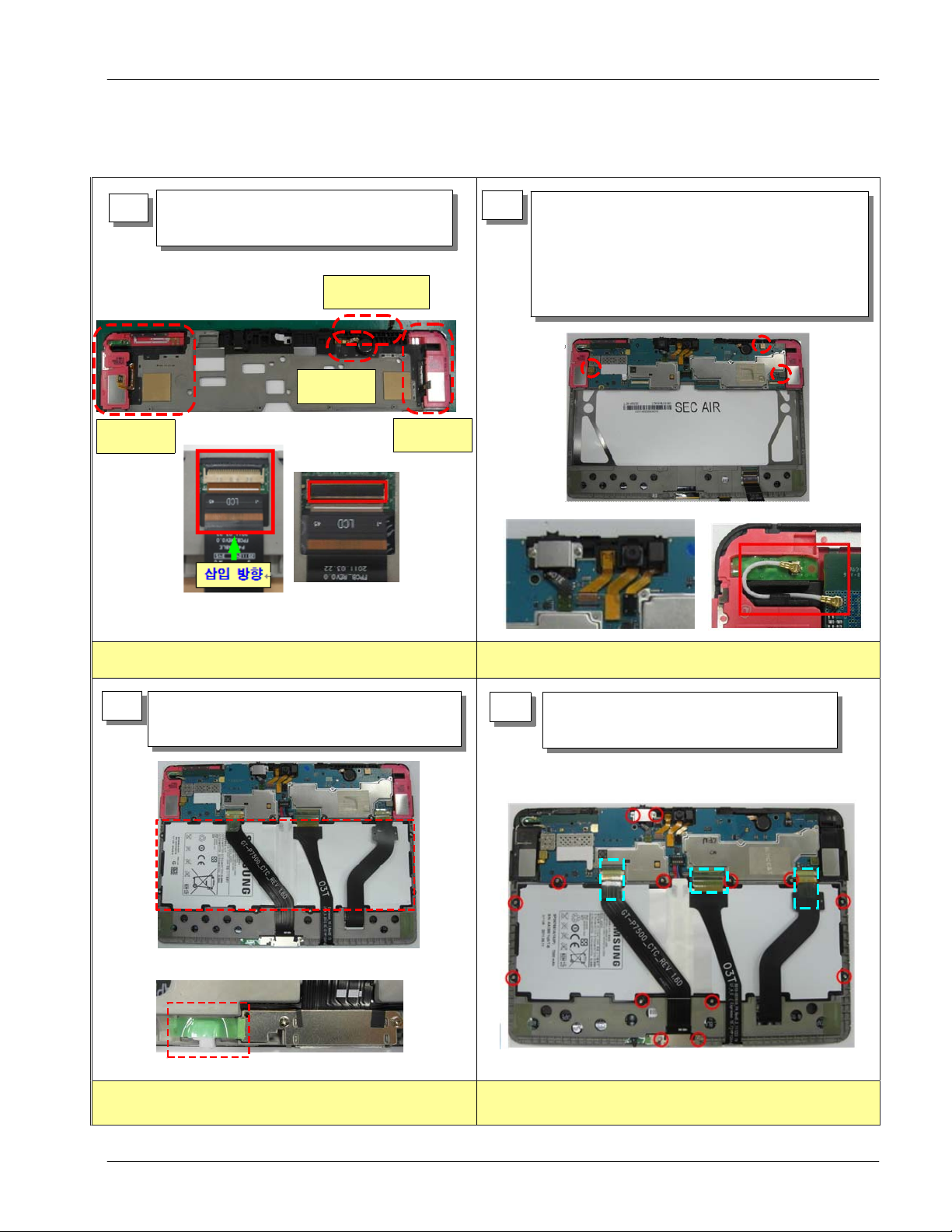

7-1-2. assemble
Assemble KEY FPCB, MOTOR, SPK L/R
and LCD FPCB&rubber
1Put the PBA to Bracket ass'y then connect SPK
L/R, KEY FPCB.
Assemble EAR JACK, EARJACK SUS, 3M/VGA
CAM and LIGHT SENSOR. and GPS Coaxial
cable
2
Assemble the Battery and IF FPCB.
MIC RUBBER and attach INSU TAPE.
3Attach 3INSU TAPEs to connector.
Screw 14 points.
4
SPK RSPK L
MOTOR
KEY FPCB

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-4
This Document can not be used without Samsung's authorization

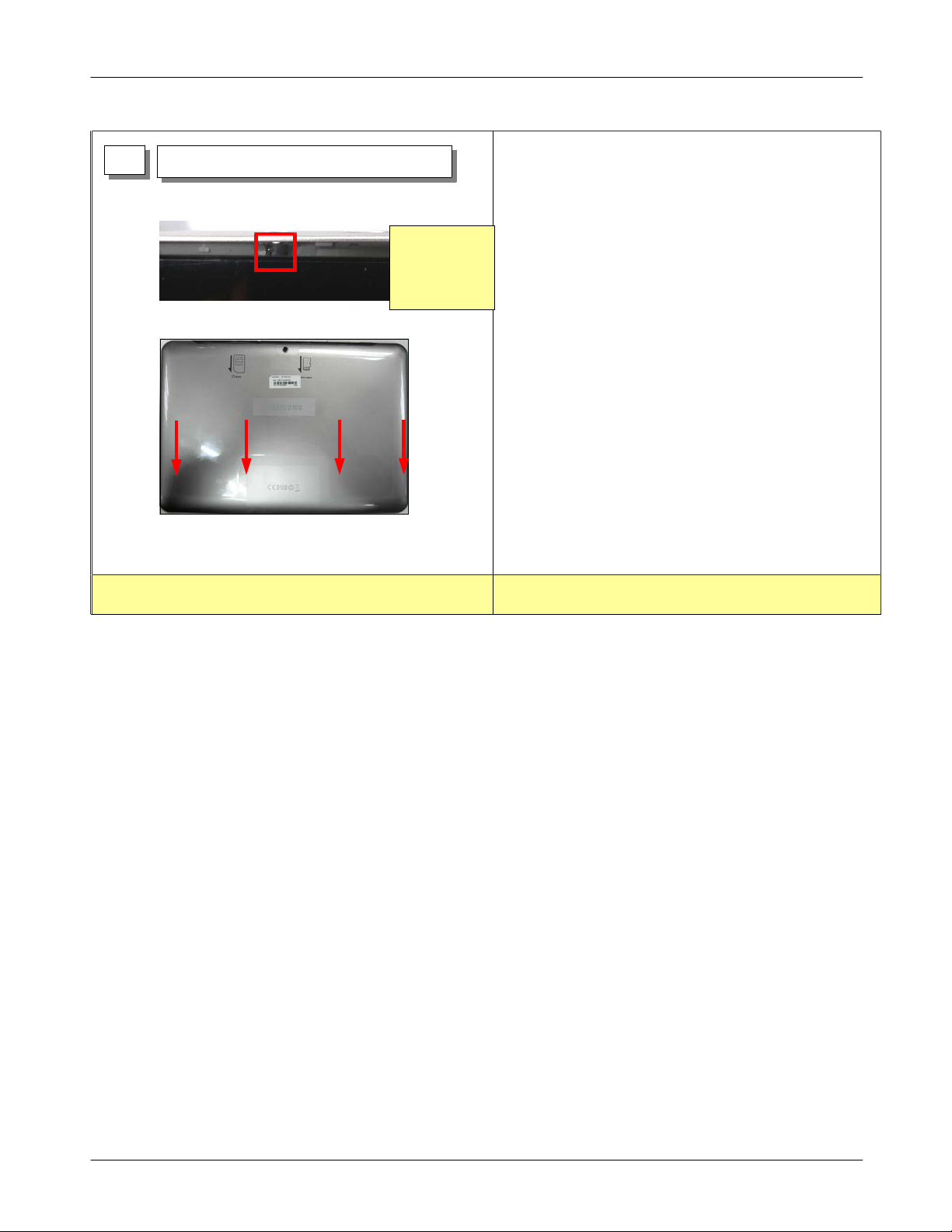

Be careful not to damage the CASE.
Assemble the REAR CASE.
5
check the
EARJACK
position.

8. Level 3Repair
8-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

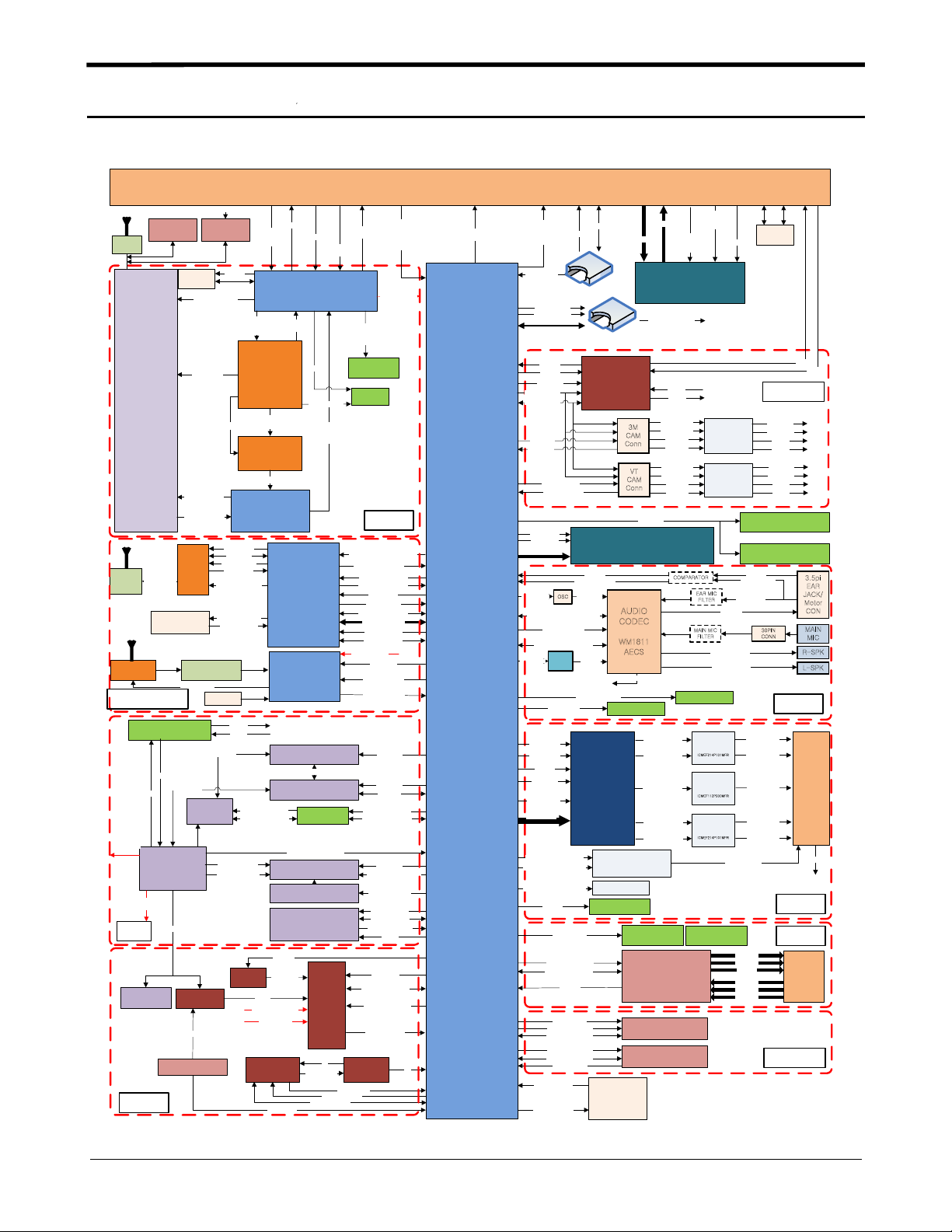

8-1. Block Diagram
AP CHIP
4430D2S1CBSR
CP CHIP
PMB9811-C-1
T-FLASH
SCHA4B0301
SIM CONN
901-03280-00813
Mobile DDR SDRAM
MT4H32M16LFBF
Movi Nand
KLMAG2GE4A-A002
Movi Nand DCDC
AAT2146MIJS-0.6-T1
Movi Nand LDO
RP103K181D-TR
LVDS
Transmitter
DTC34LM85AM
FILTER
ICMEF214P101MFR
FILTER
ICMEF112P900MFR
FILTER
ICMEF214P101MFR
LED BACKLIGHT
DRIVER IC
LP8553TLX
LM2757TMX
LCD BUCK BOOSTER
TPS63010YFFR
TFT
LCD
LVDS
CON
FF12-45A-
R12BN-D3
TOUCH SENSOR IC
S7301
TOUCH LDO
RP103K281D-TR
80PIN
TOUCH
CON
FF10-80A-
R12B-D3
Magnetic Sensor
YAS530C-PZE2
Accelerometer Sensor
BMA250
SENSOR_I2C_SCL
ACC_INT/INT2
SENSOR_I2C_SDA
SENSOR_I2C_SCL
SENSOR_I2C_SDA
A_X(0:10)
B_X(0:10)
C_X(0:4)
A_Y(0:13)
B_Y(0:13)
C_Y(0:13)
TSP_INT
MSENSE_IRQ
TSP_LDO_ON
LCD_D(0:23)
LVDS_nSHDN
LVDS_RX_1N_F
LVDS_RX_1P_F
LVDS_RX_0N_F
LVDS_RX_0P_F
LVDS_CLK_N_F
LVDS_CLK_P_F
LVDS_RX_3N_F
LVDS_RX_3P_F
LVDS_RX_2N_F
LVDS_RX_2P_F
LVDS_RX_1N
LVDS_RX_1P
LVDS_RX_0N
LVDS_RX_0P
LVDS_CLK_N
LVDS_CLK_P
LVDS_RX_3N
LVDS_RX_3P
LVDS_RX_2N
LVDS_RX_2P
AP_I2S_CLK/SYNC/DOUT/DIN
LCD_VSYNC
LCD_HSYNC
LED_K(1:4)
LED_BACKLIGHT_PWM
LED_BACKLIGHT_RESET
LED_BACKLIGHT_RESET
NAND_D(0:7)
NAND_CLK
NAND_CMD
T_FLASH_D(0:3)
T_FLASH_CMD
T_FLASH_CLK
T_FLASH_DETECT
SIM_DETECT
SIM_CLK/RST
SIM_IO
CP_A1(0:12)
CP_D1(0:15)
SD_CKE/CLK
SD_nCLK/CS
SD_CAS/RAS
SD_BA0/1
SD_DQM0/1
SD_DQS0/1
MEM_WE
REC_PCM_CLK/SYNC/IN
CP_DUMP_INT
AP_FLM_RXD
CP_ON
PHONE_ACTIVE
REC_PCM_OUT
AP_FLM_TXD
GPS_CNTL
PDA_ACTIVE
MIPI_HIS_RX_DATA/FLG/RDY/WAKE
MIPI_HIS_TX_DATA/FLG/RDY/WAKE
GRIP Sensor
TS01S
GRIP Sensor
LDO
74LVC1G02GM
RF_TOUCH_EN
ANT
RFS
TRANCEIVER
PMB5712
ASM
SKY18106-455LF
MMMB PAM
SKY77604
BAND
SWITCH
SKY13397-388LF
DPX/SAW BANK
SAPHU836MAD0F00
PAM DCDC
LM3242
TRANSCEIVER
DCDC
RF6590
RESET_N_RF
REF_CLK_EN
SYS_CLK_EN DI3_TX_DATX
DI3_TX_DAT
DI3_RX_DATX
DI3_RX_DAT
SYS_CLK_26M
GPS_CLK_EN
SPI_SS/DRW/CLK
2G_HB_TX
2G_LB_TX
3G_HB_TX
3G_LB_TX
TX_B1/B2/B5/B8
TX_B1/B2/B5/B8
RX_B1/B2/B5/B8
RX_PCS/DCS
RX_GSM850/900
RX_B1/B2/B5/B8
RX_PCS/DCS
RX_GSM850/900
BAND_GPI01/2
SPI_SS/DRW/CLK
PA_RAMP
PM_H/L
PA_RF
PA_POW_DET
PA_DCDC_EN
PA_BIAS
SPI_SS/
DRW/CLK
CLK_ON
VC-TCXO
DSA221SCL
AFC_DAC
RF
AUDIO
CODEC
WM1811
AECS
3.5pi
EAR
JACK/
Motor
CON
MAIN
MIC
R-SPK
L-SPK
EAR_R/L
PHEONIX_I2C_SDA/SCL
CODEC_LDO_EN
SWITCH
NLAS5223 AUDIO_GND
EAR_GND_SEL
OSC
CODEC_26M_EN CODEC_26MHz
COMPARATOR
DET_3.5
EAR_SEND_END
DETECT
SPK_OUTL_P/N
30PIN
CONN
MAIN MIC
FILTER
MIC_P/N_CONMAIN_MIC_P/N
SPK_OUTR_P/N
EAR MIC
FILTER
EAR_MIC_P/N EAR_MIC+/-
EAR_ADC_3.5
EAR MIC BIAS LDO
RP103K281D-TR
MIC BIAS LDO
RP103K281D-TR
EAR_MICBIAS_EN
MICBIAS_EN AUDIO
LCD
TSP
LCD_EN
LEVEL SHIFTER
NLSX4373MUTAG
TSP_I2C_SCL_1.8V
TSP_I2C_SDA_1.8V
ADC IC
STMPE811QTR ADC_I2C_SCL_1.8V
ADC_I2C_SDA_1.8V
ADC_I2C_SCL_3.3V
ADC_I2C_SDA_3.3V
PMIC
TWL6032
SWITCHING CHARGING
BLOCK
SMB347S
FUEL GAUGE
MAX17042G-T
BATTERY
CONTACT
BTC700
POWER ON
BLOCK
EXT_POWER_
JIG_CONTROL
VF
SYS_PREQ
nRESPWRON
nWARM_RESET
SYS_nIRQ1/2
CLK32K_AP
BAT_REMOVAL
PMIC_I2C_SCL
PHEONIX_I2C_SCL
PMIC_I2C_SDA
PHEONIX_I2C_SDA
OTG
Enable USB_OTG_ID
OTG_EN
T_FLASH_DETECT
JIGON
POWER&VOLUME
KEY
ON_SW
VOL_UP/DN
50 PIN IF
IF_CON_SENSE
V_BATTERY-
FUEL_SCL_1.8V
FUEL_SDA_1.8V
FUEL_ALERT
TA_nCONNECTED
TA_nCHG
TA_EN
CHG_SDA_1.8V
CHG_SCL_1.8V
ACCESSORY_PWR
MAX8627ETD-T ACCESSORY_EN
ACCESSORY_INT
NCX2220GM
DOCK_INT
ACCESSORY_ID
REMOTE_SENSE REMOTE_SENSE_IRQ
ACCESSORY_ID
REMOTE_SENSE
USB SWITCH IC
DG2730DN-T1-GE4
USB SWITCH IC
DG2730DN-T1-GE4
USB_SEL1
USB_SEL2
COM_D-/D+
AP_D-/D+
UART LEVEL SHIFTER
ST2G3236QTR
IF_TXD_CON
IF_RXD_CON
IF_TXD
IF_RXD
MIC_N_CON
MIC_P_CON
USB_DP/DM
ACCESSORY_INT_1.8V
EAR_L_CRADLE
EAR_R_CRADLE
BT/WI-FI
BCM4330SB2KUBG
GPS
BCM47511IUB2G
BT_EN/BT_NRST/BT_WAKE
BT_HOST_WAKE
WLAN_HOST_WAKE
BT_UART_RTS/TXD
BT_UART_CTS/RXD
BT_PCM_IN
BT_PCM_OUT
BT_PCM_CLK/SYNK
WLAN_SD_D(0:3)
WLAN_SD_CLK
WLAN_SD_CLM
LNA
MDFE2P
GC-027
LNA_2G_EN
WRF_OUT_2G
SW_BT_TX
SW_WLAN_TX
SW_WLAN_BT_RX
BT_RF_TX
WRF_IN_2G
OSC
SQBD03740M2HBG
XTAL_37400_OUT
XTAL_37400_IN
GPS_EN
GPS_nRST
GPS_UART_RTS
GPS_UART_TXD
GPS_UART_CTS
GPS_UART_RXD
TCXO
SAW
TBF-1608-
245-R7
LNA_ANT_2G
BT/WIFI
ANT
LNA
SFMG2S0D001
SAW
SAFEA1G58KA0F00
GPS
ANT
GPS_LNA_EN
GPS_CLK_26M
GPS_CLK_26M
BT/WIFI/GPS
IF
PMIC
SENSOR
eMMC_EN
VF
CAMERA
CAMERA Power
MAX8893CEWV-T
CP_RXD
CP_TXD
AP_RXD
AP_TXD
IF_TXD
IF_RXD
UART_SEL
CAM_I2C_SCL
CAM_I2C_SDA
3M
CAM
Conn
VT
CAM
Conn
FILTER
ACFE2B4G101E
FILTER
ACFE2B4G101E
3M_MCLK
3M_nRST
3M_nSTBY
3M_CLK_P_F
3M_CLK_N_F
3M_DP_F
3M_DN_F
3M_CLK_P
3M_CLK_N
3M_DP
3M_DN
To
AP
VT_CLK_P_F
VT_CLK_N_F
VT_DP_F
VT_DN_F
VT_CLK_P
VT_CLK_N
VT_DP
VT_DN
VT_CAM_MCLK
VT_CAM_nRST
VT_CAM_nSTBY
To
UART Level
Shifter
To
PMIC
LCD_DE
LCD_PCLK
TOUCH LDO
RP103K181D-TR
To
CAM pwr
ADC_CHECK_!
OSC
SPEECH_I2S_CLK/SYNC/DOUT/DIN
To
CP
SYSTEM MAIN
CLOCK
KC2520B38.4000
C1WEXG
FREF_CLK_REQ
FREF_38.4M_IN
To
PMIC
LCD_SELECT
LCD_SELECT
