Samsung GT-N8000 Building instructions

GSM TELEPHONE
GT-N8000
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Level 2Repair
8. Level 3Repair
9. Reference data
Notice: All functionality, features, specifications, and
other product information provided in this document,
including but not limited to, benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice. Samsung reserves the right to alter this doc
-ument or the product described herein at anytime,
without obligation to provide notification of such
changes.
GSM TELEPHONE CONTENTS

1. Safety Precautions
1-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
1-1. Repair Precaution
Before attempting any repair or detailed tuning, shield the device from RF noise or static
electricity discharges.
Use only demagnetized tools that are specifically designed for small electronic repairs,
as most electronic parts are sensitive to electromagnetic forces.
Use only high quality screwdrivers when servicing products. Low quality screwdrivers can
easily damage the heads of screws.
Use only conductor wire of the properly gauge and insulation for low resistance, because of
the low margin of error of most testing equipment.
We recommend 22-gauge twisted copper wire.
Hand-soldering is not recommended, because printed circuit boards (PCBs) can be easily
damaged, even with relatively low heat. Never use asoldering iron with apower rating of
more than 100 watts and use only lead-free solder with a melting point below 250°C (482°F).
Prior to disassembling the battery charger for repair, ensure that the AC power is disconnected.
Always use the replacement parts that are registered in the SEC system. Third-party replac
ement parts may not function properly.

Safety Precautions
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
1-2
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Many semiconductors and ESDs in electronic devices are particularly sensitive to static discha
rge and can be easily damaged by it. We recommend protecting these components with cond
uctive anti-static bags when you store or transport them.
Always use an anti-static strap or wristband and remove electrostatic buildup or dissipate
static electricity from your body before repairing ESDs.
Ensure that soldering irons have AC adapter with ground wires and that the ground wires are
properly connected.
Use only desoldering tools with plastic tips to prevent static discharge.
Properly shield the work environment from accidental electrostatic discharge before opening
packages containing ESDs.
The potential for static electricity discharge may be increased in low humidity environments,
such as air-conditioned rooms. Increase the airflow to the working area to decrease the
chance of accidental static electricity discharges.

2. Specification
2-1
2-1. GSM General Specification
GSM850 EGSM 900 DCS1800 PCS1900 WCDMA
2100
WCDMA
1900
WCDMA
1700
WCMDA
850
Freq.
Band[MHz]
Uplink/
Downlink
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
1922~1977
2112~2167
1852~1907
1932~1987
1710~1755
2110~2155
824~849
869~894
ARFCN
range 128~251 0~124 &
975~1023 512~885 512~810
UL:
9612~9888
DL:
10562~1083
8
UL:
9262~9538
DL:
9662~9938
UL:
1312~1513
DL:
1537~1738
UL:
4132~4233
DL:
4357~4458
Tx/Rx
spacing 45MHz 45MHz 95MHz 80MHz 190MHz 80MHz 400MHz 45MHz
Mod. Bit
rate/
Bit Period
270.833kbp
s
3.692us
270.833kbp
s
3.692us
270.833kbp
s
3.692us
270.833kbp
s
3.692us
3.84Mcps 3.84Mcps 3.84Mcps 3.84Mcps
Time Slot
Period/
Frame
Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSKHQPS
K
QPSKHQPS
K
QPSKHQPS
K
QPSKHQPS
K
MS Power 33dBm~5dB
m
33dBm~5dB
m
30dBm~0dB
m
30dBm~0dB
m
24dBm~
-50dBm
24dBm~
-50dBm
24dBm~
-50dBm
24dBm~
-50dBm
Power
Class
5pcl ~
19pcl 5pcl ~19
pcl 0pcl ~15 pcl 0pcl ~15 pcl 3(max+24dB
m)
3(max+24dB
m)
3(max+24dB
m)
3(max+24dB
m)
Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -106.7dBm -106.7dBm -106.7dBm
TDMA Mux 8 8 8 8 8888
Cell Radius 35Km 35Km 2Km 2Km 2Km 2Km 2Km 2Km

Specification
2-2
2-2. GSM Tx Power Class
TX Power
control
level
GSM850
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

3. Operation Instruction and Installation
3-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Main Function
•Android OS: IceCreamSandwitch
•5
MP AF with LED Flash
•10.1
WXGA TFT Full Touch (C-Type)
•A-GPS /BT v4.0 USB v2.0 /WiFi (802.11 a/b/g/n) 2.4+5GHz
•Recording 720p / Playback 1080p
•Sensors: Accelation, Magnetic, Gyro, Light
•Additional :
-1.4
GHz Quad Core CPU
-Application store /Voice &Motion UI
-Multi-touch, Multi-task manager

4. Exploded View and Parts List
4-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

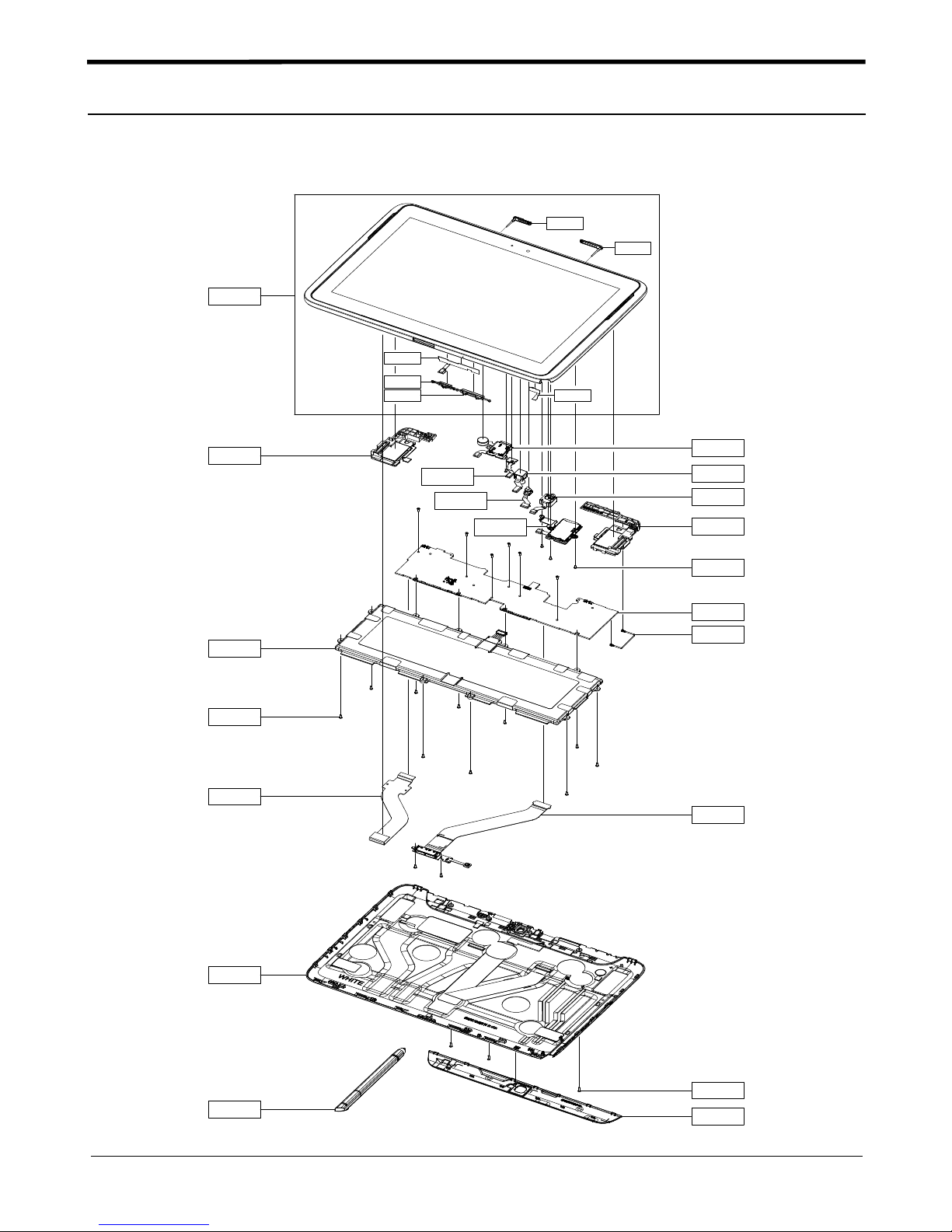

4-1. Cellular phone Exploded View
QFR01
QSP01
QBA01
QCR72
QME16
QBC00
QST01
QVK03
QCA02
QSM02 QSP02
QCR47
QCB01
QME02
QCR67
QBC01
QMP01
QCA01
QSM01
QJK01
QVK01
QSD01
QRF06
QCK02
QVK02
QVO01

5. MAIN Electrical Parts List
5-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
SEC CODE Design LOC Description
0403-001688 D505,ZD700 USFZ5.6V-RTK/H
0404-001172 D700 RB520S-30
0404-001669 D800 PMEG6020EPA
0406-001239 D500,D501,D502 RCLAMP0502B_TCT
0406-001267 ZD101 RCLAMP0521P
0406-001375 D503,D504,ZD501 UCLAMP0501T
0406-001375 ZD502,ZD505,ZD701 UCLAMP0501T
0406-001413 ZD300,ZD301,ZD302 PESD5V0F1BL
0406-001413 ZD303,ZD304,ZD305 PESD5V0F1BL
0406-001413 ZD306,ZD307,ZD308 PESD5V0F1BL
0406-001413 ZD309,ZD400,ZD401 PESD5V0F1BL
0406-001413 ZD404,ZD405,ZD406 PESD5V0F1BL
0406-001413 ZD407,ZD408,ZD409 PESD5V0F1BL
0406-001413 ZD503,ZD504 PESD5V0F1BL
0406-001505 D400,D401,ZD402 PESD5V0X1UALD
0406-001505 ZD403,ZD500 PESD5V0X1UALD
0504-001113 Q6000,TR700 DTC144EM
0504-001171 Q500 DTC114YM
0505-002341 Q701 SI1013X-T1-GE3
0505-002384 Q800 PMR280UN
0505-002720 TR701,TR702 SI7615DN-T1-GE3
0505-002748 Q700 FDMC510P
0505-003052 U704 NTJD4158C
0801-003437 U300 NL17SG32P5T5G
0801-003444 U112 74LVC1G02GM
0902-002950 UCP6000 SC54412ACB-A030
0903-001784 U906 UPD78F0514AGAA-GAM-G
0903-001815 U1004 MXT1664S
1001-001635 U500 FSA2259UMX
1001-001650 U405 DG2750DN-T1-E4
1001-001700 U504 FSUSB63UMX
1001-001733 U107 SKY13397-388LF
1003-002132 U503 ST2G3236QTR
1003-002216 U900,U901 NLSX4373MUTAG
1003-002277 U1005 ISA1200
1003-002430 U1000 NLSX5012MUTAG

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-2
SEC CODE Design LOC Description
1003-002469 U1103 FXMA2102UMX
1105-002329 UME300 W949D6CBHX51
1107-002134 UME6000 KLMAG2GE4A-A002
1201-003308 U200 SKY65702-11
1201-003406 U108 SKY77604-31
1202-001121 U404,U501 NCX2220GM
1203-004776 U902 RP103K331D-TR
1203-004818 U1001 RP103K181D-TR
1203-004819 U1003,U400,U403,U903 RP103K281D-TR
1203-005069 U508 MIC5235-5.0YM5
1203-005599 U803 LM2757TMX
1203-005831 U113 RP152L010B-TR
1203-006044 U1002 RT8517GQW
1203-006346 U708 FT8010MPX
1203-006392 U701 MAX17042G-T
1203-006766 U505 NCP367OPMUEOTBG
1203-006768 U801 TPS63010YFFR
1203-006794 U502 MAX8627ETD-T
1203-006801 U101 RF6590
1203-006862 U907 KTD267
1203-006874 U1104 RP154L006A-E2
1203-006920 U802 LP8553TLX
1203-006985 U110 LM3242
1203-007169 U702 SMB347S
1203-007322 U700 MAX77686EWE+T
1203-007324 U1105 RP114K121D-TR
1204-003387 U804 MC96FR332AUB-T
1205-003611 U6000 TPS22922YFPR
1205-003692 U402 STMPE811QTR
1205-004233 U1101 SII9244BO
1205-004242 U908 W8008
1205-004313 U800 DTC34LM85AM
1205-004396 U201 BCM47511IUB2G
1205-004474 U509 FPF1048BUCX
1205-004509 U401 WM1811AECS
1205-004511 UCP300 PMB9811C

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-3
SEC CODE Design LOC Description
1205-004515 U105 PMB5712A2
1209-002006 U103 TS01S
1209-002041 U1100 AK8975C
1209-002045 U100 K3DHTR
1209-002149 U1102 LSM330DLC
1404-001728 TH300,TH6000,TH6001 NCP03WB473J05RL
2007-000138 R137,R422 RC1005J101CS
2007-000140 R528,R529,R6051 RC1005J102CS
2007-000140 R6052 RC1005J102CS
2007-000141 R907,R908 RC1005J222CS
2007-000143 R1103,R1104,R302 RC1005J472CS
2007-000143 R303,R707,R828,R829 RC1005J472CS
2007-000148 R706,R903,R904 RC1005J103CS
2007-000162 R724,R909 RC1005J104CS
2007-000163 R822 RC1005J124CS
2007-000164 R510,R511 RC1005J154CS
2007-000165 R513,R515 RC1005J204CS
2007-000167 R504 RMC16S-394J-TP
2007-000170 R1018,R509,R535 RC1005J105CS
2007-000174 R902,R906 MCR01MZP5J470
2007-000758 R112,R719,R720 RC1005J334CS
2007-000775 R102 RC1005J333CS
2007-001217 R801,R802,R803,R804 MCR01MZP5J820
2007-001217 R806,R809,R810,R811 MCR01MZP5J820
2007-001217 R812,R814 MCR01MZP5J820
2007-001292 R901,R905 RC1005J330CS
2007-002796 R130 MCR01MZP5J511
2007-003010 R530,U507 RC1005J200CS
2007-003015 R532,R534 MCR01MZP5J2R2
2007-007092 R531 RC1005J112CS
2007-007107 R304 RC1005F1003CS
2007-007131 R1011 RC1005F133CS
2007-007132 R933 RC1005F153CS
2007-007136 R6077 RC1005F472CS
2007-007137 R401 MCR01MZP5F1201
2007-007142 R1013,R1017 RC1005F103CS

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-4
SEC CODE Design LOC Description
2007-007156 R132,R315,R418,R419 RC1005J1R0CS
2007-007156 R506,R512 RC1005J1R0CS
2007-007310 R500 MCR01MZP5F8201
2007-007312 R6086,R6087 MCR01MZP5F2002
2007-007489 R1012 RK73H1ETP1503F
2007-007517 R6045,R6046,R6084 MCR01MZP5F2400
2007-007517 R6085 MCR01MZP5F2400
2007-007538 R1010 RK73H1ETP5602F
2007-007573 R413 RK73H1ETP3303F
2007-007592 R505 RK73H1ETP2703F
2007-007627 R824 RK73H1ETP1602F
2007-007741 R1003,R1004,R1008 M5534204B10E0R
2007-007741 R1108,R1111,R6048 M5534204B10E0R
2007-007741 R6059 M5534204B10E0R
2007-007766 R503 RK73H1ETP2001F
2007-007942 R414,R416,R6021 RC-1005F105CS
2007-007981 R1016,R934 ERJ2RKF1803X
2007-008040 R1001 ERJ1GEJ470X
2007-008043 R119 MCR006YZPJ820
2007-008045 R318,R502,R726,R735 ERJ1GEJ101C
2007-008045 R920,R921,R922,R923 ERJ1GEJ101C
2007-008045 R924,R925,R926,R927 ERJ1GEJ101C
2007-008045 R928 ERJ1GEJ101C
2007-008048 R1112,R1113,R209 ERJ1GENJ201X
2007-008052 R1106,R322,R6029 ERJ1GENJ472X
2007-008052 R6030,R6055,R6056 ERJ1GENJ472X
2007-008052 R6082 ERJ1GENJ472X
2007-008055 R1020,R325,R522,R533 ERJ1GENJ104X
2007-008055 R536,R6023,R6060 ERJ1GENJ104X
2007-008055 R6067,R6070,R6076 ERJ1GENJ104X
2007-008055 R6078,R6079,R6080 ERJ1GENJ104X
2007-008055 R6081,R721,R722,R723 ERJ1GENJ104X
2007-008055 R823,R913,R936,R937 ERJ1GENJ104X
2007-008057 R709,R711 MCR006YZPJ151
2007-008211 R521,R912,R916 MCR006YZPJ200
2007-008275 R507 MCR01MZP5F303

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-5
SEC CODE Design LOC Description
2007-008401 R415 RC1005F754CS
2007-008419 R919 ERJ1GEJ102C
2007-008420 R1000,R516,R517 RMC-1/20-330JPA
2007-008478 R6041,R6042,R6049 RMC1/20152JPA
2007-008478 R6050 RMC1/20152JPA
2007-008483 R210,R211,R212,R213 RMC1/20473JPA
2007-008483 R214,R310,R312,R313 RMC1/20473JPA
2007-008483 R314,R323,R518,R523 RMC1/20473JPA
2007-008483 R6027 RMC1/20473JPA
2007-008486 R701,R705 ERJ1GEJ204C
2007-008516 R1021,R1102,R1107 ERJ1GEJ103C
2007-008516 R135,R311,R408,R423 ERJ1GEJ103C
2007-008516 R424,R525,R526,R527 ERJ1GEJ103C
2007-008516 R6000,R6002,R6026 ERJ1GEJ103C
2007-008516 R6028,R6065,R6066 ERJ1GEJ103C
2007-008516 R6072,R6073,R6074 ERJ1GEJ103C
2007-008516 R6075,R6083,R727 ERJ1GEJ103C
2007-008516 R813,R817,R932 ERJ1GEJ103C
2007-008531 R6011 MCR006MZPJ0100
2007-008588 R305,R306,R307,R411 MCR006YZPJ222
2007-008588 R6022 MCR006YZPJ222
2007-008721 R820 RC1005F125CS
2007-008774 R1009 ERJ1GEJ2R2C
2007-008798 R704 MCR006YZPJ153
2007-008800 R6043,R6044 MCR006MZPF2002
2007-008806 R417,R420,R501,R519 RC0603J510CS
2007-008806 R520 RC0603J510CS
2007-008812 R821 RC1005F2153CS
2007-008816 R403 MCR006MZPJ822
2007-009084 R1100,R702,R703,R830 MCR006YZPJ105
2007-009116 R120,R121 ERJ1GEJ910C
2007-009155 R326 MCR006YZPJ474
2007-009157 R6013,R6014,R6016 MCR006YZPF1003
2007-009157 R6017,R6018,R6047 MCR006YZPF1003
2007-009157 R917,R929,R931 MCR006YZPF1003
2007-009158 R1109,R1110 MCR006MZPF1503

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-6
SEC CODE Design LOC Description
2007-009168 R825 MCR006MZPJ563
2007-009170 R6038 MCR006YZPJ184
2007-009171 R6003,R6004,R6005 MCR006YZPJ513
2007-009171 R6006,R6007,R6008 MCR006YZPJ513
2007-009171 R6009,R6010 MCR006YZPJ513
2007-009182 R935 ERJ1GEF2203C
2007-009212 R400 MCR006YZPF1001
2007-009314 R105,R6024 MCR006MZPJ334
2007-009315 R301 RC0603J4R7CS
2007-009408 R6031,R6032,R6034 ERJ1GEF222C
2007-009408 R6035,R6036,R6037 ERJ1GEF222C
2007-009408 R6039,R6040,R6053 ERJ1GEF222C
2007-009408 R6054,R6057,R6058 ERJ1GEF222C
2007-009408 R6061,R6062,R6090 ERJ1GEF222C
2007-009408 R6091,R6092,R6093 ERJ1GEF222C
2007-009801 R115,R116 MCR006YZPF1000
2007-009964 R6071 MCR01MZP5F44R2
2007-010233 R320 RC1005F4021CS
2007-010856 R731 RUW2012FR010CS
2007-010883 R914,R915 ACR0402T12R0F
2203-000233 C109,C138,C211,C214 GRP1555C1H101J
2203-000233 C226,L111 GRP1555C1H101J
2203-000254 C1025,C135,C205,C778 GRP155R71C103K
2203-000254 C779,C783 GRP155R71C103K
2203-000278 C225,C935,C942 GRP1555C1H100D
2203-000386 C823,C824 GRP1555C1H150J
2203-000438 C915 GRP155R71H102K
2203-000489 C6060 GRP155R71H222K
2203-000627 C208 GRM1555C1H220J
2203-000714 C6061,C6062 04025C332KAT2A
2203-000725 C1028 GRP155R71H392KA01E
2203-000812 C821 GRP1555C1H330J
2203-000854 C808 GRP1555C1H390J
2203-000995 C776,C781,C782 GRP1555C1H470J
2203-001437 C140,C2107 CM05X7R050C50AT
2203-002687 C763,C766,C775,C780 GRP155R71H122KD01E

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-7
SEC CODE Design LOC Description
2203-002709 C1104,C1105,C917 C1005Y5V1C104ZT
2203-002709 C921,C926,C930,C931 C1005Y5V1C104ZT
2203-002709 C932,C937,C941 C1005Y5V1C104ZT
2203-005682 C139,C206,C343,C345 GRP0335C1E330JD01E
2203-005682 C346 GRP0335C1E330JD01E
2203-005683 C144,C196 GRP0335C1E8R0DD01E
2203-005717 C705 GRP0335C1E270JD01E
2203-005725 C228,C706 GRP0335C1E220JD01E
2203-005726 C143 GRM0335C1E560J
2203-005727 C219 CL03C120JA3GNNC
2203-005729 C400,C401,C406,C407 CL03C150JAGC
2203-005731 C2101,C449,C6057 GRM0335C1E180J
2203-005731 C6058 GRM0335C1E180J
2203-005732 C404,C405,C408 GRP0335C1E680JD01E
2203-005734 C410,C418,C419,C420 GRM0335C1E820JD01D
2203-005734 C421,C447,C448 GRM0335C1E820JD01D
2203-005736 C162 GRP0335C1E101JD01E
2203-005789 C147,C148 ECJZEC1E0R5B
2203-005806 C156,C417 GRP033R71C102KD01E
2203-006047 C772 C1005X7R1C333K
2203-006048 C1031,C136,C510 GRM155R71A104K
2203-006048 C6063,C784,C903,C904 GRM155R71A104K
2203-006048 C905,C906,C911 GRM155R71A104K
2203-006121 C826 GRM33X7R471K16PT
2203-006190 C6030 GRM155R60J224KE01E
2203-006194 C152,C167,C301,C302 GRP033R70J103KA01E
2203-006194 C800 GRP033R70J103KA01E
2203-006305 C220,C514,C515 CM03CG100J25AH
2203-006318 C146 GRP0335C1E1R2CD01
2203-006324 C938 GRM188R61A225KE19D
2203-006379 C157 GRP033R70J472KA01
2203-006399 C104,C119,C344,C403 GRM155R60J105KE19D
2203-006399 C409,C441,C442,C802 GRM155R60J105KE19D
2203-006399 C803 GRM155R60J105KE19D
2203-006423 C1000,C1001,C1003 GRM33X5R104K6.3
2203-006423 C1004,C1005,C1006 GRM33X5R104K6.3

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-8
SEC CODE Design LOC Description
2203-006423 C1007,C1008,C101 GRM33X5R104K6.3
2203-006423 C1014,C1017,C102 GRM33X5R104K6.3
2203-006423 C103,C110,C1107 GRM33X5R104K6.3
2203-006423 C1108,C1110,C1112 GRM33X5R104K6.3
2203-006423 C1114,C1119,C1121 GRM33X5R104K6.3
2203-006423 C1124,C131,C132,C134 GRM33X5R104K6.3
2203-006423 C163,C168,C170,C209 GRM33X5R104K6.3
2203-006423 C210,C300,C303,C304 GRM33X5R104K6.3
2203-006423 C306,C307,C311,C314 GRM33X5R104K6.3
2203-006423 C315,C317,C319,C320 GRM33X5R104K6.3
2203-006423 C321,C322,C325,C326 GRM33X5R104K6.3
2203-006423 C328,C329,C330,C333 GRM33X5R104K6.3
2203-006423 C334,C335,C342,C347 GRM33X5R104K6.3
2203-006423 C505,C506,C6000 GRM33X5R104K6.3
2203-006423 C6002,C6005,C6009 GRM33X5R104K6.3
2203-006423 C6015,C6026,C6029 GRM33X5R104K6.3
2203-006423 C6047,C6048,C6059 GRM33X5R104K6.3
2203-006423 C700,C701,C704,C817 GRM33X5R104K6.3
2203-006423 U6042 GRM33X5R104K6.3
2203-006562 C1013,C1015,C1021 CV05X5R105K10AH
2203-006562 C1022,C1024,C171 CV05X5R105K10AH
2203-006562 C2103,C2104,C402 CV05X5R105K10AH
2203-006562 C414,C502,C6066 CV05X5R105K10AH
2203-006562 C6067,C703,C764,C785 CV05X5R105K10AH
2203-006562 C801,C815,C818,C819 CV05X5R105K10AH
2203-006562 C900,C901,C902,C916 CV05X5R105K10AH
2203-006562 C933 CV05X5R105K10AH
2203-006642 C6016,C6018,C6022 GRM033R71E331KA01D
2203-006647 C105,C106,C107,C112 GRM033R60J473KE19D
2203-006648 C159 GRM033R60J223KE01D
2203-006668 C825 GRM033R61A222K
2203-006681 C811 GRM155F51E104ZA01D
2203-006815 R117,R118 GRM033R70J682K
2203-006824 C195 CV105X5R475K10AT
2203-006839 C1115,C1117,C150 CL03A104KP3NNNC
2203-006839 C154,C155,C169,C172 CL03A104KP3NNNC

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-9
SEC CODE Design LOC Description
2203-006839 C222,C424 CL03A104KP3NNNC
2203-006841 C1009,C508,C771 CV05X5R105K16AH
2203-006844 C812,C814,C936 CV05X5R474K10AH
2203-006872 C1023,C1030,C108 GRM155R60J225ME15D
2203-006872 C1106,C1109,C1111 GRM155R60J225ME15D
2203-006872 C1113,C126,C200,C201 GRM155R60J225ME15D
2203-006872 C202,C203,C426,C438 GRM155R60J225ME15D
2203-006872 C439,C440,C6001 GRM155R60J225ME15D
2203-006872 C6008,C6014,C6027 GRM155R60J225ME15D
2203-006872 C6028,C6034,C6038 GRM155R60J225ME15D
2203-006872 C6045,C6046,C6049 GRM155R60J225ME15D
2203-006872 C726,C727,C731,C733 GRM155R60J225ME15D
2203-006872 C740,C744,C745,C746 GRM155R60J225ME15D
2203-006872 C752,C753,C822,C907 GRM155R60J225ME15D
2203-006872 C910,C912,C913,C922 GRM155R60J225ME15D
2203-006872 C923 GRM155R60J225ME15D
2203-006979 C127,C142 CL03B103KP3NNNC
2203-007133 C511 CL21A106KOCLRNC
2203-007210 C124,C305,C310,C312 CV03X5R224K06AH
2203-007210 C316,C318,C323,C327 CV03X5R224K06AH
2203-007210 C331,C332,C336,C348 CV03X5R224K06AH
2203-007210 C702 CV03X5R224K06AH
2203-007240 BAT700,C755,C756 CL10A226MQ8NRNE
2203-007240 C757,C758,C759 CL10A226MQ8NRNE
2203-007269 C337,C338,C786 CL21A226MPCLRNC
2203-007270 C1102,C1103,C115 CL10A106KP8NNNC
2203-007270 C182,C765,C767,C768 CL10A106KP8NNNC
2203-007270 C805,C809,C810 CL10A106KP8NNNC
2203-007271 C1016,C1019,C1020 CL05A225KP5NSNC
2203-007271 C151,C204,C207,C509 CL05A225KP5NSNC
2203-007271 C934 CL05A225KP5NSNC
2203-007279 C770,C773,C939 CV105X5R106M10AT
2203-007317 C123,C128,C129,C130 CV05X5R475M06AH
2203-007317 C224,C340,C427,C428 CV05X5R475M06AH
2203-007317 C431,C437,C6003 CV05X5R475M06AH
2203-007317 C6006,C6010,C6042 CV05X5R475M06AH

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-10
SEC CODE Design LOC Description
2203-007317 C720,C722,C723,C724 CV05X5R475M06AH
2203-007317 C750,C751,C754,C760 CV05X5R475M06AH
2203-007342 C1029,C707,C708,C709 CV05X5R225M10AH
2203-007342 C710,C711,C717,C820 CV05X5R225M10AH
2203-007342 C908 CV05X5R225M10AH
2203-007385 C100,C1100,C1101 CL05A106MR5NRNC
2203-007385 C1116,C6031,C6035 CL05A106MR5NRNC
2203-007385 C6039,C6064 CL05A106MR5NRNC
2203-007392 C1026,C1027 CL05A225KO5NQNC
2203-007393 C113,C153,C164,C769 CL05A475KP5NRNC
2203-007393 C804,C914,C940 CL05A475KP5NRNC
2203-007425 C761,C762 CL10A225KA5LNNC
2203-007449 C1002,C1122,C1123 CL03A105MQ3CSNH
2203-007449 C1125,C1126,C125 CL03A105MQ3CSNH
2203-007449 C2102,C2105,C2106 CL03A105MQ3CSNH
2203-007449 C324,C425,C429,C430 CL03A105MQ3CSNH
2203-007449 C433,C434,C445,C507 CL03A105MQ3CSNH
2203-007449 C6004,C6007,C6011 CL03A105MQ3CSNH
2203-007449 C6012,C6013,C6017 CL03A105MQ3CSNH
2203-007449 C6019,C6020,C6021 CL03A105MQ3CSNH
2203-007449 C6024,C6025,C6032 CL03A105MQ3CSNH
2203-007449 C6033,C6036,C6037 CL03A105MQ3CSNH
2203-007449 C6040,C6041,C6043 CL03A105MQ3CSNH
2203-007449 C6044,C718,C725,C728 CL03A105MQ3CSNH
2203-007449 C729,C730,C732,C734 CL03A105MQ3CSNH
2203-007449 C735,C736,C737,C738 CL03A105MQ3CSNH
2203-007449 C739,C741,C742,C743 CL03A105MQ3CSNH
2203-007449 C747,C748,C749,C788 CL03A105MQ3CSNH
2203-007449 C816 CL03A105MQ3CSNH
2203-007634 C512,C513 CL21A105KBCLNNC
2203-007775 C423,C719,C721 CV05X5R475M10AH
2203-007781 C500,C501,C503,C504 CL10A226MP8NUNE
2203-007781 C774,C777,C787 CL10A226MP8NUNE
2203-007790 C807,C813 UMK316ABJ475KD-T
2203-007795 C221,C308,C309,C313 CL05A106MP5NUNC
2203-007795 C712,C713,C714,C715 CL05A106MP5NUNC

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-11
SEC CODE Design LOC Description
2203-007795 C716 CL05A106MP5NUNC
2203-007796 C1120,C435,C436,C443 CL03A105MP3NSNC
2203-007796 C444,C6051,C6052 CL03A105MP3NSNC
2203-007796 C806 CL03A105MP3NSNC
2203-008097 C1010,C1011,C1012 CL03A104KA3NNNC
2203-008097 C1018 CL03A104KA3NNNC
2203-008243 C1118 CL03A103KA3NNNC
2404-001596 TA400 F950J107MPAAQ2
2409-001232 TA700 TCJH157M006R0200
2703-001178 R202 LL1005-FH3N3S
2703-002198 L205 CIH05T10NJNC
2703-002204 C213 CIH05T22NJNC
2703-002268 C212 CIH05T8N2JNC
2703-002281 L136 CIH05T5N6SNC
2703-002313 L109,L137 CIH05TR10JNC
2703-002369 C227 CIH05T1N5SNC
2703-002596 L103,L106 LQW15AN15NH00D
2703-002900 L120 LLV0603-F27NJ
2703-002901 L113 LLV0603-F15NJ
2703-002953 C216 CIH03T18NJNC
2703-002999 L119 CIH03T22NJNC
2703-003347 L904 CIG22L1R0MNE
2703-003479 C217 LQG15HSR10J02D
2703-003485 L1002 CIG22L100MNE
2703-003687 L700,L707,L708,L709 CIG21L1R0MNE
2703-003755 L102,L104,L105 MIPSZ2012D4R7-SS
2703-003869 L302,L303 LQM2HPN3R3MGCL
2703-003911 L500 CIG22H1R0MNE
2703-003913 L800 CIG22H2R2MNE
2703-003916 C215 CML0306-3N9-BNH
2703-003939 L801 PLF5020T-6R8M1R8
2703-004000 L101 LQP03TN47NJ02D
2703-004013 C133,C145 LQP03TN1N8B02D
2703-004014 L114,L123 LQP03TN1N2B02D
2703-004034 L121,L122 LQP03TN1N0B02D
2703-004035 L134 LQP03TN3N3B02D

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-12
SEC CODE Design LOC Description
2703-004037 L107,L115,L118 LQP03TN2N7B02D
2703-004185 L132 CIG21LR47MNE
2703-004244 L711 PLF5018T-1R0M
2703-004338 L203 LQM18PN2R5ND0D
2703-004373 L407,L408,L409,L410 1269AS-H-1R0N-P2
2703-004373 L701,L702,L703,L704 1269AS-H-1R0N-P2
2703-004373 L705,L706,L710 1269AS-H-1R0N-P2
2801-004449 OSC900 SQ3D01600B2HBA
2801-004543 OSC800 DSX321G(12MHZ,10PPM)
2801-005051 OSC201 FA-128-37.4MHZ
2801-005157 OSC700 TFX-03
2801-005163 OSC6000 SQBD02400D2JCG
2809-001369 OSC100 DSA221SCL
2809-001374 OSC200 KT2520F26000ACW18TAK
2901-001625 F800 ICMEF112P900MFR
2901-001634 F902,F903,F904 ICMEF112P500MFR
2901-001647 F801,F802,F901 ICMEF214P101MFR
2904-001988 F200 SAFEA1G58KA0F00
2910-000126 F100 SAPHU836MAD0F00
2911-000191 U106 SKY18106-455LF
3301-001659 L201 BLM15AG601SN1
3301-001729 L1100,L1101 BLM15AG102SN1D
3301-001812 L204 BLM15HD102SN1
3301-001885 L404,L405 BLM15HD182SN1D
3301-001901 L1000,L1001 BLM18EG221SN1D
3301-001929 L200,L406,L411 BLM15AG100SN1D
3301-001956 L300,L301 BLM21PG220SN1D
3301-002037 L900,L901 BLM18KG601SN1
3301-002062 L100 BLM18HE102SN1D
3301-002065 L400,L401,L402,L403 MMZ1005A182ET
3301-002065 L412,R800 MMZ1005A182ET
3301-002066 L902 MMZ1005S102ET
3705-001448 CN200 20369-001E
3705-001731 RFS100 KMS-560-002-BEF
3708-002015 CN800,CN801 04-6298-706-000-883
3708-002183 SLC800 FF12-45A-R12BN-D3

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-13
SEC CODE Design LOC Description
3708-002278 SLC500 FF12-51A-R12BN
3708-002781 CN900,SLC1000 FF10-80A-R12B-D3
3711-006615 HDC301,HDC302,HDC400 AXT610124AW1
3711-006615 HDC401,HDC402,HDC500 AXT610124AW1
3711-006852 HDC900 AXT624124AW1
3711-006919 HDC901 AXT620124AW1
3711-006923 HDC902,HDC903 14-5802-016-002-829
3711-007173 HDC300,HDC6000 AXE612124
3711-007494 BTC700 202-02970-00518
3712-001348 ANT102,ANT103,ANT200 HJ-ICT-05Y
3712-001348 ANT201 HJ-ICT-05Y
4709-002135 U202 LBEH5DKVMC-534TEMP
GH70-07980A SC102 SHIELDCAN-GTP7560-RF
GH80-03320A R1019,R133,R136,R138 PB-SHORT-1005
GH80-03320A R203,R538,R714 PB-SHORT-1005
GH80-03321A R1007,R1014,R201 PB-SHORT-0603
GH80-03321A R206,R316,R412,R827 PB-SHORT-0603
GH98-20254A SC100 SHIELDCAN-GTP7500-GPS
