1. Essential functions
- 15.4" Wide display,
Internal Camera, HDMI
2. New Technology
- Intel Santarosa, MS Vista
nVIDIA Geforce 8000 series

- Contents -
1. Precations
1) General After-Sales Service Precautions -------------------------- 1-1
2) Safety Precautions ---------------------------------------------------------- 1-2
3) Ground -------------------------------------------------------------------------- 1-3
4) Static Electricity Precautions ------------------------------------------- 1-3
2. Introduction and Specification
1) Introduction ------------------------------------------------------------------- 2-1
2) Specification ------------------------------------------------------------------ 2-2
3) Specification comparison between R55 and R70. ------------- 2-8
4) Option list --------------------------------------------------------------------- 2-9
5) New Added Function ------------------------------------------------------- 2-12
6) System Setup (BIOS Setup) --------------------------------------------- 2-17
7) Mainboard part Description ----------------------------------------------- 2-25
3. Disassembly and Reassembly
1) Disassembly and Reassembly R70 ---------------------------------- 3-1
4. Troubleshooting
1) General ------------------------------------------------------------------------- 4-1
2) Debugging Flow Chart ----------------------------------------------------- 4-2
3) System Diagnosis ----------------------------------------------------------- 4-5
4) Hardware Troubleshooting ----------------------------------------------- 4-9
5) Driver and Application SW List----------------------------------------- 4-17
6) CPU Fan Control ------------------------------------------------------------ 4-18
7) Battery Use Time ----------------------------------------------------------- 4-19
8) etc --------------------------------------------------------------------------------- 4-24
5. Exploded view
1) Exoloed view of R70 ------------------------------------------------------- 5-1
6. Material List
1) Material List--------------------------------------------------------------------- 6-1
7. System Wire Diagram
1) System Wire Diagram ------------------------------------------------------ 7-1
8. Block Diagram and Schematic
1) Block Diagram ---------------------------------------------------------------- 8-2
2) Schematic ---------------------------------------------------------------------- 8-1
- This Document can not be used without Samsung's authorization -

2- 1
2. Introduction and Specification
1) Instroduction
(1) High Performance Note PC
- High Performance with Intel Core 2 Duo Processor and DDR II Memory
- New nVIDIA PCI-Express Graphics
- New Intel Santarosa Platform
- Wireless network function with Wireless LAN (Option), Bluetooth (Option)
(2) Convenient Function
- Easy use of picture and moving image through Internal Camera (Option)
- Convenient connection with TV with HDMI port
(3) Prudent Design for easy use.
- Use of Various memory card through Multi card slot (Home model only)
- Good feeling and design through the Flat type touchpad.
- This Document can not be used without Samsung's authorization -

2- 2
2. Introduction and Specification
2) Specification
Processor and Motherboard Description
CPU Intel® Core 2 Duo T7100 (1.86GHz) ~ T7700 (2.4G) and All CPU at
Q4'07.35W (64bit)
Speed
T7100 : 1.86GHz
T7300 : 2.0GHz
T7500 : 2.2GHz
T7700 : 2.4GHz
Cache 4MB/2MB L2 Cache in Merom
Chipset Intel PM965+ ICH8M
BIOS 8 Mbit, Flash upgradable, SPI type
Thermal Design Performance MAX. 35W
Memory
Memory/Max.Memory 512MB ~ 4GB
Memory type PC2-4200(533MHz) / PC2-5300(667MHz) DDR2 SODIMM
Memory Modules 512MB, 1GB, 2GB SODIMM
Sockets 2-slot SODIMM's
Display and Graphics
LCD 15.4" WXGA / WSXGA+ (200nits 이상, Glare only)
LCD Vendor Samsung AMLCD WXGA (LTN154X3-L03-C)
Samsung AMLCD WSXGA+ (LTN154P4-L02-G)
15.4" WXGA
LCD Viewable Area 331.2 x 207.0mm (HxV)
LCD Resolution 1280 x 800 x 262,144 color ( 18 bit )
Dot Pitch 0.25875 x 0.25875mm (HxV)
Viewing angle Hor. +45/-45,Ver. +15/-30
Contrast Ratio min.300 (CR)
Brightness min.175, typ.200(cd/m2)
Response time (Rising + Falling) typ.25ms / max.35ms
15.4" WSXGA+
LCD Viewable Area 331.38 x 207.1125mm (HxV)
LCD Resolution 1680 x 1050 x 262,144 color ( 18 bit )
Dot Pitch 0.19725 x 0.19725mm (HxV)
Viewing angle Hor. +65/-65,Ver. +50/-50
Contrast Ratio typ.300 (CR)
Brightness min.170, typ.200(cd/m2)
Response time (Rising + Falling) typ.25ms / max.35ms
- This Document can not be used without Samsung's authorization -

2- 3
2. Introduction and Specification
Graphics Controller
Factory option
NVIDIA GeForce 8600M GS (Physical 256MB + TurboCache )
NVIDIA GeForce 8400M GS (Physical 128MB + TurboCache)
NVIDIA External GFx NVIDIA GeForce 8400M GS, 8600M GS.
Video Memory NVIDIA GeForce 8600M GS (Physical 256MB + TurboCache )
NVIDIA GeForce 8400M GS (Physical 128MB + TurboCache)
Max.Resolution for LFP
LVDS 1680 * 1050 x 18Bits color (WSXGA+)
Max.Resolution for External
Monitor 2048 x 1536 @85HZ (CRT)
Audio
Sound High Definition Audio
Controller HD Audio Codec, ALC262
Conversion Built-in high performance 20-bit ADC & 24-bit DAC
Internal Interfaces Embedded 2 stereo speakers, Internal microphone
Speaker Power Rating 2 Speakers x 2 Watt with enclosure each
External Interfaces Microphone, Headphone, S/PDIF for HDMI
Controls Keyboard volume control, SRS enable / disable
Microphone Mono Microphone
Microphone Mono
Sensitivity -44dB
Output Impedance 2.2KΩ
Storage
Hard Disk Drive 9.5mmH 2.5" HDD, Removable
Supports SMART Ultra DMA 33/66/100, DMA Mode 2/4 ; SATA
Average Access Time 13m sec.
Speed 5400 / 7200 RPM , Hybrid HDD, TMR/PMR Type
Capacity
80GB / 100GB / 120GB / 160GB / 2000GB / 250GB : HGST, Hitachi,
Samsung
- 80 ~ 250 GB SATA 5400rpm
- 80 ~ 200 GB SATA 7200rpm
- 80 ~ 160GB SATA 5400rpm, Hybride + 256MB
- 120 ~ 250GB SATA 5400rpm, Hybride + 5126MB
- This Document can not be used without Samsung's authorization -

2- 4
2. Introduction and Specification
Optical Disk Drive DVD / Combo / Super Multi DL & w/LightScribe (12.7mm/PATA)
Blueray / HD-DVD
Type Fixed type (Factory Option)
S/W supplied Cyberlink DVD Solution
Security RPC-II Regional Encoding
Optical Driver Modules
Combo Drive 1 Factory Option
Module type Fixed 12.7mm Slim
Speed 8x DVD-ROM, 24x RW, 24x CD-R : TSST, TS-L332A
Average Access Time DVD 130ms Typ, CD 130ms Typ
Weight 176g or less
S/W Supplied Cyberlink DVD Solution
Security RPC-II Regional Encoding
Combo Drive 2 Factory Option
Module type Fixed 12.7mm Slim
Speed 8x DVD-ROM, 24x RW, 24x CD-R, 24x CD : TSST, TS-L462D
Average Access Time DVD 130ms Typ, CD 130ms Typ,.
Weight 176g or less
S/W supplied Cyberlink DVD Solution
Security RPC-II Regional Encoding
SuperMultiDualLayer1 Factory Option
Module type Fixed 12.7mm Slim
Speed 5x DVD-RAM, 8x DVD±R 2.4x DVD+R DL, 4x DVD±RW, 24x CD-R,
16x CD-RW, 8x DVD, 24x CD : Panasonic UJ-850
Average Access Time DVD 130ms Typ., CD 130ms Typ.
Weight 190g or less
S/W supplied Cyberlink DVD Solution
Security RPC-II Regional Encoding
SuperMultiDualLayer2 Factory Option
Module type Fixed 12.7mm Slim
Speed 5x DVD-RAM, 8x DVD±R, 6x DVD±R DL, 8x DVD+RW, 6x DVD-RW,
24x CD-R/RW, 8x DVD, 24x CD : TSSTTS-L632D
Average Access Time DVD 130ms Typ., CD 130ms Typ.
Weight 180g or less
S/W supplied Cyberlink DVD Solution
Security RPC-II Regional Encoding
- This Document can not be used without Samsung's authorization -

2- 5
2. Introduction and Specification
Super MultiDual Layer 3 Factory Option
Module type Fixed 12.7mm Slim
Speed 5x DVD-RAM, 8x DVD±R, 6x DVD±R DL, 8x DVD+RW, 6x DVD-RW,
24x CD-R/RW, 8x DVD, 24x CD : TeacDV-W28EC
Average Access Time DVD 130ms Typ., CD 130ms Typ.
Weight 180g or less
S/W supplied Cyberlink DVD Solution
Security RPC-II Regional Encoding
Super MultiDual Layer
Lightscribe Factory Option
Module type Fixed 12.7mm Slim
Speed 5x DVD-RAM, 8x DVD±R, 6x DVD±R DL, 8x DVD+RW, 6x DVD-RW,
24x CD-R/RW, 8x DVD, 24x CD : TSST TS-L632M
Average Access Time DVD 130ms Typ., CD 130ms Typ.
Weight 180g or less
S/W supplied Cyberlink DVD Solution
Security RPC-II Regional Encoding
Network Tools
Fax/Modem 56Kbps / V.92 Azalia Modem, DELPHI (D40) (Factory Opeion)
Chipset CSP1040 AGR A3 & A3 5V1
Features RJ11 Output
LAN 10/100 Ethernet (Factory option)
Chipset Marvell 88E8039
Features RJ45 Output
LAN 1Gb Ethernet (Factory option)
Chipset Marvell 88E8055
Features RJ45 Output
802.11g Wireless LAN Intel PRO/Wireless 3945BG:
Intel 802.11b/g
Type Mini card (Factory Option)
Chipset Golan
Antenna Integrated 2 Antenna
802.11a/g Wireless LAN Intel PRO/Wireless 3945ABG:
Intel 802.11a/b/g
Type Mini card (Factory Option)
Chipset Golan
Antenna Integrated 2 Antenna
802.11a/g/n Wireless LAN Intel PRO/Wireless 3945ABGN:
Intel 802.11a/b/g/n
Type Mini card (Factory Option)
Chipset Kedron
Antenna Integrated 3 Antenna
- This Document can not be used without Samsung's authorization -

2- 6
2. Introduction and Specification
Bluetooth BCM92045NMD : Factory Option
Type USB daughter card with integrated PIFA antenna
Chipset Broadcom BCM2045
Standard version 2.0
I/O Interface
PC CardBus Slots 1 PCMCIA Type II slot
Controller Ricoh R5C843
Support 32bit CardBus cards
I/O Ports
USB Port 3(USB2.0)
Video (CRT) Port 1
Audio Jacks HeadPhone-out, MIC-in
Modem / LAN RJ11, RJ45
Power 1(5pie)
HDMI Port (New) 1 (High Definition Multimedia Interface)
Input Devices
Key board 88key : US,KOR,RUSSIA,UKRINA,THAI
89KEY:UKFRA,GER,SPAIN,SWISS,PORTUGAL
Travel length 2.6mm/ Key Pitch 19.05mm
Touchpad Synaptics Touchpad (Plat type with Scroll area)
Easy Button Vista : Hot start, XP : AVS
Multi Memory Card Slot
Controller R5C843
Type Memory stick / Memory stick pro / SD / xD / MMC (High speed MMC)
- This Document can not be used without Samsung's authorization -

2- 7
2. Introduction and Specification
Power and Power
Management
Battery 3UR18650F-2-SDN-12(6cells, Smart Li-Ion Battery)
Dimension 204x48.05x21.4mm
Weight 330g (max)
Recharge Time 2 hours to 100% with Windows on & off
Battery Life over 2.5hour ( Battery mark 4.01)
Details of Cell 6cells (2Parallel 3Serial)
Voltage 11.1Vdc
Battery Capacity 2600mAh/cell
Battery Rating 11.1V / 5200mAh (57.72Wh)
Battery (Option)AA-PL2NC9B (9cells, Smart Li-Ion Battery)
Dimension 204x67.0x21.4mm
Weight 470g (max)
Recharge Time 3 hours to 100% with Windows on & off
Battery Life over 9.0hour ( Battery mark 4.01)
Details of Cell 9cells (3Parallel 3Serial)
Voltage 11.1Vdc
Battery Capacity 2600mAh/cell
Battery Rating 11.1V / 7800mAh (86.58Wh)
AC Adapter AD-9019S
Output Power 90Watts
Dimension 133 X 58 X 30.5mm
Weight (AC Adapter) 420g (typ)
Worldwide Compatibility Auto-sensing 100 - 240VAC
Line Frequency 50 / 60Hz
Adapter Rating - Input 100V - 240V, 1.4A
Adapter Rating - Output 19.0VDC / 4.74A
Power Management
Features ACPI 3.0 support, Standby(S3), Hibernate(S4)
System Dimensions
Dimensions (W X D X H) 358 x 264 x 28.6 ~ 36.6 mm
Weight (Full system w/ 6cell
Battery) 2.7kg
Status : No options, 6cell battery, 15.4" LCD
Materials LCD back / Front : PC/ABS
Bottom / Top : PC/ABS
- This Document can not be used without Samsung's authorization -

2- 8
2. Introduction and Specification
3) Specification comparison between R55 and R70
R55 R70
CPU Intel Core Solo T1300, T1400
Intel Core Duo T2300~2700. 667/800MHz Intel Core 2 Duo
Processor (Merom)
Chipset 945GM/PM (Calistoga) PM965(Crestline)
Memory DDR2 533 / 667MHz DDR2 533 / 667MHz
Graphic Intel 950 GMA Solution
nVIDIA GF 7600, 7400 nVIDIA Geforce 8600M GS
nVIDIA Geforce 8400M GS
LCD 15.4" WXGA Glare 15.4” WXGA, WSXGA+ Glare
HDD PATA SATA
ODD 12.7mm 12.7mm
Port 4USB, CRT, SVHS, 1394(6pin), Headphone/MIC, RJ45, RJ11, PC-
Card, 6-in-1
3USB, CRT, Headphone/MIC, RJ45,
RJ11(Option), HDMI, PC-Card,
6-in-1
Battery 6cell / 9cell 6cell / 9cell(Option)
Design Proto type 2nd Proto type
- This Document can not be used without Samsung's authorization -

2- 9
2. Introduction and Specification
4) Option List
HDD
BA59-01999A HTS541660J9SA00 5400rpm, , 60G, SATA, 8M
BA59-01946A MHV2060BH-PL 5400rpm, , 60G, SATA, 8M
BA59-02084A MHW2060BH 5400rpm, , 60G, SATA, 8M
BA59-02038A HM060HI 5400rpm, , 60G, SATA, 8M
BA59-02001A HTS541680J9SA00 5400rpm, , 80G, SATA, 8M
BA59-01947A MHV2080BH-PL 5400rpm, , 80G, SATA, 8M
BA59-02085A MHW2080BH 5400rpm, , 80G, SATA, 8M
BA59-02009A ST980815AS 5400rpm, , 80G, SATA, 8M
BA59-01742A HTS541010G9SA00 5400rpm, , 100G,SATA , 8M
BA59-01948A MHV2100BH-PL 5400rpm, , 100G, SATA, 8M
BA59-02086A MHW2100BH 5400rpm, , 100G, SATA, 8M
BA59-02014A HM101JI 5400rpm, , 100G, SATA, FFS
BA59-02010A ST9100828AS 5400rpm, , 100G, SATA, 8M
BA59-02002A HTS541612J9SA00 5400rpm, , 120G, SATA, 8M
BA59-01957A MHV2120BH-PL 5400rpm, , 120G, SATA, 8M
BA59-02087A MHW2120BH 5400rpm, , 120G, SATA, 8M
BA59-02013A hm121JI 5400rpm, , 120G, SATA, FFS
BA59-02039A HM120JI 5400rpm, , 120G, SATA, 8M
BA59-02011A ST9120822AS 5400rpm, , 120G, SATA, 8M
BA59-02003A HTS541616J9SA00 5400rpm, , 160G, SATA, 8M
BA59-02012A ST9160821AS 5400rpm, , 160G, SATA, 8M
BA59-02110A MHW2160BH-PL 5400rpm, , 160G, SATA, 8M
LCD
BA59-01814A 15.4" WXGA LTN154X3-L03-C
BA59-02105A 15.4"WSXGA+ LTN154P4-L02
- This Document can not be used without Samsung's authorization -

2- 10
2. Introduction and Specification

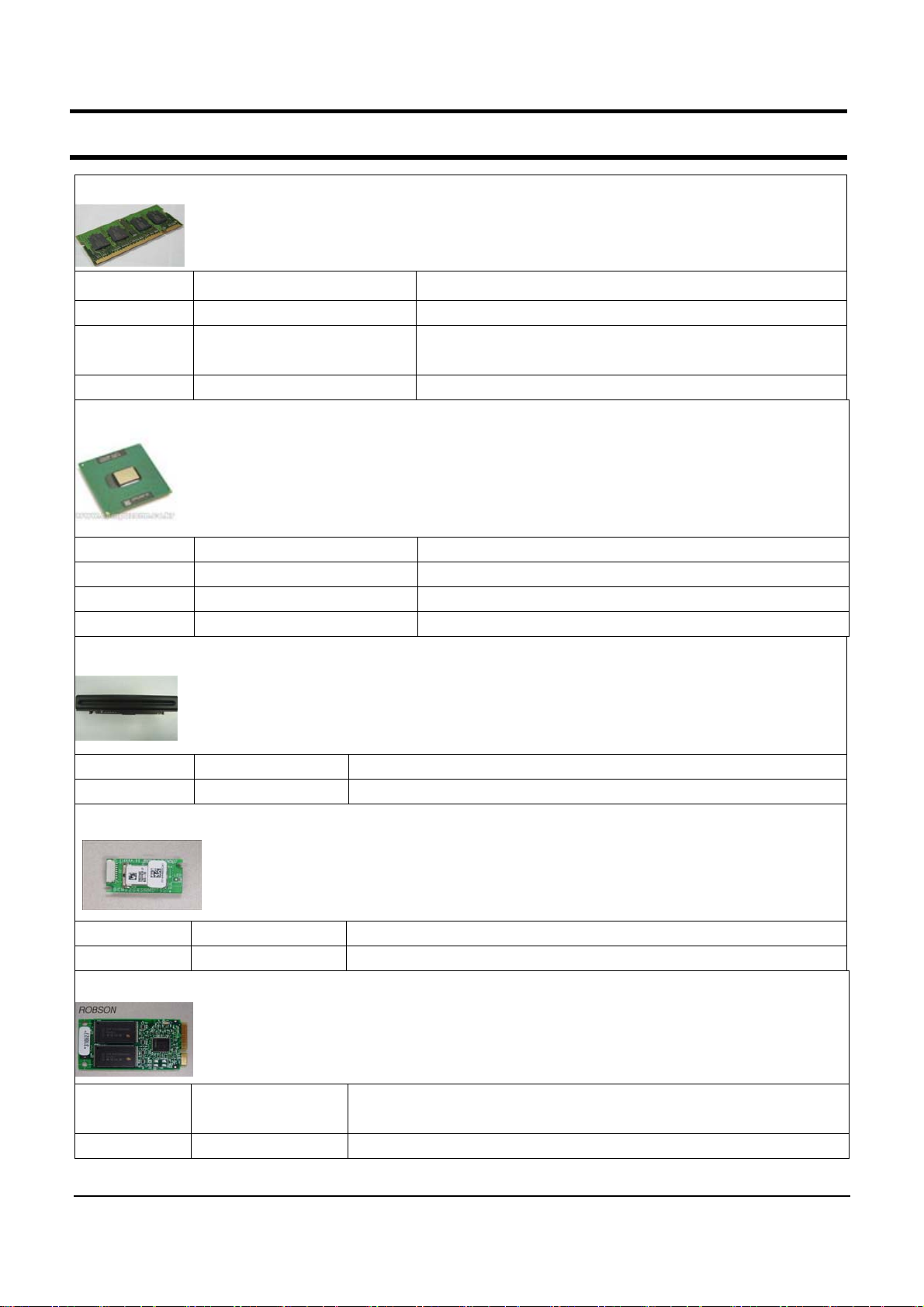

MEMORY
1105-001683 DDR2 667Mhz 512MB M470T6554CZ3-CE6
1105-001684 DDR2 667Mhz 1GB M470T2953CZ3-CE6
1105-001783 DDR2 667MHz 512MB NT512T64UH8B0FN-3C
1105-001790 DDR2 667MHz 1GB NT1GT64U8HB0BN-3C
CPU
0902-002196 T_T7100(Merom Dual Core ) 1.8Ghz(FSB800) 2MB
0902-002197 T_T7300(Merom Dual Core ) 2.0Ghz(FSB800) 4MB
0902-002198 T_T7500(Merom Dual Core ) 2.2Ghz(FSB800) 4MB
0902-002199 T_T7700(Merom Dual Core ) 2.4Ghz(FSB800) 4MB
BATTERY
BA43-00150A BATTERY 3UR18650F-2-SDN-12,Sedona,Li-ion,2P3S,5200mAh
BA43-00149A BATTERY P32R07-02-H01,SEDONA,LI-ION,2P3S,5200mAh
BLUETOOTH
BA59-01691A MODULE-BLUETOOTH Bluetooth V2.0,T60H928.01,Bluetooth Module,USB I/F,V2.0,C
BA59-01916A MODULE-BLUETOOTH Bluetooth Version 2.0,BTO2P0B2SA,Bluetooth Module,
ROBSON
0904-002253 ROBSON 512MB NVCPEMW0512M1,-,52P,30x50.95mm
0904-002254 ROBSON 1G NVCPEMWR001G1,-,52P,30x50.95mm
- This Document can not be used without Samsung's authorization -

2- 11
2. Introduction and Specification

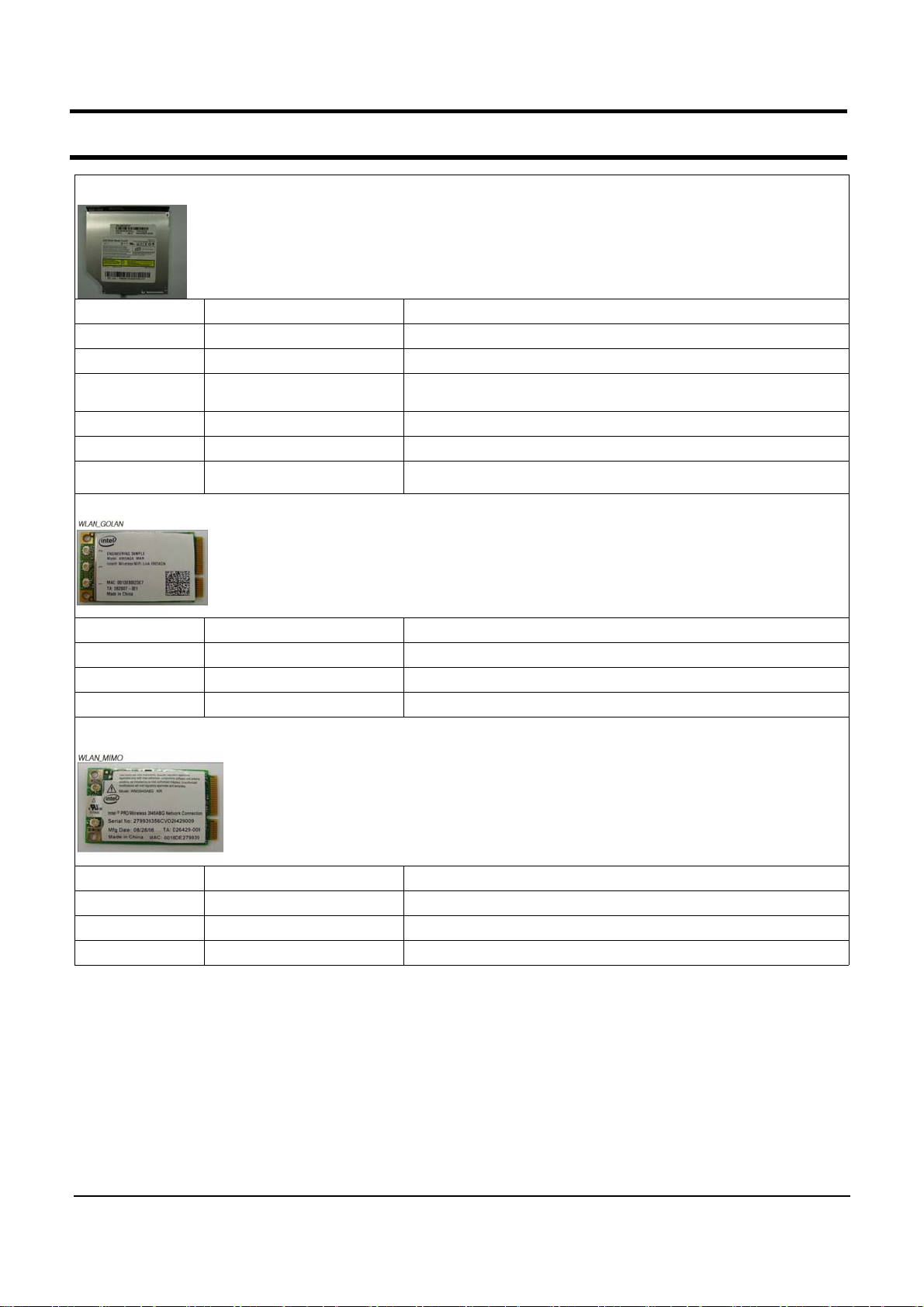

ODD
BA96-03223A S_MULTI(DV228EC) TEAC
BA96-03241A S_MULTI(UJ-850) MATSUHITA
BA96-03242A S_MULTI(TS-L632D) TSST
BA96-03243A S_MULT ScriveI(TS-L632M)TSST
BA96-03222A COMBO(DW-224E-R) TEAC
BA96-03239A COMBO(TS-L462D) TSST
BA96-03245A DVD(TS-L332A) TS-L332A
WLAN_GOLAN
BA59-01723A 802.11a/b/g WM3B3945AGKOR
BA59-01722A 802.11a/b/g WM3B3945AGROW
BA59-01721A 802.11a/b/g WM3B3945AGMOW1
BA59-01724A 802.11a/b/g WM3B3945AGMOW2
WLAN_MIMO
BA59-02065A 802.11a/b/g/n 4965AGN KOR
BA59-02064A 802.11a/b/g/n 4965AGN ROW
BA59-02062A 802.11a/b/g/n 4965AGN MOW1
BA59-02063A 802.11a/b/g/n 4965AGN MOW2
- This Document can not be used without Samsung's authorization -

2- 12
2. Introduction and Specification
5) New added function
5)-1. Camera (Option)
Easyuseoftakingapictureandmovingimage..
5)-2. HDMI Port
Convenient connection with TV through HDMI port.
- This Document can not be used without Samsung's authorization -

2- 13
2. Introduction and Specification
5)-3. HD-DVD, Blue-Ray
HD-DVD is a next generation storage media that can save more data than the existing DVD
format. Users can record and play better quality HD movies than the existing SD-grade DVD
fomat
Blu-ray is a next generation storage media that can save approximately 5 to 10 times more data
than the existing DVD format. Users can record and play better quality HD movies than the existing
SD-grade DVD format.
- This Document can not be used without Samsung's authorization -

2- 14
2. Introduction and Specification
5)-4. New Keyboard
- This Document can not be used without Samsung's authorization -

2- 15
2. Introduction and Specification
- This Document can not be used without Samsung's authorization -

2- 16
2. Introduction and Specification
- This Document can not be used without Samsung's authorization -

2- 17
2. Introduction and Specification
6) System Setup (BIOS Setup)
MAIN 워크시트
Primary Master
=> Applied HDD information.
Secondary Master
=> Applied ODD device information.
Total Memory
=> System total Memory.
Slot1 Memory
=> Applied Memory Capacity at the Slot1.
Slot2 Memory
=> Applied Memory Capacity at the Slot2.
Phoenix BIOS Setup Utility
Main Advanced Security Boot Exit
System Time [11:13:57] Item Specific Help
System Date [08/01/2006]
Primary Master Disk FUJITSUM20280 <Tap>,<Shift-Tap>, or
Secondary Master Disk CD-ROM/DVD <Enter>selects field.
CPU Type Intel®Pentium®M
CPU Speed 2.2 GHz
Total Memory 512 MB
Slot1 Memory 512 MB
Slot2 Memory Not Installed
BIOS Version D0AB
MICOM Version D0AB
F1Help ↑↓Select Item F5/F6Change Values F9Setup Defaults
ESCExit ←→Select Menu EnterSelect▶ Sub-Menu F10 Save and Exit
- This Document can not be used without Samsung's authorization -

2- 18
2. Introduction and Specification
Advanced
Core Multi-Processing
=> If this function is diabled, one of the core can be disabled.
Touch Pad Mouse
=> Touchpad function can be enabled/disabled with this option. If this is disabled, the setting is
maintained in next booting. For reference, If touchpad function is disabled with Fn+F10, the setting
is enabled in next booting.
Legacy USB Support
=> Legacy USB Device can support or not with this option. If this functionis enabled the system
can boot to USB device.
Large Disk Access Mode
=> Should be set "[DOS]".
EDB (Execute Disable Bit)
=> If this option is enabled, the system can use Intel Execute Enable Bit.
Internal LAN Device
=> Can decide use of Internal LAN with this option.
CPU Power Saving Mode
=> If this option is enabled, the system can be entered to C3 state, so users can save their
power consumption, but can happen a little performance drop.
Purchased Date
=> The date 10 times boot since user have bought.
- This Document can not be used without Samsung's authorization -
