Samsung LN20S51B User manual

BN68-00940H-00
Owner’s
Instructions
This device is a Class B digital apparatus.
Register your product at
www.samsung.com/global/register
LN20S51BP
TFT-LCD TELEVISION
IMPORTADO POR: SAMSUNG ELECTRONICS MÉXICO. S.A. de C.V.
Vía Lopez Portillo No. 6,
Col. San Fco. Chilpan
Tultitlán, Estado de México, C.P. 54940
TEL. [phone]
EXPORTADO POR: Samsung Electronics CO.,LTD.
416, Mae tan-3dong, Yeongtong - gu,
Suwon City, Gyeonggi-do Korea
Bn68-00940H-00Cover.qxd 10/31/05 1:31 PM Page 1

Precauções ao exibir uma imagem estática
Uma imagem estática pode causar dano permanente em uma tela de TV.
• Não exiba uma imagem estática no painel LCD por mais de 2 horas, pois isso poderá causar retenção de imagem na tela.
Essa retenção de imagem também é conhecida como "queima da tela".
Para evitar essa retenção de imagem, reduza o grau de brilho e de contraste da tela ao exibir uma imagem estática.
• O fato de assistir a TV LCD no formato 4:3 por um longo período de tempo pode deixar traços de bordas exibidos nas partes esquerda,
direita e central da tela, causados pela diferença da emissão de luz na tela.
Autilização de um DVD ou de um console de jogo pode causar um efeito similar na tela.
Danos provocados pelo efeito acima não são cobertos pela Garantia.
•Aexibição de imagens estáticas de Video games e PC por mais tempo que um determinado período pode produzir pós-imagens parciais.
Para evitar esse efeito, reduza o ‘brilho’ e o ‘contraste’ ao exibir imagens estáticas.
Precautions When Displaying a Still Image
Astill image may cause permanent damage to the TV screen.
• Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention.
This image retention is also known as "screen burn".
To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.
• Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen
caused by the difference of light emission on the screen.
Playing a DVD or a game console may cause a similar effect to the screen.
Damages caused by the above effect are not covered by the Warranty.
•Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images.
To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.
Precauciones al mostrar en la pantalla una imagen fija
La imagen fija puede causar daños permanentes en la pantalla del televisor.
• No deje una imagen fija en la pantalla LCD durante más de dos horas ya que se podría producir una retención de la imagen en la pantalla. Este fenómeno de
retención de imágenes también se denomina "quemadura de pantalla".
Para evitar que se produzca esa persistencia de la imagen, reduzca el nivel de luminosidad y de contraste de la pantalla cuando muestre imágenes fijas.
• El uso del televisor LCD en formato 4:3 durante un tiempo prolongado puede dejar rastros de bordes en las partes izquierda,
derecha y central de la pantalla debido a las diferencias en la emisión lumínica de la pantalla.
La reproducción de un DVD o el uso de una consola de videojuegos pueden provocar un efecto similar en la pantalla.
Reproducir un DVD o una videoconsola puede causar un efecto similar en la pantalla. La garantía no cubre estos daños.
•Ver imágenes fijas de videojuegos y PC durante más tiempo del indicado puede producir restos de imágenes parciales.
Para evitar este efecto, reduzca el 'brillo' y el 'contraste' cuando vea imágenes fijas.
BN68-00940H-Still.qxd 10/31/05 1:32 PM Page 1

English-1
English
Symbol Press Important Note One-Touch
Button
Contents
GENERAL INFORMATION
List of Features .................................................................................. 2
List of Parts ........................................................................................ 2
How to Adjust the Stand .................................................................... 2
How to Adjust the Angle of the TV..................................................... 2
Installing the Wall Mount Kit ......................................................... 3
Installing VESA compliant mounting devices ............................... 3
Viewing the Control Panel.................................................................. 3
Viewing the Connection Panel........................................................... 4
Viewing the Remote Control .............................................................. 5
Installing Batteries in the Remote Control ......................................... 6
OPERATION
Turning the TV On and Off................................................................. 6
Changing Channels ........................................................................... 6
Adjusting the Volume ......................................................................... 6
Viewing the Display............................................................................ 7
Plug and Play Feature ....................................................................... 7
Selecting the Video Signal-source..................................................... 7
Storing Channels Automatically ......................................................... 8
Storing Channels Manually ................................................................ 8
Fine Tuning Channels ........................................................................ 8
PICTURE CONTROL
Using Automatic Picture Settings ...................................................... 9
Customizing the Picture ..................................................................... 9
Adjusting the Color Tone.................................................................... 9
SOUND CONTROL
Using Automatic Sound Settings .................................................. 10
Choosing a Multi-Channel Sound (MTS) Soundtrack .................. 10
Using the Auto Volume ................................................................. 10
TIME SETTING

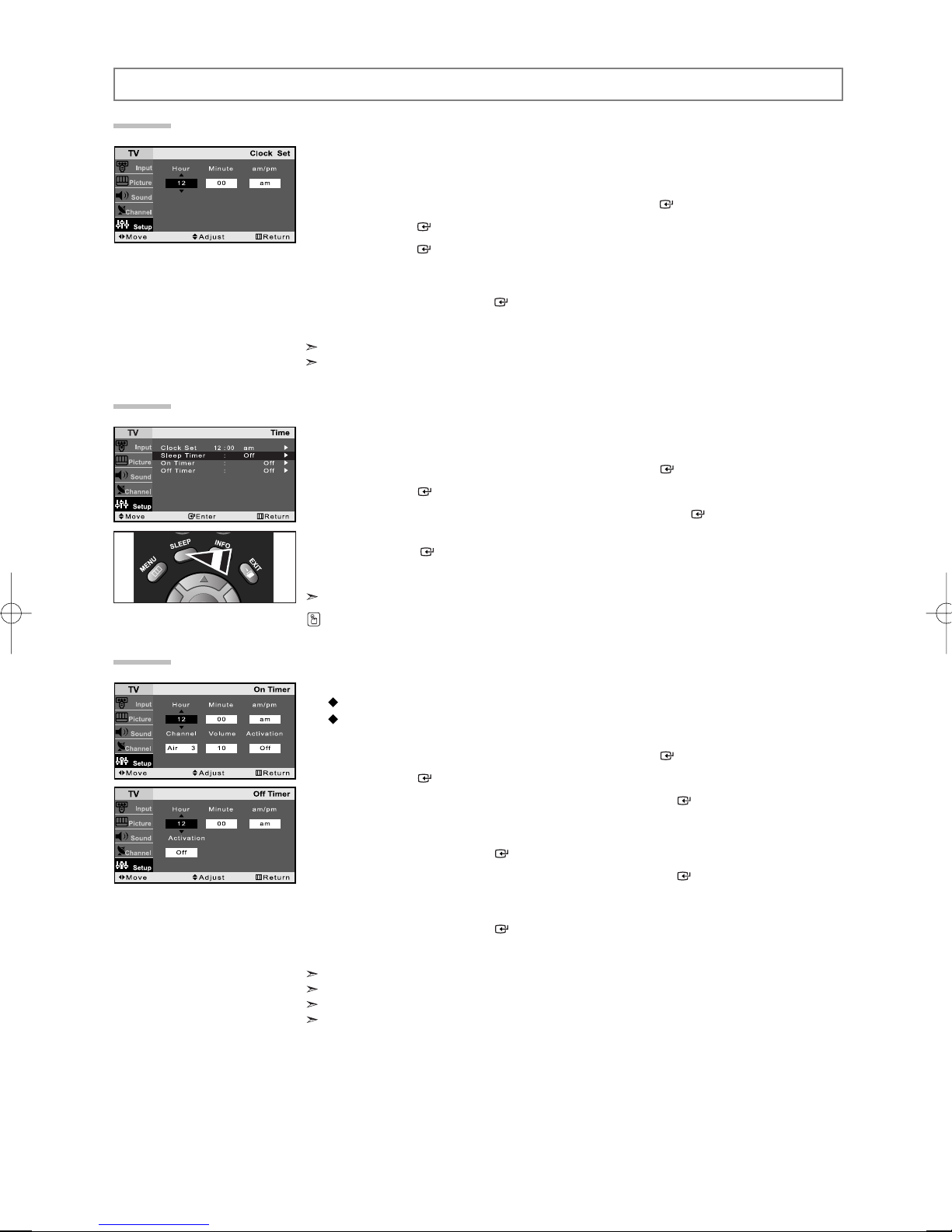

Setting the Clock .......................................................................... 11
Setting the Sleep Timer ............................................................... 11
Setting the On/Off Timer............................................................... 11
FUNCTION DESCRIPTION
Viewing Closed Captions ............................................................. 12
Selecting a Menu Language......................................................... 12
Setting the Blue Screen Mode...................................................... 12
Selecting the Source .................................................................... 13
Editing the Input Source Name .................................................... 13
PC DISPLAY
Setting Up Your PC Software (Based on Windows XP)............... 13
Setting the PC .............................................................................. 14
TROUBLESHOOTING
Identifying Problems ..................................................................... 15
APPENDIX
Specifications ............................................................................... 16
Display Modes .............................................................................. 16
BN68-00940H-00Eng.qxd 10/31/05 1:30 PM Page 1

English-2
General Information
List of Features
Your TV is designed with the latest technology.
This TV is a high-performance unit that includes the following special features:
Easy-to-use remote control
Easy-to-use on-screen menu system
Automatic timer to turn the TV on and off
Adjustable picture and sound settings that can be stored in the TV’s memory
Aspecial filter to reduce or eliminate reception problems
Fine tuning control for the sharpest picture possible
Abuilt-in multi-channel sound decoder for stereo and bilingual listening
Built-in, dual channel speakers
Headphone jack for private listening
List of Parts
Please make sure the following items are included with your LCD TV.
If any items are missing, contact your dealer.
Remote Control
& Batteries (AAA x 2) Power Cord Wall Mount kit Owner’s Instructions
How to Adjust the Stand
(1) (2)
1. Place the front of the TV onto a soft cloth or
cushion on a table as in Figure (1).
- Align the TV bottom along the table edge.
2. Press on the center of the TV back.
Adjust the stand as in Figure (2) while pressing
the “PUSH” button on the back of the stand.
3. Place the TV on the table so that the TV sits
safely.
When you adjust the stand, press the “PUSH" button
on the back of the stand.
How to Adjust the Angle of the TV
1. Figure (1) shows the adjustment angle (0°~13°) when you use the LCD on its stand.
Excessive tilting can turn the LCD TV over which may cause damage.
2. Figure (2) shows the adjustment angle (13°~80°) when you convert the LCD from stand-based use to wall-mount.
3. Figure (3) shows the adjustment angle (0°~10°) when you mount the LCD TV to a wall.
You will hear a “Click ” sound when changing the angle from 1 to 2 or 3 to 2.
(1) Angle adjustment when using the
TV on its stand.
(2) Angle adjustment when converting from
Stand to Wall mount (1 3, 3 1)
(3) Angle adjustment when LCD
TV is wall-mounted
When you adjust the stand, press the “PUSH" button on the back of the stand.
PUSH button
BN68-00940H-00Eng.qxd 10/31/05 1:30 PM Page 2

English-3
Viewing the Control Panel
SOURCE
Toggles between all the available input sources
(TV, AV, S-Video, Component, PC).
In the on-screen menu, use this button as you use the ENTER
button on the remote control.
MENU
Press to see an on-screen menu of your TV’s features.
Press to decrease or increase the volume.
In the on-screen menu, use the buttons as you use the
and buttons on the remote control.
Press to change channels.
In the on-screen menu, use the buttons as you use the
and buttons on the remote control.
POWER
Press to turn the TV on and off.
SPEAKERS
(HEADPHONE JACK)
Connect a set of external headphones to this jack for private
listening.
REMOTE CONTROL SENSOR
Aim the remote control towards this spot on the TV.
POWER INDICATOR
Lights up when you turn the power off.
(The Power indicator is red in stand-by mode, blinks red when
you turn the power on, and turns off after the power comes on
fully. The indicator is green when you set the Timer on or off.)
The buttons on the lower-right panel control your TV’s basic features, including the on-screen menu.
To use the more advanced features, you must use the remote control.
Installing the Wall Mount Kit
Wall mount items (sold separately) allow you to mount the TV on the wall. For the detailed information on installing the Wall Mount,
see the instruction in the Wall Mount items. Contact a technician for installing the wall bracket.
Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.
Installing VESA compliant mounting devices
1. Place the TV faced down on a soft cloth or cushion
on a table.
2. Adjust the stand, pressing the "PUSH" button on the back
of the stand.
3. Align the mounting interface pad (not supplied) with the
holes in the stand bottom and secure it with the four
screws that come with the arm-type base, wall mount
hanger or other bases (not supplied).
When you adjust the stand, press the “PUSH" button on the back
of the stand.
(2) (3)
Mounting pad
(Sold separately)
PUSH button
