Samsung 65" 650TS Interactive Whiteboard LCD User manual

ii
quick start guide
650TS
LCD DISPLAY

Introduction
Package Contents
Note
Please make sure the following items are included with your LCD Display.
If any items are missing, contact your dealer.
Contact a local dealer to buy optional items.
Checking the Contents of the Package
Remove the lock from the package box, as shown in the figure above.
Lift up the package box by
holding the grooves on
both sides of the package
box.
Check the contents of the
package.
Remove the Styrofoam
and vinyl cover.
Note
• After unpacking the package, make sure to check the contents of the package.
• Make sure to keep the package box for transporting the product in the future.
•After unpacking, you may use the lower part of the package box as a temporary stand for
product test or operation check.

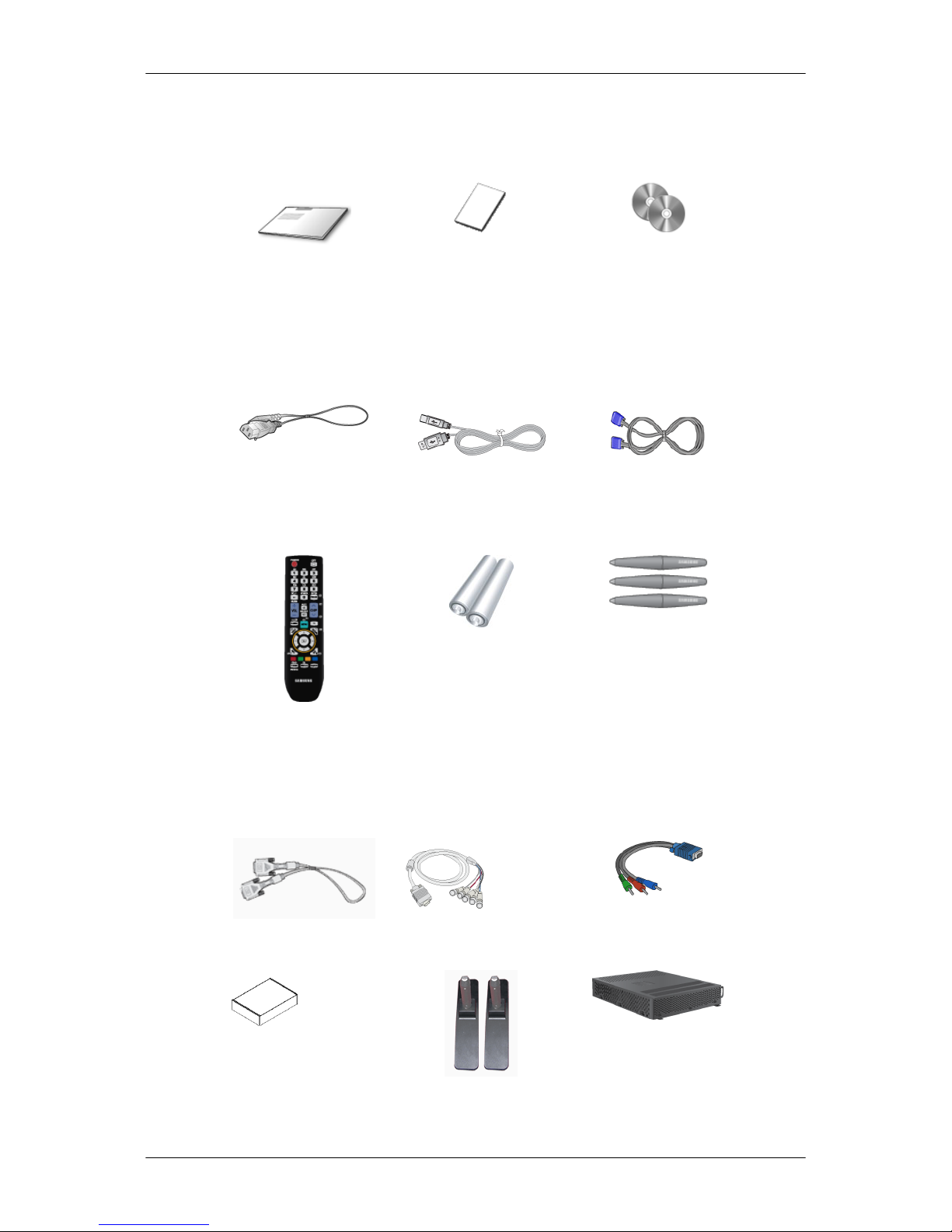

Unpacking

LCD Display
Manuals
Quick Setup Guide Warranty Card
(Not available in all loca-
tions)
User's Guide, Samsung In-
teractive whiteboard
Cables
Power Cord USB Cable D-Sub Cable
Others
Remote Control
(BP59-00138A)
Batteries (AAA X 2)
(Not available in all loca-
tions)
Stylus pens (x3)
Sold separately
DVI Cable D-Sub to BNC Cable D-Sub to Component Ca-
ble
Wall Mount KIT Semi Stand KIT NetWork Box
Introduction

Your LCD Display

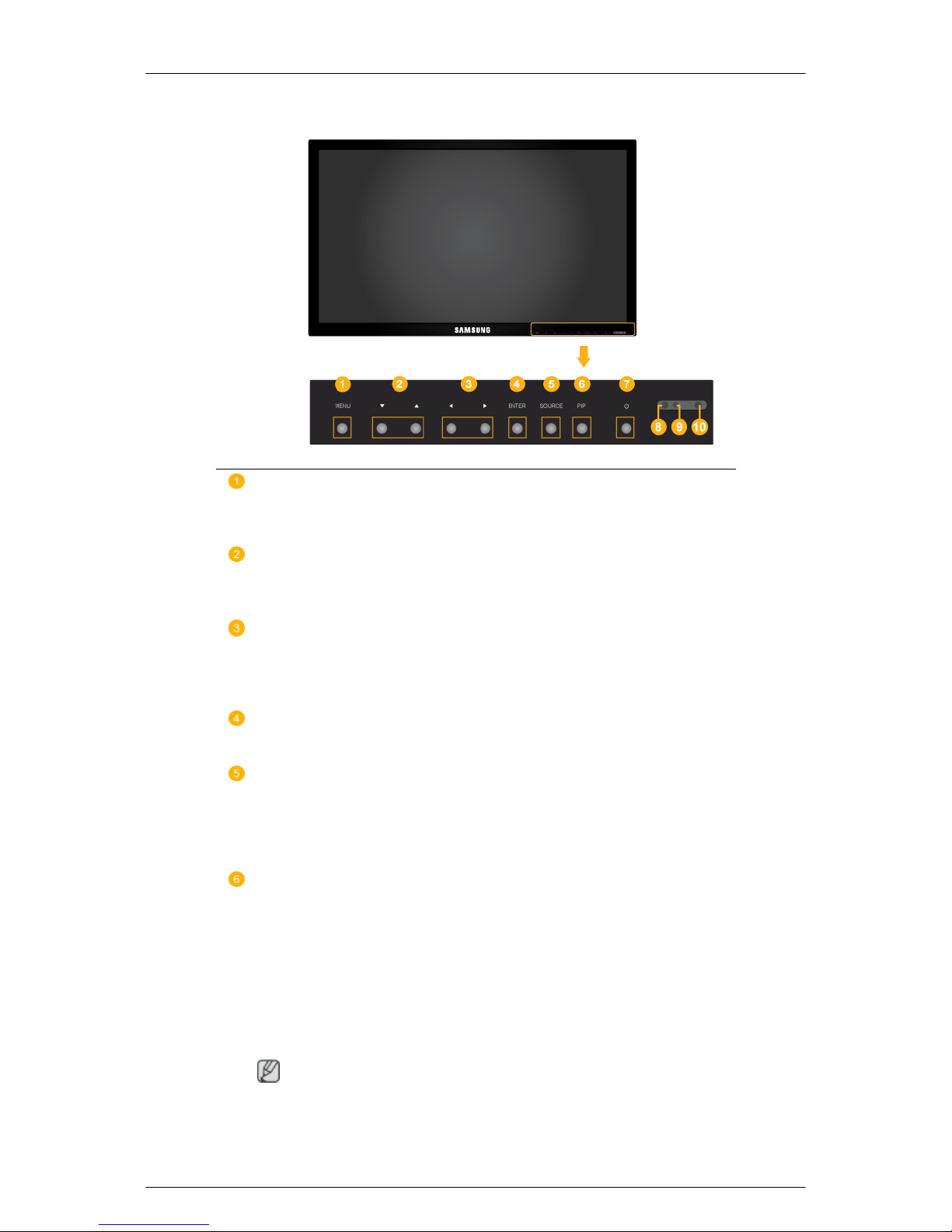

Front
MENU button [MENU]
Opens the on-screen menu and exits from the menu. Also use to exit the
OSD menu or return to the previous menu.
Navigate buttons (Up-Down buttons)
Moves from one menu item to another vertically or adjusts selected menu
values.
Adjust buttons (Left-Right buttons) / Volume buttons
Moves from one menu item to another horizontally or adjusts selected
menu values. When OSD is not on the screen, press the button to adjust
volume.
ENTER button [ENTER]
Activates a highlighted menu item.
SOURCE button [SOURCE]
Switches from PC mode to Video mode. Selects the input source that an
external device is connected to.
[PC] →[DVI] →[AV] →[Component] →[HDMI]
PIP button
Push the PIP button to turn the PIP screen On / Off.
•PC : DVI / AV/ HDMI
•DVI : PC
•AV : PC
•HDMI : PC
Introduction
Note
When the PIP function is activated on the monitor, the touchscreen function
may not work properly.

Power button [ ]
Use this button for turning the LCD Display on and off.
Brightness Sensor (Optional)
Automatically detects the surrounding brightness.
Note
This function is activated only on the models equipped with an auto bright-
ness sensor.
Power indicator
Shows PowerSaver mode by blinking green
Note
See PowerSaver described in the manual for further information regarding
power saving functions. For energy conservation, turn your LCD Display
OFF when it is not needed or when leaving it unattended for long periods.
Remote Control Sensor
Aim the remote control towards this spot on the LCD Display.

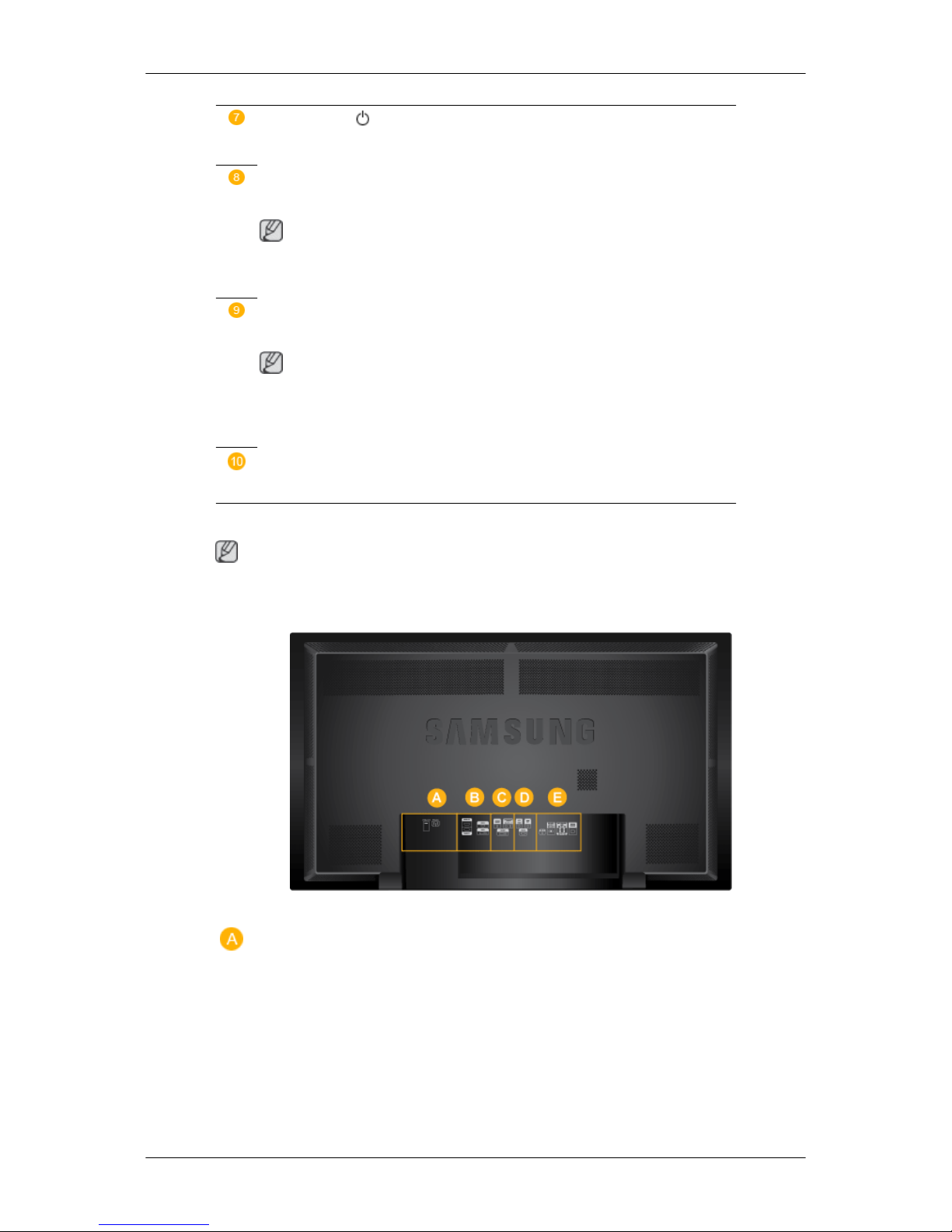

Rear
Note
For detailed information concerning cable connections, refer to Connecting Cables under
Setup. The LCD Display 's configuration at the back may vary slightly depending on the model.
Introduction

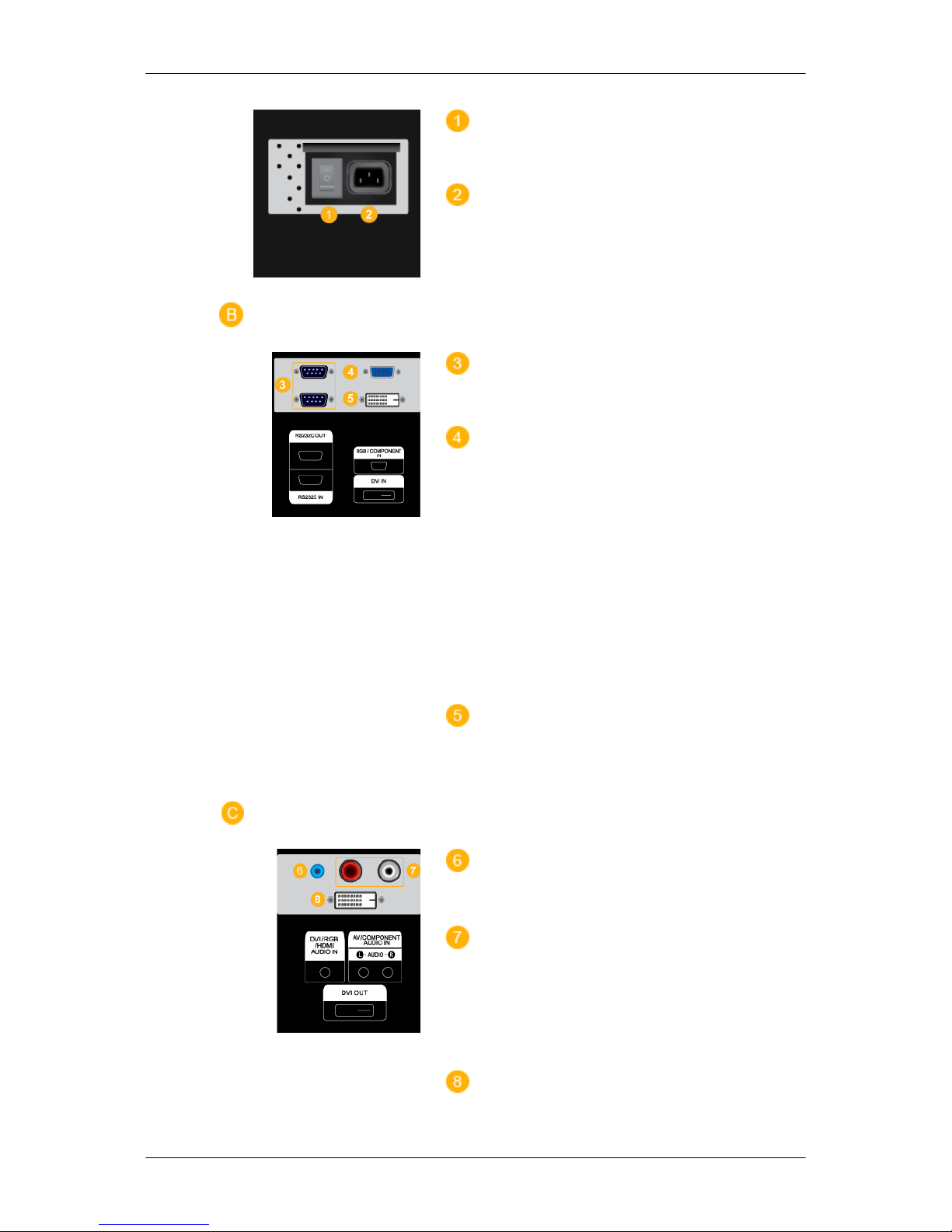

POWER S/W ON [ │] / OFF [O]
Switches the LCD Display On/Off.
POWER
The power cord plugs into the LCD Display
and the wall outlet.
RS232COUT/IN(RS232C Serial PORT)
MDC(Multiple Display Control) Program Port
RGB/COMPONENT IN (PC/COMPO-
NENT Connection Terminal (Input))
•Connect the [RGB/COMPONENT IN]
port on the monitor to the RGB port on the
PC using the D-SUB cable.
•Connect the [RGB/COMPONENT IN]
port on the monitor to the COMPONENT
port on the external device using the D-
Sub to Component Cable.
•Connect the [RGB/COMPONENT IN]
port on the monitor to the BNC port on the
PC using the D-Sub to BNC Cable.
DVI IN (PC Video Connection Terminal)
Connect the [DVI IN] port on the monitor to
the DVI port on the PC using the DVI cable.
DVI/RGB/HDMI AUDIO IN (PC/DVI/
HDMI(PC) Audio Connection Terminal (In-
put))
AV/COMPONENTAUDIOIN [L- AUDIO-
R]
Connect the port of the DVD, VCR (DVD /
DTV Set-Top Box) to the [AV/COMPONENT
AUDIO IN [L- AUDIO- R]] port of the LCD
Display.
DVI OUT
Introduction

•Connect a monitor to another monitor
through a DVI cable.
•Connect the [DVI OUT] port on the mon-
itor to the [HDMI IN] port on the other
monitor using the DVI to HDMI cable.
•DVI, HDMI and network signals sent via
the [DVI OUT] port are displayed on the
second display which has the DVI IN port.
Note
Up to 6 Full HD or 10 HD monitors can be
connected (May differ depending on the
product).

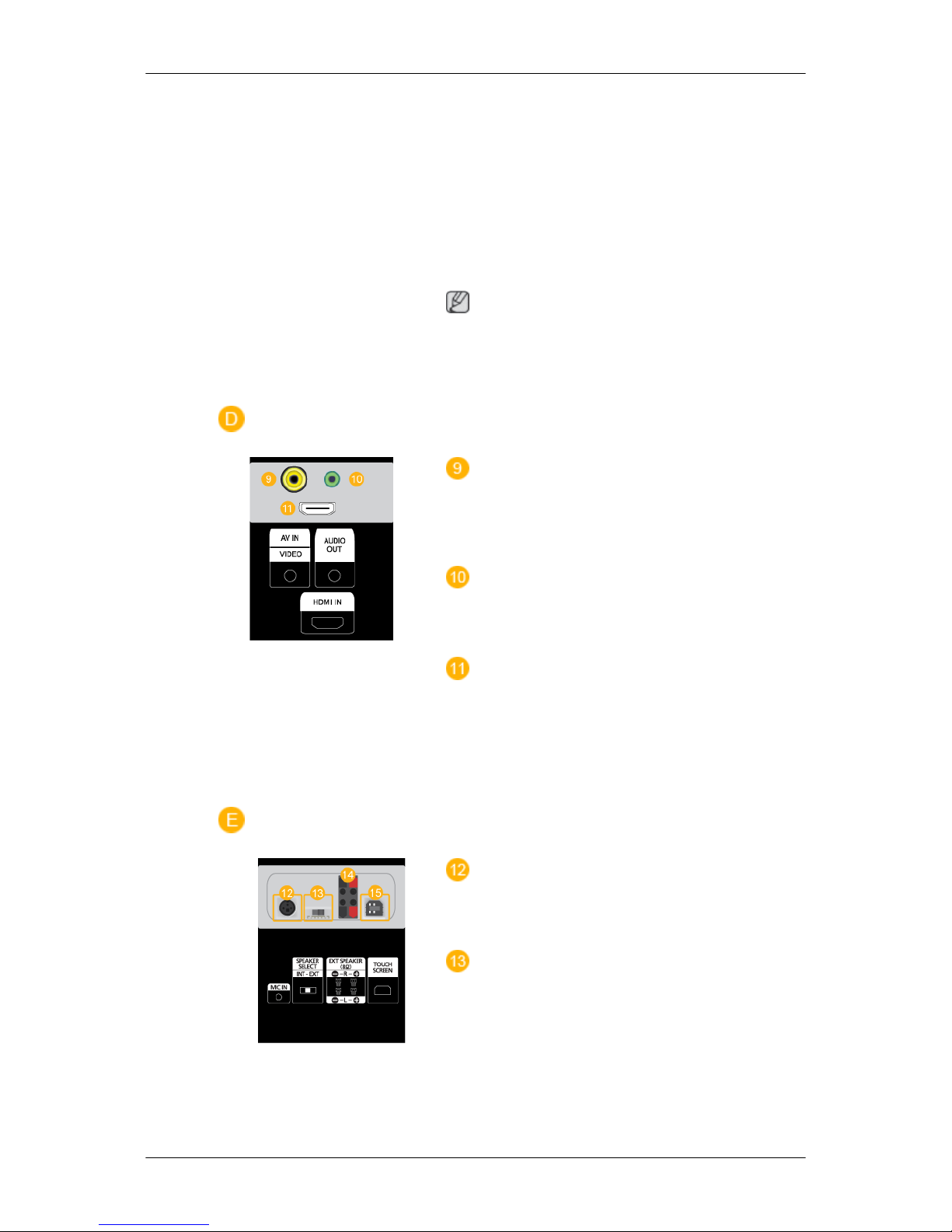

AV IN [VIDEO]
Connect the [AV IN [VIDEO]] terminal of your
monitor to the video output terminal of the
external device using a VIDEO cable.
AUDIO OUT
Headphone/External speaker output termi-
nal.
HDMI IN
Connect the HDMI terminal at the back of
your LCD Display to the HDMI terminal of
your digital output device using a HDMI ca-
ble.
Up to HDMI cable 1.0 can be supported.
MIC IN
Use a wireless microphone by connecting a
wireless microphone sensor unit to this port.
SPEAKER SELECT [INT - EXT]
Select between the internal and external
speakers.
• INT - Select to use the internal speaker.
•EXT - Select to use a pair of external
speakers.
Introduction

Note
The external speakers are optional.
EXT SPEAKER(8 Ω)[- - L - +, - - R - +]
(Speaker ports)
TOUCH SCREEN
Connect to the PC using the USB cable in
order to use the TOUCH function under PC
mode.
Note
See Connecting Cables for further information regarding cable connections.
Remote Control
Note
The performance of the remote control may be affected by a TV or other electronic device
operating near the LCD Display , causing a malfunction due to interference with the frequen-
cy.
POWER
OFF
Number Buttons
DEL / GUIDE button
+ VOL -
SOURCE
D.MENU
TOOLS
Up-Down Left-Right buttons
INFO
Color Buttons
TTX/MIX
MTS/DUAL
ENTER/PRE-CH
MUTE
CH/P
TV
MENU
RETURN
Introduction

EXIT
MagicInfo
1. POWER Turns the product On.
2. OFF Turns the product Off.
3. Number Buttons Press to change the channel.
4. DEL / GUIDE but-
ton
The "-" button is used to select Digital channels.
Electronic Program Guide (EPG) display.
- This function does not work for this LCD Display.
5. + VOL - Adjusts the audio volume.
6. SOURCE Press the button to change the input signal SOURCE.
Changing the SOURCE is only allowed for external devices
that are connected to the LCD Display at the time.
7. D.MENU DTV menu display
- This function does not work for this LCD Display.
8. TOOLS Use to quickly select frequently used functions.
- This function does not work for this LCD Display.
9. Up-Down Left-Right but-
tons
Moves from one menu item to another horizontally, vertically
or adjusts selected menu values.
10. INFO Current picture information is displayed on the upper left
corner of the screen.
11. Color Buttons Press to add or delete channels and to store channels to the
favorite channel list in the “Channel List” menu.
- This function does not work for this LCD Display.
12. TTX/MIX TV channels provide written information services via tele-
text.
- Teletext Buttons
- This function does not work for this LCD Display.
13. MTS/DUAL - This function does not work for this LCD Display.
MTS-
You can select MTS (Multichannel Television Stereo) mode.
Audio Type MTS/S_Mode Default
FM Stereo Mono Mono Manual
Change
Stereo Mono ↔Stereo
Introduction

SAP Mono ↔SAP Mono
DUAL-
STEREO/MONO, DUAL l / DUAL ll and MONO/NICAM
MONO/NICAM STEREO can be operated depending on the
broadcasting type by using the DUAL button on the remote
control while watching TV.
14. ENTER/PRE-CH This button is used to return to the immediately previous
channel.
- This function does not work for this LCD Display.
15. MUTE Pauses (mutes) the audio output temporarily. This is dis-
played on the lower left corner of the screen. The audio
comes back on if MUTE or - VOL + is pressed in the Mute
mode.
16. CH/P In TV mode, selects TV channels.
- This function does not work for this LCD Display.
17. TV Selects the TV mode directly.
- This function does not work for this LCD Display.
18. MENU Opens the on-screen menu and exits from the menu or
closes the adjustment menu.
19. RETURN Returns to the previous menu.
20. EXIT Exits from the menu screen.
21. MagicInfo MagicInfo Quick Launch Button.

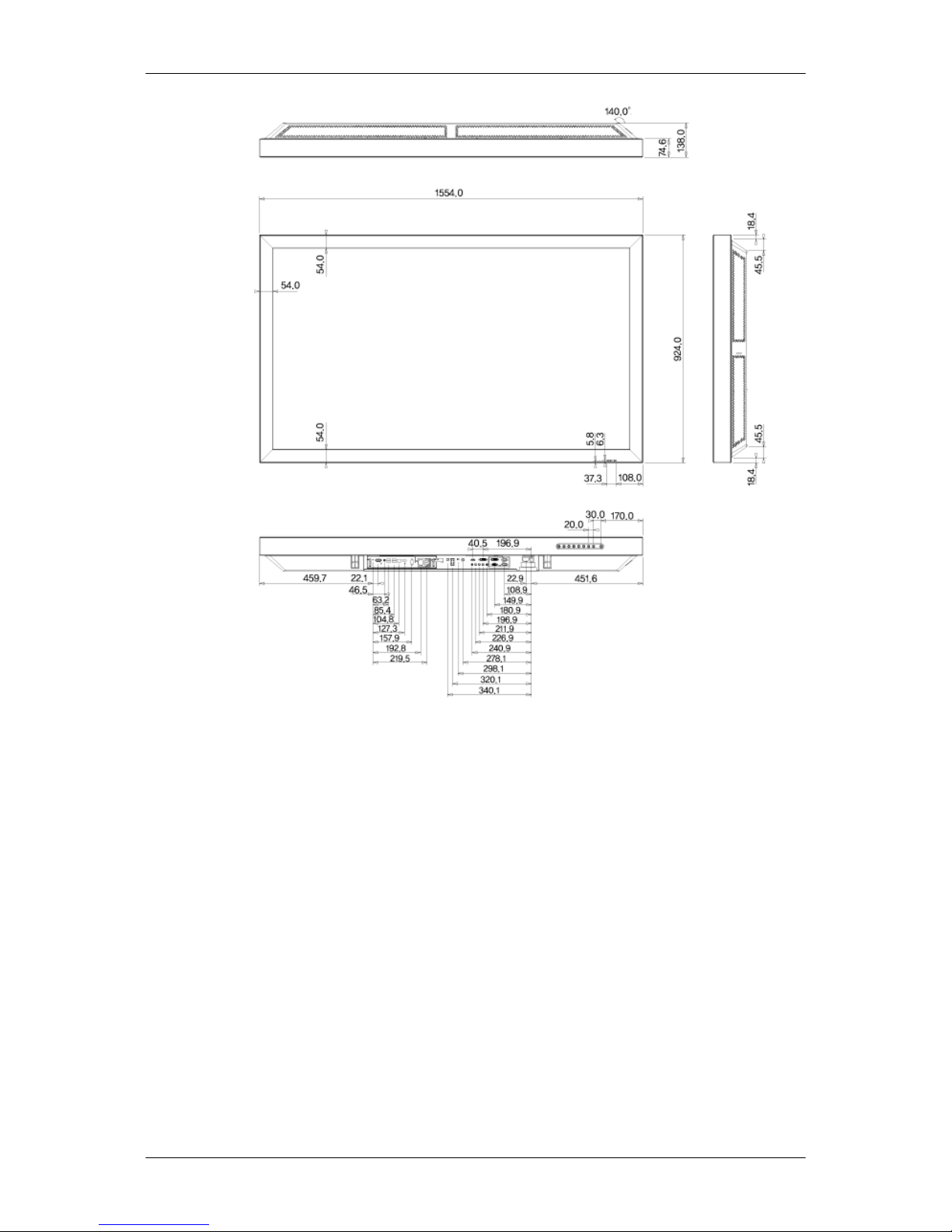

Mechanical Layout
Mechanical Layout
Introduction

Installation VESA Bracket
• When installing VESA, make sure to comply with the international VESA standards.
•Purchasing VESA Bracket and Installation Information : Please contact your nearest
SAMSUNG Distributor to place an order. After your order is placed, installation profes-
sionals will visit you and install the bracket.
• At least 2 persons are needed in order to move the LCD Display.
•SAMSUNG is not responsible for any product damage or any injury caused by installation
at customer's discretion.
Introduction

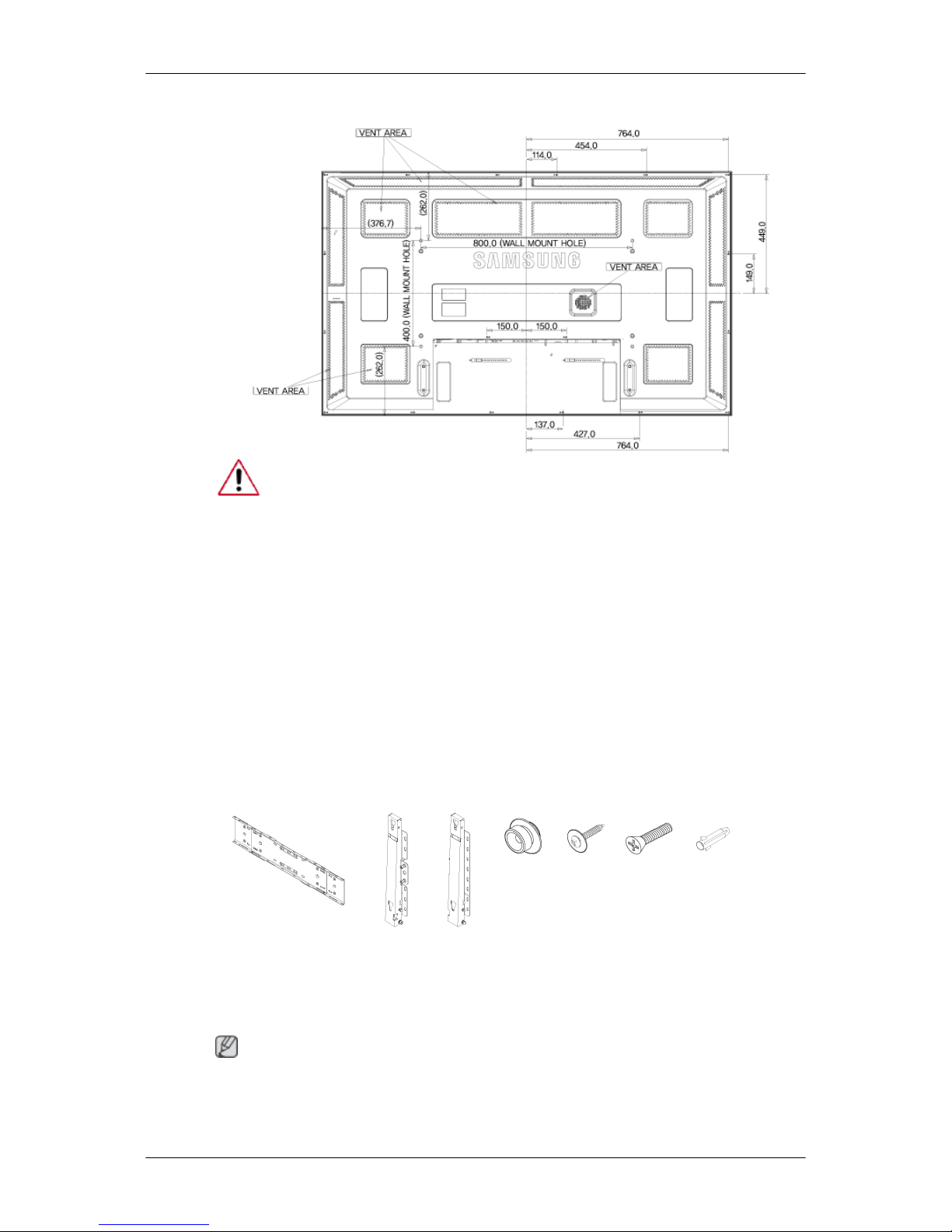

Dimensions
Notice
For securing the bracket on a wall, use only machine screws of 6 mm diameter and 8 to 12
mm length.
Wall Bracket Installation
• Contact a technician for installing the wall bracket.
•SAMSUNG Electronics is not responsible for any damages to the product or harm to
customers when the installation is done by the customer.
•This product is for installing on cement walls. The product may not stay in place when
installed on plaster or wood.
Components
Only use the components and accessories shipped with the product.
Wall Bracket(1) Hinge(Left 1, Right
1)
Plastic
Hanger
(4)
Screw
(A)(11)
Screw
(B)(4)
Anchor
(11)
Wall Bracket Assembly
Note
There are two hinges(left and right). Use the correct one.
1. Insert and tighten the Captive Screw in the direction of the arrow.
Introduction

When done, mount the wall bracket on the wall.
There are two hinges(left and right). Use the correct one.
A - Captive Screw
B - Wall Bracket
C - Hinge (Left)
D - Hinge (Right)
2. Before drilling into the wall, check if the length between the two locking holes at the back
of the product is correct.
If the length is too short or long, loosen all or some of the 4screws on the wall bracket to
adjust the length.
A - Length between the two locking holes
3. Check the installation diagram and mark the drill points on the wall. Use the 5.0 mm bit
to drill holes deeper than 35 mm. Fix each anchor in the corresponding hole. Match each
of the brackets and hinge holes to the corresponding anchor holes and insert and tighten
the 11 screws A.
Introduction

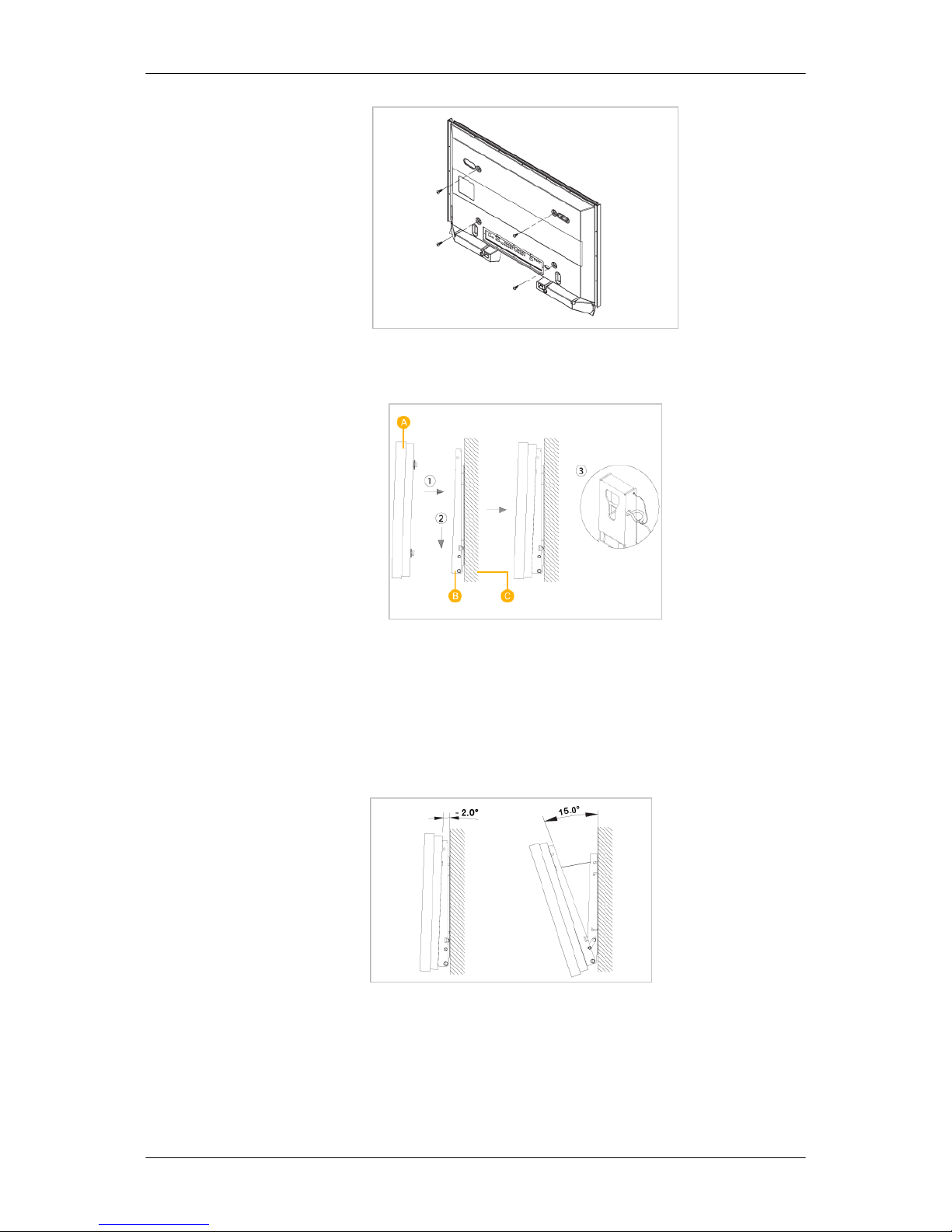

To mount the product on the wall bracket
The shape of the product may vary depending on the model. (The assemblies of the plastic
hanger and the screw are the same)
1. Remove the 4 screws on the back of the product.
2. Insert the screw B into the plastic hanger.
Notice
•Mount the product on the wall bracket and make sure it is properly fixed to the left
and right plastic hangers.
•Be careful when installing the product on the bracket as fingers can be caught in the
holes.
•Make sure the wall bracket is securely fixed to the wall, or the product may not stay
in place after installation.
3. Tighten the 4 screws in step 2 (plastic hanger + screw B)to the rear holes of the product.
Introduction

4. Remove safety pin (3) and insert the 4 product holders into the corresponding bracket
holes (1). Then place the product(2) so that it is firmly fixed to the bracket. Make sure to
re-insert and tighten the safety pin (3) to securely hold the product to the bracket.
A - LCD Display
B - Wall Bracket
C - Wall
Wall Bracket Angle Adjustment
Adjust the bracket angle to -2° before installing it on the wall.
1. Fix the product to the wall bracket.
2. Hold the product at the top in the center and pull it forward (direction of the arrow) to
adjust the angle.
3. You can adjust the bracket angle between -2° and 15°.
Introduction

Make sure to use the top center, and not the left or the right side of the product to adjust the
angle.
Introduction

Connections
Connecting a Computer
Using a Power cord with Earth
•In the event of failure, the earth lead may cause electric shock. Make
sure to wire the earth lead in correctly, before connecting the AC power.
When un-wiring the earth lead, make sure to disconnect the AC power
in advance.
•AV input devices such as DVD players, VCRs or camcorders as well as your computer
can be connected to the LCD Display. For detailed information on connecting AV input
devices, refer to the contents under Adjusting Your LCD Display.
•The LCD Display 's configuration at the back may vary slightly depending on the LCD
Display model.
There are several ways to connect the computer to the monitor. Choose
one from the following options.
Using the D-sub (Analog) connector on the video card.
•Connect the D-sub to the 15-pin, [RGB/COMPONENT IN] port on the
back of your LCD Display and the 15 pin D-sub Port on the computer.
Using the DVI (Digital) connector on the video card.
•Connect the DVI Cable to the [DVI IN] port on the back of your LCD
Display and the DVI port on the computer.

Using the HDMI (digital) output on the graphics card.
•Connect the [HDMI IN] port on the monitor to the HDMI port on the PC
using the HDMI cable.
Note
When the HDMI cable to the PC, ensure that you select HDMI from both
the Source List and Edit Name before selecting PC or DVI device so that
normal PC screen and sound can be outputted. Note that sound is only
available when connected according to the option that follows.
Connect the audio cable for your LCD Display to the audio port on the back
of the LCD Display.
To use the touchscreen function while connected to your PC, connect a
USB cable to the USB ports on the product and PC.
Connect the power cord for your LCD Display to the power port on the back
of the LCD Display. Turn on the power switch.
Note
• Turn on both your computer and the LCD Display.
• Contact a local SAMSUNG Electronics Service Center to buy optional items.
Connections

Connecting to Other devices
Using a Power cord with Earth
•In the event of failure, the earth lead may cause electric shock. Make
sure to wire the earth lead in correctly, before connecting the AC power.
When un-wiring the earth lead, make sure to disconnect the AC power
in advance.
•AV input devices such as DVD players, VCRs or camcorders as well as your computer
can be connected to the LCD Display. For detailed information on connecting AV input
devices, refer to the contents under Adjusting Your LCD Display.
•The LCD Display 's configuration at the back may vary slightly depending on the LCD
Display model.
Connecting AV Devices
1. Connect the Video and Audio [AV/COMPONENT AUDIO IN [L-AUDIO-R]] port of the
DVD, VCR or DTV Set-Top Box to the Video and Audio [AV IN [VIDEO]]LCD Display.
2. Play the DVD, VCR or Camcorder with a DVD disc or tape inserted.
3. Select AV using the SOURCE button on the front of the LCD display or on the remote.
Connecting to a Camcorder
Connections

1. Locate the AV output jacks on the camcorder. They are usually found on the side or back
of the camcorder. Connect a set of audio cables between the AUDIO OUTPUT jacks on
the camcorder and the [AV/COMPONENT AUDIO IN [L-AUDIO-R]] on the LCD Display .
2. Connect a video cable between the VIDEO OUTPUT jack on the camcorder and the [AV
IN [VIDEO]] on the LCD Display .
3. Select AV for the Camcorder connection using the SOURCE button on the front of the
LCD Display or on the remote control.
4. Then, start the Camcorder with a tape inserted.
Note
The audio-video cables shown here are usually included with a Camcorder. (If not, check
your local electronics store.) If your camcorder is stereo, you need to connect a set of two
cables.

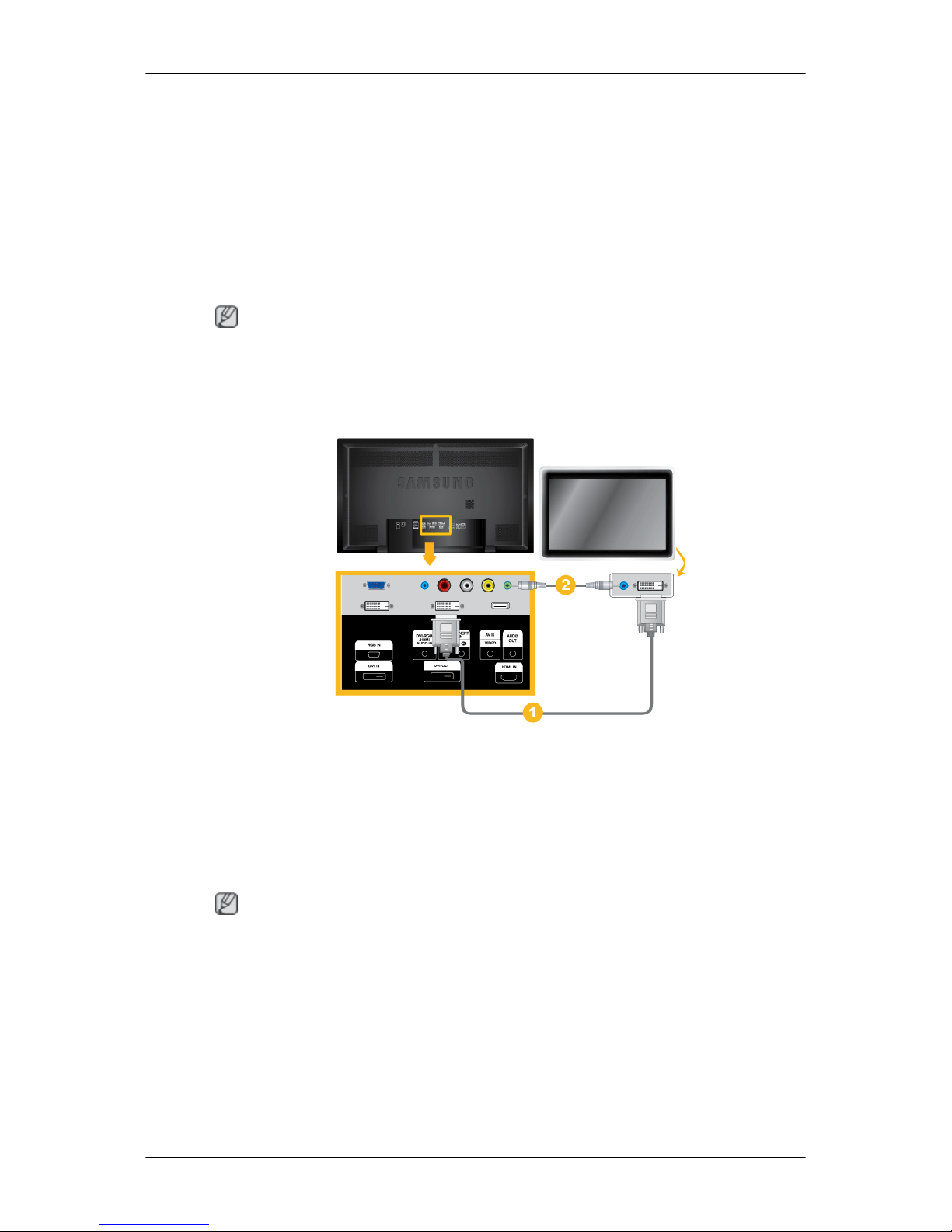

Connecting Using a DVI Cable
1. Connect between the [DVI OUT] port on the LCD Display and the input port on another
monitor using a DVI cable.
2. Connect between the [AUDIO OUT] port on the LCD Display and the audio input port on
another monitor using a stereo cable.
3. Select DVI using the SOURCE button on the front of the LCD Display or on the remote
control.
Note
DVI OUT does not support HDCP.
Connections
