Samsung SyncMaster 152X User manual

SyncMaster 152x/172x

Main Page On-Screen Display
Safety Instructions Troubleshooting
Notational Check List
Power Q & A
Installation Self-Test Feature Check
Cleaning
Other
Introduction Specifications
Unpacking General Specifications
Front PowerSaver
Rear Preset Display Modes
Setup Information
Connecting Your Monitor Service
Installing the Monitor Driver Terms
Automatic Regulatory
Manual Natural Color
For Better Display
Authority

Notational
Power
Installation
Clean
Other
Failure to follow directions noted by this symbol could result in bodily harm or damage to
equipment.
Prohibited Important to read and understand at all times
Do not disassemble Disconnect the plug from the outlet
Do not touch Grounding to prevent an electric shock

Notational
Power
Installation
Clean
Other
When not used for extended periods of time, set your PC to DPMS. If using
a screen saver, set it to the active screen mode.
Do not use a damaged or loose plug.
zThis may cause an electric shock or fire.
Do not pull the plug out by the wire nor touch the plug with wet
hands.
zThis may cause an electric shock or fire.
Use only a properly grounded plug and reoeptacle.
zAn improper ground may cause electric shock or equipment
damage.
Do not excessively bend the plug and wire nor place heavy objects
upon them, which could cause damage.
zFailure to do so may cause an electric shock or fire.
Disconnect the plug from the outlet during storms or lightening or
if it is not used for a long period of time.
zFailure to do so may cause an electric shock or fire.
Do not connect too many extension cords or plugs to an outlet.
zThis may cause a fire.

Notational
Power
Installation
Clean
Other
Do not cover the vents on the monitor cabinet.
zBad ventilation may cause a breakdown or fire.
Put your monitor in a location with low humidity and a minimum of
dust.
zAn electric shock or fire could result inside the monitor.
Do not drop the monitor when moving it.
zThis may cause damage to the product or human body.
Place the monitor on a flat and stable surface.
zThe monitor can cause injury by falling.
Set down the monitor carefully.
zIt could be damaged or broken.
Do not place the monitor face down.
zThe CDT surface may be damaged.

Notational
Power
Installation
Clean
Other
When cleaning the monitor case or the surface of the TFT-LCD, wipe with a
slightly moistened, soft fabric.
Do not spray detergent directly on the monitor.
Use the recommended detergent with a smooth cloth.
If the connector between the plug and the pin is dusty or dirty,
clean it properly with a dry cloth.
zA dirty connector can cause an electric shock or fire.
Do not set a glass of water, chemicals or any small metal objects
on the monitor.
zThis may cause damage, electric shock or a fire.
zIf a foreign substance gets into the monitor, disconnect the plug
and then contact a service center.

Notational
Power
Installation
Clean
Other
Do not remove cover(or back). No user serviceable parts inside.
zThis may cause an electric shock or a fire.
zRefer servicing to qualified service personnel.
If your monitor does not operate normally - in particular, if there
are any unusual sounds or smells coming from it - unplug it
immediately and contact an authorized dealer or service.
zThis may cause an electric shock or a fire.
Do not place any heavy objects on the monitor.
zThis may cause an electric shock or a fire.
For each hour of looking at the monitor, you should let your eyes
rest for 5 minutes.
zThis will reduce eye fatigue.
Do not use or store inflammable substances near the monitor.
zThis may cause an explosion or fire.
Do not try to move the monitor by pulling on the wire or the signal
cable.
zThis may cause a breakdown, electric shock or a fire due to
damage to the cable.
Do not move the monitor right or left by pulling only the wire or the
signal cable.
zThis may cause a breakdown, electric shock or a fire due to
damage to the cable.
Never insert anything metallic into the monitor openings.
zThis may cause an electric shock, fire or injury.
Keep all power adaptors apart.

zPossible fire hazard.
Keep power adaptor away from any other heat source.
zPossible fire hazard.
Remove and discard vinyl bag from power adaptor before use.
zPossible fire hazard.
Always keep power adaptor in well-ventilated area.
If you view a fixed screen for an extended period of time, residual
image or blurriness may appear.
zChange the mode to energy save or set a screensaver to moving
picture when you need to be away from the monitor for an
extended period of time.

Unpacking
Front
Rear
Please make sure the following items are included with your monitor. If any items are missing, contact
your dealer.
Un
p
ackin
g
Monitor
VESA Mounting Bracket
D-Sub Cable Quick Setup Guide
Power Cord Warranty Card
(Not available in all locations)
DC-Adapter
User's Guide and Driver
Installation CD
SyncMaster 152x

Unpacking
Front
Rear
Please make sure the following items are included with your monitor. If any items are missing, contact
your dealer.
Un
p
ackin
g
Monitor
D-Sub Cable Quick Setup Guide
DVI Cable
(Option)
Warranty Card
(Not available in all locations)
Power Cord
DC-Adapter
User's Guide and Driver
Installation CD
VESA Mounting Bracket
SyncMaster 172x

Unpacking
Front
Rear
1. Auto button Use this button to auto adjustment direct access. /
/ Exit button Use this button to Exit the active menu or the OSD.
2. Menu button Use this button to open the OSD and activate a highlighted menu item.
3. Power button Use this button to turn the monitor on and off.
4. MagicBright
button MagicBright is a new feature providing optimum viewing environment
depending on the contents of the image you are watching. Currently three
different modes are available: Text, Internet, and Entertain. Each mode has its
own pre-configured brightness value. You can easily select one of three
settings by simply pressing MagicBright control buttons.
5. Adjust buttons These buttons allow you to highlight and adjust items in the menu.
a. Power indicator This light glows green during normal operation, and blinks green once as the
monitor saves your adjustments.
Note: See PowerSaver described in the manual for further information regarding power saving functions.
For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for
long periods.
SyncMaster 152x

Unpacking
Front
Rear
1. Auto button Use this button to auto adjustment direct access.
2. Exit button Use this button to Exit the active menu or the OSD.
3. Menu button Use this button to open the OSD and activate a highlighted menu item.
4. Power button Use this button to turn the monitor on and off.
5. Adjust buttons These buttons allow you to highlight and adjust items in the menu.
6. MagicBright
button
MagicBright is a new feature providing optimum viewing environment
depending on the contents of the image you are watching. Currently three
different modes are available: Text, Internet, and Entertain. Each mode has its
own pre-configured brightness value. You can easily select one of three
settings by simply pressing MagicBright control buttons.
a. Power indicator This light glows green during normal operation, and blinks green once as the
monitor saves your adjustments.
Note: See PowerSaver described in the manual for further information regarding power saving functions.
For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for
long periods.
SyncMaster 172x

Unpacking
Front
Rear
(The configuration at the back of the monitor may vary from product to product.)

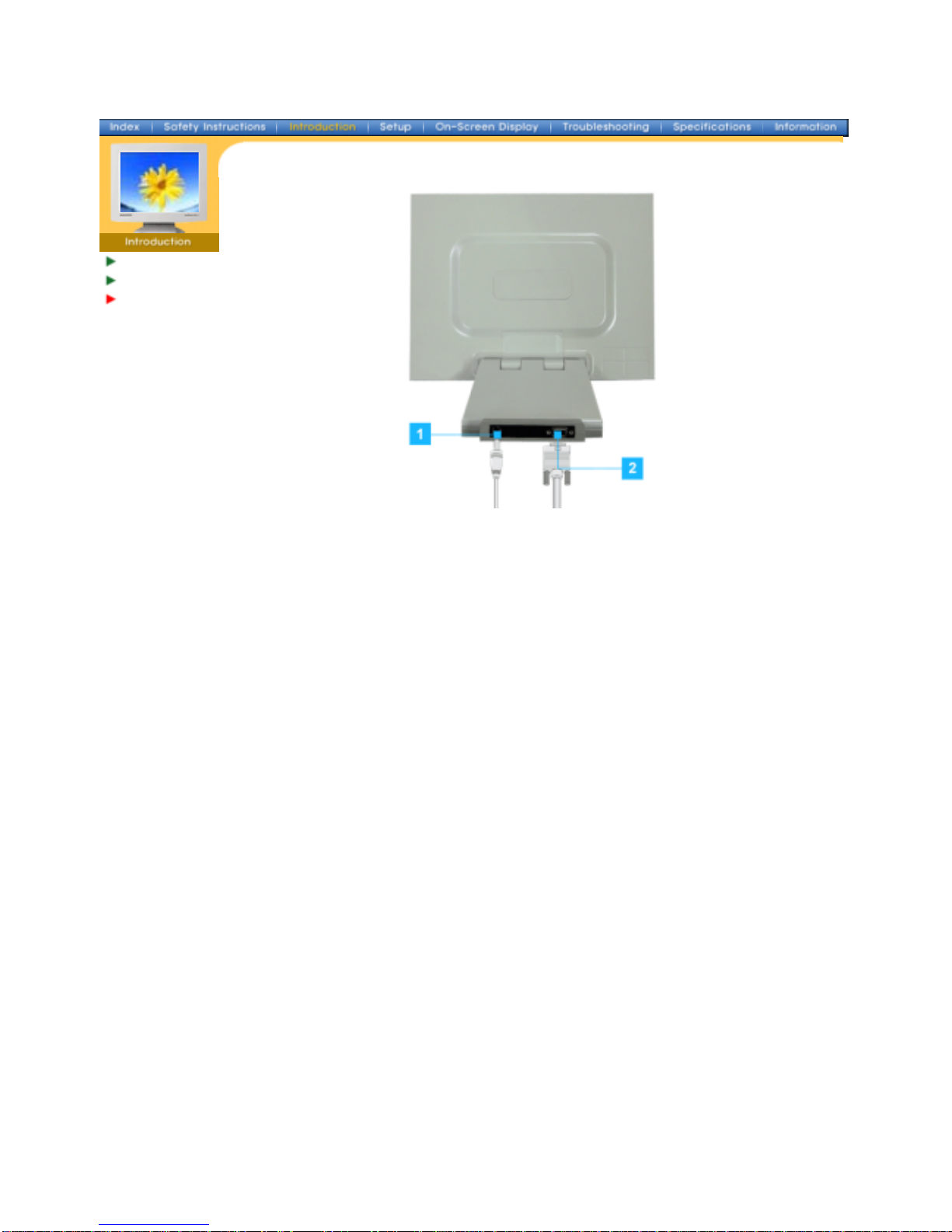

1. Power port Connect the DC Adapter for your monitor to the power port on the back
of the monitor.
2. Signal port Connect the signal cable to the 15-pin, D-sub connector on the back of
your monitor.
Note:
See Connecting Your Monitor for further information regarding cable connections.
SyncMaster 152x

Unpacking
Front
Rear
(The configuration at the back of the monitor may vary from product to product.)

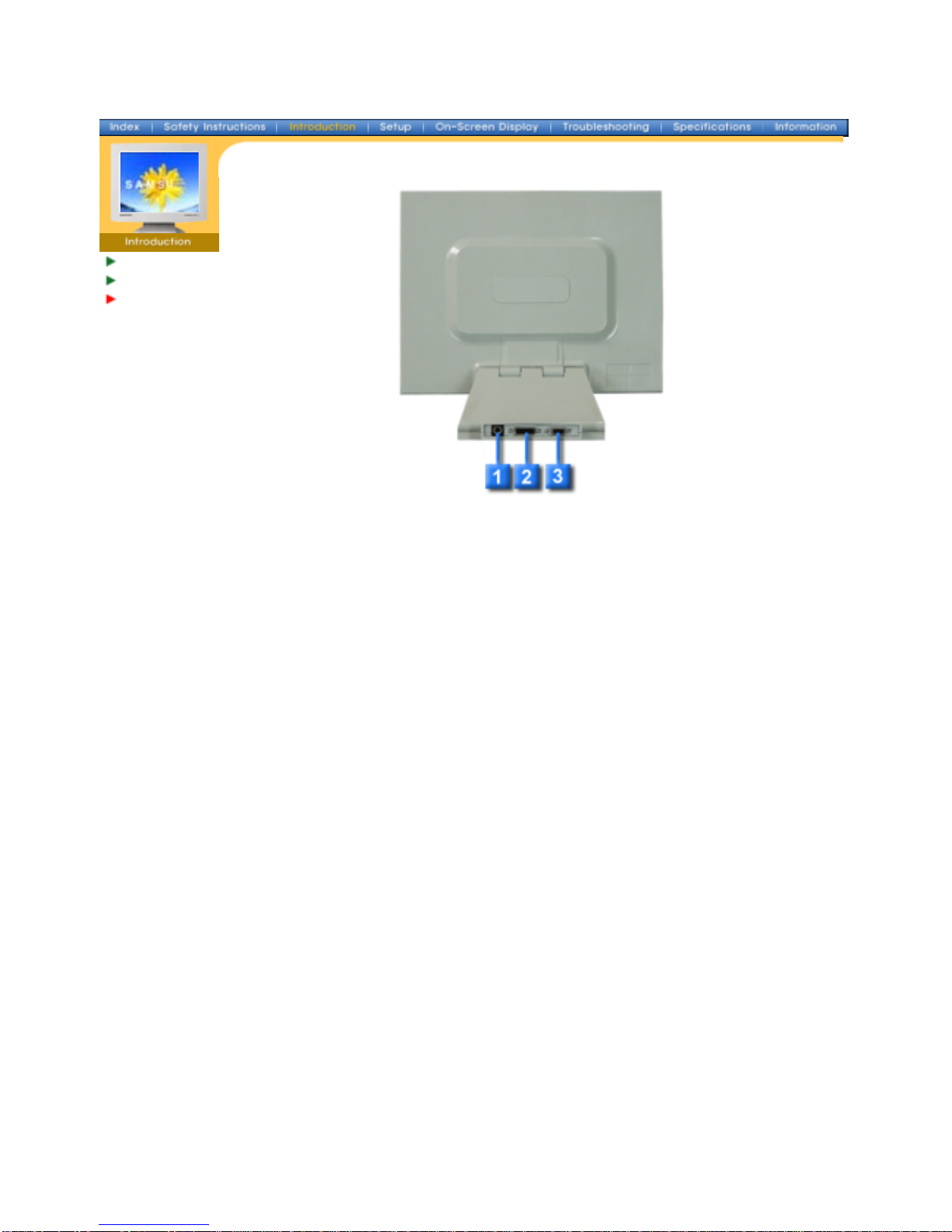

1. Power port Connect the DC Adapter for your monitor to the power port on the back
of the monitor.
2. DVI port Connect the DVI Cable to the DVI Port on the back of your Monitor.
3. Signal port Connect the signal cable to the 15-pin, D-sub connector on the back of
your monitor.
Note:
See Connecting Your Monitor for further information regarding cable connections.
SyncMaster 172x

Connecting
Your Monitor
Installing the
Monitor Driver
Connecting Your Monitor
Using the Stand
Setu
p
-General
1. Connect the DC Adapter for your monitor to the power port on the back of the monitor. Plug the
power cord for the monitor into a nearby outlet.
2. Connect the signal cable to the 15-pin, D-sub connector on the back of your monitor.
3. Connect the monitor to the Macintosh computer using the D-SUB connection cable.
4. In the case of an old model Macintosh, you need to connect the monitor using a special Mac
adaptor.
5. Turn on your computer and monitor. If your monitor displays an image, installation is complete.
SyncMaster 152x

Connecting
Your Monitor
Installing the
Monitor Driver
Setu
p
-General
1. Connect the DC Adapter for your monitor to the power port on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.
2-1. Using the D-sub (Analogue) connector on the video card.
Connect the signal cable to the 15-pin, D-sub connector on the back of your monitor.
2-2. Using the DVI (Digital) connector on the video card.
Connect the DVI Cable to the DVI Port on the back of your Monitor.
3. Connected to a Macintosh.
Connect the monitor to the Macintosh computer using the D-SUB connection cable.
4. In the case of an old model Macintosh, you need to connect the monitor using a special Mac
adaptor.
5. Turn on your computer and monitor. If your monitor displays an image, installation is complete.
You may get a blank screen depending on the type of video card you are using, if you connect
simultaneously both the D-sub and DVI cables to one computer.
If you connect properly your monitor using the DVI connector but get a blank or fuzzy screen,
check to see if the monitor status is set to analogue. Press Source button to have the monitor
double-check the input signal source.
SyncMaster 172x

Connecting
Your Monitor
Installing the
Monitor Driver
Connecting Your Monitor
Using the Stand
Wall Mounting the Monitor | Attaching a base
Wall Mounting the Monitor
As shown in the figure above, you first fold the stand. You attach the VESA mounting brackets on
the wall. You hang the monitor aligning its bottom grove with the bracket.
Attaching a base
NOTE: This monitor accepts a 75 mm x 75 mm VESA-compliant mounting interface pad.
Squeeze the folded monitor stand into the VESA mounting bracket. Then fasten it using the
four supplied nuts with the monitor, mounting pad and VESA mounting bracket aligned.
1.
V
ESA Mountin
g
Brkt
2. Mountin
g
interface
p
ad
SyncMaster 152x/172x

Connecting Your
Monitor
Installing the
Monitor Driver
When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions as appropriate for the operating system you
have.
Prepare a blank disk and download the driver program file at the Internet web site shown
here.
z
Internet web site :
http://www.samsung-monitor.com/ (Worldwide)
http://www.samsungusa.com/monitor/ (USA)
http://www.sec.co.kr/monitor/ (Korea)
http://www.samsungmonitor.com.cn/ (China)

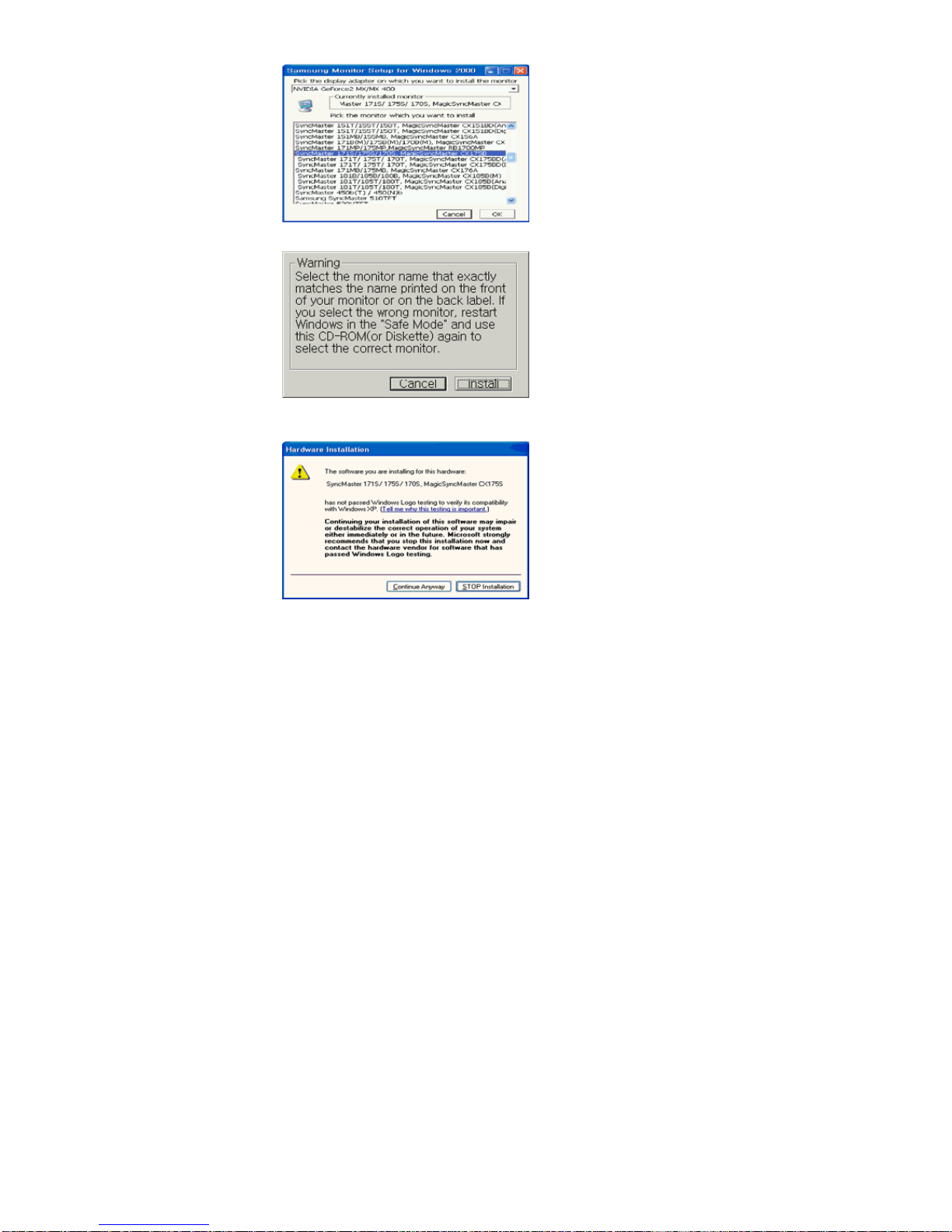

Windows ME
1. Insert CD into the CD-ROM drive.
2. Click "Windows ME Driver".
3. Choose your monitor model in the model list, then click the "OK" button.
4. Click the "Install" button in the "Warning" window.
5. Monitor driver installation is completed.
Windows XP/2000
1. Insert CD into the CD-ROM drive.
2. Click "Windows XP/2000 Driver".
3. Choose your monitor model in the model list, then click the "OK" button.

4. Click the "Install" button in the "Warning" window.
5. If you can see following "Message" window, then click the "Continue Anyway" button.
Then click "OK" button.
This monitor driver is under certifying MS logo,and this installation don't damage your
system.The certified driver will be posted on Samsung Monitor Homepage
http://www.samsung-monitor.com/.
6. Monitor driver installation is completed.

Connecting Your
Monitor
Installing the
Monitor Driver When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions as appropriate for the operating system you
have.
Prepare a blank disk and download the driver program file at the Internet web site shown
here.
z
Internet web site :
http://www.samsung-monitor.com/ (Worldwide)
http://www.samsungusa.com/monitor/ (USA)
http://www.sec.co.kr/monitor/ (Korea)
http://www.samsungmonitor.com.cn/ (China)
Microsoft®Windows®XP Operating System
1. Insert CD into the CD-ROM driver.
2. Click "Start" —> "Control Panel" then click the "Appearance and Themes" Icon.
3. Click "Display" icon and choose the "Settings" tab then click "Advanced..".
4. Click the "Properties" button on the "Monitor" tab and select "Driver" tab.
