Samsung SyncMaster 520DX User manual

Display your message longer than ever. The
Samsung DX series LCD monitors feature
the Samsung DID panel, with innovative
cooling technology that allows you longer
hours of operation. Your message will be
clear and bright even in areas with high
ambient light, with 700 cd/m2brightness and
5000:1 dynamic contrast ratio. Full HD 1080p
(520DX) and HDMI ensure impactful, high-
resolution images. Built-in speakers (520DX)
add convenience, and the ultra-thin 20mm
bezels let you create virtually seamless video
walls. Impactful messages, lasting longer
than ever. The Samsung DX series.
40", 46" and 52" Professional LCD Displays
460DX
400DX •460DX •520DX
Features:
• Improved cooling of Samsung DID panel allows longer
operation hours
• 700 cd/m2brightness with brightness sensor and 5000:1
dynamic contrast allows placement in the brightest areas
• 1920 x 1080 full HD 1080p resolution (520DX) and HDMI
• Built-in speakers mean no external speakers to install (520DX)
• Ultra-thin 20mm bezel for virtually seamless video walls, with
Natural Correction mode for distortion-free video walls
520DX

©2008 Samsung Electronics America, Inc. Samsung is a registered mark of Samsung Electronics Corp., Ltd.
Specifications and design are subject to change without notice. See www.samsung.com for detailed information.
Printed in USA. LFD-DXSeriesDSHT-Nov08T
Product Information: 1-866-542-7214 www.samsungmonitors.com
Product Support: 1-800-SAMSUNG
400DX
460DX
520DX
Features
Built for High Usage with Reliability
The innovative Samsung DID panel
incorporates cooling technologies that
improve heat protection and dissipation.
Lower temperatures mean longer
component life and longer usage times.
High Brightness and Contrast
700 nits brightness, a brightness sensor
that adjusts to ambient light, and
5000:1 dynamic contrast that adjusts
based on the picture allows placement
in even the brightest locations.
Full HD 1080p
The 520DX gives you full HD resolution,
while all models offer HDMI and DVI
connections.
Built-in Speakers
Integrated speakers mean no external
speakers to source, purchase and install.
Ultra-Thin Bezel
The ultra-thin bezel lends itself to
virtually seamless video walls, while
Natural mode compensates for what
little bezel there is, for distortion-free
video walls.

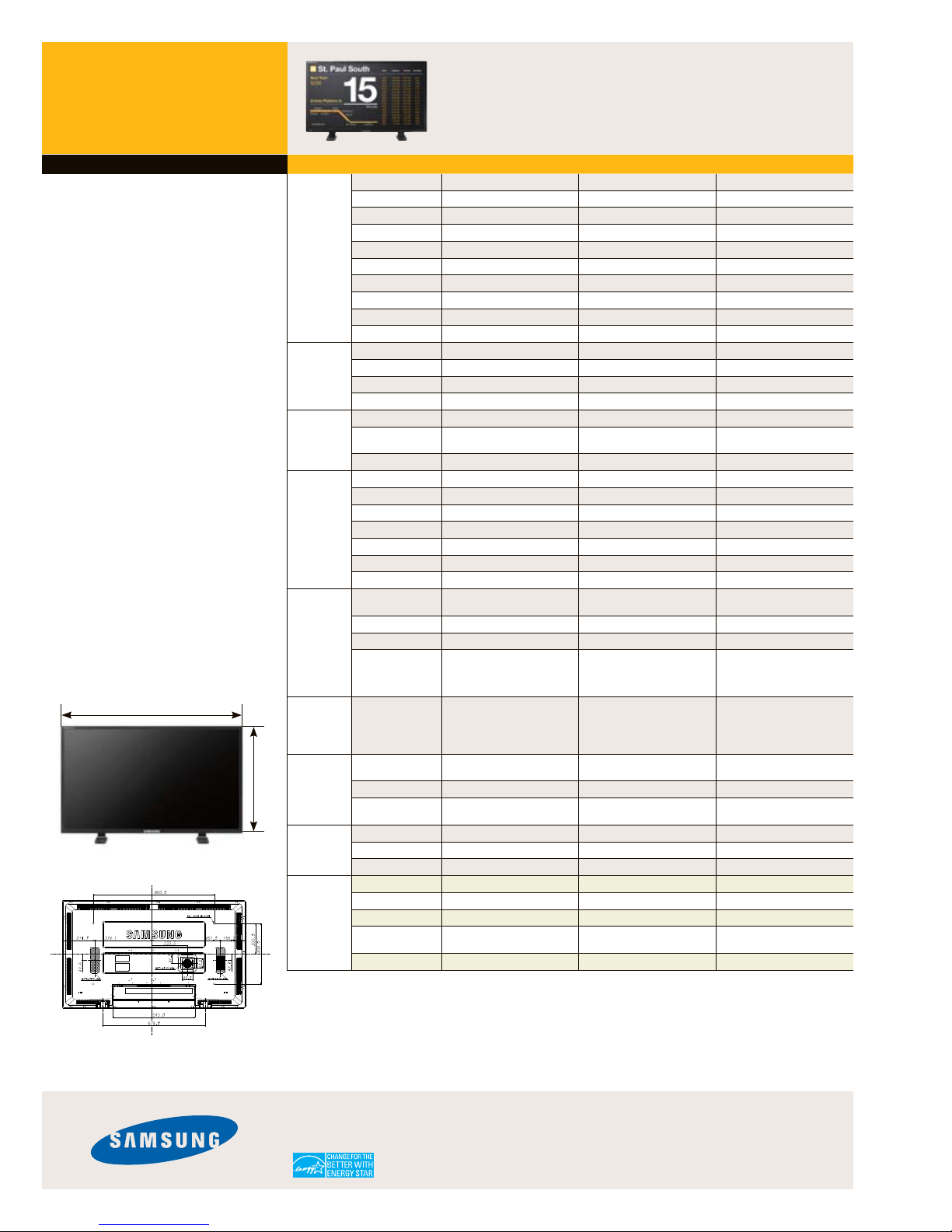

Dimensions 520DX
40", 46" and 52" Professional LCD Displays
400DX 460DX 520DX
Panel Diagonal Size 40" 46" 52"
Type S-PVA (DID) S-PVA (DID) S-PVA (DID)
Resolution 1366 x 768 1366 x 768 1920 x 1080
Pixel Pitch (H x W) 0.648 x 0.648 0.745 x 0.745 0.6 x 0.6
Brightness (Typ.) 700 cd/m2700 cd/m2700 cd/m2
Contrast Ratio 2000:1 2000:1 2000:1
Dynamic C/R 5000:1 5000:1 5000:1
Viewing Angle (H/V) 178°/178° 178°/178° 178°/178°
Response Time (G-to-G) 8 ms 8 ms 8 ms
Color Space (CIE1931) 72% 72% 72%
Connectivity PC inputs VGA/DVI/BNC VGA/DVI/BNC VGA/DVI/BNC
Video Inputs CVBS/S-Video/Component/HDMI CVBS/S-Video/Component/HDMI CVBS/Component/HDMI
Network N/A N/A N/A
Speaker 10W x 2 10W x 2 10W x 2 (built-in)
Power Power Consumption (Max) 220W 270W 370W
Power Consumption at
Stand-by (Max)
1W (Energy Saving ON) 1W (Energy Saving ON) 5W (Energy Saving ON)
Power Supply AC 100 – 240 V (+/-10%), 50/60 Hz AC 100 – 240 V (+/-10%), 50/60 Hz AC 100 – 240 V (+/-10%), 50/60 Hz
Mechanical Spec VESA Mount 600 x 400 mm 600 x 400 mm 800 x 400 mm
Cabinet Color (Color No.) Matte Black (BK07) Matte Black (BK07) Matte Black (BK07)
Weight (Set/Package) 52.2 lbs./62.8 lbs. 66.1 lbs./82.8 lbs. 81.1 lbs./103.6 lbs.
Dimension (W/O Stand) 36.7" x 21.6" x 5.1" 42" x 25.6" x 5.1" 47.7" x 28.1" x 5.4"
Dimension (With Stand) 36.7" x 23.8" x 12.2" 42" x 26.8" x 12.2" 47.7" x 30.6" x 12.2"
Packing Dimension 41" x 26.3" x 12.2" 46.9" x 30" x 12" 52.7" x 33.3" x 14.0"
Bezel Width 20 mm 20 mm 22 mm
Operation Operating Temperature
(Normal)
10°C ~ 40°C 10°C ~ 40°C 10°C ~ 40°C
Humidity 10 – 80% 10 – 80% 10 – 80%
MTBF 50,000 hours 50,000 hours 50,000 hours
Regulations Safety: UL, CSA, NOM
EMC: FCC
Ergonomics & Environments (option):
TCO’95, TCO’99
Safety: UL, CSA, NOM
EMC: FCC
Ergonomics & Environments (option):
TCO’95, TCO’99
Safety: UL, CSA, NOM
EMC: FCC
Ergonomics & Environments (option):
TCO’95, TCO’99
Feature Special Features - Lamp Error Detection
- Temperature Sensor
- Built-in Fan
- IR In/Out
- RS232C
- Lamp Error Detection
- Temperature Sensor
- Built-in Fan
- IR In/Out
- RS232C
- Lamp Error Detection
- Temperature Sensor
- Built in Fan
- BNC In/Out
- RS232C
Package
Contents
Manuals Quick Setup Guide, Warranty Card,
Application CD
Quick Setup Guide, Warranty Card,
Application CD
Quick Setup Guide, Warranty Card,
Application CD
Cables D-Sub, Power Cord, Speaker Wire D-Sub, Power Cord, Speaker Wire D-Sub, Power Cord
Others Remote Controller, BNC to RCA Jack,
Batteries, Stand Hole Cover, Semi Stand
Remote Controller, BNC to RCA Jack,
Batteries, Stand Hole Cover, Semi Stand
Remote Controller, BNC to RCA Jack,
Batteries, Stand Hole Cover, HDD Cover
Optional
Accessories
Speaker SP-L400DB(S) SP-L400DB(S) Built-in
Vertical Wall Mount WMN-5770D WMN-5770D WMN-5770D
Stand Built-in Built-in STN-L3257D
Green
Management
Emission Standard EMC EMC EMC
RoHS Compliant n n n
Energy Star Compliant n n n
Product Recyclability CCFL panel contains mercury, please
dispose of properly
CCFL panel contains mercury, please
dispose of properly
CCFL panel contains mercury, please
dispose of properly
Packaging Recyclability Packing materials recyclable Packing materials recyclable Packing materials recyclable
47.7"
28.1"
