Samsung SyncMaster 591V User manual

Install drivers Install
p
ro
g
rams
SyncMaster 591s / 591v / 793s / 793v / 783DF / 793DF /
793MB / 795DF / 795MB / 797DF / 997DF

Failure to follow directions noted by this symbol could result in bodily harm or damage to
equipment.
Prohibited Important to read and understand at all times
Do not disassemble Disconnect the plug from the outlet
Do not touch Grounding to prevent an electric shock
Power
When not used for extended periods of time, set your computer to a screen
saver.
zIf the same image is present for long periods of time, Phosphor Burnt can be
occured, or the screen may be blurred.
Do not use a damaged or loose plug.

zThis may cause an electric shock or fire.
Do not pull the plug out by the wire nor touch the plug with wet hands.
zThis may cause an electric shock or fire.
Use only a properly grounded plug and receptacle.
zAn improper ground may cause electric shock or equipment damage.
Do not excessively bend the plug and wire nor place heavy objects upon
them, which could cause damage.
zThis may cause an electric shock or fire.
Disconnect the plug from the outlet during storms or lightening or if it is
not used for a long period of time.
zThis may cause an electric shock or fire.
Do not connect too many extension cords or plugs to an outlet.
zThis may cause fire.
Do not disconnect the power cord while using the monitor.
z
A
surge may be caused by the separation and may damage the monitor.
Do not use the power cord when the connector or plug is dusty.
zIf the connector or plug of the power cord is dusty, clean it with a dry
cloth.
zUsing the power cord with a dusty plug or connector may cause an
electric shock or fire.

Installation
Put your monitor in a location with low humidity and a minimum of dust.
zFailure to do so may cause an electric shock or fire inside the monitor.
Do not drop the monitor when moving it.
zThis may cause damage to the product or human body.
Install the monitor base in a showcase or shelf so that the end of the
base does not project beyond the showcase or shelf.
zDropping the product may cause damage to the product or personal
injury.
Set down the monitor carefully.
zThe monitor could be damaged or broken.
Do not place the monitor face down.
zThe CDT surface may be damaged.
Do not use the monitor without the monitor stand.
zIt could break down or cause fire due to bad ventilation.
zIf the monitor must be used without the supplied stand, take steps to
insure proper ventilation.
When installing the product, make sure to keep it away from the wall
(more than 10cm/4inch) for ventilation purposes.
zPoor ventilation may cause an increase in the internal temperature of
the product, resulting in a shortened component life and degraded
performance.
Keep the plastic packaging (bag) out of children’s reach.
zThe plastic packaging (bag) may cause suffocation if children play with
it.

Clean
When cleaning the monitor case or the surface of the CDT, wipe with a slightly
moistened, soft fabric.
Do not clean Flat monitor with water. Use a water-diluted mild detergent.
(Some detergents contain significant amounts of alcohol-based solvents, which
can damage (color change) or crack the monitor case. The antiglare/anti-static
surface coating on the CDT may also be affected.)
Dilute the detergent (1:10 ratio) with water before using.
Do not spray water or detergent directly on the monitor.
Use the recommended detergent with a smooth cloth.
zYou may prevent the coated CDT from being damaged or the monitor
cabinet from being dissolved, cracked or discolored.
zYou may buy a recommended detergent at any Samsung Service
Center.
If the connector between the plug and the pin is dusty or dirty, clean it
properly with a dry cloth.
zA dirty connector may cause an electric shock or fire.
Others
Do not remove cover (or back).
zThis may cause an electric shock or fire.
zRefer servicing to qualified service personnel.
If your monitor does not operate normally - in particular, if there are any
unusual sounds or smells coming from it - unplug it immediately and
contact an authorized dealer or service.
zThis may cause an electric shock or fire.

Do not cover the vents on the monitor cabinet.
zBad ventilation may cause a breakdown or fire.
Do not set a glass of water, chemicals or any small metal objects on the
monitor.
zThis may cause damage, electric shock or fire.
zIf a foreign substance gets into the monitor, disconnect the plug and
then contact a service center.
For each hour of looking at the monitor, you should let your eyes rest fo
r
5 minutes.
zThis will reduce eye fatigue.
Watching the monitor continuously at a too close angle may result in
eyesight damage.
Do not use or store inflammable substances near the monitor.
zThis may cause an explosion or fire.
Do not try to move the monitor by pulling only the wire or the signal
cable.
zThis may cause a breakdown, electric shock or fire due to damage to
the cable.
Do not move the monitor right or left by pulling only the wire or the
signal cable.
zThis may cause a breakdown, electric shock or fire due to damage to
the cable.
Never insert anything metallic into the monitor openings.
zThis may cause an electric shock, fire or injury.

Keep the monitor away from any magnetic substances.
zThis may cause discoloring or distortion of the image.
Do not install the product on an unstable, uneven surface or a location
prone to vibrations.
zDropping the product may cause damage to the product or personal
injury. Using the product in a location prone to vibrations may shorten
the lifetime of the product or may catch fire.

Hoidke monitor eemal mistahes magnetilistest esemetest.
zNeed võivad põhjustada värvi muutumist või moonutada kujutist.
Ärge paigaldage seadet kõikuvale, ebatasasele pinnale või kohtadesse,
kus esineb vibratsiooni.
zSeadme kukkumine võib põhjustada vigastusi nii seadmele kui ka
kasutajale. Seadme kasutamine kohtades, kus esineb vibratsiooni,
lühendab toote kasutusiga ja võib põhjustada tulekahju.

Please make sure the following items are included with your monitor.
If an
y
items are missin
g
, contact
y
our deale
r
.
Unpacking
Monitor and Stand
(Some models include a stand attached.)
Manual
Quick Setup Guide Warranty Card (Not available in all
locations)
User's Guide,
Monitor Driver,
Natural Color software
Cable
S yncMaster 997DF
SyncMaster 591s / 591v / 793s / 793v / 997DF /793DF
793MB / 795DF / 795MB / 797DF

Power Cord Si
g
nal Cable
(
O
p
tion
)
Stand
Stand
For Multimedia model (Option)
Manual
User Guide
Cable
Sound Cables
(
2each
)
DC Power Cord
Stand
Multimedia S
p
eaker Stand
Front

Menu button [ ]
Opens the OSD menu. Also used to exit the OSD menu or
return to the previous menu.
Adjust buttons [ ] These buttons allow you to highlight and adjust items in the
menu.
Enter button [ ] Used to select the OSD menu.
Power button Use this button for turn the monitor on and off.
Power indicator This light glows green during normal operation, and blinks green
once as the monitor saves your adjustments.
See PowerSaver described in the manual for further information regarding power saving
functions. For energy conservation, turn your monitor OFF when it is not needed, or when
leaving it unattended for long periods.
Rear
General | BNC Connectors (Option)
General

(The configuration at the back of the monitor may vary from product to product.)
Power port Connect the power cord for your monitor to the power port on
the back of the monitor.
Signal Cable Connect the signal cable to the video port on your computer,
video board, video card, or graphics card.
BNC Connectors (Option)
(The configuration at the back of the monitor may vary from product to product.)
Power port Connect the power cord for your monitor to the power port on
the back of the monitor.
Signal port Connect the signal cable to the 15-pin D-sub connector on the
back of your monitor.
BNC Connectors
(Option) Connect the signal cable to the BNC signal port on the back of
your monitor.
SeeConnecting the Monitor for further information regarding cable connections.
SyncMaster 591s / 591v / 793s / 793v / 783DF / 793DF /
/997DF / 793MB / 795DF / 795MB / 797DF
SyncMaster 997DF

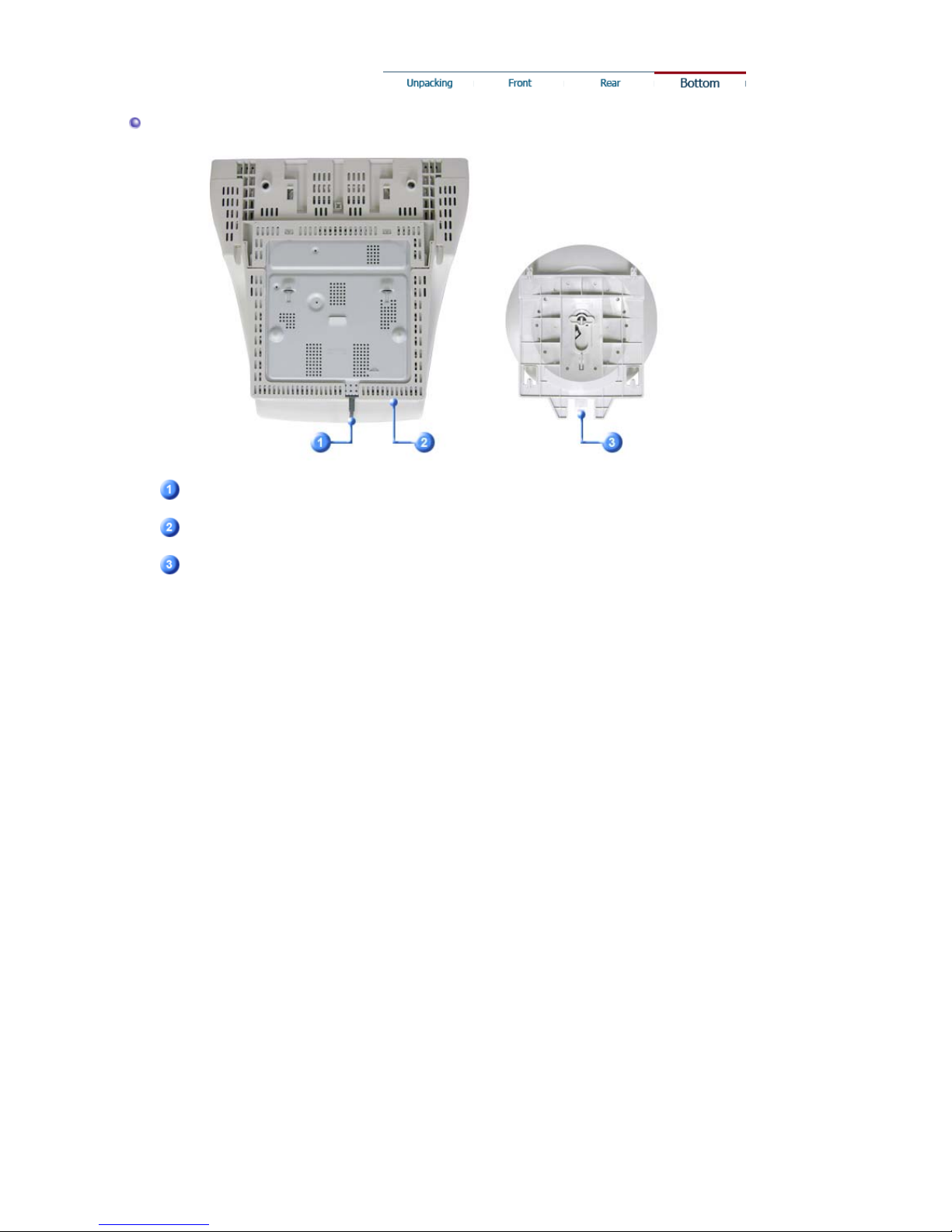

Bottom
Signal Cable Connect the signal cable to the video port on your computer,
video board, video card, or graphics card.
Power port Connect the power cord for your monitor to the power port on
the back of the monitor.
Tilt/Swivel Base You can separate the base from the monitor.

Please make sure the following items are included with your monitor.
If an
y
items are missin
g
, contact
y
our deale
r
.
Unpacking
Monitor and Stand
(Some models include a stand attached.)
Manual
Quick Setup Guide Warranty Card (Not available in all
locations)
User's Guide,
Monitor Driver,
Natural Color software
Cable
Power Cord
SyncMaster 783DF

Stand
Stand
For Multimedia model (Option)
Manual
User Guide
Cable
Sound Cables
(
2each
)
DC Power Cord
Stand
Multimedia S
p
eaker Stand
Front

Menu button [ ]
Opens the OSD menu. Also used to exit the OSD menu or
return to the previous menu.
Adjust buttons [ ] These buttons allow you to highlight and adjust items in the
menu.
Enter button [ ] Used to select the OSD menu.
Power button Use this button for turn the monitor on and off.
Power indicator This light glows green during normal operation, and blinks green
once as the monitor saves your adjustments.
See PowerSaver described in the manual for further information regarding power saving
functions. For energy conservation, turn your monitor OFF when it is not needed, or when
leaving it unattended for long periods.
Rear
(The configuration at the back of the monitor may vary from product to product.)

Power port Connect the power cord for your monitor to the power port on
the back of the monitor.
Signal Cable Connect the signal cable to the video port on your computer,
video board, video card, or graphics card.
See Connecting the Monitor for further information regarding cable connections.
Bottom
Signal Cable Connect the signal cable to the video port on your computer,
video board, video card, or graphics card.
Power port Connect the power cord for your monitor to the power port on
the back of the monitor.
Tilt/Swivel Base You can separate the base from the monitor.

Setup-For Multimedia model | Multimedia Speaker Stand
General | BNC Connectors (Option)
General
1. Connect the power cord for your monitor to the power port on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.
2-1. Connecting to a computer
Connect the signal cable to the 15-pin, D-sub connector on the back of your monitor.
2-2. Connecting to a new Macintosh
Connect the monitor to the Macintosh computer using the D-SUB connection cable.
2-3. Connecting to an old Macintosh
Connect your monitor to the Macintosh using the adapter for Macintosh (sold separately).
3. Turn on your computer and monitor. If your monitor displays an image, installation is
complete.
BNC Connectors (Option)
SyncMaster 591s / 591v / 793s / 793v / 783DF / 793DF /
793MB / 795DF / 795MB / 797DF / 997DF

1. Connect the power cord for your monitor to the power port on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.
2-1. Connecting to a computer
Connect the signal cable to the 15-pin, D-sub connector on the back of your monitor.
2-2. Connecting to a new Macintosh
Connect the monitor to the Macintosh computer using the D-SUB connection cable.
2-3. Connecting to an old Macintosh
Connect your monitor to the Macintosh using the adapter for Macintosh (sold separately).
3. When you use a BNC connector.
Connect the signal cable to the BNC signal port on the back of your monitor/computer.
4. Turn on your computer and monitor. If your monitor displays an image, installation is
complete.
Setu
p
-For Multimedia model
SyncMaster 997DF

1. Turn off your computer and unplug the power cord.
2. Connect the end of the signal cable to your computer's video port(video board, video card or
graphics card).
3. Connect one end of the other sound cable to the Mic Input jack on your sound card or
computer.Connect the other end of this cable to the Mic By-pass jack on the back of the
monitor stand.
4. Plug the DC power cord from the stand into a nearby outlet.
5. Connect the power cord for your monitor to the power port on the back of the monitor.
6. Plug the power cord for the monitor and the power cord for your computer into a nearby
outlet.
7. Turn on your computer and monitor.
8. Turn up or down the On-Off control terminal on the stand of the monitor until it clicks.
9. Execute a sound program, music or sound effect in your computer and then adjust the volume
by turning up or down until the sound volume is appropriate.
10. Adjust the treble and bass.
Sound distortion may occur when the monitor is placed on top of a mostly hollow cabinet such
as your computer. If this occurs, place a pad or magazine beneath the monitor stand. High
sound volume may also cause sound distortion; lower the volume.
Multimedia S
p
eaker Stand 1. Mic By-pass Jack
To transmit your voice,connect a sound cable from
the Mic By-pass jack to the mic in jack on the sound
card slot in your computer.
2. Stereo Input Jack
Connect a sound cable from the input source(sound
card,computer,CD-ROM drive).
3. DC Power Cord
Connect DC power cord to monitor DC 12V output
jack.
4. Power Indicator
Glows green when the speakers are turned on.
5. On/Off Volume
Turns On/Off and adjusts the output volume.
6. Treble Control
Use to control high frequencies.
7. Bass Control
Use to control low frequencies.
8. Mic Input Jack
To transmit your voice,connect a microphone to this
jack.
9. Headphone Jack
To listen in privacy,connect headphones here.
10. Detachable Stand Top
Tilt/Swivel Base | Attaching and Removing the Base
Tilt/Swivel Base
With the built-in pedestal, you can tilt and/or swivel the monitor for the most comfortable
viewin
g
an
g
le.
