Samsung SyncMaster T27A300 User manual

LED TV MONITOR
(MFM TV)
user manual
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
Model _____________ Serial No. _____________
TA300
✎
If you have any questions, please call us at 1-800-SAMSUNG
(1-800-726-7864) for assistance.

2
English
Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
Product design and specifications may be changed without notice.
Important Warranty Information Regarding Television Format Viewing
✎
See the warranty card for more information on warranty terms.
Wide screen format LED Displays (with 16:9 aspect ratios, the ratio of the screen width to height) are primarily designed to view wide screen format full-
motion video. The images displayed on them should primarily be in the wide screen 16:9 ratio format, or expanded to fill the screen if your model offers
this feature, with the images constantly in motion. Displaying stationary graphics and images on the screen, such as the dark sidebars on non-expanded
standard format television video and programming, should be limited to no more than 5% of the total television viewing per week.
Additionally, viewing other stationary images and text such as stock market crawls, video game displays, station logos, web sites or computer graphics
and patterns, should be limited as described above for all televisions. Displaying stationary images for more than 5% of total viewing time can cause
uneven aging of your LED display and leave subtle, but permanent burned-in ghost images in the LED picture. To avoid this, vary the programming and
images, and primarily display full screen moving images, not stationary patterns or dark bars. On LED models that offer picture sizing features, use these
controls to view different formats as a full screen picture. Be careful in the selection of television formats you use for viewing and the amount of time you
view them. Uneven LED aging as a result of format selection and use, as well as burned in images, are not covered by your Samsung limited warranty.
Still image warning
Avoid displaying still images (such as jpeg picture files), still image elements (such as TV channel logos, stock or news bars at the screen bottom etc.),
or programs in panorama or 4:3 image format on the screen. Constantly displaying still pictures can cause image burn-in on the screen, which will affect
image quality. To reduce risk of this effect, please follow the recommendations below:
• Avoid displaying the same TV channel for long periods.
• Always try to display a full screen image.
• Reduce brightness and contrast to avoid the appearance of after-images.
• Use all TV features designed to reduce image retention and screen burn. Refer to proper user manual section for details.
Securing the Installation Space
Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.
Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.
Installation with a stand. Installation with a wall-mount.
Other Warnings
The actual appearance of the TV may differ from the images in this manual, depending on the model.
Be careful when you touch the TV. Some parts can be somewhat hot.
4 inches
4 inches
4 inches 4 inches
4 inches
4 inches
4 inches

3
Contents
English
Check the Symbol!
t
Note Step by Step Guide
This function can be used by pressing the
TOOLS button on the remote control.
Indicates additional information. Check here for instructions on how to open
the relevant submenu within the OSD (on
screen display).
Getting Started
yList of Features ....................................................... 11
yAccessories ............................................................ 11

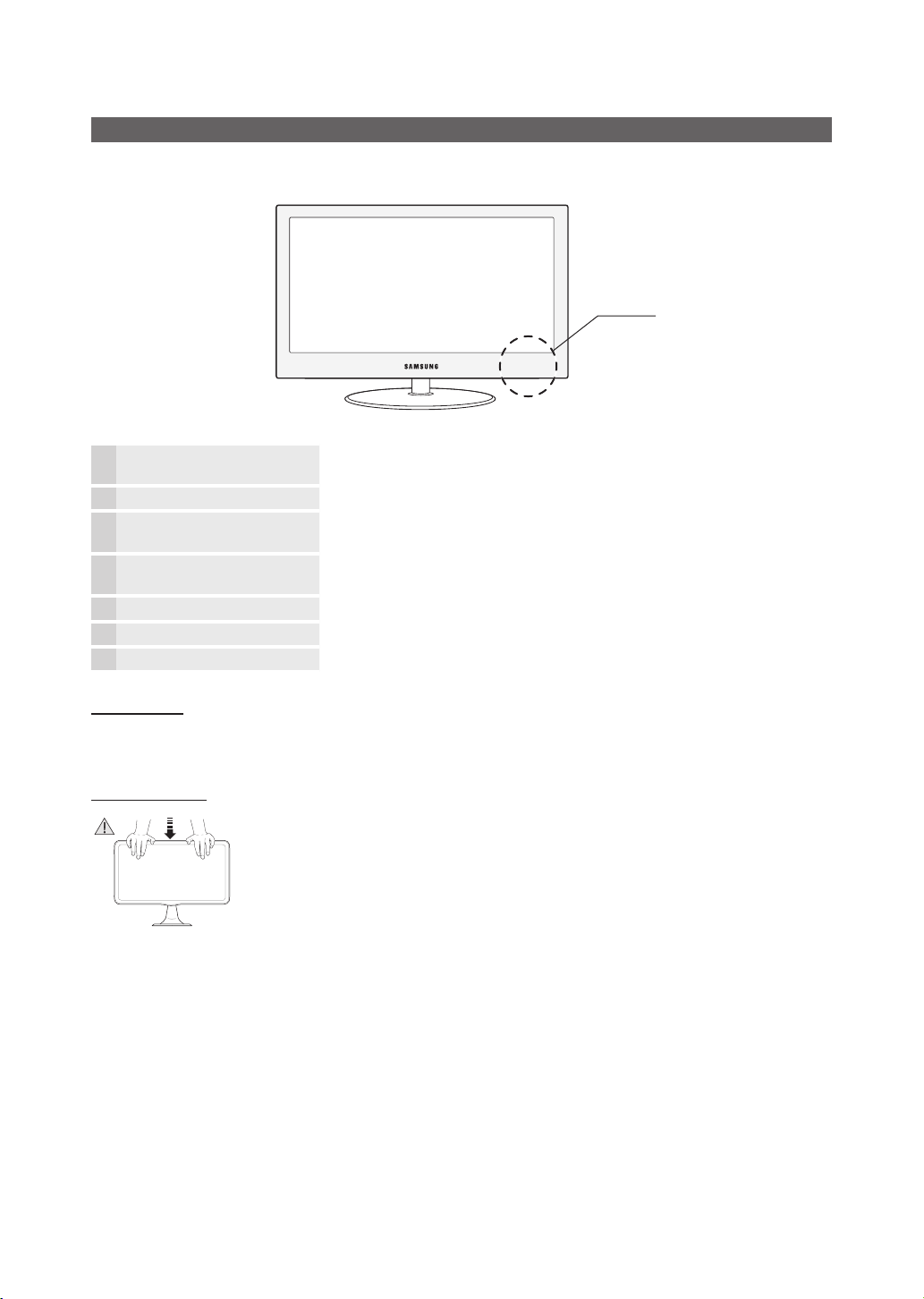

yViewing the Control Panel ....................................... 12

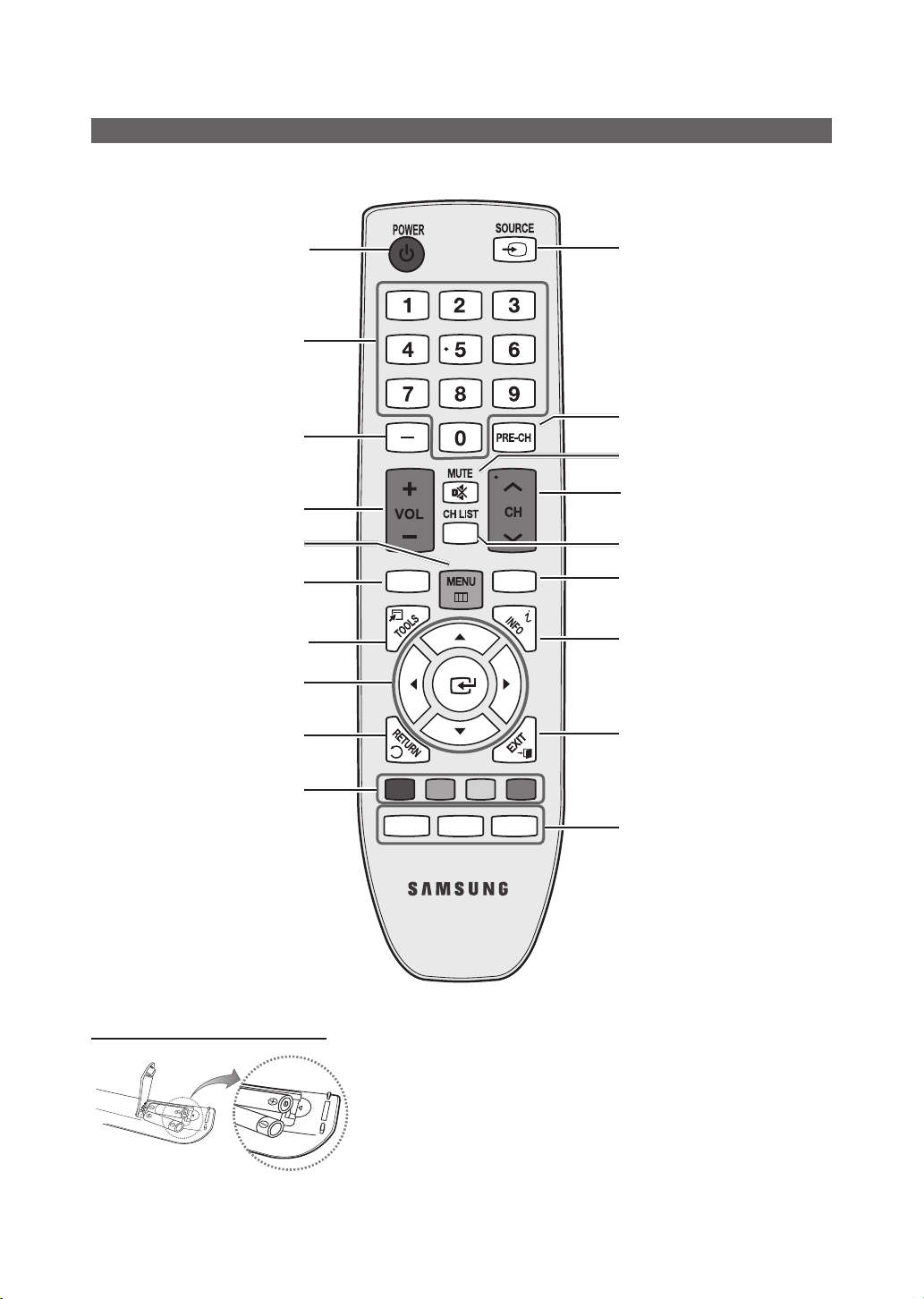

yViewing the Remote Control.................................... 13
yHow to Navigate Menus.......................................... 14
yConnecting to an Antenna ...................................... 14
yPlug & Play (Initial Setup)......................................... 15
Connections
yConnecting to an AV Device.................................... 16
yConnecting to a PC ................................................ 17
yChanging the Input Source ..................................... 19
Basic Features
yChannel Menu ........................................................ 20
Seeing Channels 20
Using Favorite Channels 20
Memorizing Channels 20
Editing Channels 21
Other Features 21
yPicture Menu .......................................................... 22
Changing the Preset Picture Mode 22
Adjusting Picture Settings 22
Changing the Picture Options 23
ySound Menu........................................................... 25
Changing the Preset Sound Mode 25
Adjusting sound settings 25
Sound Settings 25
ySetup Menu............................................................ 26
Setting the Time 26
Using the Sleep Timer 26
Setting the On/Off Timer 26
Locking Programs 27
Other Features 28
ySupport Menu......................................................... 30
Advanced Features
yMedia Play (USB) .................................................... 31
Connecting a USB Device 31
Other Information
yAttaching a Wall Mount/Desktop Stand................... 35
yAnti-theft Kensington Lock...................................... 36
yAssembling the Cables ........................................... 36
yTroubleshooting ...................................................... 37
yStorage and Maintenance....................................... 39
yLicense ................................................................... 39
ySpecifications ......................................................... 40
yIndex ...................................................................... 41

4
Getting Started
English
Safety Precautions
Icons used for safety precautions
WARNING Failing to follow the precautions marked with this sign may result in a serious injury or
even a fatality.
CAUTION Failing to follow the precautions marked with this sign may result in a personal injury or
property damage.
Do not perform.
Must be followed.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE.
REFER ALL SERVICING TO QUALIFIED PERSONNEL.
This symbol indicates that high voltage is
present inside. It is dangerous to make any kind
of contact with any internal part of this product.
This symbol alerts you that important literature
concerning operation and maintenance has
been included with this product.
¦Power Related
✎ The following images are for your reference and may differ depending on models and countries.
Warning
Avoid using a damaged power
cord or plug or a loose power
outlet.
yOtherwise, it may result in
electric shock or fire.
Avoid connecting multiple electric
appliances to a single wall outlet.
yOtherwise, it may result in fire
due to overheating of the wall
outlet.
Avoid plugging in or unplugging
the power supply with wet hands.
yOtherwise, it may result in
electric shock.
!
Plug the power plug in firmly.
yOtherwise, it may result in fire.
!
Make sure to connect the power
cord to a grounded wall outlet (for
insulation class 1 equipment only).
yOtherwise, it may result in
electric shock or injury.
Avoid bending or twisting the power
cord excessively and avoid placing
heavy objects on the cord.
yOtherwise, it may result in
electric shock or fire due to a
damaged power cord.

5
Getting Started
English
Keep the power cord and the
product away from a heater.
yOtherwise, it may result in
electric shock or fire.
!
!
If the pins of the power plug or the
wall outlet are covered in dust, clean
it using a dry cloth.
yOtherwise, it may result in fire.
Caution
Avoid unplugging the power plug
while the product is operating.
yOtherwise, it may damage the
product due to electric shock.
!
Make sure to use only the power
cord supplied by our company. In
addition, do not use the power cord
of another electric appliance.
yOtherwise, it may result in
electric shock or fire.
!
When unplugging the power plug
from the wall outlet, make sure to
hold it by the plug and not by the
cord.
yOtherwise, it may result in
electric shock or fire.
!
Connect the power plug to a wall
outlet that can be easily reached.
yWhen a problem occurs
with the product, you must
unplug the power plug to cut
the power off completely.
You cannot cut the power
off completely using only the
power button on the product.
¦Installation Related
Warning
Avoid placing burning candles,
mosquitorepellentor cigarettes on
the product.
yOtherwise, it may result in fire.
!
Ask an installation engineer or
relevant company to install the
product onto the wall.
yOtherwise, it may result in
injury.
yMake sure to use the specified
wall mount.
Avoid installing the product in a
badly-ventilated location such as
inside a bookshelf or closet.
yOtherwise, it may result in fire
due to internal over-heating.
!
Keep the plastic bags used to pack
the product away from children.
yIf children place the plastic
bags over their heads, they may
suffocate.
Avoid installing the product in
a location that is unstable or
exposed to excessive vibration
such as on an unstable or slanted
shelf.
yThe product may fall and this
may result in damage to the
product or injury.
yIf you use the product in a
location exposed to excessive
vibrations, it may result in a
problem with the product or
fire.
!
!
Avoid installing the product in a
location exposed to dust, moisture
(sauna), oil, smoke or water (rain
drops) and installing it within a
vehicle.
yThis may result in electric shock
or fire.

6
Getting Started
English
Avoid installing the product in a
location exposed to direct sunlight
and installing the product near a
heat source such as a fireplace or
heater.
yThis may shorten the product
life cycle or cause fire.
!
Avoid installing the product where
children may reach it.
yIf a child touches the product,
the product may fall and this
may result in injury.
ySince the front part is heavier,
install the product on a flat and
stable surface.
!
!
Bend the outdoor antenna cable
downwards at the location where
it comes in the house so that
rainwater does not flow in.
yIf rainwater enters the product,
it may result in electric shock
or fire.
!
!
Install the antenna far away from
any high voltage cables.
yIf the antenna touches or falls
onto a high voltage cable, it
may result in electric shock or
fire.
Caution
!
!
Do not let the product drop while
moving it.
yThis may result in a problem
with the product or injury.
Do not place the product face down
on the floor.
yThis may damage the panel of
the product.
When installing the product on a
console or shelf, make sure that
the front of the product does not
protrude out of the console or
shelf.
yOtherwise, this may cause the
product to fall off and result in
a malfunction or injury.
yMake sure to use a cabinet or
shelf suitable to the size of the
product.
!
When putting the product down,
handle it gently.
yOtherwise, it may result in a
problem with the product or
injury.
SAMSUNG
!
If the product is installed in a
location where the operating
conditions vary considerably,
a serious quality problem may
occur due to the surrounding
environment. In this case, install
the product only after consulting
one of our service engineers about
the matter.
yPlaces exposed to
microscopic dust, chemicals,
too high or low temperature,
high humidity, airports or
stations where the product is
continuously used.

7
Getting Started
English

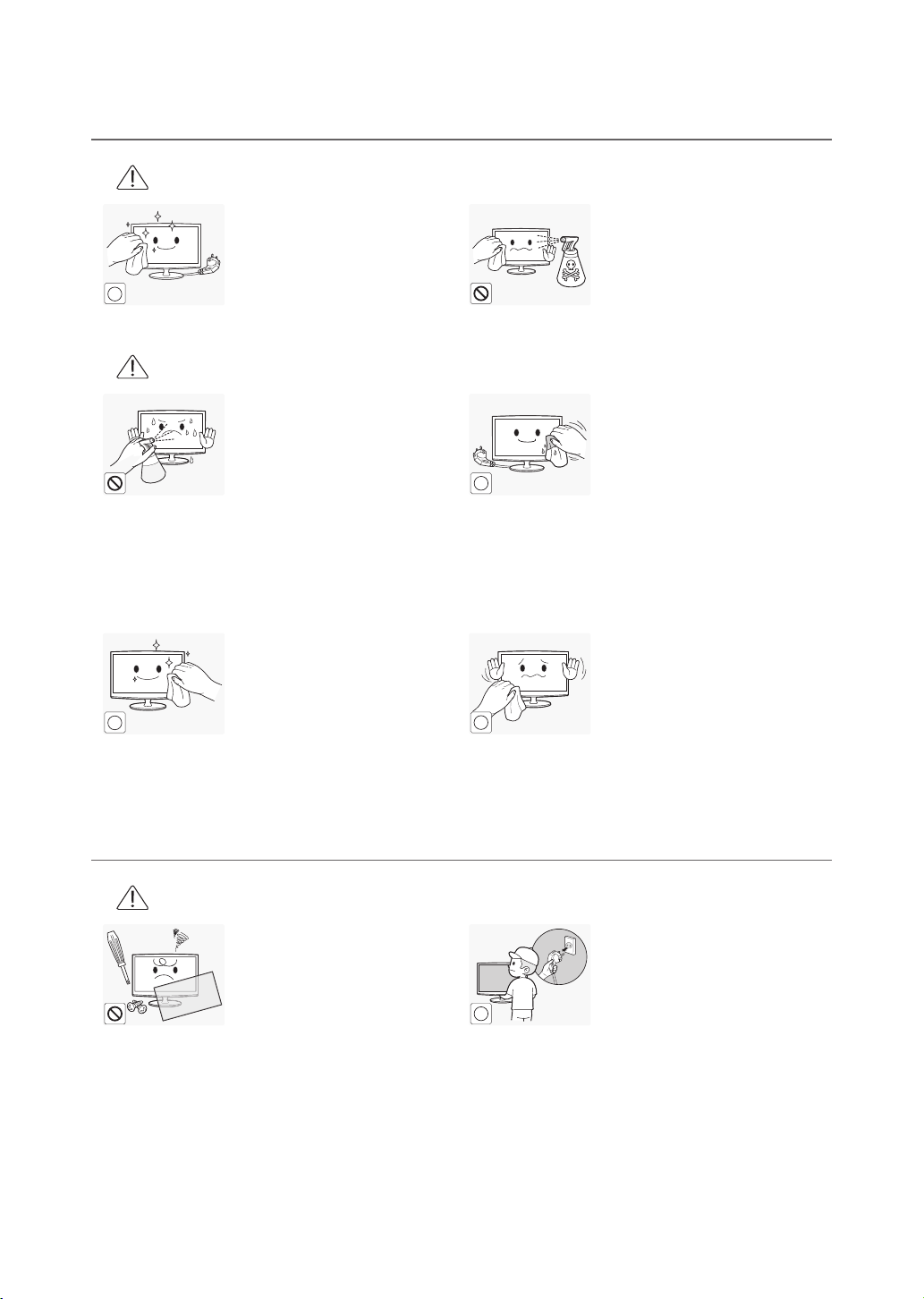

¦Cleaning Related
Warning
!
!
Before cleaning the product,
unplug the power cord.
yOtherwise, it may result in
electric shock or fire.
When cleaning the product, do
not spray water directly over the
product parts.
yMake sure that water does not
enter the product.
yOtherwise, it may result in fire,
electric shock or a problem with
the product.
Caution
Avoid spraying cleansing agent
directly onto the product.
yThis may result in discoloration
or cracking of the exterior
of the product or the panel
coming off.
!
When cleaning the product,
disconnect the power cord and
clean the product with the supplied
cleaning cloth.
yAvoid using chemicals such as
wax, benzene, alcohol, thinner,
mosquitorepellent, fragrance,
lubrication or cleansing agent
when cleaning the product.
This may result in the exterior
being deformed or the print
being removed.
!
!
If you can't get the product clean
with just the supplied cloth, use a
soft, damp cloth with a "monitor-
exclusive cleansing agent" and
wipe the product with it.
yIf no monitor-exclusive
cleansing agent is available,
dilute a cleansing agent with
water at a ratio of 1:10 before
cleaning the product.
!
Since the exterior of the product is
easily scratched, be sure to use the
supplied cleansing cloth.
¦Usage Related
Warning
Since a high voltage runs through
the product, never disassemble,
repair or modify the product
yourself.
yOtherwise, it may result in fire
or electric shock.
yIf the product needs to be
fixed, contact a service center.
!
!
To move the product, turn the
power off and unplug the power
cord, the antenna cable and any
other wires connected to the
product.
yOtherwise, it may result in
electric shock or fire due to the
damaged power cord.

8
Getting Started
English
!
!
If the product generates a strange
noise, a burning smell, or smoke,
unplug the power plug immediately
and contact a service center.
yOtherwise, it may result in
electric shock or fire.
Avoid letting children hang or climb
onto the product.
yOtherwise, it may result in the
product falling and this may
result in injury or death.
If you drop the product or the
case is damaged, turn the power
off and unplug the power cord.
Contact a service center.
yOtherwise, it may result in fire
or electric shock.
Avoid placing objects such as toys
and cookies on top of the product.
yIf a child hangs over the
product to grab an object, the
object or the product may fall
and this may result in injury or
even death.
!
When thunder or lighting occurs,
unplug the power cord and
under no circumstance touch
the antenna cable as this is
dangerous.
yOtherwise, it may result in
electric shock or fire.
!
Avoid dropping an object over the
product or cause impact to the
product.
yOtherwise, it may result in
electric shock or fire.
Avoid moving the product by
pulling the power cord or antenna
cable.
yOtherwise, it may result
in electric shock, fire or a
problem with the product due
to damage to the cable.
GAS
!
When a gas leak occurs, do not
touch the product or the power plug
and ventilate immediately.
yA spark may result in an
explosion or fire.
yDuring a thunder or lighting
storm, do not touch the power
cord or antenna cable.
Avoid lifting up or moving the
product by holding only the power
cord or signal cable.
yOtherwise, it may result
in electric shock, fire or a
problem with the product due
to damage to the cable.
!
Avoid using or placing inflammable
spray or objects near the product.
yThis may result in an explosion
or fire.
Take care not to block the vent by
a table cloth or curtain.
yOtherwise, it may result in fire
due to internal overheating.
100
Avoid inserting metal objects such
as a chopsticks, coins or hairpins,
or inflammable objects into the
product (the vents, ports, etc).
yIf water or substances enters
the product, turn the power
off, unplug the power cord and
contact a service center.
yOtherwise, it may result in a
problem with the product,
electric shock or fire.

9
Getting Started
English

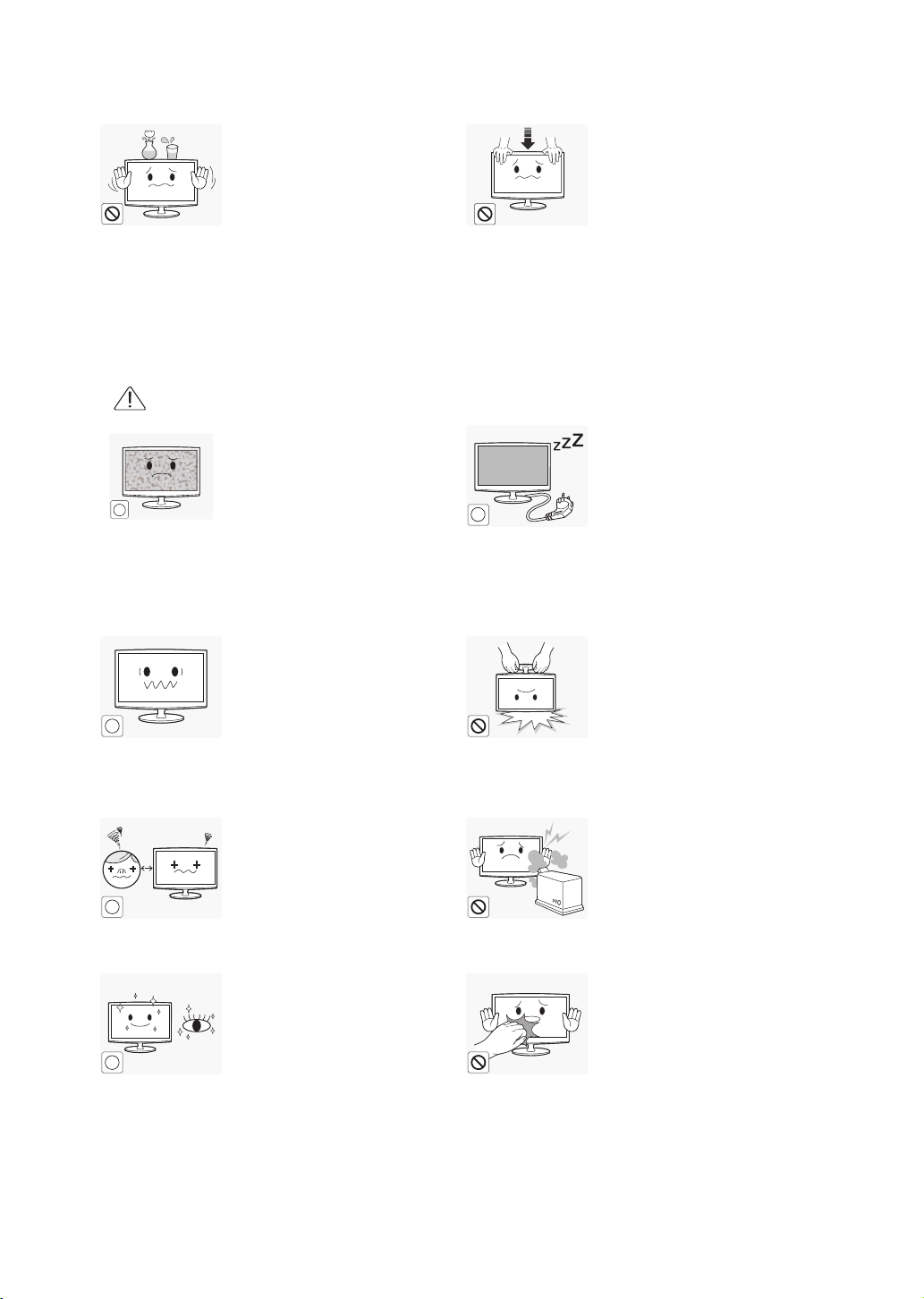

Avoid placing a liquid container
such as a vase, flowerpot,
beverage, cosmetics or drugs, or a
metal object over the product.
yIf water or substances enter
the product, turn the power
off, unplug the power cord
and contact a service center.
yOtherwise, it may result in a
problem with the product,
electric shock or fire.
Do not press down hard on the
product. The product may become
deformed or damaged.
Caution
!
!
!
Displaying a still image for a long
time may create a persistent image
or stain on the screen.
yIf you do not use the product
for a long time, use the
power-saving mode or set the
screensaver to the moving
picture mode.
-_-
!
!
When not using the product for
a long time such as leaving your
home, unplug the power cord from
the wall outlet.
yOtherwise, it may cause dust
accumulation and result in fire
caused by overheating or short
circuit or result in an electric
shock.
!
!
Set the appropriate resolution and
frequency for the product.
yOtherwise, it may result in eye
strain.
Avoid turning the product upside
down or move the product holding
only the stand.
yThis may cause the product to
fall, resulting in damage to the
product or injury.
!
!
Watching the product from too
close a distance continuously may
damage your eyesight.
Avoid using a humidifier or cooker
near the product.
yOtherwise, it may result in
electric shock or fire.
!
It is important to give your eyes
some rest (5 minutes every hour)
when viewing the product screen
for long periods of time.
yThis will alleviate any eye
strain.
Since the display panel is hot after
using it for a long time, do not touch
the product.

10
Getting Started
English
!
!
Keep the small accessories in
a location out of the reach of
children.
!
Take care when adjusting the angle
of the product or the height of the
stand.
yIf your hand or finger is caught,
you may be injured.
yIf the product is tilted
excessively, the product may
fall and this may result in injury.
Avoid placing a heavy object over
the product.
yOtherwise, it may result in a
problem with the product or
injury.
When using headphones or
earphones, do not turn the volume
too high.
yHaving the sound too loud may
damage your hearing.
Be careful that children do not
place the batteries in their mouths
when removed from the remote
control. Place the battery in a
location that children or infants
cannot reach.
yIf children have had the battery
in their mouths, consult your
doctor immediately.
!
!
When replacing the batteries, insert
them with right polarity (+, -).
yOtherwise, the battery may
become damaged or it may
cause fire, personal injury or
damage due to leakage of the
internal liquid.
Use only specified standard
batteries. Do not use new and
used batteries together.
yThis may cause a battery to
break or leak and may cause
fire, injury, or contamination
(damage).
!
The batteries (and rechargeable
batteries) are not ordinary refuse
and must be returned for recycling
purposes. The customer is
responsible for returning the used or
rechargeable batteries for recycling.
yThe customer can return used
or rechargeable batteries
to a nearby public recycling
center or to a store selling the
same type of the battery or
rechargeable battery.

11
English
Getting Started
List of Features
yExcellent Digital Interface & Networking
Using its built-in HD digital tuner, you can view non-subscription HD broadcasts without a cable box or STB (Set-Top-Box)
satellite receiver.
yMedia Play (USB)
Allows you to play music files and pictures saved on a USB device.
Accessories
✎ Please make sure the following items are included with your TV. If any items are missing, contact your dealer.
✎ The items’ colors and shapes may vary depending on the model.
✎ Check that there is no accessory hidden behind packing materials when you open the box.
yRemote Control (BN59-01006A) & Batteries (AAA x 2)
yUser Manual (CD)
yWarranty Card / Safety Guide / Quick Setup Guide
yCleaning Cloth
yPower Cord
Cable Holder Stand Base Stand Connector HDMI-DVI
Input Cables (Sold Separately)
HDMI Component Composite (AV) Coaxial (RF)
✎ Check the cable before plug-in
Cable Ports
HDMI
USB
Do not plug cable upside down.
Be sure to check before plug-in.

12
English
Getting Started
Viewing the Control Panel
✎ The product color and shape may vary depending on the model.
SOURCE E
Toggles between all the available input sources. In the on-screen menu, use this
button as you would use the ENTER E button on the remote control.
MENU Displays an on-screen menu, the OSD (on screen display) of your TV’s features.
Y Adjusts the volume. In the OSD, use the Y buttons as you would use the
◄and ►buttons on the remote control.
z Changes the channels. In the OSD, use the z buttons as you would use the
▼and ▲buttons on the remote control.
P (Power) Turns the TV on or off.
Remote control sensor Aim the remote control towards this spot on the TV.
Power Indicator Blinks and turns off when the power is on and lights up in standby mode.
Standby mode
Your TV enters Standby mode when you turn it off and continues to consume a small amount of electric power. To be safe
and to decrease power consumption, do not leave your TV in standby mode for long periods of time (when you are away on a
holiday, for example). It is best to unplug the power cord.
Useful Information
] Caution
Do not press down hard on the product.
yThe product may become deformed and damaged.
Control Panel

13
English
Getting Started
Viewing the Remote Control
✎ This is a special remote control for the visually impaired and has Braille points on the Channel and Number buttons.
Installing batteries (Battery size: AAA)
✎ NOTE
x
Use the remote control within 23 feet from the TV.
x
Bright light may affect the performance of the remote
control. Avoid use when nearby fluorescent lights or neon
signs.
x
The color and shape may vary depending on the model.
A B C D
P.SIZE
MTS CC
MEDIA.P FAV.CH
Turns the TV on and off. Displays and selects the available video
sources.
Returns to the previous channel.
Cuts off the sound temporarily.
Change channels.
Displays the channel list on the screen.
Display favorite channel lists on the
screen.
Displays information on the TV screen.
Exits the menu.
Press to directly access to channels.
Adjusts the volume.
Press to select additional channels
(digital) being broadcast by the same
station. For example, to select channel
‘54-3’, press ‘54’, then press ‘-’ and ‘3’.
Displays the main on-screen menu.
Quickly select frequently used functions.
View the Media Play (USB).
Returns to the previous menu.
Selects the on-screen menu items and
changes the values seen on the menu.
Buttons used in the Channel list,
Media Play (USB) menu, etc.
MTS: Press to choose stereo, mono
or Separate Audio Program (SAP
broadcast).
P.SIZE: Choose the picture size.
CC: Controls the caption decoder.

Getting Started
14
English

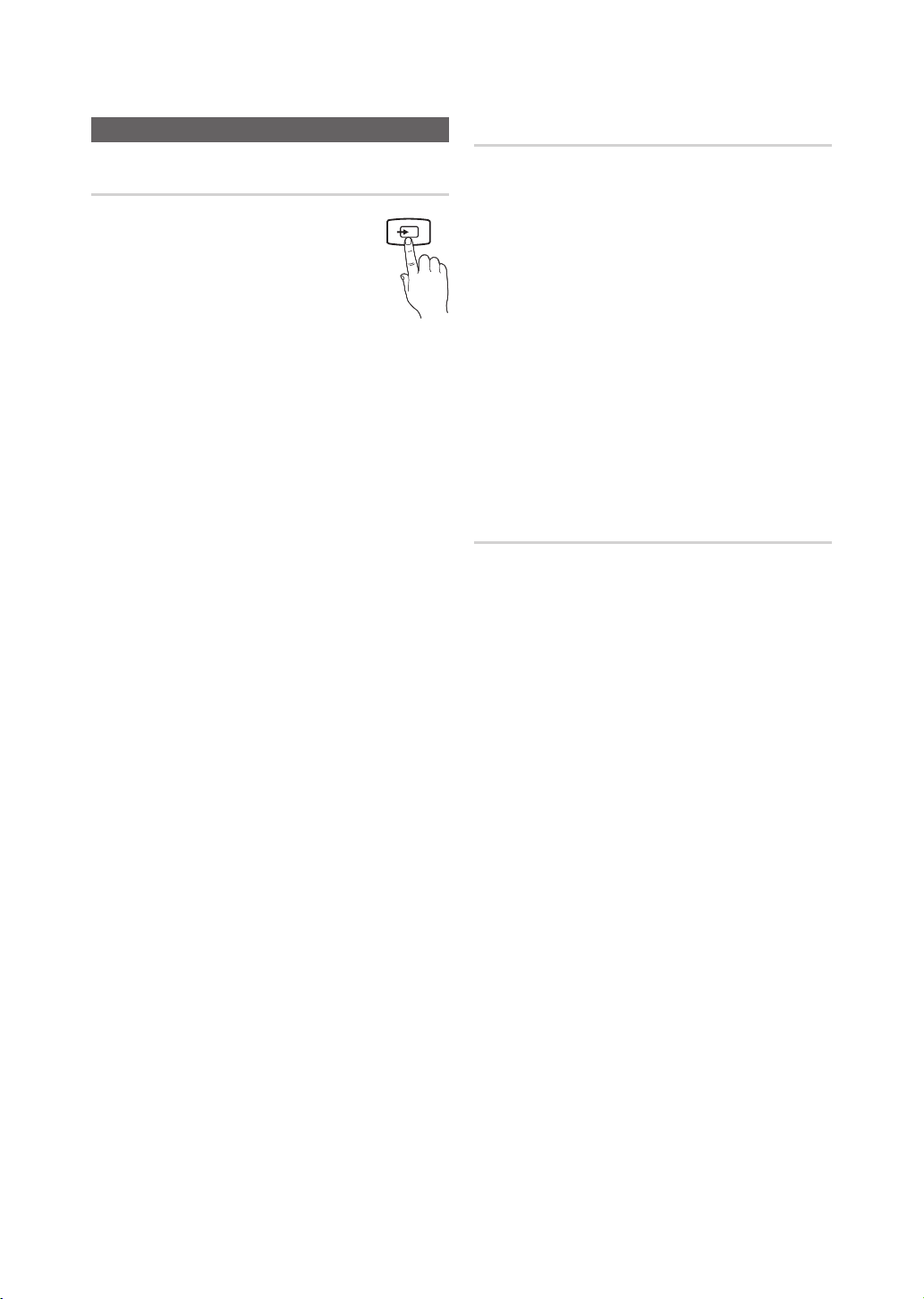

How to Navigate Menus
Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions.
A
B
C
D
P
.
S
IZE
M
T
S
CC
M
EDIA.
P
F
AV.
C
H
1
4
3
2
1MENU button: Displays the main on-screen menu.
2ENTER
E / Direction button: Move the cursor and
select an item. Confirm the setting.
3RETURN button: Returns to the previous menu.
4EXIT button: Exits the on-screen menu.
How to Operate the OSD (On Screen Display)
The access steps may differ depending on the selected menu.
1MENU The main menu options appear on the screen:
Picture,Sound,Channel, Setup, Input, Application,Support.
2
u / d Select an icon or option with the u or d button.
3ENTER
E Press ENTER E to access the sub-menu.
4
u / d Select the desired submenu with the u or d button.
5
l / r Adjust the value of an item with the l or r button. The adjustment in the OSD may differ depending
on the selected menu.
6ENTER
E Press ENTER E to confirm the selection.
7EXIT
e
Press EXIT.
Connecting to an Antenna
Connecting the power cord and an antenna or cable connection
✎ When you move or swivel the TV with Antenna cable tightly connected, there is high risk antenna jack on TV will be
broken off.
VHF/UHF Antenna
ANT OUT
Power Input
or
Cable
Antenna Cable (Not Supplied)

15
English
Plug & Play (Initial Setup)
When you turn the TV on for the first time, a sequence of on-screen prompts will assist in configuring basic settings. To turn on
the TV, press the POWER P button.
✎ Plug & Play is available only when the Source List is set to TV.
✎ To return to the previous step in the Plug & Play sequence, select the red button, and then press ENTER E .
✎ Before turning on the TV, make you have connected the TV to an antenna or cable connection (p. 14).
1Selecting a language Press the ▲or ▼button, then press the ENTER
E button. Select the
desired OSD (On Screen Display) language.
P
POWER
INFO GUIDE
2Selecting Store Demo
or Home Use
Press the ◄or ►button, then press the ENTER
E button.
ySelect the Home Use mode. Store Demo Mode is for retail
environments.
yTo return the unit’s settings from Store Demo to Home Use
(standard): Press the volume button on the TV. When you see the
volume OSD, press and hold MENU for 5 sec.
3Selecting search
options for auto tuning
Press the ▲or ▼button, then press the ENTER
E button. Select Air, Cable or Auto.
✎ If you selected Cable, you’ll go to the cable system screen. Use the u or d button
to select the correct cable signal format - STD, HRC, or IRC - and then press
ENTER E . Most cable systems use STD. Select the correct cable signal format for
both the Digital and Analog systems.
✎ When done, select Start, and the press ENTER E .
4Setting the Clock
Mode
Set the Clock Mode automatically or manually.
yAuto: Allows you to select DST (Daylight Saving Time) mode and time zone.
yManual: Allows you to manually set the current date and time (p. 27).
5View the HDTV
Connection Guide
The connection method for the best HD screen quality is displayed.
6Enjoy the TV. Press the ENTER
E button.
If You Want to Rerun Plug & Play...
O MENU m →Setup →Plug & Play →ENTER E
✎ NOTE
yTo change the TV’s setting from Store Demo to Home Use when not in Plug & Play, press the volume button on the TV.
When you see the volume in the OSD, press and hold MENU for 5 sec.
Getting Started

16
English
ConnectionsConnections
Connecting to an AV Device
Using an HDMI or HDMI/DVI Cable: HD connection (up to 1080p)
We recommend using the HDMI connection for the best quality HD picture.
Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver
✎ HDMI IN 1(DVI), 2
x
When using an HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack for video. A DVD, Blu-ray
player, HD cable box, or HD STB satellite receiver may require a DVI-HDMI (DVI to HDMI) cable or DVI-HDMI
(DVI to HDMI) adapter.
x
The picture may not display normally (if at all) or the audio may not work if an external device that uses an older
version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external
device about the HDMI version and, if out of date, request an upgrade.
x
Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may
occur.
x
If an HDMI to DVI cable is connected to the HDMI IN 1(DVI) port, the audio does not work.
Using a Component (up to 1080p) or Audio/Video (480i only) Cable
Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR
✎ When connecting to AV IN, the color of the AV IN [Y/VIDEO] jack (green) will not match the video cable (yellow).
✎ For better picture quality, the Component connection is recommended over the A/V connection.
HDMI OUT
DVI OUT
Device
HDMI Cable (Not Supplied)
HDMI to DVI Cable (Not Supplied)
Device
RWR GB
RWRGB
RW RB G
YR
W
Y
R
W
PRPBY
COMPONENT OUT
AUDIO OUT
R-AUDIO-L
AUDIO OUT
R-AUDIO-L
VIDEO OUT
Device
Device
Audio Cable
(Not Supplied)
Component Cable
(Not Supplied)
RedRed BlueWhite Green
Audio Cable
(Not Supplied)
Video Cable
(Not Supplied)

17
English
Connections
Connecting to a PC
Using an HDMI/DVI Cable
Display Modes (HDMI/DVI Input)
If the signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal
from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned
on. Therefore, configure it as follows referring to the User Manual of the graphics card.
Screen Size
(Inches)
Display Mode Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
Frequency
(MHz)
Sync Polarity
(H / V)
Mode Resolution
19”
22”
23”
24”
27”
IBM 640 x 350 70Hz 31.469 70.086 25.175 +/-
IBM 720 x 400 70Hz 31.469 70.087 28.322 -/+
MAC 640 x 480 67Hz 35.000 66.667 30.240 -/-
MAC 832 x 624 75Hz 49.726 74.551 57.284 -/-
VESA DMT 640 x 480 60Hz 31.469 59.940 25.175 -/-
VESA DMT 640 x 480 72Hz 37.861 72.809 31.500 -/-
VESA DMT 640 x 480 75Hz 37.500 75.000 31.500 -/-
VESA DMT 800 x 600 56Hz 35.156 56.250 36.000 +/+
VESA DMT 800 x 600 60Hz 37.879 60.317 40.000 +/+
VESA DMT 800 x 600 72Hz 48.077 72.188 50.000 +/+
VESA DMT 800 x 600 75Hz 46.875 75.000 49.500 +/+
VESA DMT 1024 x 768 60Hz 48.363 60.004 65.000 -/-
VESA DMT 1024 x 768 70Hz 56.476 70.069 75.000 -/-
VESA DMT 1024 x 768 75Hz 60.023 75.029 78.750 +/+
VESA DMT 1360 x 768 60Hz 47.712 60.015 85.500 +/+
DVI OUT
HDMI to DVI Cable (Not Supplied)

18
English
Connections
Screen Size
(Inches)
Display Mode Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
Frequency
(MHz)
Sync Polarity
(H / V)
Mode Resolution
22”
23”
24”
27”
MAC 1152 x 870 75Hz 68.681 75.062 100.000 -/-
VESA DMT 1152 x 864 75Hz 67.500 75.000 108.000 +/+
VESA DMT 1280 x 800 60Hz 49.702 59.810 83.500 -/+
VESA DMT 1280 x 960 60Hz 60.000 60.000 108.000 +/+
VESA DMT 1280 x 1024 60Hz 63.981 60.020 108.000 +/+
VESA DMT 1280 x 1024 75Hz 79.976 75.025 135.000 +/+
VESA DMT 1440 x 900 60Hz 55.935 59.887 106.500 -/+
VESA DMT 1440 x 900 75Hz 70.635 74.984 136.750 -/+
VESA DMT 1680 x 1050 60Hz 65.290 59.954 146.250 -/+
VESA DMT 1920 x 1080 60Hz 67.500 60.000 148.500 +/+
✎ NOTE
x
For Computer(PC) connection, you must use the HDMI IN 1(DVI) jack.
x
The interlace mode is not supported.
x
The set may operate abnormally if you select a non-standard video format.
x
Separate and Composite modes are supported. SOG(Sync On Green) is not supported.
✎ If there is no power cut-off switch, the power consumption is “0” only when the power cord is disconnected.
✎ DPM(Display Power Management) Function does not work if you used in connection with the HDMI port of this product.
✎ If an HDMI to DVI cable is connected to the HDMI IN 1(DVI) port, the audio does not work.
Using an Service Cable Connection
Available devices: External devices that support Service.
SERVICE: Connector for service only.

19
English
Changing the Input Source
Source List
Use to select TV or an external input sources
such as a DVD / Blu-ray player / cable box /
STB satellite receiver.
O MENU m →Input →Source List →
ENTER E
■TV / AV / Component / HDMI1/DVI / HDMI2
1. Press the SOURCE button on your remote.
2. Select a desired external input source.
✎ You can only choose external devices that
are connected to the TV. In the Source List,
connected inputs will be highlighted.
Edit Name
O MENU m →Input →Edit Name →ENTER E
■VCR / DVD / Cable STB / Satellite STB / PVR STB
/ AV Receiver / Game / Camcorder / PC / DVI PC /
DVI / TV / IPTV / Blu-ray / HD DVD / DMA: Name the
device connected to the input jacks to make your input
source selection easier.
✎ If you have connected a PC to the HDMI IN 1 (DVI)
port with an HDMI cable, select PC under Edit Name
to enter a device name.
✎ If you have connected a PC to the HDMI IN 1 (DVI)
port with an HDMI to DVI cable, select DVI PC under
Edit Name to enter a device name.
✎ If you connected an AV device to the HDMI IN 1 (DVI)
port with an HDMI to DVI cable, select DVI under Edit
Name to enter a device name.
✎ For Computer(PC) connection, you must use the
HDMI IN 1(DVI) jack.
Information
You can see detailed information about the selected external
device.
SOURCE
Connections

20
English
Basic Features
Channel Menu
¦Seeing Channels
Channel List
O MENU m →Channel →Channel List
→ENTER E
Select a channel in the All Channels,
Added Channels, Favorite or Programmed
screen by pressing the ▲/ ▼and ENTER E
buttons. Then you can watch the selected
channel.
■All Channels: Shows all currently available
channels.
■Added Channels: Shows all added channels.
■
*
Favorite: Shows all favorite channels.
■Programmed: Shows all currently reserved
programs.
✎ Using the color buttons with the Channel List
x
B
Green (Zoom): Enlarges or shrinks a channel
number.
x
Yellow (Select): Selects multiple channel lists.
Select desired channels and press the Yellow button
to set all the selected channels at the same time. The
c mark appears to the left of the selected channels.
xT
(Tools): Displays the Channel List option menu.
(The options menus may differ depending on the
situation.)
Channel Status Display Icons
Icons Operations
c
A channel selected.
*
A channel set as a Favorite.
)
A reserved Program.
¦Using Favorite Channels
O MENU m →Channel →Channel List →ENTER E
*
Add to Favorite / Delete from Favorite
t
Set channels you watch frequently as Favorites.
1. Select a channel and press the TOOLS button.
2. Add or delete a the channel using the Add to Favorite
or Delete from Favorite menu respectively.
To show all Favorite channels, click on the
button shown on the right.
¦Memorizing Channels
O MENU m →Channel →ENTER E
Antenna (Air / Cable)
t
Before your television can begin memorizing the available
channels, you must specify the type of signal source that is
connected to the TV (i.e. an Air or a Cable system).
Auto Program
■Air: Air antenna signal.
■Cable: Cable antenna signal.
■Auto: Air and Cable antenna.
CH LIST
FAV.CH
Basic Features
6 Air
6-1 *TV #6
7 Air
8 Air
9 Air
9-1 *TV #9
10 Air
10-1 *TV #10
11-1 *TV #11
Air
B
Zoom Select T Tools
Added Channels
Delete
Add to Favorite
Timer Viewing
Channel Name Edit
Select All
Auto Program
6 Air
6-1 *TV #6
7 Air
8 Air
9 Air
9-1 *TV #9
10 Air
10-1 *TV #10
11-1 *TV #11
Air
B
Zoom Select T Tools
Added Channels
