Samsung ML-4510ND User manual

ML-451x Series
ML-501x Series
User’s Guide
Basic
imagine the possibilities
This guide provides information concerning installation, basic operation and troubleshooting on
windows.

2
Contents

1. Introduction
5Key benefits
7Features by models
8Useful to know
9About this user’s guide
10 Safety information
16 Machine overview
19 Control panel overview
21 Turning on the machine
22 Installing the driver locally
23 Reinstalling the driver

2. Menu overview and basic setup
25 Menu overview
31 Printing a demo page
32 Changing the display language
33 Media and tray
44 Basic printing
50 Using USB memory device
3. Maintenance
54 Ordering supplies and accessories
55 Available supplies
56 Available accessories
58 Available maintenance parts
59 Redistributing toner
61 Replacing the toner cartridge
63 Replacing the imaging unit
65 Upgrading a memory module
66 Installing a mass storage device
67 Replacing the stapler cartridge
68 Monitoring the supplies life
69 Setting the toner low alert
70 Cleaning the machine
4. Troubleshooting
74 Tips for avoiding paper jams
75 Clearing paper jams
91 Understanding the status LED
93 Understanding display messages

Contents 3
5. Appendix
106 Specifications
116
117 Regulatory information
125 Copyright

1. Introduction
This chapter provides information you need to know before using the
machine.
•Keybenefits 5
•Featuresbymodels 7
•Usefultoknow 8
• About this user’s guide 9
• Safety information 10
• Machine overview 16
• Control panel overview 19
• Turning on the machine 21
• Installing the driver locally 22
• Reinstalling the driver 23



Key benefits
Environmentally friendly
• To save toner and paper, this machine supports Eco feature.
• To save paper, you can print multiple pages on one single sheet of
paper (see Advanced Guide).
• To save paper, you can print on both sides of the paper (double-
sided printing) (see Advanced Guide).
• To save electricity, this machine automatically conserves electricity
by substantially reducing power consumption when not in use.
Print with excellent quality and speed
• You can print with a resolution of up to 1,200 x 1,200 dpi effective
output.
• Fast, on-demand printing.
For ML-451x Series:
- For single-side printing, 43 ppm (A4) or 45 ppm (Letter).
- For duplex printing, 27 ipm (A4) or 28 ipm (Letter).
For ML-501x Series:
- For single-side printing, 48 ppm (A4) or 50 ppm (Letter).
- For duplex printing, 31 ipm (A4) or 32 ipm (Letter).
Convenience
• Samsung Easy Printer Manager and Samsung Printer Status (or Smart
Panel) are programs that monitors and informs you of the machine’s
status and allows you to customize the machine’s settings (see
Advanced Guide).
• AnyWeb Print helps you screen-capture, preview, scrap, and print
the screen of Windows Internet Explorer more easily, than when you
use the ordinary program (see Advanced Guide).



Key benefits
Wide range of functionality and application support
• Supports various paper sizes (see "Print media specifications" on page 108).
• Print watermark: You can customize your documents with words, such as “Confidential” (see Advanced Guide).
• Print posters: The text and pictures of each page of your document are magnified and printed across the multiple sheets of paper and can then
be taped together to form a poster (see Advanced Guide).
• You can print in various operating systems (see "System requirements" on page 111).
• Your machine is equipped with a USB interface and/or a network interface.
Expand your machine’s capacity
• This machine has an extra memory slot for adding more memory (see "Available accessories" on page 56).



Features by models
Some features and optional accessories may not be available depending on model or country, see chart below.
(●: Included, ○: Optional, Blank: Not available)
Features ML-451x Series ML-501x Series
Hi-Speed USB 2.0 ● ●
IEEE 1284 parallel connectora
a. If you use the parallel port, you cannot use the USB cable.
○ ○
Network Interface Ethernet 10/100/1000 Base TX wired LAN ● ●
Eco printing ● ●
Duplex (2-sided) printing ● ●
USB memory interface ●
Memory module (512 MB) ○ ○
Optional tray ○ ○
Mass Storage Device ○
Multbin Mailbox ○
Finisher (Stacker & Stapler) ○
Short Stand ○

Useful to know
The machine does not print.
• Open the print queue list and remove the document from
the list (see "Canceling a print job" on page 45).
• Remove the driver and install it again (see "Installing the
driver locally" on page 22).
• Select your machine as your default machine in your OS.
Where can I purchase accessories or supplies?
• Inquire at a Samsung distributor or retailer.
• Visit www.samsung.com/supplies. Select your country/
region to view product service information.
The status LED flashes or remains constantly on.
• Turn the product off and on again.
• Check the meanings of LED indications in this manual
and troubleshoot accordingly (see "Understanding the
status LED" on page 91).
A paper jam has occurred.
• Open and close the front door.
• Check the instructions on removing jammed paper in this
manual and troubleshoot accordingly (see "Clearing
paper jams" on page 75).
Printouts are blurry.
• The toner level might be low or uneven. Shake the toner
cartridge to redistribute the toner that remains in the
cartridge.
• Try a different print resolution setting.
• Replace the toner cartridge.
Where can I download the machine’s driver?
• Visit www.samsung.com/printer to download the latest
machine’s driver, and install it on your system.

9
1. Introduction
About this user’s guide
This user's guide provides information for your basic understanding
of the machine as well as detailed steps to explain machine usage.
• Read the safety information before using the machine.
• If you have a problem using the machine, refer to the
troubleshooting chapter.
• Terms used in this user’s guide are explained in the glossary
chapter.
• All illustrations in this user’s guide may differ from your machine
depending on its options or model you purchased.
• The screenshots in this user's guide may differ from your machine
depending on the machine’s firmware/driver version.
•
The procedures in this user’s guide are mainly based on Windows 7.

1
Conventions
Some terms in this guide are used interchangeably, as below:
• Document is synonymous with original.
• Paper is synonymous with media, or print media.
• Machine refers to printer or MFP.

2
General icons
Icon Text Description
Caution
Gives users information to protect the
machine from possible mechanical damage
or malfunction.
Note
Provides additional information or detailed
specification of the machine function and
feature.

10
1. Introduction
Safety information
These warnings and precautions are included to prevent injury to
you and others, and to prevent any potential damage to your
machine. Be sure to read and understand all of these instructions
before using the machine. After reading this section, keep it in a safe
place for future reference.

3
Important safety symbols
Explanation of all icons and signs used in this chapter

4
Operating environment
Warning
Warning Hazards or unsafe practices that may result in
severe personal injury or death.
Caution Hazards or unsafe practices that may result in
minor personal injury or property damage.
Do not attempt.
Do not use if the power cord is damaged or if the
electrical outlet is not grounded.
This could result in electric shock or fire.
Do not place anything on top of the machine (water,
small metal or heavy objects, candles, lit cigarettes, etc.).
This could result in electric shock or fire.
• If the machine gets overheated, it releases smoke,
makes strange noises, or generates an odd odor,
immediately turn off the power switch and unplug the
machine.
• The user should be able to access the power outlet in
case of emergencies that might require the user to pull
the plug out.
This could result in electric shock or fire.
Do not bend, or place heavy objects on the power cord.
Stepping on or allowing the power cord to be crushed by
a heavy object could result in electric shock or fire.

Safety information 11
1. Introduction
Caution

5
Operating method
Caution
Do not remove the plug by pulling on the cord; do not
handle the plug with wet hands.
This could result in electric shock or fire.
During an electrical storm or for a period of non-
operation, remove the power plug from the electrical
outlet.
This could result in electric shock or fire.
Be careful, the paper output area is hot.
Burns could occur.
If the machine has been dropped, or if the cabinet
appears damaged, unplug the machine from all
interface connections and request assistance from
qualified service personnel.
Otherwise, this could result in electric shock or fire.
If the plug does not easily enter the electrical outlet, do
not attempt to force it in.
Call an electrician to change the electrical outlet, or this
could result in electric shock.
Do not allow pets to chew on the AC power, telephone
or PC interface cords.
This could result in electric shock or fire and/or injury to
your pet.
If the machine does not operate properly after these
instructions have been followed, unplug the machine
from all interface connections and request assistance
from qualified service personnel.
Otherwise, this could result in electric shock or fire.
Do not forcefully pull the paper out during printing.
It can cause damage to the machine.
Be careful not to put your hand between the machine
and paper tray.
You may get injured.

Safety information 12
1. Introduction

6
Installation / Moving
Warning
Caution
Do not block or push objects into the ventilation
opening.
This could result in elevated component temperatures
which can cause damage or fire.
Be care when replacing paper or removing jammed
paper.
New paper has sharp edges and can cause painful cuts.
When printing large quantities, the bottom part of the
paper output area may get hot. Do not allow children to
touch.
Burns can occur.
When removing jammed paper, do not use tweezers or
sharp metal objects.
It can damage the machine.
Do not allow too many papers to stack up in the paper
output tray.
It can damage the machine.
This machine's power reception device is the power cord.
To switch off the power supply, remove the power cord
from the electrical outlet.
Do not place the machine in an area with dust, humidity,
or water leaks.
This could result in electric shock or fire.
Before moving the machine, turn the power off and
disconnect all cords.
Then lift the machine:
• If the machine weighs under 20 kg (44.09 lbs), lift with
1 person.
• If the machine weighs 20 kg (44.09 lbs) - 40kg (88.18
lbs), lift with 2 people.
• If the machine weighs more than 40 kg (88.18 lbs), lift
with 4 or more people.
The machine could fall, causing injury or machine
damage.

Safety information 13
1. Introduction

7
Maintenance / Checking
Caution
Do not place the machine on an unstable surface.
The machine could fall, causing injury or machine
damage.
The machine should be connected to
the power level which is specified on the label.
If you are unsure and want to check the power level you
are using, contact the electrical utility company.
Use only No.26 AWGaor larger, telephone line cord, if
necessary.
Otherwise, it can cause damage to the machine.
Do not put a cover over the machine or place it in an
airtight location, such as a closet.
If the machine is not well-ventilated, this could result in
fire.
Make sure you plug the power cord into a grounded
electrical outlet.
Otherwise, this could result in electric shock or fire.
Do not overload wall outlets and extension cords.
This can diminish performance, and could result in
electric shock or fire.
Use the power cord supplied with your machine for safe
operation. If you are using a cord which is longer than 2
meters (6 feet) with a 110 V machine, then the gauge
should be 16 AWG or larger.
Otherwise, it can cause damage to the machine, and
could result in electric shock or fire.
a. AWG: American Wire Gauge
Unplug this product from the wall outlet before
cleaning the inside of the machine. Do not clean the
machine with benzene, paint thinner or alcohol; do not
spray water directly into the machine.
This could result in electric shock or fire.
When you are working inside the machine replacing
supplies or cleaning the inside, do not operate the
machine.
You could get injured.

Safety information 14
1. Introduction

8
Supply usage
Caution
Keep the power cable and the contact surface of the
plug clean from dust or water.
Otherwise, this could result in electric shock or fire.
• Do not remove any covers or guards that are
fastened with screws.
• Fuser units should only be repaired by a certified
service technician. Repair by non-certified
technicians could result in fire or electric shock.
The machine should only be repaired by a Samsung
service technician.
Keep cleaning supplies away from children.
Children could get hurt.
Do not disassemble, repair or rebuild the machine by
yourself.
It can damage the machine. Call a certified technician
when the machine needs repairing.
To clean and operate the machine, strictly follow the
user's guide provided with the machine.
Otherwise, you could damage the machine.
Do not disassemble the toner cartridge.
Toner dust can be dangerous if inhaled or ingested.
Do not burn any of the supplies such as toner cartridge
or fuser unit.
This could cause an explosion or uncontrollable fire.
When changing the toner cartridge or removing
jammed paper, be careful not to let toner dust touch
your body or clothes.
Toner dust can be dangerous if inhaled or ingested.
When storing supplies such as toner cartridges, keep
them away from children.
Toner dust can be dangerous if inhaled or ingested.
Using recycled supplies, such as toner, can cause
damage to the machine.
In case of damage due to the use of recycled supplies, a
service fee will be charged.

Safety information 15
1. Introduction
When toner gets on your clothing, do not use hot water
to wash it.
Hot water sets toner into fabric. Use cold water.

16
1. Introduction
Machine overview

9
Accessories
Power cord Toner cartridge Imaging unit
Software CDa
a. The software CD contains the printer driver and applications.
Quick installation guide Misc. accessoriesb
b. Miscellaneous accessories included with your machine may vary by country of purchase and specific model.

Machine overview 17
1. Introduction

10

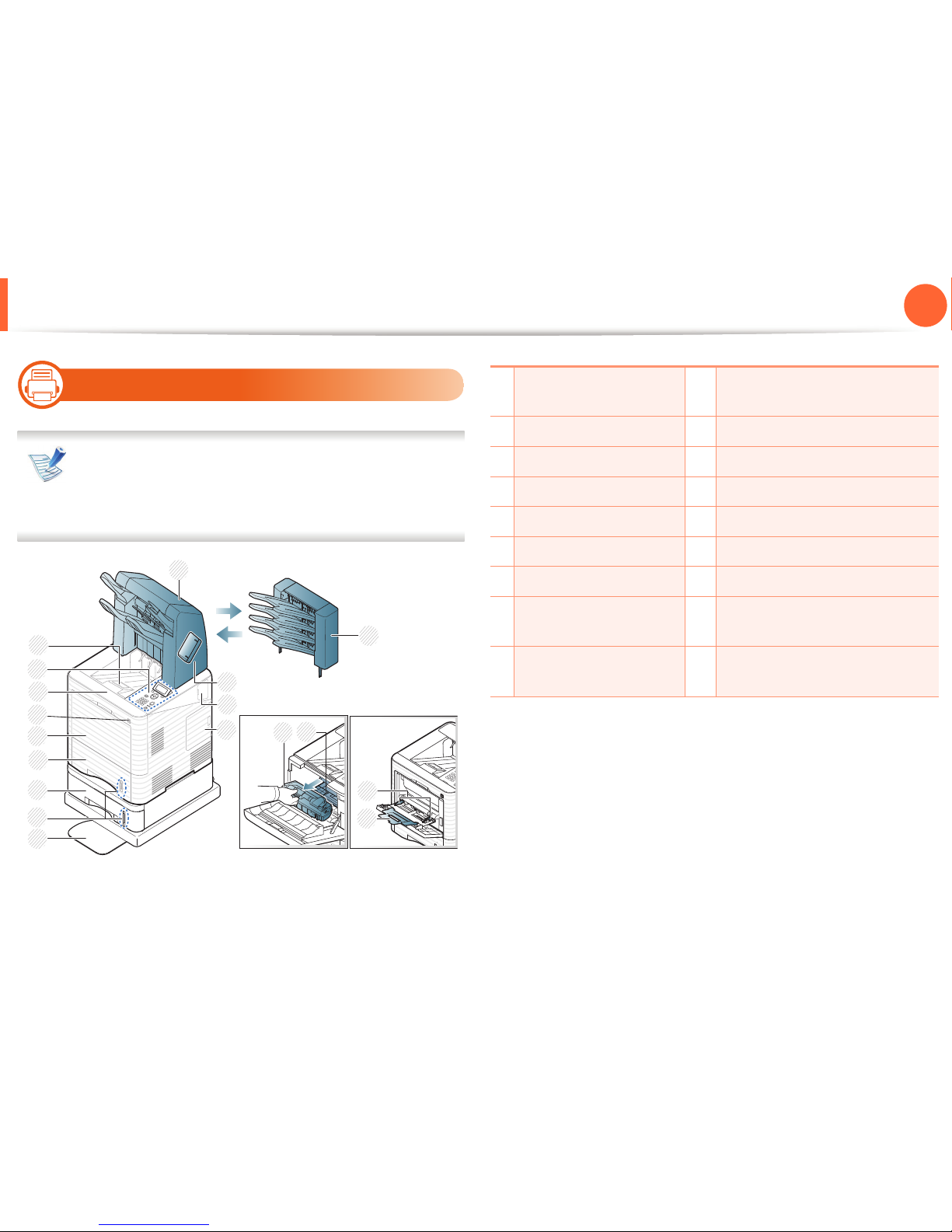

Front view
• This illustration may differ from your machine depending
on its model.
• Some features and optional goods may not be available
depending on model or country.
1
2
6
7
8
13
14
3
5
4
9
10
11
12
16
15
17
18
1Finisher (Stacker &
Stapler)
10 Multi-purpose tray cover
2Mailbox 11 USB memory port
3Stapler cover 12 Front cover
4Optional wireless cover 13 Control panel
5Control board cover 14 Output tray
6Short stand 15 Toner cartridge
7Paper level indicator 16 Imaging unit
8Optional tray 17 Multi-purpose tray paper width
guides
9Tray1 18 Multi-purpose tray paper
extension

Machine overview 18
1. Introduction

11
Rear view
• This illustration may differ from your machine depending
on its model.
• Some features and optional goods may not be available
depending on model or country.
3
4
5
1
2
6
7
8
9
1Finisher cover (Stacker &
Stapler)
6IEEE 1284 parallel connector
2Rear cover 7 USB port
3Mail cover 8 USB memory port
4Power receptacle 9 Network port
5Power-switch

19
1. Introduction
Control panel overview
This control panel may differ from your machine depending
on its model. There are various types of control panels.

12
Type A
1Display Shows the current status and
prompts during an operation.
2(Back) Sends you back to the upper menu
level.
1
2
4
5
10
9
8
7
6
3
3OK Confirms the selection on the
display.
4(Cancel) Stops current operation.
5
(Power)
You can turn the power on and off
with this button. Or wake up from
the power save mode.
6(Status
LED)
Shows the status of your machine
(see "Understanding the status LED"
on page 91).
7Numeric keypad Use the keypad to enter numbers
and characters.
8
Eco
Enters eco mode to reduce toner
consumption and paper usage (see
"Eco options" on page 49).
9
Arrows
Navigates available values by
moving to the next or previous
options.
10 (Menu) Enters menu mode and scrolls
through the available menus.

Control panel overview 20
1. Introduction

13
Type B
1Display Shows the current status and prompts
during an operation.
2
(Cancel)
Stops current operation. The pop-up
window appears on the screen that the
user can stop or resume.
3
(Power)
You can turn the power on and off with
this button. Or wake up from the
power save mode.
4
(Status LED)
Shows the status of your machine (see
"Understanding the status LED" on
page 91).
