1
Introducing Your Printer
Automatic Paper Feeder
Holds 150 sheets of paper.
Paper Guides
Adjust to the
width of paper.
Face-down Stacker
Holds printed documents.
If printed on plain paper,
a maximum of 100 sheets
can be held.
Stacker Extender
Supports paper stacked in the
paper output bin.
Face-up Stacker
Holds a single sheet of special media (transparency,
label, envelope, and heavy weight paper) with print
side facing up.
Operator Panel
Tray Extender
Supports paper stacked in the
automatic paper feeder.
Manual Paper Feeder
Used to feed a single sheet of paper.
Control Locations and Functions
Front View
Introducing Your Printer
Chapter 1
01-Setup 7/16/99 2:03 PM Page 1

2Introducing Your Printer
Rear View
Inside
Power
Switch
Power Cord
Connector
Printer Cable
Connector
Front Cover
Toner Cartridge
01-Setup 7/16/99 2:03 PM Page 2

Indicator Lights
INDICATOR DESCRIPTION
READY (on) The printerÕs power is ÔONÕ.
READY (blink) The printer is receiving or processing data.
ERROR (on) ¥There is no image cartridge installed, or the
cover is open.
¥ Print error occurs.
¥If the PAPER light is also on, there is paper
jammed.
PAPER (on) The paper bin is empty.
3
Introducing Your Printer
Operator Panel
The operator panel has three indicator lights and one button.
ERROR
PAPER
READY
01-Setup 7/16/99 2:03 PM Page 3

Type
Plain paper
(20 to 30 Ib)
Envelopes
Cards (16 to 32 Ib)
Transparency
Film Paper Labels
Size
Letter: 8 1/2 x 11Ó
Legal: 8 1/2 x 14Ó
Executive: 7 1/4 x 10 1/2Ó
A4: 210 x 297 mm
A5: 148 x 210 mm
B5: 182 x 257 mm
Folio: 8 1/2 x 13Ó
COM-10: 4 1/8 x 9 1/2Ó
Monarch: 3 7/8 x 7 1/2Ó
C5: 162 x 229 mm
C6: 114 x 162 mm
DL: 110 x 220 mm
Feed Source
Automatic
feeder
Manual
feeder
Automatic
feeder
Manual
feeder
Automatic
feeder
Manual
feeder
Capacity
150 sheets
(Approx.)
1 sheet
10 envelopes
(Approx.)
1 envelope
10 items
(Approx.)
1 item
4Paper Handling
Notes:
¥When you print, select the correct paper size and source in your application.
¥Depending on paper thickness, the maximum capacity may be reduced.
Selecting Paper Types and Feed Source
One of the most important things you can do to assure the best
possible print quality from your printer is to select the correct paper.
Your printer produces letter quality output on most plain bond paper,
including cotton bond and photocopying paper; it does not require
special paper. However, the print quality varies with different paper
types. Be sure to test a small quantity of paper before you purchase a
large quantity.
You can print on any of the following paper types:
Paper Handling
Chapter 2
01-Setup 7/16/99 2:03 PM Page 4

5
Paper Handling
2. Prepare the print material for loading.
¥ For paper and envelopes:
- Flex paper or fan envelopes back and forth. Do not fold or
crease the paper. Straighten the edges on a level surface.
Note: If envelopes jam while printing, try reducing the number of envelopes
in the automatic feeder.
Loading a Stack of Paper
You can stack paper, envelopes, card stocks, labels, or transparencies
in the automatic paper feeder to feed automatically. The automatic
feeder can hold a maximum of 150 sheets of plain paper, and 10
envelopes or other print media. The maximum capacity may be
reduced, depending on the thickness of the paper type selected.
Note: If you experience feeding problems, try printing item at a time from
the manual feeder. See page 9.

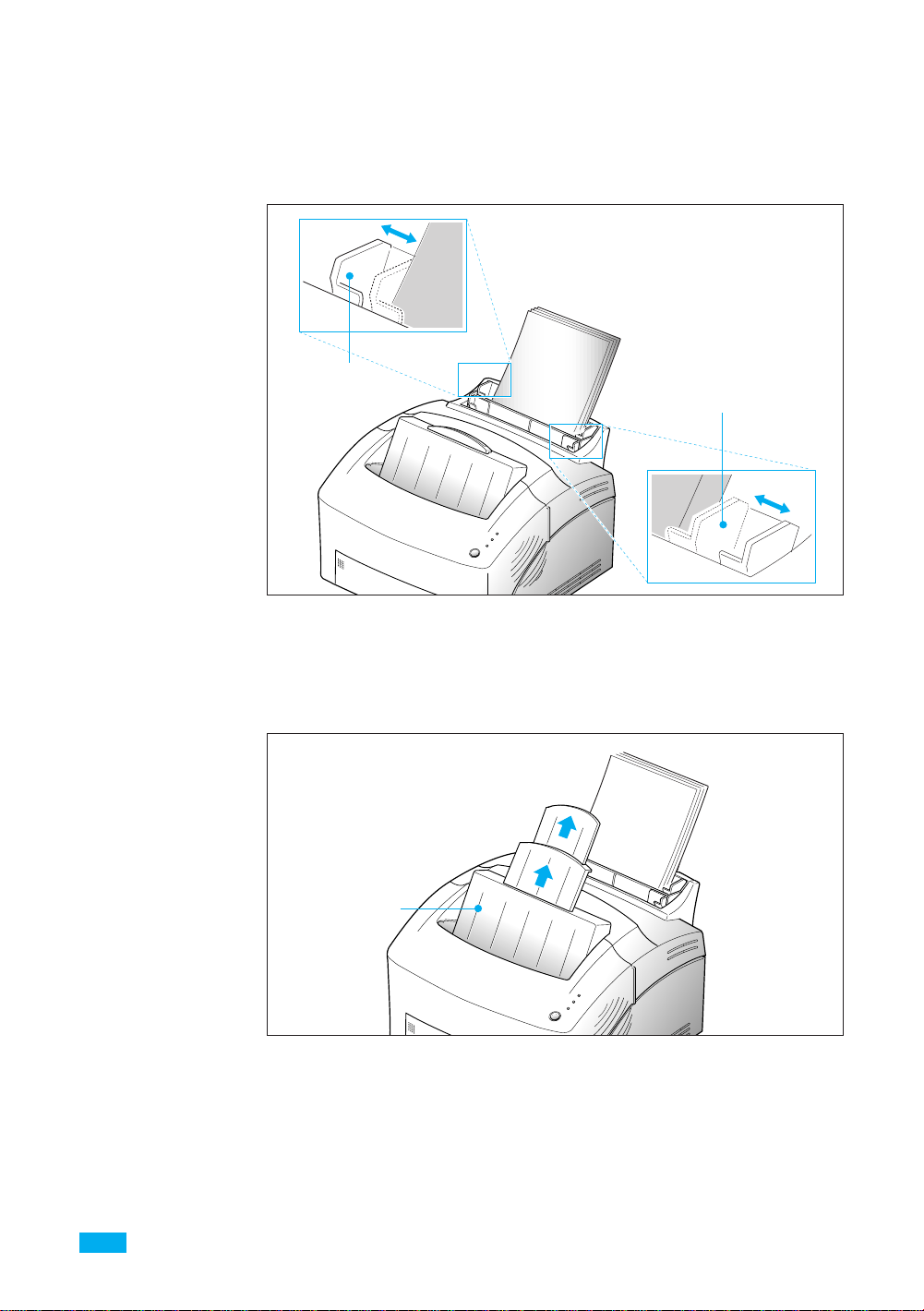

1. Pull the extender on the automatic feeder up until it stops.
Extender
Automatic feeder
Manual feeder
01-Setup 7/16/99 2:03 PM Page 5
