Samsung STP-102P User manual

Warning - U.S
This equipment has been tested and found to comply with the limits for a Class A
digital device pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interface when the equipment is
operated in a commercial environment. This equipment generates uses, and can
radiate radio frequency energy and, if not installed and uses in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
Notice - Canada
This Apparatus complies with class "A" limits for radio interference as specified in
the Canadian department of communications radio interference regulations.
Introduction
The STP-102S and STP-102P Roll Printer is designed for use with electric instruments
such as system ECR, POS, banking equipment peripheral equipment, etc
.
The main features of the printer are as follows:
1. High speed printing
2. Low noise thermal printing.
3. RS-232 serial interface (STP-102S). Parallel interface (STP-102P).
4. The data buffer allows the unit to receive print data even during printing.
5. Different print densities can be selected by DIP switches.
Please be sure to read the instruction in this manual carefully before using your
new STP-102S and STP-102P.
NOTE
The socket-outlet shall be near the equipment and it shall be easy
accessible.
STP-102S / STP-102P
Operator's Manual
DATE: July. 2001
MANUAL REVISION 2.0
TEL : [phone]
FAX : [phone]
POWER ERROR FEED ON LINE
ELECTRO- MECHANI CS

3
Chapter 1. Unpacking
1-1. Checking the contents of the Printer
1-2. Locating the Printer
1-3. Printer Part names
1-4. Operating Control Panel
4
4
4
5
6
Table of Contents
Chapter 2. Connecting the cable
2-1. Connecting the AC adapter to your printer
7
7
Chapter 3. Installing the Paper Roll 10
Chapter 4. Setting the DIP Switching 11
2-2. Connecting the Printer to your computer 8
Chapter 5. Running the Self Test 13
Chapter 6. Code Table 14
Chapter 7. Functions 21
Chapter 8. Control Commands 23
APPENDIX A - Connectors
- Serial Type (STP-102S)
- Parallel Type (STP-102P)
34
34
APPENDIX B - Specification 34
35
Chapter 1. Unpacking
1-1. Checking the contents of the Printer.

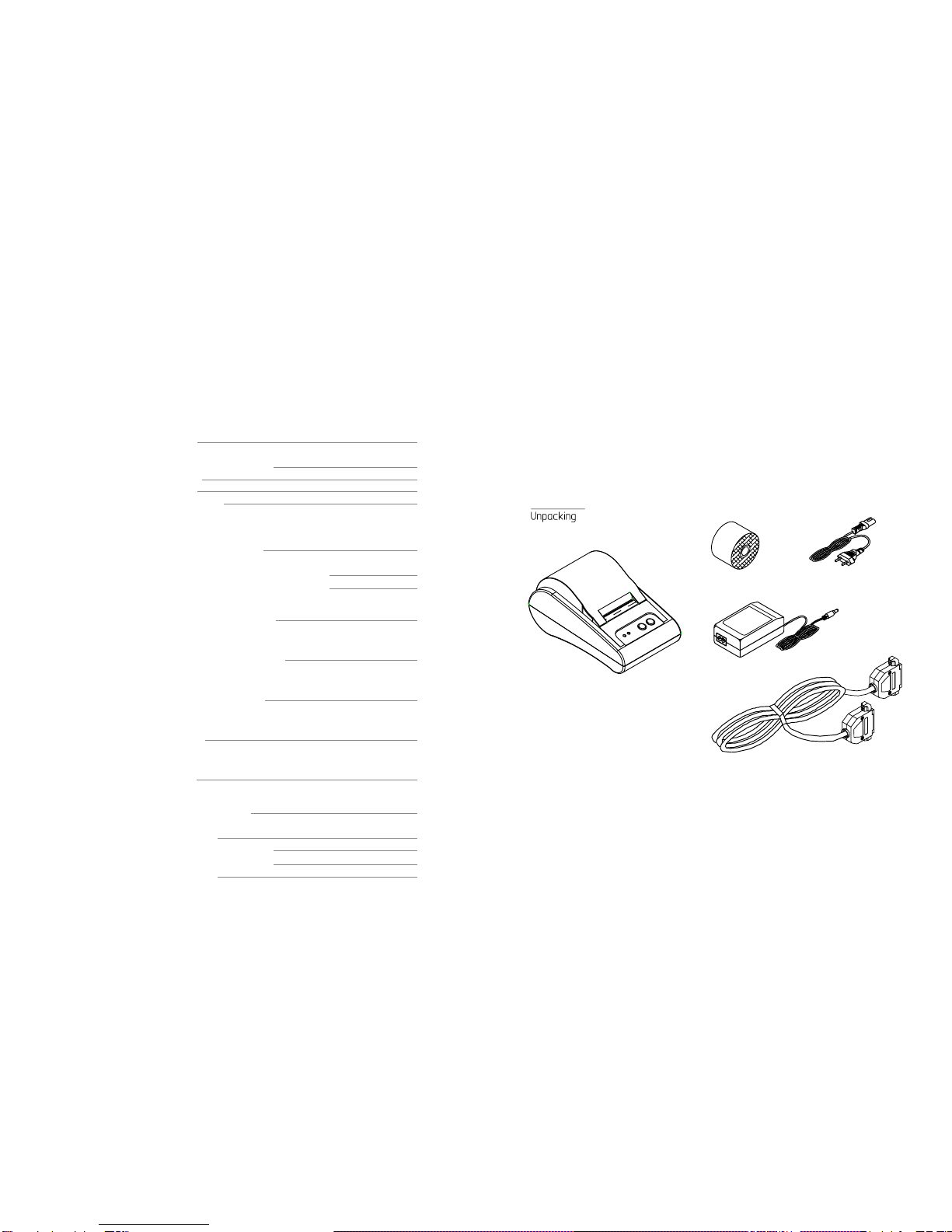

The items illustrated below are included with your printer.
If any items are damaged or missing, please contact your
dealer for assistance.
1-2. Locating the Printer.
Avoid location in direct sunlight or excessive heat.
Avoid or storing the printer in the place subject to excessive moisture.
Do not use or store, horizontal surface for the printer. Avoid places subject to
intense vibration or shock.
Make sure that there is enough space around the printer so that it can be used easily.
4
Roll paper
Adaptor
Power cord
Cable
Printer

1-3. Printer Part Names
5
(1) Cover top
(2) Case top
(3) Case bottom
(4) Control panel
(5) Roller
(6) Power switch
(7) Interface connector (male)
(8) DC Jack
(9) Interface connector (female)
(10) Roll paper
(11) Detector switch
POWER ERROR FEED ON LINE
(1)
FEED ON LINE
(4) (3)
(2)
(5)
(10)
(11)
POWER ERROR
Control Panel
Rear View
Rear View
STP-102S STP-102P
Press the FEED button once to advance paper one line. You can also press the FEED
button continuously to feed paper continuously.
Feed button is valid when ON LINE button is off.
1-4. Operating Control Panel
The control panel has two buttons and two lights.
The control panel buttons perform paper feeding and on line function.
Press the ON LINE button to ready to receive data from the computer.
ON LINE
FEED
Buttons
1) The error LED blinks fast when paper is out.
2) The error LED blinks when the Near End Sensor triggered.
The control panel lights provide information on printer conditions.
The POWER light is on when the printer power is on.
POWER(green)
ERROR(red)
Indicator lights
6
(6) (7) (8) (9)

7
Chapter 2. Connecting the Cable
2-1. Connecting the AC adapter to your printer
When the printer is used, use te optional AC adapter, AP-1611-UV for your printer.

Using an incorrect power supply may cause fire or electrical.

When connecting or disconnecting the power supply from the printer, make sure that
the power supply is not plugged into an electrical outlet ; otherwise you may damage
the power supply or the printer
1. Make sure that the printer's power switch is turned off, and that the power supply's
power cord is unplugged from the electrical outlet.
2. Check the label on the power supply to make sure that the requird voltage matches
that of your electrical outlet.
3. Plug the power supply's DC cable connector into the printer's power connector as
shown below.
4. Plug the AC adapter's power cord into an electrical outlet.
8
STP-102S / STP-102P
2-2. Connecting the printer to your Computer
STP-102S
You need an appropriate serial interface cable to connect your computer to the
printer's built-in interface.
1. Make sure that both the printer and computer are turned off :
then plug the cable connector securely into the printer's interface connector.
2. Tighten the screws on both sides of the cable connector.
3. Plug the other end of the cable into the computer
25 Pin Male Type
NOTE
To remove the DC cable connector grasp the connector at the arrow and
pull it straight out. Make sure that the main unit's power cord is unplugged
before you disconnect the DC cable connector.

9
NOTE
The printer must be turned off before installing the paper roll.
Chapter 3. Installing the Paper Roll
Use a paper roll that matches the specifications.
1. Open the printer cover and remove the used paper roll core if there is one.
2. Insert the paper roll as shown below.
3. Pull out the paper roll until the paper comes out from the top of the printer. Then
close the printer cover.
4. Turn on the Printer.
2-2. Connecting the printer to your Computer
STP-102P
You need an appropriate serial interface cable to connect your computer to the
printer's built-in interface.
1. Make sure that both the printer and computer are turned off :
then plug the cable connector securely into the printer's interface connector.
2. Tighten the screws on both sides of the cable connector.
3. Plug the other end of the cable into the computer
25 Pin Female Type
10

11 12
DIP switch functions
BPS
2400
4800
9600
19200
38400
57600
115200
Level
1
2
3
4
5
6
7
D/W1
ON
OFF
OFF
ON
ON
OFF
ON
D/W2
OFF
ON
OFF
OFF
ON
ON
ON
S/W3
OFF
OFF
ON
ON
OFF
ON
ON
Dip Switch
No.
1
2
3
Function
Density
Handshaking
Reserved
Language
Reserved
ON OFF
5
6
7
8
4Normal
DTR/DSR
-
Korean
-
Dark
Xon/Xoff
-
Engish
-

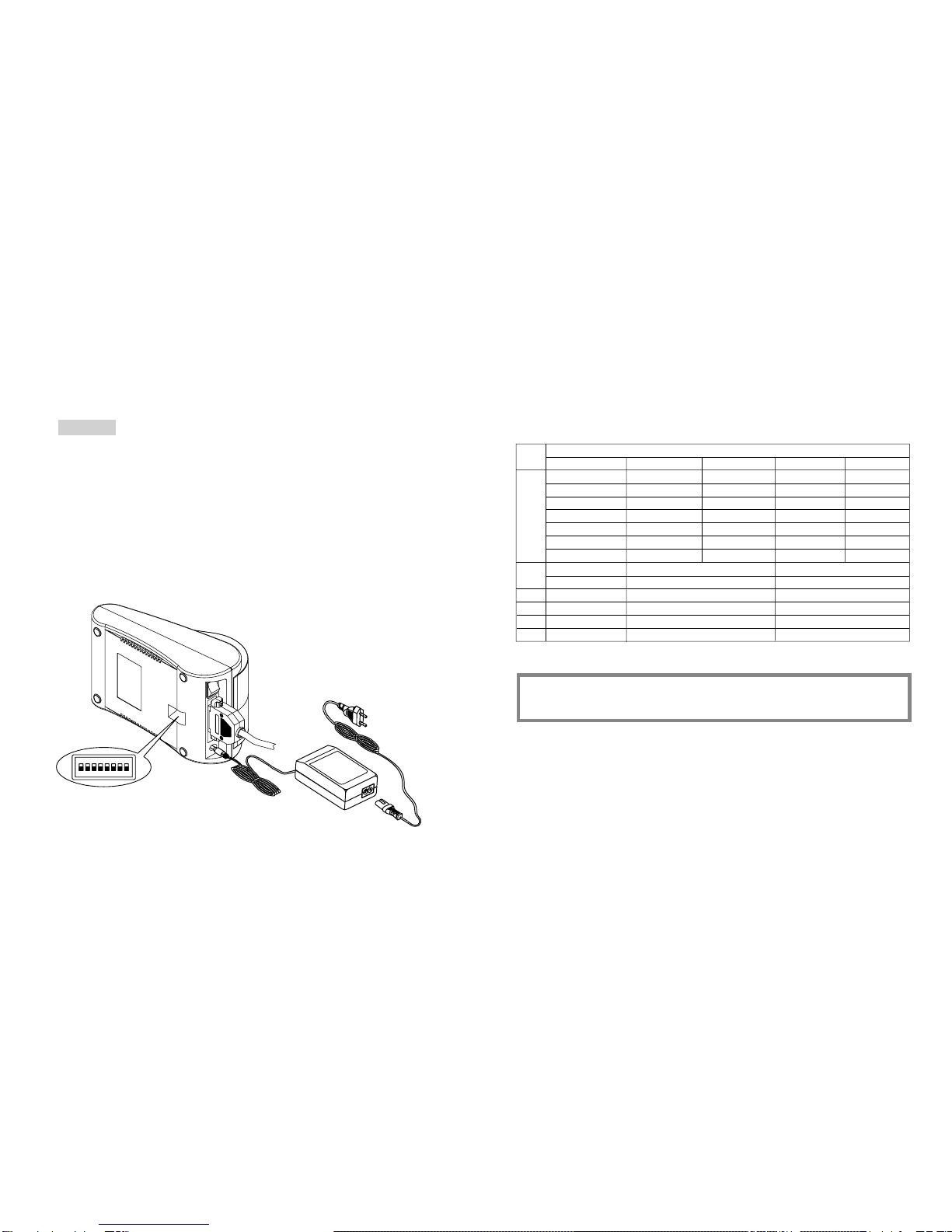

Chapter 4. Setting the DIP Switches
Turn off the printer while setting the DIP switch to prevent an electrical short, which can
damage the printer.
You can change your interface and printer density settings by changing the DIP switch
setting.
1. Make sure the printer is turned off.
2. There are a switch. Notice that ON is marked on each set of switches.
Use tweezers or another narrow tool to move the switches.
3. Use the following tables to set the DIP switches.
CAUTION
1
NOTE
Dip Switch 7 must be always set to ON condition.

13 14

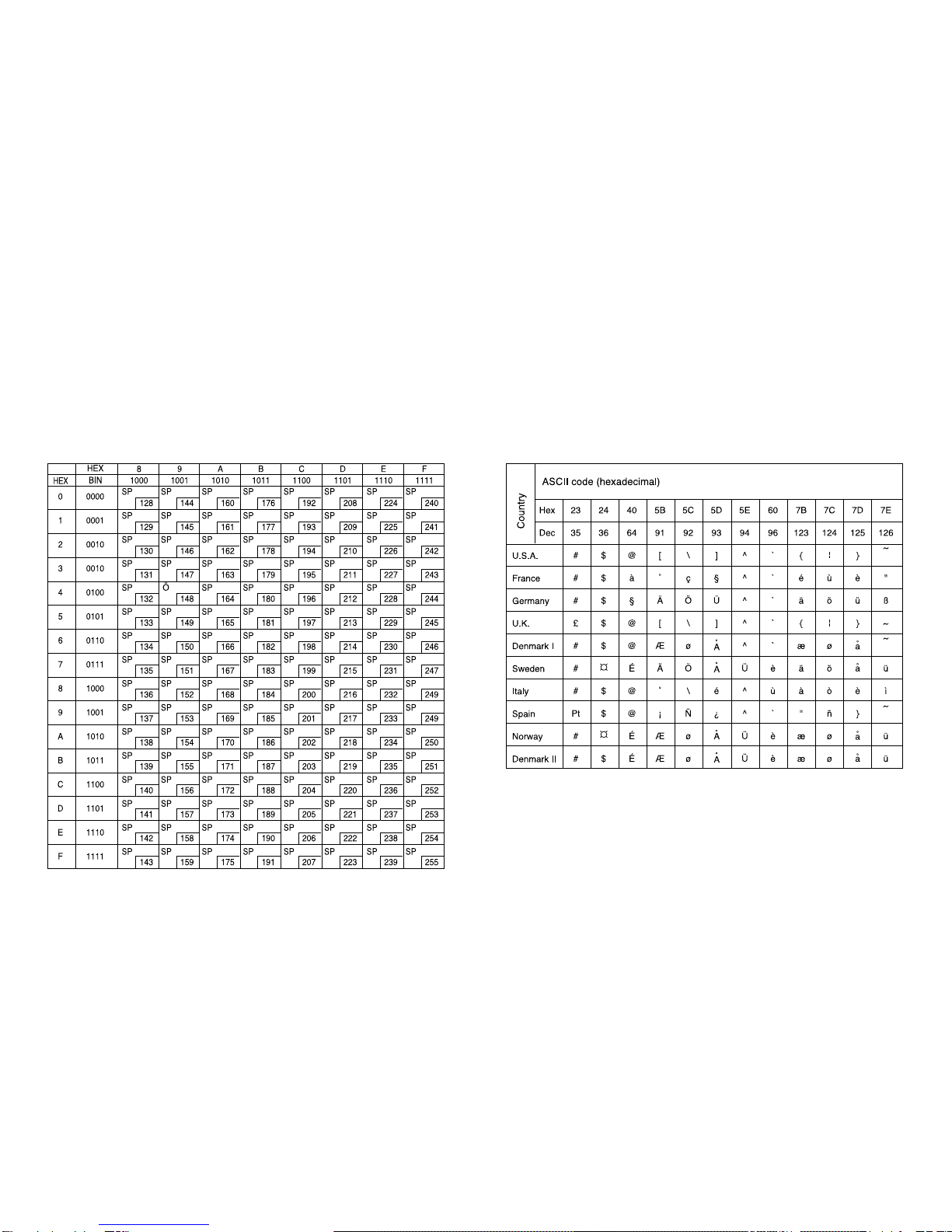

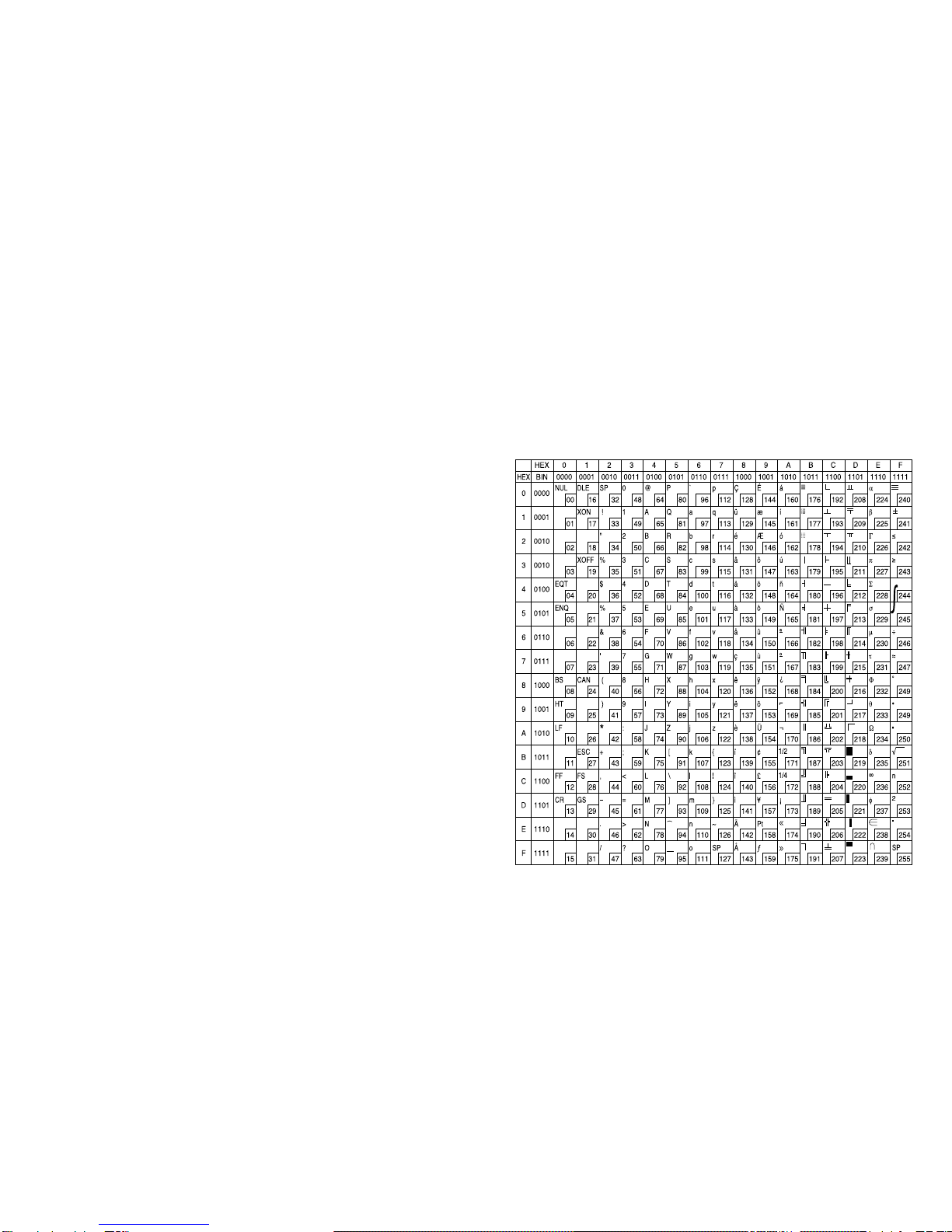

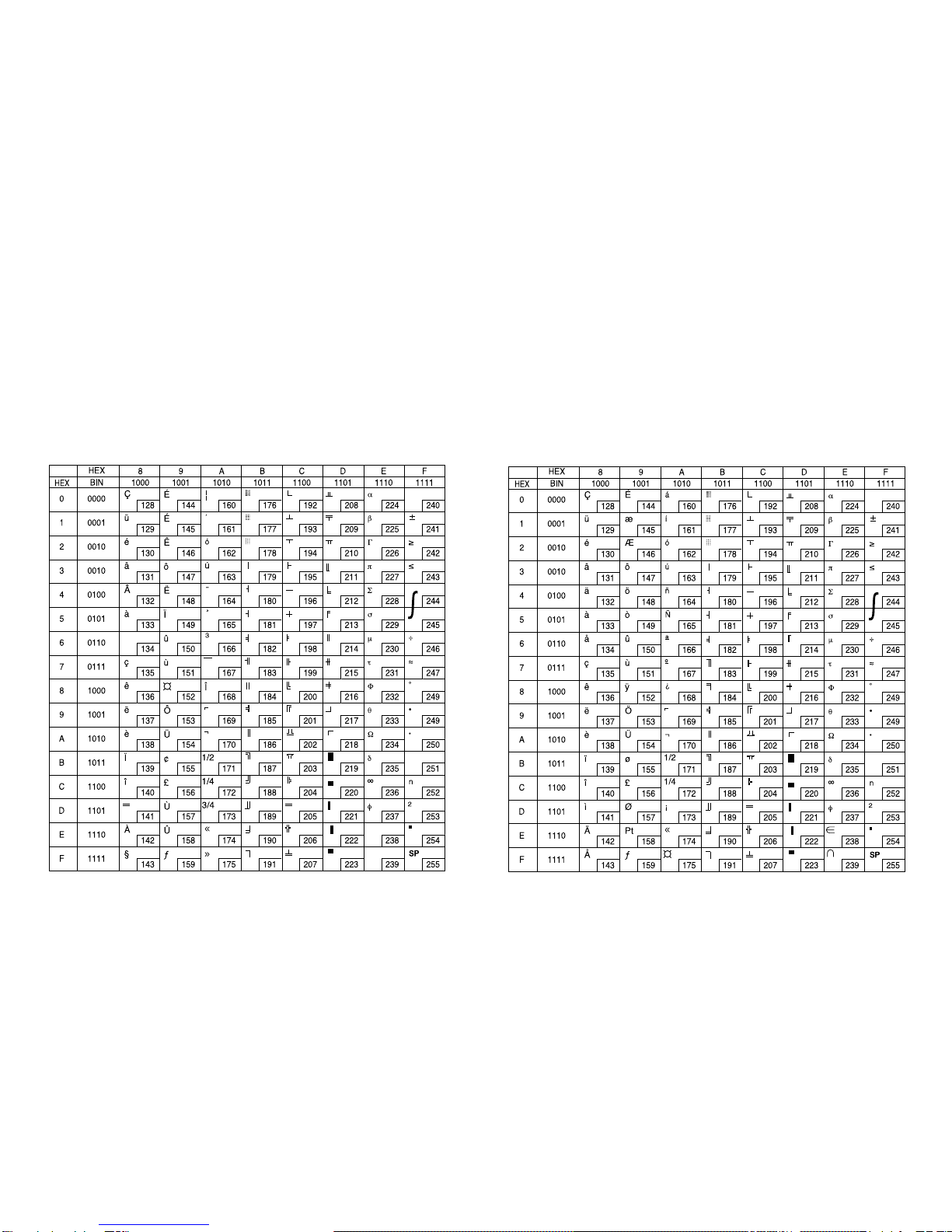

Chapter 6. Code Table
The following pages show the character code tables. To find the character
corresponding to a hexadecimal number, count across the top of the table for the
For example, 4A=J.
1. Self-test printing
1) Starting the self test
To start printing the self-test on a paper roll, hold down the PAPER FEED
button and turn on the printer with the cover closed. The self-test prints the
current printer settings, which provide the following information :
- control software version
- dip switch state
2) Standby state
After printing the current printer status, the printer prints the message
"Please press the FEED BUTTON.". The LED indicator blinks and the
printer enter the test printing standby state.
Press the FEED BUTTON to start test printing.
2. Ending the self-test
After a number of lines are printed, the printer indicates the end of the
self-test by printing " ** TEST COMPLETED ** ".
If the self-test is completed, then you must reboot your printer.
Followings are the self-test results with STP-102S and STP-102P.
Chapter 5. Running the Self-test

1615
PC850 :Multilingual PC860 : Portuguese

17 18
PC865 :Nordic
PC863 :Canadian - French

19 20
Space Page

Chapter 7. Functions
Commands
The commands listed in the table below are available for control of the printer.
Command
HT
LF
ESC SP
ESC !
ESC $
ESC %
ESC &
ESC *
ESC -
ESC 2
ESC 3
ESC ?
ESC @
ESC D
ESC E
ESC J
ESC R
ESC S
ESC V
Horizontal tab
Print and line feed
Set right-side character spacing
Select print mode(s)
Set absolute print position
Select/cancel user-defined character set
Define user-defined characters
Select bit-image mode
Turn under line mode on/off
Select 1/6-inch line spacing
Set line spacing
Cancel user-defined characters
Initialize printer
Set horizontal tab positions
Turn emphasized mode on/off
Print and feed paper
Select an international character set
Select standard mode
Turn 90 clockwise rotation mode on/off
Name Command Classification
Executing Setting Standard
Mode
( )
Command classification
Standard mode
Executing :
:
:
:
Enagled
Enabled only when the command is used at the beginning of a line.
Enabled only when data is not present in the buffer.
Printer executes the command, which does not affect the following data.
Setting : Printer uses flags to make setting, and those setting affect the following data.
Command
ESC \
ESC a
ESC c5
ESC d
ESC {
GS $
GS /
GS :
GS B
GS L
GS P
GS W
GS ^
GS h
GS k
GS w
Set relative print position
Select justification
Enable/disable panel buttons
Print and feed paper n lines
Turn upside-down printing mode on/off
Select haracter size
Define downloaded bit image
Start/end macro definition
Turn white/black reverse printing mode on/off
Set left margin
Set vertical and horizontal motion units
Set printing area width
Execute macro
Set bar code height
print bar code
Set bar code width
Name Command Classification
Executing Setting Standard
Mode
( )
( )
21 22

23 24
HT
[Name]
[Format]
[Description]
Command Notation
Horizontal tab.
ASCII
Hex
Decimal
Moves the print position to the next horizontal tab position.
[Name]
[Format]
[Range]
[Description]
The name of the command.
the code sequence.
ASCII indicates the ASSCII equivalents.
Hex indicates the hexadecimal equivalents.
Decimal indicates the decimal equivalents.
[ ] k indicates the contents of the [ ] should be repeated k times.
Gives the allowable ranges for the arguments.
Describes the function of the command.
Explanation of Terms

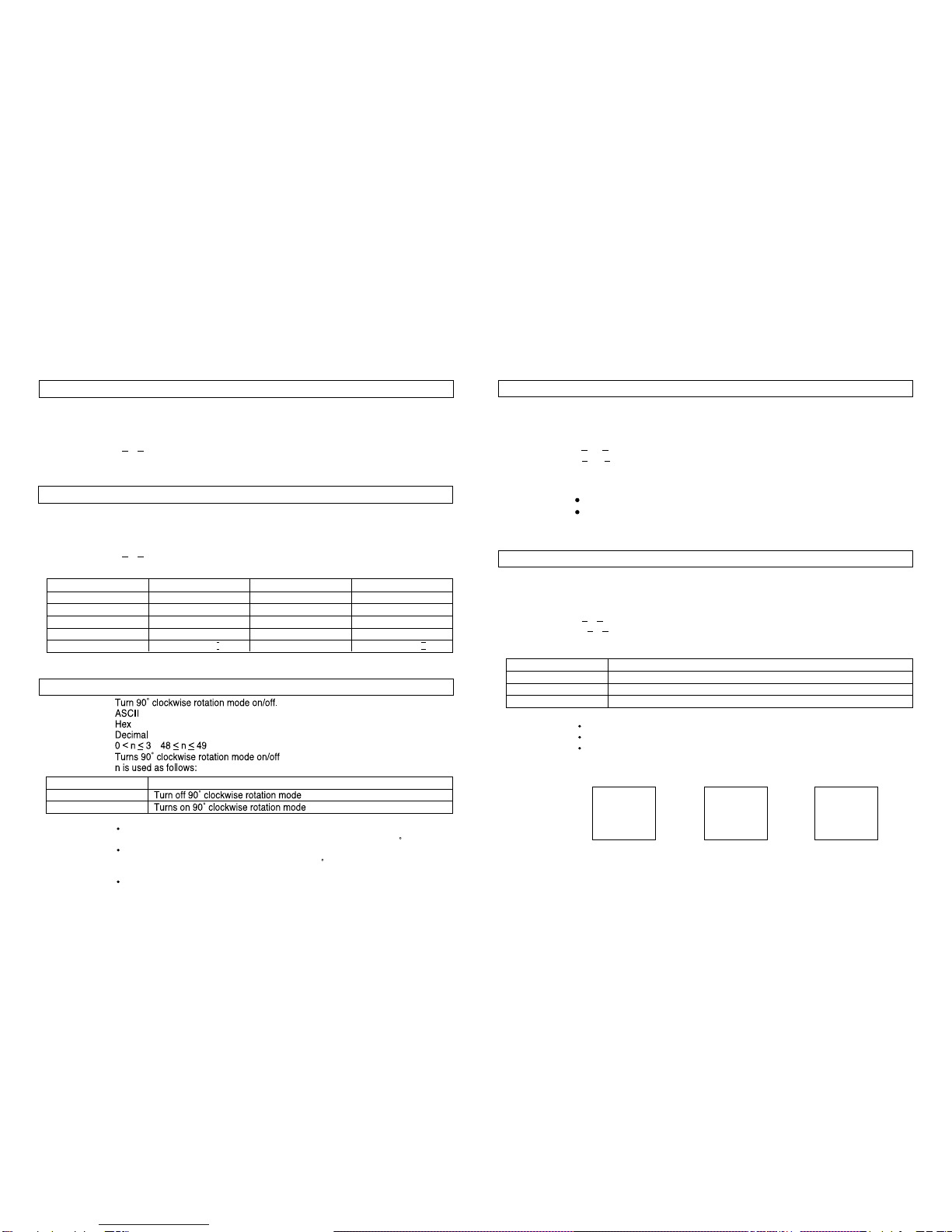

Control Commands
LSB Least Significant Bit
HT
09
9
LF
[Name]
[Format]
[Description]
Print and line feed.
ASCII
Hex
Decimal
Prints the data in the print buffer and feeds one line based on the current
line spacing.
LF
0A
10
Chapter 8. Control Commands ESC SP n
[Name]
[Format]
[Range]
[Description]
Set right-side character spacing.
ASCII
Hex
Decimal
0 <n <255
Sets the character spacing for the right side of the character to n dots.
ESC
1B
27
SP
20
32
n
n
n
ESC ! n
0
2
3
4
5
6
7
1
* Determine the values of n by adding the value of all the characteristics you want to select.
Off
On
-
Off
On
Off
On
Off
On
-
Off
On
On
00
01
-
00
08
00
10
00
20
-
00
80
02
0
1
-
0
8
0
16
0
32
-
0
128
2
24 char
42 char
Undefined.
Emphasized mode not selected.
Emphasized mode selected.
Double-height mode not selected.
Double-height mode selected.
Double-width mode not selected.
Double-width mode selected.
Undefined.
Underline mode not selected.
Underline mode selected.
32 char
Bit Off/On Hex Decimal Function
[Name]
[Format]
[Range]
[Description]
Select print modes.
ASCII
Hex
Decimal
0 <n <255
Selects print mode(s) using n as follows:
ESC
1B
27
!
21
33
n
n
n
ESC-$ nL nH
[Name]
[Format]
[Range]
[Description]
Set absolute print position.
ASCII
Hex
Decimal
0 <nL <255
0 <nH <255
Set the print starting position from the beginning of the line.
The distance from the beginning of the line to the print position is
(nL + nH x 256) dots.
ESC
1B
27
$
24
36
nL
nL
nL
nH
nH
nH

Select bit-image mode.
ASCII
Hex
Decimal
m = 0, 1, 32, 33
0 <nL <255
0 <nH <3
0 <d <255
Selects a bit-image mode using m for the number of dots specified by nL and
nH, as follows.
Number of data(k) = (nL + nH x 256) x 3
The nL and nH indicate the number of dots of the bit image in the horizontal
direction.
The number of dots is calculated by (nL + nH x 256).
If the bit-image data input exceeds the number of dots to be printed on a line,
the excess data is ignored.
d indicates the bit-image data. Set a corresponding bit to 1 to print a dot or
to 0 to not print a dot.
ESC
*
m nL nH d1...dk
[Name]
[Format]
[Range]
[Description]
[Notes]
ESC
1B
27
*
2A
42
m nL nH d1 ... dk
m nL nH d1 ... dk
m nL nH d1 ... dk
ESC - n
[Name]
[Format]
[Range]
[Description]
Turn underline mode on/off.
ASCII
Hex
Decimal
0 <n <2, 48 <n <50
Turns underline mode on or off, based on the following values of n:
ESC
1B
27
-
2D
45
n
n
n
ESC 2
[Name]
[Format]
[Description]
Select default line spacing.
ASCII
Hex
Decimal
Set the line spacing to 1/6 inch.
ESC
1B
27
2
32
50
ESC 3 n
[Name]
[Format]
[Range]
[Description]
Set line spacing.
ASCII
Hex
Decimal
0 <n <255
Sets the line spacing to n dots.
ESC
1B
27
3
33
51
n
n
n
0, 48
1, 49
2, 50
Turns off underline mode.
Turns on underline mode (1-dot thick).
Turns on underline mode (2-dots thick).
n Function
@
40
64
ESC
1B
27
D
44
68
n1...nk
n1...nk
n1...nk
NUL
00
0
ESC D n1...nk NUL
[Name]
[Format]
[Range]
[Description]
[Notes]
Set horizontal tab positions.
ASCII
Hex
Decimal
1 <n <255
0 < k <32
Sets horizontal tab position.
n specifies the column number for setting a horizontal tab position
from the beginning of the line.
k indicates the total number of horizontal tab positions to be set.
ESC @
[Name]
[Format]
[Description]
Initialize printer.
ASCII
Hex
Decimal
Clears the data in the print buffer and resets the printer mode
to the mode that was in effect when the power was turned on.
ESC
1B
27
ESC
1B
27
E
45
69
n
n
n
ESC E n
[Name]
[Format]
[Range]
[Description]
[Notes]
Turn emphasized mode on/off.
ASCII
Hex
Decimal
0 <n <255
Turns emphasized mode on or off.
When the LSB is 0, emphasized mode is turned off.
When the LSB is 1, emphasized mode is turned on.
25 26

27 28
n
n
n
ESC
1B
27
J
4A
74
ESC J n
[Name]
[Format]
[Range]
[Description]
Print and feed paper.
ASCII
Hex
Decimal
0 <n <255
Prints the data in the print buffer and feeds the paper n dots.
n
n
n
R
52
82
ESC
1B
27
ESC R n
[Name]
[Format]
[Range]
[Description]
Select an international character set.
ASCII
Hex
Decimal
0 <n <10
Selects an international character set n from the following table.
0
1
2
3
4
nU.S.A.
France
Germany
U.K.
Denmark I
Character set Sweden
Italy
Spain
Norway
Denmark II
Character set
5
6
7
9
10
n
0, 48
1, 49
nFunction
ESC
1B
27
V
56
86
n
n
n
ESC V n
[Name]
[Format]
[Range]
[Description]
[Notes] When underline mode is turned on, the printer does not underline 90
clockwise-rotated characters.
Double-width and double-height commands in 90 rotation mode enlarge
characters in the opposite directions as from double-height and double-width
commands in normal mode.
These command has no effect in page mode.
If this command is input in page mode, the printer performs only internal flag
operations.
0, 48
1, 49
2, 50
nLeft justification
Centering
Right justification
Justification
ESC
1B
27
a
61
97
n
n
n
ESC a n
[Name]
[Format]
[Range]
[Description]
Select justification.
ASCII
Hex
Decimal
0 <n <2, 48 < n <50
Aligns all the data in one line to the specified position.
n selects the type of justification as follows:
[Notes]
[Default]
[Example]
The command is enabled only when input at the beginning of the line.
Lines are justified within the specified printing area.
Spaces set by HT, ESC $, and ESC \ are all justified.
n = 0
ESC
1B
27
\
5C
92
1n, nH
1n, nH
1n, nH
ESC \ nL nH
[Name]
[Format]
[Range]
[Description]
[Notes]
Set relative print position.
ASCII
Hex
Decimal
0 <nL < 255
0 < nH <32
Set the print starting position based on the current position by
using the horizontal or vertical motion unit.
This command sets the distance from the current position to (nL + nH x 256) dots.
Any setting that exceeds the printable area is ignored.
Left justification Centering Right justification
ABC
ABCD
ABCDE
ABC
ABCD
ABCDE
ABC
ABCD
ABCDE

29
ESC c 5 n
[Name]
[Format]
[Range]
[Description]
[Notes]
Enable/Disable panel buttons.
ASCII
Hex
Decimal
0 <n <255
Enables or disables the panel buttons.
When the LSB is 0, the panel buttons are enabled.
When the LSB is 1, the panel buttons are disabled.
ESC
1B
27
c
63
99
5
35
53
n
n
n
ESC d n
[Name]
[Format]
[Range]
[Description]
Print and feed n lines.
ASCII
Hex
Decimal
0 <n <255
Prints the data in the print buffer and feeds n lines.
ESC
1B
27
d
64
100
n
n
n
ESC { n
[Name]
[Format]
[Range]
[Description]
[Notes]
Turn upside-down printing mode on/off.
ASCII
Hex
Decimal
0 <n <255
Turns upside-down printing mode on or off.
When the LSB is 0, upside-down printing mode is turned off.
When the LSB is 1, upside-down printing mode is turned on.
ESC
1B
27
{
7B
123
n
n
n
GS ! n
[Name]
[Format]
[Range]
[Description]
Select character size.
ASCII
Hex
Decimal
0 <n <255
(1 <vertical number of times <8, 1 <horizontal number of times <8)
Selects the character height using bits 0 to 1 and selects the character width
using bits 4 to 5, as following:
GS
1D
29
!
21
33
n
n
n
0 ~ 1
4 ~ 5
Bit
Character height selection. See Table 2
Character width selection. See Table 1
Off/On Hex Decimal Function
00
10 00 10
Hex 0
16
Decimal
Table 1
Character Width Selection
1(normal)
2(double)
Width Hex 0
1
Decimal
Table 2
Character Height Selection
1(normal)
2(double)
Width
GS :
[Name]
[Format]
[Description]
Start/End macro definition.
ASCII
Hex
Decimal
Starts or ends macro definition.
GS
1D
29
:
3A
58
30

31 32
GS L nL nH
[Name]
[Format]
[Range]
[Description]
[Notes]
Set left margin.
ASCII
Hex
Decimal
0 <nL <255
0 <nH <255
Sets the left margin using nL and nH in standard mode.
The left margin is set to (nL + nH x 256) dots from the beginning of the line.
This command is effective only at the beginning of a line.
Printable area
Printing area widthLeft margin
GS
1D
29
L
4C
76
nL nH
nL nH
nL nH
GS B n
[Name]
[Format]
[Range]
[Description]
[Notes]
Turn white/black reverse printing mode on/off.
ASCII
Hex
Decimal
0 <n <255
Turn on or off white/black reverse printing mode.
When the LSB is 0, white/black reverse printing mode is turned on.
When the LSB is 1, white/black reverse printing mode is turned off.
GS
1D
29
B
42
66
n
n
n
Printing area widthLeft margin
GS W nL nH
[Name]
[Format]
[Range]
[Description]
[Notes]
Set printing area width.
ASCII
Hex
Decimal
0 <nL <255
0 <nH <255
Set the printing area width to the area specified by nL and nH.
The printing area width is set to (nL + nH x 256) dots.
Printable area
GS
1D
29
W
4C
87
nL nH
nL nH
nL nH
This command is effective only at the beginning of a line.
The maximum possible setting for the print range is the same as the maximum
setting are rounded down to the maximum setting.
^
5E
92
rtm
rtm
rtm
GS ^ r t m
[Name]
[Format]
[Range]
[Description]
[Notes]
Execute macro.
ASCII
Hex
Decimal
0 <r <255
0 <t <255
0 < m < 1
Executes a macro.
r specifies the number of times to execute the macro.
t specifies the waiting time for exceuting the macro.
The waiting time is t x 100m sec for every macro execution.
When m = 0 : the macro executes r times continously width interval specified by t.
When m = 1 : After waiting for the period specified by t, the PAPER OUT LED
indicator blinks and the printer waits for the FEED button to be pressed.
After the button is pressed, the printer executes the macro once. The printer
repeats the operation r times.
GS
1D
29

33 34
h
68
104
n
n
n
GS h n
[Name]
[Format]
[Range]
[Description]
Set bar code height.
ASCII
Hex
Decimal
1 <n <255
Set the height of the bar code.
n specifies the number of dots in the vertical direction.
GS
1D
29
Print bar code.
ASCII
Hex
Decimal
ASCII
Hex
Decimal
0 <m <6 (k and d depends on the bar code system used.)
65 <m <73 (n and d depends on the bar code system used)
Selects a bar code system and prints the bar-code.
m selects a bar code system as follows.
d indicates the character code to be printed and k indicates the number of
characters to be printed.
GS k m d1... dk NUL, GS k m n d1... dn
[Name]
[Format]
[Range]
[Description]
GS
1D
29
GS
1D
29
k
68
104
k
68
104
m
m
m
m
m
m
d1...dk
d1...dk
d1...dk
n d1...
n d1...
n d1...
NUL
00
0
dn
dn
dn
1
1
1
2
2
0
1
2
3
4
5
6
65
66
67
68
69
70
71
72
73
mUPC-A
UPC-E
JAN13(EAN)
JAN8(EAN)
CODE39
ITF
CODABAR
UPC-A
UPC-E
JAN13(EAN)
JAN8(EAN)
CODE39
ITF
CODABAR
CODE93
CODE128
Bar Code System 11 <k <12
11 <k <12
12 <k <13
7 <k <8
1 <k
1 <k (even number)
1 <k
1 <n <255 (even number)
1 <n <255
1 <n <255
2 <n <255
11 <n <12
11 <n <12
12 <n <13
7 <n <8
1 <n <255
Number of Characters 48 <d <57
48 <d <57
48 <d <57
48 <d <57
48 <d <57, 65 <d <90
d = 32,36,37,43,45,46,47
48 <d <57
48 <d <57, 65 <d <68
d = 36,43,45,46,47,58
Remarks
2
1
2
0 <d < 127
0 <d < 127
48 <d <57
48 <d <57
48 <d <57
48 <d <57
48 <d <57, 65 <d <90
d = 32,36,37,43,45,46,47
48 <d <57
48 <d <57, 65 <d <68,
d = 36,43,45,46,47,58
APPENDIX A: CONNECTORS
PRINTER
25 PINE MALE
20
19
21
22~25
18
TXD(O)
RXD(I)
CTS(I)
GND
RTS(O)
PRINTER
25 PINE FEMALE
1
2
3
4
5
6
7
8
9
10
11
12
13
15
16~21
22~25
/STROBE(I/O)
DATA0(I/O)
DATA1(I/O)
DATA2(I/O)
DATA3(I/O)
DATA4(I/O)
DATA5(I/O)
DATA6(I/O)
DATA7(I/O)
/ACK(I)
BUSY(I)
PE(I)
SLCT
/ERROR(I)
N.C
GND
HOST
25 PINE FEMALE
1
2
3
4
5
6
7
8
9
10
11
12
13
15
16
18~25
/STROBE(I/O)
DATA0(I/O)
DATA1(I/O)
DATA2(I/O)
DATA3(I/O)
DATA4(I/O)
DATA5(I/O)
DATA6(I/O)
DATA7(I/O)
/ACK(I)
BUSY(I)
PE(I)
SLCT
/ERROR(I)
/INIT(O)
GND
HOST
9 PINE MALE
2
3
7
5
8
4
6
RXD(I)
TXD(O)
RTS(O)
GND
CTS(I)
DTR(O)
DSR(I)
SERIAL INTERFACE CONNECTOR (STP-102S)
PARALLEL INTERFACE CONNECTOR (STP-102P)
CONNECT

35
APPENDIX B: Specification
JF01-000012
Printing method
Dot density
Printing width
Paper width
Characters per line
Printing speed
Receive buffer size
Supply voltage
Environmental conditions
MCBF
Thermal line printing
200 x 200 Dpi (8 dot/mm)
48mm
58mm
42 (Font A)(12x24) ,56(Font B)(9x24)
Approximately 1.97 inchs/sec
50 mm/sec
at 25°C/printing duty 12.5%
15K bytes
Temperature
Humidity
Mechanical
Head
0 ~ 40°C (operating)
-10 ~ 50°C (storage)
30 ~ 80% RH (operating)
10 ~ 90% RH (storage)
15,000,000 line
50 million pulse (about 50km)
7.5V 2.2A
Paper
- Paper thickness : 0.06 ~ 0.09mm
- Roll size : 60 ~ 57(w)
- Roll spool diameter
1) Inside : 12mm (0.47")
2) Outside : 18mm (0.71")
