Samsung SRP-350 Bixolon User manual

Samsung SRP-350 Thermal Receipt Printer
Integrator’s Manual
Contents
Driver Installation Information 2
Overview .............................................................................................................................2
Windows 98 SRP-350 Driver Installation.............................................................................3
Windows 98 Generic / Text Driver Settings .........................................................................4
Windows 2000 Generic / Text Driver Settings......................................................................5
Windows XP Generic / Text Driver Settings ........................................................................6
Logo Setup 7
Design & Save Bitmap in Microsoft Paint............................................................................7
Download Bitmap to SRP-350 from a PC............................................................................. 8
Upgrade Instructions 10
Downloading Procedure for SRP-350 Printer Software....................................................... 10
Hexadecimal Dumping 11
Overview ........................................................................................................................... 11
Hexadecimal Dump Sample Printout.................................................................................. 12
Troubleshooting................................................................................................................. 13
Cash Drawer 14
Generate Pulse Command.................................................................................................. 14
Connection Information..................................................................................................... 15
Wall Mount Option 16
Downloading Procedure for SRP-350 Wall Mount Printer Software ................................... 16
Special Application Firmware 16
Overview ........................................................................................................................... 17
CRS, Inc.
2909 Anthony Lane
Minneapolis, MN 55418
[phone]
All specifications are subject to change without notice 2002, Cash Register Sales, Inc.

2•Driver Installation Information Samsung SRP-350 Setup & Service Information
Driver Installation Information
Overview
If your POS software requires a generic printer driver, you must make the appropriate driver
settings for auto cut and cash drawer opening.
If you are using one of the SRP-350 drivers the generic driver settings shown here do not
apply. The appropriate SRP-350 drivers operate the cutter and cash drawer automatically.

Samsung SRP-350 Setup & Service Information Driver Installation Information •3
Windows 98 SRP-350 Driver Installation
You can download the compressed SRP-350 driver, 350_130_2K.zip, from the dealer area of
the CRS site, www.crs-usa.com. Unzip (extract) the file SRP350.drv.
1. Select Start, then Settings, and then Printers.
2. From the printers dialog, right click the Add Printer icon.
3. From the Add Printer wizard window, click Next.
4. Choose Local Printer, click Next.
5. Click the Have Disk command button. From the Install From Disk dialog box, click
the Browse button to locate the driver file SRP350.drv. Click OK. The wizard
displays the list of available drivers for the SRP-350.
6. Select a driver from the table that follows and click Next.
Driver Description
SRP350 No cut Use with SRP350 –no paper cut
STP130 No cut Do not use
OM8324 No cut Do not use
SRP350 Partial cut Use with SRP350 –partial paper cut
STP130 Partial cut Do not use
OM8324 Partial cut Do not use
SRP350 No cut & Bel Use with SRP350 –no paper cut and sounds auto
paper beep when data is sent to printer –requires
version 1.19B EPROM installed in SRP350.
SRP350 Partial cut & Bel Use with SRP350 –partial paper cut and sounds
auto paper beep when data is sent to printer –
requires version 1.19B EPROM installed in
SRP350.
7. Select the port to which the printer will be connected and click Next.
8. Enter a printer name and select whether you want your windows based program to use
this printer as the default printer. Click Next.
9. Select whether you wish to print a test page and click Finish. The printer driver
installation is complete.

4•Driver Installation Information Samsung SRP-350 Setup & Service Information
Windows 98 Generic / Text Driver Settings
1. Select Start, then Settings, and then Printers.
2. From the printers dialog, right click the Generic / Text Only driver and choose
Properties.
3. From the Generic / Text Only dialog box, click the Device Options tab:
4. For the cash drawer command, in the Begin Print Job field:
Type: ESC (<ESC> will display)
Type: p (lower case)
Type: 0 (drawer 1) or 1 (drawer 2)
Type: 25 (on time)
Type: 125 (off time)
5. For the auto cut command, in the End print Job field:
Press ALT and type: 0010 (line feed) :
Press ALT and type: 0010 (line feed) :
Press ALT and type: 0010 (line feed) :
Press ALT and type: 0010 (line feed) :
Press ALT and type: 0010 (line feed)
Press ALT and type: 0029 (GS) :
Press ALT and type: 0086 (V) :
Press ALT and type: 0001 (ASCII 01)
6. Click OK to save the new settings.
Cash Drawer
Command
Auto Cut
Command
NOTE:
To enter these
commands, it may
be necessary to
activate the Num
Lock and use the
10-key pad on your
keyboard.

Samsung SRP-350 Setup & Service Information Driver Installation Information •5

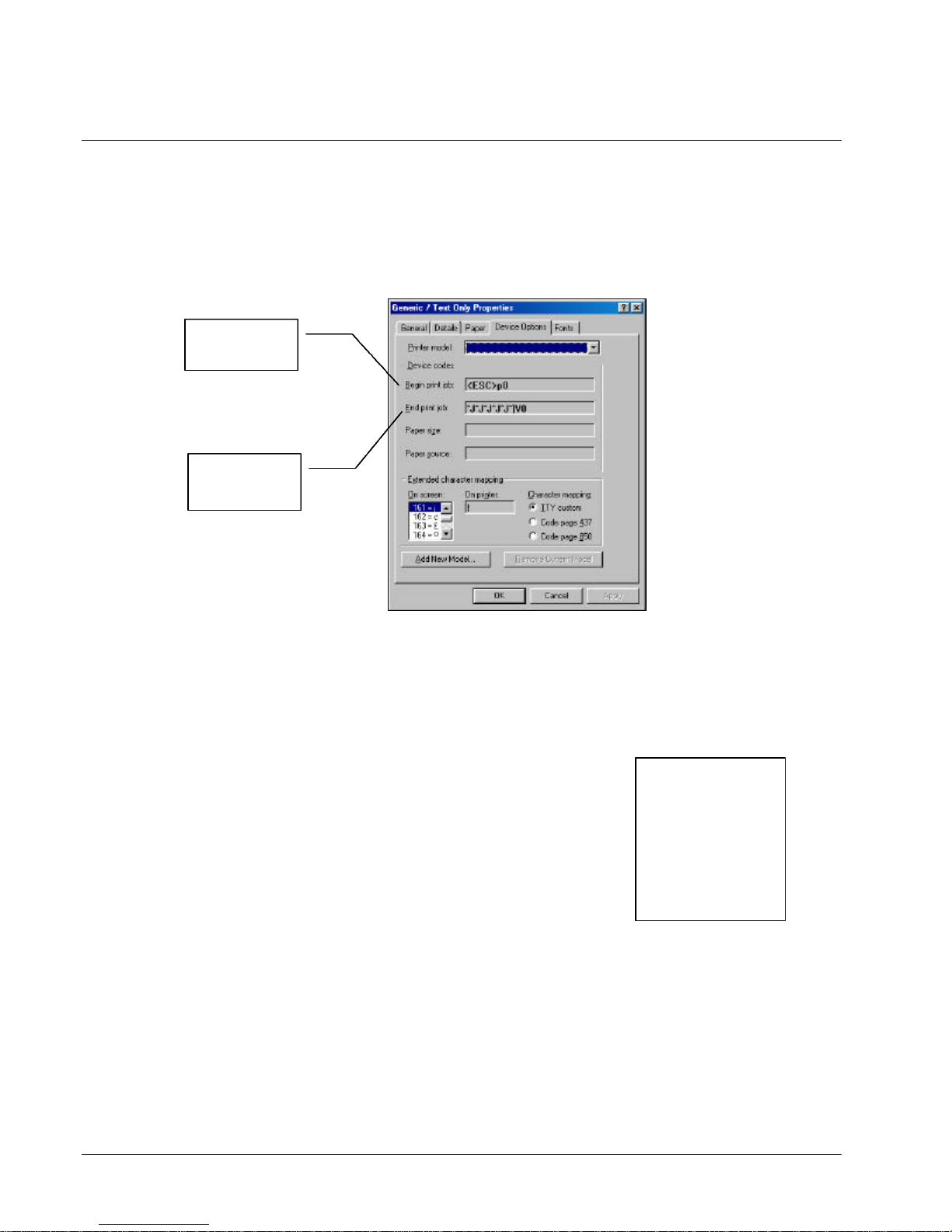

Windows 2000 Generic / Text Driver Settings
1. Click the Start button, and then choose Settings, and then choose Printers.
2. From the printers dialog, right click the Generic / Text Only driver and choose
Properties.
3. From the Generic / Text Only dialog box, click the Printer Commands tab:
4. For the cash drawer command, in the Begin Print Job field:
Type: “<1B>p<00>”
5. For the auto cut command, in the End print Job field:
Type: “<1B>m”
6. Click OK to save the new settings.
Cash Drawer
Command
Auto Cut
Command
NOTE:
To enter these
commands, it may
be necessary to
activate the Num
Lock and use the
10-key pad on your
keyboard.

6•Driver Installation Information Samsung SRP-350 Setup & Service Information
Windows XP Generic / Text Driver Settings
1. Click the Start button, and then choose Printers and Faxes.
2. From the printers dialog, right click the Generic / Text Only driver and choose
Properties.
3. From the Generic / Text Only dialog box, click the Printer Commands tab:
4. For the cash drawer command, in the Begin Print Job field:
Type: “<1B>p<00>”
5. For the auto cut command, in the End print Job field:
Type: “<1B>m”
6. Click OK to save the new settings.
Cash Drawer
Command
Auto Cut
Command
NOTE:
To enter these
commands, it may
be necessary to
activate the Num
Lock and use the
10-key pad on your
keyboard.

Samsung SRP-350 Setup & Service Information Logo Setup •7
Logo Setup
Design & Save Bitmap in Microsoft Paint
Maximum horizontal pixels = 512.
1. Set Bit Map size:
•Select IMAGE
•Select ATTRIBUTES
•Set Units = PELS
•Set Colors = Black and White
•Enter the width and height of the bit map. Values must be in multiples of 8 (per
above Bit Map file specifications).
2. Design the Bit Map Image.
3. Prior to saving the Bit Map Image:
•Select IMAGE
•Select INVERT COLORS
Then:
•Select IMAGE
•Select FLIP/ROTATE
•Select ROTATE BY ANGLE
•Select 90 DEGREES repeat two more times to obtain a rotation of 270 degrees in
total.
4. Save the Bit Map Image.

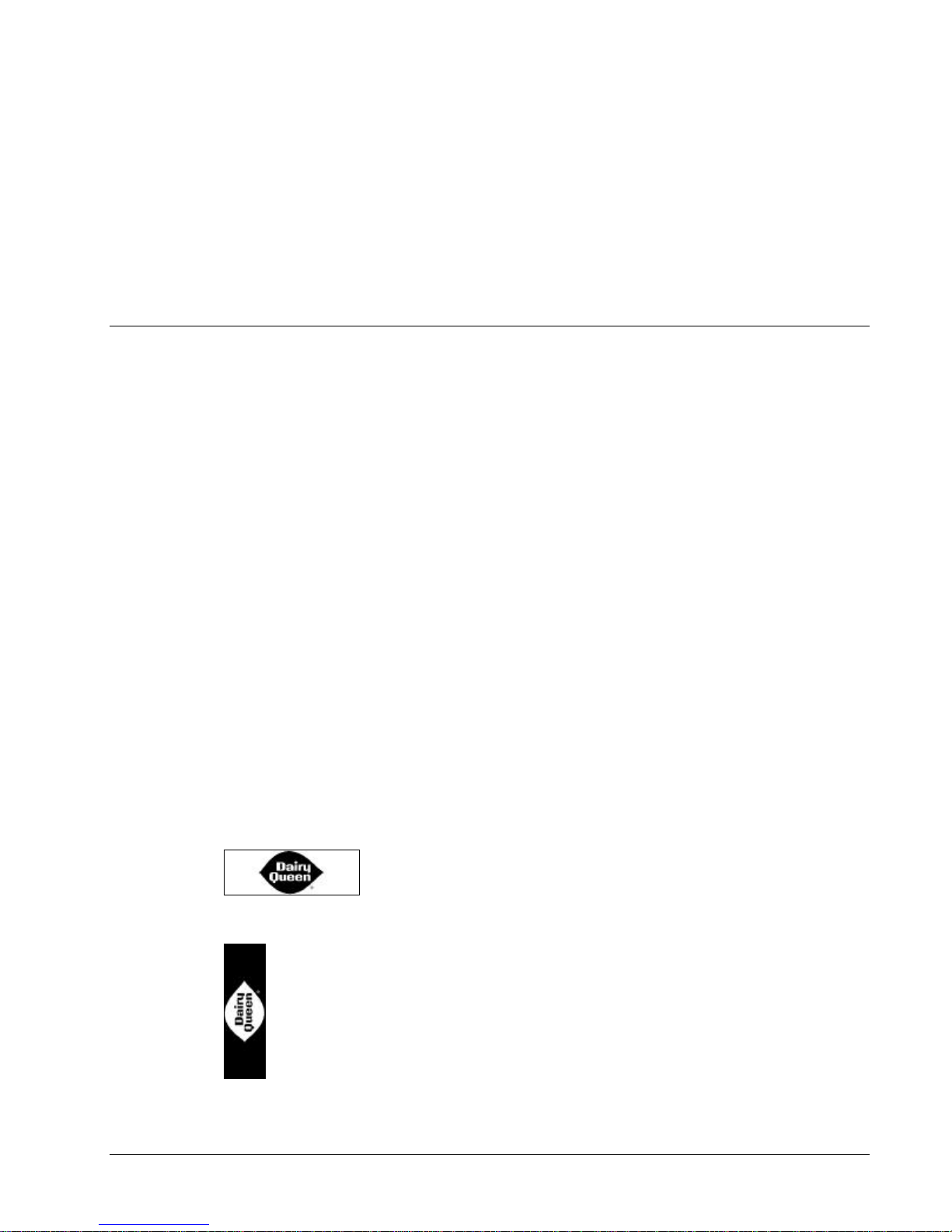

Example: Image To Print (Created In Paint Brush)
Image As Saved

8•Logo Setup Samsung SRP-350 Setup & Service Information
Download Bitmap to SRP-350 from a PC
The Windows application program BmpLogo.exe is used to send a bitmap to the flash ROM of
the SRP-350 POS printer.
The application is available from the dealer area of the CRS web site, www.crs-usa.com.
This program will work with Windows 95\98, and Windows 2000 (only with file system
FAT32). In Parallel mode, the program will only work in bi-directional\EPP mode. The
program will not work in ECP mode. This mode can be changed in CMOS.
1. Start the BmpLogo application. (Click Start, and then Run. Type the path and program
name into the Open field; click OK. Alternatively you can launch the application by
double-clicking on the file in Windows Explorer.) The application displays with the
Setup tab in the forefront.
2. Select the port to which the SRP350 is connected, and then fill the remaining fields to
match the settings on the SRP350. Use the table below as a guide:
Option BmpLogoProgram Setting SRP350 Dip Switch
Setting
Baud rate 9600 SW1 #7=ON; #8=OFF
Bit length 8SW1 #4=OFF
Parity NONE SW1 #5=OFF
Stop Bit 1SW1 #6=OFF
Handshake DTR/DSR SW1 #3=OFF

Samsung SRP-350 Setup & Service Information Logo Setup •9
3. Click the Bitmap Selection tab.
4. Click the Open File command button. Select the path and document name of the bitmap
file you wish to upload to the SRP350 printer.
5. Click the Logo Upload tab.
6. Select the bitmap file you wish to upload and click the Upload command button.
7. Click Close to exit the program.

10 •Upgrade Instructions Samsung SRP-350 Setup & Service Information
Upgrade Instructions
Downloading Procedure for SRP-350 Printer Software
1. Turn off the printer.
2. Set the SW2 DIP switch 2-3 to ON position.
3. Connect the printer to PC with a standard Parallel cable. If using a serial connection, use
the cable described below.
4. Open the printer cover.
5. Press the paper feed key and turn on the printer while holding down the feed key.
6. Execute the 350loade.exe. You must input the number for type of interface, 3for parallel
(lpt1) downloading.
7. Enter the binary file name you want to download. Example: 350v120.bin.
8. You should see download status scroll on your PC screen.
9. Download complete.
10. Turn off printer and set SW2 DIP switch 2-3 to OFF position.
11. Turn on printer and check version and operation.

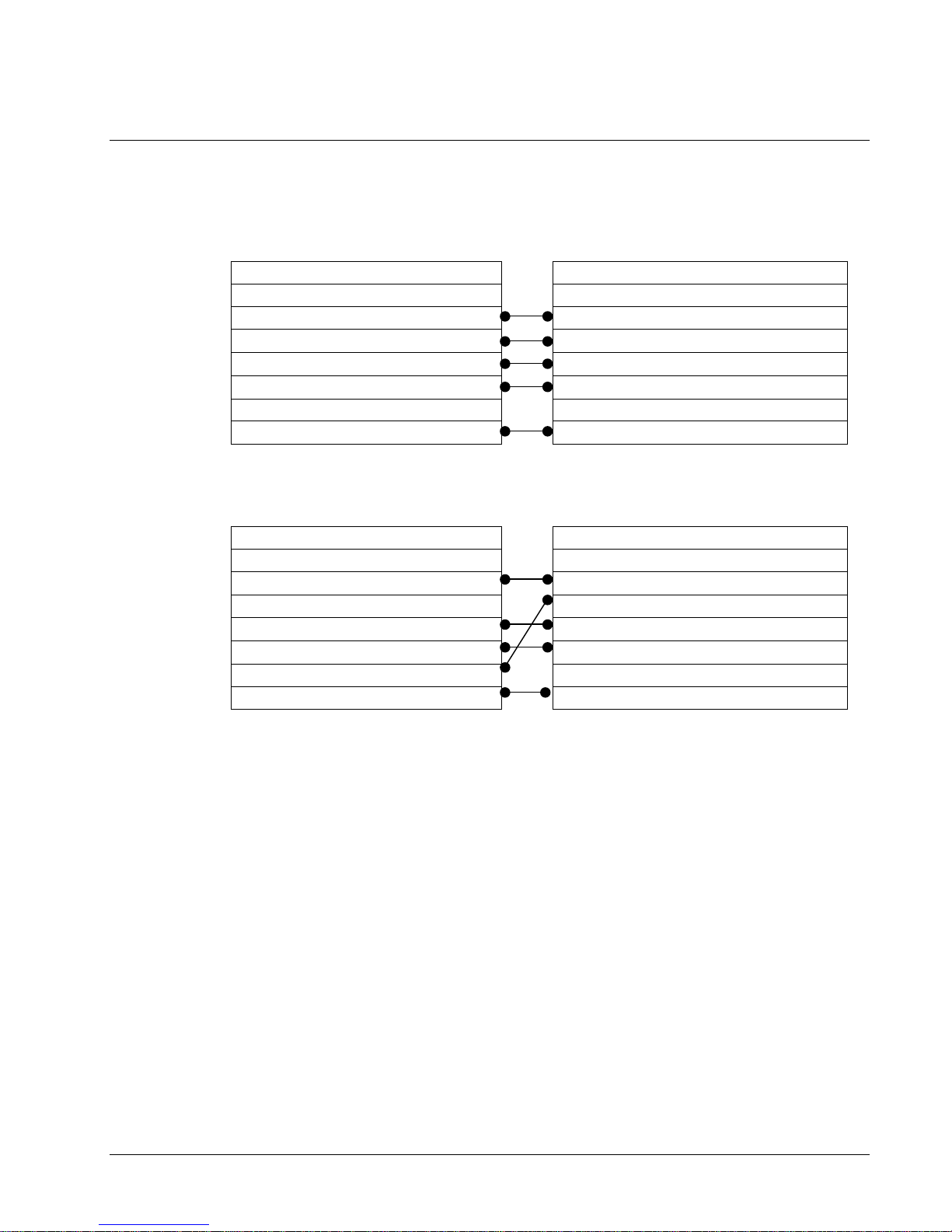

PC
DB-9F Printer DB-25M Serial Printer Cable
DCD
RXD
TXD
DTR
GND
DSR
RTS
CTS
VCC
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
20
22
NC
TXD
RXD
RTS
CTS
DSR
GND
CD
DTR
CRS Part No. 250030

Samsung SRP-350 Setup & Service Information Hexadecimal Dumping •11
Hexadecimal Dumping
Overview
This feature allows experienced users to see exactly what data is coming to the printer. This
can be useful in finding software problems. When you turn on the hexadecimal dump function,
the printer prints all commands and data in hexadecimal format along with a guide section to
help you find specific commands.
SRP-350 Hexadecimal Dump
To use the hexadecimal dump function, follow these steps:
1. After you make sure that the printer is off, open the cover.
2. Turn on the printer while holding down the feed button.
3. Close the cover. The printer is in the hexadecimal dump mode.
4. Run any software program that sends data to the printer. The printer will print all the
codes it receives in a two-column format. The first column contains the hexadecimal
codes and the second column gives the ASCII characters that correspond to the codes.
5. When the printing finishes, turn off the printer.
6. Turn on the printer. Hexadecimal mode is OFF.
Epson TM-T88 Hexadecimal Dump
It may be useful to compare hexadecimal dumps with a known printer, such as the Epson TM-
T88. To print a hexadecimal dump on the TM-T88:
1. Make sure the printer is off and open the cover.
2. Hold down the FEED button while you turn on the printer.
3. Close the cover.
4. Run any program the sends data to the printer –the hexadecimal dump will print.
5. Open the cover to set the printer off line so that it will print the last line.
6. Close the cover and turn off the printer or reset it to turn off the hex dump mode.

12 •Hexadecimal Dumping Samsung SRP-350 Setup & Service Information
Hexadecimal Dump Sample Printout
The sample “No Sale” transaction below is also shown in the two-column hexadecimal dump
format on the right.
The first column contains the hexadecimal codes.
The second column gist the ASCII characters that
correspond to the codes.
•A period is printed for each code that has no
ASCII equivalent.
•During the hex dump, all commands except
DLE EOT and DLE ENG are disabled.

Samsung SRP-350 Setup & Service Information Hexadecimal Dumping •13
SRP-350 Receipt & Hex Dump
TM-T88 Receipt & Hex Dump
Troubleshooting
If you are connecting an SRP-350 to a specific software application for the first time, you may
encounter printing differences from a printer model you are currently supporting. You can
isolate the commands causing the print difference by comparing hex dumps from a working
printer the printer with a problem print format. For example, receipts and the corresponding
hex dumps from two printers, the Samsung SRP-350 and the Epson TM-T88 are shown
below:

14 •Cash Drawer Samsung SRP-350 Setup & Service Information
Cash Drawer
Generate Pulse Command
ESC p m t1 t2
[Name] Generate Pulse
[Format] ASCII ESC pmt1 t2
Hex 1B 70 mt1 t2
Decimal 27 112 mt1 t2
[Range] m = 0, 1, 48, 49
0 ≤t1 ≤255, 0 ≤t2 ≤255
[Description] Outputs the pulse specified by t1 & t2 to
connector pin m as follows:
mConnector pin
0,48 Drawer kick-out connector pin 2
0,49 Drawer kick-out connector pin 5

Samsung SRP-350 Setup & Service Information Cash Drawer •15
Connection Information
SRP 350 to CRS Cash Drawer (Drawer #1)
SRP 350
CRS Cash Drawer
Description
Pi
Pin
Description
Frame ground 1 1 (blue) Frame ground
Drawer kick-out drive signal 1 2 2 (yellow) Solenoid
Drawer open/close signal 3 3 (green) Drawer open switch
+24V 4 4 (red) Solenoid
Drawer kick-out drive signal 2
5
5 (black)
Not used
Signal ground 66 (white) Drawer open switch
SRP 350 to CRS Cash Drawer (Drawer #2)
SRP 350
CRS Cash Drawer
Description
Pi
Pin
Description
Frame ground 1 1 (blue) Frame ground
Drawer kick-out drive signal 1 2 2 (yellow) Solenoid
Drawer open/close signal 3 3 (green) Drawer open switch
+24V 4 4 (red) Solenoid
Drawer kick-out drive signal 2
5
5 (black)
Not used
Signal ground 66 (white) Drawer open switch

16 •Wall Mount Option Samsung SRP-350 Setup & Service Information
Wall Mount Option
Downloading Procedure for SRP-350 Wall Mount
Printer Software
This special software version is for use when wall-mounting the SRP-350 printer.
The Paper near end sensor has been disabled in this special version.
Note: Part Number for Wall Mount Bracket is 101218.
1. Turn off the printer.
2. Set the SW2 DIP switch 2-3 to ON position.
3. Connect the printer to PC with a standard Parallel printer cable. If using a
serial connection use the cable described below.
4. Open the printer cover.
5. Press the paper feed key and turn on the printer while holding down the feed
key.
6. Execute the 350loade.exe. You must input the number for type of interface,
3for parallel (lpt1) downloading.
7. Enter the binary file name you want to download. Example: 350_wall.bin.
8. You should see download status scroll on your PC screen.
9. Download complete.
10. Turn off printer and set SW2 DIP switch 2-3 to OFF position.
11. Turn on printer and check version and operation.
PC
DB-9F Printer DB-25M Serial Printer Cable
DCD
RXD
TXD
DTR
GND
DSR
RTS
CTS
VCC
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
20
22
NC
TXD
RXD
RTS
CTS
DSR
GND
CD
DTR
CRS Part No. 250030

Samsung SRP-350 Setup & Service Information Special Application Firmware •17
Special Application Firmware
Overview
Special application firmware can be downloaded from www.crs-usa.com.
SRP350 version 1.20 Wall
This version is to be used with the WALL MOUNT. Wall mount part number is
101218.
SRP350 version 1.20 Speed
This version is to be used when a faster serial printing is required when using a
windows driver.
SRP350 version 1.20 Beep
This version will beep 3 times after each print job.
SRP350 version 1.20 CRLF
This version has an option to automatically add a LF after a CR.
