7. Setting Guide
7.1 Printer overview
These are the main components of your machine:

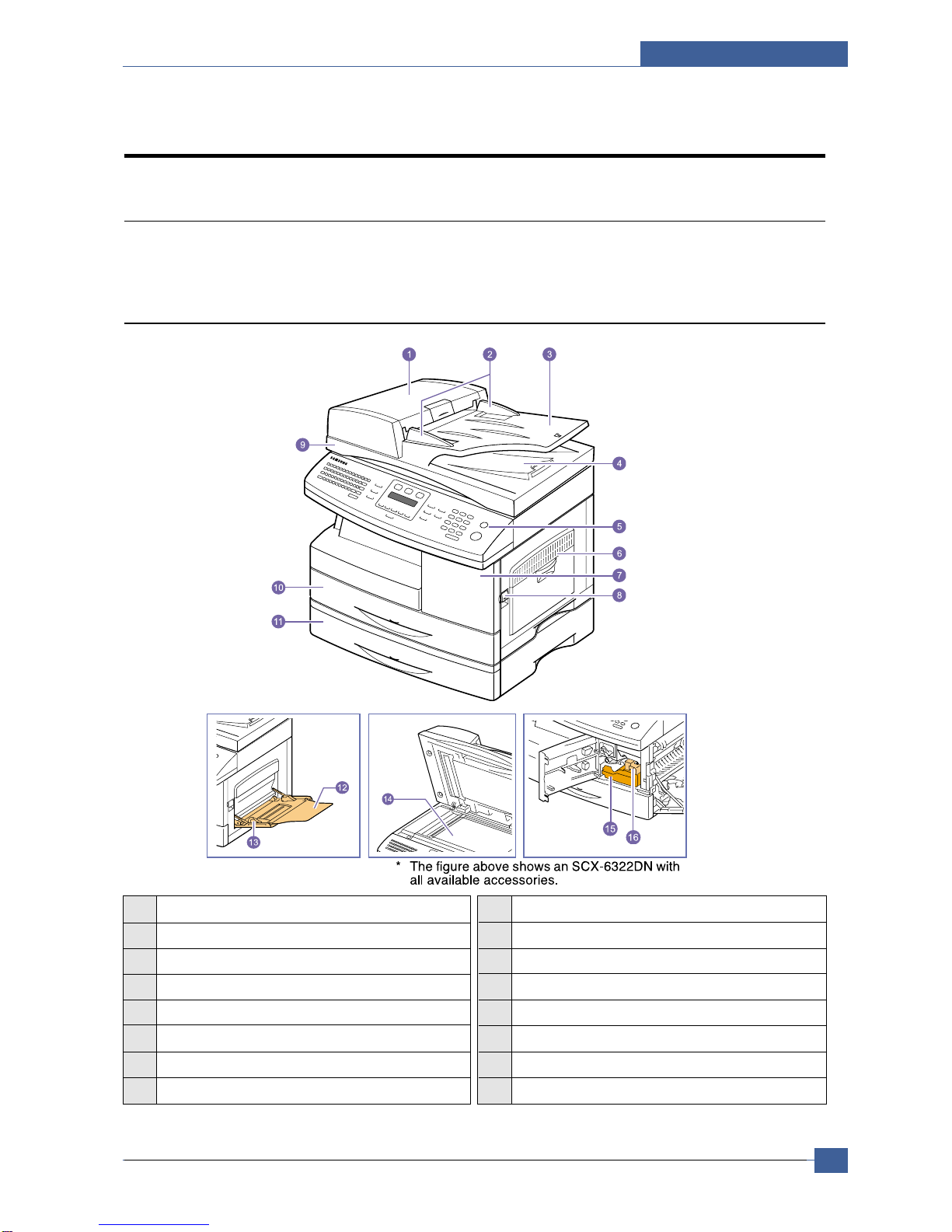

7.1.1 Front view
1 ADF (Automatic Document Feeder)1
2 document width guides
document input tray
4 document output tray
5 control panel
6 multi-purpose tray
7 front cover
8 release lever
9 scanner lid
10 tray 1
11 optional tray 2
12 multi-purpose tray extension
1 multi-purpose tray paper width guides
14 scanner glass
15 toner cartridge
16 drum cartridge
1. SCX-6122FN has the ADF function, while SCX-6 22DN uses the duplex ADF function.

Samsung Electronics
Service Manual
Setting Guide
7-2

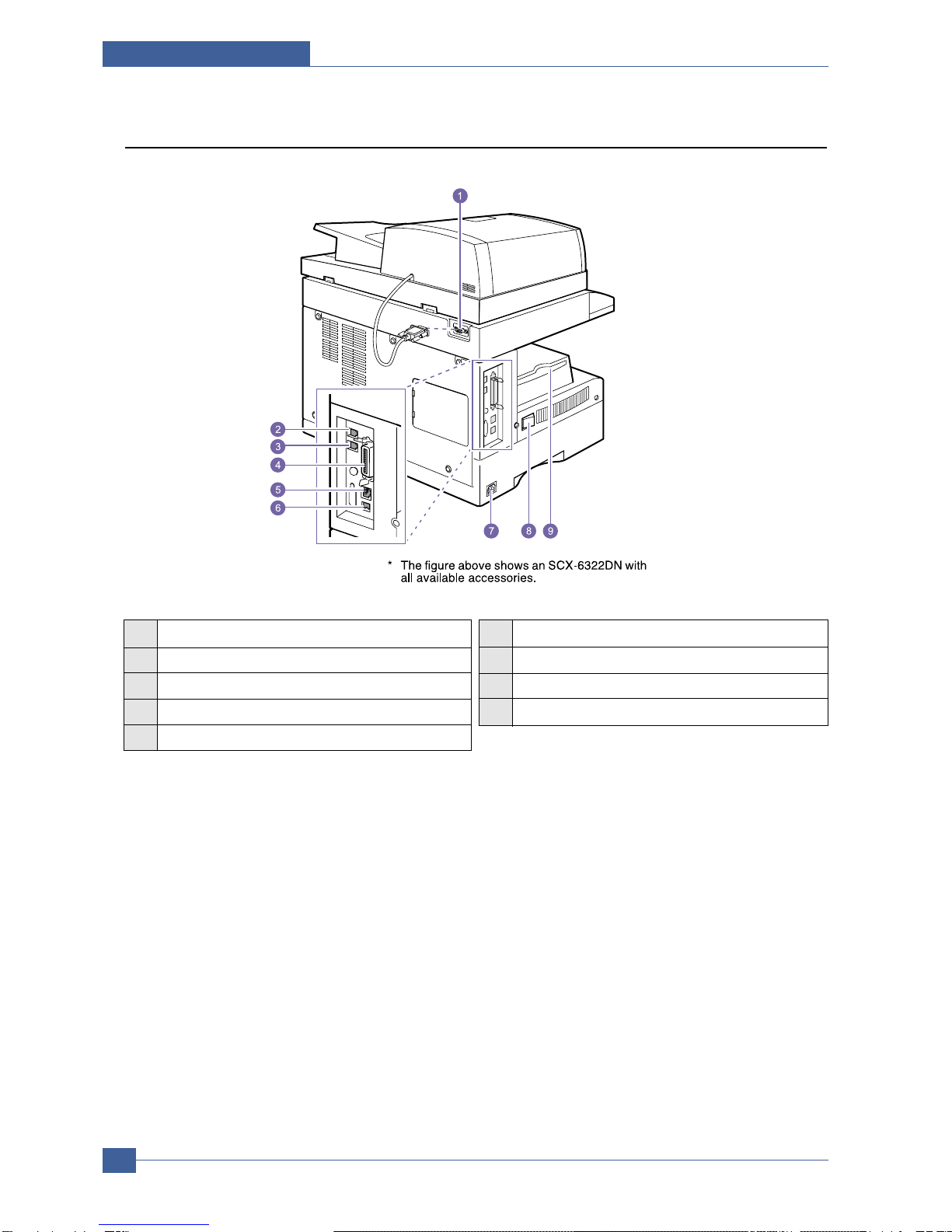

7.1.2 Rear view
1 ADF connector
2 extension telephone socket (EXT)
telephone line socket (LINE)
4 parallel port
5 USB port
6 network port
7 power receptacle
8 power switch
9 output support

Setting Guide
Samsung Electronics Service Manual
7-3
7.1.3 Control panel overview
1 Keyboard: Used to enter characters. Used to
store frequently dialed fax number and dial them
with a touch of the buttons.
2 Addre Book: Allows you to store frequently
used fax numbers in memory or search for stored
fax numbers or email addresses. Also allows you
to print an Address Book/Phone Book list.
3 Re olution: Adjusts the document resolution for
the current fax job.
4 Redial/Pau e: In Standby mode, redials the last
number, or in Edit mode, inserts a pause into a fax
number.
5 Fax: Activates Fax mode.
6 Copy: Activates Copy mode.
7 Scan/Email: Activates Scan mode.
8 Di play: Shows the current status and prompts
during an operation.
9 Menu: Enters Menu mode and scrolls through the
available menus.
10 Scroll button : Scroll through the options avail-
able in the selected menu, and increase or
decrease values.
11 OK: Confirms the selection on the screen.
12 Back: Sends you back to the upper menu level.
13 Statu : Shows the status of your machine.
14 Darkne : Adjusts the document brightness for
the current copy job.
15 Original Type: Selects the document type for the
current copy job.
16 Reduce/Enlarge: Makes a copy smaller or larger
than the original.
17 Duplex: Allows you to print documents on both
sides of the paper.
18 Toner Save: Allows you to save on toner by using
less toner in printing.
19 number keypad: dials a number or enters
alphanumeric characters.
20 On Hook Dial: Engages the telephone line.
21 Stop/Clear: Stops an operation at any time. In
Standby mode, clears/cancels the copy options,
such as the darkness, the document type setting,
the copy size, and the number of copies.
22 Start: Starts a job.

Samsung Electronics
Service Manual
Setting Guide
7-4
7.2 Under tanding the Statu LED
The Status LED on the control panel shows the status of your machine.
See the table below to know your machine's status.
Statu De cription
Off The machine is off-line.
The machine is in Power Save mode. When data is received, or any button
is pressed, it switches to on-line automatically.
Green On The machine is on-line and can be used.
Blinking When the backlight slowly blinks, the machine is receiving data from the
computer.
When the backlight fast blinks, the machine is printing data.
Red On The toner cartridge is totally exhausted. Remove the old toner cartridge
and install a new one.
The drum cartridge is totally exhausted.
Remove the old drum cartridge and install a new one.
A paper jam has occurred. To solve the problem.
The front cover is open. Close the front cover.
There is no paper in the tray. Load paper in the tray.
The toner cartridge installed is not a genuine cartridge, and you selected
Stop at the NonGenuine Toner prompt.
The lifespan of the toner cartridge is reached, and you selected Stop at the
Toner Exhausted prompt.
The machine has stopped due to a major error. Check the display message.
Blinking A minor error occurs and the machine is waiting an error to be cleared.
Check the display message. When the problem is cleared, the machine
resumes.
The toner cartridge installed is not a genuine cartridge, and you selected
Continue at the NonGenuine Toner prompt.
The lifespan of the toner cartridge is reached, and you selected Continue at
the Toner Exhausted prompt.
The toner cartridge is low. Order a new toner cartridge. You can temporarily
improve print quality by redistributing the toner.

Setting Guide
Samsung Electronics Service Manual
7-5
7.3 Finding more information
You can find information for setting up and using your machine from the following resources, either printed or onscreen.
Quick In tall Guide Provides information on setting up your machine and, therefore, be sure to follow the
instructions in the guide to get the machine ready.
Online U er' Guide Provides you with step-by-step instructions for using your machine's full features, and
contains information for maintaining your machine, troubleshooting, and installing
accessories.
This user's guide also contains the Software Section providing you with information on
how to print documents with your machine on various operating systems, and how to
use the supplied software utilities.
Note : You can access the user's guides in other languages from the Manual folder on
the printer software CD.
Network Printer
U er' Guide Contained on the network utilities CD, provides you with information on setting up and connecting your machine to a network.
Printer Driver Help Provides you with help information on printer driver properties and instructions for setting
up the properties for printing. To access a printer driver help screen, click Help from the
printer properties dialog box.
Sam ung web ite If you have Internet access, you can get help, support, printer drivers, manuals, and
order information from the Samsung website, www. am ungprinter.com.

Samsung Electronics
Service Manual
Setting Guide
7-6
7.4 Sy tem etup
This chapter gives you an overview of menus available on your machine and step-by-step instructions for setting up the
machine's systems.
This chapter includes:
Menu overview
Changing the display language
Setting the date and time
Changing the default mode
Setting sounds
Entering characters using the keyboard
Entering characters using the number keypad
Using the save modes
Setting print job timeout
Menu overview
The control panel provides access to various menus to set up the machine or use the machine's functions. These
menus can be accessed by pressing Menu. Refer to the following diagram. Menus available in Fax, Copy, or Scan
mode vary.

Setting Guide
Samsung Electronics Service Manual
7-7
7.4.1 Changing the di play language
To change the language that appears on the control panel, follow these steps:
1. Press Menu until System Setup appears on the bottom line of the display and press OK.
2. Press OK when Machine Setup appears.
. Press the Scroll buttons until Language appears and press OK.
4. Press the Scroll buttons until the language you want appears and press OK.
5. Press Stop/Clear to return to Standby mode.
7.4.2 Setting the date and time
The current date and time are shown on the display when your machine is on and ready to work. All of your faxes will
have the date and time printed on them.
1. Press Menu until System Setup appears on the bottom line of the display and press OK.
2. Press OK when Machine Setup appears.
. Press the Scroll buttons until Date & Time appears and press OK.
4. Enter the correct time and date using the number keypad.
Month = 01 to 12
Day = 01 to 1
Year = requires four digits
Hour = 01 to 12 (12-hour mode)
00 to 2 (24-hour mode)
Minute = 00 to 59
You can also use the Scroll buttons to move the cursor under the digit you want to correct and enter a new number.
5. To s el ect AM or PM for 12-hour format, press the or button or any number button.
When the cursor is not under the AM or PM indicator, pressing the or button immediately moves the cursor to
the indicator.
You can change the clock mode to 24-hour format (e.g. 01:00 PM as 1 :00). For details, see the next section.
6. Press OK to save the time and date.
When you enter a wrong number, Out of Range appears and the machine does not proceed to the next step. If this
happens, simply reenter the correct number.
7. Press Stop/Clear to return to Standby mode.
Changing the clock mode
You can set your machine to display the current time using either a 12-hour or 24-hour format.
1. Press Menu until System Setup appears on the bottom line of the display and press OK.
2. Press OK when Machine Setup appears.
. Press the Scroll buttons until Clock Mode appears and press OK.
4. Press the Scroll buttons to select the other mode and press OK.
5. Press Stop/Clear to return to Standby mode.

Samsung Electronics
Service Manual
Setting Guide
7-8
7.4.3 Changing the default mode
You can switch this default mode between Fax mode and Copy mode.
1. Press Menu until System Setup appears on the bottom line of the display and press OK.
2. Press OK when Machine Setup appears.
. Press the Scroll buttons until Default Mode appears and press OK.
4. Press the Scroll buttons until the default mode you want appears and press OK.
5. Press Stop/Clear to return to Standby mode.
7.4.4 Setting ound
You can control the following sounds:
Key Sound: Turns the key sound on or off. With this option set to On, a tone sounds each time a key is pressed.
Alarm Sound: Turns the alarm sound on or off. With this option set to On, an alarm tone sounds when an error occurs
or fax communication ends.
Speaker: Turns on or off the sounds from the telephone line through the speaker, such as a dial tone or a fax tone.
With this option set to Comm. which means "Common," the speaker is on until the remote machine answers.
You can adjust the volume level using On Hook Dial.
Ringer: Adjusts the ringer volume. For the ringer volume, you can select Off, Low, Mid, and High.
Speaker, ringer, key ound, and alarm ound
1. Press Menu until System Setup appears on the bottom line of the display and press OK.
2. Press the Scroll buttons until Sound/Volume appears and press OK.
. Press the Scroll buttons until the sound option you want appears and press OK.
4. Press the Scroll buttons until the desired status or volume for the sound you have selected appears and press OK.
5. If necessary, repeat steps through 5 to set other sounds.
6. Press Stop/Clear to return to Standby mode.
Speaker volume
1. Press On Hook Dial. A dial tone sounds from the speaker.
2. Press the Scroll buttons until you hear the volume you want.
. Press On Hook Dial to save the change and return to Standby mode.

Setting Guide
Samsung Electronics Service Manual
7-9
7.4.5 Entering character u ing the keyboard
You can enter alphabet characters using the keyboard on the left side of the control panel. Especially this keyboard is
arranged as like a normal keyboard for its better usability for user. In case of entering the machine ID or email address-
es, it lets you enter letters easily.
Entering alphabet character
You can enter the alphabet characters by just pressing the alphabet keys on the keyboard, as like a normal keyboard.
To enter the uppercase characters, press Caps Lock button on the keyboard.
Entering number
You can enter the numbers by using the number keypad on the right side of the control panel.
Entering ymbol
You can enter symbols by pressing the buttons on the upper part of the keyboard. To enter upper symbols on buttons,
press and hold the Shift button and the symbol button simutaneously which you want to enter.

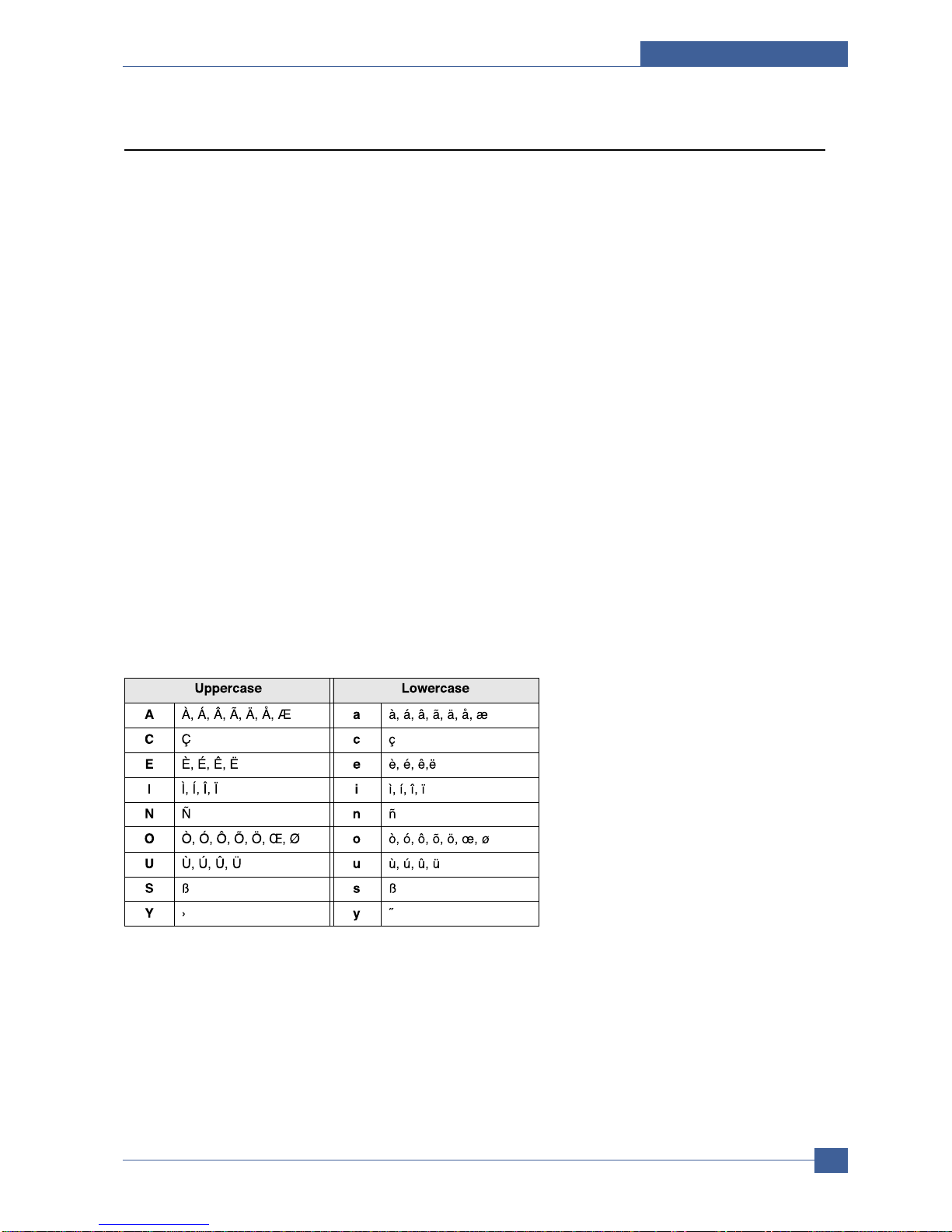

Entering international character
You can enter the special multilingual characters using the international button.
1. Press the character button you want to enter.
2. Press the international button on the keyboard until the desired character you want displays.
Example: To enter Â, press A key first. And then, press the international button three times until  character shows.
Refer to the table below for international character map.

Samsung Electronics
Service Manual
Setting Guide
7-10
7.4.6 Entering character u ing the number keypad
As you perform various tasks, you may need to enter names and numbers. For example, when you set up your
machine, you enter your name or your company's name, and the fax number.

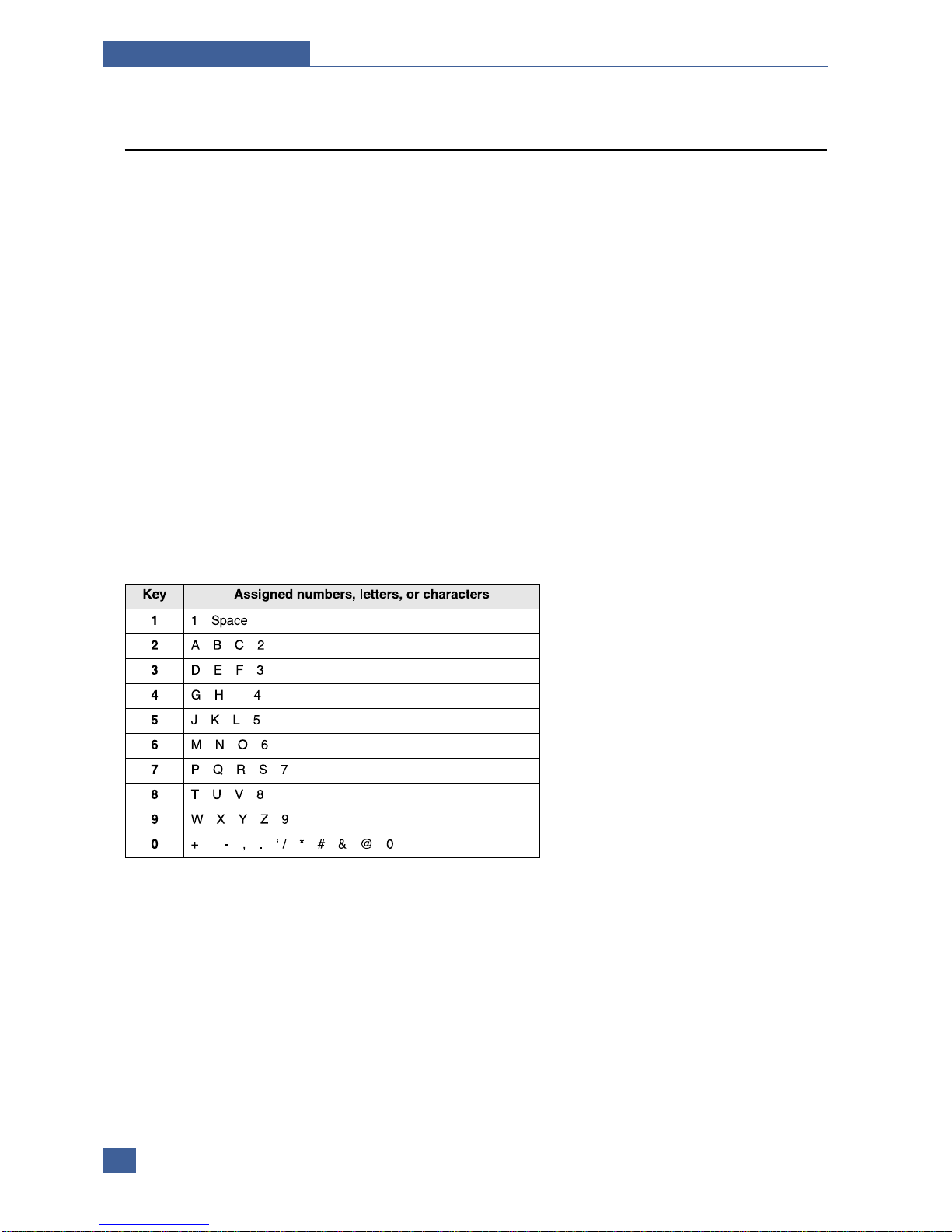

Entering alphanumeric character
1. When you are prompted to enter a letter, locate the button labeled with the character you want. Press the button until
the correct letter appears on the display.
For example, to enter the letter O, press 6, labeled with MNO.
Each time you press 6, the display shows a different letter, M, N, O, and finally 6.
You can enter special characters, such as space, plus sign, and etc.
For details, see the below section.
2. To enter additional letters, repeat step 1.
If the next letter is printed on the same button, move the cursor by pressing the right Scroll button and then press the
button labeled with the letter you want. The cursor will move to the right and the next letter will appear on the display.
You can enter a space by pressing 1 twice.
. When you have finished entering letters, press OK.
Keypad letter and number
Correcting number or name
If you make a mistake while entering a number or name, press the left Scroll button to delete the last digit or character.
Then enter the correct number or character.
In erting a pau e
With some telephone systems, you must dial an access code (9, for example) and listen for a second dial tone. In such
cases, you must insert a pause in the telephone number. You can insert a pause while you are setting up one-touch dial
numbers or speed dial numbers.
To insert a pause, press Redial/Pause at the appropriate place while entering the telephone number. A- appears on the
display at the corresponding location.

Setting Guide
Samsung Electronics Service Manual
7-11
7.4.7 U ing the ave mode
Toner Save mode
Toner Save mode allows your machine to use less toner on each page.
Activating this mode extends the life of the toner cartridge beyond what one would experience in the normal mode, but it
reduces print quality.
To turn this mode on or off, press Toner Save.
Power Save mode
Power Save mode allows your machine to reduce power consumption when it is not in actual use. You can turn this
mode on and select a length of time for which the machine waits after a job is printed before it switches to a reduced
power state.
1. Press Menu until System Setup appears on the bottom line of the display and press OK.
2. Press OK when Machine Setup appears.
. Press the Scroll buttons until Power Save appears and press OK.
4. Press the Scroll buttons until On appears and press OK.
5. Press the Scroll buttons until the time setting you want appears and press OK.
6. Press Stop/Clear to return to Standby mode.
Scan Power Save mode
Scan Power Save mode allows you to save power by turning off the scan lamp. The scan lamp under the scanner glass
automatically turns off when it is not in actual use to reduce power consumption and extend the life of the lamp. The
lamp automatically wakes up after some warm-up time when you start scanning.
You can set the length of time for which the scan lamp waits after a scan job is completed before it switches to the
power save mode.
1. Press Menu until System Setup appears on the bottom line of the display and press OK.
2. Press OK when Machine Setup appears.
. Press the Scroll buttons until Scan PWR Save appears and press OK.
4. Press the Scroll buttons until the time setting you want appears and press OK.
5. Press Stop/Clear to return to Standby mode.
7.4.8 Setting print job timeout
You can set the amount of time a single print job is active before it must print.
The machine handles incoming data as a single job if it comes in within the specified time. When an error occurs while
processing data from the computer and the data flow stops, the machine waits the specified time and then cancels print-
ing if data flow does not resume.
1. Press Menu until System Setup appears on the bottom line of the display and press OK.
2. Press OK when Machine Setup appears.
. Press the Scroll buttons until Job Timeout appears and press OK.
4. Press the Scroll buttons until the time setting you want appears and press OK.
5. Press Stop/Clear to return to Standby mode.

Samsung Electronics
Service Manual
Setting Guide
7-12
7.5 Network etup
7.5.1 Supported operating y tem

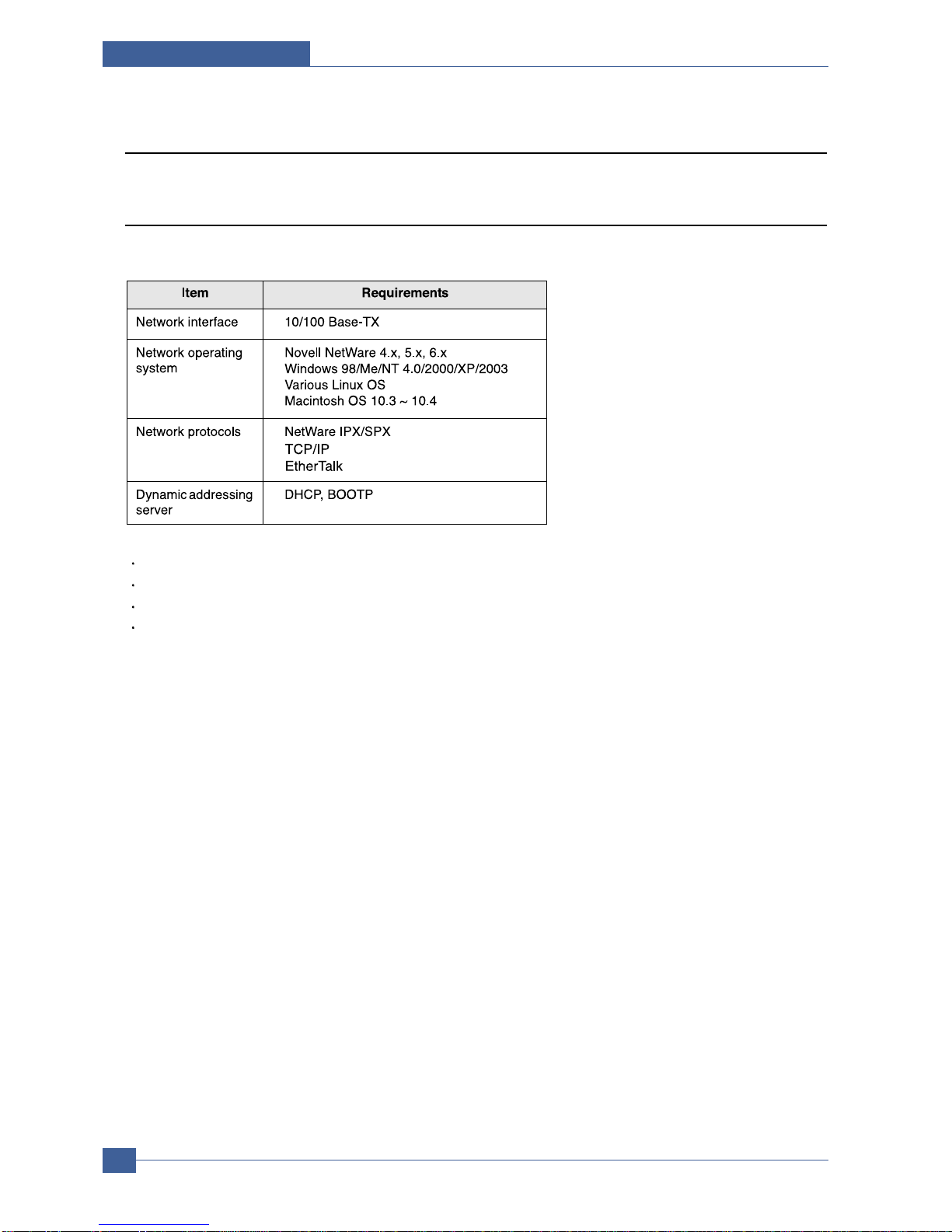

The following table shows the network environments supported by the machine:
IPX/SPX: Internet Packet eXchange/Sequenced Packet eXchange
TCP/IP: Transmission Control Protocol/Internet Protocol
DHCP: Dynamic Host Configuration Protocol
BOOTP: Bootstrap Protocol

Setting Guide
Samsung Electronics Service Manual
7-13
7.5.2 Configuring TCP/IP
Your machine can be set up with a variety of TCP/IP network information, such as an IP address, a subnet mask, a
gateway, and DNS addresses.
There are several ways in which your machine can be assigned a TCP/ IP address, depending on your network.
Static addressing: ATCP/IP address is assigned manually by the system administrator.
Dynamic addressing via BOOTP/DHCP (default): ATCP/IP address is assigned automatically by the server.
Static addre ing
To enter a TCP/IP address from your machine's control panel, take the following steps:
1. Press Menu until Network appears on the bottom line of the display and press OK.
2. Press OK when TCP/IP appears.
. Press the Scroll buttons until Static appears and press OK.
4. Press OK when IPAddress appears.
5. Enter a byte between 0 and 255 using the number keypad and press the Scroll buttons to move between bytes.
Repeat this to complete the address from the 1st byte to the 4th byte.
6. When you have finished, press OK.
7. Repeat steps 5 and 6 to configure the other TCP/IP parameters:
subnet mask and gateway address.
8. Press the Scroll buttons until Primary DNS appears and press OK.
9. Enter each byte of the address and press OK.
10. Press the Scroll buttons until Secondary DNS appears and press OK.
11. Enter each byte of the address and press OK.
12. Press Stop/Clear to return to Standby mode.
Dynamic addre ing (BOOTP/DHCP)
To have a TCP/IP address assigned automatically by the server, take the following steps:
1. Press Menu until Network appears on the bottom line of the display.
2. Press OK when TCP/IP appears.
. Press the Scroll buttons until DHCP or BOOTP appears and press OK.
4. Press Stop/Clear to return to Standby mode.

Samsung Electronics
Service Manual
Setting Guide
7-14
7.5.3 Configuring EtherTalk
EtherTalk is AppleTalk used in an Ethernet network. This protocol is widely used in Macintosh network environments. To
use EtherTalk, take the following steps:
1. Press Menu until Network appears on the bottom line of the display and press OK.
2. Press the Scroll buttons until EtherTalk appears and press OK.
. Press the Scroll buttons until On appears and press OK.
4. Press Stop/Clear to return to Standby mode.
Restart your machine to apply new settings.
7.5.4 Configuring IPX frame type
To use IPX/SPX protocol networks (for example, Novell NetWare), the format of the network communication frames
must be specified for the machine. In most cases, you can keep the Auto setting. However, you can manually set the
frame type format, if required. Take the following steps to change the frame type format:
1. Press Menu until Network on the bottom line of the display and press OK.
2. Press the Scroll buttons until NetWare appears and press OK.
. Press the Scroll buttons until the desired frame type appears.
Auto: Automatically senses and limits the frame type to the first one detected.
802.2: Limits the frame type to IPX over IEEE 802.2 with IEEE 802. frames. All others will be discarded.
802. : Limits the frame type to IPX over IEEE 802. frames. All others will be discarded.
Ethernet II: Limits the frame type to IPX over Ethernet Frames. All others will be discarded.
SNAP: Limits the frame type to IPX over SNAP with IEEE 802. frames. All others will be discarded.
Off: The IPX/SPX protocol is disabled.
4. Press OK to save the selection.
5. Press Stop/Clear to return to Standby mode.
Restart your machine to apply new settings.
7.5.5 Setting Ethernet peed
You can select the communication speed for Ethernet connections.
1. Press Menu until Network appears on the bottom line of the display and press OK.
2. Press the Scroll buttons until Ethernet Speed appears and press OK.
. Press the Scroll buttons until the speed you want appears and press OK.
4. Press Stop/Clear to return to Standby mode.
Restart your machine to apply new settings.

Setting Guide
Samsung Electronics Service Manual
7-15
7.5.6 Re toring the network configuration
You can return the network configuration to its default settings.
1. Press Menu until Network appears on the bottom line of the display and press OK.
2. Press the Scroll buttons until Clear Setting appears and press OK.
. Press OK when Yes appears to restore the network configuration.
4. Power the machine off and back on.
7.5.7 Printing a network configuration page
The Network Configuration page shows how the network interface card on your machine is configured.
1. Press Menu until Network appears on the bottom line of the display and press OK.
2. Press the Scroll buttons until Network Info. appears and press OK.
. Press OK when Yes appears.
The Network Configuration page prints out.
