SAMSUNG 30" - 100" The Freestyle FHD HDR Smart Portable
Projector for Indoor and Outdoor Home Theater, Big Screen
Experience with Premium 360 Sound w/ Alexa Built-In
(SP-LSP3BLAXZA, Latest Model)

Thank you for purchasing this Samsung product.
To receive more complete service, please
register your product at www.samsung.com
Model Serial No.
USER MANUAL

Before Reading This UserManual
This Projector comes with this User Manual and an
embedded e-Manual ( > Menu > Settings >
Support > Open e-Manual).
On the website (www.samsung.com), you can
download the manuals and see its contents on your PC
or mobile device.
Warning! Important Safety
Instructions
Please read the Safety Instructions before usingyour
Projector. Referto the table below foran explanation of
symbols which may be on your Samsung product.
This symbol indicates that this
product has included important
literature concerning operation and
maintenance.
Class II product: This symbol indicates
that a safety connection to electrical
earth (ground) is not required. If this
symbol is not present on a product
with a mains lead, the product
MUST have a reliable connection to
protective earth (ground).
AC voltage: Rated voltage marked
with this symbol is AC voltage.
English
English - 2

DC voltage: Rated voltage marked
with this symbol is DC voltage.
Caution. Consult instructions foruse:
This symbol instructs the userto
consult the user manual forfurther
safety related information.
Contain with module complies with class1 LASER
product.
Power
•Do not overloadwall outlets, extension cords, or
adaptors beyond theirvoltage and capacity. It may
cause fire or electric shock.
Referto the powerspecifications section of the
manual and/orthe power supply label on the
product forvoltage and amperage information.
•Power-supply cords should be placed so that
they are not likelyto be walked on orpinched by
items placed upon oragainst them. Pay particular
attention to cords at the plug end, at wall outlets,
and at the point where theyexit from the appliance.
•Neverinsert anything metallic into the open parts
of this apparatus. This may cause electric shock.
•To avoid electric shock, nevertouch the inside of
this apparatus. Onlya qualified technician should
open this apparatus.
English - 3

•Be sure to plug in the powercable until it is firmly
seated. When unplugging the powercable from a
wall outlet, always pull on the power cable's plug.
Neverunplug it by pulling on the powercable. Do
not touch the power cable with wet hands.
•If this apparatus does not operate normally - in
particular, if there are anyunusual sounds or smells
coming from it - unplug it immediately and contact
an authorised dealeror Samsung service centre.
•To protect this apparatus from a lightning storm,
orto leave it unattended and unused for a long
time, be sure to unplug it from the wall outlet and
disconnect the antenna orcable system.
– Accumulated dust can cause an electric shock,
an electric leakage, ora fire bycausing the
powercable to generate sparks and heat or by
causing the insulation to deteriorate.
•Use only a properly grounded plug and wall outlet.
– An improperground may cause electric shock or
equipment damage. (Class l Equipment only.)
•To turn off this apparatus completely, disconnect it
from thewall outlet. To ensure you can unplug this
apparatus quicklyif necessary, make sure that the
wall outlet and powerplug are readily accessible.
English - 4

Installation
•Do not place this apparatus near orover a radiator
or heat register, orwhere it is exposed to direct
sunlight.
•Do not place vessels (vases etc.) containing water
on this apparatus, as this can result in a fire or
electric shock.
•Do not expose this apparatus to water(rain) or
moisture.
•Do not install yourProjector in a location with
heavy dust, chemical substances, too high orlow
temperature or high humidity, an automotive or
othervehicle used for transportation, or a location
where the Projectorwill operate continuouslyfor
an extended period of time, such as an airport or
train station. If installed in such locations, a serious
quality problem may occur due to the surrounding
environment.
•Do not expose this apparatus to dripping or
splashing.
•Do not expose this apparatus to oil oroil mist.
•Do not use oils orlubricants. This may cause this
apparatus to crack.
English - 5

Providing proper ventilation for your Projector
When you install your Projector, maintain a distance of
at least10 cm between the Projector and other objects
(walls, cabinet sides, etc.) to ensure properventilation.
Failing to maintain properventilation may result in
a fire ora problem with the product caused by an
increase in its internal temperature.
Operation
•Move the product by holding the body. Do not hold
the Lens Cap.
•This apparatus uses batteries. Inyour community,
there might be environmental regulations that
requireyou to dispose of these batteries properly.
Please contact your local authorities for disposal or
recycling information.
•Store the accessories (remote control oretc.) in a
location safely out of the reach of children.
•When you need to turn off the Projector completely,
wait until the fan stops completely so that the
Projector can cool down completely.
•Do not dispose of remote control orbatteries in
a fire.
•Do not short-circuit, disassemble, oroverheat the
batteries.
•CAUTION: There is dangerof an explosion if you
replace the batteries used in the remotewith the
wrong type of battery. Replace onlywith the same
or equivalent type.
English - 6

•WARNING - TO PREVENT THE SPREAD
OF FIRE, KEEP CANDLES AND OTHER
ITEMS WITH OPEN FLAMES AWAY
FROM THIS PRODUCTATALL TIMES.
•Do not drop orstrike the product. If the product is
damaged, disconnect the power cable and contact a
Samsung service centre.
Caring forthe Projector
•To clean this apparatus, unplug the power cable
from thewall outlet and wipe the product with
a soft, dry cloth. Do not use any chemicals such
as wax, benzene, alcohol, thinners, insecticide,
aerial fresheners, lubricants, ordetergents. These
chemicals can damage the appearance of the
Projector orerase the printing on the product.
•The exteriorof the Projector can get scratched
during cleaning. Be sure to wipe the exterior
carefully using a soft cloth to prevent scratches.
•Do not spray water or any liquid directly onto the
Projector. Any liquid that goes into the product may
cause a failure, fire, orelectric shock.
English - 7

01 Product Overview
•To supply powervia an external battery, ensure that
the battery supports PD (PowerDelivery) and its
single port has output of 50 Wor more.
•Please be advised that the pogo pin on the bottom
of the Projector is a feature only intended forcertain
socket adapterfeatures that are not available/
supported in your country. Please do not attempt
to use orconnect the pogo pin with anyother
accessories.
English - 8

1Touch Keys
(Power)
(Volume)
(Mobile)
Directlyconnect to the SmartThings app on
your mobile device.
2Distance sensor
3Lens
4Remote control sensor / LED Indicator
5Ventilation
6MIC On/Off switch
7Micro HDMI Port
8USB Port (ForPower)
9Cradle
0Speaker
•The product colourand shape mayvary depending
on the model.
•Do not block Projector intake and exhaust vents.
•When operating the Projector in an enclosed space,
allow at least 50 cm clearance around the intake
and exhaust vents.
•When the Projector is not used, cover it with the
Lens Cap to protect the lens and distance sensor.
If the distance sensoris contaminated by dust, the
Focus or Keystone function may not work properly.

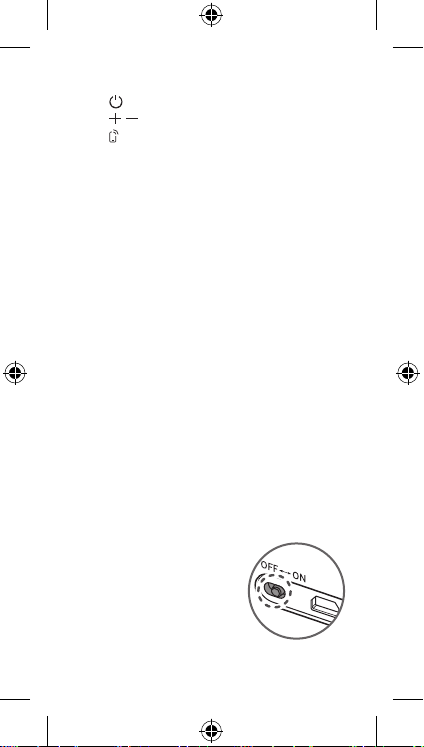

Setting the MIC On/Off
You can turn the MIC on oroff by
using the MIC switch on the side
of the Projector.
•During analysis using data
from the MIC, the data is not
saved.
MIC
English - 9

02 The Samsung Smart Remote
5
1
2
3
4
English - 10

(Power)
Press to turn the Projector on or off.
1MIC / LED
Used as MIC when using voice recognition with the
remote control.
When charging the remote controlvia the USB
port, the LED is lit if charging is in progress. When
charging is complete, the LED is turned off.
•Do not impact the MIC hole oruse a sharp object
to poke into the hole.
(Voice Assistant)
Runs Voice Assistant. Press and hold the button,
say a command, and then release the button to run
Voice Assistant.
•The supported Voice Assistant's languages and
features may differby geographical region.
2Directional button (up, down, left, right)
Moves the focus and changes the values seen on
the Projector's menu.
3Select
Selects orruns a focused item.
(Return)
Press to return to the previous menu.
(Smart Hub) + (Control PAD)
Press to switch to the Media Home. From the
Ambient screen, press to switch to the Ambient
Home.
•When pressed for1 second or more, the Control
PAD appears. You can use Settings menu /
virtual numeric pad / Option pad with Colour
buttons by using Control PAD.
English - 11

(Play/pause)
Using these controls, you can control the media
content that is playing.
(Volume)
Move the button up or down to adjust the volume.
To mute the sound, press the button.When pressed
for 2 seconds or more, the Accessibility Shortcuts
appears.
(Channel)
Move the button up ordown to change the channel.
To see the Guide or Channel List screen, press the
button.
•When pressed for1 second or more, the Channel
List screen appears.
(The Guide or Channel List screen appears
depending on the geographical area.)
4Launch app button
Launch the app indicated by the button. (These
buttons mayvary depending on the geographical
area.)
•Available apps may differdepending on the
geographical area or contents provider.
+ (Pairing)
If the Samsung Smart Remote does not pair to the
Projector automatically, point it at the front of the
Projector, and then press and hold the and
buttons simultaneouslyfor 3 seconds ormore.
5USB port (C-type) forcharging
Used forquick charging. The LED on the front will
light when charging. When the battery is fully
charged, the LED will turn off.
•The USB Cable is not provided.
English - 12

– Use the Samsung Smart Remote less than 6 m from
the Projector. The usable distance mayvarywith the
wireless environmental conditions.
– The images, buttons, and functions of the Samsung
Smart Remote may differwith the model or
geographical area.
– It is recommended to use an original Samsung
charger. Otherwise, it may cause performance
degradation orfailure of the product. In this case,
the warranty service is not applicable.
– When the remote control does not work due to low
battery, charge it byusing the USB-C type port.
Fire orexplosion may occur, resulting in
damage to the remote control or personal
injury.
•Do not apply shock to the remote
control.
•Be careful not to let foreign substances
such as metal, liquid, or dust come in
contact with the charging terminal of
the remote control.
•When the remote control is damaged
oryou smell smoke orburning fumes,
immediately stop operation and then
repairit at the Samsung service centre.
•Do not arbitrarily disassemble the
remote control.
•Be careful not to let infants orpets
suck or bite the remote control. Fire
or explosion may occur, resulting
in damage to the remote control or
personal injury.
English - 13

03 Initial Setup
When you turn on your Projectorforthe first time,
it immediately starts the Initial Setup. Follow the
instructions displayed on the screen and configure
the Projector's basic settings to suit yourviewing
environment.
04 Troubleshooting and
Maintenance
Troubleshooting
Formore information, see "Troubleshooting" in the
e-Manual.
> Menu > Settings > Support > Open e-Manual
> Troubleshooting
If none of the troubleshooting tips apply, please visit
"www.samsung.com" and click Support or contact the
Samsung service centre.
•To keep your Projector in optimum condition,
upgrade to the latest software. (> Menu >
Settings > Support > Software Update).
English - 14

The Projectorwon’t turn on.
•Make sure that the powercable is securely plugged
in to the Projector and the wall outlet.
•Make sure that the wall outlet is working and the
remote control sensorof the Projector is lit and
glowing a solid white.
•Try pressing the Power button of the Projectorto
make sure that the problem is notwith the remote
control. If the Projectorturns on, refer to "The
remote control does not work".
The remote control does not work.
•Check if the remote control sensorof the Projector
blinks when you press the button on the remote
control.
– When the remote's battery is discharged,
charge the batteryusing the USB charging port
(C-type).
•Try pointing the remote directly at the Projector
from1.5-1.8 m away.
•Make sure to pairthe remote to the Projector.
English - 15

05 Specifications and Other
Information
Specifications
Model Name SP-LSP3BLA
Display Resolution 1920 x1080
Lens Throw Ratio 1.2
Image Size (Diagonal) 30 -100 inches
(76.2 - 254.0 cm)
Sound (Output) 5 W
Dimensions (W x H x D)
With Cradle
With Cradle, Lens Cap
10.24 x15.78 x 9.52 cm
10.24 x17.28 x 9.52 cm
Weight
With Cradle
With Cradle, Lens Cap
785 g
830 g
Operating Temperature
50 °F to104 °F (10 °C to 40 °C)
Operating Humidity
10 % to 80 %, non-condensing
Storage Temperature
-4 °F to113 °F (-20 °C to 45 °C)
Storage Humidity
5 % to 95 %, non-condensing
English - 16

Notes
•Singapore only: SP-LSP3BLA
•This device is a Class B digital apparatus.
•Forinformation about the powersupply, and more
information about powerconsumption, referto the
information on the label attached to the product.
– Forthe label-rating, see the surface of the
bottom of the Projector.
•The images and specifications of the Quick Setup
Guide may differfrom the actual product.
* Figures and illustrations in this User Manual are
provided forreference only and may differ from the
actual product appearance. Product design and
specifications may change without notice.
Decreasing power consumption
When you shut the Projector off, it enters Standby
mode. In Standby mode, it continues to draw a small
amount of power. To decrease powerconsumption,
unplug the powercable when you don't intend to use
the Projectorfor a long time.
English - 17

Licences
The terms HDMI and HDMI High-Definition Multimedia
Interface, and the HDMI Logo are trademarks
or registered trademarks of HDMI Licensing
Administrator, Inc. in the United States and other
countries.
English - 18

For India only
This product is RoHS compliant.
This marking on the product,
accessories or literature indicates
that the product and its electronic
accessories should not be disposed
of with otherhousehold waste at the
end of theirworking life. To prevent
possible harm to the environment
or human health from uncontrolled
waste disposal, please separate these
items from othertypes of waste and
recycle them responsibly to promote
the sustainable reuse of material
resources.
Formore information on safe disposal and recycling
visit ourwebsite www.samsung.com/in or contact
our Helpline numbers-1800 40 SAMSUNG(1800 40
7267864) (Toll-Free)
English - 19
