Samsung iPolis SND-5011 User manual

NETWORK CAMERA
User Manual SND-5011/SND-5061/
SND-7011/SND-7061

Copyright
©2012 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall
be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no
formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own
responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.
Design and specifications are subject to change without prior notice.
The default password can be exposed to a hacking thread so it is recommended to change the password
after installing the product.
Note that the security and other related issues caused by the unchanged password shall be responsible
for the user.
Network Camera
User Manual

English _3
●OVERVIEW
overview
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.

overview
4_ overview
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC
OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS
ON THE EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus.

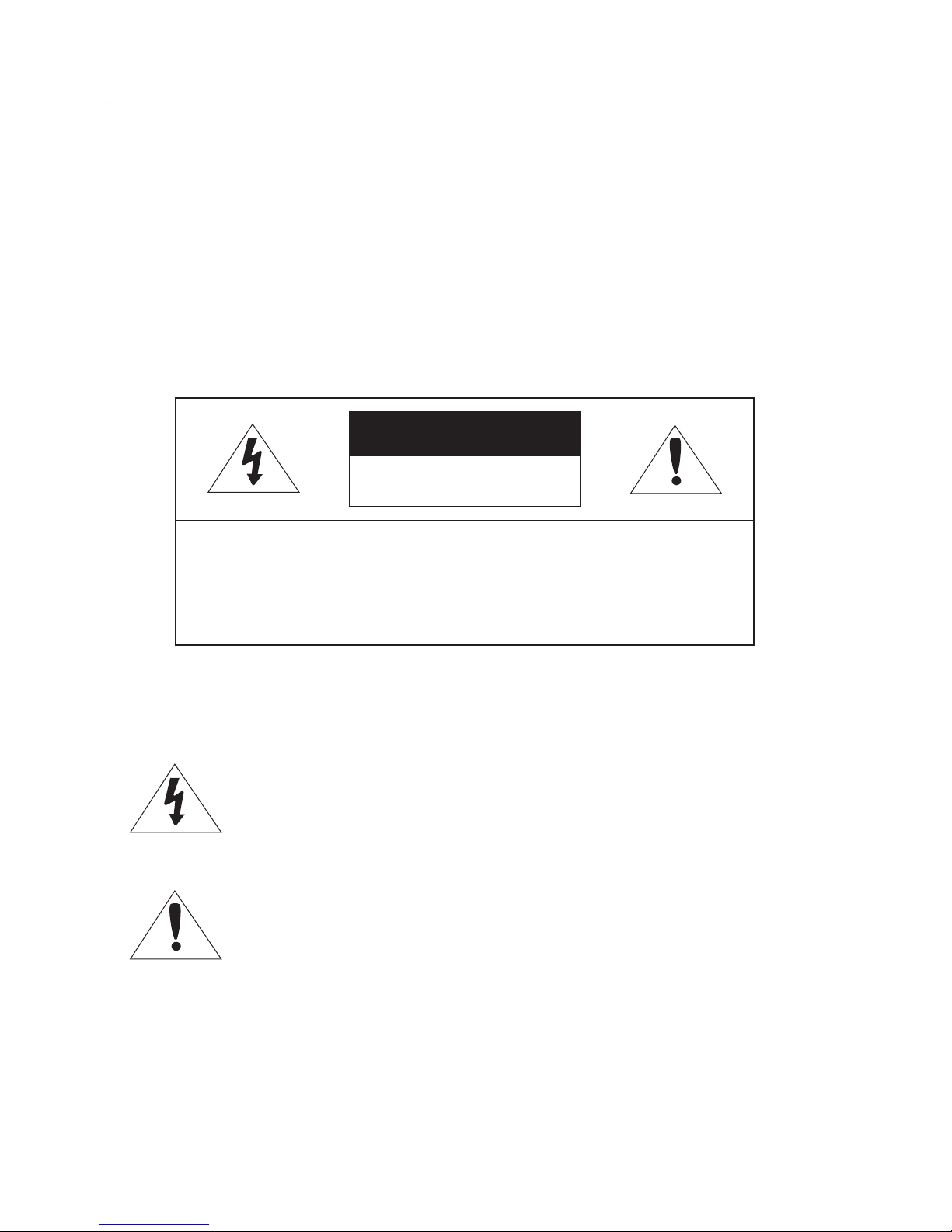

CAUTION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the product.

English _5
●OVERVIEW
Class construction
An apparatus with CLASS construction shall be connected to a MAINS
socket outlet with a protective earthing connection.
Battery
Batteries(battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.
Disconnection Device
Disconnect the main plug from the apparatus, if it’s defected. And please call
a repair man in your location.
When used outside of the U.S., it may be used HAR code with fittings of
an approved agency is employed.
CAUTION
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock do not perform any servicing other than
that contained in the operating instructions unless you are qualified to do so.
The BNC Out terminal of the product is provided for easier installation, and is
not recommended for monitoring purposes.
If you keep the BNC cable connected, a risk of lightening may cause damage
or malfunction to the product.
Please use the input power with just one camera and other devices must not
be connected.

overview
6_ overview
Please read the following recommend safety precautions carefully.
yDo not place this apparatus on an uneven surface.
yDo not install on a surface where it is exposed to direct sunlight, near
heating equipment or heavy cold area.
yDo not place this apparatus near conductive material.
yDo not attempt to service this apparatus yourself.
yDo not place a glass of water on the product.
yDo not install near any magnetic sources.
yDo not block any ventilation openings.
yDo not place heavy items on the product.
User’s Manual is a guidance book for how to use the products.
The meaning of the symbols are shown below.
yReference : In case of providing information for helping of product’s usages
yNotice : If there’s any possibility to occur any damages for the goods and
human caused by not following the instruction
Please read this manual for the safety before using of goods and keep it in
the safe place.

English _7
●OVERVIEW
CONTENTS
OVERVIEW
3
3Important Safety Instructions
9Product Features
9Recomended PC Specifications
10 What’s Included
11 At a Glance
(SND-5011/SND-7011)
14 At a Glance
(SND-5061/SND-7061)
INSTALLATION &
CONNECTION
17
17 Installation
(SND-5011/SND-7011)
19 Installation
(SND-5061/SND-7061)
25 Connecting with other Device
NETWORK CONNECTION
AND SETUP
28
28 Connecting the Camera Directly
to Local Area Networking
29 Connecting the Camera Directly
to a DHCP Based DSL/Cable
Modem
30 Connecting the Camera Directly
to a PPPoE Modem
31 Connecting the Camera to a
Broadband Router with the
PPPoE/Cable Modem
32 Buttons used in IP Installer
33 Static IP Setup
37 Dynamic IP Setup
38 Port Range Forward (Port
Mapping) Setup
40 Connecting to the Camera from a
Shared Local PC
40 Connecting to the Camera from a
Remote PC via the Internet

overview
8_ overview
SETUP SCREEN
46
46 Setup
46 Video Setup
57 Network Setup
66 Event Setup
73 System Setup
APPENDIX
79
79 Specification
85 Product Overview
87 Troubleshooting
88 Open Source Announcement
89 License
92 GPL/LGPL Software License
WEB VIEWER
41
41 Connecting to the Camera
42 Login
43 Installing STW WebViewer Plugin
44 Using the Live Screen

English _9
●OVERVIEW
PRODUCT FEATURES
•Multi-Streaming
This network camera can display videos in different resolutions and qualities
simultaneously using different CODECs.
•Web Browser-based Monitoring
Using the Internet web browser to display the image in a local network environment.
•Alarm
If an event occurs, the event-related video will be transferred to the email or FTP server
specified by the user.
•Video Motion Detection
Detects a motion from the video before triggering an event.
•Screen change detection feature
If the monitoring is interrupted in any way, the camera will trigger the event alarm.
•ONVIF Compliance
This product supports ONVIF.
For more information, refer to www.onvif.org.
RECOMENDED PC SPECIFICATIONS
•CPU : Intel(R) Core(TM)2 2.4 GHz or higher
•Operating System : Windows XP, VISTA, 7, Mac OS
•Resolution : 1280X1024 pixels or higher (32 bit color)
•RAM : 2GB or higher
•Web Browser : Internet Explorer 7 or later, Firefox 9 or later, Chrome 15 or later, Safari 5.1
or later
`Neither a beta test version unlike the version released in the company website nor the developer version will
be supported.
`It is recommended to connect to IPv6 in Windows 7.
•Video Memory : 256MB or higher
J
`If the driver of the video graphic adapter is not installed properly or is not the latest version, the
video may not be played properly.
`For a multi-monitoring system involving at least 2 monitors, the playback performance can be
deteriorated depending on the system.

overview
10_ overview
WHAT’S INCLUDED
Please check if your camera and accessories are all included in the product package.
Appearance Item Name Quantity Description Model Name
Camera 1
SND-5011/SND-7011
or
SND-5061/SND-7061
Instruction book,
Installer S/W CD,
CMS S/W DVD
2
Quick Guide (Optional) 1
Cable for the testing
monitor 1
Used to test the camera
connection to a portable
display device
Iron Screw 3Used for fixing to an iron
plate

English _11
●OVERVIEW

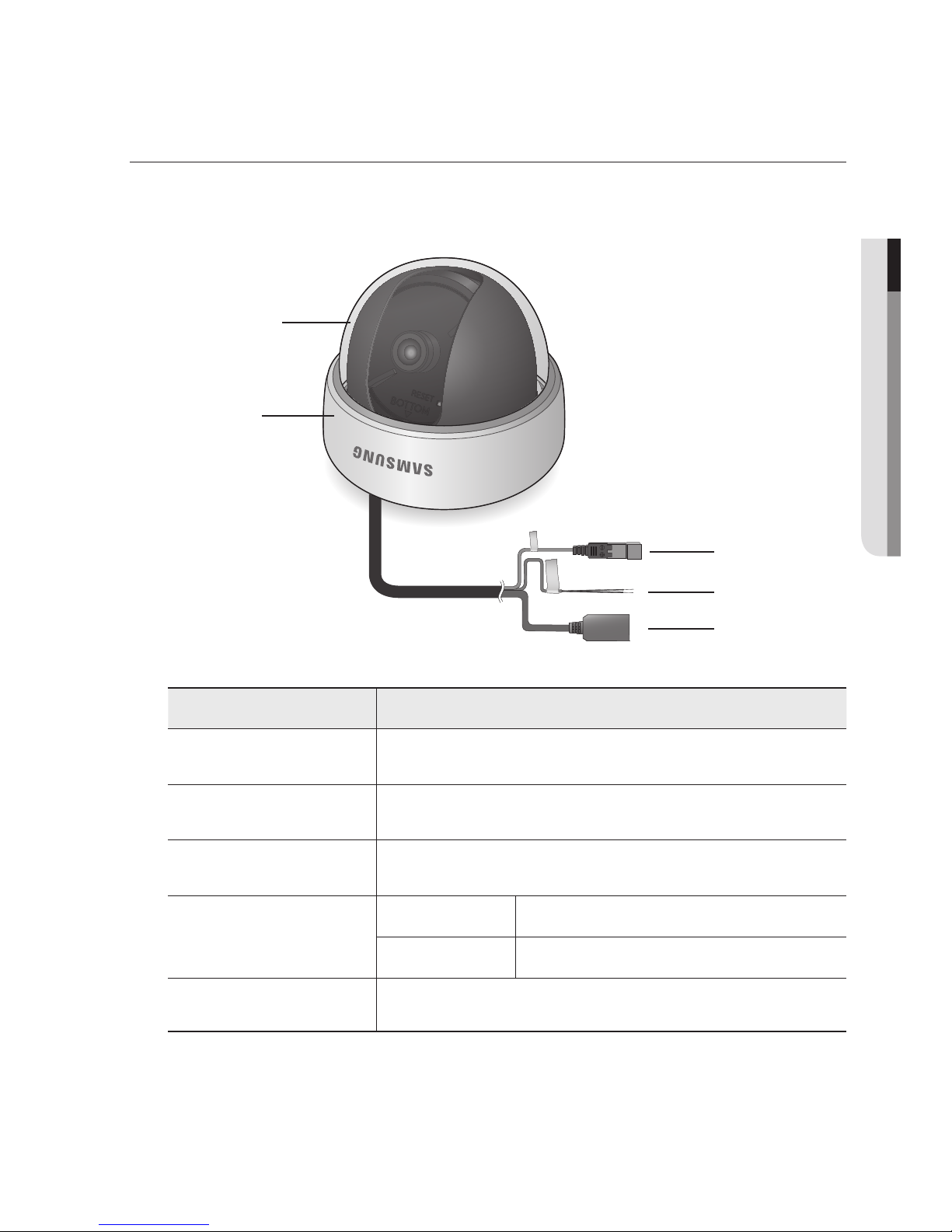

AT A GLANCE (SND-5011/SND-7011)
Appearance
Item Description
a
Dome Cover Dome cover for the lens and unit protection.
b
Main unit Main unit includes the lens, switch board, PCB boards and screws.
c
Power Port Used to plug the power cable.
d
Alarm Input Port
BROWN = Alarm IN Used to connect the alarm input sensor.
BLACK = GND Used for earth-grounding.
e
Network Port Used to connect a PoE or LAN cable.
a
b
c
d
e

overview
12_ overview

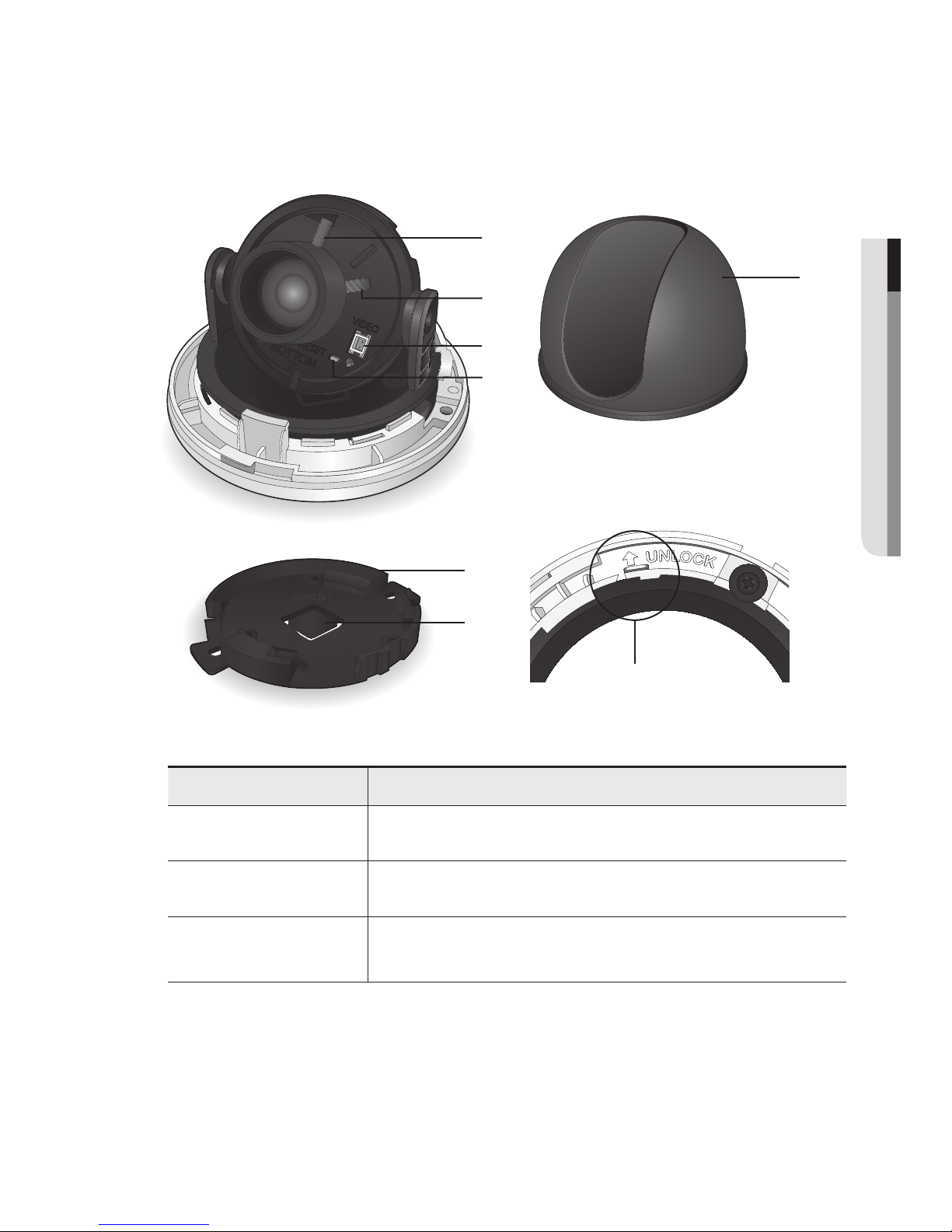

Components
Item Description
a
Monitor to install Using the test monitor cable, you can connect to a mobile display for camera
test.
b
Reset Button
Resets the camera settings to the default.
Press and hold for about 5 seconds to reboot the system.
JIf you reset the camera, the network settings will be adjusted so that
DHCP can be enabled. If there is no DHCP server in the network, you
must run the IP Installer program to change the basic network settings
such as IP address, Subnet mask, Gateway, etc., before you can
connect to the network.
a
b
c
e
d
f

English _13
●OVERVIEW
Item Description
c
Inner Cover Cover used to protect the main unit.
d
Bracket Used to install the camera on the wall or ceiling with the screws.
e
Wiring Cover If installation requires drilling, run the cable through here.
f

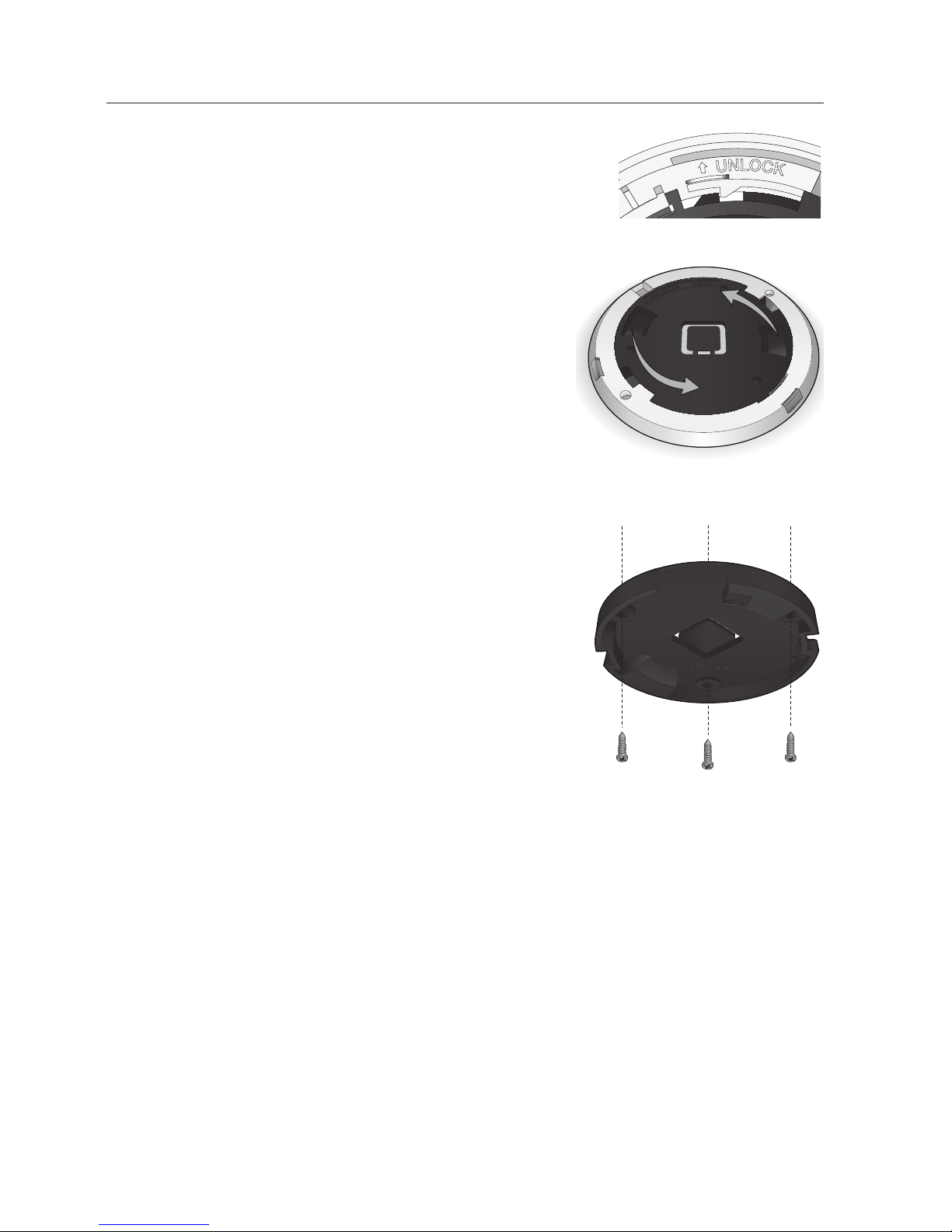

Lock Release
To separate the bracket from the main unit for the installation or to separate
the camera from an installed camera, push this release and turn the main
unit in the marked direction of <UNLOCK>.

overview
14_ overview
AT A GLANCE (SND-5061/SND-7061)
Appearance
Item Description
a
Dome Cover Dome cover for the lens and unit protection.
b
Main unit Main unit includes the lens, switch board, PCB boards and screws.
c
Power Port Used to plug the power cable.
d
Alarm Input Port
BROWN = Alarm IN Used to connect the alarm input sensor.
BLACK = GND Used for earth-grounding.
e
Network Port Used to connect a PoE or LAN cable.
a
b
c
d
e

English _15
●OVERVIEW
Components
Item Description
a
Focus Lever Turn it to the left or right to adjust the focus; turn it clockwise to fix the focus.
b
Zoom Lever Used to adjust or fix the zoom factor of the lens.
c
Monitor to install Using the test monitor cable, you can connect to a mobile display for camera
test.
e
c
d
a
b
f
g
h

overview
16_ overview
Item Description
d
Reset Button
Resets the camera settings to the default.
Press and hold for about 5 seconds to reboot the system.
JIf you reset the camera, the network settings will be adjusted so that
DHCP can be enabled. If there is no DHCP server in the network, you
must run the IP Installer program to change the basic network settings
such as IP address, Subnet mask, Gateway, etc., before you can
connect to the network.
e
Inner Cover Cover used to protect the main unit.
f
Bracket Used to install the camera on the wall or ceiling with the screws.
g
Wiring Cover If installation requires drilling, run the cable through here.
h
Lock Release
To separate the bracket from the main unit for the installation or to separate
the camera from an installed camera, push this release and turn the main
unit in the marked direction of <UNLOCK>.

English _17
●INSTALLATION & CONNECTION
installation & connection
INSTALLATION (SND-5011/SND-7011)
Precautions before installation
Ensure you read out the following instructions before installing the camera:
•Select an installation site (ceiling or wall) that can endure at least 5 times of the camera
weight.
•Stuck-in or peeled-off cables can cause damage to the product or a fire.
•For safety purposes, keep anyone else away from the installation site.
And put aside personal belongings from the site, just in case.
Disassembling
1. Use one hand to hold the camera’s
bottom part and turn the cover
counterclockwise with another hand
to separate it.
2. Lift up the inner cover to separate it.

installation & connection
18_ installation & connection
3. While pushing the ratchet toward <UNLOCK>
direction outwards, turn the bracket to <UNLOCK>
direction using bottom groove to separate it.
Installation
1. Use the provided screws (x3) to fix the bracket to a
desired position (ceiling or wall).
`Ensure that the <FRONT> label on the bracket faces the
direction for camera monitoring.
2. Arrange the cables through the bracket to the
ceiling or wall.
`If you intend to drill a hole in the installation site for the
wiring purpose, remove the wiring cover by force to reveal
a hole. Arrange the cables through the hole. If you intend
to arrange the cables without drilling a hole, use the empty
area opposite to the <FRONT> label side for the wiring
purpose.
3. Mount the main unit onto the bracket.
Align the marking hole of the main unit with the <FRONT> label of the bracket, and
turn the unit in the <LOCK> direction.
4. Adjust the lens in a desired direction.
For adjusting the lens direction, refer to “Adjusting the monitoring direction for
the camera”. (page 21)
5. Fix the cover to the main unit.
`Fit the protruding part inside the cover into the corresponding hole of the main unit, and turn the
cover to fix it.
Wiring Cover

English _19
●INSTALLATION & CONNECTION
INSTALLATION (SND-5061/SND-7061)
Precautions before installation
Ensure you read out the following instructions before installing the camera:
•Select an installation site (ceiling or wall) that can endure at least 5 times of the camera
weight.
•Stuck-in or peeled-off cables can cause damage to the product or a fire.
•For safety purposes, keep anyone else away from the installation site.
And put aside personal belongings from the site, just in case.
Disassembling
1. Use one hand to hold the camera’s
bottom part and turn the cover
counterclockwise with another hand
to separate it.
2. Lift up the inner cover to separate it.

installation & connection
20_ installation & connection
3. While pushing the ratchet toward <UNLOCK>
direction outwards, turn the bracket to <UNLOCK>
direction using bottom groove to separate it.
Installation
1. Use the provided screws (x3) to fix the bracket to
a desired position (ceiling or wall).
`Ensure that the <FRONT> label on the bracket faces the
direction for camera monitoring.
2. Arrange the cables through the bracket to the
ceiling or wall.
`If you intend to drill a hole in the installation site for the
wiring purpose, remove the wiring cover by force to reveal
a hole. Arrange the cables through the hole. If you intend
to arrange the cables without drilling a hole, use the empty
area opposite to the <FRONT> label side for the wiring
purpose.
3. Mount the main unit onto the bracket.
Align the marking hole of the main unit with the <FRONT> label of the bracket, and
turn the unit in the <LOCK> direction.
4. Adjust the lens in a desired direction.
For adjusting the lens direction, refer to “Adjusting the monitoring direction for
the camera”. (page 23)
5. Fix the cover to the main unit.
`Fit the protruding part inside the cover into the corresponding hole of the main unit, and turn the
cover to fix it.
Wiring Cover
