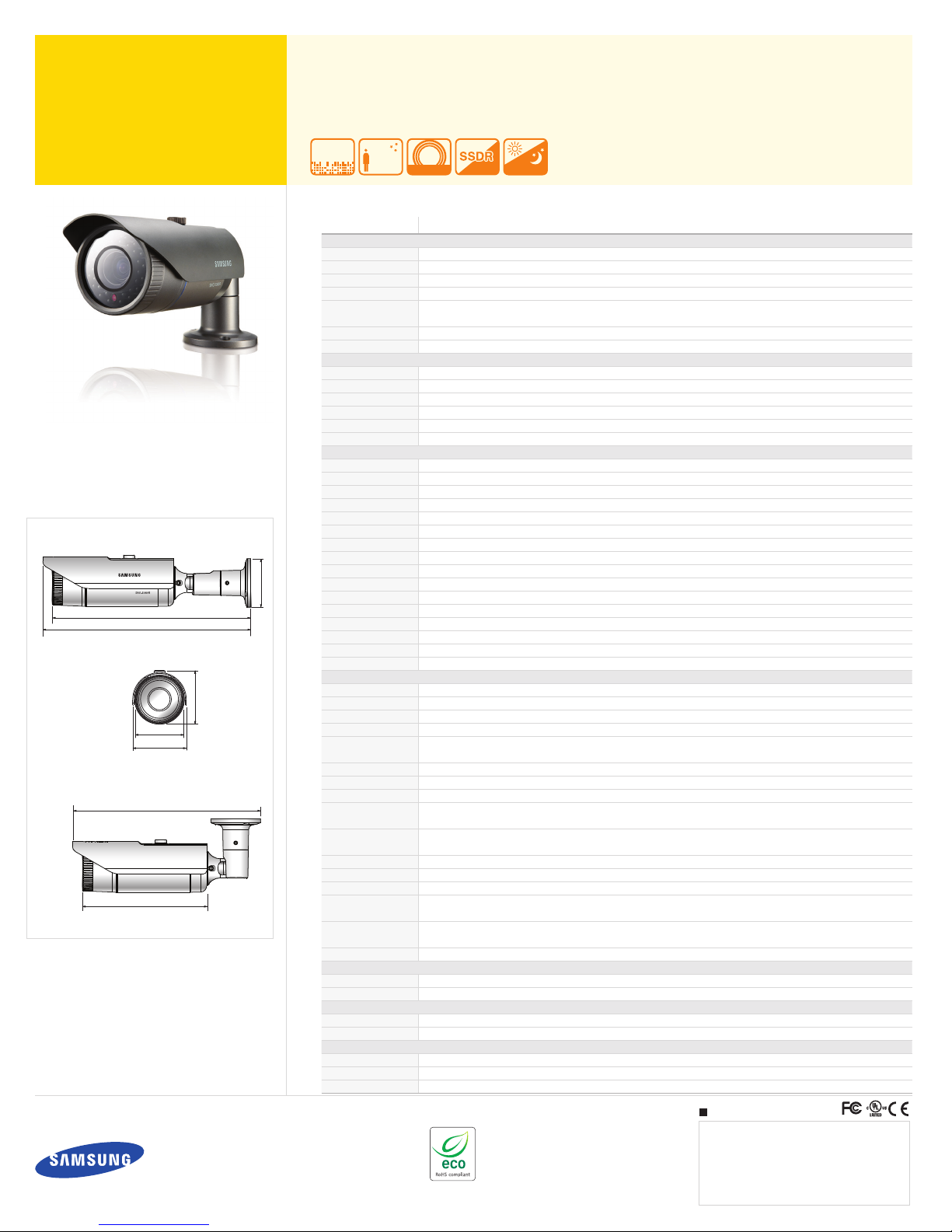

SNO-5080R
The SNO-5080R is a high performance 1.3 megapixel IP camera
capable of displaying multiple resolutions from CIF (320 x 240)
through 16:9 format 720p High Definition, to full 1.3 megapixel
(1280 x 1024). It comes complete with high performance IR
LEDs that allow it to illuminate objects up to 100 ft. away. It
also includes a multi-stream H.264/ MPEG-4/ MJPEG codec. This
camera features a 3.6x (2.8-10mm) varifocal auto iris lens, a
minimum illumination specification of 0.3 Lux color(without the
LEDs), True Day / Night operation with ICR, and is powered via
either PoE or 24 VAC. Maximum frame rate is 22 fps @ 1280 x
1024; 30fps @ 720P. In addition, it is IP66-rated for indoor or
outdoor applications and equipped with a mounting bracket
for wall, surface or ceiling mount installation.
1.3Megapixel HD Weatherproof Network IR Bullet Camera
Network Monitoring in the Darkness
1.3 Megapixel IR Network Bullet Camera
05-2011
• Max. 1.3M (1280 x 1024) resolution
• Supports 16:9 HD (720p)
• 100ft of monitoring range in 0 Lux
• Built-in 2.8~10mm (3.6x) Vari-focal mega lens
• H.264 / MPEG-4 / MJPEG multiple codecs
• PoE, IP66

SNO-5080RN/P
VIDEO
Imaging Device 1/3" 1.3M PS CMOS
Total Pixels 1,384(H) x 1,076(V)
Effective Pixels 1,329(H) x 1,049(V)
Scanning System Progressive
Min. Illumination Color : 0.3Lux (F1.2, 50IRE), 0.005Lux (Sens-up 60x)
B/W : 0Lux (F1.2, 50IRE, IR LED on)
S / N Ratio 50dB
Video Output DIP connector type, 704 x 480(N), 704 x 576(P), for installation
LENS
Focal Length (Zoom Ratio)
2.8 ~ 10mm (3.6x) Vari-focal
Max. Aperture Ratio F1.2
Angular Field of View H : 94.6°(Wide) ~ 28.8°(Tele), V : 68.4°(Wide) ~ 21.6°(Tele)
Focus Control Manual
Lens Type DC auto iris
Mount Type Board-in type
OPERATIONAL
IR LED 31ea
Viewable Length 100ft
Camera Title Off / On (Displayed up to 15 characters)
Day & Night Auto (ICR) / Color / B/W
Backlight Compensation
Off / BLC / HLC
Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction SSNR
III (2D+3D noise filter) (Off / On)
Motion Detection Off / On (4 programmable zones)
Privacy Masking Off / On (12 programmable zones)
Sens-up (Frame Integration)
Off / Auto (2x ~ 60x)
Gain Control Off / Low / Medium / High / Manual
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed
Auto / A.FLK / Manual (1/30 ~ 30,000sec)
Flip / Mirror Off / On
Intelligent Video Analytics
Scene change, Virtual line, Enter / Exit, Appear / Disappear
Alarm I/O Input 1ea / Output 1ea (Relay)
NETWORK
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format
H.264, MPEG-4, MJPEG
Resolution 1280 x 1024, 1280 x 720P (HD), 1024 x 768, 800 x 600, 640 x 480, 320 x 240
Max. Framerate 22fps (1280 x 1024), 30fps (720P HD)
Video Quality Adjustment
H.264, MPEG-4 : Compression level, Target bitrate level control
MJPEG : Quality level control
Bitrate Control Method H.264, MPEG-4 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE
FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, ONVIF
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log
Streaming Method Unicast / Multicast
Max. User Access 10 users at unicast mode
ONVIF Conformance Yes
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish,
Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek
Web Viewer Supported OS : Windows XP / VISTA / 7, MAC OS
Supported Browser : Internet Explorer 6.0 or Higher, Firefox, Google Chrome, Apple Safari
Central Management Software
NET-i viewer
ENVIRONMENTAL
Operating Temperature / Humidity
-10°C ~ +50°C (+14°F ~ +122°F) / up to 80% RH
Ingress Protection
IP66 Grade (Waterproof)
ELECTRICAL
Input Voltage 12V DC, 24V AC, PoE (IEEE802.3af)
Power Consumption Max. 11W
MECHANICAL
Color / Material Dark gray / Metal
Dimensions (WxHxD) 86.0 x 86.1 x 332.8mm (3.39" x 3.39" x 13.1")
Weight
1.3Kg (2.87 lb)
1.3M 3.6x
Motorized lens
D&N ICR
0Lux
1.3Megapixel HD Weatherproof Network IR Camera
I.E-1103
DISTRIBUTED BY
Specifications
Unit : mm (inch)
SNO-5080R
200 (7.87")
302.6 (11.89")
332.8 (13.1")
86.0 (3.39")
86.1 (3.39")
80.0 (3.15")
79.9 (11.18")
326.81 (12.87")
200 (7.87")
302.6 (11.89")
332.8 (13.1")
86.0 (3.39")
86.1 (3.39")
80.0 (3.15")
79.9 (11.18")
326.81 (12.87")
200 (7.87")
302.6 (11.89")
332.8 (13.1")
86.0 (3.39")
86.1 (3.39")
80.0 (3.15")
79.9 (11.18")
326.81 (12.87")
Dimensions
Design and specifications are subject to change without notice.
