Overview
This enriched WDR (Wide Dynamic Range) Day/Night camera can
clearly implement both dark and bright parts on the screen with the
dual shutter.
When a bright object such as window occupies a part of the screen, it
appears white in conventional cameras. But using the state-of-the-art
WDR function that this camera provides, you can see the clear image.
This Day/Night camera activates the colour mode when in the
illumination over the normal value. Otherwise it activates B/W (Black/
White) mode by removing the IR cut function, which can improve the
sensitivity for identifying objects even in a dark area.
It also incorporated the low speed shutter and Sens Up (Uses the
field accumulation method) functions to enhance the low illumination
feature.
This camera can be mainly used in the dark places such as
basement parking lots under comparatively low illumination. In
daytime, it displays the colour screen with a horizontal resolution of
540 lines but at night, it uses the Day/Night feature along with the
Sens Up function to identify objects in a dark area. You can also
connect the infrared ray emission equipment to this camera.
DAY/NIGHT
This function can make the IR Cut filtering function inactive under
the illumination below the normal value.
SCC-B2315_Euro_D.indd 6 2007-06-07 ｿﾀﾈﾄ 1:49:25

6 7
6 7
ENG
Special Features
High Sensitivity
It implements images of high sensitivity using the up-to-date Super-
HAD P/S CCD.
WDR
The WDR function of this camera is the state-of-the-art technology
that can effectively enlarge the range for screen gain. It is mainly
used for taking photos for window scenes inside a building. Using
this technology, you can clearly see both indoor and outdoor
images, and can enjoy the excellent picture quality, which is
enabled by automatically adjusting the WDR level.
Low Illumination
It uses the digital signal technologies such as low illumination and
Day/Night functions that make your camera identify objects even in
the worst environment.
Superior Backlight Adjustment
When an object has a bright illumination or sunlight behind it, this
camera automatically improves the shaded object picture quality.
Digital Power Synchronization
The full digital Line Lock function directly adjusts the vertical
camera synchronization to enhance the operationability and
reliability of this camera.
High Resolution
This camera has realized high resolution of 540 lines using the
top-notch full digital image processing and special algorithm
technologies.
Output Signal Setting
You can set the following Video output signals: Image reversion
(Horizontal, Vertical, or both), Privacy, Horizontal/Vertical profiling,
and digital zooming.
SCC-B2315_Euro_D.indd 7 2007-06-07 ｿﾀﾈﾄ 1:49:25

8 9
8 9
Part Names and Functions
❚ Side View
1 Auto Iris Lens Connector
This groove is used for screwing the mount adapter, a part of the
bracket where the camera will be installed.
2 Mount Adapter Fixing Grooves
These grooves are used when fixing screws of the mount
adapter connected to the bracket when installing the camera on it.
3 Back Focus Control Bar
You can adjust the back focus by moving it up and down.
4 Automatic Shutter Lens Control Cable
This cable transmits the power and signals from the camera for
controlling the lens shutter.
4 Automatic Shutter
Lens Control Cable
5 ALC Lens
Selection Switch
1 Auto Iris Lens
Connector
2 Mount Adapter
Fixing Grooves
3 Back Focus
Control Bar
Camera Lens
SCC-B2315_Euro_D.indd 8 2007-06-07 ｿﾀﾈﾄ 1:49:26

8 9
8 9
ENG
5 ALC Lens Selection Switch
This switch is used to select the type of the Auto Iris lens for
use. After this setting, you have to also set the lens type in the
Setup menu (In ALC… and WDR… submenus of IRIS).
 DC: When the Auto Iris lens is installed for DC control
signals, set the switch to “DC.”
 VIDEO: When the Auto Iris lens is installed for Video
control signals, set the switch to “VIDEO.”
Auto Iris Lens (Optional)
This lens is installed on this camera.
Note
When the camera lens becomes dirty, softly clean it with a lens
tissue or a cloth soaked in pure ethanol.
SCC-B2315_Euro_D.indd 9 2007-06-07 ｿﾀﾈﾄ 1:49:26

10 11
10 11
❚

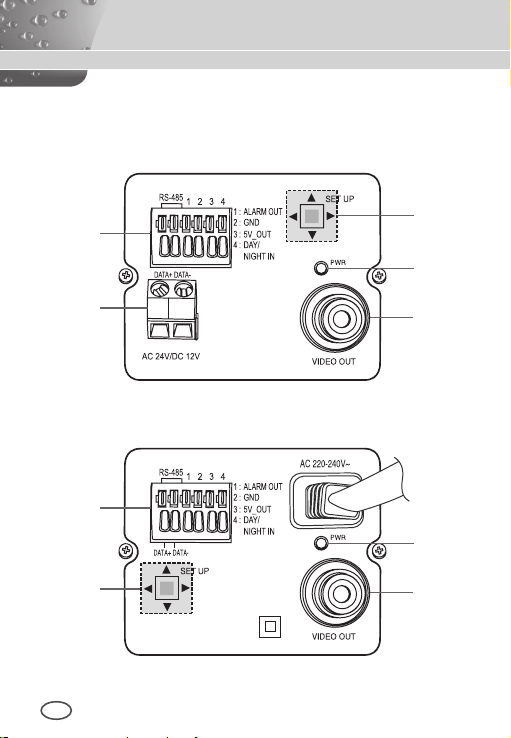

Rear Panel
AC24/DC12V(SCC-B2315, B2315P)
AC220V~240V(SCC-B2015P)
1
5
2
3
4
1
2
3
4
SCC-B2315_Euro_D.indd 10 2007-06-07 ｿﾀﾈﾄ 1:49:26

10 11
10 11
ENG
1 Input/Output Connector
This connector has input and output jacks for RS-485 control
signals, Day & Night switching, and alarm output signals.
No . Function Description
1 RS-485 DATA+ Jack for connection to RS-485 DATA+
signal line
.
2 RS-485 DATA- Jack for connection to RS-485 DATA-
signal line.
3 ALARM OUT Alarm out jack for motion detection .
(Open Collector, On Gnd)
4 GROUND Grounding jack.
5 DC +5V Power supply jack for RS-485 JIG. Use
within typical DC +5V 100mA
6 EXTERNAL
SENSOR
Input jack for Day & Night conversion.
High (DC +3V~+5V): Day mode
Low (0V): Night mode
SCC-B2315_Euro_D.indd 11 2007-06-07 ｿﾀﾈﾄ 1:49:27

12 13
12 13
2 Setup Switch
This switch is used to set the function or property. When this
switch is pressed for at least 2 seconds, the Setup menu
appears.
 [Left/Right] movement or changing the displayed value:
By pressing this switch left or right, you can move left or
right on the menu or change the displayed value.
 [Up/Down] movement: By pressing this switch up or
down, you can move up or down on the menu.
 Setting: When you press this switch in the menu, the
selected value or function is confirmed. To enter a
submenu, press this button.
3 Power Display LED
When the power is normally connected, the red LED lights.
4 Video OUT Jack
This is connected to the Video Input jack of the monitor and it
outputs the Video signals.
5 Power Connection Jack
This is connected to the Power cable.
SCC-B2315_Euro_D.indd 12 2007-06-07 ｿﾀﾈﾄ 1:49:27

12 13
12 13
ENG
Installation
❚ Before Installation

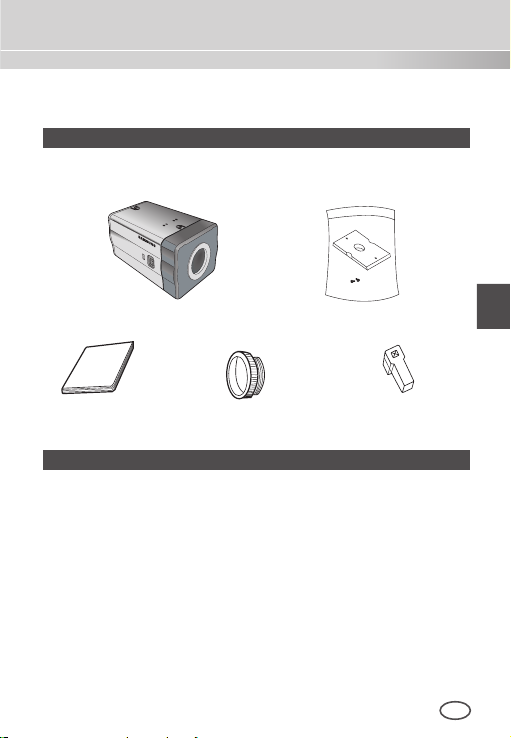

Checking the contents of the package
Make sure that the following items are included in the package.
Things to keep in mind during installation and use
 Do not disassemble the camera on your own.
 Always be careful when handling the camera. Do not
strike the camera by your fists or shake it. Please be
careful not to be careless when storing and operating it.
 Do not place or operate the camera in any wet
environment such as rain or wet surfaces.
 Do not clean the camera with rough sandpaper. Please
always use a dry cloth when cleaning it.
 Put the camera in a cool area free from direct sunlight.
Otherwise, the camera may be damaged.
Camera Camera Holder(Mount)
C Mount Adapter Auto Iris
Lens Connector
User's Manual
SCC-B2315_Euro_D.indd 13 2007-06-07 ｿﾀﾈﾄ 1:49:28

14 15
14 15
Connecting the Auto Iris Lens Connector
The Auto Iris Lens Connector that is provided with your camera
consists of the following parts:
Connect each uncovered shutter control cables to the Auto Iris Lens
Connector as the following:
Pin No. DC Control Type Video Control Type
1 Damp(-) Power (+12V)
2 Damp(+) Not applicable
3 Drive(+) Video Signal
4 Drive(-) Ground
SCC-B2315_Euro_D.indd 14 2007-06-07 ｿﾀﾈﾄ 1:49:29

14 15
14 15
ENG
❚ Installing the Camera

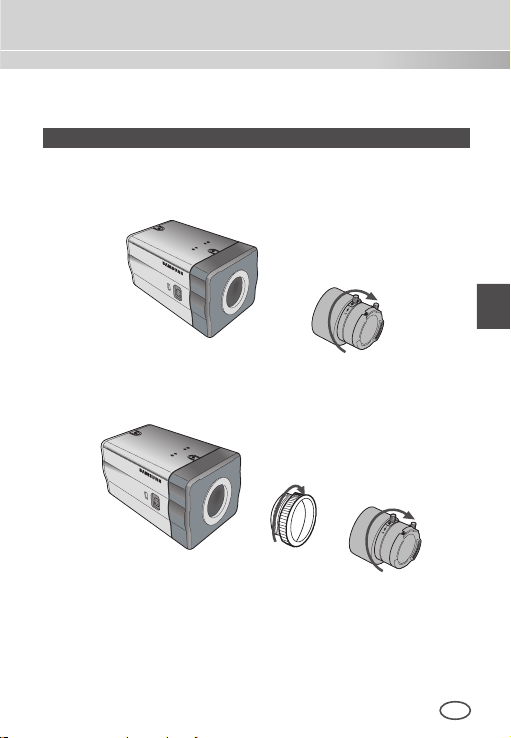

Mounting the lens
When using the CS lens
Mount the CS lens by rotating it clockwise as shown in the picture:
When using the C lens
After mounting the C-mount adapter by rotating it clockwise, turn the
C lens clockwise until it is fixed as shown in the picture.
CS lens
C lens
SCC-B2315_Euro_D.indd 15 2007-06-07 ｿﾀﾈﾄ 1:49:29

16 17
16 17
Setting the ALC lens selection switch
You can set the lens selection switch located on the side of the camera
according to the lens type. When the mounted lens is an auto Iris lens
of DC control type, set the switch to “DC.” When the mounted lens is
an auto Iris lens of Video control type, set the switch to “VIDEO.”
N
Adjusting the back focus
The back focus of the camera is adjusted at the factory before delivery but
some lenses can be out of focus depending on the lens type. In this case,
you have to adjust the back focus. The following describes how to adjust
the back focus of the lenses.
In case of the lens with no zooming function
① After exposing the camera to an object with high resolution (like
a dart-patterned image) at a distance of more than 10m, set the
lens focus ring to infinite (∞).
➁ Adjust the Back Focus Control Bar until the object is of best quality.
➂ Fix the screw of the Back Focus Control Bar.
In case of the lens with zooming function
① After exposing the camera to an object with high resolution (like
a dart-patterned image) at a distance of 3 to 5m, fully rotate the
lens zoom to the TELE direction. Then adjust the lens focus ring
until the object is of best quality.
➁ Fully rotate the lens zoom to the WIDE direction and adjust the
Back Focus Control Bar until the object is of best quality.
➂ Repeat step 1 and 2 two or three times until the focuses of Zoom
TELE and Zoom WIDE are clear enough.
SCC-B2315_Euro_D.indd 16 2007-06-07 ｿﾀﾈﾄ 1:49:30

16 17
16 17
ENG

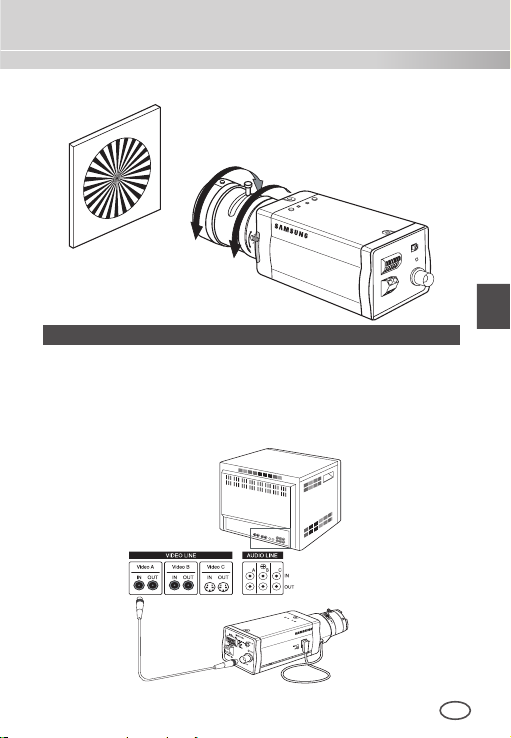

Connecting cables and checking operation
1. Connect one end of the BNC cable to the VIDEO OUT jack on
the rear of the camera.
2. Connect another end of the BNC cable to the VIDEO IN jack on
the monitor.
N
BNC cable
Video Out Terminal
Video In Terminal of
Monitor Rear Surface
SCC-B2315_Euro_D.indd 17 2007-06-07 ｿﾀﾈﾄ 1:49:30

18 19
18 19
3. Finally connect the power adapter to the camera. You can
connect 2 lines of the power adapter to the camera using the
Slot Head screwdriver as shown in the picture.
(GND: cable with the white stripe line)
Note
Connect any power source of AC 24V and DC 12V irrespective
of polarity.
N
SCC-B2315_Euro_D.indd 18 2007-06-07 ｿﾀﾈﾄ 1:49:31

18 19
18 19
ENG
Camera Setup
This chapter describes how to configure the camera-related settings. If you
press the Setup switch for at least 2 seconds, the Setup menu appears.

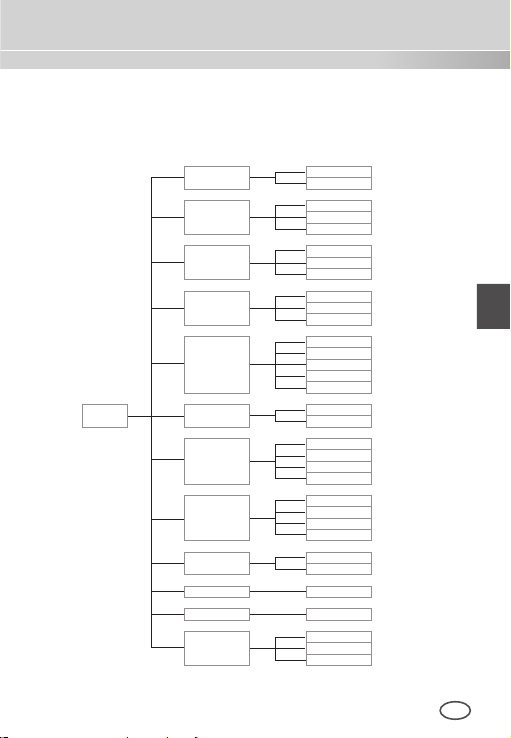

The Setup OSD (On-screen Display) map brief is like the following:
CAMERA ID ON...
OFF
IRIS
WDR...
ALC...
ELC...
SHUTTER
OFF
AUTO X2 to X256
1/100 (or 1/120) to 1/10K
AGC
OFF
LOW
HIGH
MOTION
NORM
FAST
F.Fast
S.SLOW
SLOW
SETUP
MENU MOTION DET ON...
OFF
DAY/NIGHT
DAY...
NIGHT...
AUTO...
EXT
WHITE BAL
ATW1
ATW2
AWC
MANU...
PRIVACY OFF
ON...
SPECIAL ...
RS485 ...
EXIT
QUIT
SAVE
PRESET
SCC-B2315_Euro_D.indd 19 2007-06-07 ｿﾀﾈﾄ 1:49:32

20 21
20 21

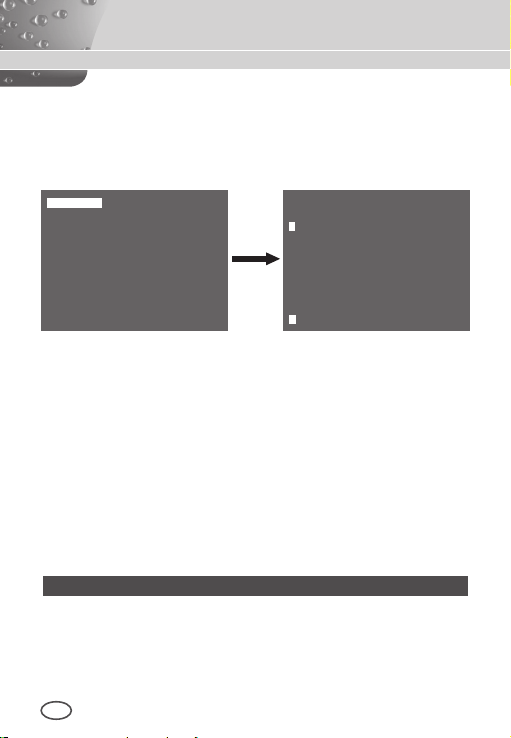

❚ CAMERA ID
This CAMERA ID menu is used to assign a camera ID to this
camera. If you press the Setup switch when the CAMERA ID menu
is selected, the corresponding setup screen appears.
You can input a camera ID composed of alphabets, numbers, and
special characters up to 20 characters long. The input camera
ID can be displayed at the desired location when using the
LOCATION… submenu.
When you press the Setup switch in RET, the screen returns to the
upper menu.
❚ IRIS
The IRIS menu is used to set the automatic light control method
for this camera. After setting the ALC Lens Selection Switch,
select any of DC LENS and VIDEO LENS in the ALC... and WDR...
submenus.
WDR...
If you press the Setup switch when the WDR… submenu is se-
lected, the corresponding screen appears.
CAMERA ID ON...
IRIS ALC...
SHUTTER OFF
AGC HIGH
MOTION DET OFF
DAY/NIGHT DAY...
WHITE BAL ATW2
PRIVACY OFF
SPECIAL ...
RS-485 ...
EXIT QUIT
(CAMERA ID)
ABCDEFGHIJKLMNOPQRSTUVWXYZ
0123456789 : ! - + * () /
RET
SP▶▶ ◀◀SP LOCATION...
CAMERA-1...........
SCC-B2315_Euro_D.indd 20 2007-06-07 ｿﾀﾈﾄ 1:49:32
