Samsung iPolis SNV-7080R User manual

NETWORK CAMERA
User Manual SNV-7080R

Copyright
©2011 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this
document shall be reproduced, distributed or changed, partially or wholly, without formal authorization of
Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but
no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on
the user’s own responsibility. Samsung Techwin reserves the right to change the contents of this document
without prior notice.
Warranty
If the product does not operate properly in normal conditions, please let us know. Samsung Techwin will resolve
the problem for free of charge. The warranty period is 3 years. However, the followings are excluded:
• If the system behaves abnormally because you run a program irrelevant to the system operation.
• Deteriorated performance or natural worn-out in process of time
❖Design and specifications are subject to change without prior notice.
❖The default password can be exposed to a hacking thread so it is recommended to change the
password after installing the product.
Note that the security and other related issues caused by the unchanged password shall be
responsible for the user.
Network Camera
User Manual

English _3
●OVERVIEW
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
overview

overview
4_ overview
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC
OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS
ON THE EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the product.

English _5
●OVERVIEW
Class construction
An apparatus with CLASS construction shall be connected to a MAINS
socket outlet with a protective earthing connection.
Battery
Batteries(battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.
Disconnection Device
Disconnect the main plug from the apparatus, if it’s defected. And please call
a repair man in your location.
When used outside of the U.S., it may be used HAR code with fittings of
an approved agency is employed.
CAUTION
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock do not perform any servicing other than
that contained in the operating instructions unless you are qualified to do so.
The BNC Out terminal of the product is provided for easier installation, and is
not recommended for monitoring purposes.
If you keep the BNC cable connected, a risk of lightening may cause damage
or malfunction to the product.
Please use the input power with just one camera and other devices must not
be connected.

overview
6_ overview
Please read the following recommend safety precautions carefully.
Do not place this apparatus on an uneven surface.
Do not install on a surface where it is exposed to direct sunlight, near
heating equipment or heavy cold area.
Do not place this apparatus near conductive material.
Do not attempt to service this apparatus yourself.
Do not place a glass of water on the product.
Do not install near any magnetic sources.
Do not block any ventilation openings.
Do not place heavy items on the product.
User’s Manual is a guidance book for how to use the products.
The meaning of the symbols are shown below.
Reference : In case of providing information for helping of product’s usages
Notice : If there’s any possibility to occur any damages for the goods and
human caused by not following the instruction
Please read this manual for the safety before using of goods and keep it in
the safe place.

English _7
●OVERVIEW
CONTENTS
OVERVIEW
3
3Important Safety Instructions
9Product Features
10 Recomended PC Specifications
10 Recomended SD/SDHC Memory
Card Specifications
11 What’s Included
12 At a Glance
INSTALLATION &
CONNECTION
14
14 Installation
20 Inserting/Removing an SD
Memory Card
21 Memory Card Information
(Not Included)
22 Connecting with other Device
NETWORK CONNECTION
AND SETUP
25
25 Connecting the Camera Directly
to Local Area Networking
26 Connecting the Camera Directly
to a DHCP Based DSL/Cable
Modem
27 Connecting the Camera Directly
to a PPPoE Modem
28 Connecting the Camera to a
Broadband Router with the
PPPoE/Cable Modem
29 Buttons used in IP Installer
30 Static IP Setup
33 Dynamic IP Setup
34 Port Range Forward (Port Mapping)
Setup
36 Connecting to the Camera from a
Shared Local PC
36 Connecting to the Camera from a
Remote PC via the Internet

overview
8_ overview
SETUP SCREEN
47
47 Setup
47 Audio & Video Setup
58 Network Setup
64 Event Setup
70 System Setup
APPENDIX
75
75 Specification
79 Product Overview
81 Troubleshooting
83 Open Source Announcement
85 GPL/LGPL Software License
WEB VIEWER
37
37 Connecting to the Camera
38 Login
39 Installing ActiveX
40 Installing Silverlight Runtime
42 Using the Live Screen
45 Playback

English _9
●OVERVIEW
PRODUCT FEATURES
• Dustproof/Waterproof (IP66)
The dustproof and waterproof design makes you feel at ease when installing the product
outdoors or exposing it to rain.
• SSNR3 (Samsung Super Noise Reduction)
The powerful DSP chip reduces the gain noise effectively to remove the time lag so that it
can provide a sharp and clear image in a low contrast scene.
• Day & Night (ICR)
It automatically detects the time change of the day to switch to a mode that is appropriate
to the current scene. In a daylight scene, it switches to the color mode for maintaining
the optimal color tones while it, at night, switches to B/W mode for identifying the low
contrast scene.
• IR mode
If the IR indicator turns on, the product switches to the IR mode for preventing an object
from being too bright, which helps you identify the object in near distance.
• Visibility: 25m
In B/W mode, the IR indicator turns on with the effective visibility of 25m at 0 Lux.
• SSDR (Samsung Super Dynamic Range)
For a scene showing a great contrast difference such as backlight scene, the product
maintains the bright areas while selectively making the dark areas brighter to balance the
overall contrast.
• Others
Other features include: HLC (High Light Compensation), SENS-UP, V-REV, H-REV,
D-ZOOM, SHARPNESS, Motion Detection, PRIVACY.
• Full HD Video Quality
• Multi-Streaming
This network camera can display videos in different resolutions and qualities
simultaneously using different CODECs.
• Web Browser-based Monitoring
Using the Internet web browser to display the image in a local network environment.
• Alarm
If an event occurs, the event-related video will be transferred to the email specified by the
user or the event signal will be sent to the Alarm Out port.

overview
10_ overview
• Video Motion Detection
Detects a motion from the video before triggering an event.
• Face Detection / Smart Codec
Recognizes a face from the camera input video, or transfers a clearer image of your specified area.
• Auto Detection of Disconnected Network
Detects network disconnection before triggering an event.
• ONVIF (Spec 1.02) Compliance
This product supports ONVIF Core Spec. 1.02.
For more information, refer to www.onvif.org.
RECOMENDED PC SPECIFICATIONS
•CPU : Intel Core 2 Duo 2.4GHz or higher
•Operating System : Windows XP, VISTA, 7
Mac OS
•Resolution : 1280X1024 pixels or higher
•RAM : 2GB or higher
•Web Browser : Internet Explorer 7.0 or higher, Firefox, Chrome, Safari
Neither a beta test version unlike the version released in the company website nor the developer version will
be supported.
On Firefox v3.5 or higher, displaying warning message dialog may cause an error.
If connecting to IPv6 in Windows XP, it can cause some problem.
It is recommended to connect to IPv6 in Windows 7.
•Video Memory : 256MB or higher
J
If the driver of the video graphic adapter is not installed properly or is not the latest version, the
video may not be played properly.
RECOMENDED SD/SDHC MEMORY CARD
SPECIFICATIONS
•2GB ~ 32GB
•To ensure proper recording of video data, it is recommended you use a memory card that
supports at least read/write speed 10Mbps and Class 6.

English _11
●OVERVIEW
WHAT’S INCLUDED
Please check if your camera and accessories are all included in the product package.
Appearance Item Name Quantity Description
Camera 1
User Manual,
Installer S/W CD,
CMS S/W DVD
2
Quick Guide 1
Template 1 Product installation guide
ASSY-Tapping Screw 4 Used for installation on the wall or ceiling
L Wrench 1 Used to remove/fix the dome cover
Plastic Anchor 4 For fixing a screw, Inserted in a hole
(reinforced anchoring force)
Machine Screws 4
Used for assembling the dome case when
installing the product on the pipe, wall
mount, etc. or blocking a hole.
Cable for the testing monitor 1 Used to test the camera connection to a
portable display device
Rubber cap 3 Insulation cap for improved
EMC performance.

overview
12_ overview

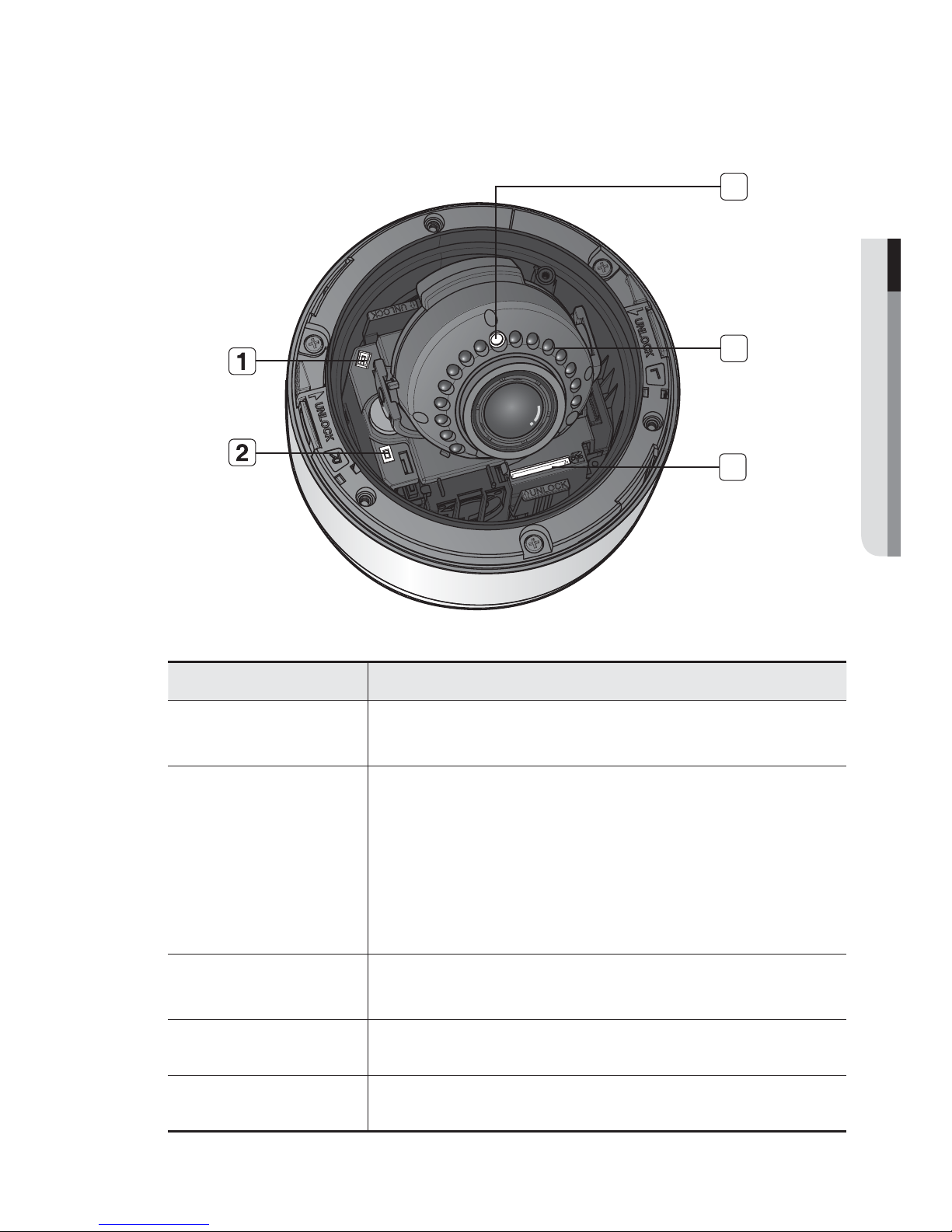

AT A GLANCE
Appearance
Item Description

Top cover Case cover used to protect the lens and the main unit.
b
Camera Case Covers the lens and camera body.
c
Power Port Used to plug the power cable.

Alarm In /
Out terminals
ARM-IN BLUE : Used to connect the alarm input signal.
ARM-OUT WHITE : Used to connect the alarm output signal.
A-COM GRAY : Common port where the alarm output signal is
connected.
GND YELLOW : Used for earth-grounding.

Network Port Used to connect a PoE or LAN cable.

Video Out Port Analog video output port. (for installation)

Audio In Jack Used to connect to a microphone.

Audio Out Jack Used to connect to speakers.
8

English _13
●OVERVIEW
Inside
Item Description

Monitor Out Using the test monitor cable, you can connect to a mobile display for camera
test. (for installation)
b
Reset Button
Resets the camera settings to the default. Press and hold it for about 5
seconds to turn off the system indicator and restart the system.
J
If you reset the camera, the network settings will be adjusted so that
DHCP can be enabled. If there is no DHCP server in the network, you
must run the IP Installer program to change the basic network settings
such as IP address, Subnet mask, Gateway, etc., before you can
connect to the network.
c
SD Memory Card
Compartment Compartment for the SD memory card.

IR LED These infrared LED's are controlled by the illumination sensor.

Illumination Sensor Detects incoming light to control the IR LED.
3
4
5

14_ installation & connection
installation & connection
INSTALLATION
Precautions before installation
Ensure you read out the following instructions before installing the camera:
•Select an installation site (ceiling or wall) that can endure at least 5 times of the
camera weight.
•Stuck-in or peeled-off cables can cause damage to the product or a fire.
•For safety purposes, keep anyone else away from the installation site. And put aside
personal belongings from the site, just in case.

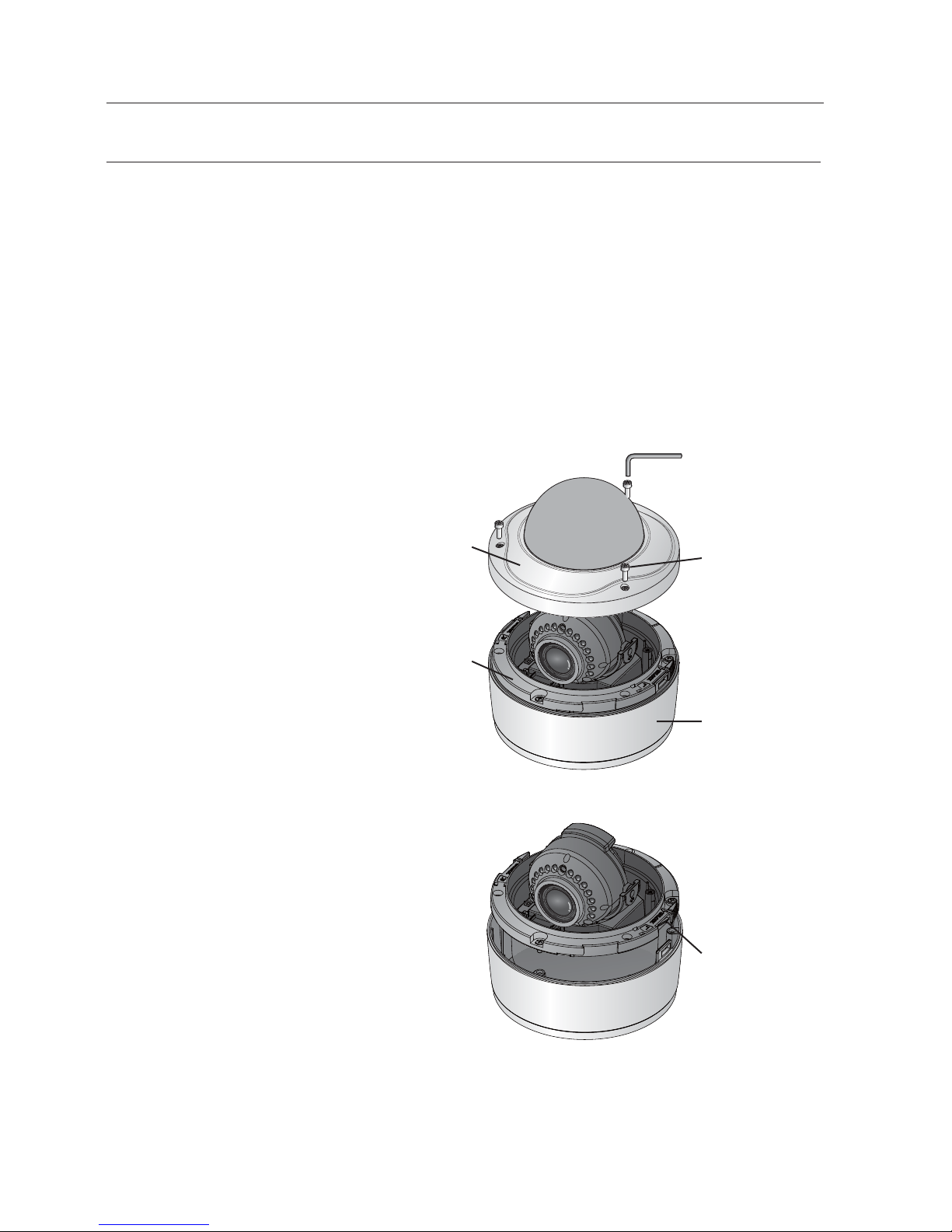

Disassembling
1. With the provided L-shaped
wrench, loosen 3 bolts on the top
cover counter clockwise to remove
the cover.
2.
Loosen 3 screws on the camera body
counter clockwise, and pull up the
left/right LOCKER lever (in the arrow
direction) to release the lock. Then,
remove the camera from the case.
LOCKER Lever
Bolts
Camera Case
Top cover
Camera Body

English _15
●INSTALLATION & CONNECTION
Installing on the ceiling directly
1. Remove the top cover from the case by referring to the “Disassembling” section.
(page 14)
2. Drill a hole (diameter: 5mm, depth: min 35mm) in a
desired position of the case bottom and insert the
provided plastic anchor (HUD 5) to the end.
3. Fit the bottom hole to the anchor hole and insert
and fix the ASSY taping screw (TH M4×L30).
When assembling the camera case to a junction box, select
appropriate screw holes on the case bottom for installation.
4. Connect and arrange the necessary cables lest that
they should be damaged or twisted while installing
the camera.
5. Install the camera body in the reverse order of
“Disassembling”.
6. Adjust the lens in a desired direction by referring to
the “Adjusting the monitoring direction for the camera" section. (page 19)
7. Close the top cover.
To ensure waterproofing, tight up the fixing bolts using the L-wrench.

For improved EMC performance, it is recommended to
use the insulation cap provided as an accessory. (x3)
CAMERA FRONT

installation & connection
16_ installation & connection
Ceiling mount
1. Remove the top cover from the case by
referring to the “Disassembling” section.
(page 14)
2. Use the provided template to drill one hole for
the camera, and one for the screw (5 mm in
diameter, at least 35 mm in depth), and insert
the plastic anchor (HUR 5) to the end of the
screw hole.
3. Connect and arrange the necessary cables
lest that they should be damaged or twisted
while installing the camera.
4. Loosen and remove the case-fixing screws on the camera unit. (x3)
5. Insert the camera unit into the hole so that it fits to the camera hole, and fix the unit
using the ASSY tapping screws (TH M4×L30). (x3)
6. Adjust the lens in a desired direction by referring to the “Adjusting the monitoring
direction for the camera" section. (page 19)
7. Close the top cover.
To ensure waterproofing, tight up the fixing bolts using the L-wrench.

English _17
●INSTALLATION & CONNECTION
Attaching to the unbundled adapter
Choose and purchase a necessary one of the following options (unbundled) that is suitable
to the installation site or for your convenience.
1. Remove the top cover from the case by referring to
the “Disassembling” section. (page 14)
2. Use the provided machine screw to fix the camera
case to the unbundled adapter.
3. Connect and arrange the necessary cables lest that
they should be damaged or twisted while installing
the camera.
4. Install the camera body in the reverse order of
“Disassembling”.
5. Adjust the lens in a desired direction by referring
to the “Adjusting the monitoring direction for the
camera" section. (page 19)
6. Close the top cover.
To ensure waterproofing, tight up the fixing bolts using the L-wrench.
Optional Accessories for Installation
For your easier installation, you can purchase appropriate optional accessories available.
1. WALL MOUNT ADAPTOR(SBP-300WM or
SBP-300WM1)/HANGING MOUNT(SBP-
300HM1)
This adaptor is used when installing the
dome camera onto a wall.

installation & connection
18_ installation & connection
2. CEILING MOUNT ADAPTOR(SBP-300CM)/
HANGING MOUNT(SBP-300HM1)
This adaptor is used when installing the dome
camera on a concrete ceiling.
3. POLE MOUNT ADAPTOR(SBP-300PM)
This is an adaptor for WALL MOUNT ADAPTOR
(SBP-300WM or SBP-300WM1) installation on a
pole whose diameter is bigger than 80mm.
4. CORNER MOUNT ADAPTOR (SBP-300KM)
This is an adaptor for WALL MOUNT
ADAPTOR (SBP-300WM or SBP-300WM1)
installation on the corner of wall joint.

English _19
●INSTALLATION & CONNECTION
Adjusting the monitoring direction for the camera
❖Adjusting the monitoring direction
You can adjust the camera direction only when the camera is fixed on the ceiling.
Where, rotating the camera unit to the left or right is called Pan, adjusting the tilt is called
Tilt, and turning the lens on its axis is called Rotate.
- The effective range of pan is a total of 355 degrees.
- The effective range of rotation is a total of 355 degrees.
- The effective range of tilt is a total of 90 degrees.
J
In some angles, the top cover may cause cutting some part of the monitoring object.
Do not rotate the focus/zoom lens by force after removing the cover front.
Otherwise, it may cause an incorrect focus due to a motor failure.
❖Methods of adjustment
1. After installing the camera, adjust the panning angle in consideration of the
monitoring direction.
When tilting the camera, you should adjust the horizontal angle lest that the image
be displayed reversely.
2. Adjust the rotation angle to correct the image display position (up/down/left/right).
Rotating means rotation on the basis of the rear lens unit.
3. Adjust the tilt angle so that the camera faces toward the monitoring object.
Panning
Tilting
Lens rotation
Cover front

installation & connection
20_ installation & connection
INSERTING/REMOVING AN SD MEMORY CARD
J
Disconnect the power cable from the camera before inserting the SD memory card.

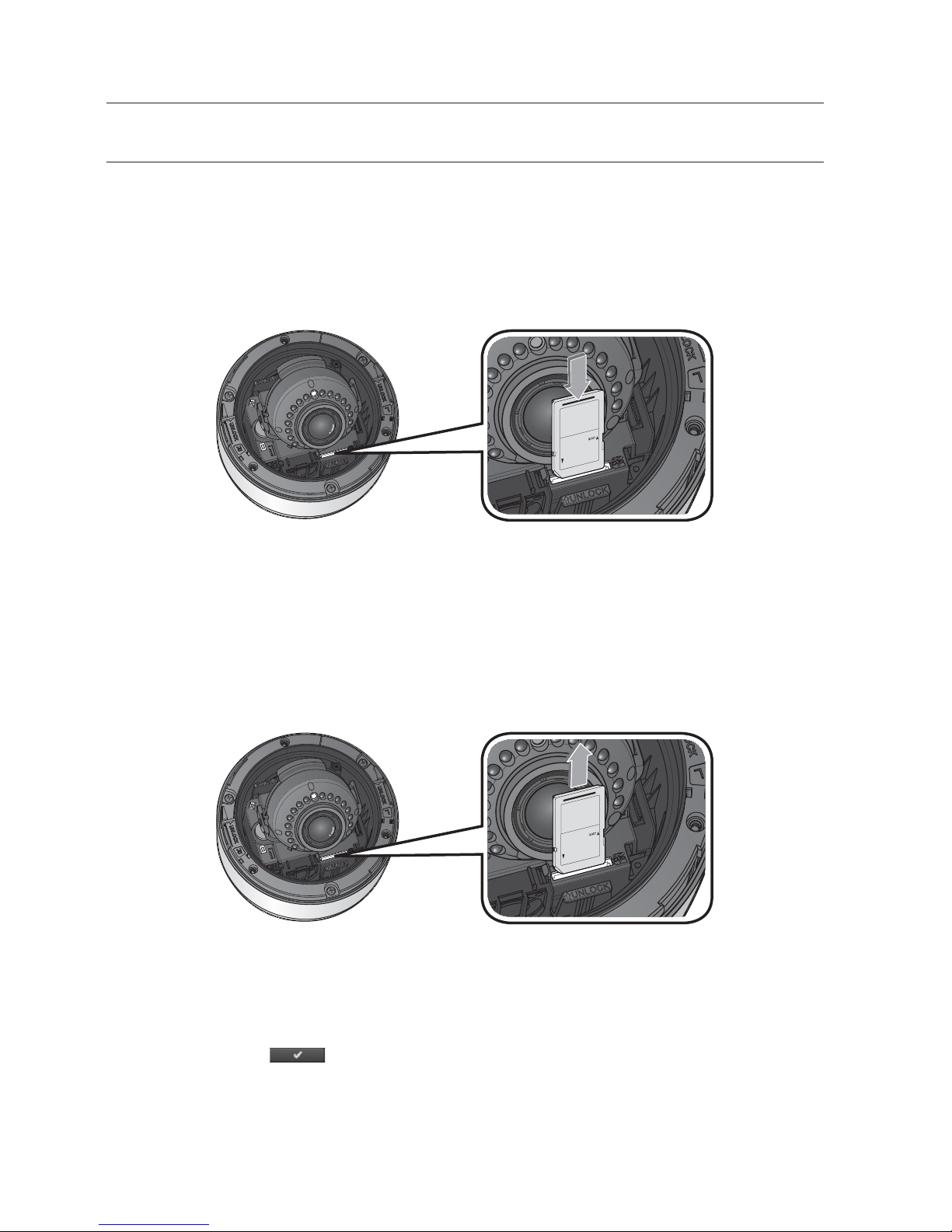

Inserting an SD Memory Card
Push the SD memory card in the direction of the arrow shown in the diagram.
J
Do not insert the SD memory card while it’s upside down by force. Otherwise, it may damage the
SD memory card.
Removing an SD Memory Card
Gently press down on the exposed end of the memory card as shown in the diagram to
eject the memory card from the slot.
J
Pressing too hard on the SD memory card can cause the card to shoot out uncontrollably from the
slot when released.
To remove the SD memory card, set <Record> to <Off> from <SD record> and press
[Apply ()]. (page 65)
If you have saved data in the SD memory card, removing the SD memory card prior to setting
record to OFF will cause damage to the data stored in the card.
