Samsung SNB-1001 User manual

NETWORK CAMERA
User Manual SNB-1001/
SND-1080/SNV-1080

Copyright
©2011 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall
be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no
formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own
responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.
Design and specifications are subject to change without prior notice.
The default password can be exposed to a hacking thread so it is recommended to change the password
after installing the product.
Note that the security and other related issues caused by the unchanged password shall be responsible
for the user.
Network Camera
User Manual

English _3
●OVERVIEW
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
overview

overview
4_ overview
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC
OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS
ON THE EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the product.

English _5
●OVERVIEW
Class construction
An apparatus with CLASS construction shall be connected to a MAINS
socket outlet with a protective earthing connection.
Battery
Batteries(battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.
Disconnection Device
Disconnect the main plug from the apparatus, if it’s defected. And please call
a repair man in your location.
When used outside of the U.S., it may be used HAR code with fittings of
an approved agency is employed.
CAUTION
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock do not perform any servicing other than
that contained in the operating instructions unless you are qualified to do so.
The BNC Out terminal of the product is provided for easier installation, and is
not recommended for monitoring purposes.
If you keep the BNC cable connected, a risk of lightening may cause damage
or malfunction to the product.
Please use the input power with just one camera and other devices must not
be connected.

overview
6_ overview
Please read the following recommend safety precautions carefully.
Do not place this apparatus on an uneven surface.
Do not install on a surface where it is exposed to direct sunlight, near
heating equipment or heavy cold area.
Do not place this apparatus near conductive material.
Do not attempt to service this apparatus yourself.
Do not place a glass of water on the product.
Do not install near any magnetic sources.
Do not block any ventilation openings.
Do not place heavy items on the product.
User’s Manual is a guidance book for how to use the products.
The meaning of the symbols are shown below.
Reference : In case of providing information for helping of product’s usages
Notice : If there’s any possibility to occur any damages for the goods and
human caused by not following the instruction
Please read this manual for the safety before using of goods and keep it in
the safe place.

English _7
●OVERVIEW
CONTENTS
OVERVIEW
3
3Important Safety Instructions
9Product Features
9Recomended PC Specifications
10 Recomended
Micro SD/SDHC
Memory Card Specifications
10 What’s Included
12 At a Glance (SNB-1001)
16 At a Glance (SND-1080)
19 At a Glance (SNV-1080)
INSTALLATION &
CONNECTION
21
21 Installation (SND-1080)
23 Installation (SNV-1080)
25 Mounting the Lens (SNB-1001)
27 Inserting/Removing an SD
Memory Card
29 Memory Card Information
(Not Included)
29 Connecting with other Device
NETWORK CONNECTION
AND SETUP
34
34 Connecting the Camera Directly
to Local Area Networking
35 Connecting the Camera Directly
to a DHCP Based DSL/Cable
Modem
36 Connecting the Camera Directly
to a PPPoE Modem
37 Connecting the Camera to a
Broadband Router with the
PPPoE/Cable Modem
38 Buttons used in IP Installer
39 Static IP Setup
43 Dynamic IP Setup
44 Port Range Forward (Port Mapping)
Setup
46 Connecting to the Camera from a
Shared Local PC
46 Connecting to the Camera from a
Remote PC via the Internet

overview
8_ overview
SETUP SCREEN
58
58 Setup
58 Audio & Video Setup
67 Network Setup
74 Event Setup
81 System Setup
APPENDIX
86
86 Specification
91 Product Overview
94 Troubleshooting
96 Open Source Announcement
98 GPL/LGPL Software License
WEB VIEWER
47
47 Connecting to the Camera
48 Login
49 Installing ActiveX
50 Installing Silverlight Runtime
52 Using the Live Screen
55 Playback (Event)
56 Playback (Time)

English _9
●OVERVIEW
PRODUCT FEATURES
• Multi-Streaming
This network camera can display videos in different resolutions and qualities
simultaneously using different CODECs.
• Web Browser-based Monitoring
Using the Internet web browser to display the image in a local network environment.
• Alarm
If an event occurs, the event-related video will be transferred to the email specified by the
user, or saved to the SD memory.
• Video Motion Detection
Detects a motion from the video before triggering an event.
• Face Detection
Recognizes a face from the camera input video, or transfers a clearer image of your specified
area.
• Auto Detection of Disconnected Network
Detects network disconnection before triggering an event.
• ONVIF Compliance
For more information, refer to www.onvif.org.
RECOMENDED PC SPECIFICATIONS
•CPU : Intel(R) Core(TM)2 2.4 GHz or higher
•Operating System : Windows XP, VISTA, 7
Mac OS
•Resolution : 1280X1024 pixels or higher
•RAM : 2GB or higher
•Web Browser : Internet Explorer 7.0 or later, Firefox 3.0 or later, Chrome 8.0 or later,
Safari 4.0 or later
Neither a beta test version unlike the version released in the company website nor the developer version will
be supported.
It is recommended to connect to IPv6 in Windows 7.

overview
10_ overview
•Video Memory : 256MB or higher
J
If the driver of the video graphic adapter is not installed properly or is not the latest version, the
video may not be played properly.
For a multi-monitoring system involving at least 2 monitors, the playback performance can be
deteriorated depending on the system.
RECOMENDED MICRO SD/SDHC MEMORY CARD
SPECIFICATIONS
•2GB ~ 32GB
•To ensure proper recording of video data, it is recommended you use a memory card that
supports at least read/write speed 10Mbps and Class 6.

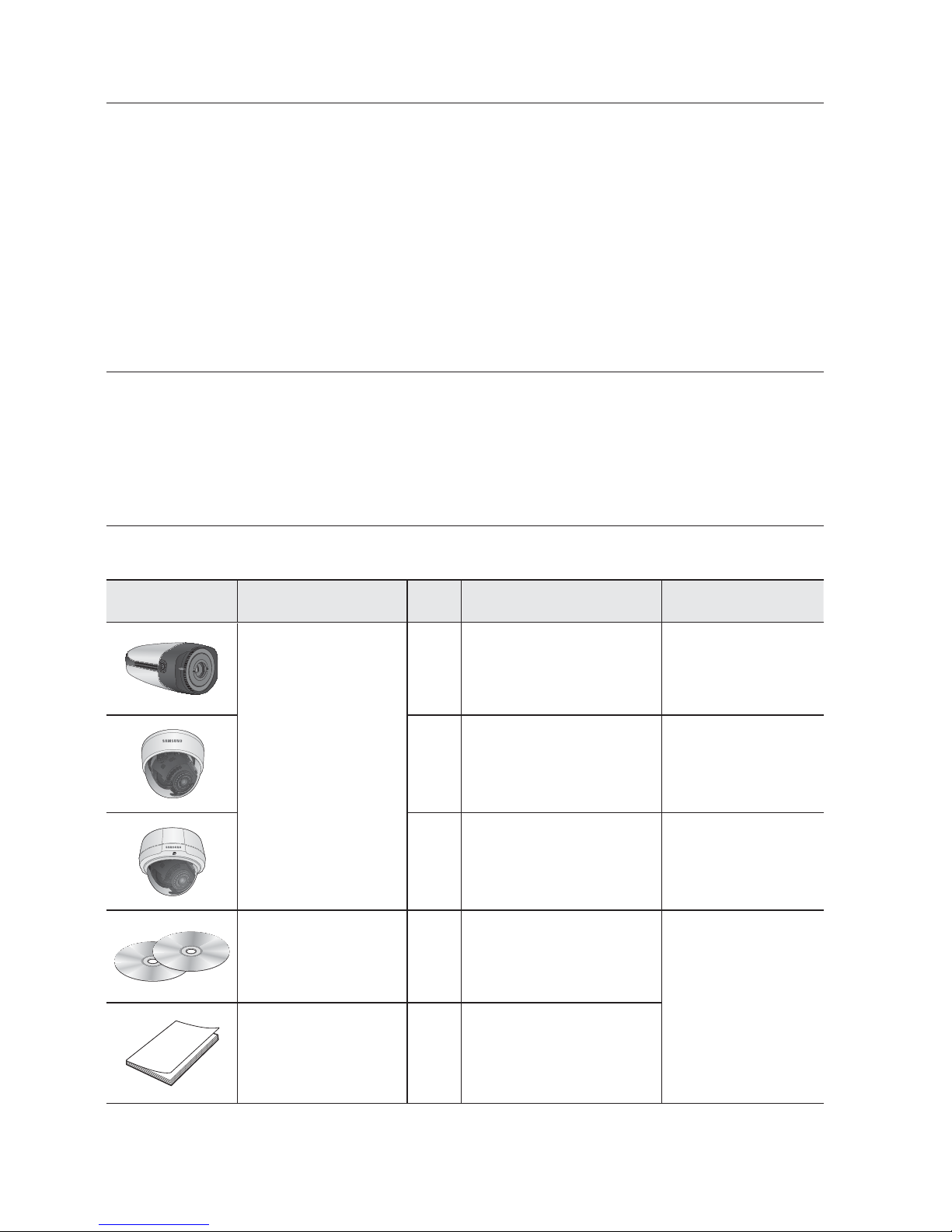

WHAT’S INCLUDED
Please check if your camera and accessories are all included in the product package.
Appearance Item Name Quantity Description Model Name
Camera
1SNB-1001
1SND-1080
1SNV-1080
User Manual,
Installer S/W CD,
CMS S/W DVD
2
SNB-1001
SND-1080
SNV-1080
Quick Guide 1

English _11
●OVERVIEW

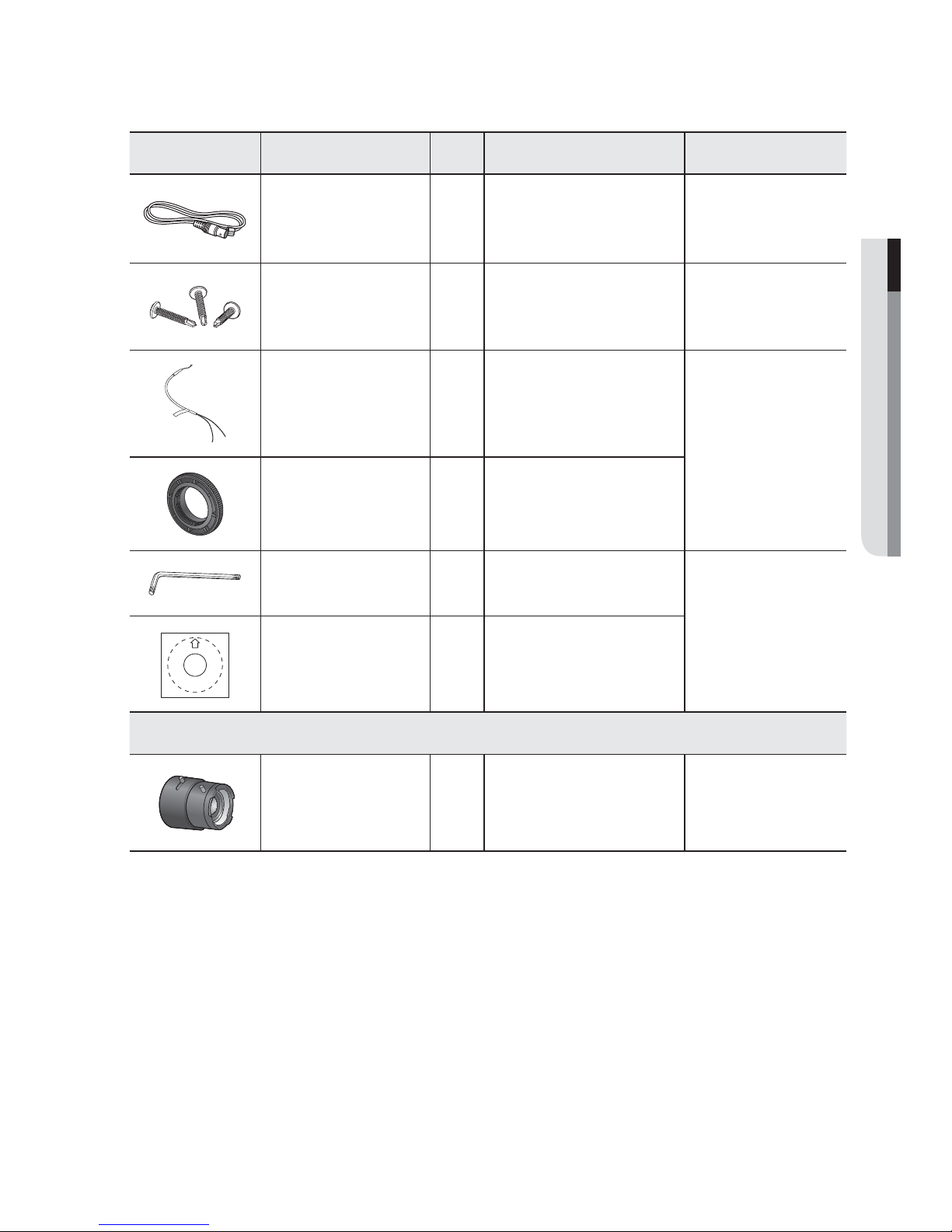

Appearance Item Name Quantity Description Model Name
Cable for the testing
monitor 1
Used to test the camera
connection to a portable
display device
SNB-1001
SND-1080
SNV-1080
Iron Screw 3 Used for fixing to an iron plate SND-1080
SNV-1080
Alarm Cable 1 Used to connect to Alarm
input
SNB-1001
C Mount Adapter 1Used to install the C Mount
camera lens
L Wrench 1
Used to remove/fix the dome
cover
SNV-1080
Template 1 Product installation guide
Lens Options (not included)
CS/C Lens Optional lens to be inserted in
a camera SNB-1001

overview
12_ overview

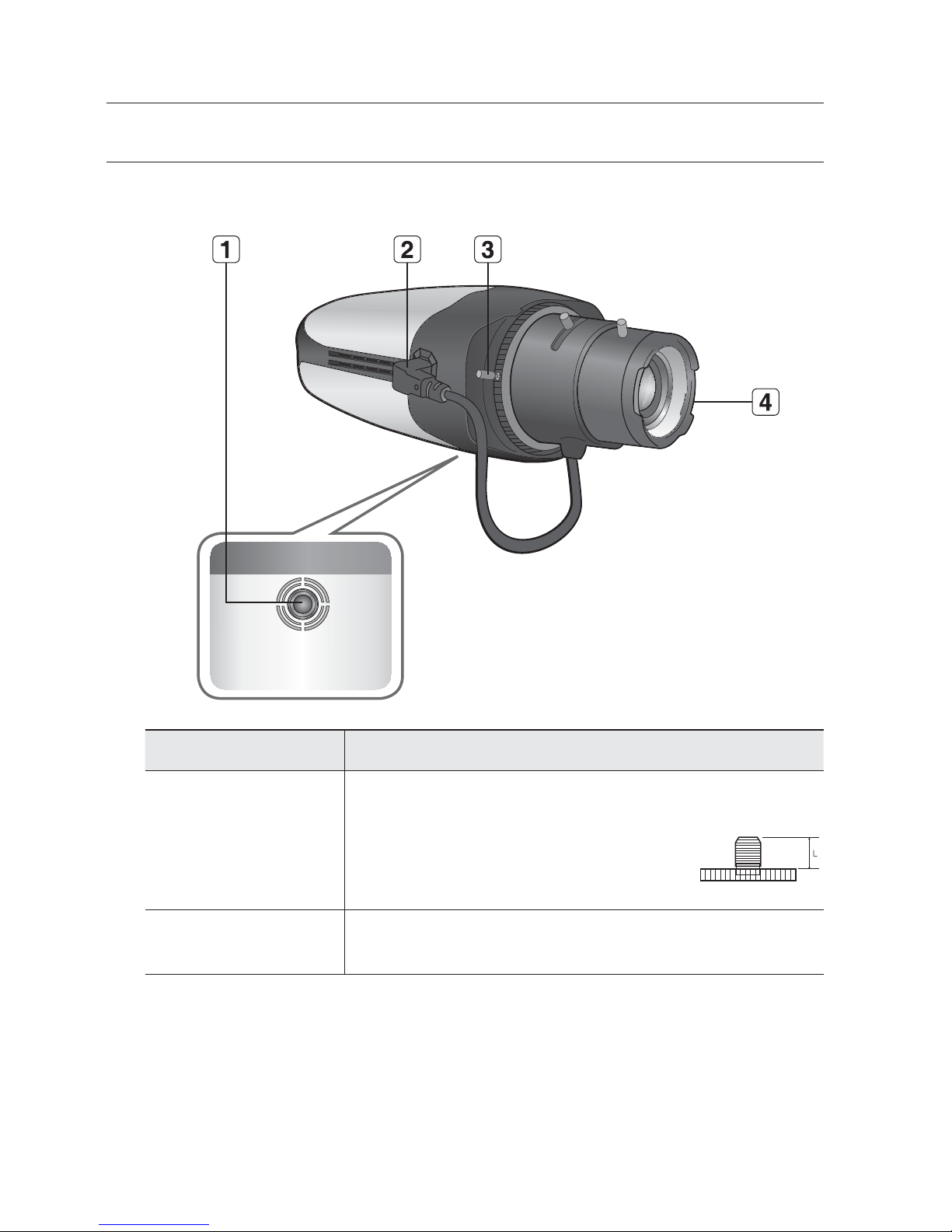

AT A GLANCE (SNB-1001)
Front Side
Item Description

Mounting Bracket
Screw Hole
Used to fix the camera on a mounting bracket.
The screw size : use this screw to fix the mounting bracket.
1/4" - 20UNC (20THREAD/1")
L : 4.5mm±0.2mm (ISO Standard), or 0.197"
(ASA Standard)
b
Auto Iris Lens
Connector Used to supply power and output signal to control the iris of the lens.

English _13
●OVERVIEW
Item Description
c
FBL Lever Adjust the FBL (Flange-Back Length) value according to the lens.

Auto Iris Lens
(Optional) Installed on the lens adaptor.
M
Wipe out a dirty surface of the lens softly with a lens tissue or cloth to which you have applied
ethanol.
Mounting Bracket is not included.
For more information to use mounting bracket, refer to the product’s documentation.

overview
14_ overview
Rear Side
Item Description

Micro SD Memory
Card Compartment Compartment for the Micro SD memory card.
b
Audio terminal
AUDIO OUT Terminal for audio output.
AUDIO IN Terminal for audio input.
c
Video Out Port Analog video output port. (for installation)

Reset Button
Resets the camera settings to the default.
Press and hold for about 5 seconds to reboot the system.
J
If you reset the camera, the network settings will be adjusted so that
DHCP can be enabled. If there is no DHCP server in the network, you
must run the IP Installer program to change the basic network settings
such as IP address, Subnet mask, Gateway, etc., before you can
connect to the network.
GND
VIDEO
INOUT
ALARM
IN
ACT
DC12V
LINK
NETWORK
RESET
AUDIO

English _15
●OVERVIEW
Item Description

Power Port Used to plug the power cable.

Alarm Input Port Used to connect the alarm input signal.

Network Port Used to connect a PoE or LAN cable.

overview
16_ overview
AT A GLANCE (SND-1080)
Appearance
Item Description

Dome Cover Dome cover for the lens and unit protection.
b
Main unit Main unit includes the lens, switch board, PCB boards and screws.
c
Power Port Used to plug the power cable.

Alarm Input Port
BROWN = Alarm IN Used to connect the alarm input sensor.
BLACK = GND Used for earth-grounding.

Network Port Used to connect a PoE or LAN cable.

Audio In Jack Used to connect to a microphone.

Audio Out Jack Used to connect to speakers.

English _17

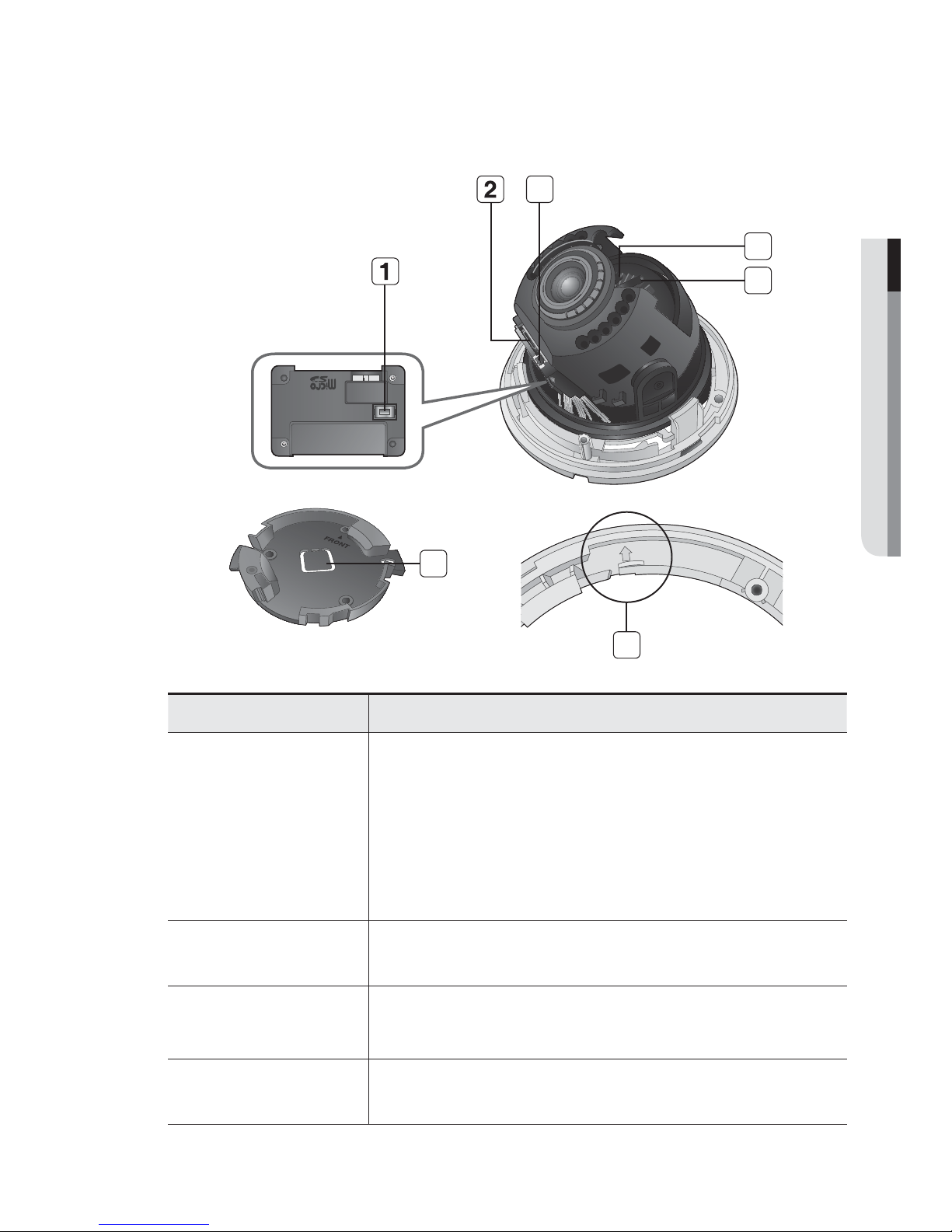

●OVERVIEW
Components
Item Description

Reset Button
Resets the camera settings to the default.
Press and hold for about 5 seconds to reboot the system.
JIf you reset the camera, the network settings will be adjusted so that
DHCP can be enabled. If there is no DHCP server in the network, you
must run the IP Installer program to change the basic network settings
such as IP address, Subnet mask, Gateway, etc., before you can
connect to the network.
b
Micro SD Memory
Card Compartment Compartment for the Micro SD memory card.
c
Monitor Out Using the test monitor cable, you can connect to a mobile display for camera
test. (for installation)

Focus lever Turn the barrel left or right to adjust the focus, and turn the knob clockwise
to lock the focus.
U
N
L
O
C
K
4
5
6
7
3
RESETRESET
VIDEO
OUT

overview
18_ overview
Item Description

ZOOM lever Turn the barrel left or right to adjust the zoom, and turn the knob clockwise
to lock the zoom.

Lock Release
To separate the bracket from the main unit for the installation or to separate
the camera from an installed camera, push this release and turn the main
unit in the marked direction of <UNLOCK>.

Wiring Cover Arrange the cables through this hole.

English _19
●OVERVIEW

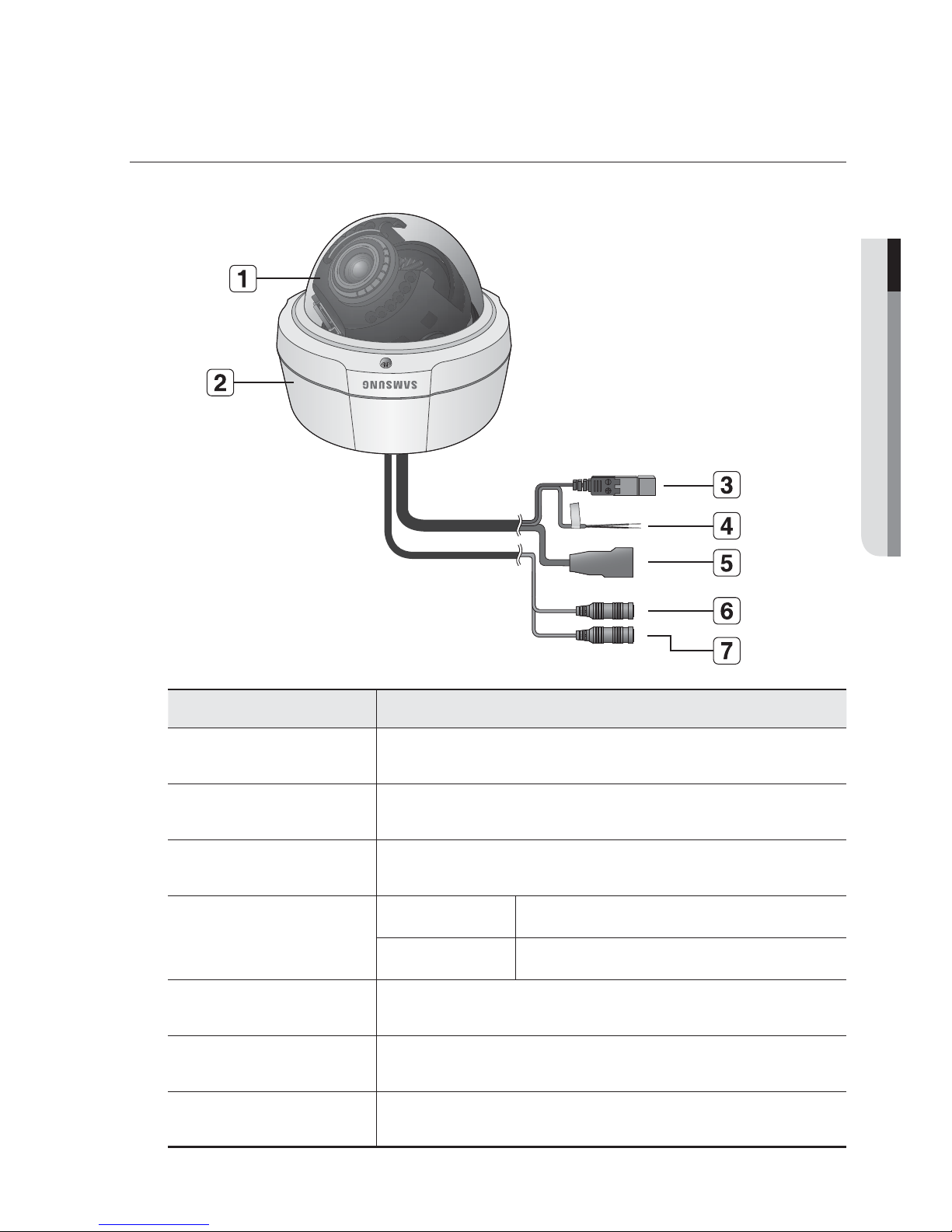

AT A GLANCE (SNV-1080)
Appearance
Item Description

Dome Cover Dome cover for the lens and unit protection.
b
Main unit Main unit includes the lens, switch board, PCB boards and screws.
c
Power Port Used to plug the power cable.

Alarm Input Port
BROWN = Alarm IN Used to connect the alarm input sensor.
BLACK = GND Used for earth-grounding.

Network Port Used to connect a PoE or LAN cable.

Audio In Jack Used to connect to a microphone.

Audio Out Jack Used to connect to speakers.

overview
20_ overview
Components
Item Description

Reset Button
Resets the camera settings to the default.
Press and hold for about 5 seconds to reboot the system.
JIf you reset the camera, the network settings will be adjusted so that
DHCP can be enabled. If there is no DHCP server in the network, you
must run the IP Installer program to change the basic network settings
such as IP address, Subnet mask, Gateway, etc., before you can
connect to the network.
b
Micro SD Memory
Card Compartment Compartment for the Micro SD memory card.
c
Monitor Out Using the test monitor cable, you can connect to a mobile display for camera
test. (for installation)

Focus lever Turn the barrel left or right to adjust the focus, and turn the knob clockwise
to lock the focus.

ZOOM lever Turn the barrel left or right to adjust the zoom, and turn the knob clockwise
to lock the zoom.
RESETRESET
VIDEO
OUT
4
5
3
