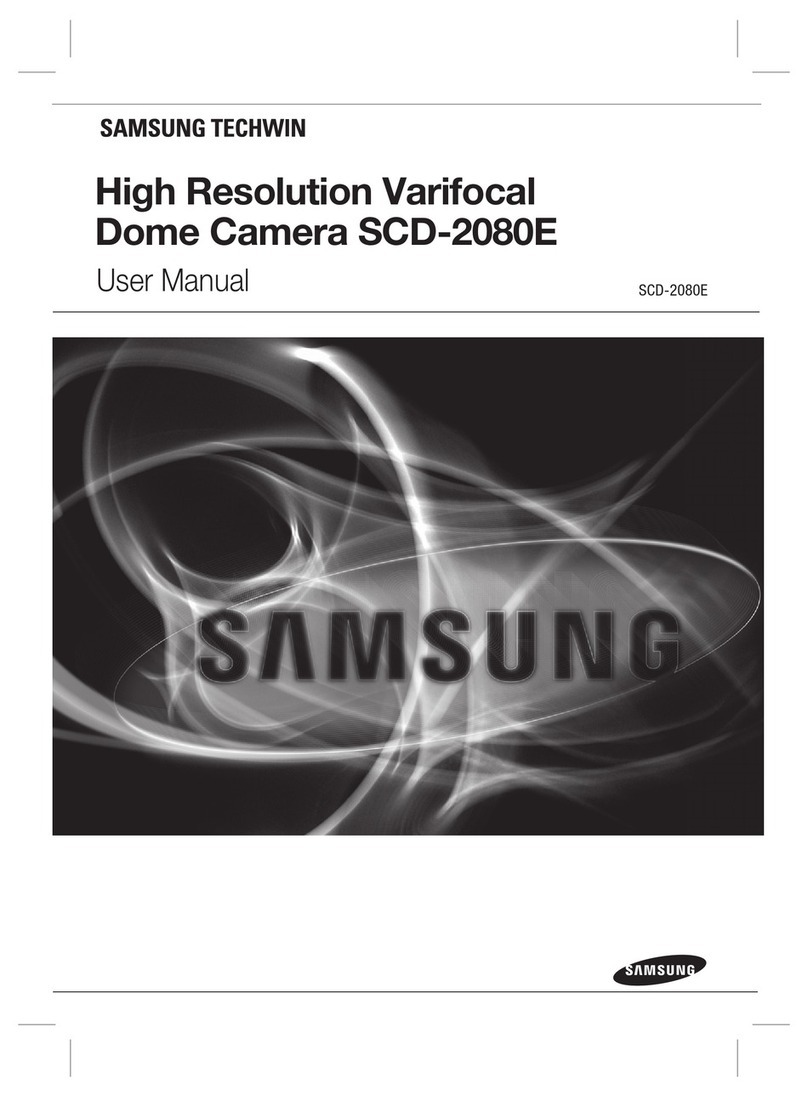

Samsung SCD-2080EN User manual

Better performance indoor dome
www.samsung-security.com05-2011
• High resolution of 600TV lines, 700TV lines (B/W)
• Min. illumination [email protected] (Color), 0.001Lux (B/W)
• 2.4x V/F lens (2.5 ~ 6mm)
• MD, SSNRIII (3D+2D), Dual power (24V AC/12V DC)
• Pelco "C" Coax Control
• Available in Black (SCD-2080EB)
SCD-2080E
High Resolution Varifocal Dome Camera
Equipped with Samsungs latest W-V DSP chipset, the SCD-2080E achieves vivid
images at 600TV lines resolution. With low light levels of 0.15lux, it delivers clear
video even at night. The SCD-2080E's 3.6x varifocal lens (2.8 ~ 10mm) provides
maximum flexibility for installation. In addition there is built-in coaxial control
compatibility, MD and SSNRⅢfunction for improved performance.

SCD-2080EN SCD-2080EP
VIDEO
Imaging Device 1/3" Super HAD CCD
Total Pixels 811(H) x 508(V) 795(H) x 596(V)
Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
Scanning System 2 : 1 Interlace
Synchronization Internal / Line lock
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 600TV lines, B/W : 700TV lines
Min. Illumination Color : [email protected] (50IRE), 0.0003Lux (Sens-up, 512x)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vp-p / 75Ωcomposite
LENS
Focal Length (Zoom Ratio)
2.8 ~ 10mm (3.6x) : SCD-2080E
Max. Aperture Ratio 1 : 1.2(Wide) ~ 2.8(Tele)
Angular Field of View H : 94.4°(Wide) ~ 28°(Tele) / V : 69.2°(Wide) ~ 21°(Tele) : SCD-2080E
Lens Type DC auto iris
Mount Type Board type
PAN / TILT
Pan Range 0° ~ 352°
Tilt Range 0° ~ 73°
Rotate Range 0° ~ 348°
OPERATIONAL
On Screen Display English, Japanese, Spanish, French,
Portuguese, Taiwanese, Korean
English, French, German, Spanish, Italian,
Chinese, Russian, Polish, Czech, Romanian,
Serbian, Swedish, Danish, Turkish, Portuguese
Camera Title Off / On (Displayed 15 characters)
Day & Night Auto (Electrical ) / Color / B/W
Backlight Compensation
BLC / HLC / Off
Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction SSNR
III (Off / On)
Digital Image Stabilization
Off / On
Motion Detection Off / On (8 programmable zones)
Privacy Masking Off / On (12 programmable zones)
Sens-up (Frame Integration)
2x ~ 512x
Gain Control Off / Low / High
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700K° ~ 11,000K°)
Electronic Shutter Speed
1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Digital Zoom Off / On (1x ~ 16x)
Flip Vertical / Horizontal
Communication Coaxial control
Protocol Coax : Pelco-C (Coaxitron)
ENVIRONMENTAL
Operating Temperature / Humidity
-10°C ~ +50°C (+14°F ~ +122°F) / Less than 90% RH
ELECTRICAL
Input Voltage Dual (24V AC & 12V DC ±10%)
Power Consumption Max. 3.5W
MECHANICAL
Color / Material Ivory or Black / Plastic
Dome COver Clear
Dimensions (WxH) Ø115.8 x 92.7mm (Ø4.56" x 3.65")
Weight 345g (0.76 lb)
Also available in black : SCD-2080EB/2060EB
High Resolution Varifocal Dome Camera
SCD-2080E
Specifications
M.E-1009
DISTRIBUTED BY
Dimensions Unit : mm (inch)
92.7 (3.65")
Ø115.8 (4.56")
SCD-2080E
SCD-2080EB
Design and specifications are subject to change without notice.
The Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,and indicates
that the product satisfies the EU RoHS Directive.
