Samsung SND-5080 User manual

NETWORK CAMERA
User Manual SNB-5000/SND-5080/
SND-5080F/SNV-5080

Copyright
©2011 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall
be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no
formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own
responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.
Warranty
If the product does not operate properly in normal conditions, please let us know. Samsung Techwin will resolve the
problem for free of charge. The warranty period is 3 years. However, the followings are excluded:
•If the system behaves abnormally because you run a program irrelevant to the system operation.
•Deteriorated performance or natural worn-out in process of time
Design and specifications are subject to change without prior notice.
The default password can be exposed to a hacking thread so it is recommended to change the password
after installing the product.
Note that the security and other related issues caused by the unchanged password shall be responsible
for the user.
Network Camera
User Manual

English _3
●OVERVIEW
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, conve-
nience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for
long periods of time.
14.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
overview

overview
4_ overview
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC
OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS
ON THE EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

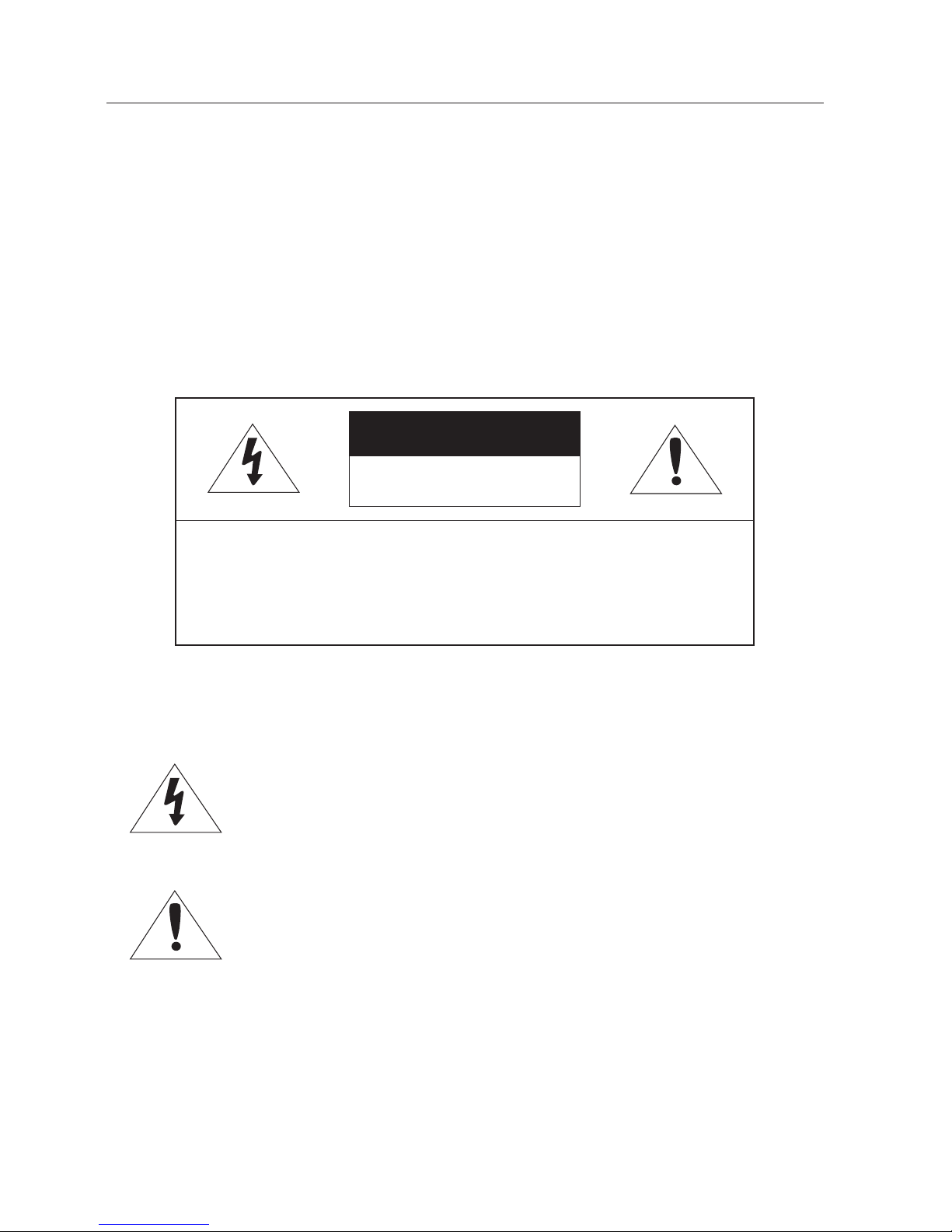

EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the product.

English _5
●OVERVIEW
Class construction
An apparatus with CLASS construction shall be connected to a MAINS
socket outlet with a protective earthing connection.
Battery
Batteries(battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.
Disconnection Device
Disconnect the main plug from the apparatus, if it’s defected. And please call
a repair man in your location.
When used outside of the U.S., it may be used HAR code with fittings of
an approved agency is employed.
CAUTION
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock do not perform any servicing other than
that contained in the operating instructions unless you are qualified to do so.
The BNC Out terminal of the product is provided for easier installation, and is
not recommended for monitoring purposes.
If you keep the BNC cable connected, a risk of lightening may cause damage
or malfunction to the product.
Please use the input power with just one camera and other devices must not
be connected.

overview
6_ overview
Please read the following recommend safety precautions carefully.
User’s Manual is a guidance book how to use the products
The meaning of the symbols are shown below.
Reference : In case of providing information for helping of product’s usages
Notice : If there’s any possibility to occur any damages for the goods and
human caused by not following the instruction
Please read this manual for the safety before using of goods and keep it in
the safe place.

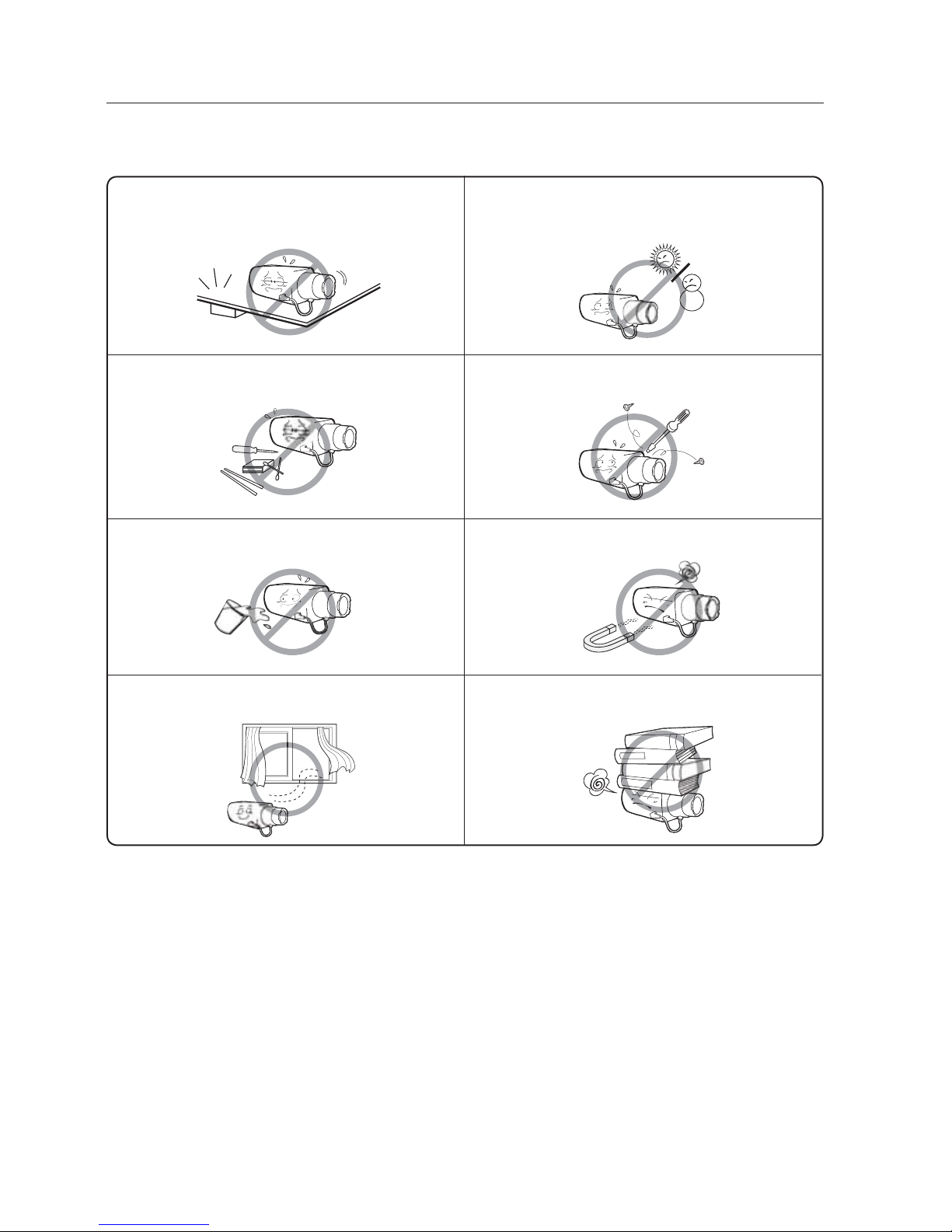

Do not place this apparatus on an uneven surface. Do not install on a surface where it is exposed to direct
sunlight, near heating equipment or heavy cold area.
Do not place this apparatus near conductive material. Do not attempt to service this apparatus yourself.
Do not place a glass of water on the product. Do not install near any magnetic sources.
Do not block any ventilation openings. Do not place heavy items on the product.

English _7
●OVERVIEW
CONTENTS
OVERVIEW
3
3Important Safety Instructions
9Product Features
9Recomended PC Specifications
10 Recomended SD/SDHC Memory
Card Specifications
10 What’s Included
13 At a Glance (SNB-5000)
16 At a Glance (SND-5080)
19 At a Glance (SND-5080F)
22 At a Glance (SNV-5080)
INSTALLATION &
CONNECTION
25
25 Installation (SND-5080)
27 Installation (SND-5080F)
29 Installation (SNV-5080)
34 Mounting the Lens
35 Inserting/Removing an SD
Memory Card
38 Memory Card Information
(Not Included)
39 Connecting with other Device
NETWORK CONNECTION
AND SETUP
44
44 Connecting the Camera Directly
to Local Area Networking
45 Connecting the Camera Directly
to a DHCP Based DSL/Cable
Modem
46 Connecting the Camera Directly
to a PPPoE Modem
47 Connecting the Camera to a
Broadband Router with the
PPPoE/Cable Modem
48 Buttons used in IP Installer
49 Static IP Setup
52 Dynamic IP Setup
53 Port Range Forward (Port Mapping)
Setup
55 Connecting to the Camera from a
Shared Local PC
55 Connecting to the Camera from a
Remote PC via the Internet

overview
8_ overview
SETUP SCREEN
66
66 Setup
66 Audio & Video Setup
75 Network Setup
81 Event Setup
89 System Setup
APPENDIX
94
94 Specification
99 Troubleshooting
101 Open Source Announcement
103 GPL/LGPL Software License
WEB VIEWER
56
56 Connecting to the Camera
57 Login
58 Installing ActiveX
59 Installing Silverlight Runtime
61 Using the Live Screen
64 Playback

English _9
●OVERVIEW
PRODUCT FEATURES
HD Video Quality
Multi-Streaming
This network camera can display videos in different resolutions and qualities simultane-
ously using different CODECs.
MHowever, MPEG-4 video can not be played on a web page. Use CMS software if you want to play
the video on a web page.
Web Browser-based Monitoring
Using the Internet web browser to display the image in a local network environment.
Alarm
If an event occurs, the event-related video will be transferred to the email specified by the
user or saved to the SD memory, or the event signal will be sent to the Alarm Out port.
Intelligent Video Analysis
Analyzes the event video according to the user-specified rules to recognize the event.
ONVIF (Spec 1.02) Compliance
This product supports ONVIF Core Spec. 1.02.
For more information, refer to www.onvif.org.
RECOMENDED PC SPECIFICATIONS
CPU : Intel(R) Core(TM)2 2.00 GHz or higher
Operating System : Windows XP, VISTA, 7
Mac OS
Resolution : 1280X1024 pixels or higher
RAM : 1GB or higher
Web Browser :
Internet Explorer 7.0 or higher,Firefox, Chrome, Safari
Neither a beta test version unlike the version released in the company website nor the developer version will
be supported.
On Firefox v3.5 or higher, displaying warning message dialog may cause an error.
If connecting to IPv6 in Windows XP, it can cause some problem.
It is recommended to connect to IPv6 in Windows 7.
Video Memory : 128MB or higher

overview
10_ overview
RECOMENDED SD/SDHC MEMORY CARD SPECIFICATIONS
2GB ~ 32GB
To ensure proper recording of video data, we recommend you use a memory card that
supports at least read/write speed 10Mbps and Class 6.
WHAT’S INCLUDED
Please check if your camera and accessories are all included in the product package.
Appearance Item Name Quantity Description Model Name
User Manual,
Installer S/W CD,
CMS S/W DVD
2
SNB-5000
SND-5080/5080F
SNV-5080
Quick Guide 1
Jack Modular 1 LAN cable gender
SND-5080/5080F
SNV-5080
Cable for the testing
monitor 1
Used to test the camera
connection to a portable display
device
Alarm Cable 1 Used to connect to Alarm I/O
Template 1 Product installation guide SND-5080F
SNV-5080
Iron Screw 3 Used for fixing to an iron plate SND-5080/5080F

English _11
●OVERVIEW
Appearance Item Name Quantity Description Model Name
Dustproof Plate 1 Preventing dust inflow SND-5080
C Mount Adapter
Auto Iris Lens Connector 1
Used to install the camera lens
SNB-5000
Camera Holder (Mount) 1 Used to install the camera holder
Camera Holder (Mount)
Screws 2
Used to install the mount
ASSY-Tapping Screw 4
Used for installation on the wall or
ceiling
SNV-5080
L Wrench 1
Used to remove/fix the dome
cover
Plastic Anchor 4
For fixing a screw, Inserted in
a hole (reinforced anchoring
force)
Rubber cap 3 Insulation cap for improved
EMC performance.

overview
12_ overview
Appearance Item Name Quantity Description Model Name
Tapping Screw 1
SND-5080F
Bracket Safety 1
Lens Options (not included)
CS/C Lens Optional lens to be inserted in a
camera SNB-5000
M The Test Monitor Cable is connected to a portable displayer and used for testing the camera.
If you intend to use it for an actual monitoring camera, use the BNC cable instead.
For improved EMC performance, it is recommended to use the insulation cap provided as an
accessory.

English _13
●OVERVIEW

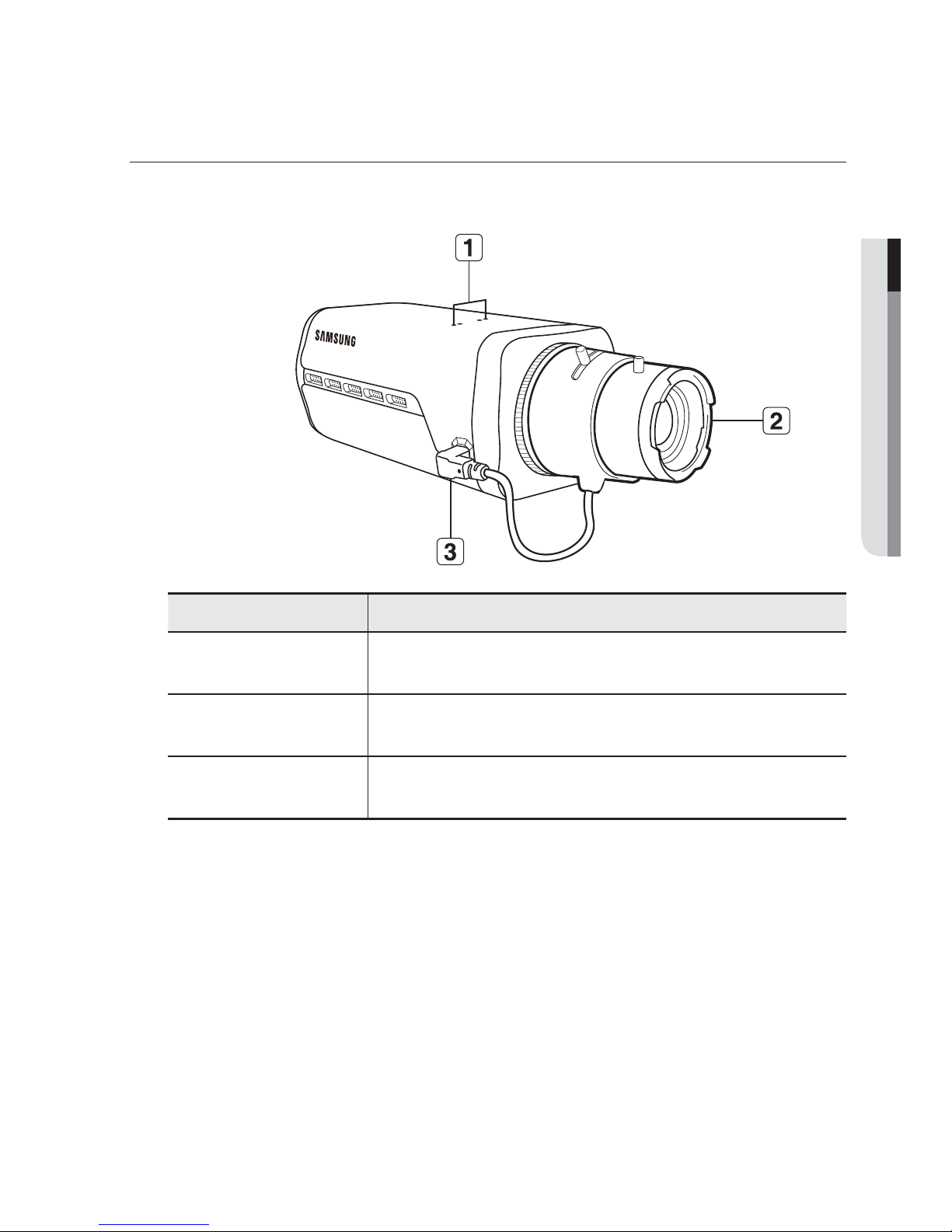

AT A GLANCE (SNB-5000)
Front Side
Item Description

Camera Holder
(Mount) Holes
Used when you mount the camera onto the bracket by fixing the camera
holder (mount) adaptor with the bracket.
b
Auto Iris Lens
(Optional)
Installed on the lens adaptor.
c
Auto Iris Lens
Connector Used to supply power and output signal to control the iris of the lens.
M Wipe out a dirty surface of the lens softly with a lens tissue or cloth to which you have applied
ethanol.
SNB-5000

overview
14_ overview

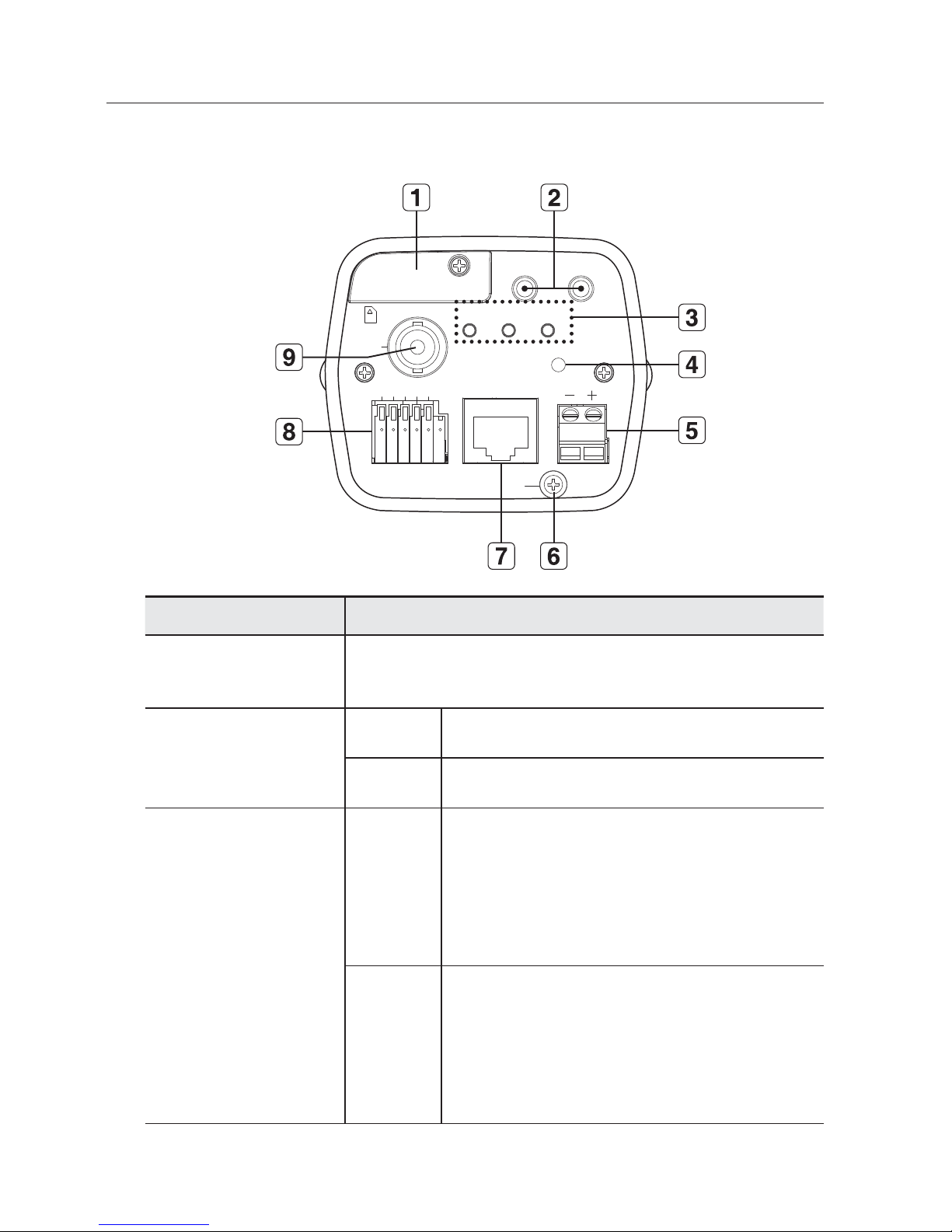

Rear Side
Item Description

SD Memory Card
Compartment Compartment for the SD memory card.
b
Audio terminal
AUDIO OUT Terminal for audio output.
AUDIO IN Terminal for audio input.
c
System, Power,
SD Indicators
SD
ON : A memory card is inserted and operates normally.
Flashing : Failed to record, insufficient space, or inserted
abnormally.
OFF : Camera is off, camera is restarting, memory card is
not in place, or when record is off.
SYSTEM
ON : The camera is turned on and connected to the network
properly.
Flashing : During DDNS setup, or in case of setup failure, or
in a state of unstable network connection.
OFF : When the system is rebooting, or turned off.
SD CARD
AUDIO OUT
VIDEO
1 2 3 4 5
SD SYSTEM POWER
RESET
NETWORK
ACT LINK
GND
1 : ALARM IN 4 : -
2 : ALARM OUT 5 : GND
3 : ALARM COM
AC 24V
DC 12V
AUDIO IN

English _15
●OVERVIEW
Item Description
c
System, Power,
SD Indicators POWER ON : While the power is on
OFF : If the power is off

Reset Button
Resets the camera settings to the default. Press and hold it for about 5
seconds to turn off the system indicator and restart the system.
J
If you reset the camera, the network settings will be adjusted so that
DHCP can be enabled. If there is no DHCP server in the network, you
must run the IP Installer program to change the basic network settings
such as IP address, Subnet mask, Gateway, etc., before you can
connect to the network.

Power Port Used to plug the power cable.

GND Used for earth-grounding.

Network Port Used to connect a PoE or LAN cable.

I/O Port
ALARM IN Used to connect the alarm input signal.
ALARM OUT Used to connect the alarm output signal.
ALARM COM Common port where the alarm output signal is connected.
GND Used for earth-grounding.

Video Out Port Analog video output port. (for installation)

overview
16_ overview

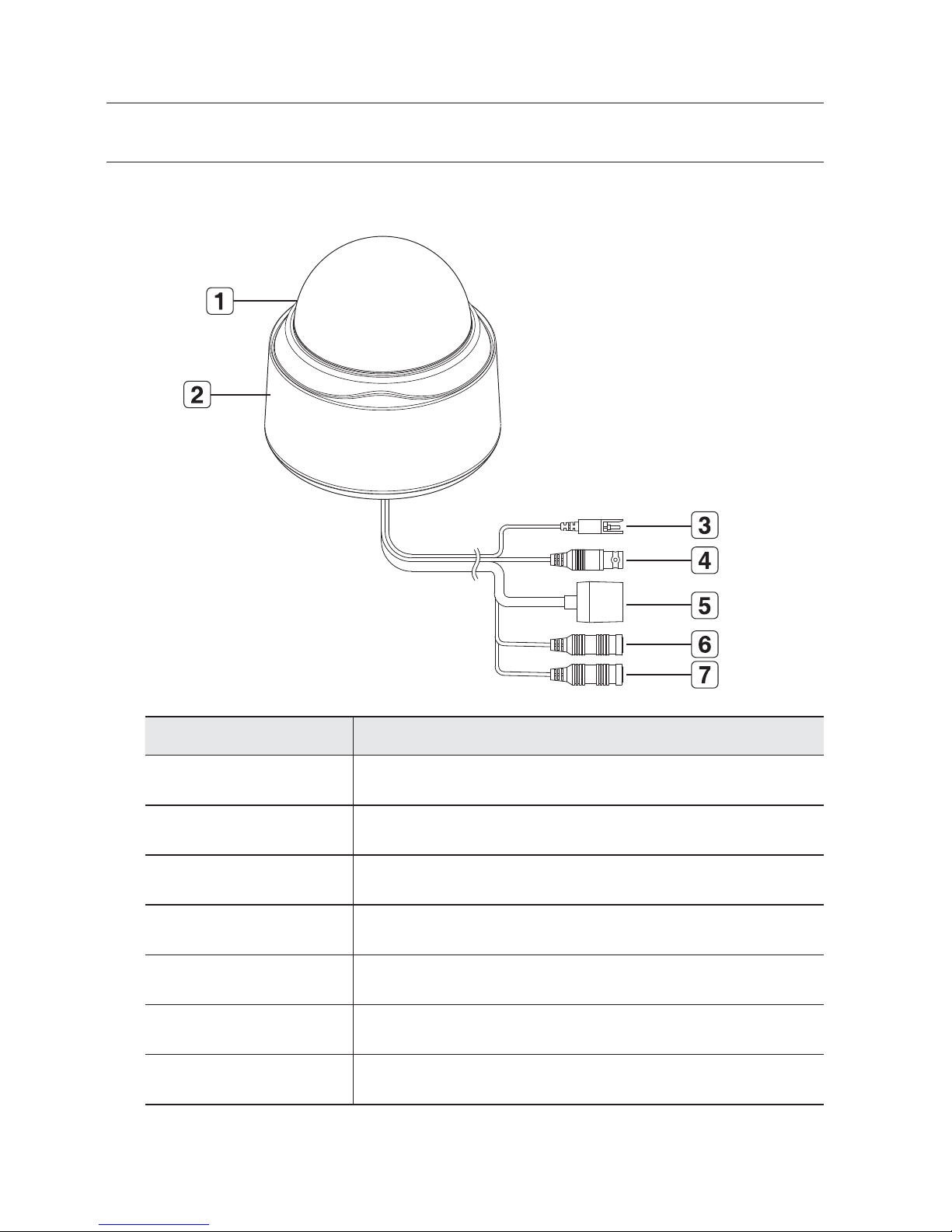

AT A GLANCE (SND-5080)
Appearance
Item Description

Dome Cover Dome cover for the lens and unit protection.
b
Main unit Main unit includes the lens, switch board, PCB boards and screws.
c
Power Port Used to plug the power cable.

Video Out Port Analog video output port. (for installation)

Network Port Used to connect a PoE or LAN cable.

Audio In Jack Used to connect to a microphone.

Audio Out Jack Used to connect to speakers.

English _17
●OVERVIEW

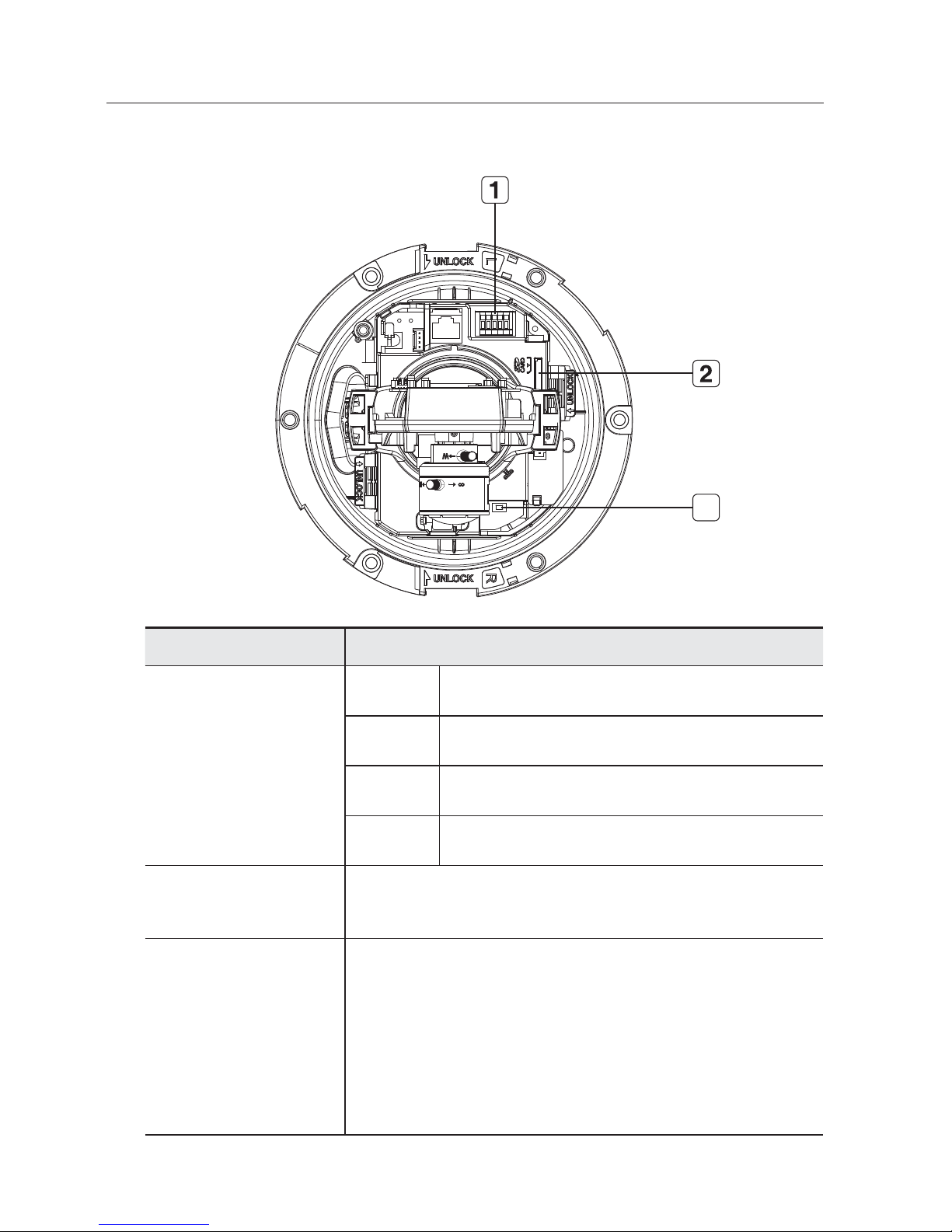

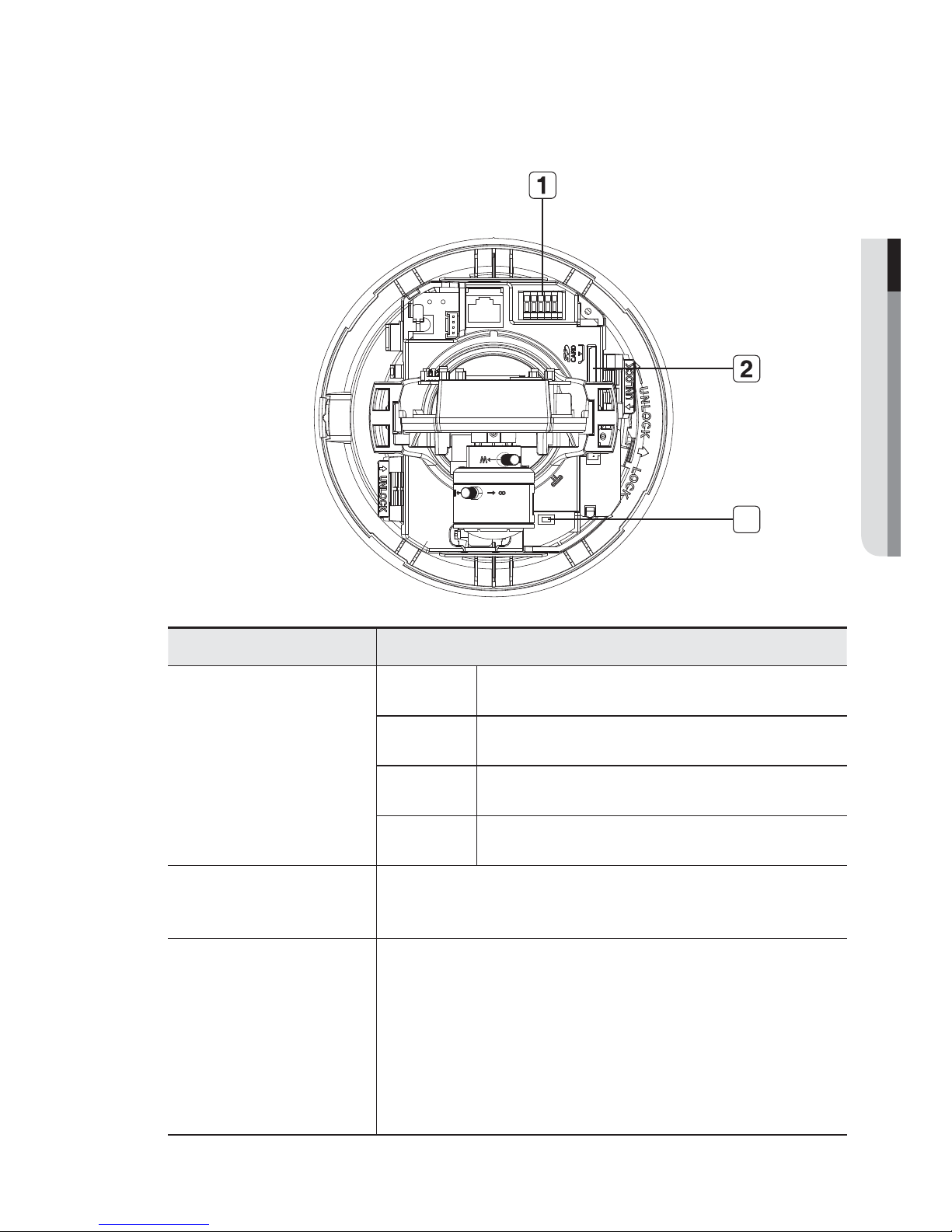

Inside
Item Description

Alarm In / Out
terminals
ALARM IN Used to connect the alarm input signal.
ALARM OUT Used to connect the alarm output signal.
ALARM COM Common port where the alarm output signal is connected.
GND Used for earth-grounding.
b
SD Memory Card
Compartment
Compartment for the SD memory card.
c
Reset Button
Resets the camera settings to the default. Press and hold it for about 5
seconds to turn off the system indicator and restart the system.
J
If you reset the camera, the network settings will be adjusted so that
DHCP can be enabled. If there is no DHCP server in the network, you
must run the IP Installer program to change the basic network settings
such as IP address, Subnet mask, Gateway, etc., before you can
connect to the network.
3

overview
18_ overview

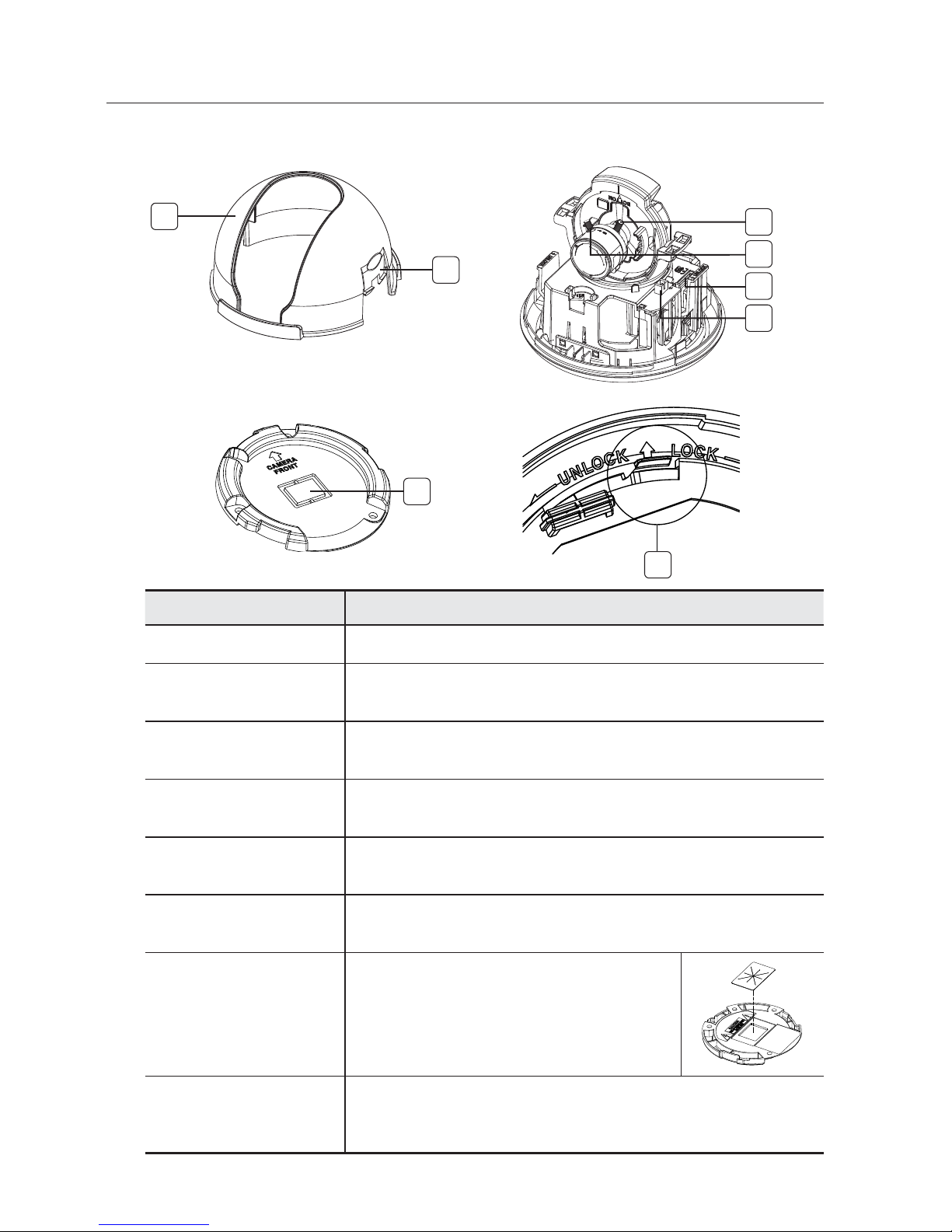

Components
Item Description

Inner Cover Cover for the main unit’s protection.
b
Side wing hooks By lifting it while gently pressing the both ends, you can separate the inner
cover.
c
ZOOM lever Turn the barrel left or right to adjust the zoom, and turn the knob clockwise
to lock the zoom.

Focus lever Turn the barrel left or right to adjust the focus, and turn the knob clockwise
to lock the focus.

SD Memory Card
Compartment Compartment for the SD memory card.

Monitor Out Using the test monitor cable, you can connect to a mobile display for camera
test.

Wiring Cover
If you drill a hole in the wiring cover for wiring,
remove the cover and attach the provided dustproof
plate to it, and arrange the cables through the plate.
The dust-proof plate is to prevent outside dust from
inflow to the wiring compartment.

Lock Release
To separate the bracket from the main unit for the installation or to separate
the camera from an installed camera, push this release and turn the main
unit in the marked direction of <UNLOCK>.
1
2
8
7
4
6
5
3

English _19
●OVERVIEW
AT A GLANCE (SND-5080F)
Appearance
Item Description

Dome Cover Dome cover for the lens and unit protection.
b
Main unit Main unit includes the lens, switch board, PCB boards and screws.
c
Power Port Used to plug the power cable.

Video Out Port Analog video output port. (for installation)

Network Port Used to connect a PoE or LAN cable.

Audio In Jack Used to connect to a microphone.

Audio Out Jack Used to connect to speakers.

overview
20_ overview
Inside
Item Description

Alarm In / Out
terminals
ALARM IN Used to connect the alarm input signal.
ALARM OUT Used to connect the alarm output signal.
ALARM COM Common port where the alarm output signal is connected.
GND Used for earth-grounding.
b
SD Memory Card
Compartment Compartment for the SD memory card.
c
Reset Button
Resets the camera settings to the default. Press and hold it for about 5
seconds to turn off the system indicator and restart the system.
J
If you reset the camera, the network settings will be adjusted so that
DHCP can be enabled. If there is no DHCP server in the network, you
must run the IP Installer program to change the basic network settings
such as IP address, Subnet mask, Gateway, etc., before you can
connect to the network.
3
