Samsung HW-J6000R User manual

HW-J6000R
HW-J6001R
For further information, refer to the Web Manual.
Web manual : www.Samsung.com →Support →
Product name search →HW-J6000R or HW-J6001R
User Manual

· 2 · English

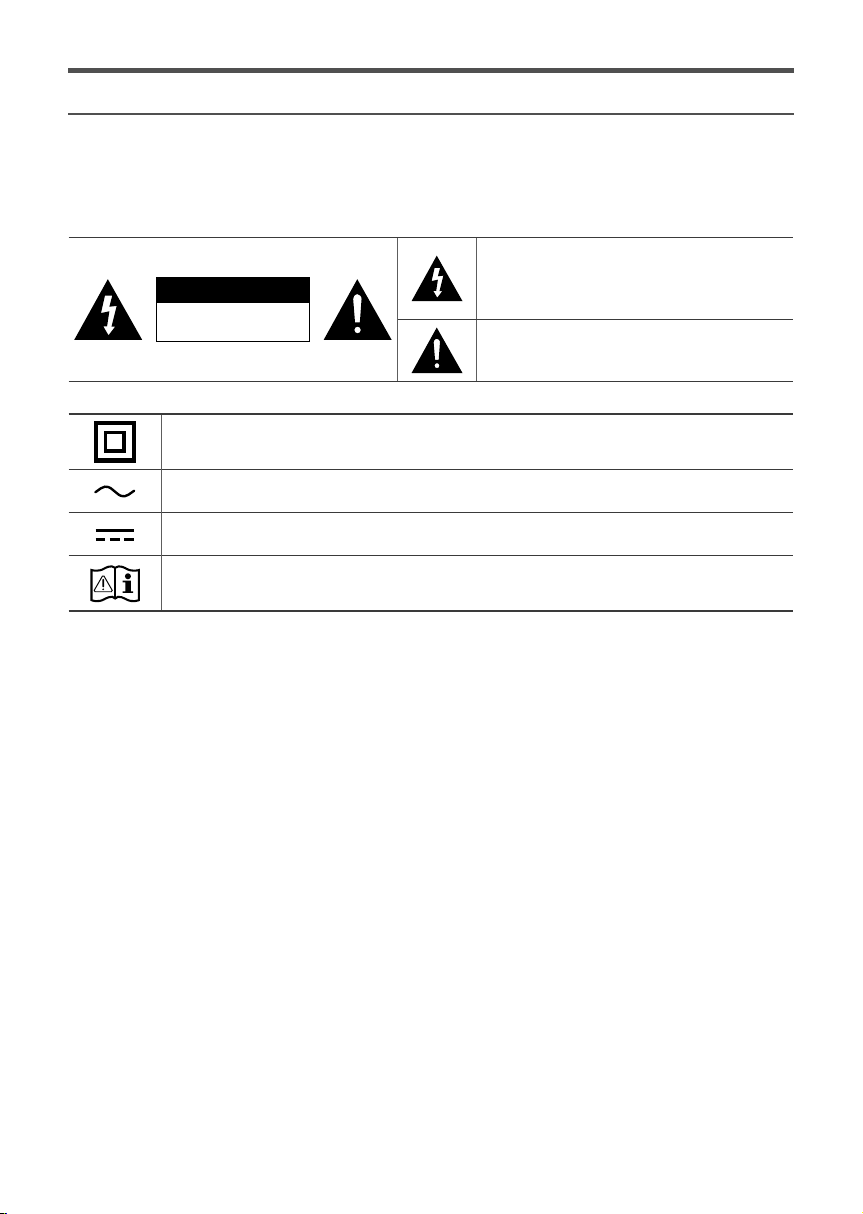

SAFETY INFORMATION
SAFETY WARNINGS
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates that high voltage is
present inside. It is dangerous to make any
kind of contact with any internal part of this
product.
This symbol indicates that important literature
concerning operation and maintenance has
been included with this product.
Class II product : This symbol indicates that it does not require a safety connection to electrical
earth (ground).
AC voltage : This symbol indicates that the rated voltage marked with the symbol is AC
voltage.
DC voltage : This symbol indicates that the rated voltage marked with the symbol is DC
voltage.
Caution, Consult instructions for use : This symbol instructs the user to consult the user
manual for further safety related information.
WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
• This apparatus shall always be connected to a AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the
mains plug shall be readily operable.
CAUTION
• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on
the apparatus.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the
power plug must be easily and readily accessible at all times.

· 3 · English
PRECAUTIONS
1. Ensure that the AC power supply in your house complies with the power requirements listed on the identification
sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with
enough space around it for ventilation (7~10 cm). Make sure the ventilation slots are not covered. Do not place the
unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn
off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long
period of time.
2. During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage
the unit.
3. Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and cause the unit
to malfunction.
4. Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or equipment creating strong
magnetic or electric fields. Disconnect the power cable from the AC supply if the unit malfunctions. Your product is
not intended for industrial use. It is for personal use only. Condensation may occur if your product has been stored
in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached
room temperature before using.
5. The batteries used with this product contain chemicals that are harmful to the environment.
Do not dispose of batteries in the general household trash. Do not dispose of batteries in a fire. Do not short circuit,
disassemble, or overheat the batteries. There is a danger of explosion if the battery is incorrectly replaced.
Replace only with the same or equivalent type.
WARNING, DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD,
The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is
swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries
away from children. If the battery compartment does not close securely, stop using the product and keep it away from
children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate
medical attention.

· 4 · English

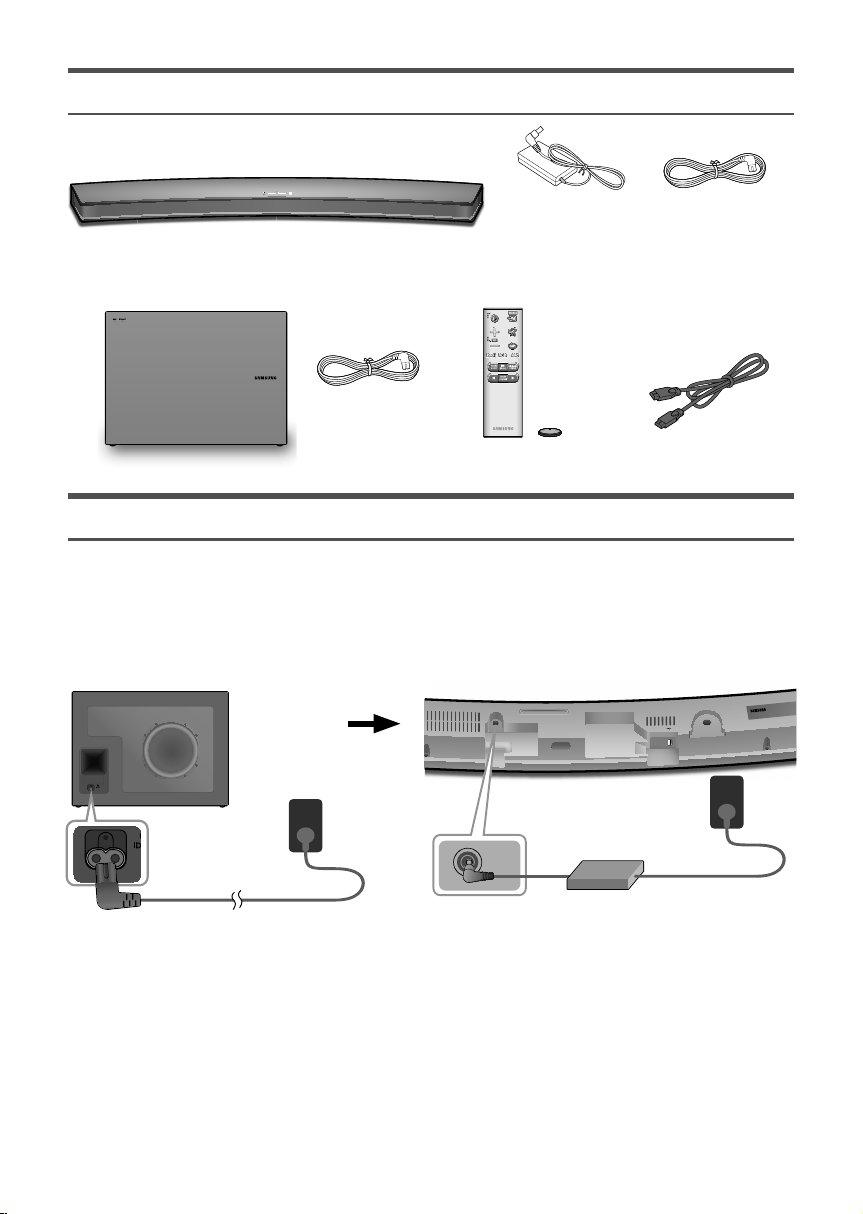

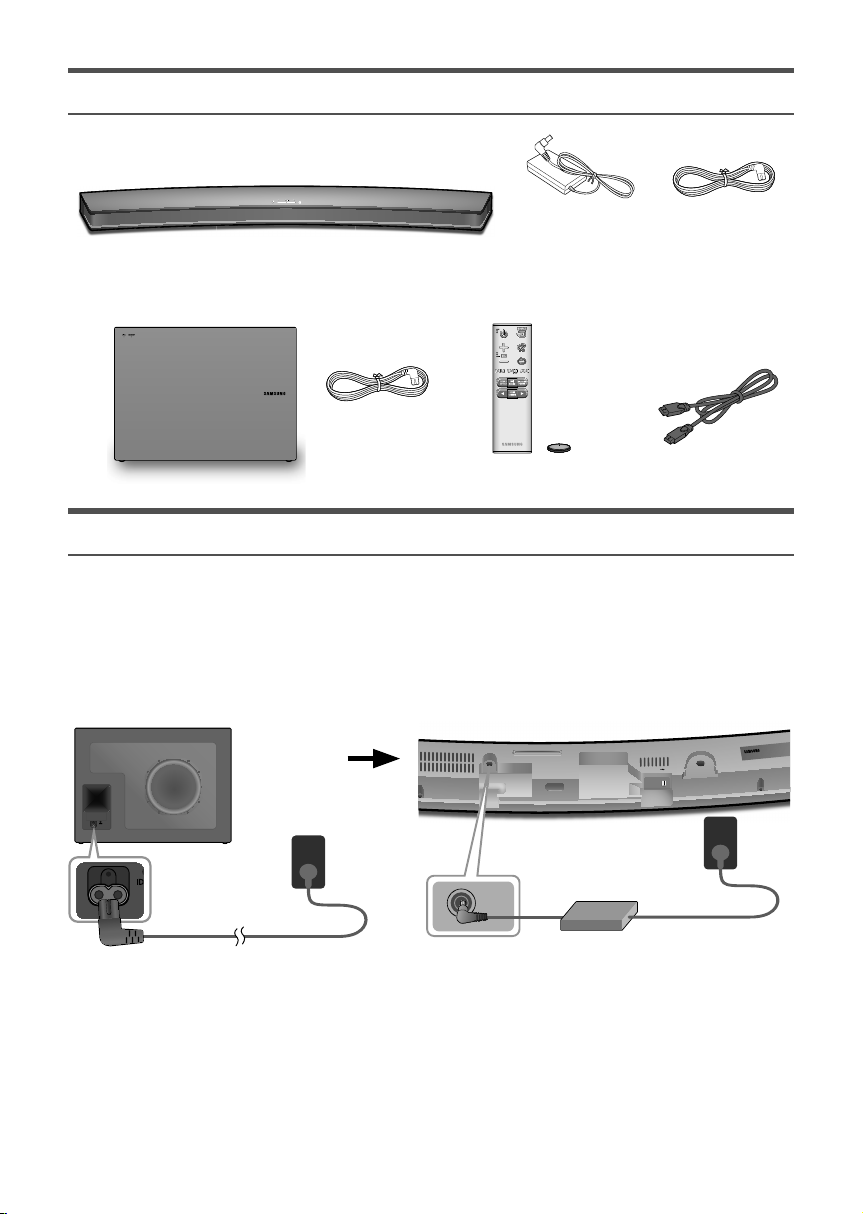

CHECKING THE COMPONENTS
Subwoofer
1Power Cord
Soundbar Main Unit
2AC/DC Adapter 3Power Cord
Remote Control /
Battery HDMI Cable
CONNECTING ELECTRICAL POWER
Use the power components (1, 2, 3) to connect the power supplies in the following order:
Subwoofer Soundbar Main Unit
cFor more information about the power supply and power consumption, refer to the label attached to the
product. (Label : Bottom of Soundbar main unit)
DC14V
AUXIN
OPTICALIN
HDMIIN
HDMIOUT
(TV-ARC)
5V0.5A
DC 14V
POWER
POWER
DC 14V
(Power Jack)
Connecting electrical power
1Power Cord
2AC/DC Adapter
3Power Cord
Rear of Subwoofer Rear of the Soundbar Main Unit
cMake sure to rest the AC/DC Adapter flat on a table or the floor. If you place the AC/DC Adapter so that it is
hanging with the AC cord input facing upwards, water or other foreign substances could enter the Adapter
and cause the Adapter to malfunction.

· 5 · English
CONNECTING THE SUBWOOFER TO THE SOUNDBAR
MAIN UNIT
You can enjoy rich bass tones and better sound quality by linking the subwoofer to the Soundbar main unit.
Subwoofer
Soundbar Main Unit
Sou
So
Unit
Unit
The Soundbar main unit and subwoofer should link (connect wirelessly) automatically when the Soundbar main
unit and subwoofer are turned on. When auto-connection is complete, the blue indicator on the front of the
subwoofer stops blinking and glows blue continuously.
cIf the indicator on the front of the subwoofer displays in red or flashes in blue, the subwoofer has not
automatically connected. If this occurs, follow the directions below to connect the subwoofer manually.
cImportant: Before you begin, put the battery into the remote. See page 12 for instructions.
POWER
1. Plug the power cords of the Soundbar main unit and subwoofer into an AC wall outlet.
2. Press the ID SET button on the rear of the subwoofer for 5 seconds. The red indicator on the front of the
subwoofer turns off and the blue indicator flashes rapidly.
3. Press the button on your remote control for 5 seconds while the Soundbar main unit is turned OFF.
4. The ID SET message appears on the display of the Soundbar main unit for a short period of time, and then
disappears.
ID SET

· 6 · English
5. While the subwoofer's indicator is flashing blue, press the button on your remote control or on the top of
the Soundbar main unit to turn on the Soundbar main unit.
6. The connection is complete if the indicator on the front of the subwoofer stops flashing and glows
continuously.
cIf the connection process fails, the blue indicator will flash continuously. Go to Step 2 and start again.
Expand to true wireless surround sound by connecting the Samsung Wireless Rear
Speaker Kit (SWA-8000S) to your Soundbar. (Sold separately)
cFor further information, refer to the Web Manual.
CONNECTING TO YOUR TV
You can enjoy TV sound after connecting the Soundbar to your TV with or without a cable.
cImportant: Before you begin, put the battery into the remote. See page 12 for instructions.

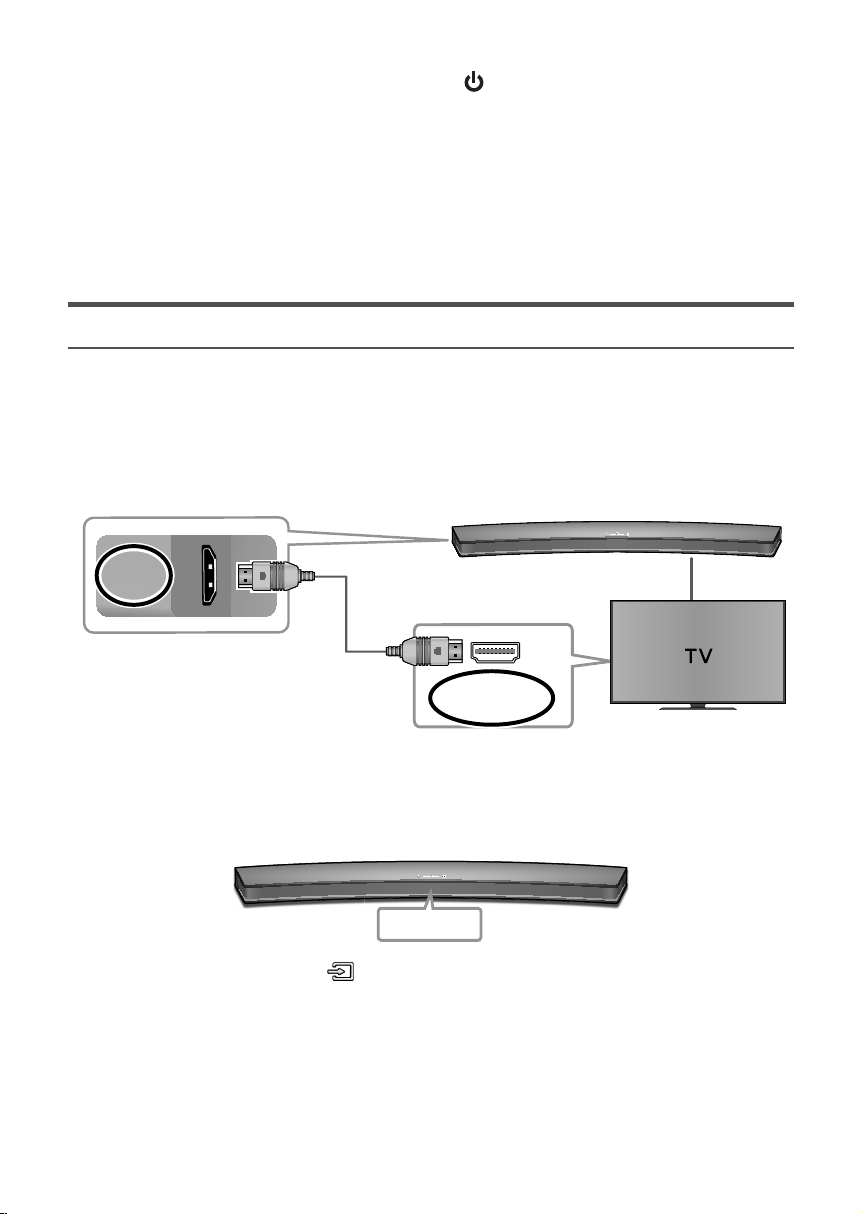

Method 1. Connecting with a Cable
HDMI OUT
(TV-ARC)
Bottom of Soundbar
HDMI IN
(TV-ARC)
Soundbar
HDMI Cable
Check the HDMI OUT (TV-ARC)
port of the Soundbar main unit.
Check the (TV-ARC) at
HDMI IN port of your TV.
1. Connect the HDMI cable as in the picture above.
2. TV ARC appears on display of the product and TV sound is output.
TV ARC
cIf TV sound is not output, press the button on the top of your Soundbar or the SOURCE button on the
remote control to select the D.IN mode on Soundbar main unit display. Then, the D.IN mode is changed to
TV ARC and TV sound is output.
cIf the Soundbar main unit display does not change to TV ARC, check the cable connections.
cYou can conveniently control the volume of the Soundbar and interlock power supply.

· 7 · English

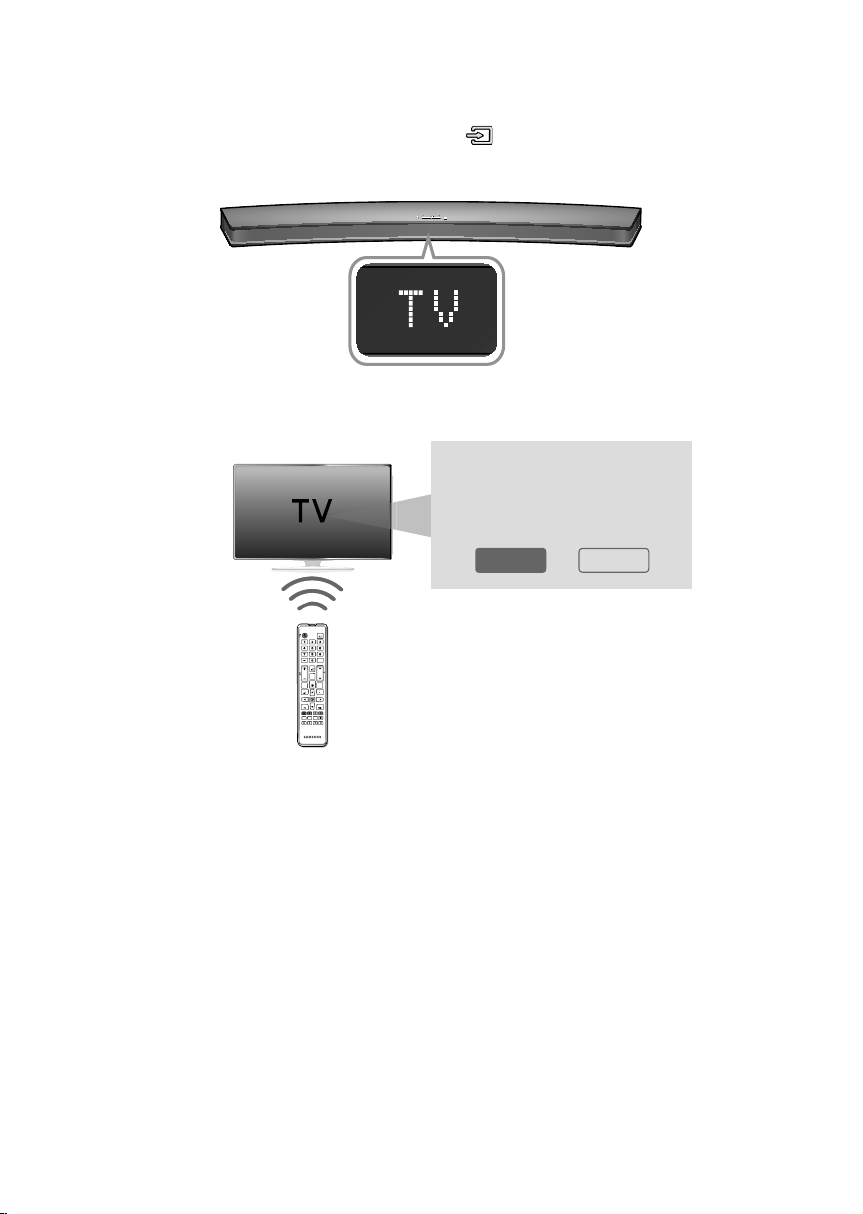

Method 2. TV SoundConnect (Linking to a Samsung TV with Bluetooth)
1. Turn on your Samsung TV and the Soundbar.
2. Select TV mode in your Soundbar display by pressing the button on the top of the Soundbar or the
SOURCE button on your remote control. (Modes are displayed in the following order: D.IN →AUX →HDMI
→BT →TV →USB.)
3. When the connection message shown below appears on the TV screen, select <Yes> with your TV remote
control.
Samsung Audio Device detected.
Do you want to hear TV sound
through this device?
Yes No
Select <Yes> with your TV remote control.
4. The Soundbar outputs TV sound.
cIf the TV SoundConnect linking process fails, navigate to SoundConnect in the TV's Sound menu, select
Add New Device, and set Add New Device to ON. Then, try again.
cIf your Soundbar is connected to your TV through TV SoundConnect, you can conveniently control the
volume with the Soundbar's remote or the TV's remote. You can also have the Soundbar turn on and off
automatically when you turn the TV on or off by setting the Bluetooth POWER On function to On.
See page 13.
cThe TV SoundConnect (Soundshare) function is only available in some Samsung TV products released since
2012.
cIf you want to disconnect the existing connection to your TV and establish a new connection to another TV,
press the &button on your remote control for more than 5 seconds.
cIn the TV SoundConnect mode, the Soundbar cannot be paired to another Bluetooth device.
cDo not place electronic devices or metallic objects on top of the product.
e.g., Wired/wireless router, set-top box, or modem.
cPlacing the product on the floor may degrade wireless network performance, depending on the floor material.

· 8 · English
CONNECTION VIA BLUETOOTH
You can connect a Bluetooth device to the Soundbar and enjoy music with stereo sound, all without wires!
cIt is not possible to connect multiple Bluetooth devices at the same time.
Connect
Bluetooth device
1. Press the button on the top of the Soundbar or the SOURCE button on the remote control to select BT.
2. Select the Bluetooth menu on the Bluetooth device you want to connect. (Refer to the Bluetooth device's
user manual.)
3. Select "[Samsung] HW-Jxxxx J-Series" from the list.
• When the connection is established between the Soundbar and Bluetooth device, the front display
window of the Soundbar displays [Bluetooth device name] → BT.
4. Play music on the connected device.
[If failed to connect to the Bluetooth device / If device searching is needed again]
• Delete the previous "[Samsung] HW-Jxxxx J-Series" found by the Bluetooth device and have it search for
the Soundbar again.
cIf asked for a PIN code when connecting a Bluetooth device, enter <0000>.
cIn Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar
and the Bluetooth device exceeds 10 meters.
cThe Soundbar automatically turns off after 5 minutes in the Ready state.
cThe Soundbar may not perform Bluetooth search or connection correctly under the following
circumstances:
–If there is a strong electrical field around the Soundbar.
–If several Bluetooth devices are simultaneously paired with the Soundbar.
–If the Bluetooth device is turned off, not in place, or malfunctions.
cElectronic devices may cause radio interference. Devices that generate electromagnetic waves must be
kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.
Disconnecting the Soundbar from the Bluetooth device
Press the SOURCE button on the remote control or the button on the product's top to switch from BT to
another mode or turn off the Soundbar.
• The connected Bluetooth device will wait a certain amount of time for a response from the Soundbar before
terminating the connection. (Disconnection time may differ, depending on the Bluetooth device)

· 9 · English

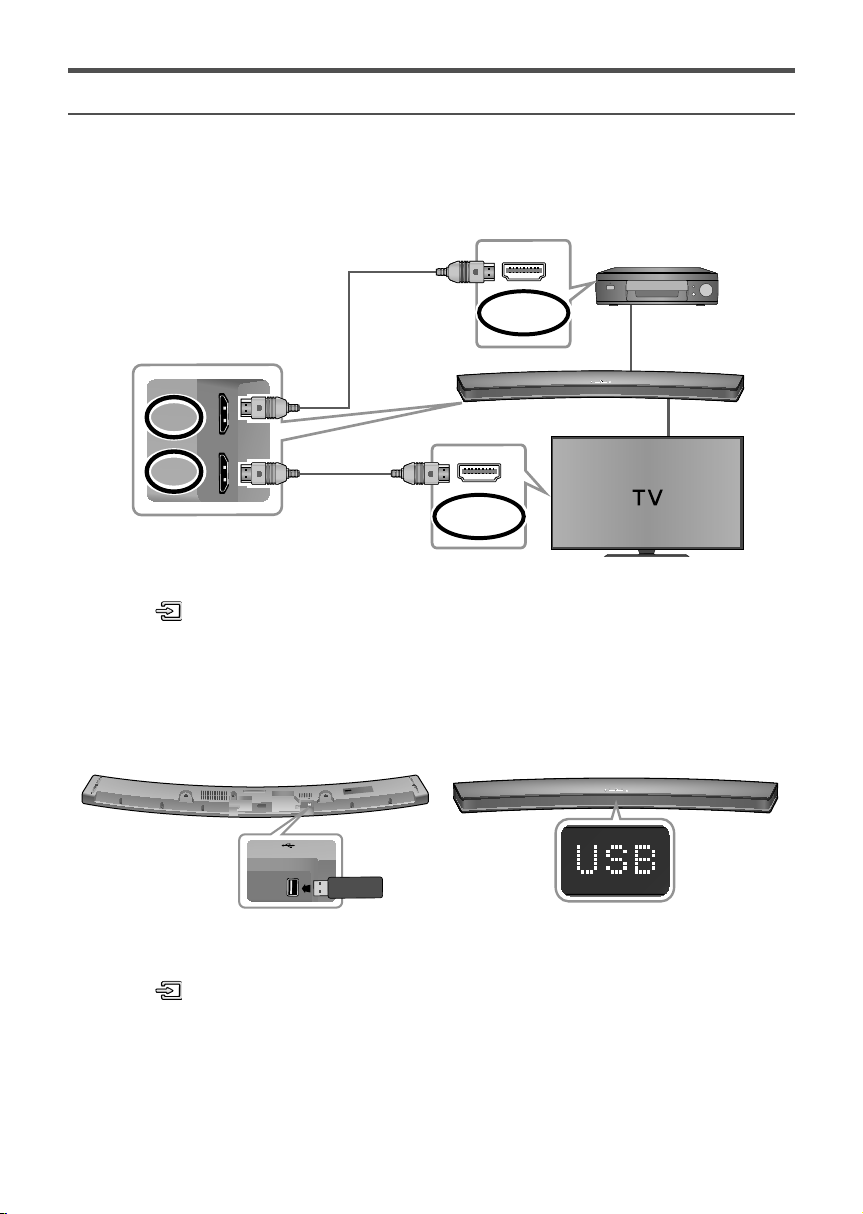

CONNECTING TO AN EXTERNAL DEVICE
HDMI Cable
You can enjoy sound from separate external devices such as a BD player/game console/set-top box, etc. by
connecting them to your Soundbar.
HDMI IN
HDMI OUT
(TV-ARC)
HDMI Cable
HDMI Cable
External
Device
Soundbar
HDMI OUT
HDMI IN
Bottom of Soundbar
1. Connect the HDMI cable as in the picture above.
2. Press the button on top of your Soundbar or the SOURCE button on your remote control to select
HDMI mode.
3. The Soundbar shows HDMI on its display and output sound.
USB
You can play music files located on USB storage devices through the Soundbar.
DC14V
AUXIN
OPTICALIN
HDMIIN
HDMIOUT
(TV-ARC)
5V0.5A
5V 0.5A
USB port Display
1. Connect the USB device to the USB port on the back of the product.
2. Press the button on the Soundbar main unit’s top panel or the SOURCE button on the remote control to
select the USB mode.
3. USB appears on the display screen.
● The Soundbar connection to the USB device is complete.
● The Soundbar automatically turns off (Auto Power Off) if no USB device has been connected for more
than 5 minutes.

· 10 · English
SOFTWARE UPDATE
Samsung may offer updates for the Soundbar's system firmware in the future.
DC14V
AUXIN
OPTICALIN
HDMIIN
HDMIOUT
(TV-ARC)
5V0.5A
5V 0.5A
If an update is offered, you can update the firmware by connecting a USB device with the firmware update
stored on it to the USB port on your Soundbar.
For more information about how to download update files, go to the Samsung Electronics website at
(samsung.com/sec) search for the model name download the firmware from the customer support menu
option. The option name can vary.
INSTALLING THE WALL MOUNT
Installation Precautions
• Install on a vertical wall only.
• Do not install the Soundbar system in a location with high temperature and/or humidity. Install the system on a
stable wall that can bear the weight of the Soundbar main unit.
• Check the strength of the wall. To install the Soundbar system on a wall that may not bear the Soundbar main
unit weight, reinforce the wall before installation. If this is not possible, install the system on another wall, one
stable enough to bear the weight of the Soundbar main unit.
• Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board,
iron board, wood, etc.). If possible, fix the support screws into wall studs.
• Purchase wall mounting screws according to the type and thickness of the wall you will mount the Soundbar
on.
–Diameter : M5
–Length: 35 mm or longer recommended.
• Connect cables from the unit to external devices before you install it on the wall.
• Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.

· 11 · English
1. Place the installation guide against the wall
surface.
● The installation guide must be level.
● If the TV is mounted on the wall, install the
Soundbar at least 5 cm below the TV.
5 cm or
more
2. Mark the location where the screws will go
through on the wall, and then remove the
installation guide. Next, drill holes for the screws
using an appropriately sized drill bit.
CenterLine
CenterLine
3. Fasten the 2 Bracket-Wall pieces firmly to the
wall at the marked locations using the appropriate
screws.
4. Attach the Soundbar to the 2 Bracket-Wall
pieces as shown in the illustration.
5. Insert a Holder-Fix Mount into each hole on the
product’s bottom side. Tighten each Holder-Fix
Mount to fix the Soundbar to the 2 Bracket-Wall
pieces.
DC14V
AUXIN
OPTICALIN
HDMIIN
HDMIOUT
(TV-ARC)
5V0.5A
cDo not hang onto the installed unit and avoid
striking or dropping the unit.
cSecure the unit firmly to the wall so that it does
not fall off. If the unit falls off, it may cause an
injury or damage the product.
cWhen the unit is installed on a wall, please make
sure that children do not pull any of the
connecting cables, as this may cause it to fall.
cFor the optimal performance of a wall mount
installation, install the speaker system at least
5 cm below the TV, if the TV is mounted on the
wall.
cFor your safety, if you do not mount the unit on
the wall, install it on a secure, flat surface where it
is unlikely to fall.

· 12 · English
REMOTE CONTROL BUTTONS & FEATURES
Inserting Battery before using the Remote Control
1. Use a suitable coin to turn the remote control's battery cover
counterclockwise to remove it as shown in the figure below.
2. Insert a 3V lithium battery. Keep the positive (+) pole facing up when
inserting the battery. Put the battery cover on, and then align the '●'
marks side by side as shown in the figure below.
3. Use a suitable coin to turn the remote control battery cover clockwise
as far as it will go to fix it in place.
 
Controlling the Soundbar using Your TV Remote
Control
1. Press and hold the SOUND button for more than 5 seconds while
the Soundbar is turned on.
2. "ON - TV REMOTE" appears on the Soundbar's display.
3. In the TV's menu, set the TV speaker to external speaker.
cNot available if the TV ARC function or HDMI mode is in use.
cAll buttons are not available except the VOL +/- and the buttons in
this function.
cTV menus differ by manufacturer and model. Refer to the TV's user
manual for further information.
cManufacturers supporting this function:
● VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA,
GRUNDIG, Hisense, RCA
● This function may not be compatible with your TV's remote
depending on the remote control's manufacturer.
cTo turn off this function, press the SOUND button for 5 seconds.
"OFF - TV REMOTE" appears on the Soundbar's display.
󱂓
Power
Turns the Soundbar on and off.
󱂔
SOURCE
Press to select a source connected to the Soundbar.
󱂕
󱂔
󱂓
󱂙
󱂚
󱂗
󱂖
󱂘
󱂛

· 13 · English
󱂕
Mute
Sets the volume temporarily to 0.
Press again to cancel.
󱂖
Volume
Adjusts the volume level of the unit.
󱂗
Play / Pause
Press the
& button to pause a music temporarily.
Press the & button again to play the selected music.
Skip Forward
Selects the next file.
Skip Back
Selects the previous file.
Repeat
Press to set the Repeat function during music playback from a USB device.
• OFF-REPEAT : Cancels Repeat Playback.
• TRACK-REPEAT : Plays a track repeatedly.
• ALL-REPEAT : Plays all tracks repeatedly.
• RANDOM-REPEAT : Plays tracks in random order.
󱂘
Surround Sound
The Surround Sound function adds depth and a sense of space to sound.
When this button is pressed, ON or OFF is repeatedly alternated.
󱂙
Bluetooth POWER
Press to turn the Bluetooth POWER On function on and off. When the Bluetooth
POWER On function is on, ON - BLUETOOTH POWER appears in the Soundbar’s
display.
󱂚
SOUND EFFECT
You can select from 6 sound modes: STANDARD, MUSIC, CLEAR VOICE,
SPORTS, MOVIE, and NIGHT.
cNIGHT Mode
When changing a channel or music source, the volume difference between
different music input sources is automatically adjusted to be suitable for
listening.
󱂛
SOUND CONTROL
You can select from TREBLE, BASS, SUBWOOFER LEVEL or AUDIO SYNC.
• Press to select TREBLE, BASS,
SUBWOOFER LEVEL or AUDIO SYNC.
Then, use the , buttons to adjust the TREBLE or BASS volume from -6 ~ +6,
SUBWOOFER LEVEL volume from -12, -6 ~ +6.
• If the video and audio between the TV and your Soundbar are not
synchronized, select AUDIO SYNC in Sound Settings, and then set audio delay
between 0~300 milliseconds by using the , buttons.

· 14 · English
TROUBLESHOOTING
Before seeking assistance, check the following.
The unit will not turn on.
Is the power cord plugged into the outlet?
Connect the power plug to the outlet.
A function does not work when the button is
pressed.
Is there static electricity in the air?
Disconnect the power plug and connect it again.
Sound is not produced.
Is the Mute function on?

Press the (Mute) button to cancel the function.
Is the volume set to minimum?
Adjust the Volume.
The remote control does not work.
Is the battery drained?
Replace with new battery.
Is the distance between the remote control and
Soundbar main unit too far?
Move the remote control closer to the Soundbar
main unit.
The TV SoundConnect (TV pairing) failed.
Does your TV support TV SoundConnect?
TV SoundConnect is supported by some
Samsung TVs released from 2012 on. Check
your TV to see if it supports TV SoundConnect.
Is your TV firmware the latest version?
Update your TV with the latest firmware.
Does an error occur when connecting?
Contact the Samsung Call Centre.
 Reset TV SoundConnect and connect again.
To reset the TV SoundConnect connection,
press and hold the
& button for 5 seconds.
The red LED on the subwoofer blinks and the
subwoofer is not producing sound.
This issue can occur if the subwoofer is not
connected to the Soundbar main unit.
Try to connect your subwoofer again.
See page 5.
LICENCE
Manufactured under licence from Dolby
Laboratories. Dolby, Dolby Audio and the double-D
symbol are trademarks of Dolby Laboratories.
For DTS patents, see http://patents.dts.com.
Manufactured under licence from DTS Licencing
Limited. DTS, the Symbol, & DTS and the Symbol
together are registered trademarks, and DTS 2.0
Channel is a trademark of DTS, Inc. © DTS, Inc.
All Rights Reserved.
The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI
Licencing LLC in the United States and other
countries.
T

· 15 · English
OPEN SOURCE LICENCE NOTICE
To send inquiries and requests regarding open sources, contact Samsung via Email (oss.r[email protected]).
IMPORTANT NOTE ABOUT SERVICE
Figures and illustrations in this User Manual are provided for reference only and may differ from actual product
appearance.
SPECIFICATIONS
GENERAL
USB 5V / 0.5A
Weight
Soundbar Main Unit 2.7 kg
Subwoofer
(PS-WJ6000R / PS-WJ6001R) 6.8 kg
Dimensions
(W x H x D)
Soundbar Main Unit 1078.0 x 47.5 x 129.0 mm
Subwoofer
(PS-WJ6000R / PS-WJ6001R) 452.0 x 335.0 x 154.0 mm
Operating Temperature Range +5°C to +35°C
Operating Humidity Range 10 % to 75 %
AMPLIFIER Rated Output
Power
Soundbar Main Unit 22W x 6, 4 ohm, THD≦10%
Subwoofer
(PS-WJ6000R / PS-WJ6001R) 168W, 3 ohm, THD≦10%
• Nominal specification
–Design and specifications are subject to change without prior notice.
–Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
–Weight and dimensions are approximate.
–For more information about the power supply and power consumption, refer to the label attached to the
product. (Label : Bottom of Soundbar main unit)

· 2 · Português
INFORMAÇÕES DE SEGURANÇA
COMPONENTES INCLUÍDOSAVISOS DE SEGURANÇA
PARA REDUZIR O RISCO DE CHOQUES ELÉCTRICOS, NÃO RETIRE A TAMPA POSTERIOR.
O INTERIOR NÃO CONTÉM PEÇAS PASSÍVEIS DE REPARAÇÃO PELO UTILIZADOR. A MANUTENÇÃO DEVE
SER EFECTUADA POR PESSOAL TÉCNICO QUALIFICADO.
CUIDADO
RISCO DE CHOQUE
ELÉCTRICO.NÃO ABRIR.
Este símbolo indica a presença de alta tensão
no interior. É perigoso qualquer contacto com
qualquer componente interno deste produto.
Este símbolo indica que foram fornecidas,
juntamente com o produto, informações
importantes sobre funcionamento e
manutenção.
Produto de classe II: Este símbolo indica que não é necessária uma ligação eléctrica de
segurança à terra.
Tensão CA: Este símbolo indica que a tensão nominal é CA.
Tensão CC: Este símbolo indica que a tensão nominal é CC.
Cuidado, consulte as instruções de utilização: Este símbolo aconselha o utilizador a consultar o
manual do utilizador quanto a informações de segurança.
AVISO : Para reduzir o risco de fogo ou de choque elétrico, não exponha este aparelho à chuva ou à humidade.
CUIDADO : PARA EVITAR CHOQUES ELÉCTRICOS, INSIRA TOTALMENTE A PARTE LARGA DA FICHA NA
RANHURA LARGA.
• Este aparelho deve ser sempre ligado a uma tomada com ligação à terra.
• Para desligar o aparelho da corrente, tem de retirar a ficha da tomada eléctrica, pelo que a ficha tem de estar
facilmente acessível.
CUIDADO
• Não exponha o aparelho a gotas ou salpicos. Não coloque objectos com líquidos, tais como vasos, em cima
do aparelho.
• Para desligar completamente o aparelho, tem de desligar o cabo de alimentação da tomada de parede. Por
este motivo, o cabo de alimentação tem de estar sempre facilmente acessível.

· 3 · Português
PRECAUÇÕES
1. Certifique-se de que a fonte de alimentação de CA em sua casa está em conformidade com o indicado no
autocolante de identificação, situado na parte de trás do produto. Instale o produto na horizontal, sobre uma
base adequada (móvel), com espaço suficiente para permitir a ventilação 7~10 cm. Certifique-se de que os
orifícios de ventilação não estão tapados. Não coloque a unidade sobre amplificadores ou sobre outro tipo
de equipamento que possa aquecer. Esta unidade foi concebida para uma utilização contínua. Para desligar
completamente a unidade, desligue a ficha CA da tomada de parede. Desligue a unidade quando não
tencionar utilizá-la durante muito tempo.
2. Durante trovoadas, desligue a ficha de corrente da rede eléctrica. Os picos de tensão durante uma trovoada
podem danificar a unidade.
3. Não exponha a unidade à luz solar directa nem a outras fontes de calor. A unidade poderá sobreaquecer e
ficar danificada.
4. Proteja o produto da humidade (por exemplo, vasos) e de calor (por exemplo, uma lareira) ou de
equipamento que crie campos magnéticos ou eléctricos fortes. Desligue o cabo de alimentação da tomada
eléctrica se a unidade não funcionar correctamente. O produto não se destina a utilização industrial. Utilize
este produto apenas para fins pessoais. Pode ocorrer condensação se o produto ou o disco tiverem sido
arm zenados em temperaturas baixas. Se transportar a unidade no Inverno, aguarde aproximadamente 2
horas para que a unidade fique à temper tura ambiente, antes de utilizar.
5. As pilhas utilizadas neste produto contêm químicos nocivos para o ambiente. Não deite as pilhas no lixo
doméstico. Não elimine as pilhas através de fogo. Não provoque curto-circuito, não desmonte nem
sobreaqueça as pilhas. Pode provocar uma explosão, se substituir as pilhas incorrectamente. Substitua-as
apenas pelo mesmo tipo de pilhas ou por um tipo equivalente.
AVISO: NÃO INGERIR A PILHA. RISCO DE QUEIMADURA QUÍMICA.
[O controlo remoto fornecido com] Este produto contém uma pilha de células. Se a pilha for ingerida, pode
causar queimaduras internas graves em apenas 2 horas, podendo causar a morte. Mantenha as pilhas novas e
usadas longe do alcance das crianças. Se o compartimento da pilha não fechar correctamente, interrompa a
utilização do produto e mantenha o produto afastado do alcance das crianças. Se suspeitar que as pilhas
podem ter sido engolidas ou colocadas noutra parte do corpo, procure imediatamente assistência médica.

· 4 · Português
VERIFICAÇÃO DOS COMPONENTES
Subwoofer
1Cabo de
alimetntação
Unidade Principal do Soundbar
2Transformador
de CA/CC
3Cabo de
alimetntação
Controlo remoto/
Pilha Cabo HDMI
LIGAÇÃO À CORRENTE ELÉCTRICA
Utilize os componentes elétricos (1, 2, 3) para ligar as fontes de alimentação pela seguinte ordem:
Subwoofer Unidade Principal do Soundbar
cPara obter mais informação sobre a fonte de alimentação e o consumo de energia, consulte a etiqueta no
produto. (Etiqueta : Parte inferior da unidade principal do Soundbar)
DC14V
AUXIN
OPTICALIN
HDMIIN
HDMIOUT
(TV-ARC)
5V0.5A
DC 14V
POWER
POWER
DC 14V
(Tomada de
alimentação)
Ligação à
corrente eléctrica
1Cabo de
alimetntação
2 Transformador de CA/CC
3Cabo de alimetntação
Parte de trás do
Subwoofer Parte de trás da unidade
Principal do Soundbar
cCertifique-se de que coloca o transformador de CA/CC sobre uma mesa ou no chão. Se posicionar o
transformador de CA/CC de forma que este fique suspenso com a entrada do cabo CA voltada para cima,
poderá entrar água ou outras substâncias desconhecidas no transformador e provocar avaria.

· 5 · Português
LIGAÇÃO DO SUBWOOFER À UNIDADE PRINCIPAL DO
SOUNDBAR
Pode desfrutar de sons graves ricos e de uma melhor qualidade de som, ligando o subwoofer à unidade
principal do Soundbar.
Subwoofer
Unidade Principal do Soundbar
Unidade
P
Soundba
r
A unidade principal e o subwoofer do Soundbar devem ligar-se (sem fios) automaticamente assim que estiverem a
funcionar. Quando a ligação automática for estabelecida, o indicador azul na parte dianteira do subwoofer para de
piscar e fica aceso de forma contínua.
cSe o indicador na parte dianteira do subwoofer ficar vermelho ou piscar a azul, não foi possível estabelecer a
ligação automaticamente. Se isso acontecer, siga as instruções em baixo para ligar o subwoofer manualmente.
cImportante: antes de começar, coloque a pilha no controlo remoto. Consulte a página 12 para obter instruções.
POWER
1. Ligue os cabos de alimentação da unidade principal e do subwoofer do Soundbar a uma tomada de parede
de CA.
2. Prima o botão ID SET no painel posterior do subwoofer durante 5 segundos. O indicador vermelho na parte
anterior do subwoofer desliga-se e o indicador azul fica intermitente rápido.
3. Prima o botão no controlo remoto durante 5 segundos enquanto a unidade principal do Soundbar está
desligada.
4. A mensagem ID SET surge no ecrã da unidade principal do Soundbar durante alguns minutos e depois
desaparece.
ID SET

· 6 · Português
5. Enquanto o indicador do subwoofer estiver a piscar a azul, prima o botão no comando remoto ou na
parte superior da unidade principal do Soundbar para ligar a unidade principal.
6. A ligação foi estabelecida se o indicador na parte dianteira do subwoofer para de piscar e ficar aceso de
forma contínua.
cSe o processo de ligação falhar, o indicador azul estará permanentemente intermitente. Avance para o
Passo 2 e comece de novo.
Obtenha um verdadeiro som surround sem fios ligando o Kit de colunas traseiras
sem fios (SWA-8000S) ao Soundbar. (Vendido em separado)
cPara obter mais informações, consulte o manual da Web.
LIGAR AO TELEVISOR
Pode desfrutar do som do televisor depois de ligar o Soundbar ao seu televisor com/sem cabo.
cImportante: antes de começar, coloque a pilha no controlo remoto. Consulte a página 12 para obter instruções.
Método 1. Ligar com cabo
HDMI OUT
(TV-ARC)
Base do Soundbar
HDMI IN
(TV-ARC)
Soundbar
Cabo HDMI
Verifique a porta
HDMI OUT (TV-ARC) na unidade
principal do Soundbar.
Verifique o (TV-ARC) na porta
HDMI IN do seu televisor.
1. Ligue o cabo HDMI como a imagem acima.
2. A indicação “TV ARC” é apresentada no visor do produto e é emitido o som do televisor.
TV ARC
cSe o televisor estiver sem som, prima o botão na parte superior do Soundbar ou o botão SOURCE no
controlo remoto para selecionar o modo D.IN no ecrã da unidade principal do Soundbar.
O modo D.IN muda para TV ARC e o som do televisor é emitido.
cSe o ecrã da unidade principal do Soundbar não mudar para TV ARC, verifique as ligações por cabo.
cPode controlar convenientemente o volume do Soundbar e expor a fonte de alimentação.
