Samsung GT-B7510 User manual

GSM TELEPHONE
GT-B7510
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Level 2Repair
8. Level 3Repair
9. Reference data
Notice :
All functionality, features, specifications and other
product information provided in this document inclu
ding, but not limited to, the benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice or obligation. Samsung reserves the right to
make changes to this document and the product
described herein, at anytime, without obligation on
Samsung to provide notification of such change.
GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2011. 02. Rev.1.0
ⓒ

2. Specification
2-1
2-1. GSM General Specification
GSM850
Phase 1
EGSM 900
Phase 2
DCS1800
Phase 1 PCS1900 WCDMA 2100 WCDMA900
Freq.
Band[MHz]
Uplink/Downlin
k
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
1922~1977
2112~2167
880~915
925~960
ARFCN range 128~251 0~124 &
975~1023 512~885 512~810
UL:9612~98
88DL:10562
~10838
UL:2712~28
63,DL:2937
~3088
Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz 190MHz 45MHz
Mod. Bit rate/
Bit Period
270.833kbp
s
3.692us
270.833kbp
s
3.692us
270.833kbp
s
3.692us
270.833kbp
s
3.692us
3.84Mcps 3.84Mcps
Time Slot
Period/Frame
Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSKHQPS
K
QPSKHQPS
K
MS Power 33dBm~5dB
m
33dBm~5dB
m
30dBm~0dB
m
30dBm~0dB
m
24dBm~-
50dBm
24dBm~-
50dBm
Power Class 5pcl ~
19pcl 5pcl ~19
pcl 0pcl ~15 pcl 0pcl ~15 pcl 3(max+24dB
m)
3(max+24dB
m)
Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -106.7dBm
TDMA Mux 8 8 8 8 88
Cell Radius 35Km 35Km 2Km 2Km 2Km 2Km

Specification
2-2
2-2. GSM Tx Power Class
TX Power
control
level
GSM850
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
-GoogleAndroid OS 2.2 Froyo
-Size: 108.6x66.7x10.65
-Band :GSM QUAD BAND GSM850/900/1800/1900 (Release :R99)
-BAND :HSDPA 7.2M B1/B8
-3Mega pixel AF Camera, 1/5" CMOS
-LCD: 2.8" LQVGA TFT
-1350mA standard Battery
-3.5pi Earjack/ Earphone
-Micro USB/ Power, Data
-Wi-Fi 802.11b/g/n
-Bluetooth v3.0
-USB v2.0 High Speed,
-A-GPS
-FM w/RDS
-input :QWERTY Key, C-Type single TSP
-Audio :mp3, ogg, aac, mid, xmf, rtttl, imy, rtx, ota, amr, wav, mxmf
-Image :bmp, gif, jpg, png, wbmp, agif
-Video :MPEG4, H.263, H.264, 3gp, mp4
-B/B: MSM7227 turbo 800M
-PMIC: MAX8899
-Tranceiver: RTR6285
-PAM: SKY77554(2G)
-RF7201(3G Dual)
-Intenna :Carrier type
-LCD: 2.8" LQVGA TFT
-MEMORY: 4G+3G

SAMSUNG Proprietary-Contents may change without notice
6. Level 1Repair
6-1
This Document can not be used without Samsung's authorization
6-1. S/W Download
6-1-1. Pre-requsite for S/W Downloading
•GT-B7510 Mobile Phone
•Battery
•USB cable
•JIG BOX (GH99-36900A)
•RF Test Cable (GH39-00985A)
•JIG Cable (GH39-01339A)
•Adapter (GH99-38251A)
•Downloader Program(Odin Multi Downloader v4.38)
•Binary files
•PC (Windows XP, 7)
★The settings for download.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-2
This Document can not be used without Samsung's authorization
6-1-2. S/W Downloader Program
1. Execute the binary download program,which is "Odin Multi Downloader v4.38".
2. Load the files of OPS, BOOT, PHONE, PDS, CSC from the folder that you saved
binary files. (CLICK the each Naming Button and select the file)
-OPS :OPS file
-BOOT :APBOOT_...
-phone :MODEM_...
-PDA :CODE_...
-CSC :CSC_...
3. Turn On the Mobile with push 'Q' Button to enter the Download mode and check
the Download Logo on LCD
<QWERTY Key Pad ><
Download Logo>
4. Click the Start button when aport is ready

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-3
This Document can not be used without Samsung's authorization
5. After downloading finished successfully, there is a"PASS" message.
6. Check the binary version using key streaming, "*#1234#".

SAMSUNG Proprietary-Contents may change without notice
9. Reference Abbreviate
This Document can not be used without Samsung's authorization
9-1
Reference Abbreviate
―AAC:Advanced Audio Coding.
―AVC :Advanced Video Coding.
―BER :Bit Error Rate
―BPSK:Binary Phase Shift Keying
―CA :Conditional Access
―CDM :Code Division Multiplexing
―C/I :Carrier to Interference
―DMB :Digital Multimedia Broadcasting
―EN :European Standard
―ES :Elementary Stream
―ETSI:European Telecommunications Standards Institute
―MPEG:Moving Picture Experts Group
―PN :Pseudo-random Noise
―PS :Pilot Symbol
―QPSK:Quadrature Phase Shift Keying
―RS :Reed-Solomon
―SI :Service Information
―TDM :Time Division Multiplexing
―TS :Transport Stream

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning. Take specially care of tuning or test, because
specipicty of cellular phone is sensitive for surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
4. Exploded View and Parts List
4-1
This Document can not be used without Samsung's authorization
4-1. Cellular phone Exploded View
QLB01
QRE01
QCA01
QSP01
QME03
QFR01
QLC01
QKP01
QMI01
QCR67
QBA01
QBC00
QMP01
QME01
QAR01
QVO01
QRF06
QCK01 QAN02

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
4-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QCR67 SCREW-MACHINE 6001-002083
QMI01 MICROPHONE-ASSY-GT-B7510 GH30-00722A
QBA01 INNER BATTERY PACK-EB494358VU,GT-S5830,L GH43-03504A
QSP01 MODULE-SPK+SIM S/C GH59-10724A
QME03 TOUCH/PANEL-GT-B7510 GH59-10728A
QMP01 A/S ASSY-PBAMAIN(COMM)GT-B7510 GH82-05631A
QLC01 ELA MODULE-LCD MODULE(GT-B7510) GH96-05085A
QCA01 ASSY CAMERA-3M AF MODULE(GT-B7510 GH96-05091A
QFR01 ASSY CASE-FRONT GH98-18418A
QBC00 ASSY COVER-BATT GH98-18420A
QKP01 ASSY KEYPAD-QWERTY GH98-18421A
QLB01 ASSY BRACKET-LCD GH98-18430A
QME01 KEY FPCB-QWERTY KEY(GT-B7510) GH59-10713A
QAR01 ASSY ETC-RCV&EAR JACK ASSY GH59-10737A
QRE01 ASSY CASE-REAR GH98-18419A
QAN02 INTENNA-GTB7510 MAIN GH42-02892A
QRF06 PMO COVER-DC USB GH72-61733A
QCK01 PMO KEY-POWER HOLD GH72-61734A
QVO01 PMO KEY-VOLUME GH72-61735A
4-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-1
This Document can not be used without Samsung's authorization
1) Be careful not to make scratch and molding damage! 1) Be careful not to make scratch and molding damage!
1) Push out REAR to both side. 1) Detach Power Key FPCB and Cammera Key FPCB.
2) Be careful not to damage to FPCB (Use tweezer!)

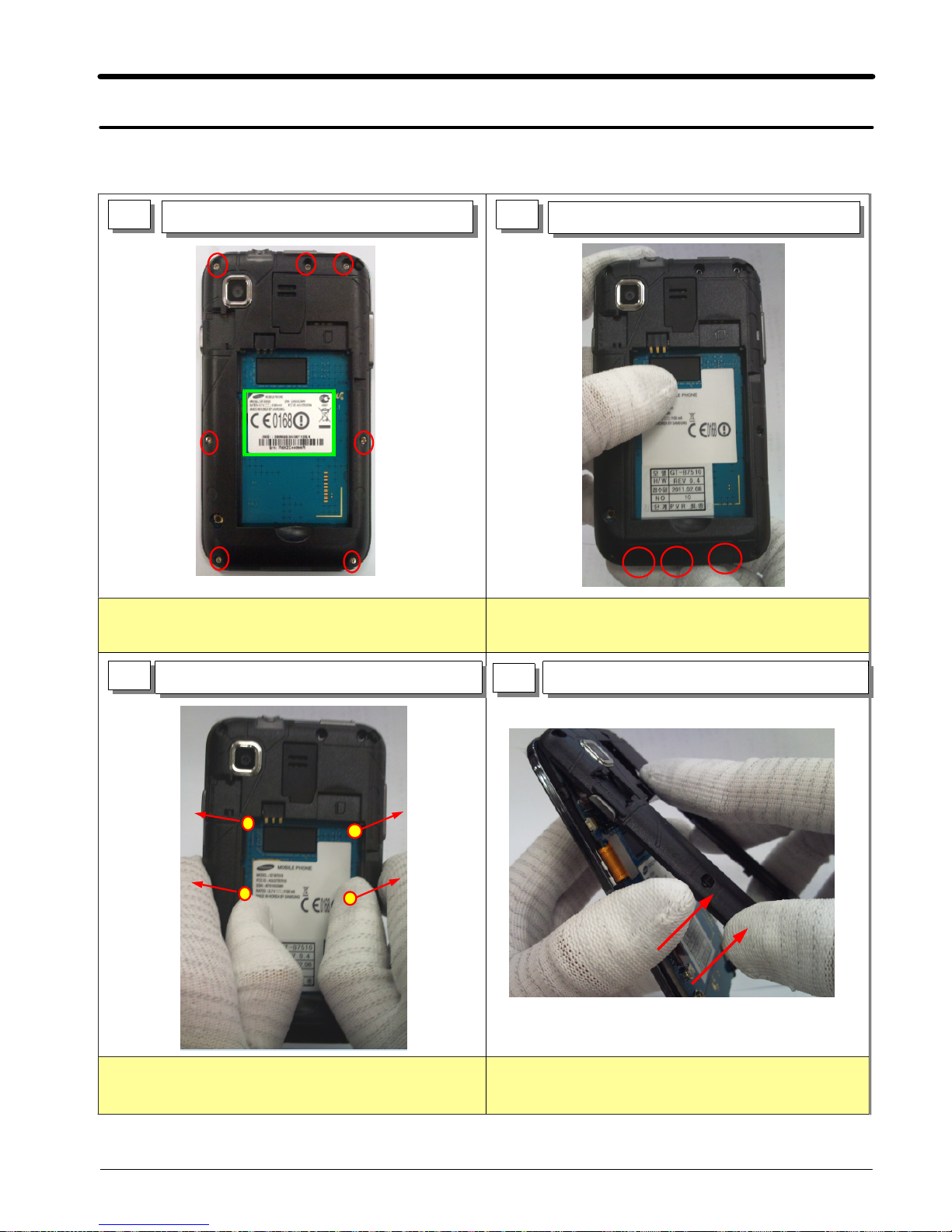

7-1. Disassembly and Assembly Instructions
7-1-1. Disassembly
Release Screw 7Point at REAR
1 2
3Disjoint hook on the both side of the REAR Disassemble REAR
4
Disjoint Hook on the bottom of the REAR

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-2
This Document can not be used without Samsung's authorization
1) Detach Earjack/LCD/Qwerty key FPCB.(3point) 1) Hold up Main PBA from left.
1) Disassemble Cammera Module from PBA.
2) Disassemble SPK Module from PBA.
8
7Disassemble Module from PBA.
5Disassemble FPCB. Disassemble Main PBA from the FRONT Ass'y
6
Complete disassembly.

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-3
This Document can not be used without Samsung's authorization
1) Assemble left hook first.
2) Assemble right hook.
1) Assemble fiting to silk line
7-1-1. Assembly
12
34
Set aPBA and FRONT Ass'y.
Assemble PBA on FRONT Ass'y.
Assemble Camera module
Assemble SPK module.

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-4
This Document can not be used without Samsung's authorization
1) Assemble Earjack/LCD/Qwerty key FPCB.(3point).
2) Be careful not to damage to FPCB.
1) Assemble matching location from earjack of rear
upper
1) Be careful not to make scratch and molding damage! 1) Drive Screws at 6points with torque
1.1 +/- 0.1 Kgf/㎠
56Assemble FRONT Ass'y on REAR.
Assemble PBA on FRONT Ass'y.
Drive Screws at 6points
7Assemble FRONT Ass'y on REAR. 8

SAMSUNG Proprietary-Contents may change without notice
8. Level 3Repair
8-1
This Document can not be used without Samsung's authorization

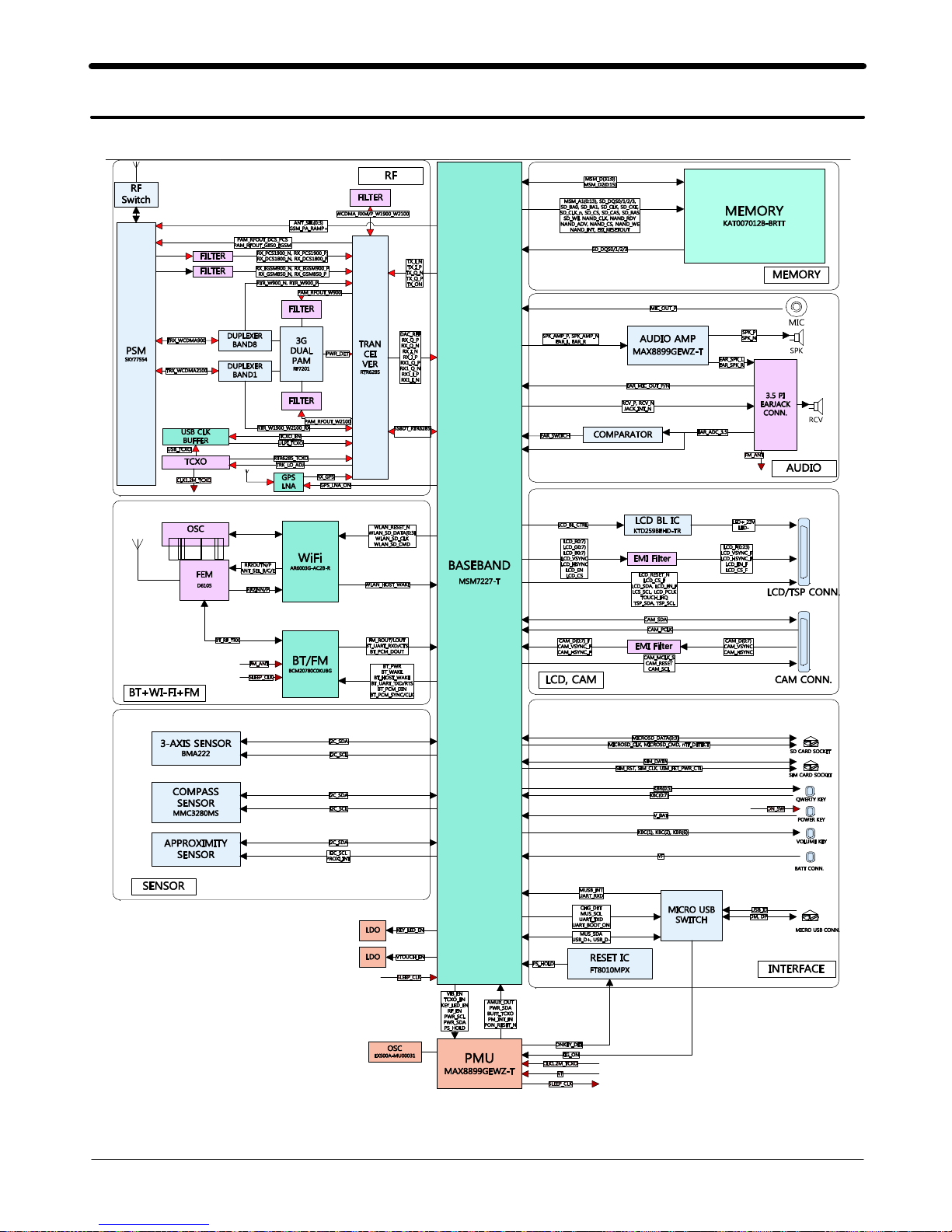

8-1. Block Diagram

SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-2
This Document can not be used without Samsung's authorization
8-2. PCB Diagrams
8-2-1. Top

SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-3
This Document can not be used without Samsung's authorization

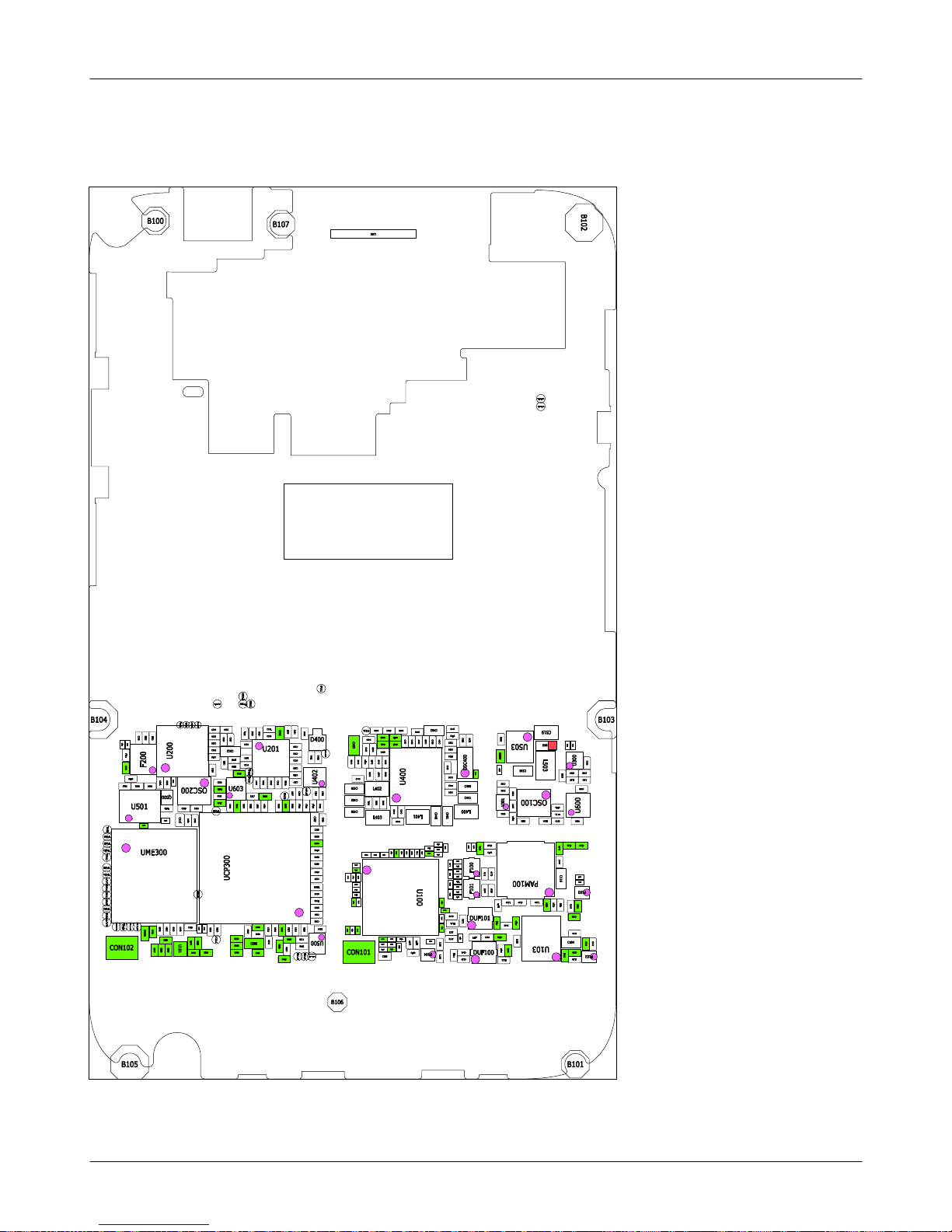

8-2-2. Bottom
