1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Level 2Repair
8. Level 3Repair
9. Reference data
Notice: All functionality, features, specifications, and
other product information provided in this document,
including but not limited to, benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice. Samsung reserves the right to alter this doc
-ument or the product described herein at anytime,
without obligation to provide notification of such
changes.
GSM TELEPHONE CONTENTS

1. Safety Precautions
1-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
1-1. Repair Precaution
Before attempting any repair or detailed tuning, shield the device from RF noise or static
electricity discharges.
Use only demagnetized tools that are specifically designed for small electronic repairs,
as most electronic parts are sensitive to electromagnetic forces.
Use only high quality screwdrivers when servicing products. Low quality screwdrivers can
easily damage the heads of screws.
Use only conductor wire of the properly gauge and insulation for low resistance, because of
the low margin of error of most testing equipment.
We recommend 22-gauge twisted copper wire.
Hand-soldering is not recommended, because printed circuit boards (PCBs) can be easily
damaged, even with relatively low heat. Never use asoldering iron with apower rating of
more than 100 watts and use only lead-free solder with a melting point below 250°C (482°F).
Prior to disassembling the battery charger for repair, ensure that the AC power is disconnected.
Always use the replacement parts that are registered in the SEC system. Third-party replac
ement parts may not function properly.

Safety Precautions
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
1-2
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Many semiconductors and ESDs in electronic devices are particularly sensitive to static discha
rge and can be easily damaged by it. We recommend protecting these components with cond
uctive anti-static bags when you store or transport them.
Always use an anti-static strap or wristband and remove electrostatic buildup or dissipate
static electricity from your body before repairing ESDs.
Ensure that soldering irons have AC adapter with ground wires and that the ground wires are
properly connected.
Use only desoldering tools with plastic tips to prevent static discharge.
Properly shield the work environment from accidental electrostatic discharge before opening
packages containing ESDs.
The potential for static electricity discharge may be increased in low humidity environments,
such as air-conditioned rooms. Increase the airflow to the working area to decrease the
chance of accidental static electricity discharges.

2. Specification
2-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
2-1. GSM General Specification
GSM850 EGSM 900 DCS1800 PCS1900 WCDMA
2100
WCDMA
1900
WCDMA
900
Freq.
Band[MHz]
Uplink/
Downlink
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
1922~1977
2112~2167
1852~1907
1932~1987
880~915
925~960
ARFCN
range 128~251 0~124 &
975~1023 512~885 512~810
UL:
9612~9888
DL:
10562~10838
UL:
9262~9538
DL:
9662~9938
UL:
2712~2863
DL:
2937~3088
Tx/Rx
spacing 45MHz 45MHz 95MHz 80MHz 190MHz 80MHz 45MHz
Mod. Bit
rate/
Bit Period
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us 3.84Mcps 3.84Mcps 3.84Mcps
Time Slot
Period/
Frame
Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
FrameLength:
10ms
Slotlength:
0.667ms
FrameLength:
10ms
Slotlength:
0.667ms
FrameLength:
10ms
Slotlength:
0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSKHQPSK QPSKHQPSK QPSKHQPSK
MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm 24dBm~
-50dBm
24dBm~
-50dBm
24dBm~
-50dBm
Power
Class 5pcl ~ 19pcl 5pcl ~19
pcl 0pcl ~15 pcl 0pcl ~15 pcl 3(max+24dBm) 3(max+24dBm) 3(max+24dBm)
Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -106.7dBm -106.7dBm
TDMA Mux 8 8 8 8 888
Cell Radius 35Km 35Km 2Km 2Km 2Km 2Km 2Km

Specification
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
2-2
2-2. GSM Tx Power Class
TX Power
control
level
GSM850
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

3. Operation Instruction and Installation
3-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Main Function
•Android OS: Jelly Bean
•HSDPA 14.4Mbps /HSUPA 5.76Mbps
•5
MP AF with LED Flash
•3.97"
S-AMOLED OCTA (C-Type)
•A-GPS /BT v4.0 USB v2.0 /WiFi (802.11 a/b/g/n)
•Recording definition: 1080p / Playback at 1080p resolution
•Sensors: Accelerometer, Electromagnetic, Gyro,Proximity
•Additional :
-1
GHz Dual Core CPU
-Application store /Precise Motion UI
-Seamless Sharing Experience.

4. Exploded View and Parts List
4-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

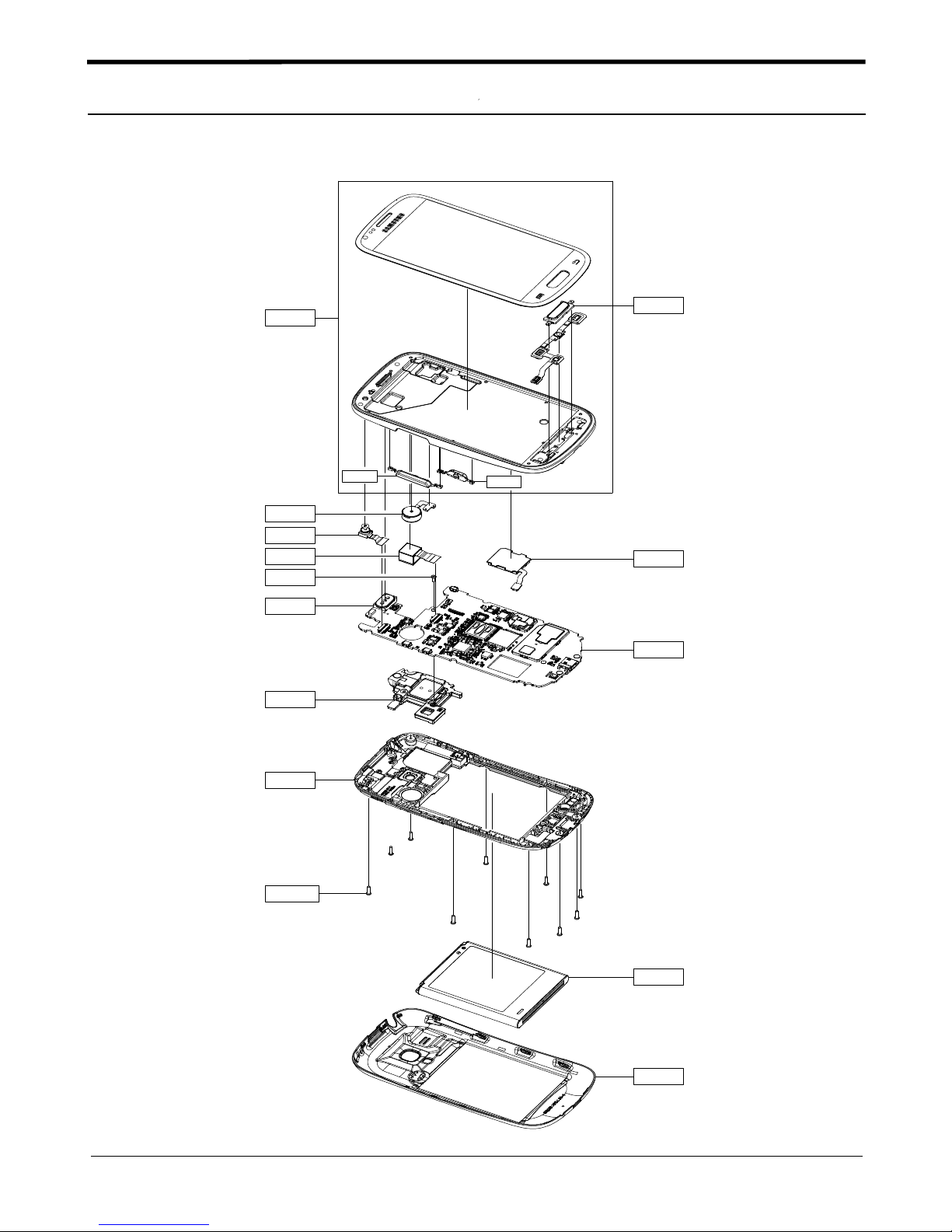

4-1. Cellular phone Exploded View
QFR01
QMO01
QCA01
QCA02
QCR72
QAR01
QSP01
QCR104
QRE01
QMP01
QVK03
QBA01
QBC00
QKP01
QCK01
QVO01

6. Level 6Repair
6-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
6-1. S/W installation
6-1-1. Required items in order to install S/W
Installation program: Downloader Program (Odin3 v3.03.exe)
GT-I8190 Mobile Phone
Data Cable
JIG BOX (GH99-36900B)
•JIG Cable (GH39-01339A)
•Adapter (GH99-38251A)
•Serial Cable
Mobile device specific S/W: Binary files
※Settings
Connect ANYWAY JIG BOX
with JIG CABLE (Phone to JIG)
or PC to Phone Using Data Cable

Level 6Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
6-2
6-1-2. S/W Installation Program (Downloader program)
Open up the S/W Installation Program by executing the "Odin3 v3.03.exe"
1.Enable the check mark by click on the following options,
-Check Re-Partition, Auto Reboot
-Check PIT
-Check PDA, and CSC Files

Level 6Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
6-3
2.Enter into Download Mode

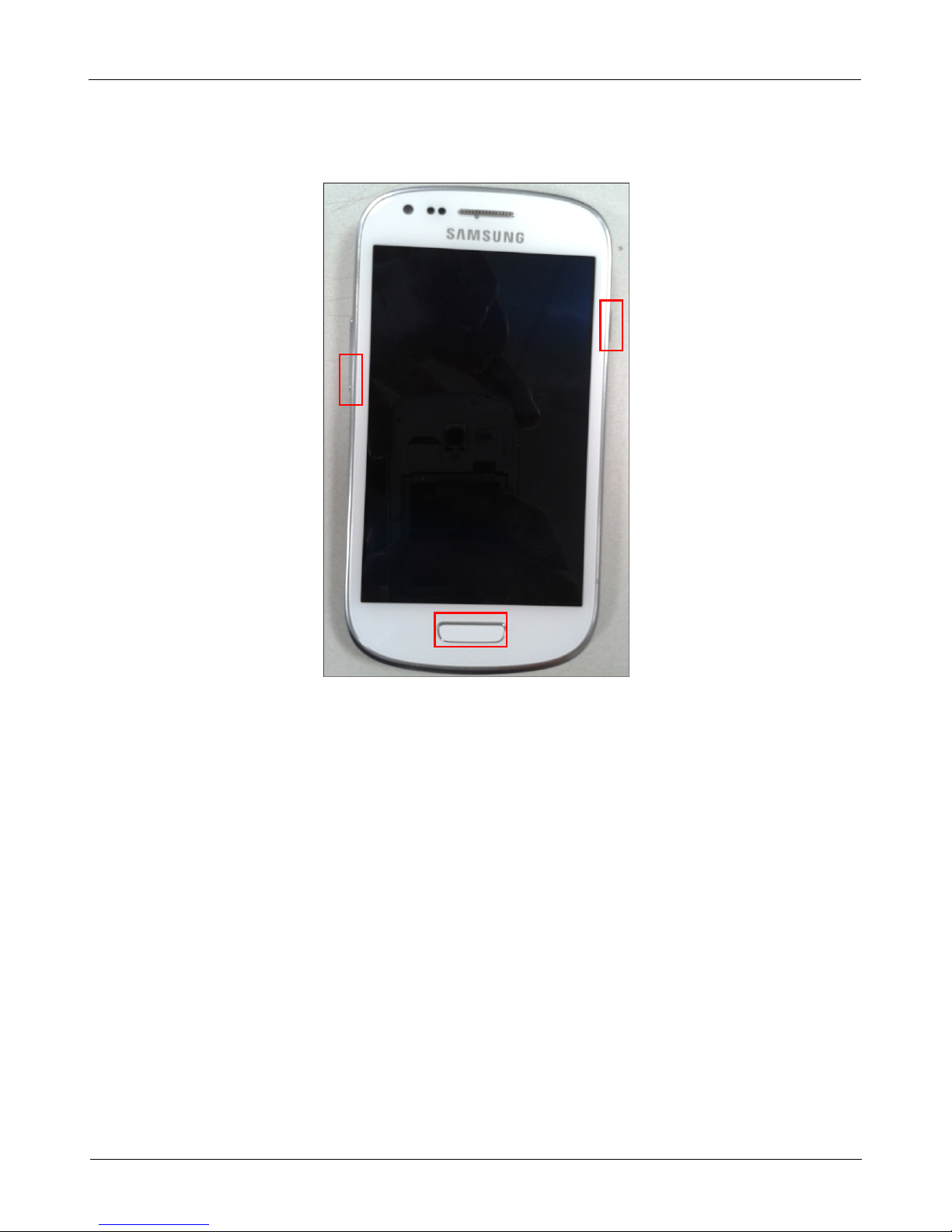

-Enter into Download Mode by pressing Volume Down button, OK button, and
ON/OFF Button simultaneously.
3.Connect the device to PC via Data Cable.
Make sure that the one of communication port [ID:COM] box is highlighted in
yellow. The device is now connected with the PC and ready to download the
binary file into the device.

Level 6Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
6-4

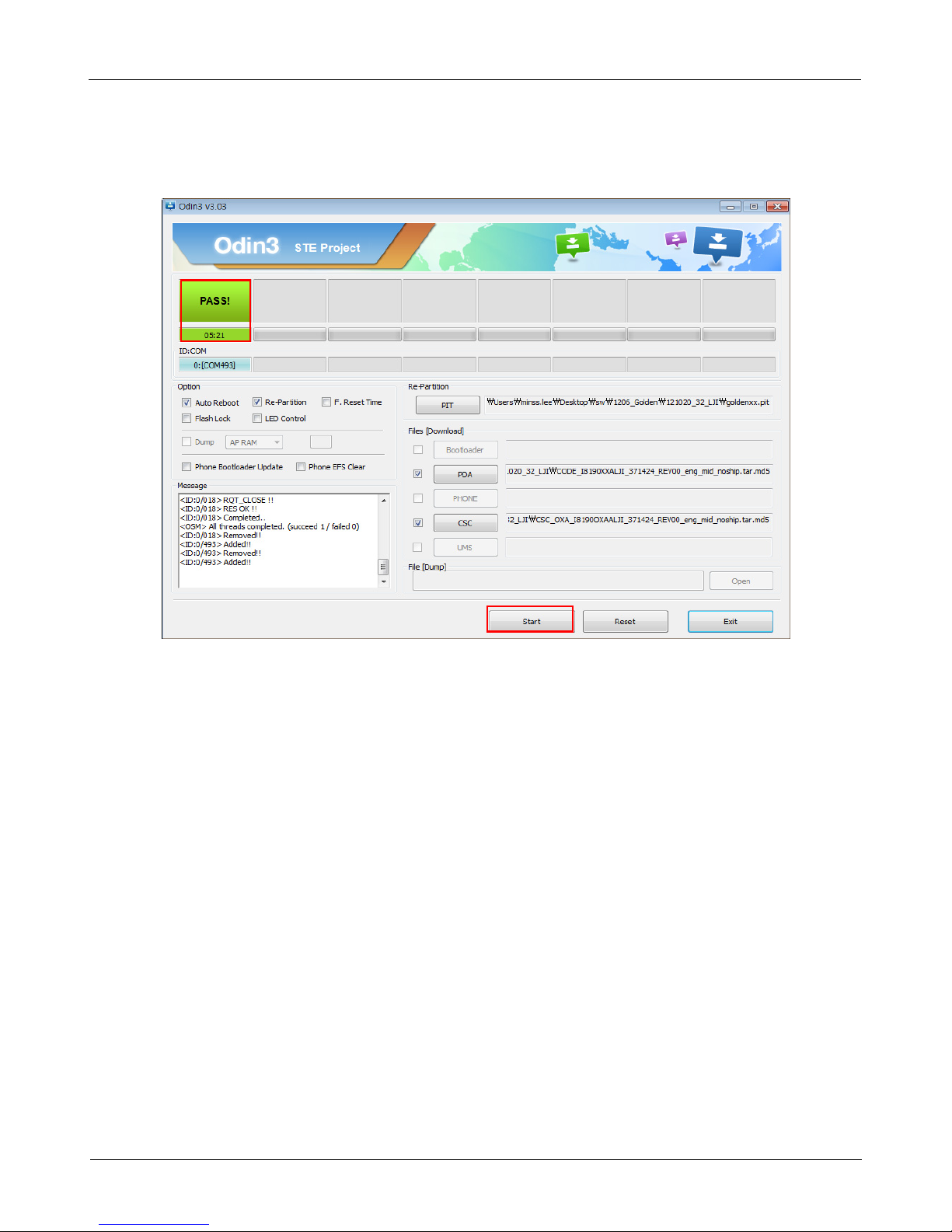

4.Start downloading binary file into the device by clicking Start Button on the screen.
the green colored "PASS!" sign will appear on the upper-left box if the binary file
has been successfully downloaded into the device.
5. Disconnect the device from the Data cable.
6.Once the device boots up, you can check the version of the binary file or name
by pressing the following code in sequence;
*#1234#
You can perform factory reset by pressing the following code in sequence;
*#87976633#

7. Level 2Repair
7-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

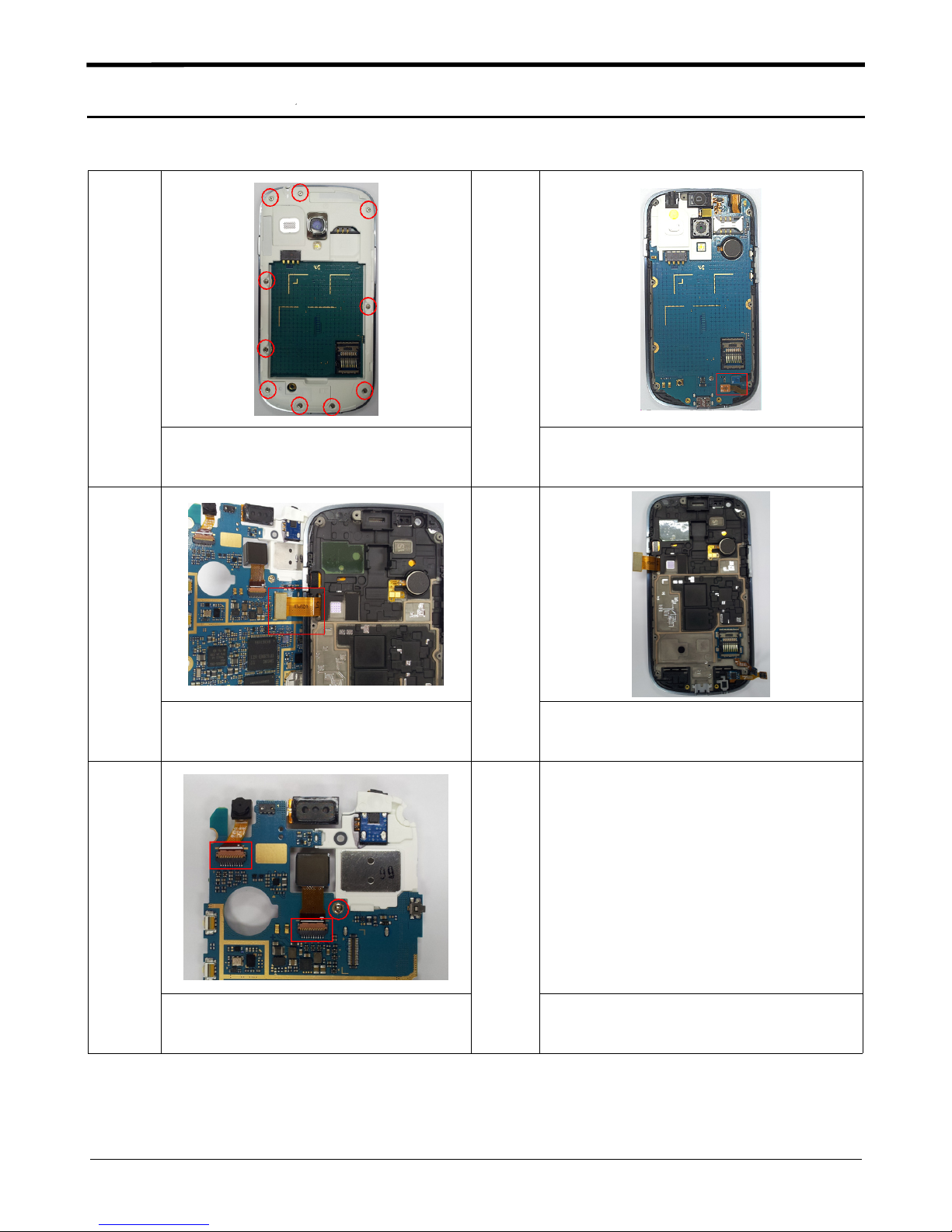

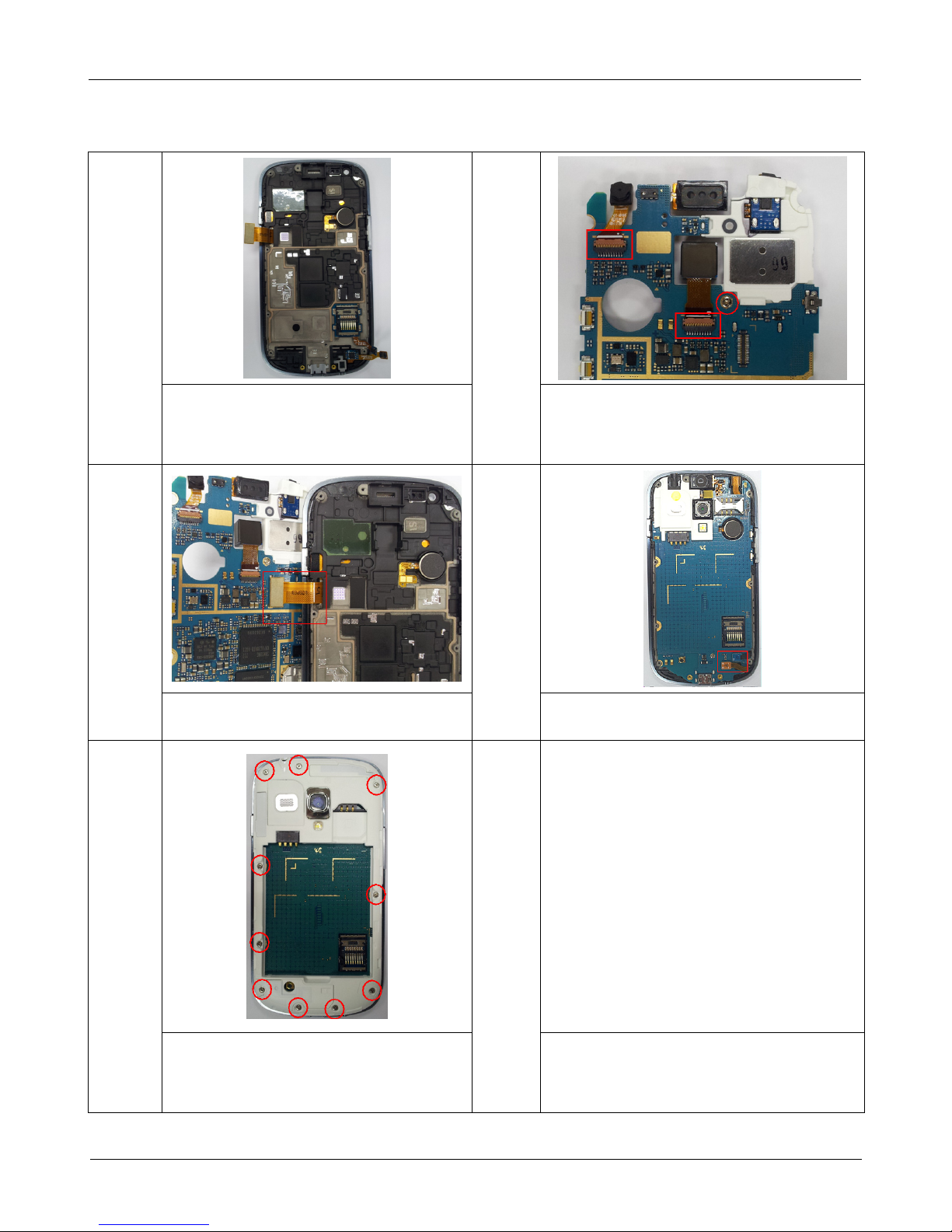

7-1. Disassembly
1 2
1. Unscrew the screw in Rear(10 points)
-SEC CODE : 6001-002667 , 1.4X4
2. Disassemble Rear
1. Separate the connectors (2 Points)
3 4
1. Disassemble PBA (Right →Left)
2. Separate the LCD connector (1 Point)
1.Bracket+LCD module
(LCD,Bracket can not be separated in normal
condition)
5
1. Separate the Camera connectors (2 Points)
2. Unscrew the screw in PBA(1 point)
-SEC CODE : 6001-002051, 1.4X2.5

7. Level 2Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
7-2
7-2. Assembly
1 2
1.Place on Bracket+LCD Module
(LCD,Bracket can not be separated in normal
condition)
1. Aassemble Cameras(5Mega &VGA)
2. Screw the speaker module screw (1 POINT)
-SEC CODE : 6001-002051 , 1.4X2.5
-Torque :1.1±0.1Kgf·cm
3 4
1. Aassemble LCD Connector (1 POINT)
2. Aassemble PBA (Left →Right) 1. Aassemble the Connectors (2 POINT)
5
1. Aassemble Rear
2. Screw 10 points in Rear
-SEC CODE : 6001-002667 , 1.4X4
-Torque :1.1±0.1Kgf·cm

8. Level 3Repair
8-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

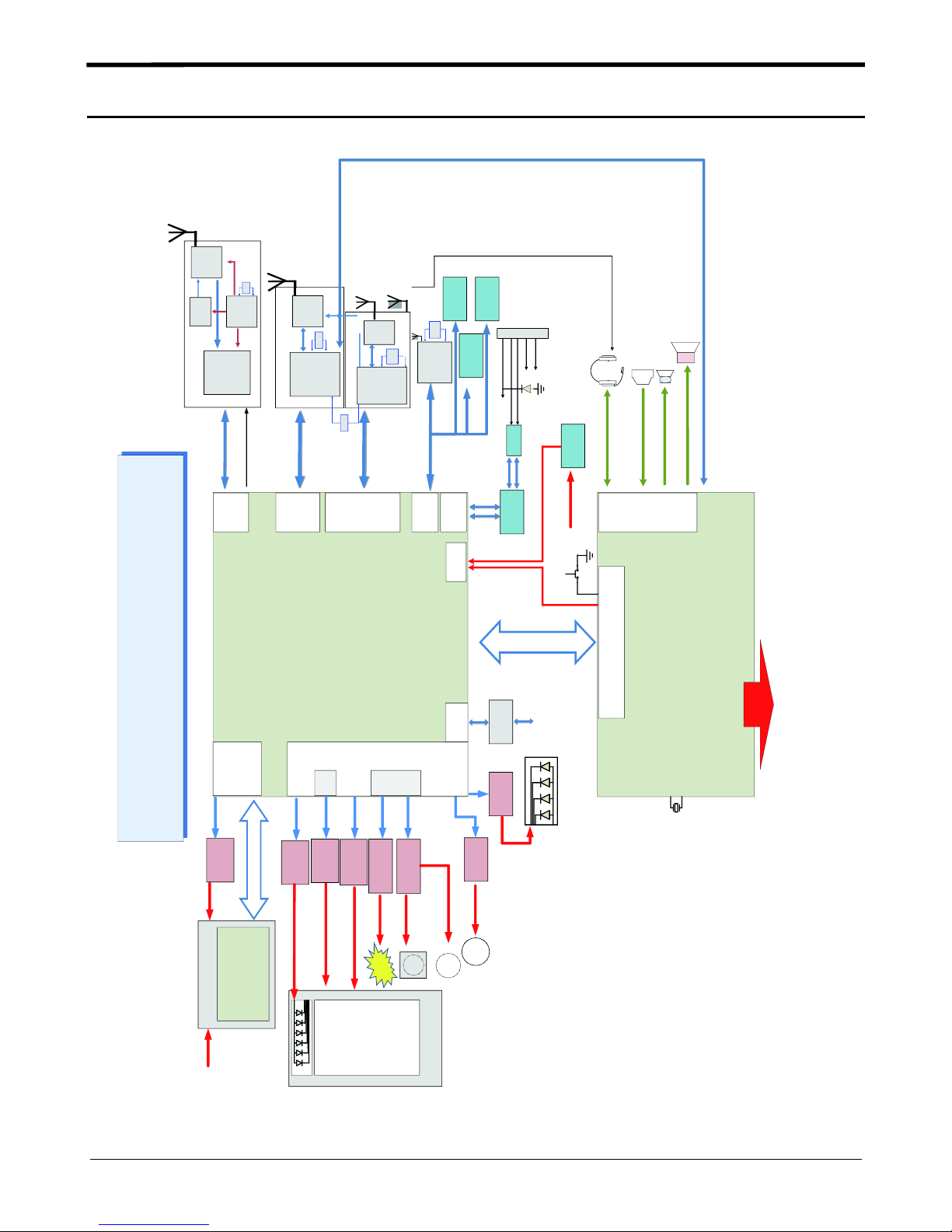

8-1. Block Diagram
AB8500
(BB / PMU)
STE
DB8520H
AP + CP
STE
RF BLOCK
RF3500
TRCV
STE PM3535
PMU RF
STE DCXO
26MHz
RF6277
PAM
RFMD RF1292
FEMid RFMD
RF BB IF
SDIO
UART
WIFI
CW1250
WIFI
STE
AWL 9565
WIFI ANT
BT / WIFI
ANT
OSC
34.7MHz
UART
I2C PN547
NFC
STE
TCXO
27MHz
BMA254
ACCEL
BOSCH
HSCDTD006
COMPASS
ALPS TMD2672
Proxi Sensor
TAOS
TSU6111RSVR
u-USB SW IC
TI
I2C
DP DM
System control IF
Power on KEY
32.768kHz
V_BAT_FET
VBUS
Mic ro USB CON
USB_ID
PTVS26V
ACRE 1A2 G90E
FT7521L6X
RESET IC
Fairchild
PORN
Pho ne ResetPhone Reset
Main Power Supply
EAR_SPK_L / R
EAR_MIC_P / N
3PI_DETECT
3PI_ADC
MIC
MIC2P / N
SPK
RECIEVER
Updated Date : 2012.10.20
RCV_P / RCV_N
SPK_P / SPK_N
AUDIO
AMP
MC0
TTXXSS00220066--2299
LLeevveell SShhiifftteerr
((TTII))
MIC5365-3.3YMT
KKEEYY__LLEEDD__33..33VV
MICREL
KEY LED 3.3V
MIC5365-3.3YMT
LLDDOO__33..33VV
MICREL
LINEAR MOTOR
M
GPIO
MIC5365-1.8YMT
TTOOUUCCHH__KKEEYY__11..88VV
RICOH
SM5103
CCAAMM DDCCDDCC//LLDDOO
SILICONMITUS
CAMERA
5Mega AF
CAMERA
VGA
KTD262EJH-TR
FFLLAASSHH LLEEDD DDrr IICC
KINETIC
CAM
FLASH
LCD
MAIN LCD
4.0", AMOLED
(OCTA)
STOD13AMTPUR
EELLVVDDDD__44..66VV
EELLVVSSSS__--44..99VV
OCTA TSP MODULE
OCTA TSP
LCD BACKLIGHT
RP152L010B-TR
VVRREEGG__LLCCDD__33..00VV
VVRREEGG__LLCCDD__11..88VV
RICOH
AMOLED LCD
MIPI
CSI0 CSI1
MIPI
DSI0
MC2
PHONE MEMORY
SSDDIINN77DDUU22--88GG--994444LL
ii NNAANNDD((88GG))--eeMMMMCC 44..4411
((SSAANN DDIISSKK))
VMEM_3V3
RP114K331D-TR
VVMMEEMM__33VV33
RICOH
VSMPS2_1V8
MC2_DAT_[0:7]
GGOOLLDDEENN BBlloocckk DDiiaaggrraamm HH//WW RREEVV00..77
EARPHONE
FM_I2S_CLK FM_I2S_SYNC FM_I2S_DI
FM_I2S_DO
BT_UART_TXD BT_UART_RTS BT_PCM_CLK BT_PCM_SYNC BT_PCM_DI BT_UART_RXD BT_UART_CTS BT_PCM_DO
SYS_CLK_REQ /
RF_STOBE / SCLK / SDAT
RX_DA,TX_DA
BT/ GPS/ FM BLOCK
CG2905
GPS/BT/FM
STE OSC
26MHz
FM ANT
26MHz
GBF_BT_RF
MGF7301
GPS/BT
S/W GPS ANT

Level 3Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
8-2

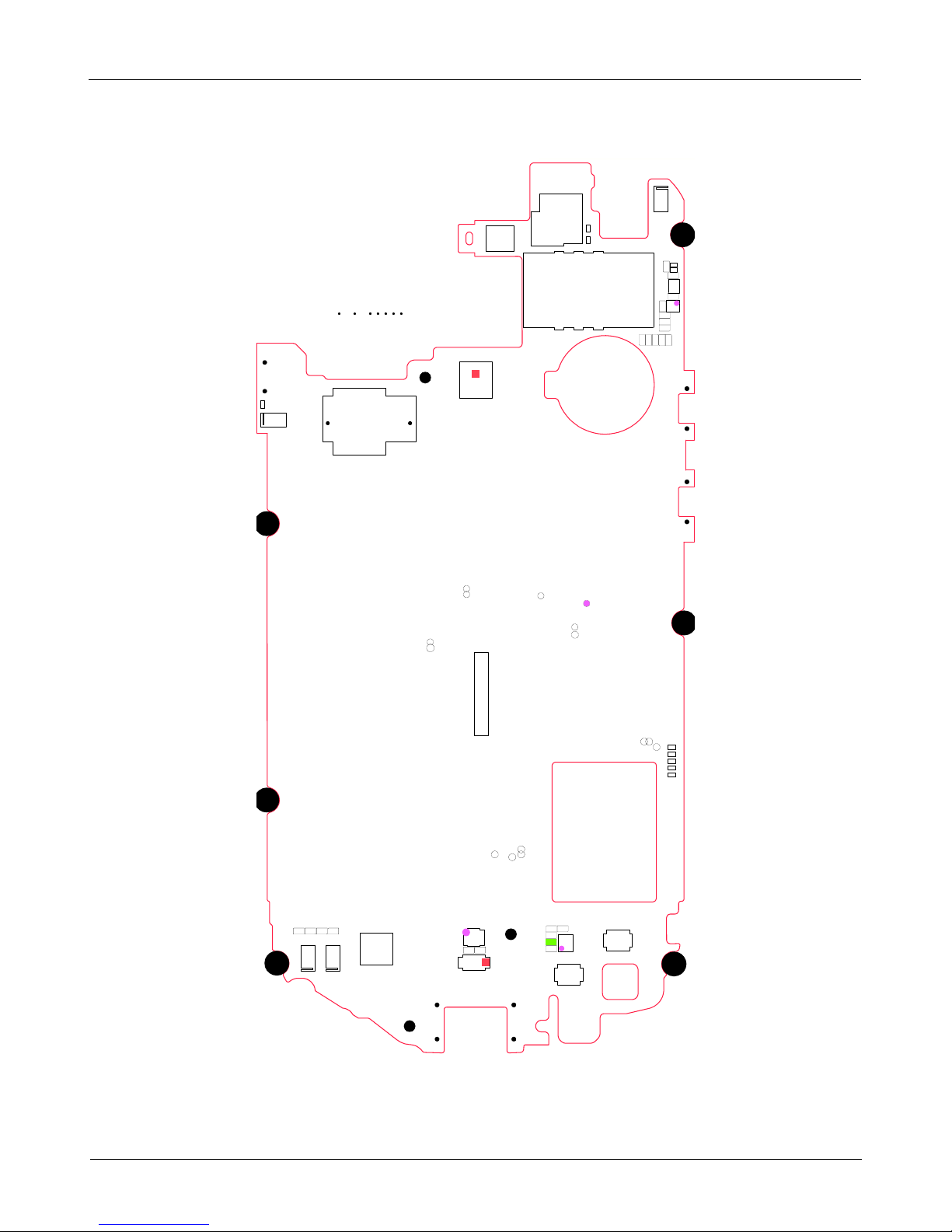

8-2. PCB Diagrams
8-2-1. Top
200
B
OTHHOLE101
B
OTHHOLE102
BOTHHOLE103 BOTHHOLE104
BOTHHOLE106
BOTHHOLE107
BOTHHOLE10
8
BOTHHOLE10
9
BOTHHOLE110
C100
C101
C102
C103
C104
C105
C106
C107
C108
C112
C113
C114
C115
C116
C117
C118
C119
C120
C121
C122
C123
C127
C128
C129
C130
C131
C134
C135
C136
C137
C139
C141
C142
C143
C144
C146
C148
C150
C151
C152
C153
C154
C156
C157
C158
C159
C160
C161
C162
C164
C165
C166
C167
C169
C172
C173
C175
C176
C178
C179
C180
C182
C201
C202
C205
C206
C210
C211
C212
C214
C215
C217
C218
C219
C220
C221
C222
C223
C224
C225
C226
C227
C228
C229
C230
C231
C232
C234
C235
C236
C237
C238
C239
C240
C241
C242
C243
C244
C245
C246
C247
C249
C250
C251
C252
C253
C254
C255
C256
C257
C258
C259
C260
C261
C262
C263
C264
C265
C266
C267
C268
C269
C270
C271
C272
C273
C274
C275
C276
C277
C278
C279
C280
C281
C282
C284
C285
C286
C287
C288
C290
C294
C295
C296
C297
C298
C299
C301
C302
C305
C306
C307
C308
C311
C312
C313
C314
C315
C316
C317
C318
C319
C320
C321
C322
C323
C324
C325
C326
C327
C328
C329
C330
C331
C332
C333
C334
C335
C336
C337
C338
C339
C340
C341
C342
C343
C344
C345
C346
C347
C348
C349
C350
C351
C352
C354
C356
C357
C358
C359
C360
C361
C362
C363
C364
C365
C366
C367
C368
C369
C370
C371
C372
C373
C374
C375
C400
C401
C402
C403
C404
C405
C406
C407
C408
C409
C410
C411
C414
C415
C416
C417
C418
C420
C421
C422
C423
C425
C426
C427
C428
C429
C430
C433
C434
C435
C436
C438
C439
C440
C442
C443
C444
C449
C450
C451
C452
C453
C454
C455
C456
C457
C458
C459
C460
C461
C462
C463
C464
C465
C466
C467
C468
C469
C470
C471
C472
C473
C474
C475
C476
C477
C478
C479
C480
C481
C482
C483
C484
C485
C486
C487
C488
C489
C491
C492
C493
C494
C495
C496
C497
C498
C499
C502
C503
C504
C510
C511
C512
C513
C514
C515
C516
C517
C518
C525
C526
C527
C528
C529
C530
C531
C532
C533
C534
C535
C536
C540 C541
C544
C547
C548
C549
C550
C551
C556
C558
C559
C560
C561
C562
C563
C564
C565
C566
C568
C569
C570
C577
C578
C579
D400
F100
F101
F102
F103
F104
F105
F106
F107
F108
F200
F202
F203
F500
F501
F502
F503
F504
F505F506F507
F508
HDC500
IFC500
L100
L101
L102
L103
L104
L105
L106
L107
L108
L109
L110
L111
L112
L113
L115
L116
L117
L118
L119
L120
L121
L122
L123
L124
L125
L126
L128
L130
L131
L133
L135
L137
L138
L139
L140
L141
L142
L146L147
L201
L203
L205
L206
L207
L208
L209
L210
L211
L212
L214
L215
L216
L217
L400
L401
L402
L403
L404
L406
L407
L408
L409
L410
L412
L413
L414
L415
L500
L501
L502
L503
L504
L505
L506
L507
L508
L509
L510
L511
L512
L513
L514
L515
L517
L518
L521
L522
MIC500
MOT400
MOT401
OSC100
OSC200
OSC201
OSC400
PAD103
PAM100
Q100
Q201
Q500
R104
R112
R113
R201
R203
R204
R205
R206
R207
R208
R218
R219
R224
R227
R230
R232
R233
R234
R236
R238
R239
R240
R241
R242
R243
R300
R303
R304
R305
R306
R307
R308
R309
R310
R311
R312
R314
R315
R316
R317
R319
R320
R324
R325
R326
R327
R328
R329
R330
R331
R332
R333
R334
R335
R340
R341
R408
R412
R413
R415
R417
R419
R420
R429
R431
R436
R438
R450
R500
R506
R507
R508
R509
R510
R512
R516
R517
R519
R520
R521
R526
R532
R534
R536
R542
R544
R547
R549
R553
R558
R559
R560
R561
SC100
SC101
SC102
SC103
SC104
SC105
SC106
SC107
SC108
SC109
SERVICE_AB8505
SLC500
SLC501
TACT500
TACT501TACT502
TH400
TP_301
TP_5M_RESET
TP_5M_STBY
TP_BT_PCM_CLK OD_MCP_TB_PTID_MCP_TB_PT
TP_BT_PCM_SYNC
TP_BT_UART_CTD
TP_BT_UART_RTS
TP_BT_UART_RXD
TP_BT_UART_TXD
TP_BT_VREG_ON
TP_BT_WAKE
TP_CLK_T
TP_COMPASS_DRDY
TP_DAT_T
TP_FM_I200
TP_FM_I202
TP_FM_I203
TP_GND_DET_AB400
TP_HOST_WAKE
TP_IF_RXD
TP_IF_TXD
TP_INTB
TP_INTNDB300
TP_NFC_CLK_REQ
TP_PG
TP_PORN
TP_RESET
TP_RF_STROBE
TP_SYS_CLK_REQ
TP_VIB_OUTNTP_VIB_OUTP
TP_VT_RESET
TP_VT_STBY
TP_WLAN_RST_N
TP_WLAN_SDIO_CMDTP_WLAN_SDIO_DATA0
TP_WLAN_SDIO_DATA1
TP_WLAN_SDIO_DATA2
TP_WLAN_SDIO_DATA3
TP200
TP204
TP205
TP206
TP207
TP228
TP229
TP300
TP303
TP305
TP307
TP308
TP309
TP310
U100
U101
U201
U202
U203
U204
U205
U207
U208
U209
U306
U308
U401
U402U403
U404
U406
U500
U502
U503
U555
UCP300UME301
ZD400
ZD401
ZD501
ZD502
ZD503
ZD504
ZD505
ZD507
ZD510

Level 3Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
8-3

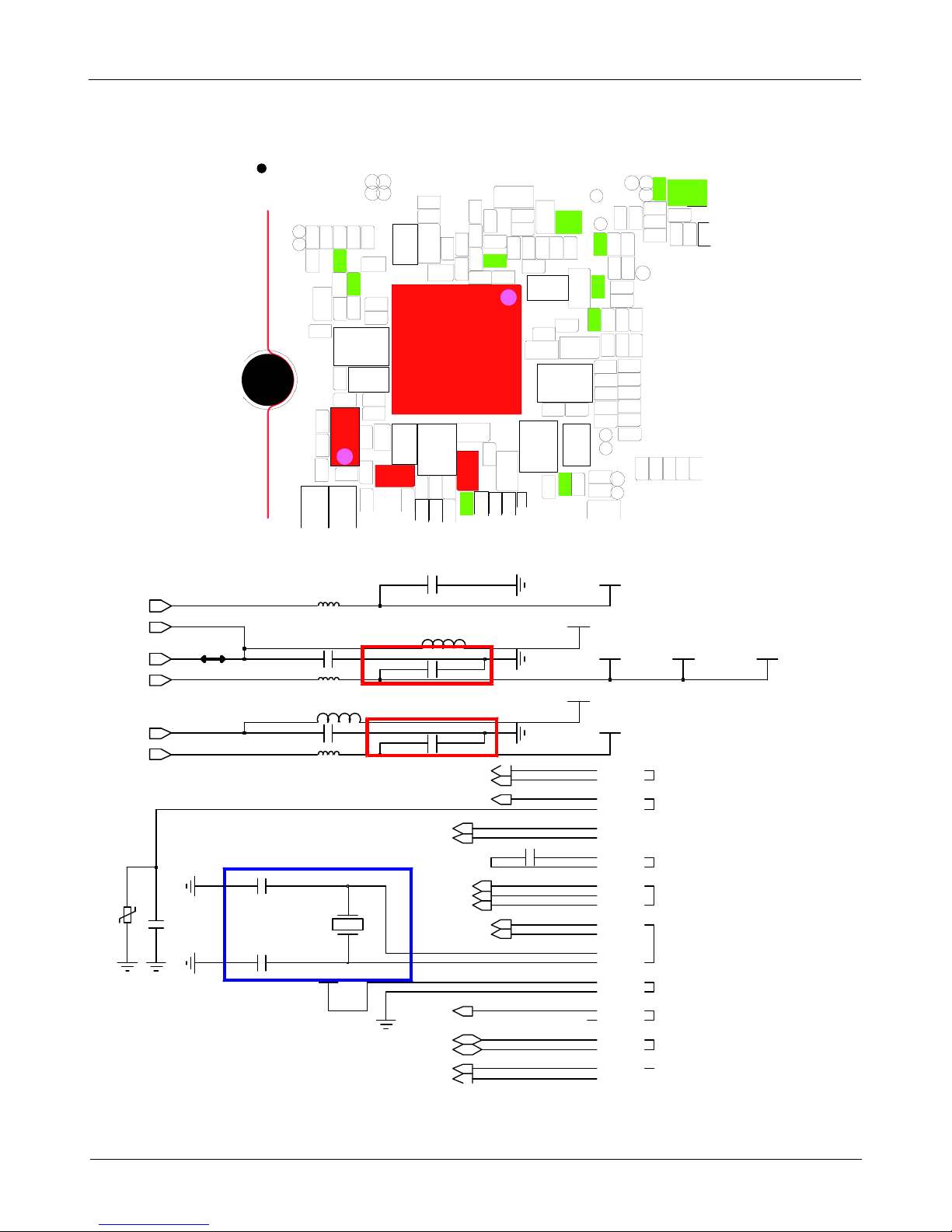

8-2-2. Bottom
ANT100
ANT101
ANT200
ANT201
BTC400
C109
C181
C203
C204
C207
C208
C209
C213
C283
C519
C520
C542 C572
C573
C574
F201
HDC502
HDC503
HDC504
L127
L143
L200
L202
L204
L416
L516
L519
L520
LED500
PAD100
R301
R336
R337
R338
R339
R515
R556
R557
RCV501
RFS100
SIM500
TP_200
TP_CLK_300
TP_NFC_EXT_REF_CLK
TP_SCLK
TP_SDAT
TP_SLE
TP_SYS_CLK_400
TP_USB_XCLK
TP_VARM_FB
TP_VARM_NEGFB
TP301
TP302
TP304
TP306
U200
U405
ULP_CLK_TP
ZD500
ZD508
ZD511

Level 3Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
8-4
8-3. Flow Chart of Troubleshooting
Equipments
Oscilloscope Digital Multi-meter
Power Supply +driver, ESD Safe Tweezer
8960 & Spectrum Analyzer Soldering iron

Level 3Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
8-5
8-3-1. Power On
Check the TACT500
(soldering crack, open, etc)
Mobile phone does not power on.
Change the TACT500(Power-key switch)
And retry to the power-on operation.
END
No
Yes
Check the U403 output voltage
(C416 >1.8
V, C418 >1.2 V)
If the output voltage is not satisfied with normal
condition, Change the U406.
※Each voltage level has ±10% margin.
No
Yes
Yes
Check the Battery Voltage.
Is it more than 3.8V?
Charging the battery by TA.
If its voltage level is extremely low(under 3.0V),
Change the battery.
check the initial operation
Abnormal
Check the Clock OSC400
Is that frequency 32.768Khz?
Change the OSC400.
If OSC400 does not still work, Change the U406
This problem is internal oscillator of U406.
※Test condition (Oscilloscope setting)
:20.0
us.div (time division)
No
Yes
Yes
Change the FRONT-LCD ASSY
Power-on the phone and
check the power-on sound
or motor Vibration.
Yes
No

Level 3Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
8-6
BOTHHOLE101
C301
C302
C305
C306
C308
C311
C312
C313
C314
C315
C316
C317
C318
C319
C323
C324
C325
C326
C329
C332
C348
C356
C360
C373
C374
C375
C400
C401
C402
C403
C404
C414
C415
C416
C417
C418
C420
C421
C422
C423
C425
C426
C427
C428
C429
C433
C434
C435
C436
C438
C439
C440
C442
C443
C444
C449
C450
C451
C452
C453
C454
C455
C456
C457
C458
C459
C460
C461
C462
C463
C464
C465
C466
C467
C468
C469
C470
C471
C472
C473
C474
C475
C476
C477
C481
C483
C484
C485
C486
C489
C492
C493
C494
C495
C498
C502
C544
C549
C550
C558
C562
C563
C564
L401
L402
L403
L404
L406
L407
L408
L409
L410
L412
L413
L414
OSC400
Q500
R300
R316
R317
R319
R408
R412
R413
R431
R438
R500
R512
R519
R520
R521
R542
R547
TH400
TP_301
TP_BT_UART_CTD
TP_BT_UART_RTS
TP_BT_UART_RXD
TP_BT_UART_TXD
TP_BT_VREG_ON
TP_FM_I200
TP_FM_I202
TP_FM_I203
TP_IF_RXD
TP_IF_TXD
TP_NFC_CLK_REQ
TP_PORN
TP_RESET
TP_VIB_OUTNTP_VIB_OUTP
U406
L408
VBAT
L410
VSMPS2_1V8
C416
VSMPS3_1V2
L406
C417
1107
VBAT
VSMPS2_1V8_R
F
C414
C418
1005
L407
1005
L409
VSMPS2_1V8_VIN
10V
C415
VSMPS1_1V2
VSMPSA_VIN
VSMPSA_LX
VSAFE_VIN
VSAFE_LX
VSMPSB_LX
VSMPSB_VIN
Chare Pump Ext Cap
SIM DP/DM
USB data
DA data
SIM I/F
32KHz Block
TEMP/VF
I2C
0603
TH400
C486 OPEN
1005
U16 XTALINCLK32K
T17 XTALOUTCLK32K
BATCTRL
R9
P3 BITCLK2
P4
BITCLK1
P9
BATTEMP
P13 CISORESET
P14
CUSBDM
P15
CUSBDP
CISODATA
N3 DADATA2
P1 DADATA1
N14
M14
CISOCLOCK
K2
CFHSN
K1
CFHSP
APESCL
J17 APESDA
H2
EARP
H1 EARN
D1
DM
DP
C15
CLK32KOUT1
C17
CLK32KOUT2
C1
CP_VSIM
C493
1005
C485
1005
OSC400
1005
C492
RCV_P
RCV_N
AP_DM
WGBF_32K_CLOCK
CLK32KOUT1
AP_DP
SIM_CLK
I2C_APE_SDA
I2C_APE_SCL
BAT_CTRL
MSP1_TCK
FM_I2S_CLK
SIM_RST
MSP1_TXD
SIM_DAT

Level 3Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
8-7
8-3-2. Initial
Initial Failure
END
Yes
Check the oscillator clock waveform.
32.768KHz :OSC400,
37.4MHz :OSC200
Check the OSC400, OSC200.
(Crack, open etc.)
Check the output clock waveforms and frequency.
※Test condition (Oscilloscope setting)
:20.0
us.div (time division)
Abnormal
Normal
Re-download latest SW on the
mobile phone.
Change UCP300,U406
Abnormal
Abnormal
Change PBA
