Samsung CL21Z50MQ3XXAP User manual

SERVICE
Manual
COLOR TELEVISION
Chassis: K16C(N)_Valiant
Model : CL21Z50MQ3XXAP
COLOR TELEVISION CONTENTS
1. Precaution
2. Product Specification
3. Disassembly & Reassembly
4. Troubleshooting
5. Exploded View & Part List
6. Wiring Diagram
7. Schematic Diagram
Refer to the service manual in the GSPN (see the rear cover) for the more information.
CL-21Z50MQ

Table of Contents
1. Precaution
1-1 Safety Precautions ......................................................................................................................................................1-1
1-2 Servicing Precautions..................................................................................................................................................1-3
1-3 Static Electricity Precautions.......................................................................................................................................1-4
1-4 Installation Precautions ...............................................................................................................................................1-5
2. Product Specification
2-1 Product Specification...................................................................................................................................................2-1
2-2 SpecificationsAnalysis................................................................................................................................................2-2
2-4 Accessories.................................................................................................................................................................2-3
3. Disassembly & Reassembly
3-1 Overall Disassembly & Reassembly............................................................................................................................3-1
4. Troubleshooting
4-1 Troubleshooting...........................................................................................................................................................4-1
4-2 Adjustment...................................................................................................................................................................4-14
5. Exploded View & Part List
5-1 CL21Z50MQ3XXAP Exploded View............................................................................................................................5-1
5-2 CL21Z50MQ3XXAP Service Item................................................................................................................................5-3
6. Wiring Diagram
6-1 Overall Wiring..............................................................................................................................................................6-1
7. Schematic Diagram
7-1 Circuit Description .......................................................................................................................................................7-1
7-2 Schematic Diagram.....................................................................................................................................................7-5

Product Specification
Samsung Electronics 2-1
2. Product Specification
2-1 Product Specification
Features
Block Specification Major IC Remark
CRT 21” FLAT Slim CRT 21” Vixlim CRT
RF Part 1 TUNER F/STUNER TDQ-6F/13F2S
Power Input Voltage : Mexico:AC 110V(Other:AC100 ~ 240V)
Stand-By : 3W UNDER STR-W6750F
Video
NTSC 3.58,ATSC VCT4822
1H Comb Filter
Interlaced Scan
Sound Output : 5W x 2 VCT4822, LA42032
Function : MTS, Surround, Turbo
Cabinet 21Z50 Cabinet Z50 Cabinet
Specification
Model CL-21Z50MQ
Screen Size 21”
Dimensions (WxHxD) 690 x 435 x 580 mm
Weight 19.5 kg
Voltage Mexico:AC 110V(Other:AC100 ~ 240V)
Speaker Output 5W + 5W

Product Specification
2-2 Samsung Electronics
2-2 SpecificationsAnalysis
※ : application, : non-application
Model CL-21Z50MQ CL-21Z50MQ
Design
Basic
Product Type FLAT CRT FLAT CRT
Digital TV Analog Analog
Digital Display 480i 480i
Screen Size 21 21
Aspect Ratio 4:3 4:3
Visual
Quality
Progressive Scan  
Digital Comb Filter  
Screen Pitch 0.73 0.73
Digital Noise Reduction  
AKB  
DNle  
3:2 Pull Down Support  
Audio
Base/Treble/Balance  
Equalizer  
AVL  
Surround  
Speaker System Direct Direct
Sperker Output 5W + 5W 10W + 10W
Function
Dual Screen Function  
Double Screen  
Caption Eng Eng
Still Picture  
Auto Jack Recognition  
EPG  
Network  
Ports
Antenna In Rear:1 Rear:2
Extermal In Rear1, side1 Rear1, side1
S-Video  
Y/Pb/Pr Rear:1 Rear:1
PC  
DVI  
HDMI  
DigitalAudio Out  
Video Out Rear:1 Rear:1
Remote Controller TM85 TM85
※ For the power supply and power consumption, refer to the label attached to the product.

Product Specification
Samsung Electronics 2-3

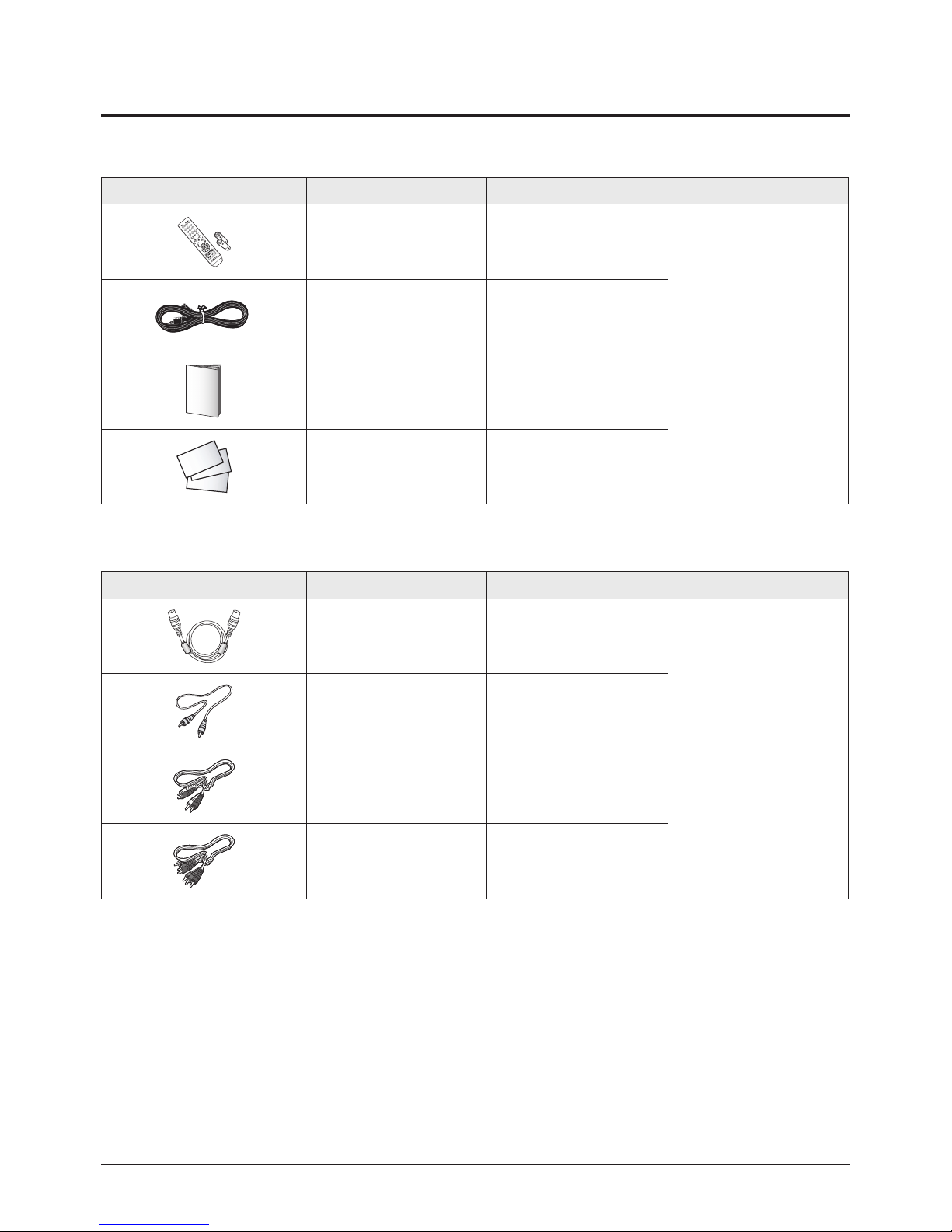

2-3 Accessories
2-3-1 SuppliedAccessories
Accessories Item Item code Remark
Remote Control
Batteries AA59-00385C 4301-000103
Samsung Service center
Power Cord -
Owner’s Instructions AA68-03806H
Warranty Card
Registration Card
Safety Guide Manual
AA68-03727A
-
AA68-03242L
2-3-2 Accessories that can be purchased additionally
Accessories Item Item code Remark
RF Cable -
Electronics Store/
Internal shopping mall
Video Cable -
Audio Cable -
Component Cables (RCA) -

MEMO
2-4 Samsung Electronics

1. Make sure all protective devices are properly installed
including non-metallic handles and compartment covers
when installing or re-installing the chassis or chassis
assemblies.
2. Make sure that no gaps exist between the cabinets for
children to insert their fingers in to prevent children from
receiving electric shocks. Gaps mentioned above include
ventilation holes of a too great magnitude between the
vaccum tube and the cabinet mask, and the improper
installation of the rear cabinet.
Errors may occur when the resistance is below 1.0 ㏁or
over 5.2 ㏁.
In these cases, make sure that the device is repaired
before sending it back to the customer.
3. Check for Electricity Leakage (Figure 1-1)
Warning: Do not use an insulated transformer for check-
ing the leakage. Use only those current leakage testers
or mirroring systems that comply withANSIC 101.1 and
the Underwriter Laboratory's specifications (UL1410,
59.7).
Fig. 1-1AC Leakage Test
4. Ahigh voltage is maintained within the specified limits
using safety parts, calibration and tolerances. When
voltage exceeds the specified limits, check each special
part.
5. Warning for Engineering Changes:
Never make any changes or additions to the circuit
design or the internal part for this product.
Ex: Do not add any audio or video accessory
connectors. This might cause physical damage.
Furthermore, any changes or additions to the original
design/engineering will invalidate the warranty.
6. Warning - Hot Chassis:
Some TV chassis are directly connected to one end of
theAC power cord for electrical reasons.
Without insulated transformers, the product can only be
repaired safely when the chassis is connected to the
earthed end of theAC power source.
To make sure theAC power cord is properly connected,
follow the instructions below. Use the voltmeter to
measure the voltage between the chassis and the
earthed ground. If the measurement is over 1.0V, unplug
theAC power cord and change the polarity before re-
inserting it. Measure the voltage between the chassis
and the ground again.
7. Some TV chassis are shipped with an additional
secondary grounding system. The secondary system is
adjacent to theAC power line. These two grounding
systems are separated in the circuit using an
unbreakable/unchangeable insulation material.
8. When any parts, material or wiring appear overheated or
damaged, replace them with new regular ones
immediately. When any damage or overheating is
detected, correct this immediately and make a regular
check of possible errors.
9. Check for the original shape of the lead, especially that
of the antenna wiring, any sharp edges, theAC power
and the high voltage power. Carefully check if the wiring
is too tight, incorrectly placed or loose. Never change the
space between the part and the printed circuit board.
Check theAC power cord for possible damages. Keep
the part or the lead away from any heat-emitting
materials.
Precaution
Samsung Electronics 1-1
LEAKAGE
CURRENT
TESTER
DEVICE
UNDER
TEST TEST ALL
EXPOSED METAL
SURFACES
2-WIRE CORD
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED) EARTH
GROUND
(READING SHOULD
NOT BE ABOVE
0.5mA)
To avoid possible damages or electric shocks or exposure to radiation, follow the instructions below with regard to safety,
installation, service and ESD.
1. Precaution
1-1 Safety Precautions

10. Safety Indication:
Some electrical circuits or device related materials
require special attention to their safety features, which
cannot be viewed by the naked eye. If an original part is
replaced with another irregular one, the safety or
protective features will be lost even if the new one has a
higher voltage or more watts.
Critical safety parts should be bracketed with ( ).
Use only regular parts for replacements (in particular,
flame resistance and dielectric strength specifications).
Irregular parts or materials may cause electric shock or
fire.
Precaution
1-2 Samsung Electronics
!

1. The service instructions are printed on the cabinet, and
should be followed by any service personnel.
2. Make sure to unplug theAC power cord from the power
source before starting any repairs.
(a) Remove or re-install parts or assemblies.
(b) Disconnect the electric plug or connector, if any.
(c) Connect the test part in parallel with the electrolytic
capacitor.
3. Some parts are placed at a higher position than the
printed board. Insulated tubes or tapes are used for this
purpose. The internal wiring is clamped using buckles to
avoid contact with heat emitting parts. These parts are
installed back to their original position.
4. After the repair, make sure to check if the screws, parts
or cables are properly installed. Make sure no damage is
caused to the repaired part and its surroundings.
5. Check for insulation between the blade of theAC plug
and that of any conductive materials (i.e. the metal
panel, input terminal, earphone jack, etc).
6. Insulation Check Process: Unplug the power cord from
theAC source and turn the switch on. Connect the insu-
lating resistance meter (500v) to theAC plug blade.
The insulating resistance between the blade of theAC
plug and that of the conductive material should be more
than 1 ㏁.
7. Any B+ interlock should not be damaged.
If the metal heat sink is not properly installed, no
connection to theAC power should be made.
8. Make sure the grounding lead of the tester is connected
to the chassis ground before connecting to the positive
lead. The ground lead of the tester should be removed
last.
9. Beware of risks of any current leakage coming into
contact with the high-capacity capacitor.
10. The sharp edges of the metal material may cause
physical damage, so ensure wearing protective gloves
during the repair.
Precaution
Samsung Electronics 1-3
Warning 1: First carefully read the "Safety Instruction" in this service manual.
When there is a conflict between the service and the safety instructions, follow the safety instruction at all times.
Warning 2:Any electrolytic capacitor with the wrong polarity will explode.
1-2 Servicing Precautions

1-3 Static Electricity Precautions
1. Some semi-conductive ("solid state") devices are
vulnerable to static electricity. These devices are known
as ESD. ESD includes the integrated circuit and the field
effect transistor. To avoid any materials damage from
electrostatic shock, follow the instructions described
below.
2. Remove any static electricity from your body by
connecting the earth ground before handling any
semi-conductive parts or ass'ys.Alternatively, wear a
dischargeable wrist-belt.
(Make sure to remove any static electricity before
connecting the power source - this is a safety instruction
for avoiding electric shock)
3. Remove the ESD ass'y and place it on a conductive
surface such as aluminum foil to prevent accumulating
static electricity.
4. Do not use any Freon-based chemicals.
Such chemicals will generate static electricity that
causes damage to the ESD.
5. Use only grounded-tip irons for soldering purposes.
6. Use only anti-static solder removal devices.
Most solder removal devices do not support an
anti-static feature.A solder removal device without an
anti-static feature can store enough static electricity to
cause damage to the ESD.
7. Do not remove the ESD from the protective box until the
replacement is ready. Most ESD replacements are
covered with lead, which will cause a short to the entire
unit due to the conductive foam, aluminum foil or other
conductive materials.
8. Remove the protective material from the ESD
replacement lead immediately after connecting it to the
chassis or circuit ass'y.
9. Take extreme caution in handling any uncovered ESD
replacements.Actions such as brushing clothes or lifting
your leg from the carpet floor can generate enough static
electricity to damage the ESD.
Precaution
1-4 Samsung Electronics
CAUTION
These servicing instructions are for use by
qualified service personnel only.
To reduce the risk of electric shock do not
perform any servicing other than that contained in the
operating instructions unless you are qualified to do so.

Precaution
Samsung Electronics 1-5
1-4 Installation Precautions
1. For safety reasons, more than two people are required
for carrying the product.
2. Keep the power cord away from any heat emitting
devices, as a melted covering may cause fire or electric
shock.
3. Do not place the product in areas with poor ventilation
such as a bookshelf or closet. The increased internal
temperature may cause fire.
4. Bend the external antenna cable when connecting it to
the product. This is a measure to protect it from being
exposed to moisture. Otherwise, it may cause a fire or
electric shock.
5. Make sure to turn the power off and unplug the power
cord from the outlet before repositioning the product.
Also check the antenna cable or the external connectors
if they are fully unplugged. Damage to the cord may
cause fire or electric shock.
6. Keep the antenna far away from any high-voltage cables
and install it firmly. Contact with the high-voltage cable or
the antenna falling over may cause fire or electric shock.
7. Check the basics of the screen test.
- Image position/size, Tilt adjustment

1-6 Samsung Electronics
MEMO

Exploded View & Part List
Samsung Electronics
5-1
5. Exploded View & Part List
5-1 CL21Z50MQ3XXAP Exploded View
M0014
T0074 T0066
T0607
M0112
T0022 T0299
T0175
T0023
CIS7
T0003
T0063
M0006
T0610

Exploded View & Part List
Samsung Electronics 5-2
Loc. No. Code No. Description Specification Q’ty SA/SNA Remark
CIS7 AA61-60003J SPRING ETC-CS -,SUS304,-,-,OD6,N7,OD6,-, 1 S.N.A
M0006 AA63-01555D COVER-REAR 21Z50,HIPS,HB,BK500,ASIA 1 S.N.A
M0014 AA96-04986A ASSY PCB P-MAIN CL21Z50MQ3XXAP, VALIANT, 1 S.A
M0112 AA63-01553E COVER-FRONT 21Z50,HIPS,HB,GR503,BKN1576+ 1 S.N.A
T0003 AA96-04720F ASSY COVER P-FRONT 21Z50,,HIPS,HB,,BKN15 1 S.A
T0022 AA64-04430A KNOB CONTROL 21Z50 / 21Z51,ABS,HB,BKN157 1 S.N.A
T0023 AA64-04429A KNOB POWER 21Z50 / 21Z51,ABS,HB,BKN1576 1 S.N.A
T0063 AA03-00533A CRT COLOR A51QGV991X201,+380mG,0.915,9.1 1 S.A
T0066 AA96-20112C ASSY POWER CORD -,EP2/NO,H/C250,KJ10,THA 1 S.A
T0074 AA59-00385C REMOCON TOMORROW,TM85,S3C1860XP0-SKT1,30 1 S.A
T0175 AA96-04766A ASSY SPEAKER P 8ohm,10W,R/B700mm,Y/B500m 1 S.A
T0299 AA64-04431A WINDOW-RMC,LED 21Z50/ 21Z51,PC,CLEAR 1 S.N.A
T0607 AA61-40113A STOPPER-PCB 501H,HIPS,-,-,HB,NTR,- 1 S.N.A
T0610 AA96-04791A ASSY PCB P-AV SIDE -,-,-,-,CARTER & FANT 1 S.N.A

Exploded View & Part List
Samsung Electronics
5-3
5-2 CL21Z50MQ3XXAP Electrical Part List
Loc. No. Code No. Description Specification Q’ty SA/SNA Remark
ASSY CHASSIS
M0017 AA91-10945C ASSY CHASSIS 21Z43/21Z50/21Z57,XAP 1 S.N.A
M0014 AA96-04986A ASSY PCB P-MAIN CL21Z50MQ3XXAP, VALIANT, 1 S.A
00VER AA41-01279A PCB CRT I ROBOT2,FR-4,1L,1.0,1.6T,69.5*7 1 S.N.A
C 2401-000430 C-AL 10uF,20%,250V,GP,TP,10x16mm,5m 1 S.A
C 2401-000430 C-AL 10uF,20%,250V,GP,TP,10x16mm,5m 1 S.A
C 2401-000010 C-AL 220uF,20%,16V,GP,-,6.3x11mm,2.5 1 S.A
C 2401-000038 C-AL 470uF,20%,25V,GP,TP,10x12.5mm, 1 S.A
C 2401-000262 C-AL 100uF,20%,160V,HR,TP,16x25,7.5 1 S.A
C 2401-000262 C-AL 100uF,20%,160V,HR,TP,16x25,7.5 1 S.A
C 2401-000302 C-AL 100uF,20%,25V,GP,TP,6.3x11,5 1 S.A
C 2401-000360 C-AL 100uF,20%,50V,GP,TP,8x11.5,5 1 S.A
C 2401-000360 C-AL 100uF,20%,50V,GP,TP,8x11.5,5 1 S.A
C 2401-000480 C-AL 10uF,20%,50V,GP,TP,5x11,5 1 S.A
C 2401-000493 C-AL 10uF,20%,50V,LZ,TP,5x11mm,5mm 1 S.A
C 2401-000603 C-AL 1UF,20%,50V,GP,TP,5X11,2 1 S.A
C 2401-000603 C-AL 1UF,20%,50V,GP,TP,5X11,2 1 S.A
C 2401-000649 C-AL 2.2uF,20%,50V,BP,TP,5x11,5 1 S.A
C 2401-000649 C-AL 2.2uF,20%,50V,BP,TP,5x11,5 1 S.A
C 2401-000703 C-AL 2200uF,20%,25V,GP,-,12.5x25mm, 1 S.A
C 2401-001026 C-AL 3.3UF,20%,50V,GP,TP,5X11,5 1 S.A
C 2401-001232 C-AL 4.7uF,20%,250V,GP,TP,10x12.5,5 1 S.A
C 2401-001397 C-AL 470uF,20%,25V,GP,TP,10x16,5 1 S.A
C 2401-001576 C-AL 47¥ìF,20%,50V,GP,TP,8x11.5,5mm 1 S.A
C 2401-001989 C-AL 4.7uF,20%,50V,BP,TP,5x11,5 1 S.A
C 2401-001989 C-AL 4.7uF,20%,50V,BP,TP,5x11,5 1 S.A
C 2401-001989 C-AL 4.7uF,20%,50V,BP,TP,5x11,5 1 S.A
C 2401-001989 C-AL 4.7uF,20%,50V,BP,TP,5x11,5 1 S.A
C 2401-001989 C-AL 4.7uF,20%,50V,BP,TP,5x11,5 1 S.A
C 2401-001989 C-AL 4.7uF,20%,50V,BP,TP,5x11,5 1 S.A
C 2401-002075 C-AL 4.7uF,20%,50V,GP,TP,5x11,5 1 S.A
C 2401-002075 C-AL 4.7uF,20%,50V,GP,TP,5x11,5 1 S.A
C 2401-002144 C-AL 47uF,20%,16V,GP,TP,5x11,5 1 S.A
C 2401-002291 C-AL 47uF,20%,16V,GP,TP,6.3x5,5 1 S.A
C 2401-002291 C-AL 47uF,20%,16V,GP,TP,6.3x5,5 1 S.A
C 2401-002463 C-AL 470uF,20%,16V,GP,TP,8x11.5,5 1 S.A
C 2401-002463 C-AL 470uF,20%,16V,GP,TP,8x11.5,5 1 S.A
C 2401-002463 C-AL 470uF,20%,16V,GP,TP,8x11.5,5 1 S.A
C 2401-002463 C-AL 470uF,20%,16V,GP,TP,8x11.5,5 1 S.A
C 2401-002619 C-AL 47uF,20%,25V,GP,TP,5x11,5 1 S.A
C 2401-002619 C-AL 47uF,20%,25V,GP,TP,5x11,5 1 S.A
C 2401-002619 C-AL 47uF,20%,25V,GP,TP,5x11,5 1 S.A
C 2401-002619 C-AL 47uF,20%,25V,GP,TP,5x11,5 1 S.A
C 2401-002619 C-AL 47uF,20%,25V,GP,TP,5x11,5 1 S.A
C 2401-002619 C-AL 47uF,20%,25V,GP,TP,5x11,5 1 S.A
C 2401-002619 C-AL 47uF,20%,25V,GP,TP,5x11,5 1 S.A
C 2401-002619 C-AL 47uF,20%,25V,GP,TP,5x11,5 1 S.A
C 2401-003010 C-AL 1000uF,20%,6.3V,GP,TP,8x11.5mm 1 S.N.A
C 2401-003036 C-AL 100uF,20%,16V,GP,TP,5X11mm,5mm 1 S.A
C 2401-003036 C-AL 100uF,20%,16V,GP,TP,5X11mm,5mm 1 S.A
C 2401-003036 C-AL 100uF,20%,16V,GP,TP,5X11mm,5mm 1 S.A
C 2401-003555 C-AL 3300uF,20%,25V,WT,TP,16x25,7.5 1 S.A
C 2401-003578 C-AL 1000uF,20%,10V,GP,TP,8x20mm,5 1 S.A
C 2401-002128 C-AL 220uF,20%,400V,GP,BK,25x40mm,10 1 S.A
C101 2306-000122 C-FILM,LEAD-PPF 100nF,5%,50V,TP,7.3x4.0x 1 S.A
C102 2202-000216 C-CERAMIC,MLC-AXIAL 0.027NF,5%,50V,SL,TP 1 S.A
C103 2202-000216 C-CERAMIC,MLC-AXIAL 0.027NF,5%,50V,SL,TP 1 S.A
C209 2301-000383 C-FILM,LEAD-PEF 10nF,5%,50V,TP,6x7x3.2mm 1 S.A
C210 2202-002253 C-CERAMIC,MLC-AXIAL 100.0nF,+80-20%,50.0 1 S.A
C212 2202-000796 C-CERAMIC,MLC-AXIAL 1NF,10%,50V,Y5P,TP,3 1 S.A
C213 2202-000796 C-CERAMIC,MLC-AXIAL 1NF,10%,50V,Y5P,TP,3 1 S.A
C214 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C217 2202-000796 C-CERAMIC,MLC-AXIAL 1NF,10%,50V,Y5P,TP,3 1 S.A

Exploded View & Part List
Samsung Electronics 5-4
Loc. No. Code No. Description Specification Q’ty SA/SNA Remark
C218 2202-000796 C-CERAMIC,MLC-AXIAL 1NF,10%,50V,Y5P,TP,3 1 S.A
C221 2202-000796 C-CERAMIC,MLC-AXIAL 1NF,10%,50V,Y5P,TP,3 1 S.A
C222 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C223 2201-000389 C-CERAMIC,DISC 0.022NF,5%,50V,C0G,TP,5X3 1 S.A
C227 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C228 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C229 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A
C231 2202-000796 C-CERAMIC,MLC-AXIAL 1NF,10%,50V,Y5P,TP,3 1 S.A
C233 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A
C234 2202-000632 C-CERAMIC,MLC-AXIAL 100nF,20%,50V,Z5U,TP 1 S.A
C235 2202-000632 C-CERAMIC,MLC-AXIAL 100nF,20%,50V,Z5U,TP 1 S.A
C238 2202-000632 C-CERAMIC,MLC-AXIAL 100nF,20%,50V,Z5U,TP 1 S.A
C239 2201-000389 C-CERAMIC,DISC 0.022NF,5%,50V,C0G,TP,5X3 1 S.A
C240 2305-000411 C-FILM,LEAD-PEF 470nF,5%,50V,TP,7.3x4.8x 1 S.A
C241 2202-000796 C-CERAMIC,MLC-AXIAL 1NF,10%,50V,Y5P,TP,3 1 S.A
C244 2301-000224 C-FILM,LEAD-PEF 22nF,5%,50V,TP,7.4x3.9x1 1 S.A
C245 2202-000796 C-CERAMIC,MLC-AXIAL 1NF,10%,50V,Y5P,TP,3 1 S.A
C248 2202-000632 C-CERAMIC,MLC-AXIAL 100nF,20%,50V,Z5U,TP 1 S.A
C249 2202-000796 C-CERAMIC,MLC-AXIAL 1NF,10%,50V,Y5P,TP,3 1 S.A
C250 2202-000796 C-CERAMIC,MLC-AXIAL 1NF,10%,50V,Y5P,TP,3 1 S.A
C251 2202-000796 C-CERAMIC,MLC-AXIAL 1NF,10%,50V,Y5P,TP,3 1 S.A
C253 2202-000796 C-CERAMIC,MLC-AXIAL 1NF,10%,50V,Y5P,TP,3 1 S.A
C256 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C257 2305-001037 C-FILM,LEAD-PEF 330nF,5%,63V,TP,7.5x5.5x 1 S.A
C259 2202-000796 C-CERAMIC,MLC-AXIAL 1NF,10%,50V,Y5P,TP,3 1 S.A
C263 2202-000796 C-CERAMIC,MLC-AXIAL 1NF,10%,50V,Y5P,TP,3 1 S.A
C265 2202-000796 C-CERAMIC,MLC-AXIAL 1NF,10%,50V,Y5P,TP,3 1 S.A
C270 2202-000863 C-CERAMIC,MLC-AXIAL 560pF,10%,50V,Y5P,TP 1 S.A
C276 2202-000796 C-CERAMIC,MLC-AXIAL 1NF,10%,50V,Y5P,TP,3 1 S.A
C280 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C281 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C301 2301-000342 C-FILM,LEAD-PEF 2.2nF,5%,50V,TP,7.4x3.9x 1 S.A
C302 2201-000192 C-CERAMIC,DISC 0.01nF,0.25pF,500V,C0G,-, 1 S.A
C305 2305-000289 C-FILM,LEAD-PEF 220nF,5%,63V,TP,-,5mm 1 S.A
C306 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C307 2201-000003 C-CERAMIC,DISC 0.068NF,10%,2KV,SL,TP,7X5 1 S.A
C401 2301-000383 C-FILM,LEAD-PEF 10nF,5%,50V,TP,6x7x3.2mm 1 S.A
C403 2201-000599 C-CERAMIC,DISC 0.56NF,10%,500V,Y5P,TP,5. 1 S.A
C408 2201-000556 C-CERAMIC,DISC 0.47NF,10%,500V,Y5P,TP,5. 1 S.A
C411 2201-000556 C-CERAMIC,DISC 0.47NF,10%,500V,Y5P,TP,5. 1 S.A
C413 2201-000556 C-CERAMIC,DISC 0.47NF,10%,500V,Y5P,TP,5. 1 S.A
C415 2301-001259 C-FILM,LEAD-PPF 100nF,5%,400V,TP,19x8x16 1 S.A
C418 2305-001037 C-FILM,LEAD-PEF 330nF,5%,63V,TP,7.5x5.5x 1 S.A
C424 2201-000132 C-CERAMIC,DISC 0.1NF,10%,500V,Y5P,TP,6.5 1 S.A
C499 2305-000237 C-FILM,LEAD-PEF 1uF,5%,63V,TP,7.5x15.5mm 1 S.A
C501 2202-000216 C-CERAMIC,MLC-AXIAL 0.027NF,5%,50V,SL,TP 1 S.A
C502 2202-000216 C-CERAMIC,MLC-AXIAL 0.027NF,5%,50V,SL,TP 1 S.A
C503 2202-000216 C-CERAMIC,MLC-AXIAL 0.027NF,5%,50V,SL,TP 1 S.A
C504 2202-000796 C-CERAMIC,MLC-AXIAL 1NF,10%,50V,Y5P,TP,3 1 S.A
C505 2202-000796 C-CERAMIC,MLC-AXIAL 1NF,10%,50V,Y5P,TP,3 1 S.A
C508 2201-000723 C-CERAMIC,DISC 4.7NF,20%,3KV,Y5U,TP,16X5 1 S.A
C511 2202-000796 C-CERAMIC,MLC-AXIAL 1NF,10%,50V,Y5P,TP,3 1 S.A
C512 2202-000263 C-CERAMIC,MLC-AXIAL 470pF,10%,50V,Y5P,TP 1 S.A
C513 2202-000263 C-CERAMIC,MLC-AXIAL 470pF,10%,50V,Y5P,TP 1 S.A
C514 2202-000263 C-CERAMIC,MLC-AXIAL 470pF,10%,50V,Y5P,TP 1 S.A
C601 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C602 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C603 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C604 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C605 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C610 2301-000289 C-FILM,LEAD-PEF 5.6nF,5%,50V,TP,7x6x3mm, 1 S.A
C611 2301-000289 C-FILM,LEAD-PEF 5.6nF,5%,50V,TP,7x6x3mm, 1 S.A
C701 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C702 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C703 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C704 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C705 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C706 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A

Exploded View & Part List
5-5 Samsung Electronics
Loc. No. Code No. Description Specification Q’ty SA/SNA Remark
C707 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C708 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C709 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C710 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C807 2303-000147 C-FILM,LEAD-PPF 1NF,5%,2KV,TP,23X13X8MM, 1 S.A
C809 2201-000732 C-CERAMIC,DISC 0.68NF,10%,1KV,Y5P,TP,7X4 1 S.A
C810 2301-000383 C-FILM,LEAD-PEF 10nF,5%,50V,TP,6x7x3.2mm 1 S.A
C818 2201-000930 C-CERAMIC,DISC 0.22NF,10%,500V,Y5P,TP,5. 1 S.A
C823 2201-000930 C-CERAMIC,DISC 0.22NF,10%,500V,Y5P,TP,5. 1 S.A
C824 2305-000289 C-FILM,LEAD-PEF 220nF,5%,63V,TP,-,5mm 1 S.A
C828 2201-000374 C-CERAMIC,DISC 0.22NF,5%,50V,C0G,TP,10.5 1 S.A
C843 2301-000192 C-FILM,LEAD-PEF 1nF,5%,50V,TP,5.3x10mm,5 1 S.A
C844 2301-000356 C-FILM,LEAD-PEF 47nF,5%,50V,TP,7.5x4.0x6 1 S.A
C845 2201-000930 C-CERAMIC,DISC 0.22NF,10%,500V,Y5P,TP,5. 1 S.A
C888 2201-000556 C-CERAMIC,DISC 0.47NF,10%,500V,Y5P,TP,5. 1 S.A
C904 2202-000796 C-CERAMIC,MLC-AXIAL 1NF,10%,50V,Y5P,TP,3 1 S.A
CIS1 0205-001154 OIL-SILICON G746,-,- 0.1 S.N.A
CIS1 0205-001154 OIL-SILICON G746,-,- 0.5 S.N.A
CIS1 0205-001154 OIL-SILICON G746,-,- 0.2 S.N.A
CIS1 0205-001154 OIL-SILICON G746,-,- 0.2 S.N.A
CIS1 0205-001154 OIL-SILICON G746,-,- 0.1 S.N.A
CIS3 AA40-00016A TUNER TDQ-6F/13F2S,NTSC,181CH,45.75MHZ,7 1 S.A
CN330 3711-000577 HEADER-BOARD TO CABLE BOX,10P,1R,2.5MM,S 1 S.A
CN330 3711-002642 HEADER-BOARD TO CABLE BOX,3P,1R,2.5mm,ST 1 S.A
CN330 3711-002644 HEADER-BOARD TO CABLE BOX,5P,1R,2.5mm,ST 1 S.A
CN330 3711-002647 HEADER-BOARD TO CABLE BOX,8P,1R,2.5mm,ST 1 S.A
CN330 3711-003043 HEADER-BOARD TO CABLE BOX,4P,1R,2.5MM,ST 1 S.A
CN330 3711-000577 HEADER-BOARD TO CABLE BOX,10P,1R,2.5MM,S 1 S.A
CN909 AA37-00001A CONNECTOR-FBT FIX PIN JM-3500,CPTTV,0.36 1 S.A
CR403S 2301-001041 C-FILM,LEAD-PPF 15nF,5%,1.6KV,TP,29x14x2 1 S.A
CR404S 2303-001001 C-FILM,LEAD-PPF 22nF,5%,630V,TP,18x14.5x 1 S.A
CR406S 2306-000172 C-FILM,LEAD-PPF 270nF,5%,400V,BK,26.5x19 1 S.A
CR511 2002-001017 R-COMPOSITION 1Kohm,10%,1/2W,AA,TP,3.7x9 1 S.A
CX801S 2306-000321 C-FILM,LEAD-PPF 470NF,20%,275V,BK,31X11X 1 S.A
CY802S 2201-000987 C-CERAMIC,DISC 2.2NF,20%,400V,Y5U,BK,12. 1 S.A
D201 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
D211 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
D240 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
D241 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
D242 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
D303 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A
D402 0402-000132 DIODE-RECTIFIER 1N4004,400V,1A,DO-41,TP 1 S.A
D403 0402-000132 DIODE-RECTIFIER 1N4004,400V,1A,DO-41,TP 1 S.A
D404 0402-001599 DIODE-RECTIFIER DGP30L,1500,3A,DO-201AD( 1 S.A
D405 0402-000534 DIODE-RECTIFIER RG10V,400V,1.2A,DO-15,TP 1 S.A
D406 0402-000540 DIODE-RECTIFIER RU20A,600V,1.5A,DO-15,TP 1 S.A
D407 0402-000540 DIODE-RECTIFIER RU20A,600V,1.5A,DO-15,TP 1 S.A
D408 0402-001295 DIODE-RECTIFIER GUR460L-5700,600V,4A,DO- 1 S.A
D504 0402-000254 DIODE-RECTIFIER RGP10J,600V,1A,DO-41,TP 1 S.A
D801S 0402-001477 DIODE-BRIDGE GSIB460,600V,4A,SIP-4,ST 1 S.A
D803 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A
D804 0401-000006 DIODE-SWITCHING BAV21,250V,200mA,DO-35,T 1 S.A
D805 0401-000006 DIODE-SWITCHING BAV21,250V,200mA,DO-35,T 1 S.A
D807 0402-000493 DIODE-RECTIFIER 1R5GU41,400V,1.5A,DO-15L 1 S.A
D809A 0402-001604 DIODE-RECTIFIER MUR420,200V,4A,DO-201AD, 1 S.A
D811 0402-001603 DIODE-RECTIFIER MUR480E,800V,4A,DO-201AD 1 S.A
D813 0402-001604 DIODE-RECTIFIER MUR420,200V,4A,DO-201AD, 1 S.A
DZ201 0403-000717 DIODE-ZENER MTZJ5.1B,4.94-5.2V,500mW,DO- 1 S.A
DZ202 0403-000720 DIODE-ZENER MTZJ9.1B,8.57-9.01V,500mW,DO 1 S.A
DZ203 0403-000717 DIODE-ZENER MTZJ5.1B,4.94-5.2V,500mW,DO- 1 S.A
DZ204 0403-000509 DIODE-ZENER MTZJ5.6B,5.4-5.7V,500mW,DO-3 1 S.A
DZ205 0403-000509 DIODE-ZENER MTZJ5.6B,5.4-5.7V,500mW,DO-3 1 S.A
DZ242 0403-000717 DIODE-ZENER MTZJ5.1B,4.94-5.2V,500mW,DO- 1 S.A
DZ244 0403-000509 DIODE-ZENER MTZJ5.6B,5.4-5.7V,500mW,DO-3 1 S.A
DZ246 0403-000714 DIODE-ZENER MTZJ3.3B,3.32-3.53V,500mW,DO 1 S.A
DZ301 0403-001329 DIODE-ZENER MTZJ24B,22.75-23.73V,500mW,D 1 S.A
DZ302 0403-001329 DIODE-ZENER MTZJ24B,22.75-23.73V,500mW,D 1 S.A
DZ303 0403-001221 DIODE-ZENER UZ39BSB,35.36-37.19V,500mW,D 1 S.A

Exploded View & Part List
Samsung Electronics 5-6
Loc. No. Code No. Description Specification Q’ty SA/SNA Remark
DZ306 0403-000700 DIODE-ZENER TZP33A,5%,1000mW,DO-41,TP 1 S.A
DZ403 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
DZ605 0403-000509 DIODE-ZENER MTZJ5.6B,5.4-5.7V,500mW,DO-3 1 S.A
DZ702 0403-000720 DIODE-ZENER MTZJ9.1B,8.57-9.01V,500mW,DO 1 S.A
DZ703 0403-000720 DIODE-ZENER MTZJ9.1B,8.57-9.01V,500mW,DO 1 S.A
DZ704 0403-000720 DIODE-ZENER MTZJ9.1B,8.57-9.01V,500mW,DO 1 S.A
DZ807 0403-000718 DIODE-ZENER MTZJ6.8B,6.52-6.79V,500mW,DO 1 S.A
DZ810 0403-000509 DIODE-ZENER MTZJ5.6B,5.4-5.7V,500mW,DO-3 1 S.A
DZ811 0403-000700 DIODE-ZENER TZP33A,5%,1000mW,DO-41,TP 1 S.A
DZ812 0403-000700 DIODE-ZENER TZP33A,5%,1000mW,DO-41,TP 1 S.A
DZ813 0403-000720 DIODE-ZENER MTZJ9.1B,8.57-9.01V,500mW,DO 1 S.A
DZ814 0403-001320 DIODE-ZENER MTZJ6.2C,6.16-6.4V,500mW,DO- 1 S.A
DZ815 0403-001321 DIODE-ZENER MTZJ6.8C,6.7-6.97V,500mW,DO- 1 S.A
DZ816 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
DZ817 0403-001322 DIODE-ZENER MTZJ8.2B,7.78-8.19V,500mW,DO 1 S.A
DZ818 0403-001322 DIODE-ZENER MTZJ8.2B,7.78-8.19V,500mW,DO 1 S.A
DZ901 0403-000509 DIODE-ZENER MTZJ5.6B,5.4-5.7V,500mW,DO-3 1 S.A
DZ902 0403-000717 DIODE-ZENER MTZJ5.1B,4.94-5.2V,500mW,DO- 1 S.A
DZ903 0403-000717 DIODE-ZENER MTZJ5.1B,4.94-5.2V,500mW,DO- 1 S.A
DZ904 0403-000714 DIODE-ZENER MTZJ3.3B,3.32-3.53V,500mW,DO 1 S.A
DZ905 0403-001220 DIODE-ZENER UZ2.7BSB,2.7-2.9V,500mW,DO-3 1 S.A
EL101 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EL102 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EL103 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EL104 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EL105 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EL107 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EL108 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EY101 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY102 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY103 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY104 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY105 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY106 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY107 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY108 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY109 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY110 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY111 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY112 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY113 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY114 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY115 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY116 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY117 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY118 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY119 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY120 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY121 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY122 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY123 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY126 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY127 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY128 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY129 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY130 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY133 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY134 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY135 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY136 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY137 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY138 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY139 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY140 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY141 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY142 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY143 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY144 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

Exploded View & Part List
5-7 Samsung Electronics
Loc. No. Code No. Description Specification Q’ty SA/SNA Remark
EY145 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY146 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY147 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY148 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY149 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY150 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY151 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY152 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY153 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY154 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY155 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY156 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY157 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY158 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY159 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY160 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY161 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY162 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY165 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY171 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY172 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY173 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY174 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
F101 2901-000297 FILTER-EMI ON BOARD -,3A,-,3.5x5mm,TP,- 1 S.A
F101 2901-000297 FILTER-EMI ON BOARD -,3A,-,3.5x5mm,TP,- 1 S.A
F101 2901-000297 FILTER-EMI ON BOARD -,3A,-,3.5x5mm,TP,- 1 S.A
F801A 3602-000001 FUSE-CLIP -,-,30mohm 1 S.A
F801B 3602-000001 FUSE-CLIP -,-,30mohm 1 S.A
FD801A 3601-001228 FUSE-AXIALLEAD 125V,10A,FAST-ACTING,EPO 1 S.A
FD802 3601-000281 FUSE-CARTRIDGE 250V,4A,TIME-LAG,GLASS,5. 1 S.A
FD802S 3601-001163 FUSE-AXIALLEAD 125V,7A,-,EPOXY,2.4X7.1M 1 S.A
FD803S 3601-001163 FUSE-AXIALLEAD 125V,7A,-,EPOXY,2.4X7.1M 1 S.A
GT101 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
GT102 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
GT103 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
GT301 AA60-40012F PIN-GT 4P,2.36PI,6/12/14mm,NYLON66,LOCKI 1 S.N.A
GT501 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
GT502 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
GT503 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
GT504 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
GT801 AA60-40012G PIN-GT 3P,2.36PI,10/5mm,NYLON66,LOCKING 1 S.N.A
GT804 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
GT805 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
IC012 1203-001217 IC-POSI.ADJUST REG. 431,TO-92,3P,4.58MIL 1 S.A
IC063 AA13-00116A IC HYBRID STR-W6750F,6,-20 to +115,TO-3P 1 S.A
IC112 1103-001171 IC-EEPROM 24C161,2Kx8,DIP,8P,9.2x6.4mm,2 1 S.A
IC202 1203-001943 IC-VOL. DETECTOR 7025,TO-92,3P,-,PLASTIC 1 S.A
IC301 AA96-00623J ASSY HEAT SINK P AA62-00056A,SCREW,LA781 1 S.N.A
IC602 AA96-04919A ASSY HEAT SINK P AA62-00161A,SCREW,LA420 1 S.N.A
IC801S AA96-50371T ASSY HEAT SINK P AA62-30181H,SCREW,STR-W 1 S.N.A
IC802 AA96-00243Q ASSY HEAT SINK P SCREW,AA62-00045A,1203- 1 S.N.A
IC804 AA96-00243K ASSY HEAT SINK P KA78R05,-,REGU,AA62-000 1 S.N.A
ICV01 2904-001196 FILTER-SAWAV 44MHZ,SIP5K,ST,16.2DB,-,42 1 S.A
ICV201 AA09-00441B IC MICOM MTP VCT4862,VCT49X3F-PY,F1,CT-2 1 S.N.A
JA333 3722-001333 JACK-PIN 9P,NI,BLK,ANGLE 1 S.A
JA333 3722-002556 JACK-PIN 3P,Ni+Sn,GRN/BLU/RED,ANGLE 1 S.A
L101 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
L107 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
L201 2701-000115 INDUCTOR-AXIAL 10UH,10%,3070 1 S.A
L202 2701-000116 INDUCTOR-AXIAL 10UH,10%,4298 1 S.A
L203 2701-000115 INDUCTOR-AXIAL 10UH,10%,3070 1 S.A
L205 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
L208 2701-000142 INDUCTOR-AXIAL 1UH,10%,2534 1 S.A
L241 2701-000142 INDUCTOR-AXIAL 1UH,10%,2534 1 S.A
L244 2701-000143 INDUCTOR-AXIAL 1UH,10%,3070 1 S.A
L247 2701-000142 INDUCTOR-AXIAL 1UH,10%,2534 1 S.A
L248 2702-001094 INDUCTOR-RADIAL 10uH,10%,4x6mm 1 S.A
L2514 3301-000287 BEAD-AXIAL ,3.5x1.0x6.0mm,3000mA,TP,,,50 1 S.N.A
