Samsung SC07H8150H Series User manual

English
Vacuum Cleaner
user manual
Thank you for purchasing a Samsung product.
✻Please read the User Manual thoroughly before operating the vacuum.
✻For indoor use only.
SC07H8150H Series
DJ68-00713B (EN)-00.indd 1 14. 7. 15. �� 2:35

Contents
YOUR VACUUM CLEANER
09
BEFORE USING THE VACUUM
CLEANER
10
10 Assembly
11 Installing the dust sensor (Option)
12 Using accessory
OPERATING CLEANER
14
14 Preparing for use & charging cleaner
16 About the battery
17 On/Off
17 Check filter
17 Select power
18 Power control
19 Dust sensor (Option)
20 Using the accessory kit (Option)
MAINTENANCE
23
23 Before maintenance
24 Cleaning the dust bin and grille
26 Cleaning the dust filter
27 Cleaning the outlet filter
28 Maintain floor tools
ET CETERA
29
29 Troubleshooting
30 Warnings about battery
34 Product specification
35 Disposing of your old appliance
DJ68-00713B (EN)-00.indd 2 14. 7. 15. �� 2:35

Safety information _03
Safety information
SAFETY INFORMATION
WARNING
• Before operating the appliance, please read this manual thoroughly and retain it
for your reference.
WARNING
• Because the following operating instructions cover various models, the
characteristics of your vacuum cleaner may differ slightly from those described in
this manual.
CAUTION/WARNING SYMBOLS USED
WARNING Indicates that a risk of death or serious injury exists.
CAUTION Indicates that a risk of personal injury or material damage exists.
OTHER SYMBOLS USED
Represents something you must NOT do.
Represents something you must follow.
Indicates that you must disconnect the power plug from the socket.
And turn off your vacuum cleaner on the main body.
WARNING
This vacuum cleaner is designed for household use only.
Do not use this vacuum cleaner to clean building waste or debris.
Regularly keep the filters in clean conditions to prevent of collecting fine dust in
them.
Do not use this vacuum cleaner with any of the filters removed.
Failure to meet these requirements could cause injury, damage the vacuum
cleaner and void your warranty.
DJ68-00713B (EN)-00.indd 3 14. 7. 15. �� 2:35

04_ Safety information
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should be observed, including the
following:
READ ALL INSTRUCTIONS BEFORE USING YOUR VACUUM CLEANER.
Unplug from outlet when not in use and before conducting maintenance.
WARNING : To reduce the risk of fire, electric shock, or injury:
GENERAL
• Use only as described in this manual.
Use only manufacturer’s recommended attachments.
• Do not operate the vacuum cleaner or adapter if it has been
damaged in any way.
• If the vacuum cleaner is not working as it should, has been
dropped, damaged, left outdoors, or dropped in water, return it
to a customer care center.
• Do not handle the adapter or vacuum cleaner with wet hands.
• Use only on dry, indoor surfaces.
• Close supervision is necessary when any appliance is used by or
near children.
Do not allow the vacuum cleaner to be used as a toy.
Do not allow the vacuum cleaner to run unattended at any time.
Use the vacuum cleaner only for its intended use as described in
these instructions.
• Do not use the vacuum cleaner without a dust bin.
Empty the dust bin before it is full in order to maintain the best
efficiency.
• Do not use the vacuum cleaner to pick up matches, live ashes or
cigarette butts.
Keep the vacuum cleaner away from stoves and other heat
sources.
Heat can deform and discolour the plastic parts of the unit.
DJ68-00713B (EN)-00.indd 4 14. 7. 15. �� 2:35

Safety information _05
• Avoid picking up hard, sharp objects with the vacuum cleaner as
they may damage the cleaner parts.
Do not stand on the hose assembly.
Do not put weight on the hose.
Do not block the suction or the exhaust port.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
• Children should be supervised to ensure that they do not play
with the appliance.
• Unplug the adapter from the outlet when not in use and before
servicing.
• Don’t carry the vacuum cleaner by holding the hose.
Use the handle on the vacuum cleaner set.
DJ68-00713B (EN)-00.indd 5 14. 7. 15. �� 2:35

06_ Safety information
VACUUM CLEANER
• Do not pick up hard or sharp objects such as glass, nails,
screws, coins, and etc.
• Do not use without a filter in place.
When servicing the unit, never put fingers or other objects into
the fan chamber in case the unit accidentally turns on.
• Do not put any objects into openings.
Do not use with any openings blocked; keep openings free of
dust, lint, hair, and anything that may reduce air flow.
• Do not pick up toxic materials (chlorine bleach, ammonia, drain
cleaner, etc.).
• Do not pick up anything that is burning or smoke, such as
cigarettes, matches, or hot ashes.
• Do not use to pick up flammable or combustible liquids such as
gasoline, nor use on areas where they may be present.
• Do not use vacuum cleaner in an enclosed space filled with
vapours given off by oil based paint, paint thinner, moth proofing
substances, flammable dust, or other explosive or toxic vapours.
• Do not mutilate or incinerate batteries as they will explode at
high temperatures.
DJ68-00713B (EN)-00.indd 6 14. 7. 15. �� 2:35

Safety information _07
BATTERY ADAPTER
• Do not modify the polarized plug to fit a non-polarized outlet or
extension cord.
• Do not use outdoors or on wet surfaces.
• Do not charge the unit outdoors.
• Unplug the adapter from the outlet when not in use and before
servicing.
• Use only the adapter supplied by the manufacturer to recharge.
• Do not use with a damaged cord or plug.
• Do not pull or carry by the cord, use the cord as a handle, close
the door on the cord, or pull the cord around sharp edges or
corners.
Keep the cord away from heated surfaces.
• Do not use extension cords or outlets with inadequate current
carrying capacity.
• Do not unplug by pulling on the cord.
To unplug, grasp the plug, not the cord.
• Do not attempt to open the adapter.
Repairs should only be carried out by a qualified customer care
centre.
• Do not expose the adapter to high temperatures or allow
moisture or humidity of any kind to come into contact with the
adapter.
• Do not incinerate the appliance even if it is severely damaged.
The batteries can explode in a fire.
• Contact the Samsung Electronics customer care center to
replace the battery.
DJ68-00713B (EN)-00.indd 7 14. 7. 15. �� 2:35

08_ Safety information
WARNING
• Do not excessively bend the cord.
• Do not place heavy objects on
the code.
There is a risk of electric shock
or fire.
WARNING
• When Unplug the power cord
or plug from the wall outlet, first
push the safety switch, and your
Fingers never touch the power
plug pins.
There is a risk of electric shock
or fire.
WARNING
• If Pin and the contact areas of the
power plug are wet from dust and
water, Wipe it with a dry towel or
cloth.
There is a risk of electric shock
or fire.
This adapter must be used only for your vacuum cleaner.
CAUTION
DJ68-00713B (EN)-00.indd 8 14. 7. 15. �� 2:35

Your vacuum cleaner _09

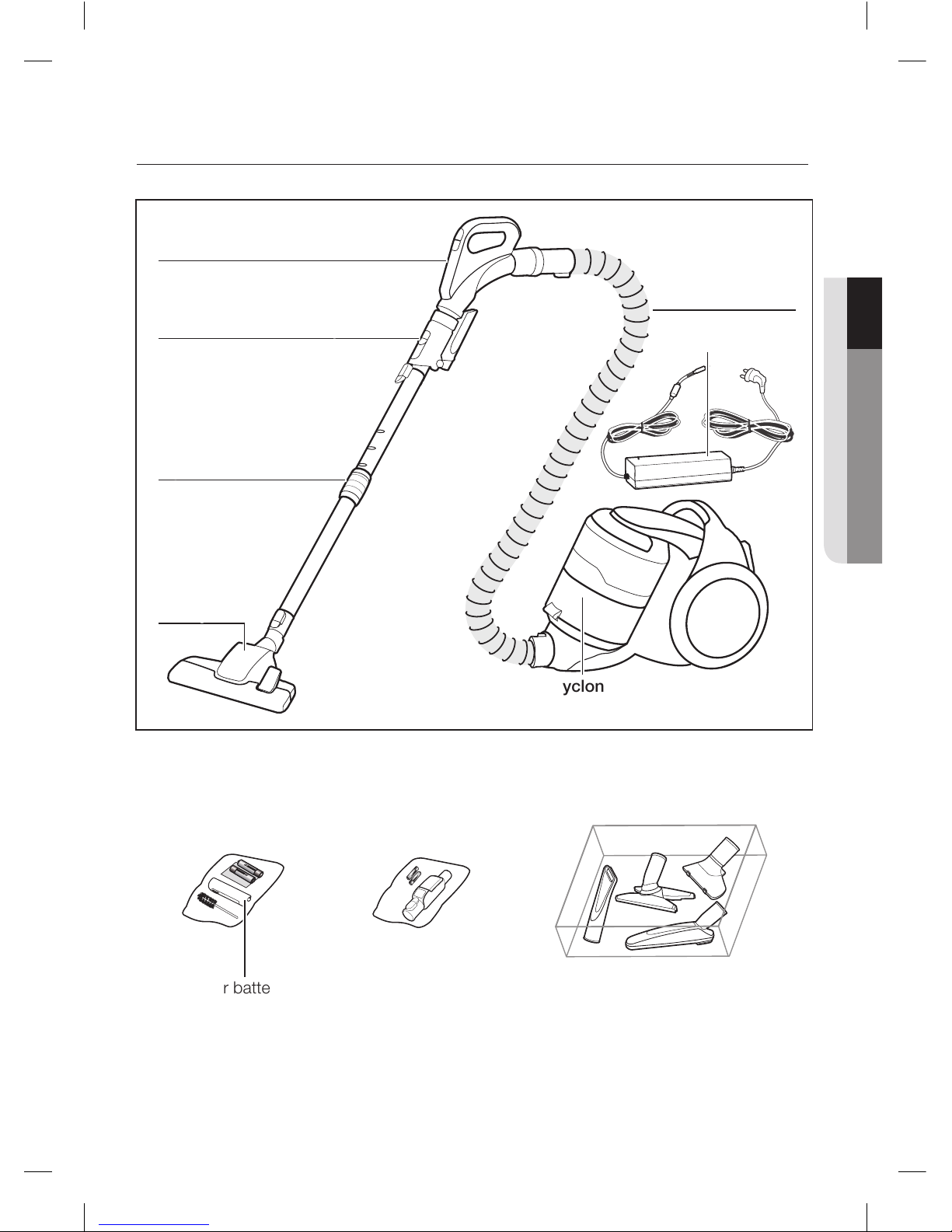

01 YOUR VACUUM CLEANER
Your vacuum cleaner
Handle
Hose
Cyclone
Combination accessory
Pipe
2-Step brush
OPTION (Depending on model) *
Cover battery Dust sensor * Accessory kit *
Adaptor
DJ68-00713B (EN)-00.indd 9 14. 7. 15. �� 2:35

10_ Before using the vacuum cleaner
ASSEMBLY
Connecting the Hose
Connecting the handle and pipe
Connecting the brush
Before using the vacuum cleaner
DJ68-00713B (EN)-00.indd 10 14. 7. 15. �� 2:35

Before using the vacuum cleaner _11
02
BEFORE USING THE VACUUM CLEANER
INSTALLING THE DUST SENSOR (OPTION)
Assemble the dust sensor
between the brush and the pipe
between the pipe and the hose
DJ68-00713B (EN)-00.indd 11 14. 7. 15. �� 2:35

12_ Before using the vacuum cleaner
USING ACCESSORY
Combination accessory
Dusting brush Crevice tool
1
2
DJ68-00713B (EN)-00.indd 12 14. 7. 15. �� 2:35

Before using the vacuum cleaner _13
02
BEFORE USING THE VACUUM CLEANER
Pipe
Adjust the length of the pipe by sliding the
length control button located in the center of
the telescopic pipe.
For storage, park the floor nozzle
Do not pick up a machine while the
floor nozzle parked.
CAUTION
DJ68-00713B (EN)-00.indd 13 14. 7. 15. �� 2:35

14_ Operating cleaner
PREPARING FOR USE & CHARGING CLEANER
To charge the battery for the first time
The rechargeable battery is not fully charged
when it is first supplied.
Before using the vacuum cleaner for the first
time, it is advisable to charge the battery fully
by adapter.
• Install the adapter on a flat surface and
then plug the power cable.
• Connect the adapter to the main body.
(When the adapter and the main body are
assembled, the led turns on.)
Green Light
• And then push the main body's on/off
button, main body's display turns on.
• You can check the status of the battery
charge at the main body.
CAUTION
When removing the plug from the electrical outlet, grasp the plug,
not the cord.
Operating cleaner
DJ68-00713B (EN)-00.indd 14 14. 7. 15. �� 2:35

Operating cleaner _15
03
OPERATING CLEANER
Before charging is completed, the
battery charge indicator is dimming.
After approximately 4hours all the sections
of the battery charge indicator are lit up,
showing that the battery is fully charged.
When the light (main body) is full, the charge
is completed.
• During using, please be sure to charge the
cleaner when the last light blinks quickly.
Battery
TURBO
BatteryFilter Quiet
Battery
TURBO
Filter QuietBattery
Battery
TURBO
Filter QuietBattery
• Duringcharging,themainbodyisnotworking.
NOTE
• Charge the product in the following cases.
- When using the product for the first time after purchasing it or after not using it
for a long period.
- When the battery level is low and the suction power is weak.
• To charge the battery fully when the battery is discharged takes approximately 4
hours.
• If you separate the cleaner from the adapter, the battery is naturally discharged.
- It is recommended that you keep the cleaner connected to the adapter.
(However, if you are going on a business trip or holiday, disconnect the power
cord of the adapter from the wall outlet.)
• Depending on the level of the battery, there may be differences in the noise.
DJ68-00713B (EN)-00.indd 15 14. 7. 15. �� 2:35

16_ Operating cleaner
ABOUT THE BATTERY
• The powerful Li-lon battery has been used.
• The warranty for the battery is 6 months from the
time of purchase.
• To purchase a new battery, please contact the service
center.
• Since this battery is only for this cleaner, do not use it for
other appliances or purposes.
• Do not disassemble or modify the product.
• Charge the product in a well-ventilated location.
• Do not expose the battery to heat or fire.
• Do not connect metal objects to the (+) or (-) terminal.
• Keep the product indoors (0°C~40°C).
• When the battery is not working correctly, do not disassemble it.
Contact your nearest Service Center.
• If the battery charge and usage time have decreased after the battery has been used a few
times, please replace the battery by contacting the Service center as the battery life may
have reached its end.
• Leaks from battery cells can occur under extreme usage or temperature conditions.
If the liquid gets on skin, wash quickly with water.
If the liquid gets into the eyes, flush them immediately with clean water for a minimum of
10 minutes. Seek medical attention.
※To extend battery life
• It is advantageous to recharge the battery after the battery is fully discharged.
DJ68-00713B (EN)-00.indd 16 14. 7. 15. �� 2:35

Operating cleaner _17
03
OPERATING CLEANER
ON/OFF
Push
• When you turn on the main body, the main
body display lights turn on.
• When you turn off the main body, the main
body display lights turn off totally.
CHECK FILTER SELECT POWER
BatteryFilter Quiet
Push
The filter light is illuminated when the dust
bin requires checking or emptying.
DJ68-00713B (EN)-00.indd 17 14. 7. 15. �� 2:35

18_ Operating cleaner
POWER CONTROL
Hose (controlled by radio frequency signals)
ON/OFF
• Even if you press the power button on the handle, Battery power is not disconnected.
If you want to block your battery power, must press the power button on the main body.
Select a lower power / medium power
/ higher power Transmitter
-/+
Select a quiet mode
• Don’t cover the handle transmitter when you use a handle control.
CAUTION
1. Never disassemble or recharge
the batteries.
2. Never heat up the batteries or
throw them into a fire.
3. Do not reverse (+), (-) poles.
4. Dispose of the batteries property.
BATTERY TYPE : AAA Size
DJ68-00713B (EN)-00.indd 18 14. 7. 15. �� 2:35

Operating cleaner _19
03
OPERATING CLEANER

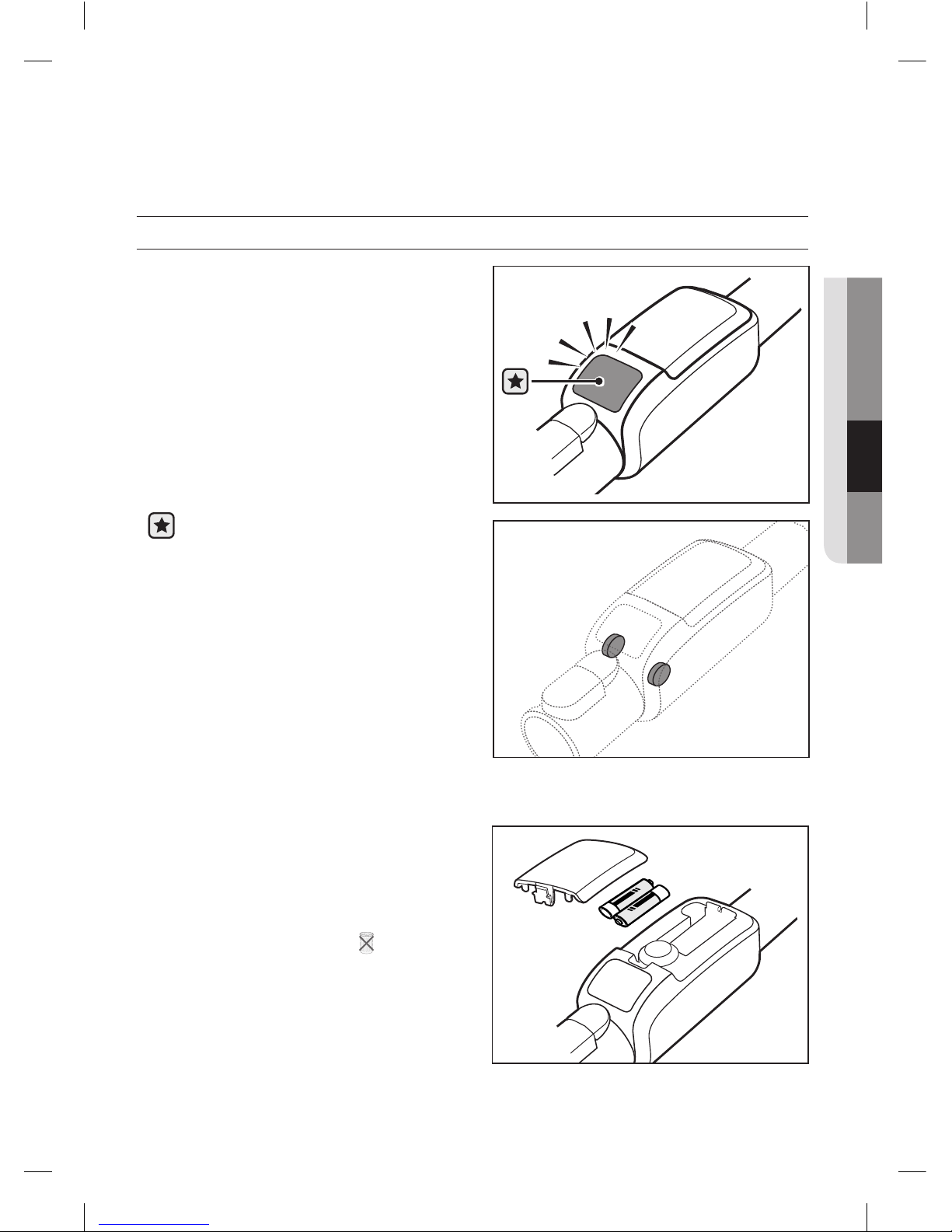

DUST SENSOR (OPTION)
Dust Sensor Operations
• Indicates the amount of dust being picked
up and passing by the sensor which assist
the user to clean more efficiently.
• The dust sensor is activated automatically
when the cleaner runs and is turned off
when the cleaner is stopped.
Green : Amount of dust passing
sensor is small.
Red : Amount of dust passing sensor
is large.
If the red light does not light up
when cleaning a dusty location
- Clean the sensors (2EA) with a dry
cloth.
- Take care when you use the cleaner
because the dust sensor may
malfunction or may break due to an
impact.
Installing the Batteries
If the dest sensor does not work, change the
batteries.
BATTERY TYPE : AAA Size
DJ68-00713B (EN)-00.indd 19 14. 7. 15. �� 2:35

20_ Operating cleaner
USING THE ACCESSORY KIT (OPTION)
Furniture tool
Window tool
Multiple Angle Stair Tool
DJ68-00713B (EN)-00.indd 20 14. 7. 15. �� 2:35
