2_ safety information
safety information _3
safety information
SAFETY INFORMATION
• Before operating the appliance, please read this manual thoroughly and
retain it for your reference.
• Because these following operating instructions cover various models,
the characteristics of your vacuum cleaner may differ slightly from those
described in this manual.
CAUTION/WARNING SYMBOLS USED
WARNING Indicates that a danger of death or serious injury exists.
CAUTION Indicates that a risk of personal injury or material damage exists.
OTHER SYMBOLS USED
Represents something you must NOT do.
Represents something you must follow.
Indicates that you must disconnect the power plug from the socket.
WARNING
WARNING
DJ68-00586B-06.indb 2 2017. 9. 4. �� 2:50

2_ safety information
safety information _3
safety information
IMPORTANT SAFEGUARDS
1. Read all instructions carefully.
Before switching on, make sure that the voltage
of your electricity supply is the same as that
indicated on the rating plate on the bottom of the
cleaner.
2. WARNING: Do not use the vacuum cleaner when
rug or floor is wet. Do not use to suck up water.
3. Close supervision is necessary when any
appliance is used by or near children.
Do not allow the vacuum cleaner to be used as
a toy. Do not allow the vacuum cleaner to run
unattended at any time. Use the vacuum cleaner
only for its intended use as described in these
instructions.
4. Do not use the vacuum cleaner without a dust
bin. Empty the dust bin before it is full in order to
maintain the best efficiency.
5. Slide to the Stop (or Min) position before inserting
a plug into the electrical outlet.
6. Do not use the vacuum cleaner to pick up
matches, live ashes or cigarette butts.
Keep the vacuum cleaner away from stoves
and other heat sources. Heat can deform and
discolour the plastic parts of the unit.
DJ68-00586B-06.indb 3 2017. 9. 4. �� 2:50

4_ safety information
safety information _5
7. Avoid picking up hard, sharp objects with the
vacuum cleaner as they may damage the cleaner
parts. Do not stand on the hose assembly.
Do not put weight on the hose.
Do not block the suction or the exhaust port.
8. Switch the vacuum cleaner off on the body of the
machine before unplugging from the electrical
outlet. Disconnect the plug from the electrical
outlet before changing the dust bag or dust
container. To avoid damage, please remove the
plug by grasping the plug itself, not by pulling on
the cord.
9. This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be
made by children without supervision.
10. Children should be supervised to ensure that
they do not play with the appliance.
11. The plug must be removed from the socket
outlet before cleaning or maintaining the
appliance.
DJ68-00586B-06.indb 4 2017. 9. 4. �� 2:50

safety information _5
12. The use of an extension cord is not
recommended.
13. If your vacuum cleaner is not operating
correctly, switch off the power supply and
consult an authorized service agent.
14. If the supply cord is damaged, it must be
replaced by the manufacturer or its service
agent or a similarly qualified person in order to
avoid a hazard.
15. Don’t carry the vacuum cleaner by holding the
hose.
Use the handle on the vacuum cleaner set.
16. Unplug the cleaner when not in use.
Turn off the power switch before unplugging.
17. For information on Samsung’s environmental
commitments and product specific regulatory
obligations e.g. REACH (WEEE, Batteries)
visit: samsung.com/uk/aboutsamsung/
samsungelectronics/corporatecitizenship/
data_corner.html
DJ68-00586B-06.indb 5 2017. 9. 4. �� 2:50

assembling the cleaner _7
6_ contents
ASSEMBLING THE CLEANER
07
07 Assembling the Cleaner
OPERATING THE CLEANER
08
08 On/Off Switch
08 Power cord
09 Power control
MAINTAIN TOOLS AND FILTER
10
10 Using accessory
11 Maintain floor tools
12 Emptying the dust bin
13 When to clean the dust pack
14 Cleaning the dust pack
15 Cleaning the outlet filter
TROUBLESHOOTING
16
contents
DJ68-00586B-06.indb 6 2017. 9. 4. �� 2:50

assembling the cleaner _7
01 ASSEMBLING THE CLEANER
assembling the cleaner
6_ contents
• Please do not press the button
of dust bin handle when carrying
machine.
OPTION
OPTION
• For storage, park the floor nozzle.
DJ68-00586B-06.indb 7 2017. 9. 4. �� 2:50

8_ operating the cleaner
operating the cleaner _9
operating the cleaner
ON/OFF SWITCH
CAUTION
• When removing the plug from the electrical outlet, grasp
the plug, not the cord.
1) BODY CONTROL TYPE 2) ON/OFF TYPE
POWER CORD
DJ68-00586B-06.indb 8 2017. 9. 4. �� 2:50

8_ operating the cleaner
operating the cleaner _9
02 OPERATING THE CLEANER

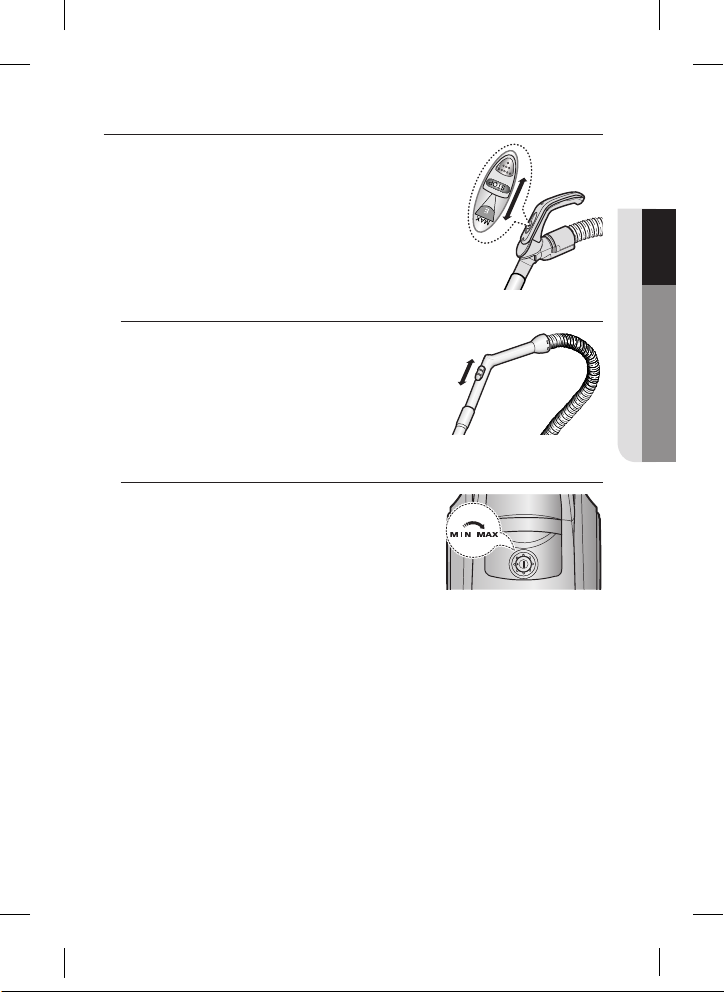

POWER-CONTROL
1) SLIDE CONTROL TYPE ONLY (OPTION)
• SLIDE TO THE STOP POSITION
Vacuum-cleaner switches off (stand by mode)
• SLIDE FORWARD TO MAX
Suction capacity increases smoothly up to
maximum.
- BODY (BODY-CONTROL TYPE ONLY)
MIN = For delicate surface e.g. net curtains.
MAX = For hard floors and heavily soiled carpets.
2) BODY-CONTROL TYPE / ON/OFF TYPE
- HOSE
To reduce suction for cleaning draperies, small rugs,
and other light fabrics, pull the tap air until the hole
is open.
DJ68-00586B-06.indb 9 2017. 9. 4. �� 2:50

10_ maintain tools and filter
maintain tools and filter _11
maintain tools and filter

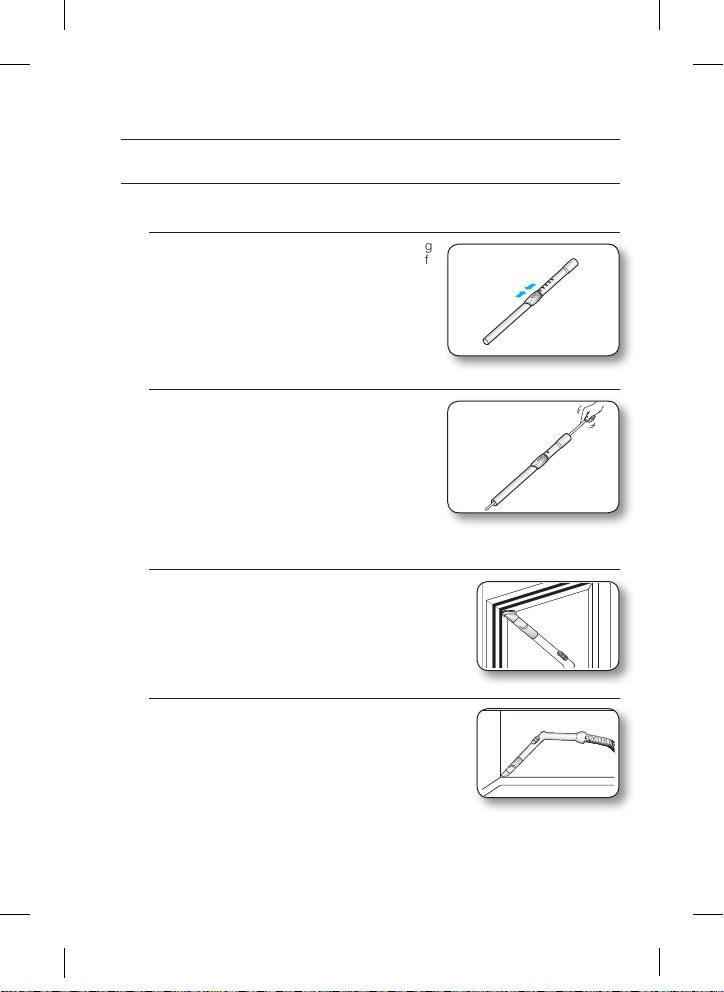

PIPE (OPTION)
• Adjust the length of the telescopic pipe by sliding
the length control button located in the center of
the telescopic pipe back and forth.
USING ACCESSORY
• To check for blockages, separate the telescopic
pipe and adjust to shorten. This allows for easier
removal of waste clogging the tube.
ACCESSORY (OPTION)
• Dusting brush for furniture. shelves, books, etc.
• Crevice tool for radiators, crevices, corners, between
cushions.
DJ68-00586B-06.indb 10 2017. 9. 4. �� 2:50

10_ maintain tools and filter
maintain tools and filter _11
03 MAINTAIN TOOLS AND FILTER
MAINTAIN FLOOR TOOLS
BLANKET BRUSH (OPTION)
Clogs on turbine keep brush from turning, thus need to be unclogged as follows.
For picking up pet hair and fibre on upholstery and bed linen.
Remove waste matter completely when inlet is blocked.
PET BRUSH (OPTION)
For improved pick-up of pet hair and fibre on carpets.
Frequent vacuuming of hair or pet fur may cause a falling-off of the rotation due to
matters tangled around the drum. In this case, clean the drum with care.
2-STEP BRUSH (OPTION)
• Adjust the inlet lever according to the floor surface. • Remove waste matter
completely if the inlet is
blocked.
Carpet Cleaning Floor Cleaning
Turbine
Brush
Turn the lock button to ‘UNLOCK’, and remove waste
matter.
To reassemble, align the cover to the front of the main body
and close. After closing the cover, ensure that the lock
button is turned to the ‘LOCK’ position.
WARNING
Use for bedclothes only. Be cautious not to damage brush during
unclogging.
DJ68-00586B-06.indb 11 2017. 9. 4. �� 2:50

12_ maintain tools and filter
maintain tools and filter _13
maintain tools and filter

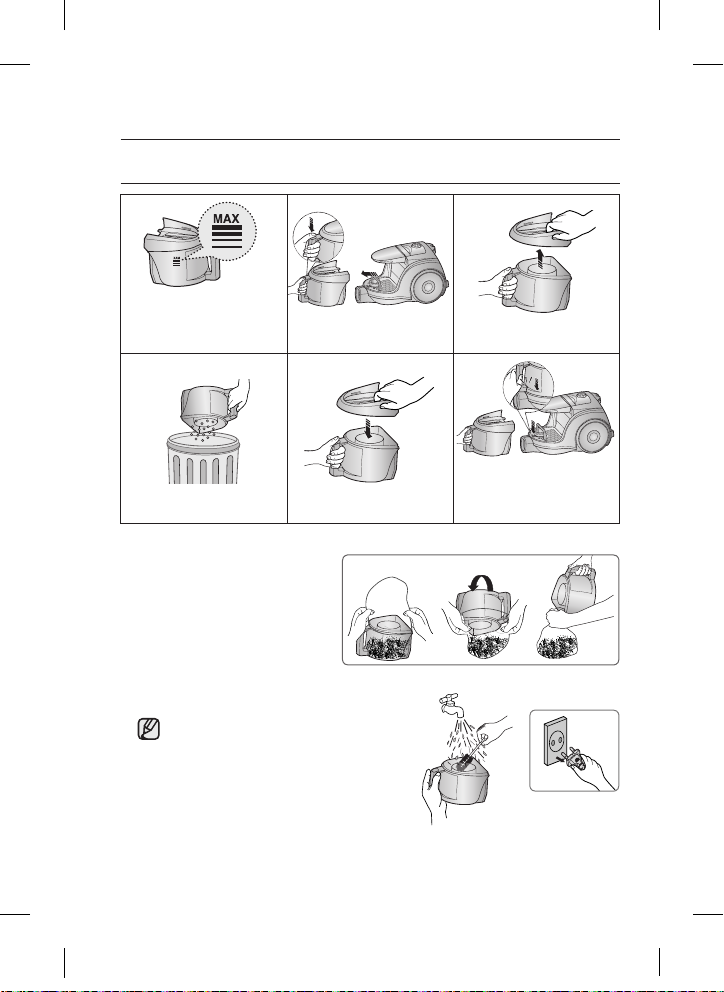

EMPTYING THE DUST BIN
Once dust reaches the
dust full mark, or sution is
noticeably reduced during
cleaning, empty the dust bin.
4 5 6
Take the dust bin out by
pressing the button. Separate the dust bin cover.
Throw away dust into the bin. Close the dust bin cover.
Before use, push the dust
bin into the main body of the
vacuum cleaner until you hear
the “click” sound.
1 2 3
- Empty into a plastic bag
(recommended for asthma/allergy
sufferers)
You may rinse the dust bin with cold water.
DJ68-00586B-06.indb 12 2017. 9. 4. �� 2:50

12_ maintain tools and filter
maintain tools and filter _13
03 MAINTAIN TOOLS AND FILTER
maintain tools and filter
WHEN TO CLEAN THE DUST PACK
- If suction is noticeably reduced during cleaning, please check the dust pack as indicated
below.
If suction is noticeably reduced with the inlet floating
10cm above flat floor, clean it.
Turn the vacuum power to
'MAX'.
HANDLE CONTROL
When suction is noticeably reduced continuously,
please cleaning the Dust Pack as shown in the following illustration.
DJ68-00586B-06.indb 13 2017. 9. 4. �� 2:50

14_ maintain tools and filter
maintain tools and filter _15
CLEANING THE DUST PACK
2. Remove the sponge and filter from the dust pack.
1. Remove the dust bin and dust pack as shown.
Make sure the filter is completely dry
before putting it back into the vacuum
cleaner. Allow 12 hours for it to dry.
3. Wash the sponge and the filter of the dust pack with water.
4. Let the sponge and filter dry in the shade for more than
12 hours.
5. Put the sponge and filter into the dust pack.
6. Put the assembled dust pack into the main body.
DJ68-00586B-06.indb 14 2017. 9. 4. �� 2:50

14_ maintain tools and filter
maintain tools and filter _15
03 MAINTAIN TOOLS AND FILTER
maintain tools and filter
Replacement filters are available at your local
Samsung distributor.
Press the fixed frame part at the
back of the main body to remove.

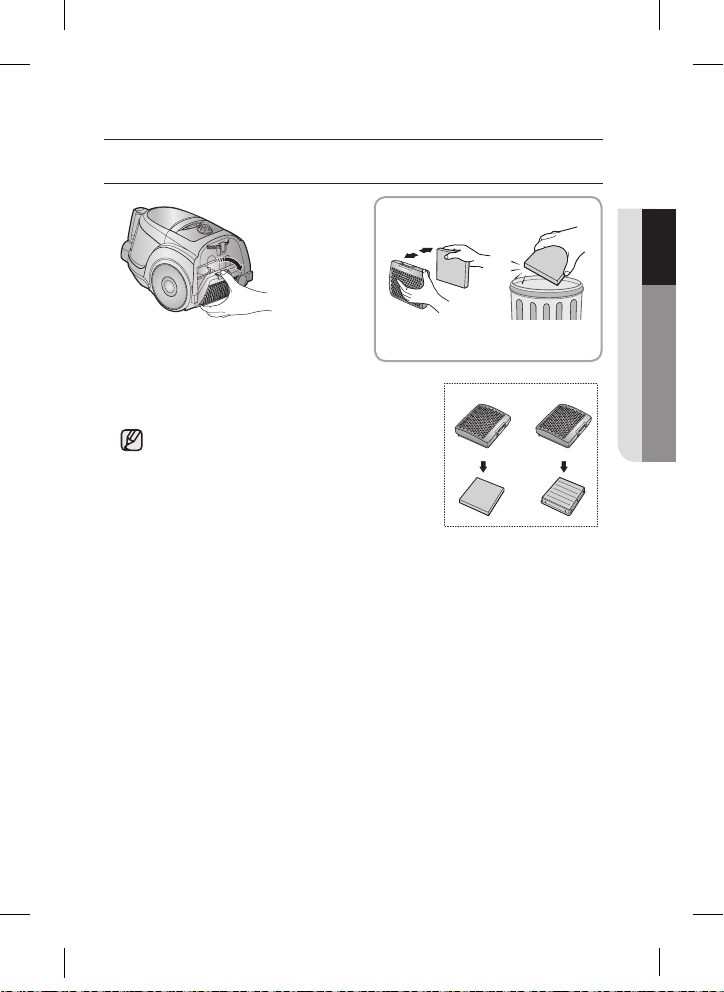

CLEANING THE OUTLET FILTER
OPTION - MICRO FILTER
Remove and replace the blocked
outlet filter.
OPTION
DJ68-00586B-06.indb 15 2017. 9. 4. �� 2:50

16_ troubleshooting
PROBLEM SOLUTION
Motor dows not start.
• Check cable, pulg and socket.
• Leave to cool.
Suction force is gradually
decreasing.
• Check for blockage and remove.
Cord does not rewind fully.
• Pull the cord out 2-3m and push down the
cord rewind button.
Vacuum cleaner dows not pick up
dirt.
• Check hose and replace if required.
Low or decreasing suction
• Please check filter and, if required, clean as
illustrated in the instructions. if filters are out
of condition change them to new ones.
Body overheating
• Please check filters, If required clean as
illustrated in the instruction.
Static electicity discharge • Please decrease power suction.
This Vacuum cleaner is approved the following.
EMC Directive : 2004/108/EEC
Low Voltage Directive : 2006/95/EC
troubleshooting
DJ68-00586B-06.indb 16 2017. 9. 4. �� 2:50

Product information
[English]
According to Commission Regulation (EU) No 666/2013
ASupplier Samsung Electronics Co., Ltd.
BModel SC45W0
CAnnual Energy Consumption (kWh/yr) 28.0
DSound Power Level (dBA) 80
ERated Input Power (W) 650
FType General purpose vacuum cleaner
1) Indicative annual energy consumption (kWh per year), based on 50 cleaning
tasks.
Actual annual energy consumption will depend on how the appliance is used.
2) Measurements for power consumption and performance are based on
methods in EN 60312 - 1 and EN 60704.
FICHE-00586B.indd 1 2019. 3. 19. �� 10:51

COUNTRY Contact Center Web Site
LITHUANIA 8-800-77777 www.samsung.com/lt/support
LATVIA 8000-7267 www.samsung.com/lv/support
ESTONIA 800-7267 www.samsung.com/ee/support
If you have any questions or comments relating to Samsung products,
please contact the SAMSUNG customer care center.
DJ68-00586B-06.indb 18 2017. 9. 4. �� 2:50

Lietuvių kalba
Vartotojo instrukcija
✻ Prieš naudodamiesi siurbliu atidžiai perskaitykite instrukcijas.
✻ Naudokite tik namie.
Dulkių siurblys
imagine the possibilities
Ačiū, kad naudojate Samsung produkciją.
Serija SC45**
DJ68-00586B-06.indb 1 2017. 9. 4. �� 2:51

saugumo informacija _3
2_ saugumo informacija
saugumo informacija
SAUGUMO INFORMACIJA
• Prieš pradėdami naudotis šiuo prietaisu, įdėmiai perskaitykite šią instrukciją ir
prisiminkite naudojimo metu.
• Kadangi aprašyti vartojimo nurodymai taikomi skirtingiems modeliams, tai
jusų šaldiklio savybės gali šiek tiek skirtis nuo instrukcijoje aprašytų.
NAUDOJAMI PERSPĖJIMO/ ĮSPĖJIMO SIMBOLIAI
ĮSPĖJIMAS
Parodo, kad yra pavojus gyvybei ar yra galimybė susižeisti.
PERSPĖJIMAS
Parodo, kad yra galimybė susižeisti ar sugadinti prietaisą.
KITI NAUDOJAMI SIMBOLIAI
Nurodo ko jums NEREIKĖTŲ daryti.
Nurodo, ko jums reikėtų laikytis.
Parodo, kad jūs turėtumėte ištraukti maitinimo laidą iš rozetės.
ĮSPĖJIMAS
ĮSPĖJIMAS
DJ68-00586B-06.indb 2 2017. 9. 4. �� 2:51
