Sanden Vendo hfd000006 Operating manual

SANDENVENDO AMERICA INC

1213686f ECN 55522 1

HOT FOOD DISPLAY

Technical Service Manual

MODELS HFD000006 & 7

HFDC00002

HFDM00002

HFDH00001

HFDHC0001,2,3,4

Table of Contents

Commitment to Safety…….….…...….…2

Safety Warnings…….……..…….............3

Parts..…….……………………………......4

Operation……………………..….…….....8

Troubleshooting……………..…….…...12

Controller Connections..……..…..……13

HFD000006, HFD000007

HFDC00002

HFDM00002

HFDH00001

HFDHC0001,2,3,4

SANDENVENDO AMERICA INC

1213686f ECN 55522 2

A COMMITMENT TO SAFETY

The SandenVendo is committed to safety in every aspect of our product design.

SandenVendo is committed to alerting every user to the possible dangers involved in improper

handling or maintenance of our equipment. The servicing of any electrical or mechanical

device involves potential hazards, both to those servicing the equipment and to users of the

equipment. These hazards can arise because of improper maintenance techniques. The

purpose of this manual is to alert everyone servicing SandenVendo equipment of potentially

hazardous areas, and to provide basic safety guidelines for proper maintenance.

This manual contains various warnings that should be carefully read to minimize the risk of

personal injury to service personnel. This manual also contains service information to insure

that proper methods are followed to avoid damaging the Hot Food Display (HFD) or making it

unsafe. It is also important to understand these warnings are not exhaustive. SandenVendo

could not possibly know, evaluate, or advise of all of the conceivable ways in which service

might be done, nor can SandenVendo predict all of the possible hazardous results. The

safety precautions outlined in this manual provide the basis for an effective safety program.

Use these precautions, along with the service manual, when installing or servicing the HFD.

We strongly recommend a similar commitment to safety by every servicing organization. Only

properly trained personnel should have access to the interior of the machine. This will

minimize the potential hazards that are inherent in electrical and mechanical devices.

SandenVendo has no control over the machine once it leaves the premises. It is the owner or

lessor’s responsibility to maintain the Hot Food Display in a safe condition. Follow all Safety

Rules and Safety Warnings in this manual. If you have any questions, please contact the

Technical Services Department of SandenVendo.

SAFETY RULES

Read the Safety Warnings before installation or service.

Test for proper grounding before installing to reduce the risk of electrical shock and fire.

Turn off power switch and disconnect power cord from wall outlet before servicing.

Use only fully-trained service technicians for Power-On servicing.

Use adequate equipment when moving the HFD.

Use only authorized replacement parts.

Be aware of inherent dangers in rocking or tipping the HFD.

Always turn power off before plugging or unplugging HFD to wall outlet.

FOOD FOR THE HOT FOOD DISPLAY

The HFD, HFDM, and HFDH units are design to hold unwrapped, wrapped, and boxed

food. The HFDHC is designed to hold wrapped and boxed food. Hot food displays

are not designed to heat cold food - put only hot food in the hot food display.

SANDENVENDO AMERICA INC

1213686f ECN 55522 3

SAFETY WARNINGS

The HFD is for indoor use only. Do not use near water or in condensing humidity.

To prevent electric shock or fire, do not kink, pull, or pinch the power cord, and insure no

equipment is resting on the power cord. If the power cord is damaged, unplug and replace.

Do not connect with other plugs. Do not use an extension cord.

When unplugging, first turn off the power switch. Then pull the plug at the end of the power

cord, not by pulling the power cord, since the cord can be damaged, overheat, and cause a

fire.

Do not spray water on the HFD. It may cause an electric shock or fire.

Do not touch the power plug, switches, or other electrical parts with wet hands. It can cause

an electric shock.

Periodically check that the plug is pushed in all the way.

To prevent injuries due to falling objects, liquid spills, electric shock or fire, do not place heavy

objects or liquid-filled objects on top of the HFD.

To prevent electric shock or fire, do not use volatile or flammable products in or near the HFD.

When moving the HFD: turn the HFD off, unplug, and allow the unit to cool. To prevent glass

breakage and injury, do not push on the glass. Also, use proper equipment and lifting

techniques. Insure the product doesn’t tip while it is being moved.

If a lamp or any glass cracks or breaks, turn off the power and discard all food in the HFD.

Replace lamp and / or glass. Remove all glass fragments. Carefully inspect all surfaces,

corners, and gaskets to insure all glass fragments have been removed before returning HFD

to service.

Keep HFD out of direct sunlight and away from heat sources.

Do not hang from the door –this may cause injury or electric shock.

Turn off and unplug HFD before servicing, and let HFD cool before cleaning or servicing.

Use proper tools while servicing.

Use only authorized replacement parts.

The HFD temperatures are factory set to meet NSF food safety requirements. Changing

temperature settings may adversely impact food safety.

The lamps are an integral part of the food heating system. If a lamp is not illuminated, the

temperatures may not be maintained for food safety.

SANDENVENDO AMERICA INC

1213686f ECN 55522 4

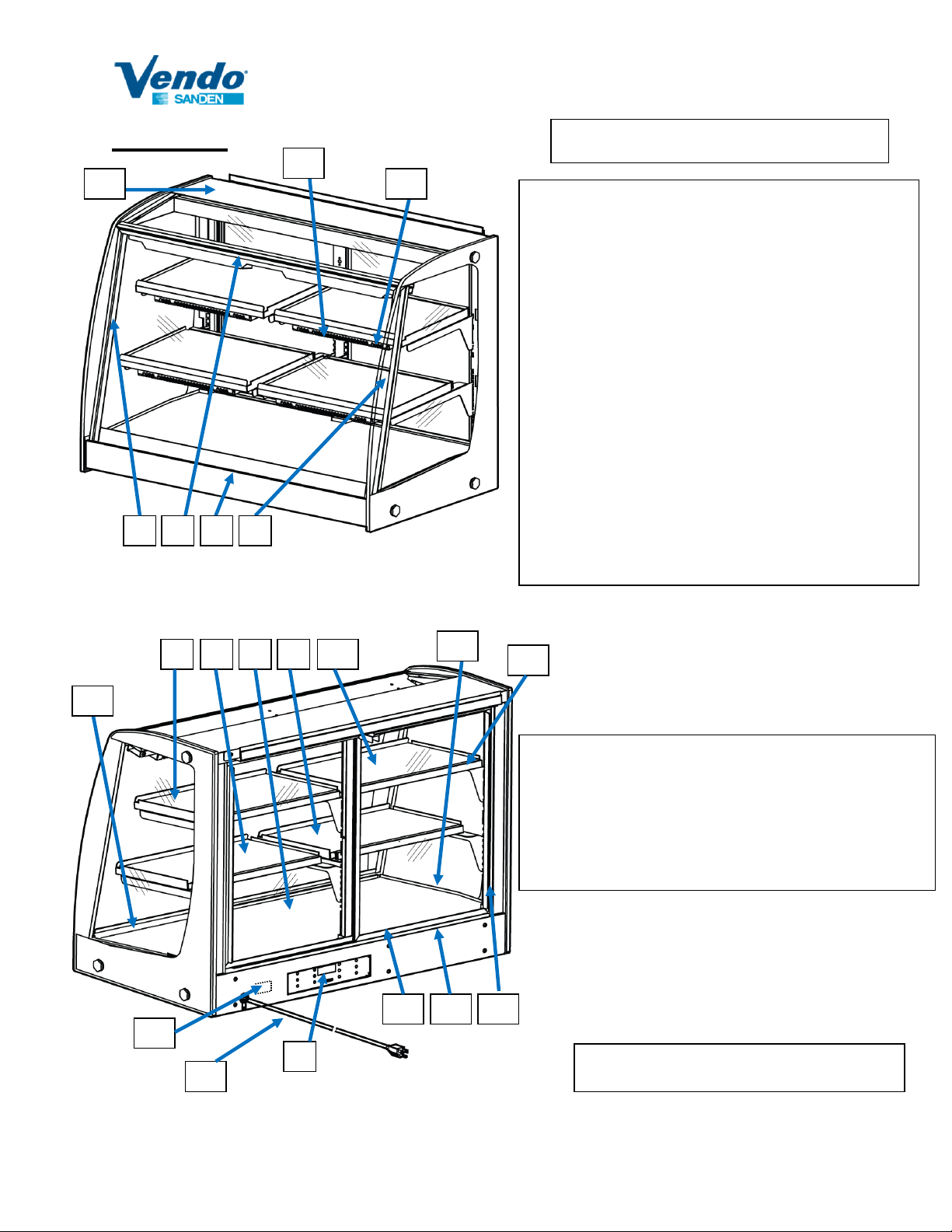

PARTS

(Vertical slide rail

same each side)

Shelf edge gasket

(same each shelf)

Lamp

Socket

Lamp

Rear door

and slides

Bottom

Heater

Plate

Side

Gasket

Bottom

Heater

Plate

Front

Gasket

Controller

Breaker

switch

Power cord

Front door gaskets

Shelf assemblies

Item Part # Description

1 1158489 Gasket, Door, Side

2 1158477 Gasket, Door, Upper

3 1158491 Gasket, Door, Lower

4 1201293 Controller

5 1207143 Heater Kit (not shown)

6 1207441 Shelf Assembly, Upper Left

7 1207465 Shelf Assembly, Middle Left

8 1207415 Shelf Assembly, Bottom

9 1207476 Shelf Assembly, Middle Right

10 1207453 Shelf Assembly, Upper Right

11 1158685 Gasket A

12 1158696 Gasket B

13 1159513 Lamp Socket

14 1159525 Xenon Heating Lamp

15 1216614 Power Cord Plug

16 1161921 Circuit Breaker, 15 Amp

17 1194238 Rear Door, HFD

18 1158673 Slide Rail, Lower (Horizontal)

19 1158969 Slide Rail, Side (Vertical)

20 1159604 Shelf Edge Gasket

21 1180812 Fan, HFD (HFD 7 only)

Shelf Assembly Connector Colors

Item Connector Color Description

6 White Shelf Asy, Upper Left

7 Black Shelf Asy, Middle Left

8 Red (left) Green (right) Shelf Asy, Bottom Shelf

9 Yellow Shelf Asy, Middle Right

10 Blue Shelf Asy, Upper Right

HFD000006, HFD000007

See last page for Controller Connections

for electrical component part numbers

SANDENVENDO AMERICA INC

1213686f ECN 55522 5

Rack

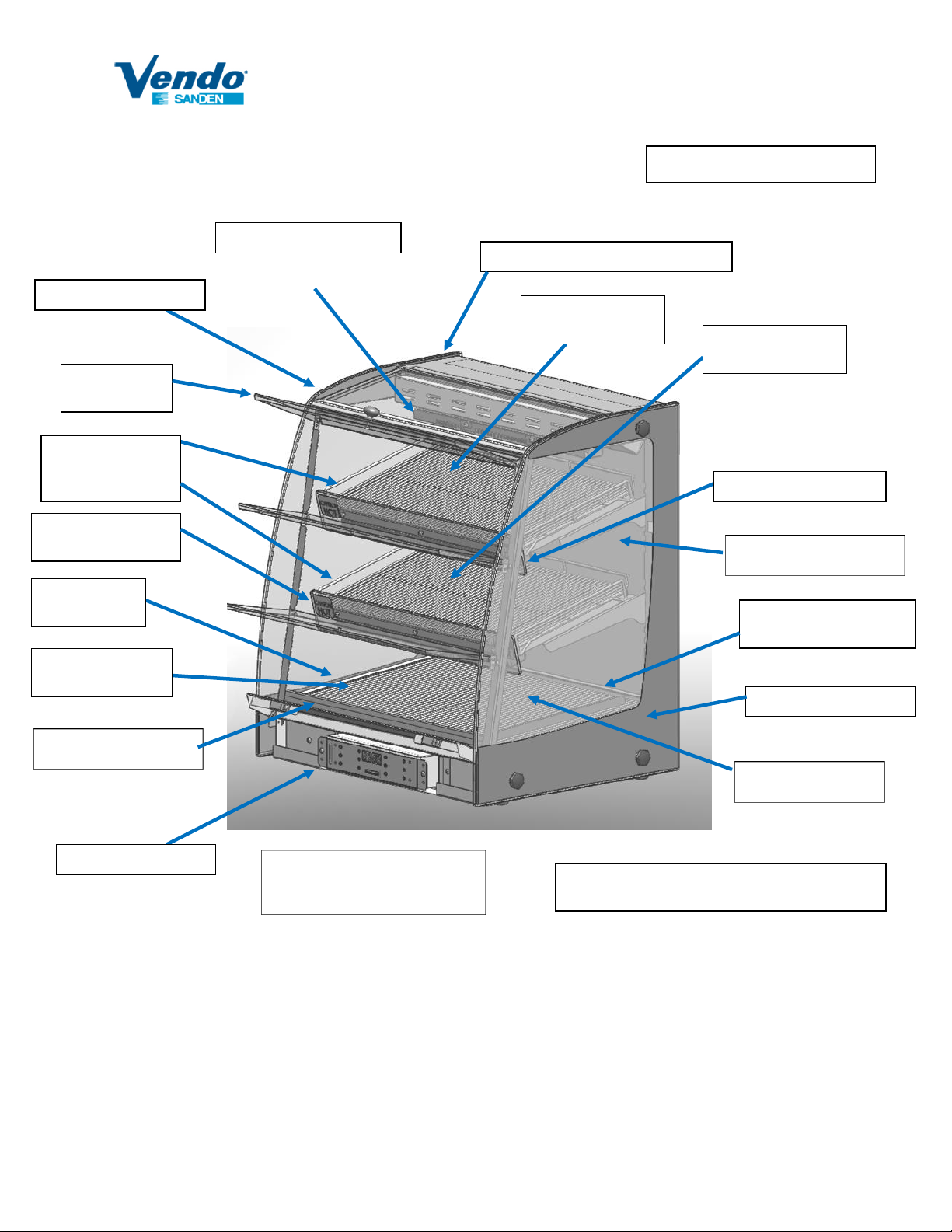

Combo Serve Front Door & Shelf Parts

Item Part # Description

1 1200392 Left Door Assembly

2 1200392-1 Right Door Assembly

3 1185603-1 Frame Gasket (Horizontal, 2x)

4 1185603-2 Frame Gasket (Vertical, 2x)

5 1187405 Damper (one each side)

6 1202273 Extension Spring (one each side)

7 1199716 Rack, Top/Middle Shelf (not shown, 4x)

8 1199728 Rack, Bottom Shelf (not shown, 2x)

9 1201311 Shelf Guard (4x)

10 1207751 Shelf Assembly, Upper Left

11 1207775 Shelf Assembly, Middle Left

12 1207786 Shelf Assembly, Middle Right

13 1207763 Shelf Assembly, Upper Right

14 1219634 Rear Door Keep-Closed bracket (not shown)

HFDC00002

SANDENVENDO AMERICA INC

1213686f ECN 55522 6

On back of unit (not shown):

1161921 Breaker, 15A

1162225 Power Cord

1177435 Front

Gasket (not shown)

1207488 Bottom

Shelf Assembly

1178038 Vertical Rear

Gasket (not shown)

1177198

Front Door

1203125 Caution

Hot Label

1182055 Middle

& Upper Shelf

Rack, Black

1158685

Side Gasket

1178052 Horizontal

Rear Gasket

1166955 Side Glass (no decal)

1165366 Right Decal

1201293 Controller

1178854 Lamp Guard

1182066 Bottom

Rack, Black

1178798 Shelf Guard

1165355 Left Decal

1207555 Shelf

Assembly

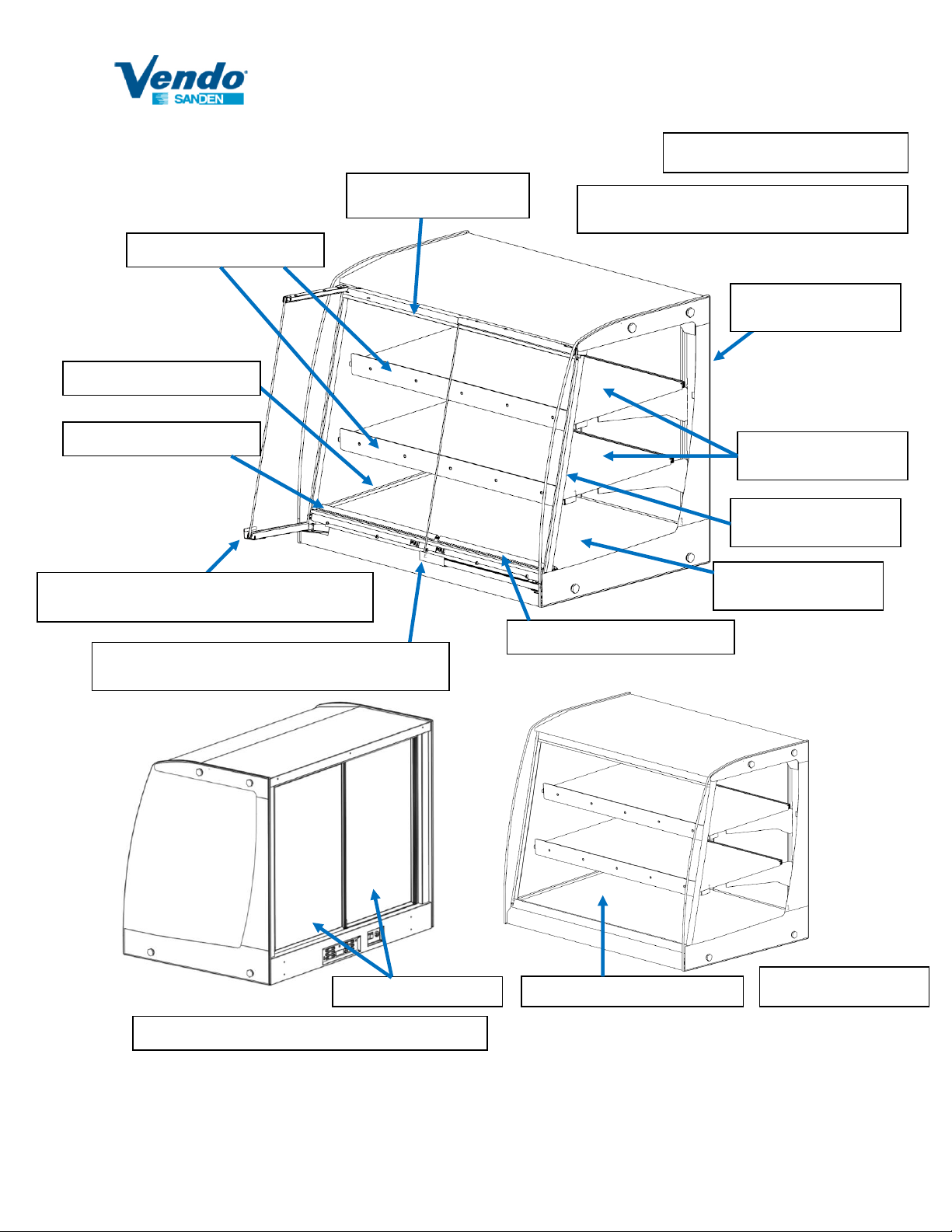

HFDM00002

1207567 Shelf

Assembly

See last page for Controller Connections

for electrical component part numbers

SANDENVENDO AMERICA INC

1213686f ECN 55522 7

1226399 Bottom

Rack (not shown)

1226094 Rear Door

1226352 Top/Middle

Rack (not shown)

1226236 Shelf Guard

1229516 Solid Front Glass

HFDHC0001,2,3,4

HFDH00001

1158696-1 Front Gasket

1242342 Pan Restraint (2x)

See last page for Controller Connections

for electrical component part numbers

1185603-4 Vertical

Frame Gasket

1185603-3 Horizontal

Frame Gasket

1226156 Left Front Door (HFDHC0001,2)

1241435 Left Front Door (HFDHC0003,4)

1226272 Side Glass

(no decals)

1230107 Rear Door Keep-Closed (not shown)

1158696-2 Side Gasket

1226156-1 Right Front Door (HFDHC0001,2)

1241435-1 Right Front Door (HFDHC0003,4)

SANDENVENDO AMERICA INC

1213686f ECN 55522 8

OPERATION

Display and Keypad

Timer Setting and Operation

Note: to help prevent keypad damage, push keypad buttons only with finger or thumb; do not use

fingernail, utensil, tool, pen, or other object.

Circulation fans may be turned on or off by the switch at the top rear of the HFD (HFD 7 and HFDC).

Normal Operation

Pressing the I/O button turns the HFD on or off. When controller is off, all lamps, heaters, displays

and indicators are off. Front on/off button (HFDC only): press and hold for 5 seconds to turn the

HFDC on or off.

Timers

When a timer is off, pressing the timer button once sets the countdown timer to the value

preprogrammed into the controller.

Pressing the timer button again within three seconds (while the indicator next to the button is

blinking) sets the timer to 30 minutes.

Each successive press (within three seconds) adds 30 minutes to the time, up to 4 hours.

At 4 hours, the next button press cycles the timer back to 30 minutes again.

Once the timer is activated, the LED next to the shelf timer button becomes green.

The display then reverts to HFD internal ambient temperature display.

While a timer is on, pressing a timer button once displays the remaining time for 4 seconds, then

shelf temperature for 4 seconds, and then the display reverts to the internal ambient temperature

display.

At 15 minutes remaining time, the LED turns yellow.

When no time remains, the LED turns red, plus an audible alarm sounds.

Pressing the timer button next to the blinking red LED clears the alarm and restarts the timer.

Holding down the Time button, then pressing a timer key, turns off the timer.

Converting Temperature from °F to °C (or °C to °F)

With controller power off, hold down the Time button, then press and hold the I/O button until the

display comes on. The display will show the firmware revision.

Press and release the TIME button to change from °F to °C (or °C to °F).

I/O button

USB port

Use left or right buttons to adjust shelf

temperature and timers down or up

Upper left shelf

(except HFDM)

Middle left shelf

(except HFDM)

Upper right shelf

Middle right shelf

Lower right shelf

Time

button

Lower left shelf

SANDENVENDO AMERICA INC

1213686f ECN 55522 9

Push the I/O button to turn on the HFD and lock in this setting.

Ambient Temperature Display

To turn the ambient temperature display on or off: with the controller on, press and hold the Time

button and press the I/O button. (This feature is disabled in firmware revision 4.01).

Front Door

If the front door is opened (HFD6 and 7 only), the controller turns off only the lights. The display

reads "OPEn". After closing the front door, the lights turn on, and the display reverts to internal

ambient temperature.

Heater Temperature Adjustment

Push the I/O button to turn the unit off. The lights inside the HFD will turn off.

With controller power off, hold down the Time button, then press and hold the I/O button until the

display comes on. The display will show the firmware revision.

Push either of the two buttons corresponding to the shelf that you wish to change the temperature.

Both lights on either side of the buttons will begin blinking.

Push and hold the button on the left to decrease the temperature (shown on the display).

Push and hold the button on the right to increase the temperature (shown on the display).

Repeat the procedure using the buttons that correspond to each of the six shelves (for HFD6 & 7), or

four shelves (HFDM).

Once the temperatures are adjusted for each of the separate zones, push the I/O button to lock in

the new temperature settings and to turn the HFD back on (the lights in the HFD will come on).

Error Codes

E30 Internal ambient thermistor open circuit

E60 Upper left shelf thermistor open circuit (except HFDM) E63 Upper right shelf thermistor open circuit

E61 Middle left shelf thermistor open circuit (except HFDM) E64 Middle right shelf thermistor open circuit

E62 Lower left shelf thermistor open circuit E65 Lower right shelf thermistor open circuit

E90 Unable to read USB drive (check vendo.cfg for file format error)

E70 Upper left shelf not heating (except HFDM) E73 Upper right shelf not heating

E71 Middle left shelf not heating (except HFDM) E74 Middle right shelf not heating

E72 Lower left shelf not heating E75 Lower right shelf not heating

Clear the error by powering off the unit, correcting the problem, and turning the unit on again.

Programming using USB drive

The file name must be vendo.cfg and be saved on the root directory of the USB drive. The file may

be edited using Notepad.

Temperature and Timer Programming Format and Download

SV01 Must be SV01

001h This is configuration 001, h for standard HFD (n for HFDM, c for HFDC, etc.)

UL:235,2:00,0:30 Upper Left shelf, set to 235ºF, left timer 2 hours, right timer 30 minutes

ML:235,2:00,2:00 Shelf temperatures may be set between 100 and 255ºF

LL:220,1:00,2:00 Setting a shelf temperature to 000 turns off that shelf

UR:235,2:00,1:00 Shelf temperature must be 3 digits, always in ºF

MR:235,2:00,2:00 Each timer may be set between 0:30 and 4:00

LR:220,1:00,2:00

CF:1 1 displays ºF, 0 displays ºC

DA:1 1 turns on controller ambient display, 0 turns display off

DS:1 Front door switch –1 for HFD6 & 7; all others 0.

SANDENVENDO AMERICA INC

1213686f ECN 55522 10

Any text may follow here

There can be no spaces or blank lines. A line is terminated by pressing Enter. The only variables

that are allowed to change are the date code, shelf temperatures and times, the 0 or 1 after CF:,

DA:, and DS:, and the comment at the end of the file.

With the HFD off:

1. Insert the flash drive in the controller’s USB port.

2. Turn on the controller. The configuration will load in less than 5 seconds.

3. The display will show the configuration code (example: 001h) from the vendo.cfg file.

4. Pull the flash drive out of the controller (controller may remain on).

Factory Controller Configurations

SV01

001h

UL:235,2:00,1:00

ML:235,2:00,2:00

LL:220,1:00,2:00

UR:235,1:00,1:00

MR:235,2:00,2:00

LR:220,2:00,1:00

CF:1

DA:1

DS:1

SV01

001n

UL:000,2:00,2:00

ML:000,2:00,2:00

LL:245,2:00,2:00

UR:245,2:00,2:00

MR:245,2:00,2:00

LR:245,2:00,2:00

CF:1

DA:1

DS:0

SV01

001c

UL:240,2:00,2:00

ML:240,2:00,2:00

LL:240,2:00,2:00

UR:240,2:00,2:00

MR:240,2:00,2:00

LR:240,2:00,2:00

CF:1

DA:1

DS:0

HFDM 2

Left Side

Right Side

Heater

Setpoint

ºF

Left

Timer

Right

Timer

Heater

Setpoint

ºF

Left

Timer Right

Timer

OFF
