INSTALLATION OF WALL-HUNG WASHBASIN UNITS H.48 cm
ATTENTION: Measures shown in each drawing shall be considered indicative,
thickness of the top, consoles and heights of the washbasins, they may have influence
of several centimeters upon the quotation, always consider the needs of the user in
addition to any existing plants.
Top with integrated bowls Buer mounted basin
85
= =
85
55
46-48
16
6
37
= =
H.
48
50
16
6
Measures in cm
80-120
Top/Consolle Thickness 1 cm
Rear metal support bar
80-120
Measures in cm
Rear metal support bar
Top/Consolle Thickness 1 cm
80
27
62
27
BASE UNITS LEVEL
UNITS LEVEL
Standard System Base Wall units, tall units and mirror cabinets
ATTENTION: While present, always fix also the wooden bar to the wall.

The assemblage of the furniture SHALL be performed by qualified personnel, at
least two people, provided of suitable equipment.
At the end of the procedure, SHALL be released a declaration of happened
installation conforming to the procedures pointed out by the manufacturer, in
absence of such declaration, the guarantee of the product decays.
•We recommend the maximum caution in handling the furniture and its
components, considering the narrow spaces that are often found in the bathroom.
•NEVER open boxes with cutter.
•Don’t drag the furniture on the floor, but to use the cardboards of the
packaging to supporting it to earth.
•Do never use electric screwdrivers for the final regulations of shutters or drawers,
but to ONLY use hand screwdriver.
ATTENTION
•The water lacing SHALL be performed by professionals or qualified technicians,
with release of Certification.
•The electric lacing SHALL be performed by professionals or qualified
technicians, with release of Certification.
NECESSARY EQUIPENT
•PENCIL TO MARK QUOTAS
•METER
•LEVEL
•ELECTRIC DRILL
•ELECTRIC SCREWDRIVER
•STUNG DRILL FOR WALL ( 8 AND 9 MM )
•STUNG DRILL FOR WOOD ( 3 AND 5 MM )
•CROSS SCREWDRIVER
•RUBBER HAMER
•PROPER WEDGES
IMPORTANT NOTICE: The wedges from 8x50 mm furnished with the furniture, are
generics, for carrying walls, in presence of different walls, to use suitable wedges.
Matita
Avvitatore
Tassello
Metro
Punta
2 persone
Livella a bolla
Cacciavite
Trapano
Martello

UNPACKING
Proceed in the unpacking of the elements according to the stages as shown in
pictures, taking care not to damage the cabinet.
WARNING: The materials used for the packaging should be recycled or disposed of in
compliance with the local regulations.
While present, remove the drawers to
facilitate the operation of installation of
the cabinet.
Note that for the extraction of the drawer
from guides, proceed by opening the
drawer 2/3 the full aperture, shutter
and pull decided upward with both
hands placed on the sides tray.
Lay the element of the floor turned
upsidedown, and carefully open the
embalage.
Put the embalage on the ground and lay
the furniture on it, in order to avoid
scratches.
Turn the element now leaving open the
bottom in order to remove the
packaging.
Remove corner protections and the nylon
protective bag.

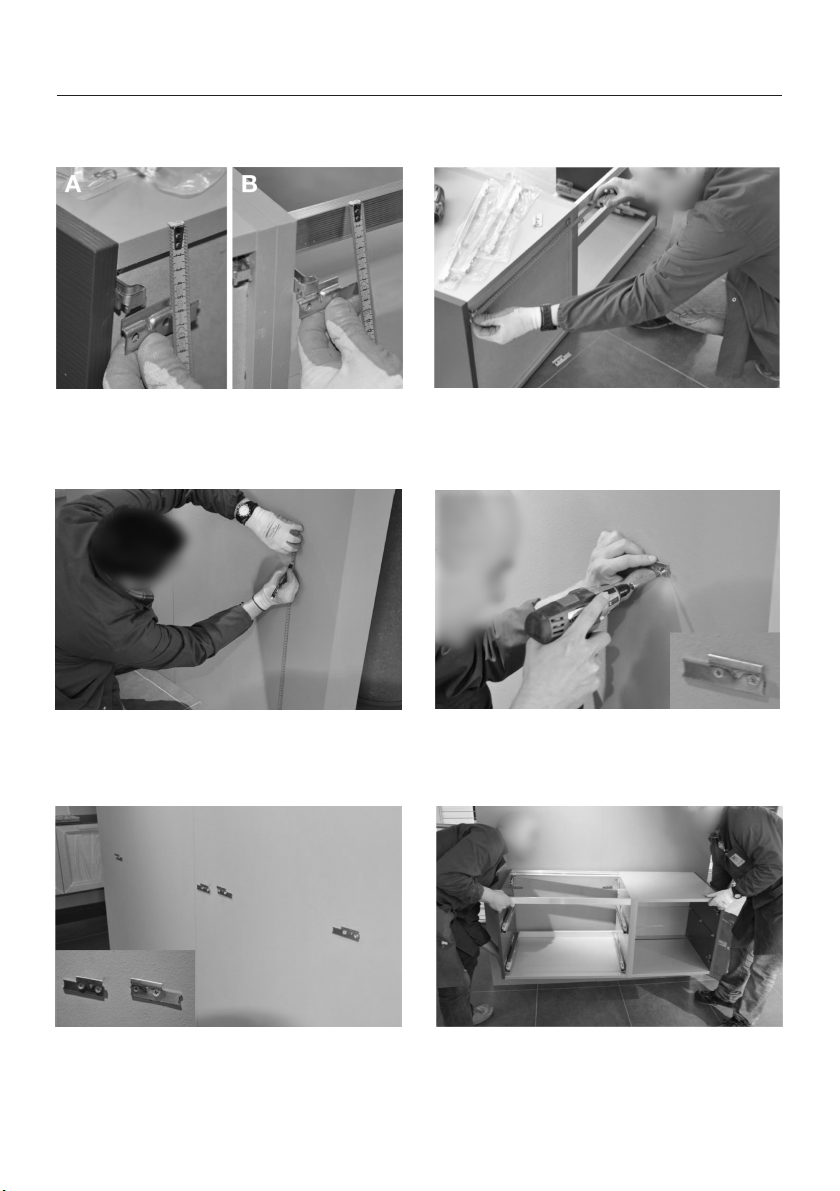

HANG UNITS FIXING
Removed the packaging and removed the drawers from the cabinet, proceed to
fixing the base to the wall following the various phases as shown in the pictures.
For the positioning of the brackets,
consider that the height for a neutral unit
(A) is different from a washbasin unit (B).
Detected all the necessary quotes,
proceed to the mark points on the wall
for drilling and insertion of the dowels (*).
The brackets should be placed inside
the side panels of the elements, detect
with accuracy measures.
Inserted plugs in the holes, proceed to the
fixing of brackets, making sure that the
coupling is toward the side panel

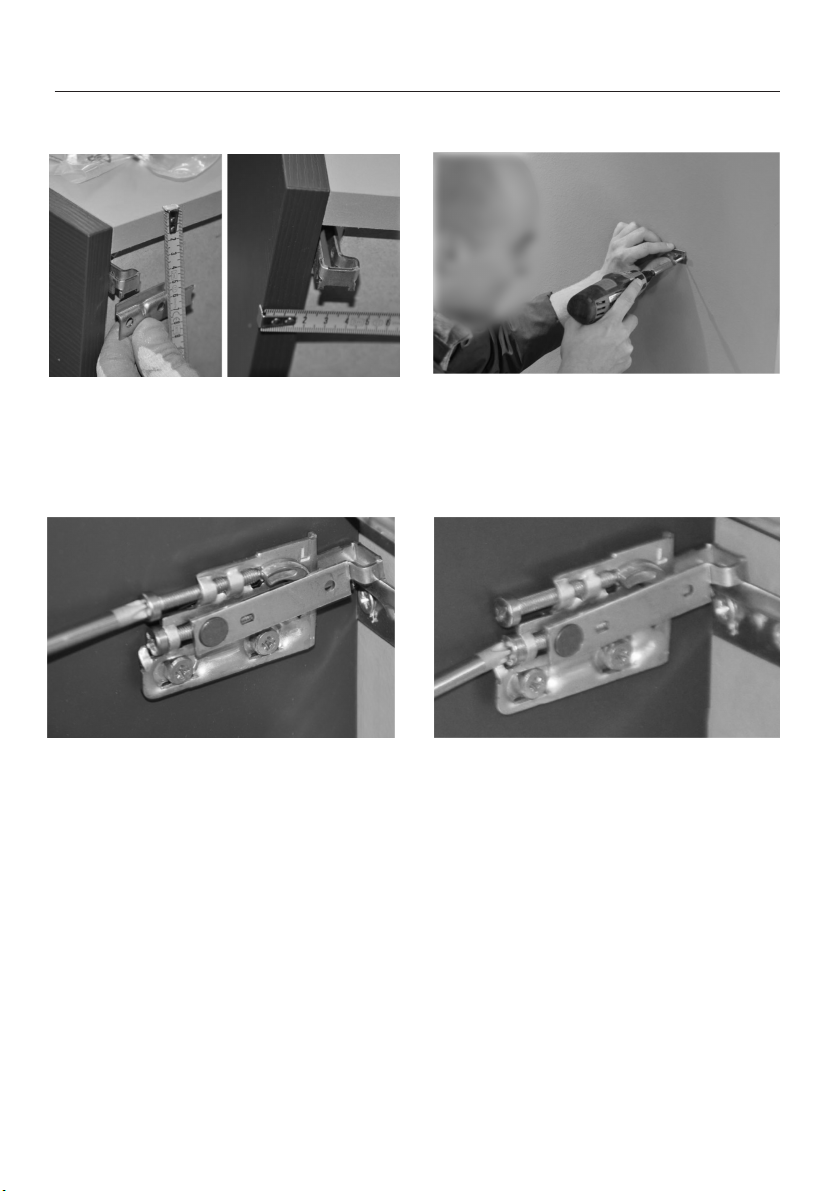

Once fixed the brackets on the wall, and
checked all measures, you can proceed
with the installation of the unit to the
wall.
The operation of attaching the cabinet to
wall,shall be done by 2 people,in order not
to cause harm to themselves and to the
cabinet.

HANG UNITS FIXING
Once hooked the unit, we will proceed to the leveling and the definitive fixing
of the cabinet.
With the help of a collaborator control
the exact coupling the furniture on the
brackets, before letting go.
Now proceed to the leveling of the
furniture in length, acting on the upper
screw as in picture.
Checked the locked position of the
furniture, put a level above it, as shown
in the picture.
The leveling on the depth of the furniture
is made turning the lower screw, as shown.
Once fixed the furniture with hangers,
we will proceed to secure fixing with
supplied screws and dowels on the
posterior chain of the cabinet.
Finally, replace the drawers. This is done
by extracting all of the guides, positioning
the drawer above them and closing it.

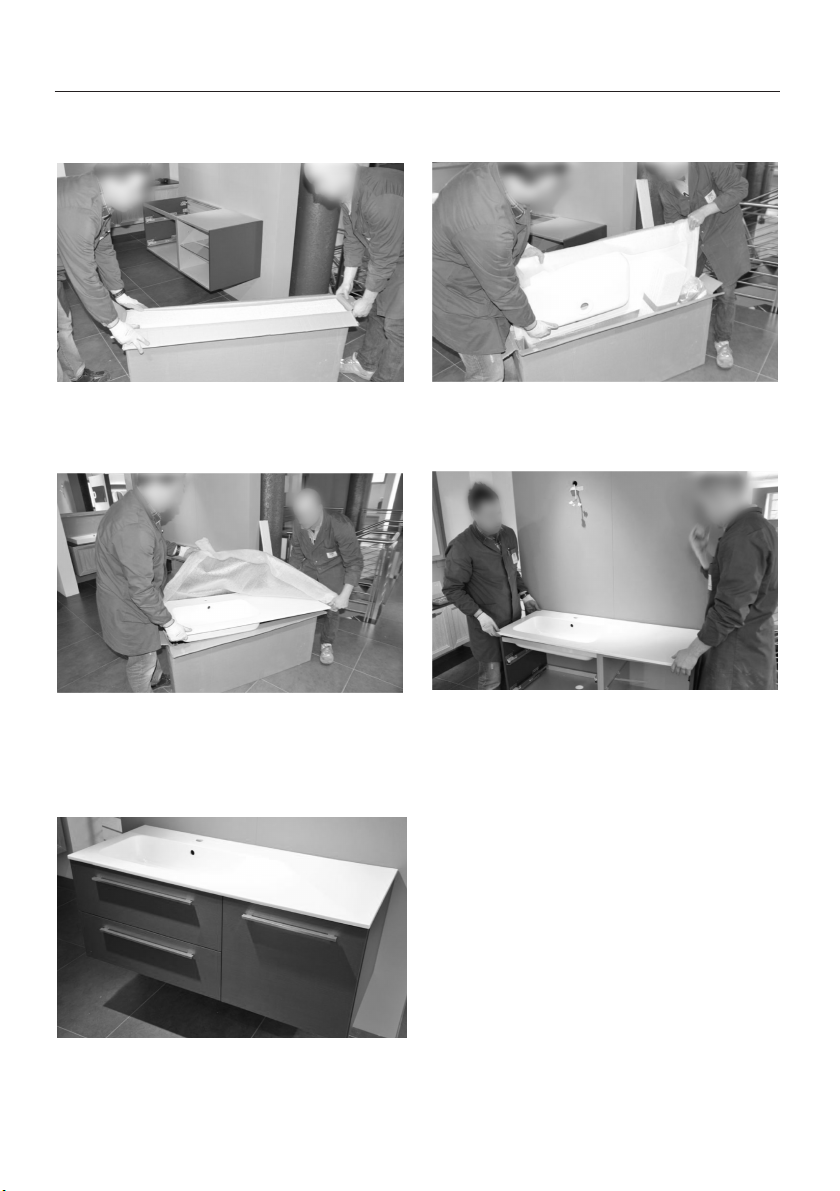

TOP - CONSOLE INSTALLATION
Fixed the furniture to the wall, we will proceed to the positioning of the chosen top
or console. IMPORTANT : we recommend the maximum care in top’s handling!!!
With the help of a collaborator placed
on the floor box and open the package
with care.
Lay the top on the cardboard box and
remove the protective nylon bag
making sure to always hold the
element, so it will not fall or slip.
Always with the help of another
person, extract the top-console from
the packing carton, as in picture.
With the help of an assistant lift the top,
and place it carefully above the unit.
Once verified the perfect condition of
the cabinet and the installation,
proceed with the fixing of the top
being careful to use neutral silicone.

METAL DRAWERS REGULATIONS
All metal drawers supplied by Puntotre have screws for better adjustment of the
fronts.
Unlock the upper screw (A), before
any regulation, then, lock it once
finished.
Lower screw (B) provides the vertical
regulation of the front +-2 mm.
Adjustment of front
perpendicularity.
ONLY on H. 36 and 48
cm fronts.
To adjust the
perpendicularity of the
front panel, act on the
rear screw (C).
Following Operations are necessary ONLY in case of front’s replacement
To remove the drawer, while
necessary, press the front locking
device away from the front and
unhook the front.
To mount the front while necessary, to
introduce the front with hooks in the
lower diagonal crack (positioning to zero
using the locking hooks). Turn the front
toward inside and press down.

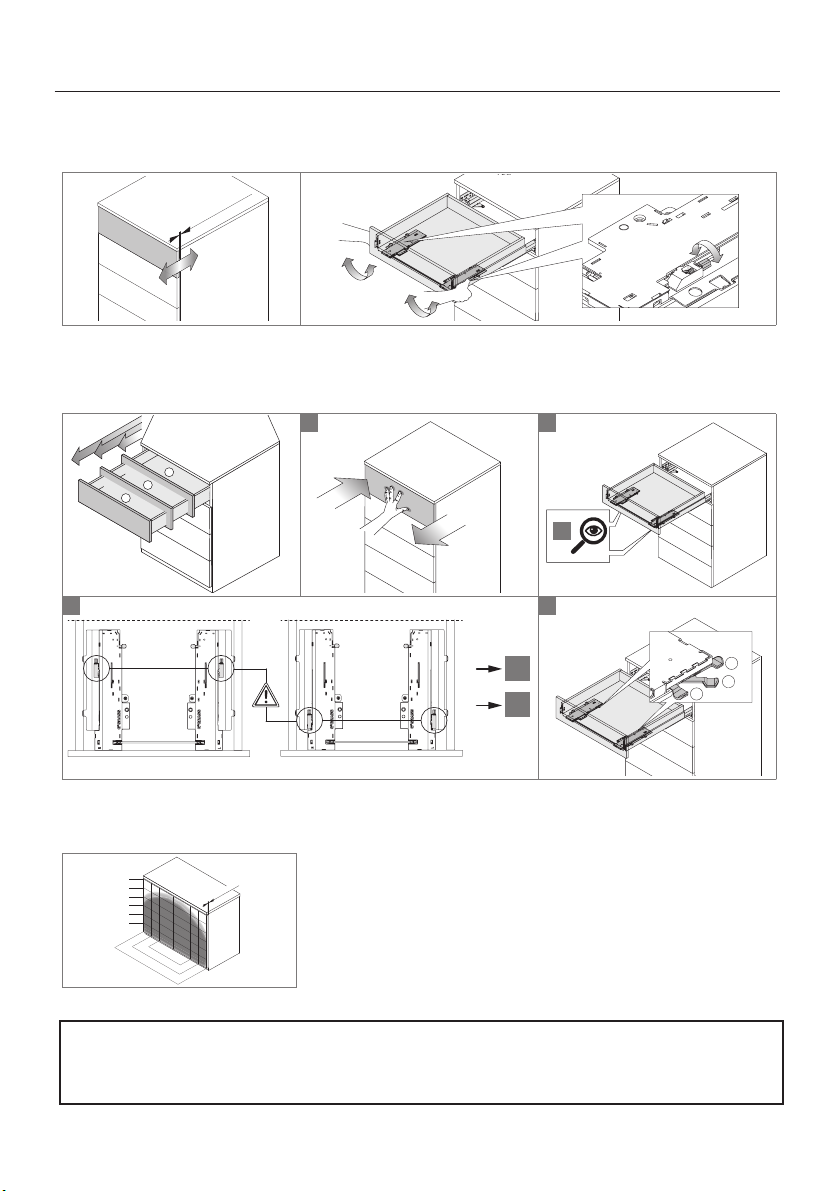

PUSH-PULL DRAWERS ADJUSTMENT
Drawer front adjustment.
-
+
-
+
1
2
3
i
✓
✗A
C
✓✗
1
2
+3/-1 mm
min 2.5 mm
1
2
3
A B
C
i
Min 2.5 mm
500
600
1200
900
600
400
300
200
100
Adjustment unclapsing force of the drawer.
Drawer unclapsing area.
NOTE: Close the drawers with automatic pull-in, after a manual push.
The return spring is projected to work with a certain inertia (drawer loaded).

HINGES WITH RAPID LOCK-UNLOCK SYSTEM
Hinges used by Puntotre are provided with rapid lock-unlock system.
To unlock hinge, pull the level toward
outside.
To lock the hinge, first fix the
external side onto proper place, hold
firmly the door.
IMPORTANT: during this operation, it
is important to firmly hold the door,
to avoid accidental drops and
damage.
Proceed then to fix, the internal
mechanism by pushing the hinge.
Absorber SLIGHT EFFORT position Absorber MEDIUM EFFORT position Absorber STRONG EFFORT position
Level oriented toward inside (small doors). Level oriented vertical (medium doors). Level oriented toward outside (bigger doors).

HINGES REGULATION
Hinges provided by Puntotre, have tri-axial regulation. Cross screwdriver tool.
Before performing any regulation,
remove the protection carter.
DEPTH : This regulation is made by
the most internal screw.
LATERAL: Turn indicated screw to
obtain LH or RH regulation.
VERTICAL : The provide vertical door’s
regulation, unlock the base of the hinge
and push it on the right position, then
firmly lock it again.

HANDLE INSTALLATION
Puntotre provides several kind of handles and knobs.
The application of the handles at the front shall always be made by screwing the
screws from the inside of the drawer. In the case of knobs in fact, the most
common mistake is the attempt to screw the knob directly, and not the screw. This
causes scratching of the surface of the front and is NOT motive for a claim.

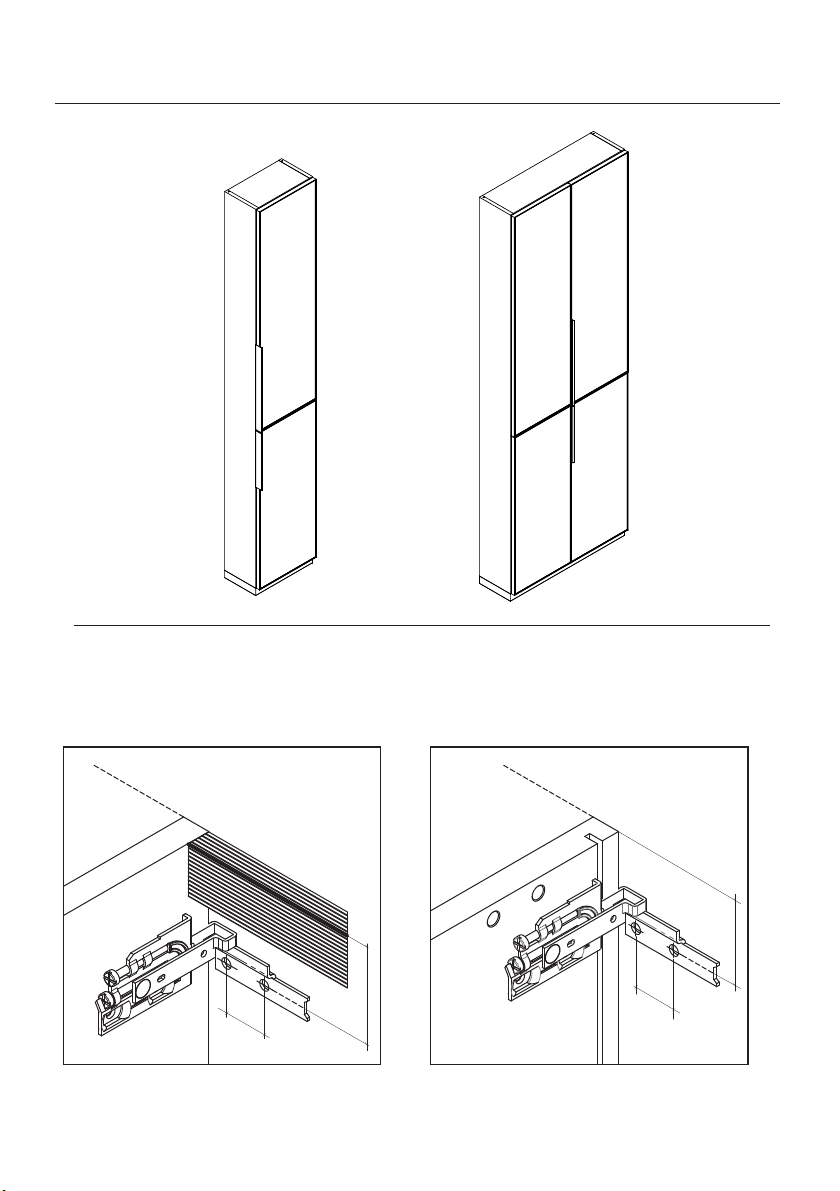

COLUMNS AND HANG UNITS INSTALLATION
The hardware provided for this operation is the same of the 48H units.
For the positioning of the brackets to
the wall, consider the position relative
to the element, checking the back part.
Now proceed to the leveling of the
cabinet by turning the upper screw on
the hardware, as shown.
Detected points on the wall, drill
the holes, insert dowels and attach
the brackets.
By turning the lower screw, you may
have the regulation of the cabinet
closest to the wall.
ECOLOGY - ENVIRONMENT
The buyer has the obligation to dispose different packaging materials through the
appropriate structures in the area, who will handle his recovery in accordance with
the local rules.
At the end of its use, do not dispose of the furniture in the environment !

ATTENTION: While present, always fix also the wooden bar to the wall.
TALL UNITS INSTALLATION
80
27
62
27
BASE UNITS LEVEL
UNITS LEVEL
Standard System Base Wall units, tall units and mirror cabinets
