Santec DT2-KL-TM User manual

KLASSICA COLLECTION
TRIM 2 WAY WALL MOUNT DIVERTER
TRIM 3 WAY WALL MOUNT DIVERTER
KEEP THIS INSTRUCTION BOOKLET FOR FUTURE REFERENCE
Important : Please register your product online at www.santecfaucet.com within
30 days of purchase. Santec reserves the right to request additional documents
before servicing warranty requests.
0 1

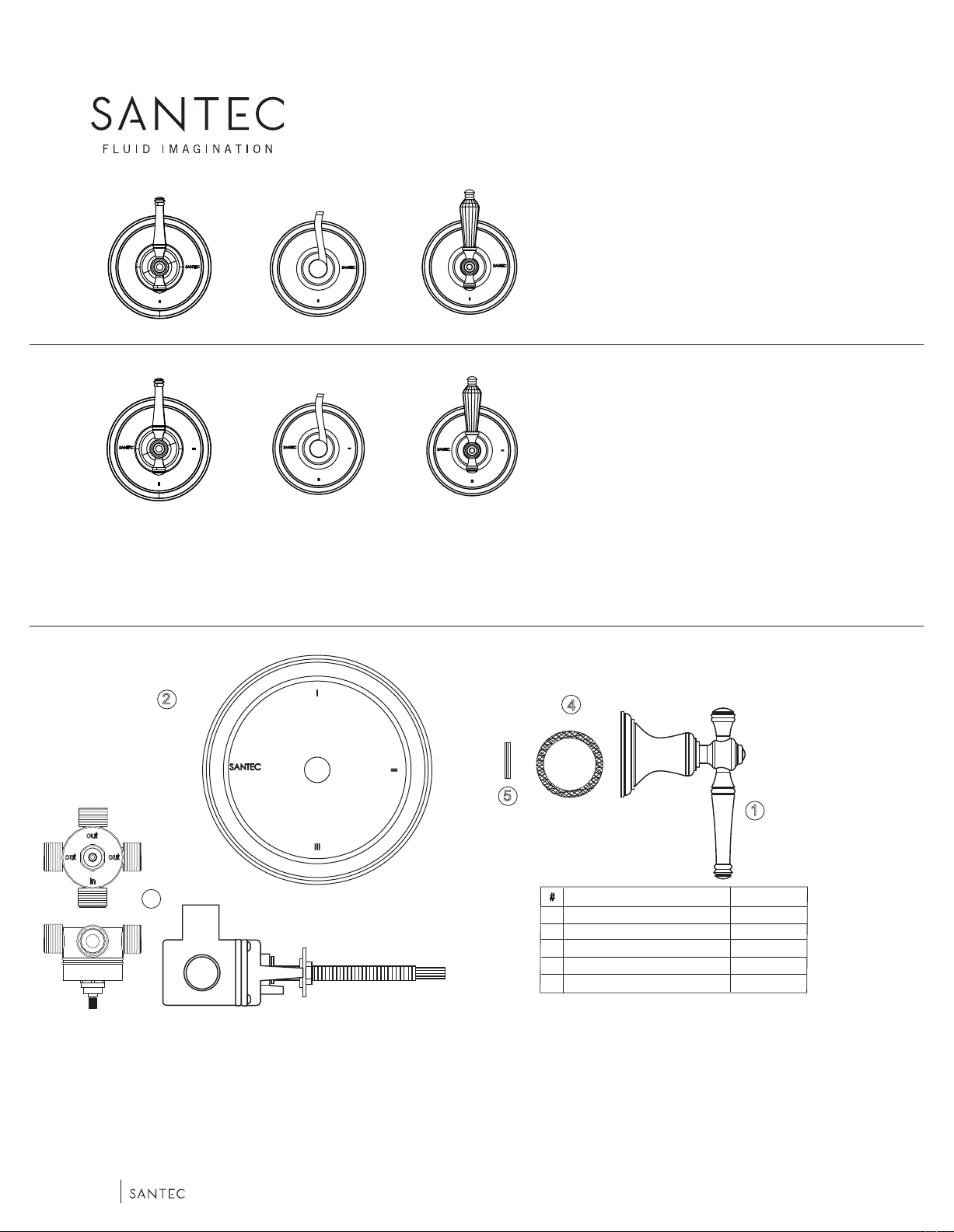

KLASSICA COLLECTION
TRIM 3 WAY WALL MOUNT DIVERTER FOR KL, KR, KT HANDLES
DT3-KL-TM
ITEM NUMBER
DT3-KR-TM
DT3-KT-TM
DT2-KL-TM
DT2-KR-TM
DT2-KT-TM
#PART DESCRIPTION PART #
1
2
3
4
5
Complete Handle for PB Shower *
* Please specify the finish when ordering the part.
1
YY-KL, KR, KT
PH9721
2
Shower Trim Plate *
SA-3WAY
2 and 3 Way Diverter Valve
5
P0477
Adapter for Handle Flange
4
Washer PM-400
3
KL KR KT
KL KR KT

0 2
DESCRIPTION
This product is precision engineered to provide satisfactory performance provided it is installed and operated in
accordance with our recommendations contained in this manual. In order to fully enjoy the comfort, safety and the
reliability of your pressure balanced valve, be certain to familiarize yourself with the contents of this manual.
SPECIFICATIONS AND DIMENSIONS
Minimum operating pressure 20 psi
Maximum operating pressure 145 psi
Maximum test pressure 500 psi
Hot and cold water inlets Ω" IPS
Shower outlet Ω" IPS
Flow capacity 5 USGPM@ 50 psi
INSTALLATION
NOTE: Failure to follow these instructions may cause damage or improper operations and nullify the warranty.
ROUGH IN
- Make sure the water supplies are off.
- Remove all the trim items (plate, handle and flange) before installation.
- Secure the valve firmly against the stud. Make sure the Ω" shower outlet is in the up position.
- Make sure to flush or raise grouting on the tiled wall surface.
- Adjust the All Thread depth against the Teflon Washer and Limit Stop.
Screw the All Thread against the Teflon washer until it is pressured gently against each other.
- Tighten firmly the Lock Nut against the Lock Plate.

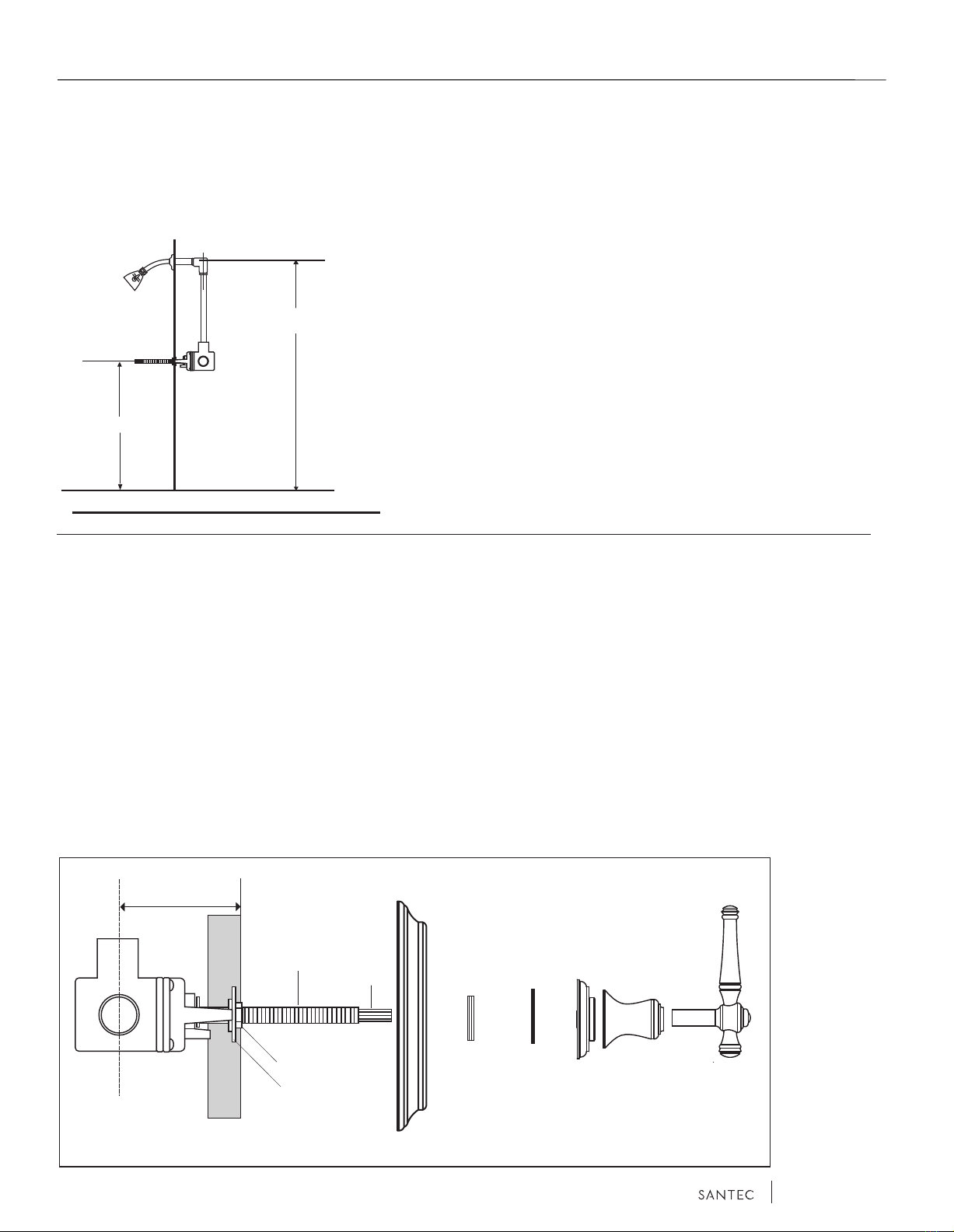

- Position the valve using the dimension shown in the illustration A.
INSTALLATION INSTRUCTIONS DT2/DT3-KL, KR, KT_ _
FLANGE WASHER
HANDLE FLANGE
HANDLE BELL
HANDLE
Trim Plate
ILLUSTRATION A
WALL LINE
46"
78"
(1981 mm)
FLOOR
LINE
3.25Ó
All Thread Stem
Lock Nut
Lock Plate
center of inlet finished wall
FLANGE ADAPTER

*Illustration may not depict actual products 0 3
TRIM INSTALLATION
- Place the shower plate on the all thread.
- Screw the handle flange onto the handle bell and tighten it firmly.
- Screw the handle bell with handle flange, washer and adapter
onto the all thread and mark the position. Remove the handle bell
from the all thread and cut off the excess thread.
Reinsert the handle bell onto the all thread.
- Insert the handle onto the stem. Measure the excess between
the handle bell and the handle. Take off the handle and cut the
excess stem.
- Reinsert the handle onto the stem and tighten the handle
INSTALLATION INSTRUCTIONS DT2/DT3-KL, KR, KT _ _
FLANGE WASHER HANDLE FLANGE HANDLE BELL HANDLE
Stem
All Thread
Lock Nut
Lock Plate
Trim Plate
ILLUSTRATION B
PM-280 - SERVICE VALVE (OPTIONAL)
VALVE CARTRIDGE - TE010
MECHANICAL STOP- TE013
LIMIT STOP- TE014
PM-010 - STEM
TEFLON WASHER
PM-009 - LOCK PLATE
PM-012 - LOCK NUT
PM-011 - ALL THREAD
FILTER SCREEN
FLANGE ADAPTER
Illustrations may not depict actual products

*Illustration may not depict actual products 0 4
TROUBLE SHOOTING
MALFUNCTION CAUSE REMEDY
Shower control opening through hot.
Tub filler or Shower head drips after
shutting off the valve.
Shower insufficiently hot.
No flow of hot or cold water.
Valve body too deep into
the wall.
- Hot and cold water supplies have been connected
in reverse
- Water remains in the piping column to the shower
head (this is normal).
- Incorrect setting of the mechanical stop against the
stop post causing a partially opened cartridge.
- O-ring seal on the inlet of the cartridge is faulty.
- Adjustable handle position stop incorrectly set.
- Either the hot or cold side is not fully pressurized.
- Debris caught inside the inlet of the cartridge.
.
- The measured rough in or finished wall surface is
incorrect.
Rotate cartridge
- Allow approximately 3-5 minutes to drain column.
- Reset the mechanical stop as described in this page
- Check O-ring for cut or damage and replace if necessary.
- Check hot water source temperature setting.
- Be sure service stops (when applicable) are both wide open
and system is fully pressurized.
- Remove cartridge and flush out or remove any debris lodged
inside the hot or cold inlet.
install the extension kit.
PM460X(long sleeve).
PM461X (long plastic upper link)
NOTE: AT NO TIME TRY TO STOP DRIPPING BY APPLYING EXTREME FORCE WHEN CLOSING THE VALVE.
O-RING
FILTER
INLET
FILTER INSERT
VALVE
FILTER SCREEN REMOVAL AND CLEANING
The valve has filter screens that prevent debris from obstructing the pressure balancing cartridge.
If excessive in-line debris accumulates in the filter screen you will notice a decrease in flow from the valve.
PLEASE NOTE - SHUT OFF BOTH HOT AND COLD WATER SUPPLIES BEFORE SERVICING VALVE.
- The filter screen are attached to an insert that is fitted into the valve body inlets.
With the cartridge removed the 2 inserts and filter screens can be easily removed from the valve body.
- Remove the insert by pressing the top corner. This will rotate the insert allowing easy removal.
- There is a place on either side of the filter insert where you can get your finger nail underneath the filter screen.
By pulling the filter screen away from the insert it will "pop out".
- All debris can be now be easily removed from the filter screen.
Replace the filter screen into the insert and push together gently until it clicks into place.
- Place the insert back into the valve body, making sure the angled edge of the insert faces out.
The insert should sit flush against the wall of the valve body when properly installed.
Santec Inc.
3501 Challenger Street, Torrance, CA 90503
Tel: [phone] Fax [phone]
www.santecfaucet.com
STOP POST
Illustration D1
Illustration D2
MECHANICAL STOP
STOP POST
LIMIT STOP
LIMIT STOP
TEMPERATURE LIMIT STOP SET UP
-Santec Pressure Balanced Valve has a temperature limit stop ( please see Illustration B)
which once set properly can provide a safe and comfortable hot water.
Below is the limit stop installation procedure:
- Remove all Handle trim parts, including the trim plate.
- remove all internal parts up to the Limit Stop, do not remove the Mechanical Stop.
After Mechanical Stop is removed please follow the instruction bellow
- Turn the cartridge clockwise until it is stopped. Do not force to avoid damaging the cartridge.
- Insert the Mechanical Stop onto the cartridge
- Turn the cartridge counterclockwise to open the water line. Turn until it reaches the maximum
hot water desired by the user.
- Place Limit Stop as shown in the Illustration D2.
- Reinstall all the parts accordingly to the Illustration B.
MECHANICAL STOP
INSTALLATION INSTRUCTIONS DT2/DT3-KL,KR, KT _ _

WARNING : Do not clean yourSANTECproduct with ammonia (Window cleaner), bleach, soaps, acids,
abrasives, harsh polishes, harsh cleaners, a coarse surfaced cloth, coarse sponge, or any type of scouring
Polished & Satin 24K Gold:The Karat mark states the percentage of pure gold -- 24K is 100 percent gold. As one of
the Earth's most precious metals, gold is the most supple and malleable of all metals. Gold-plated faucets scratch easily. To
clean, wipe down with a dry soft cloth after each use. Gold surfaces should be coated with a thin layer of non-abrasive carnauba
wax or liquid car wax up to 3 or 4 times per year. This will prevent water spotting and water deposit buildup. We recommend
using SANTEC’s Polish which has been formulated to clean and seal, leaving behind a protective coating that will resist
tarnishing and improvewater repellency.
Antique Bronze : Antique bronze simulates the antiquity of Old-World craftsmanship with a golden base color and a blend
of dark undertones. To clean, wipe down with a dry soft cloth after each use. Antique Bronze should be coated with a thin layer
of non-abrasive carnauba wax or liquid car wax up to 3 or 4 times per year. We recommend using SANTEC’s Polish which has
been formulated to clean and seal,leavingbehind a protectivecoating that will resist tarnishing andimprove water repellency.
Oil Rubbed Bronze :Oil-rubbed bronze simulates the antiquity of Old-World craftsmanship with its warm, dark brown
color and copper undertones. To clean, wipe down with a dry soft cloth after each use. Oil-rubbed bronze should be coated with
a thin layer of non-abrasive carnauba wax or liquid car wax up to 3 or 4 times per year. We recommend using SANTEC Polish
which has been formulated to clean and seal, leaving behind a protective coating that will resist tarnishing and improve water
repellency.
Polished Chrome:
use. A non-abrasive all-metal cleaner can then be applied to restore the shine. The surface can also be coated with a thin layer of non-abrasive
carnauba wax or liquid car wax. This will prevent water spotting and water deposit buildup. We recommend using SANTEC’s Polishwhich
has been formulated to clean and seal, leaving behind a protective coating that will resist tarnishing and improve water repellency.
Polished and Satin Nickel
Thank you for making SANTEC a part of your lifestyle and luxury spa experience. Our products have been created as works of
CLEAR CO ATED F I N ISHES
N O N-CLEAR COATED FINISHE S
FINISH CARE INFORMATIO N
PLEASE REGISTER YOUR PRODUCT ONLINE FOR WARRANTY SERVICES
www.santecfaucet.com/registration
SANTEC
SANTEC
A non-abrasive all-metal cleaner can then be applied to restore the shine. The surface can also be coated with a thin layer of non-abrasive
carnauba wax or liquid car wax. This will prevent water spotting and water deposit buildup. We recommend using SANTEC’s Polishwhich
has been formulated to clean and seal, leaving behind a protective coating that will resist tarnishing and improve water repellency.
:use.

This warranty does not cover:
SANTEC res erves the right to examine any product claimed defective prior to any warranty claim being accepted or processed,
o
state.
Damage due to negligence, accident, abuse, improper installation, or improper maintenance such as, but not limited to: heat
from soldering during installation, the use of plumber’s putty, damage from tools used during installation, the use or exposure
to chemicals or cleaning products either abrasive or non-abrasive, or the use of any cleaning tool or product other than a
altered or used in a manner not typical for the product.
Loss, damages, or expense, incidental or consequential whatsoever, originating from the purchase, installation, use, repair,
failure, or replacement of any
SANTEC pro ductorpart, allowed by law.
Commercial and/or Industrial installationsand use of the product.
This warranty does not include labor, travel charges, or any costs incurred for repair, removal, installation, servicing,
diagnosing, or handling of either defective or replacement parts.
1.
2.
3.
4.
5.
SANTEC is committed to enhancing your bathroom experience by creating luxury products that will provide enduring
satisfaction. Every effort has been made to satisfy the highest standards of design and production, to create lasting peace of
mind for our customers. We provide the following limited warranties on ourproducts:
This warranty extends to the original consumer purchaser only and extends for as long as the original purchaser owns the
product and the home in which the product is installed.
Please read ‘WHAT IS COVERED BY OUR WARRANTY’ and ‘EXCLUSIONS AND LIMITATIONS OF WARRANTY’ sections to
understand what is and what is not covered.Please have ready the proof of purchase (original sales receipt), description of the
problem, and carefully package the product or defective part with postage prepaid. Then, please contact your local
SANTEC
Showroom or write to SANTEC Technical Services.
LIFET I ME LIMITE D WARRANTY
LENGTH OF WA RRANTY & WHO IS COVERED BY O U R WARRANTY
WHAT IS COVERED BY OUR WA RRANTY
EXCLUSIONS ANDLIMITATIONS OF WARRANTY
TO OB TAIN WARRANTY SERVICE
SANTEC
Access should be provided to the roman tub valves for future service or repair to valves and piping. Under no
circumstances will Santec Faucet, Inc. be liable for anycosts associated with the removal of materials for future
access to the tub valves or piping for service or repair.
1.
2.
3.
Limited wa rranty agains t manufacturing defects a nd tarnish to the or iginal purchaser with the
exclusion of kitchen drain a ssemblies which, due to the nature of t heir use , are not w arran ted.
manufacturin g defects and tarnish to the original purchaser with th e exclusion of kitch en and
pop-up dr ain assemblies which, due to the nature of their u se, ar e not wa rranted. Kitch en
pr oducts carry a three (3) yearlimited warranty.
Cartridges: Santec Cartridges car ry a lifetime limited warranty against m an ufacturing defects for
th e life of the p roduct to the original purchaser .
Parts: Santec part s carry a ten (1 0) year limited warranty against ma nufacturing defects, to t he
