Wavelength&Bandwidth Tunable Filter OTF-980
Introduction
Thank you for purchasing our product, Wavelength & Bandwidth Tunable Filter OTF-
980. This Instruction Manual contains information and precautions necessary for the
operation of OTF-980. This manual is intended for those with sufcient knowledge to
conduct the evaluation of laser danger and its safe control. Before operating OTF-980,
you should rst thoroughly read this Instruction Manual and become familiar with its
contents. After reading this Instruction Manual, keep it close at hand for easy reference
at any time.
The packing materials and box of this product are needed for long-term storage or
transportation, therefore, keep them even after unpacking this product.
NOTE

OTF-980 Operation Manual
Before using this product, please carefully read this Operation Manual.
NOTE
How to Read the Manual
Before operating OTF-980, please read carefully this instruction manual.
This Operation Manual consists of 11 Chapters:
Chapters 1 to 4 illustrate the outline of this product, safety precautions, and installation
of the product.
Chapters 5 describe how to operate the product. Santec recommends that
Chapters 1 to 4 are read carefully before proceeding to this chapter.
Chapter 6 explains information on the communication functions such as external
control of OTF-980.
Chapter 7 describes the operating principles.
Chapter 8 explains the specications.
Chapter 9 describes the maintenance and storage methods of this product.
Chapter 10 explains the packing instruction and shipping.
Chapter 11 describes the troubleshooting in operation.

Wavelength&Bandwidth Tunable Filter OTF-980
Explanation of Terms
The meanings of the following terms used in this Operation Manual are defined as
below:
(1) Meaning
NOTE
This indicates pressing DANGER, and if it
is not avoided, personnel death or serious
injury results, therefore, it is the most
emphasized special information.
This indicates potential danger, and if it is
not avoided, personnel death or serious
injury may result, therefore, it is special
information.
This indicates potential danger, and if it
is not avoided, mild or slight injury may
result, therefore, it is special information. It
also indicates potential danger leading to
only physical damage.
This indicates supplementary explanation
of the text, and thus other information than
DANGER, WARNING, and CAUTION.
CAUTION
WARNING!
DANGER!!
(2) Importance of Information
From the above meanings, the priority of the terms here are as shown below:
DANGER > WARNING > CAUTION > NOTE
DANGER
WARNING
CAUTION
NOTE

OTF-980 Operation Manual
Markings on the instrument
This mark is used on the equipment as warning of danger.

Wavelength&Bandwidth Tunable Filter OTF-980
1. Safety Information 1-1
2. Product Composition 2-1
3. Panel Description 3-1
3-1 Front Panel 3-1
3-2 Rear Panel 3-1
3-3 Bottom Panel 3-2
4. Installation 4-1
4-1 Operating Environments 4-1
4-2 Power Supply 4-2
5. Basic Operation 5-1
5-1 Turning on the Unit 5-1
5-2 Optical Fiber Connection 5-2
5-3 LCD Touch Panel Display 5-2
5-3-1 Main Screen Layout 5-2
5-3-2 Keypad Layout 5-3
5-3-3 Menu Navigation 5-4
5-4 LCD Operations Available from the Touch Panel 5-5
5-4-1 Setting the GPIB 5-5
5-4-2 Setting the LAN 5-6
5-4-3 Power Monitor 5-7
5-4-4 Peak Search 5-7
5-4-5 Setting the Wavelength 5-10
5-4-6 Setting the Bandwidth 5-11
5-4-7 Setting the Frequency 5-11
5-4-8 Setting the Offset 5-12
5-4-9 Additional System Information Ajusting the LCD backlight 5-13
6. Operation by Communication 6-1
6-1 GPIB 6-1
Contents
Introduction
How to Read the Manual
Explanation of Terms

OTF-980 Operation Manual
6-1-1 Connection 6-1
6-1-2 GPIB Function 6-2
6-2 USB 6-3
6-2-1 Connection 6-3
6-2-2 Communication Conditions and System Requirements. 6-3
6-3 Ethernet 6-3
6-3-1 Connection 6-3
6-3-2 Communication Conditions and System Requirements 6-4
6-4 Command Reference
6-4
6-4-1 Common Commands 6-4
6-4-2 OTF-980 Status System 6-5
6-4-3 IEEE488.2 Common Commands - Detailed Description 6-7
6-4-4 OTF-980 Specic Command Overview 6-9
6-4-5 OTF-980 Specic Command – Detailed Description 6-11
6-4-6 Command Error 6-21
6-5 Sample Program
6-22
7. Operating Principles 7-1
8. Specications 8-1
9. Maintenance 9-1
9-1 Daily Maintenance
9-1
9-2 Cleaning the Optical Connector
9-1
9-3 Inspection/Calibration
9-2
9-4 Long-term Storage
9-2
10. Re-packing and Shipping 10-1
10-1 Re-packing 10-1
10-2 Shipping 10-1
11. Troubleshooting 11-1

Wavelength&Bandwidth Tunable Filter OTF-980
1-1
Safety Information
1
Please note the following points when utilizing the instrument in order to protect and
prevent instrument failure.
The unit should not be operated in any of the following circumstances:
• If water or other liquid is spilt on the unit.
• When the unit is exposed to moisture.
• When the unit is cleaned or moved.
• If damage is found to the mains cord
• When the unit condenses.

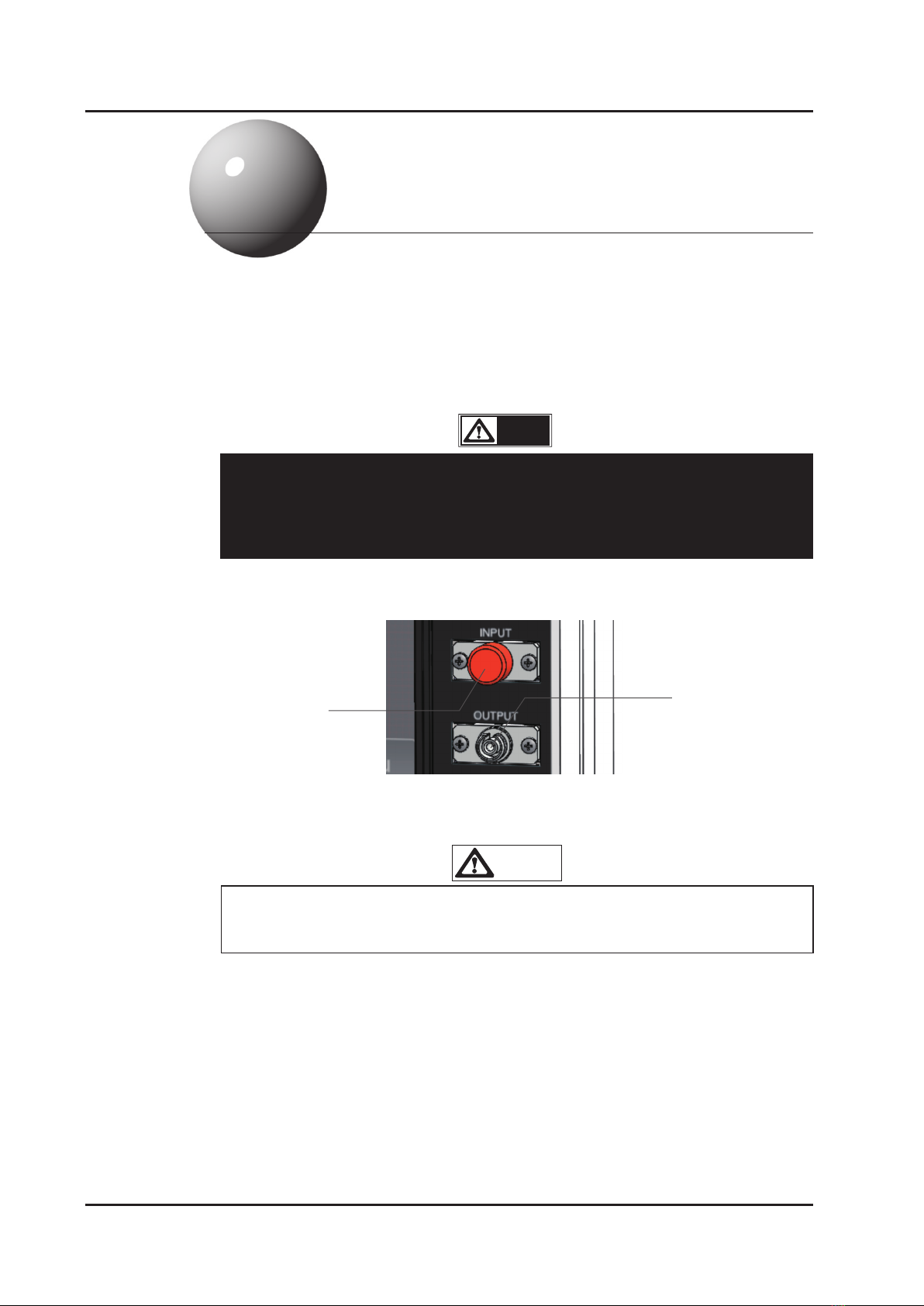

Protection cap
Laser beam emitting
port terminal
As for this product, when the laser is input from INPUT, the laser is output from
OUTPUT. The laser beam may cause permanent damage to your sense of sight
if it comes in contact with your eyes. Therefore special attention and careful
manipulation must be taken when operating this instrument.
DANGER!!
CAUTION
Need to turn off the main power switch on the upper power socket at the rear
panel in order to completely shut off the power of this product.

1-2
OTF-980 Operation Manual

Wavelength&Bandwidth Tunable Filter OTF-980
2-1
Product Composition
2
Inspection report 1
Operation Manual 1
OTF-980 body 1 Power cord 1
This product is composed of the OTF-980 body and accessories.
Check to make sure that all the following items are included.
Check to make sure that the product body and the accessories have no
scratches or stains. If any item is found to have scratches or stains, please
contact us.
The Photonics Pioneer

2-2
OTF-980 Operation Manual

Wavelength&Bandwidth Tunable Filter OTF-980
3-1
Panel Descriptions
3
3-1 Front Panel
Operation
condition LED
Power switch
LCD
Touch panel
Optical output
connector
3-2 Rear Panel
GPIB USB
Figure3-1. Front View
Figure3-2. Back View
Main power
switch
Power inlet
Nameplate
Optical input
connector
Ethernet
Exhaust fan

3-2
OTF-980 Operation Manual
3-3 Bottom Panel
Rubber legs
Figure3-3. Bottom View
Air Inlet

Wavelength&Bandwidth Tunable Filter OTF-980
4-1
Installation
4
CAUTION
Pay attention to the following guidelines for safe, trouble-free operation.
This product is a high-precision device and be designed to be used indoors (Pollution
Degree 2).
• Do not place over a height 2000 meter.
• Do not place in direct sunlight.
• Do not place under high temperature and high humidity.
• Do not use in an environment where combustible gas is generated.
• Do not place in an environment with dust, dirt, salt, or corrosive gas.
• Do not place in an area subject to large vibrations.
• Do not place in an area subject to noise by electric eld, magnetic eld, etc.
• Do not place in an area where the unit is subject to falling objects landing on it.
• Do not place with possible exposure to water.
• Do not insert and pull out the power cord with wet hands or operate the equipment
with wet hands.
Be sure to install the OTF-980 in a level place (less than 5 degree). It is
recommended to install this product on a vibration-proof base. The unit may not
operate correctly if the device is set in an inclined position.
The mainframe of the OTF-980 weighs about 8 kg. Please ensure that the table or
shelf upon which it is installed has sufcient strength.
Clearance of 5 cm at the rear side of the unit should be allowed for proper ventilation.
Please don't remove rubber legs from the bottom panel.
4-1 Operating Environments
In the case of continuous operation for more than 24 hours after the unit is turned
on, we recommend you to restart the OTF-980 for equipment maintenance.
NOTE

4-2
OTF-980 Operation Manual
4-2 Power Supply
This product uses a 3-line power cord and plug with a protective ground line. Power
cord may be attached and detached, Connect it to the power source socket at the rear
panel. Use the power cord supplied with the unit. Do not use the inappropriate power
code.
This product complies with overvoltage category Ⅱand can operate between 100 to
240 Volts, and 50 to 60Hz AC Line. Temporary over voltage (TOV) is 1,500 Volts.
Use two surge resistant type fuses. T1.6A/250V(100-240V)
If the power cable is connected while the main power switch is in the “on” position, the
power supply will be enter“standby mode.”
CAUTION
This product is grounded by the ground line in the supplied power cable. This
product must be properly grounded to avoid electrical shock and other dangers.
Please make sure that this product is properly grounded to avoid electrical shock.
In addition, please place this product in a location that allows the user to easily
unplug the power cable, in case of any device malfunction.
Do not insert and pull out the power cord with wet hands or operate the equipment
with wet hands. It may cause electric shock.
WARNING
!

Wavelength&Bandwidth Tunable Filter OTF-980
5-1
1. The power cord socket is located on the unit’s rear panel. Plug the power cord
into the socket.
2. Please turn on the main switch on the rear panel and then turn on the power
switch on the front panel.
1. When the unit is powered on it will enter its start up sequence. During this
sequence the Santec logo will be displayed on the touch panel (as seen below).
Basic Operation
5
5 -1 Turning on the Unit
Power On/Off Key Switch
Power LED
Figure5-1. Power switch
2. When the start up sequence has nished, the main screen will be displayed (See below).

5-2
OTF-980 Operation Manual

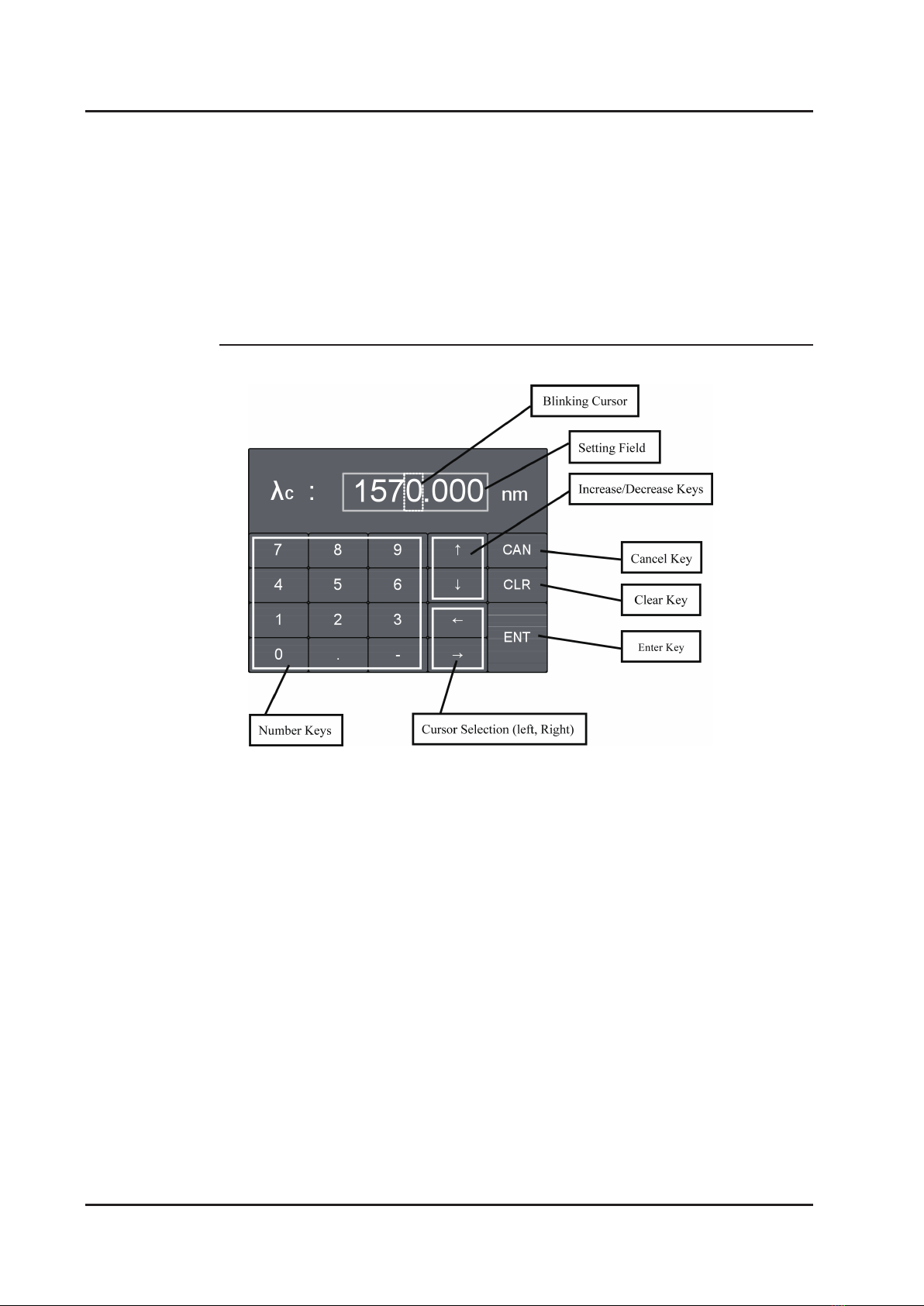

5-3 LCD Touch Panel Display
Figure5-3-1. Main screen Display
5 -2 Optical Fiber Connection
Remove the cap of the optical “INPUT” connector and connect the optical ber to the
connector.
CAUTION
Before connecting an optical ber, always clean the end face of the connector.
In addition, we recommend that the socket is also periodically cleaned (see
Section 9-2). If dirt is present on either the end face of the connector or the
socket, the insertion loss will be increased. In addition, when high optical
powers are used there is the possibility that the connectors may be damaged by
scorching. Before connecting the input light, check that the optical power does
not exceed the maximum specied level for the OTF-980. The maximum level
is +27dBm. If the optical input exceeds this limit, there is a risk of damage to the
OTF-980’s internal optical elements.
■5-3-1 Main Screen Layout

Wavelength&Bandwidth Tunable Filter OTF-980
5-3
■5-3-2 Keypad Layout
Use the keypad to input numerical values.
Figure5-3-2. Keypad Input Screen

5-4
OTF-980 Operation Manual
Figure5-3-3. Menu Navigation
■5-3-3 Menu Navigation
Pressing the “Menu” button will allow you to cycle through all of the available
“Function” buttons (see below).
Table 5-1. Button Display and Explanation
nm/THz Changes between wavelength mode and frequency mode
mW/dBm Changes the power unit of measure.
P.Search Starts the peak search function
Offset Ajusts the offset between the center wavelength and bandwidth.
Info. General system information
Maint. Maintenance information
LAN LAN connection properties
GPIB GPIB connection properties
Dimmer Ajust the touch panel brightness
