IMPORTANT NOTICE
If, after powering the unit, closing the run contact and sending the speed reference, the motor does
not start, check that the power circuit supply at term. 23-24 has the SAME PHASE of the control
circuit supply at term. 25-26.
If no transformer is installed on the power section, with power circuit on (remote control switch
closed, if any), check that an alternating voltage is present with a zero effective value (200mV)
between terminals 23 and 25, and between terminals 24 and 26.
STANDARD CONFIGURATION
If no custom configuration is required, the standard configuration of the AMS90/1 drive
is the following:
CONTROL SECTION POWER SUPPLY: 400Vac ±15% / 50Hz (jumper J2→pos. 400).
POWER SECTION POWER SUPPLY: 400Vac max/50Hz.
TACHO GENERATOR FEEDBACK: 180VDC max.
CURRENT LIMIT: rated value.
WARNING: before powering the unit on, check that the voltage (TR3, J2) and
frequency (*) values on the plate match those of the supply mains at terminals 25-26.
(*) Since December 2006, ES719 control board has been replaced by ES886
control board.
On ES719 board rated mains frequency is set by dip-switch SW1, while on
ES886 board it is set by jumper J6.

AMS90/1 APPLICATIONMANUAL
15P0056B1
3/20
GENERAL FEATURES
Application AMS90/1 is a HALF-CONTROLLED AC/DC SINGLE-PHASE DRIVE used to
supply armature and field circuits of D.C. motors, with SMT analog circuit for
speed or torque control.
Power section supply 230/400VAC ±15% single-phase, through voltage setting jumper, 50/60Hz through
selection jumper (dip-switch). 415/440VAC ±15% voltage values on demand.
Field supply Single-phase rectifier bridge with suppression varistor.
Armature voltage 0…280VDC max (for power section supply at 400VAC max).
Mains insulation Galvanic type, with tacho generator feedback.
Reference supplies Stabilized, with values ranging from +10VDC to –10VDC.
Speed inputs 1 direct input + 1 ramp input, through voltage reference signal 0…+10VDC, with
terminal board output.
1 direct input through current reference signal 4…20mA, to be selected through
proper jumper setting.
Adjustments Max. and min. speed value (min. value selectable through potentiometer).
Stability.
Internal or external current limit.
Armature compensation.
Acceleration and deceleration ramps.
Speed offset.
Light indicators Presence of supply direct voltages.
Current limit reached.
Zero speed.
Running drive.
Auxiliary functions Gradual acceleration and deceleration, with run automatic release.
Tacho generator feedback with automatic polarity rectification.
High-impedance armature feedback, with R x I drop compensation.
Current limit Selectable through internal trimmer or external voltage 0…-10VDC.
Analog outputs Voltage signal 0…+10VDC V OUT proportional to motor speed.
Current signal 0…+10VDC I OUT proportional to armature current.
Digital I/Os Input for RUN/STAND BY control through high or low voltage level, selectable
through jumper.
Output with insulated relay contact, for zero speed signalling.
Room conditions Natural ventilation.
Temperature from 0 to 40C max. with 4% derating for every degree of increase.
Relative humidity 20…90% (without dew).
Height: 1000m max (a.s.l.). 1% derating for every 100m increase.
Weight 2.65kg for AMS90/1.10 and .20; 3.3kg for AMS90/1.30.
Protection degree IP20.

15P0056B1
APPLICATIONMANUAL AMS90/1
4/20
Ground screw (thread M5).
Fixing on vertical panel through 4 M4 screws.
Let a free space in the upper and lower side of the drive, so as the cooling air can
circulate.
To access the drive inside, unscrew the two self-tapping screws 3.5x9.5 used for
cover fastening.

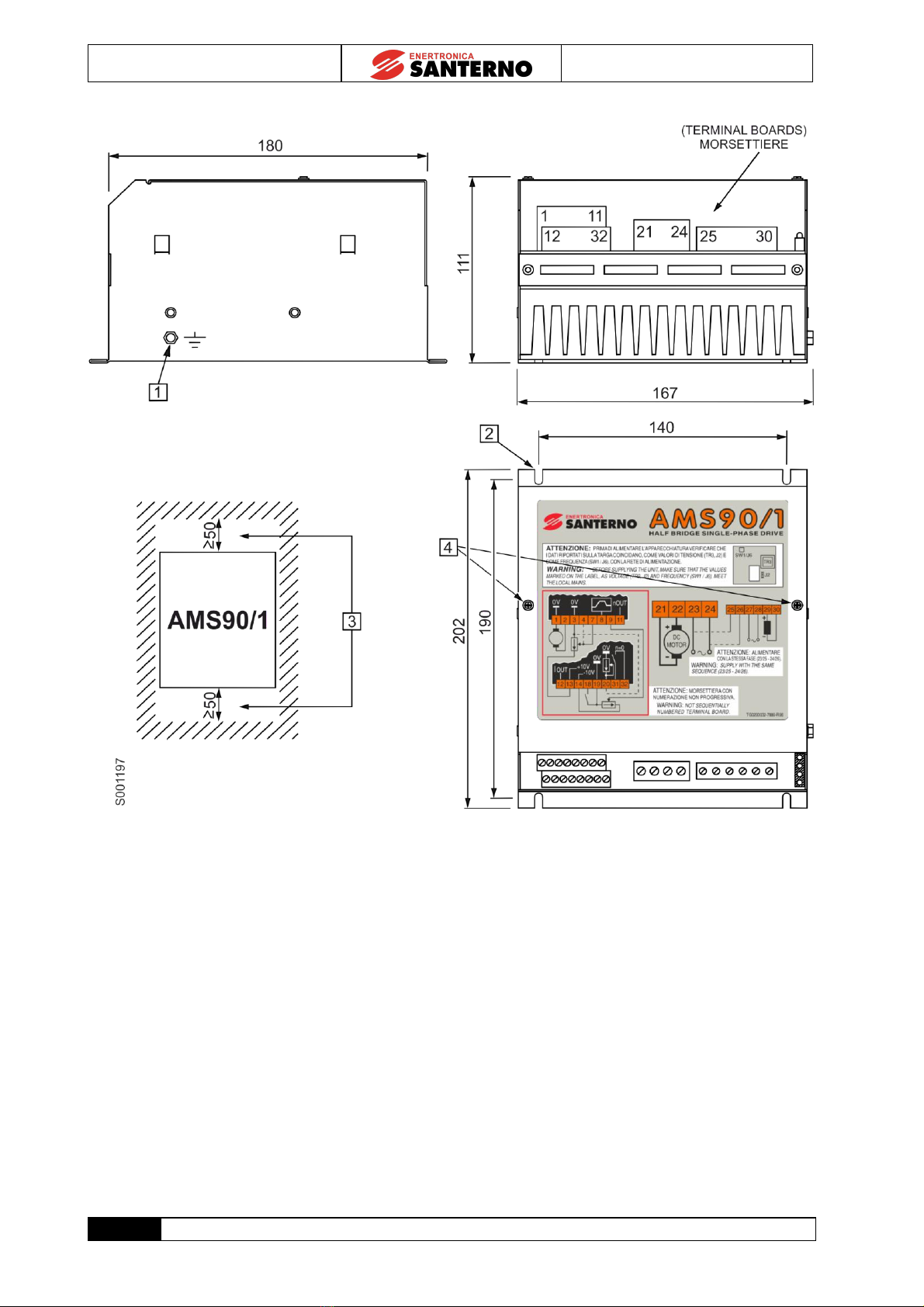

Fig. 1 - External and fixing dimensions

AMS90/1 APPLICATIONMANUAL
15P0056B1
5/20
POWER AND SUPPLY CONNECTIONS
(See fig. 2)
EF
Single-phase filter against electromagnetic interference (EMI). See
section EMI CHARACTERISTICS AND INPUT FILTER.
L1/L2
Supply single-phase mains 50/60Hz (standard 400VAC ±15%).
FU1/FU2
Ultrafast fuses for AC/DC armature bridge protection.
FU3/FU4
Delayed fuses for TC auto-transformer primary protection.
FU5
Ultrafast fuse for field AC/DC bridge.
FU6/FU7
2A ultrafast fuses to protect the control circuit supply internal
transformer.
KM
Supply remote control switch for AC/D armature bridge.
L1
Switching impedance.
L2
Levelling impedance for form factor enhancement.
TC
Auto-transformer (if any) for D.C. motor field supply.
The alternate voltage VEA on the secondary is obtained from the direct
voltage VEC through the following formula:
11.1 ECEA VV
M1
D.C. motor (armature circuit + field circuit).
Note: at term. 29-30, a 2Amax direct current can be delivered for field winding, for all AMS90/1 sizes.
Do not exceed this value.
If the motor needs a higher current, the field circuit should be supplied separately.
SIGNAL CONNECTIONS
(See fig. 3)
RP1
2K5 potentiometer for speed reference.
RP2
2K5 potentiometer for current limit reference (only with AMS90/1 properly
preset: see jumper J5).
KA
Run contact.
BR
Tacho generator.
PV
Tacho instrument.
PA
Ammeter instrument.
KM
NO contact of supply remote control switch for AC/DC armature bridge.

15P0056B1
APPLICATIONMANUAL AMS90/1
6/20
Connect term. 25-26 IN PHASE with term. 23-24 respectively.
Fig. 2 - Power and supply connections diagram

AMS90/1 APPLICATIONMANUAL
15P0056B1
7/20
Note: to have the drive match the standards concerning radio-frequency immunity characteristics, keep 0V
of the board (term. 1-3-19) insulated from earth.
In turn, connect cable shield to the earth, through a connection that should be as short as possible.
Always fit a NO auxiliary contact of KM remote control switch at terminal
18, as closure of KM remote control switch AFTER closure of RUN contact, if control
section is already supplied at terminal 25-26, may destroy internal power module.
Fig. 3 - Signal connection diagram

15P0056B1
APPLICATIONMANUAL AMS90/1
8/20
SIZE PART NUMBERS AND ULTRAFAST FUSES TABLE
Drive
Product
Part
Number
Size
Part
Number
Max.
mean
curr.
(A)
Max.
form
factor
Ultrafast
fuses
FU1/2
(A)
Max I2T
for FU1/2
VA L I M +10%
(A2s)
AMS90/1.10 supp.230V
ZZ0056020
01230
10
1.5
25
150
AMS90/1.10 supp.400V
ZZ0056020
01400
AMS90/1.10 supp.415V
ZZ0056020
01415
AMS90/1.10 supp.440V
ZZ0056020
01440
AMS90/1.20 supp.230V
ZZ0056020
02230
20
25
150
AMS90/1.20 supp.400V
ZZ0056020
02400
AMS90/1.20 supp.415V
ZZ0056020
02415
AMS90/1.20 supp.440V
ZZ0056020
02440
AMS90/1.30 supp.230V
ZZ0056030
03230
30
40
250
AMS90/1.30 supp.400V
ZZ0056030
03400
AMS90/1.30 supp.415V
ZZ0056030
03415
AMS90/1.30 supp.440V
ZZ0056030
03440
WARNING: The use of ultrafast fuses FU1/2 is recommended to protect the internal
power module in case of undesired external short -circuits. Comply with the max.
prescribed value for I2t.
NOTE: The supply voltage given above for each model is the nominal value for the
control section(±15% tolerance), whilst it is the maximum value for the power section.
The two voltage values may be different provided that they are in phase with each
other.
The L1 switching impedance is 35A/150H
(ENERTRONICA SANTERNO S.P.A. Part Number: IM0100354).
The current FF form factor can be obtained by measuring the effective value
  ae
I
of the
alternate component of the current absorbed by the motor (with a A.C. instrument with
real effective value) and the mean value Imof the same current (with a D.C. instrument).
The result is given by the following formula:
 
m
mae
I
II
FF 22  
Since the motor and drive heating, as well as the periodical maintenance operations on
brushes and manifold, depend on the form factor, apply the levelling inductance L2 so
as to keep the form factor value as close as possible to 1.
Through the following formula, you can get the L2 mH value of the levelling inductance
to be inserted, assuming the motor one is negligible, using the desired form factor FF
value, the supply alternate voltage Vavalue and the mean output current Imvalue:
 
1
9.0
22

FFI
V
mHL
m
a

AMS90/1 APPLICATIONMANUAL
15P0056B1
9/20
ES886 (ES719) CONTROL BOARD DESCRIPTION
(see fig. 4)
ADJUSTMENT TRIMMERS
(RV1) 10V
Supply voltages ±10V.
Do not change.
(RV2) n MIN
Min. speed, selectable on the negative terminal of the RP1 speed
potentiometer.
(RV3) STAB
Stability (PI time constant of voltage amplifier).
(RV4) UP
Acceleration ramp (0,5 ... 100sec).
(RV5) DOWN
Deceleration ramp (0,5 ... 100sec).
(RV6) n OUT
Signal output at term. 11, proportional to the motor rotation speed
(tacho generator feedback), or to the voltage output at terminals 21-
22 in case of armature feedback.
(RV7) I LIM
Internal current limitation.
(RV8) COMP
Compensation for armature drop R x I.
Note: in case of tacho generator feedback, keep it in CCW position.
(RV9) n MAX
Max. speed.
Tacho generator feedback: adjustable within the range 22…230VDC
with ES886 board (40…230VDC with ES719 board) at term. 1-2.
Armature feedback: adjustable within the range 30…314VCC with
ES886 board (55…325VDC with ES719 board) at term. 21-22.
(RV10) n OFS
Speed amplifier offset: the correct adjustment of this trimmer avoids
speed drift with zero reference and, at the same time, an area
insensitive to minimum references.
Change it only if required: see section CALIBRATION.
SIGNALING LEDS
(L1) 15V Presence of ±15Vdc supply voltages.
(L2) n=0 Motor at zero speed.
(L3) RUN Operation enabling.
(L4) LIM Drive in current limitation.
... cont.

15P0056B1
APPLICATIONMANUAL AMS90/1
10/20
... cont. ES886 (ES719) CONTROL BOARD DESCRIPTION
(see fig. 4)
PRESET JUMPERS
(STANDARD Pos.: J2 400, J3 L, J4 V, J5 I, J6 50Hz)
J2 pos. 230 230Vac supply ±15% at terminals 25 and 26.
J2 pos. 400 400Vac supply ±15% at terminals 25 and 26.
NOTE: If required, a suitable TR3 transformer can be installed on control board in order to supply the
terminals 25 and 26, according to the position of jumper J2, by 415Vac ±15% or 440Vac ±15% voltage.
J3 pos. L Drive enabling at term. 18 (RUN) closing towards 0V, through
insulated relay contact or NPN transistor.
J3 pos. H Drive enabling at term. 18 (RUN) closing towards a positive voltage
of 0…30VDC, through insulated relay contact or NPN transistor.
J4 pos. V Term. 7 configured as ramp input for a voltage speed reference of
0…+10VDC.
J4 pos. I Term. 7 configured as ramp input for a current speed reference of
4…20mA (current output from term. 7).
J5 pos. I Inner adjustment of current limit.
J5 pos. E External control of current limit.
J6 pos. 50Hz With ES886 board only: Presetting for mains supply by 50Hz
frequency.
J6 pos. 60Hz With ES886 board only: Presetting for mains supply by 60Hz
frequency.
SELECTION DIP-SWITCHES
(STANDARD Pos.: SW1(1+2) OFF, SW2(1+2+3+4) OFF)
SW1 contacts 1+2 OFF
(bottom contacts)
With ES719 board only: Selection for mains
supply by 50Hz frequency.
SW1 contacts 1+2 ON
(top contacts: 60)
With ES719 board only: Selection for mains
supply by 60Hz frequency.
SW2 contacts 1+2+3+4 OFF
(bottom contacts)
Selection for tacho generator feedback at terminals
1 and 2.
SW2 contacts 1+2+3+4 ON
(top contacts: ARM)
Selection of armature feedback, at high impedance.
In this case, the tacho generator signal should NOT
be present at term. 1 and 2.
Note: act on contacts SW2 only when term. 25-26 are NOT
supplied.
Note: under TACHO GENERATOR feedback, if you close only
the key no. 4 (the right one) of SW2, you LOWER the max.
speed range - which can be obtained through trimmer RV9 (n
MAX) - up to 5…46VDC with ES886 board (16…92VDC with
ES719 board) at term. 1-2.
