IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ ENTIRE MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS
CAUTION: Avoid potential personal injuries and property damage!
●Please read through these instructions completely to be sure you’re comfortable with this easy install process.
●Do not use this product for any purpose not explicitly specified by manufacturer.
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
●If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact
customer service.
Tools Required
Tape MeasureStud Finder
This product conforms to and should be properly grounded in compliance with requirements of the current National Electrical Code or
codes administered by local authorities.
All electrical products may present a possible shock or fire hazard if improperly installed or used. This product may bear the mark of a
Nationally Recognized Testing Laboratory and should be installed in conformance with current local and/or the National Electrical Code.
Pencil Phillips Screwdriver Slotted Screwdriver
Paint (optional)
Surfaces are paintable
to match your decor
WARNING: This product contains small items that could be a choking hazard if
swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are
missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never
use damaged parts!
BEFORE DRILLING ANY HOLES:
Make sure your TV plug fits in the upper
module 02 and your soundbar fits in
soundbar module 03 .

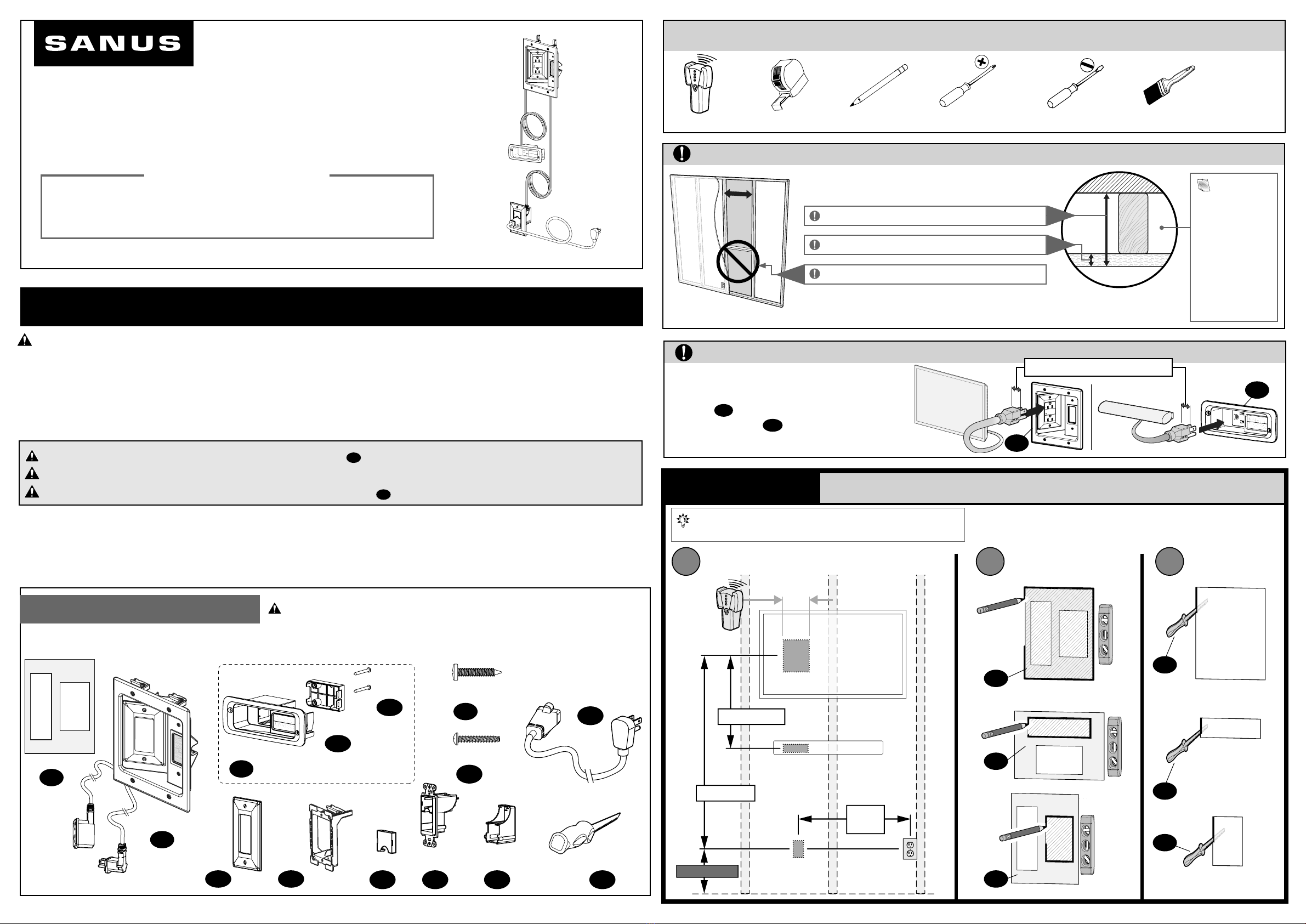

STEP 1
v
Upper
Module
Lower
Module
Soundbar
Module
Cutting Template
Power Cord
Soundbar
Housing
Soundbar
Housing
Screw
Cover
Plate
Front Housing
Screw
Back Housing Screw
Cap Front Plug
Housing
Back Plug
Housing Drywall Saw
11
04
05
06 07
12
08 09 10
13
14
02
03
01
Cut Holes
Supplied Parts
TIP: Drill the upper hole BEHIND your TV and the
middle hole BEHIND your soundbar.
MAX: 1 ⅛ in. (29 mm)
02
03
Outlet Height
TV
Soundbar
Up to 8 ft.
Up to 3 ½ ft.
Up to
6 ft.
1 2 3
LOCATE TRACE CUT
UPPER
(TV)
MODULE
LOWER
MODULE
MIDDLE (SOUNDBAR) MODULE
01
01
01
14
14
14
Model WSIWPSB1-W1
OWNERS GUIDE
IN-WALL POWER KIT
We’ll Make It Stress-Free
If you have any questions along the way, just give us a call.
800-359-5520 or, chat at SANUS.com/chatSP
We’re ready to help!
This Cable Kit is designed to fit into both interior
and exterior walls constructed with:
Minimum Space into Wall: 3 in.
Minimum Drywall Thickness: 1/2 in. (MAX: 1 in.)
No Fire Block Stud in the cavity *
NOTE:
The cable Pass-
Through Width is
1.75 inch.
Walls with blown-
in type insulation
may require
removal of some
insulation inside
the cavity.
Drywall
Stud
Back Wall
* A horizontal fire block stud requires a 1.75 inch hole to pass the power cord.
This requires removal, then repair of drywall, to gain access to that stud.
We recommend you consult a professional.
Verify Wall Compatibility
Verify TV Plug Fit
WARNING: RISK OF FIRE AND SHOCK. Do not connect the module 02 to any other circuits or outlets.
CAUTION: RISK OF FIRE AND SHOCK. ONLY intended for use on 15 ampere branch circuits.
CAUTION: RISK OF FIRE AND SHOCK. Do not install power supply cord 13 within wall cavity.
Doc. #1507331 08/20 Rev A

Route Power Cords
and Any Low Voltage Cables
Assemble Modules Secure Modules
Secure Lower Module
Install Cables
STEP 2 STEP 3 STEP 4
STEP 5
STEP 6
Removal
abTurn screws to remove modules
Loosen ONLY enough to remove module.
Unplug
power
TV
Soundbar
Power Cord
DO NOT over
tighten screws
TIP: Use a fish
tape, to pull the cables
through the wall.
13
02
03
03
07
02
07
11
09
08
02
09 10
12
09
06
DO NOT over
tighten screws
Legrand AV Inc.
6436 City West Parkway;
Eden Prairie, MN 55344 USA
SANUS.com | 800-359-5520
Legrand AV Inc. and its aliated corporations and subsidiaries (collectively, “Legrand”), intend to make
this manual accurate and complete. However, Legrand makes no claim that the information contained
herein covers all details, conditions, or variations. Nor does it provide for every possible contingency
in connection with the installation or use of this product. The information contained in this document
is subject to change without notice or obligation of any kind. Legrand makes no representation of
warranty, expressed or implied, regarding the information contained herein. Legrand assumes no
responsibility for accuracy, completeness or suciency of the information contained in this document.
©2020 Legrand AV Inc. All Rights Reserved. SANUS is a Legrand AV Inc. brand. SANUS and the SANUS
logo are trademarks of Legrand.
