Sanus ELM809 User manual

Power Extension Cable Management
Tools for Installation
Not Included
Stud Finder Flat-Blade
Drywall Saw
THIS PRODUCT IS NOT TO BE INSTALLED, DIRECT WIRED, OR BRANCHED TO THE BUILDING ELECTRICAL CIRCUIT/WIRING SYSTEM !
DO NOT MODIFY OR ALTER ANY PORTION OF THE COMPONENTS OF THE FACTORY ASSEMBLED APPLIANCE
Do not install this product near water, example, near a sink, tub, shower, swimming pool or laundry area.
Manufacturer is not liable for damages due to improper installation methods not followed herein.
This product does not have built-in electronic circuitry for surge protection or A/C filtering.
It is recommended that this product be connected to a quality surge-protector/power conditioner for equipment protection.
Step 1 Locaon - Wall Cutout
Determine SoundBar wall mount locaon.
Align between wall framing studs.
Use stud finder to determine in-wall obstrucons between
framing both VERTICALLY and HORIZONTALLY.
Install horizontal below, TV PowerOUT and wall bracket.
Align with upper TV PowerOUT within same stud-bay
no more than 60” apart.
Install no more than 60” apart from the lower PowerIN,
unless you install oponal PowerConnector Extension part CKRE
Use supplied template sheet to mark area to cut out from drywall.
Use a level to maintain proper alignment.
Carefully use drywall saw to cut along outside of line.
Do not exceed more
than 60” apart
PowerOUT
PowerIN
|
Kit Includes:
Slim-line In-Wall Power Outlet and Cable Pass Panel Pre-wired PowerConnectors.
1’ outlet connection / 6’ inlet connection. Cutout template.
Only attempt installaon within
2x2 or 2x4 wood/metal stud
framed wall.
Extend distance between
SoundBar and PowerIN
!
!
PowerOUT Panel
If insulaon exists, remove or push
completely away from the openings
to allow flush mounng properly.
LEVEL
!
Level
SoundBar
!
Wall Cut-out Template:
Lay against wall, use a level on edge of pape
Use a pencil to trace around edge.
Use drywall saw or sharp utility knife cut on t
Part No. 2013 All Rights Reserved
In-Wall Power for SoundBar
Disclaimer. Milestone AV Technologies, it's agents, suppliers, and affiliates, shall not be liable for any damages, not limited to; misuse, acts of nature,
verbal and written expression and improper installation. Improper installation is determined such to include, not limited to, non-code compliant installation, product
modifications, alterations, adjustments, and substitutions of components or materials.
Limited 2-year Warranty from Manufactures Defects: This product has a LimitedTwo Year product warranty against manufacturer's defects.
If you have any questions or experience any problems with this product, please contact Customer Service.
This product, ELM809, requires installation with Sanus In-Wall Power Kits only.
Install only with models- ELM806, ELM807, and ELM808.
use oponal part ELM810
PowerConnect Extension
Model ELM809
SoundBar Connector Kit
SANUS • 6436 City West Parkway • Eden Prairie, MN 55344 USA
Customer Service: 800-359-5520 • 952-225-6013 • [email protected] • sanus.com
Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively, “Milestone”), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein
covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without
notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of
the information contained in this document.
©2014 Milestone AV Technologies. All rights reserved. Sanus is a division of Milestone.
All other brand names or marks are used for identification purposes and are trademarks of their respective owners.

6901-002332 00

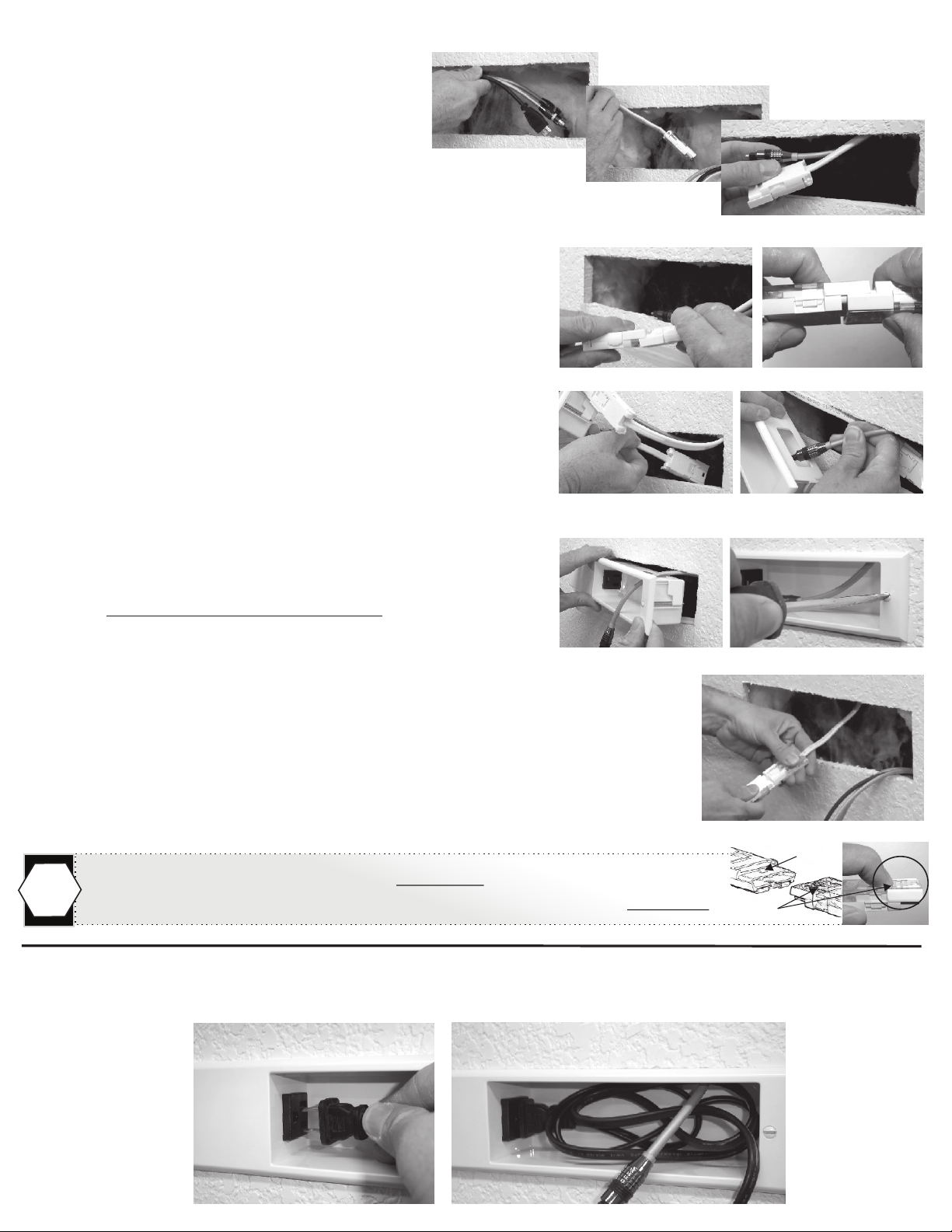

Step 2 Wall Installaon
A) Begin at the upper TV PowerOUT locaon.
1) Drop / wall-fish audio cables to the SoundBar
2) REPEAT for PowerConnect cable with connector.
3) Pull PowerConnect cable and audio cable through SoundBar cutout.
Step 3 Plug in SoundBar power cord. Wind cord in cavity.
Install SoundBar per manufactures directions.
To disconnect PowerConnectors, push-in end of Locking Latch on the top side of both connectors.
Press with finger ps at the same me pulling apart connectors to disconnect from Locking Tabs.
!
Locking Tab
Locking Latch
B)
together to the short 1’ top PowerConnect Cable of the SoundBar.
You should hear a click sound locking both together.
C) Drop / wall-fish 6’ PowerConnect cable down
to the PowerBridge PowerIN locaon.
D) Slide any audio cables from the TV through cable opening.
Connect the upper PowerOUT PowerConnect Cable connectors
E) Slide SoundBar power panel into wall opening.
Use Flat-Blade screw driver to secure panel to wall.
Careful to not over-ghten
F) At PowerIN locaon, connect both PowerConnect Cable connectors together.
You should hear a click sound locking both connectors together.
Complete installaon of PowerBridge Power Kit.
A1) Audio Cables from TV
A2) PowerConnect (TV)
A3) SoundBar opening
